XvaEngineCG Class Reference

#include <orea/engine/xvaenginecg.hpp>

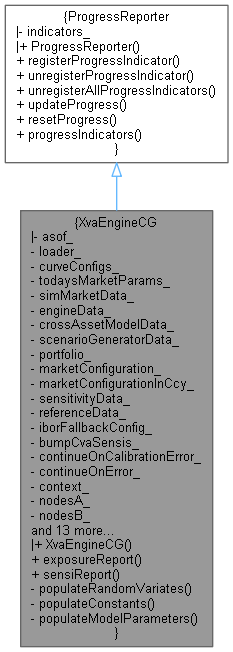

Inheritance diagram for XvaEngineCG:

Collaboration diagram for XvaEngineCG:

Public Member Functions
	XvaEngineCG (const Size nThreads, const Date &asof, const QuantLib::ext::shared_ptr< ore::data::Loader > &loader, const QuantLib::ext::shared_ptr< ore::data::CurveConfigurations > &curveConfigs, const QuantLib::ext::shared_ptr< ore::data::TodaysMarketParameters > &todaysMarketParams, const QuantLib::ext::shared_ptr< ore::analytics::ScenarioSimMarketParameters > &simMarketData, const QuantLib::ext::shared_ptr< ore::data::EngineData > &engineData, const QuantLib::ext::shared_ptr< ore::analytics::CrossAssetModelData > &crossAssetModelData, const QuantLib::ext::shared_ptr< ore::analytics::ScenarioGeneratorData > &scenarioGeneratorData, const QuantLib::ext::shared_ptr< ore::data::Portfolio > &portfolio, const string &marketConfiguration=Market::defaultConfiguration, const string &marketConfigurationInCcy=Market::inCcyConfiguration, const QuantLib::ext::shared_ptr< ore::analytics::SensitivityScenarioData > &sensitivityData=nullptr, const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceData=nullptr, const IborFallbackConfig &iborFallbackConfig=IborFallbackConfig::defaultConfig(), const bool bumpCvaSensis=false, const bool continueOnCalibrationError=true, const bool continueOnError=true, const std::string &context="xva engine cg")
QuantLib::ext::shared_ptr< InMemoryReport >	exposureReport ()
QuantLib::ext::shared_ptr< InMemoryReport >	sensiReport ()
Public Member Functions inherited from ProgressReporter
	ProgressReporter ()
void	registerProgressIndicator (const QuantLib::ext::shared_ptr< ProgressIndicator > &indicator)
void	unregisterProgressIndicator (const QuantLib::ext::shared_ptr< ProgressIndicator > &indicator)
void	unregisterAllProgressIndicators ()
void	updateProgress (const unsigned long progress, const unsigned long total, const std::string &detail="")
void	resetProgress ()
const std::set< QuantLib::ext::shared_ptr< ProgressIndicator > > &	progressIndicators () const

Private Member Functions

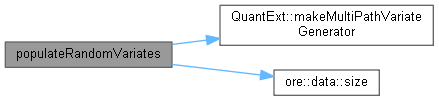

void	populateRandomVariates (std::vector< RandomVariable > &values) const
void	populateConstants (std::vector< RandomVariable > &values) const
void	populateModelParameters (std::vector< RandomVariable > &values, const std::vector< std::pair< std::size_t, double > > &modelParameters) const

Private Attributes
Date	asof_
QuantLib::ext::shared_ptr< ore::data::Loader >	loader_
QuantLib::ext::shared_ptr< ore::data::CurveConfigurations >	curveConfigs_
QuantLib::ext::shared_ptr< ore::data::TodaysMarketParameters >	todaysMarketParams_
QuantLib::ext::shared_ptr< ore::analytics::ScenarioSimMarketParameters >	simMarketData_
QuantLib::ext::shared_ptr< ore::data::EngineData >	engineData_
QuantLib::ext::shared_ptr< ore::analytics::CrossAssetModelData >	crossAssetModelData_
QuantLib::ext::shared_ptr< ore::analytics::ScenarioGeneratorData >	scenarioGeneratorData_
QuantLib::ext::shared_ptr< ore::data::Portfolio >	portfolio_
std::string	marketConfiguration_
std::string	marketConfigurationInCcy_
QuantLib::ext::shared_ptr< ore::analytics::SensitivityScenarioData >	sensitivityData_
QuantLib::ext::shared_ptr< ReferenceDataManager >	referenceData_
IborFallbackConfig	iborFallbackConfig_
bool	bumpCvaSensis_
bool	continueOnCalibrationError_
bool	continueOnError_
std::string	context_
std::vector< bool >	nodesA_
std::vector< bool >	nodesB_
std::vector< bool >	nodesC_
std::vector< bool >	nodesD_
QuantLib::ext::shared_ptr< ore::data::Market >	initMarket_
QuantLib::ext::shared_ptr< ore::analytics::ScenarioSimMarket >	simMarket_
QuantLib::ext::shared_ptr< SensitivityScenarioGenerator >	sensiScenarioGenerator_
QuantLib::ext::shared_ptr< CrossAssetModelBuilder >	camBuilder_
QuantLib::ext::shared_ptr< GaussianCamCG >	model_
std::vector< std::pair< std::size_t, double > >	baseModelParams_
std::vector< RandomVariableOpNodeRequirements >	opNodeRequirements_
std::vector< RandomVariableOp >	ops_
std::vector< RandomVariableGrad >	grads_
QuantLib::ext::shared_ptr< InMemoryReport >	epeReport_
QuantLib::ext::shared_ptr< InMemoryReport >	sensiReport_

Detailed Description

Definition at line 48 of file xvaenginecg.hpp.

Constructor & Destructor Documentation

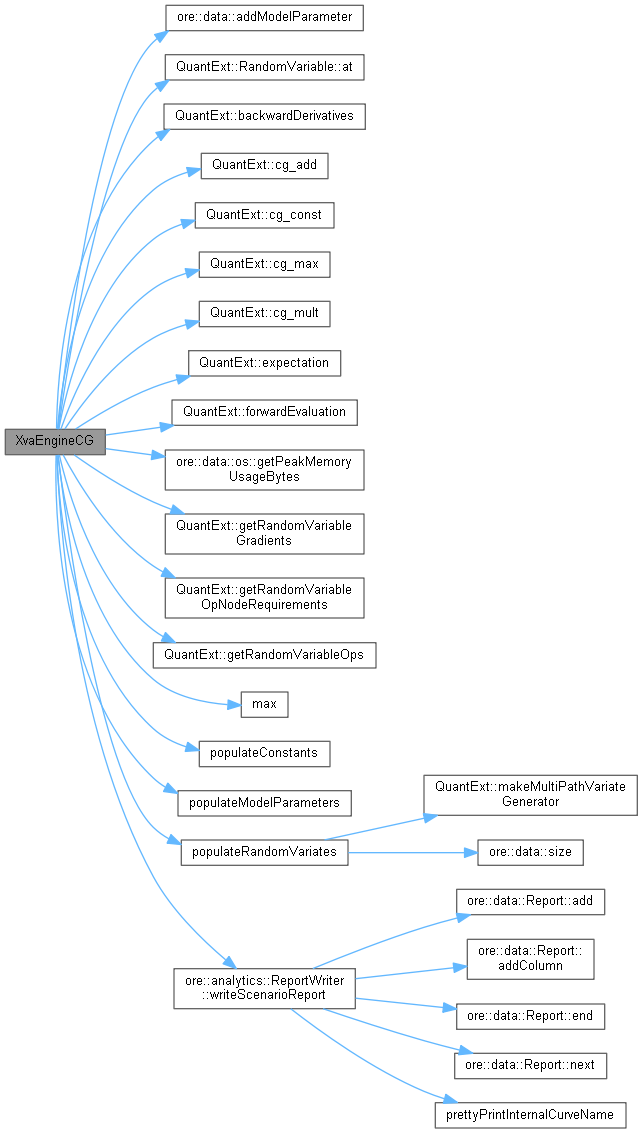

XvaEngineCG()

XvaEngineCG	(	const Size	nThreads,
		const Date &	asof,
		const QuantLib::ext::shared_ptr< ore::data::Loader > &	loader,
		const QuantLib::ext::shared_ptr< ore::data::CurveConfigurations > &	curveConfigs,
		const QuantLib::ext::shared_ptr< ore::data::TodaysMarketParameters > &	todaysMarketParams,
		const QuantLib::ext::shared_ptr< ore::analytics::ScenarioSimMarketParameters > &	simMarketData,
		const QuantLib::ext::shared_ptr< ore::data::EngineData > &	engineData,
		const QuantLib::ext::shared_ptr< ore::analytics::CrossAssetModelData > &	crossAssetModelData,
		const QuantLib::ext::shared_ptr< ore::analytics::ScenarioGeneratorData > &	scenarioGeneratorData,
		const QuantLib::ext::shared_ptr< ore::data::Portfolio > &	portfolio,
		const string &	marketConfiguration = Market::defaultConfiguration,
		const string &	marketConfigurationInCcy = Market::inCcyConfiguration,
		const QuantLib::ext::shared_ptr< ore::analytics::SensitivityScenarioData > &	sensitivityData = nullptr,
		const QuantLib::ext::shared_ptr< ReferenceDataManager > &	referenceData = nullptr,
		const IborFallbackConfig &	iborFallbackConfig = IborFallbackConfig::defaultConfig(),
		const bool	bumpCvaSensis = false,
		const bool	continueOnCalibrationError = true,
		const bool	continueOnError = true,
		const std::string &	context = "xva engine cg"
	)

Definition at line 53 of file xvaenginecg.cpp.

    : asof_(asof), loader_(loader), curveConfigs_(curveConfigs),
      todaysMarketParams_(todaysMarketParams), simMarketData_(simMarketData), engineData_(engineData),
      crossAssetModelData_(crossAssetModelData), scenarioGeneratorData_(scenarioGeneratorData), portfolio_(portfolio),
      marketConfiguration_(marketConfiguration), marketConfigurationInCcy_(marketConfigurationInCcy),
      sensitivityData_(sensitivityData), referenceData_(referenceData), iborFallbackConfig_(iborFallbackConfig),
      bumpCvaSensis_(bumpCvaSensis), continueOnCalibrationError_(continueOnCalibrationError), continueOnError_(continueOnError), context_(context) {

    // Just for performance testing, duplicate the trades in input portfolio as specified by env var N

    // portfolio_ = QuantLib::ext::make_shared<Portfolio>();
    // std::string pfxml = portfolio->toXMLString();
    // for (Size i = 0; i < atoi(getenv("N")); ++i) {
    //     auto p = QuantLib::ext::make_shared<Portfolio>();
    //     p->fromXMLString(pfxml);
    //     for (auto const& [id, t] : p->trades()) {
    //         t->id() += "_" + std::to_string(i + 1);
    //         portfolio_->add(t);
    //     }
    // }

    // Start Engine

    LOG("XvaEngineCG: started");
    boost::timer::cpu_timer timer;

    // Build T0 market

    LOG("XvaEngineCG: build init market");

    initMarket_ = QuantLib::ext::make_shared<ore::data::TodaysMarket>(asof_, todaysMarketParams_, loader_, curveConfigs_,
                                                              continueOnError_, true, true, referenceData_, false,
                                                              iborFallbackConfig_, false, true);

    boost::timer::nanosecond_type timing1 = timer.elapsed().wall;

    // Build sim market

    LOG("XvaEngineCG: build sim market");

    // note: take "use spreaded term structures" from sensitivity config instead of hardcoding to true here?
    simMarket_ = QuantLib::ext::make_shared<ore::analytics::ScenarioSimMarket>(
        initMarket_, simMarketData_, marketConfiguration_, *curveConfigs_, *todaysMarketParams_, continueOnError_, true,
        false, false, iborFallbackConfig_, true);

    boost::timer::nanosecond_type timing2 = timer.elapsed().wall;

    // Set up cam builder against sim market

    LOG("XvaEngineCG: build cam model builder");

    // note: sim market has one config only, no in-ccy config to calibrate IR components
    camBuilder_ = QuantLib::ext::make_shared<CrossAssetModelBuilder>(
        simMarket_, crossAssetModelData_, marketConfigurationInCcy_, marketConfiguration_, marketConfiguration_,
        marketConfiguration_, marketConfiguration_, marketConfiguration_, false, continueOnCalibrationError_,
        std::string(), SalvagingAlgorithm::Spectral, "xva engine cg - cam builder");

    // Set up gaussian cam cg model

    LOG("XvaEngineCG: build cam cg model");

    QL_REQUIRE(
        crossAssetModelData_->discretization() == CrossAssetModel::Discretization::Euler,
        "XvaEngineCG: cam is required to use discretization 'Euler', please update simulation parameters accordingly.");

    std::vector<std::string> currencies;                                                   // from cam
    std::vector<Handle<YieldTermStructure>> curves;                                        // from cam
    std::vector<Handle<Quote>> fxSpots;                                                    // from cam
    std::vector<std::pair<std::string, QuantLib::ext::shared_ptr<InterestRateIndex>>> irIndices;   // from trade building
    std::vector<std::pair<std::string, QuantLib::ext::shared_ptr<ZeroInflationIndex>>> infIndices; // from trade building
    std::vector<std::string> indices;                                                      // from trade building
    std::vector<std::string> indexCurrencies;                                              // from trade building

    // note: for the PoC we populate the containers with hardcoded values ... temp hack ...
    currencies.push_back("EUR");
    curves.push_back(camBuilder_->model()->irModel(0)->termStructure());
    irIndices.push_back(std::make_pair("EUR-EURIBOR-6M", *simMarket_->iborIndex("EUR-EURIBOR-6M")));

    // note: these must be fine enough for Euler, e.g. weekly over the whole simulation period
    std::set<Date> simulationDates(scenarioGeneratorData_->getGrid()->dates().begin(),
                                   scenarioGeneratorData_->getGrid()->dates().end());
    // note: this should be added to CrossAssetModelData
    Size timeStepsPerYear = 1;

    // note: projectedStateProcessIndices can be removed from GaussianCamCG constructor most probably?
    model_ = QuantLib::ext::make_shared<GaussianCamCG>(camBuilder_->model(), scenarioGeneratorData_->samples(), currencies,
                                               curves, fxSpots, irIndices, infIndices, indices, indexCurrencies,
                                               simulationDates, timeStepsPerYear, iborFallbackConfig,
                                               std::vector<Size>(), std::vector<std::string>(), true);
    model_->calculate();
    boost::timer::nanosecond_type timing3 = timer.elapsed().wall;

    // Build trades against global cg cam model

    LOG("XvaEngineCG: build trades against global cam cg model");

    auto edCopy = QuantLib::ext::make_shared<EngineData>(*engineData_);
    edCopy->globalParameters()["GenerateAdditionalResults"] = "false";
    edCopy->globalParameters()["RunType"] = "NPV";
    map<MarketContext, string> configurations;
    configurations[MarketContext::irCalibration] = marketConfigurationInCcy_;
    configurations[MarketContext::fxCalibration] = marketConfiguration_;
    configurations[MarketContext::pricing] = marketConfiguration_;
    auto factory =
        QuantLib::ext::make_shared<EngineFactory>(edCopy, simMarket_, configurations, referenceData_, iborFallbackConfig_,
                                          EngineBuilderFactory::instance().generateAmcCgEngineBuilders(
                                              model_, scenarioGeneratorData_->getGrid()->dates()),
                                          true);

    portfolio_->build(factory, "xva engine cg", true);

    boost::timer::nanosecond_type timing4 = timer.elapsed().wall;

    // Build computation graph for all trades ("part B") and
    // - store npv, amc npv nodes

    LOG("XvaEngineCG: build computation graph for all trades");

    std::vector<std::vector<std::size_t>> amcNpvNodes; // includes time zero npv

    auto g = model_->computationGraph();

    for (auto const& [id, trade] : portfolio_->trades()) {
        auto qlInstr = QuantLib::ext::dynamic_pointer_cast<ScriptedInstrument>(trade->instrument()->qlInstrument());
        QL_REQUIRE(qlInstr, "XvaEngineCG: expeced trade to provide ScriptedInstrument, trade '" << id << "' does not.");
        auto engine = QuantLib::ext::dynamic_pointer_cast<ScriptedInstrumentPricingEngineCG>(qlInstr->pricingEngine());
        QL_REQUIRE(engine, "XvaEngineCG: expected to get ScriptedInstrumentPricingEngineCG, trade '"
                               << id << "' has a different engine.");
        g->startRedBlock();
        engine->buildComputationGraph();
        std::vector<std::size_t> tmp;
        tmp.push_back(cg_add(*g, cg_const(*g, 0.0), g->variable(engine->npvName() + "_0")));
        for (std::size_t i = 0; i < simulationDates.size(); ++i) {
            tmp.push_back(cg_add(*g, cg_const(*g, 0.0), g->variable("_AMC_NPV_" + std::to_string(i))));
        }
        amcNpvNodes.push_back(tmp);
        g->endRedBlock();
    }

    boost::timer::nanosecond_type timing5 = timer.elapsed().wall;

    // Add nodes that sum the exposure over trades, both pathwise and conditional expectations
    // This constitutes part C of the computation graph spanning "trade m range end ... lastExposureNode"
    // - pfPathExposureNodes: path amc sim values, aggregated over trades
    // - pfExposureNodes:     the corresponding conditional expectations

    std::vector<std::size_t> pfPathExposureNodes, pfExposureNodes;
    for (Size i = 0; i < simulationDates.size() + 1; ++i) {
        std::size_t sumNode = cg_const(*g, 0.0);
        for (auto const& v : amcNpvNodes) {
            sumNode = cg_add(*g, sumNode, v[i]);
        }
        pfPathExposureNodes.push_back(sumNode);
        pfExposureNodes.push_back(
            model_->npv(sumNode, i == 0 ? model_->referenceDate() : *std::next(simulationDates.begin(), i - 1),
                        cg_const(*g, 1.0), boost::none, ComputationGraph::nan, ComputationGraph::nan));
    }

    boost::timer::nanosecond_type timing6 = timer.elapsed().wall;

    // Add post processor
    // This constitues part D of the computation graph from lastExposureNode ... g->size()
    // The cvaNode is the ultimate result w.r.t. which we want to compute sensitivities

    // note: very simplified calculation, for testing, just multiply the EPE on each date by fixed default prob
    auto defaultCurve = simMarket_->defaultCurve("BANK")->curve();
    model_->registerWith(defaultCurve);
    Size cvaNode = cg_const(*g, 0.0);
    for (Size i = 0; i < simulationDates.size(); ++i) {
        Date d = i == 0 ? model_->referenceDate() : *std::next(simulationDates.begin(), i - 1);
        Date e = *std::next(simulationDates.begin(), i);
        std::size_t defaultProb =
            addModelParameter(*g, model_->modelParameterFunctors(), "__defaultprob_" + std::to_string(i),
                              [defaultCurve, d, e]() { return defaultCurve->defaultProbability(d, e); });
        cvaNode = cg_add(*g, cvaNode, cg_mult(*g, defaultProb, cg_max(*g, pfExposureNodes[i], cg_const(*g, 0.0))));
    }

    boost::timer::nanosecond_type timing7 = timer.elapsed().wall;

    LOG("XvaEngineCG: graph building complete, size is " << g->size());
    LOG("XvaEngineCG: got " << g->redBlockDependencies().size() << " red block dependencies.");
    std::size_t sumRedNodes = 0;
    for (auto const& r : g->redBlockRanges()) {
        DLOG("XvaEngineCG: red block range " << r.first << " ... " << r.second);
        sumRedNodes += r.second - r.first;
    }

    // Create values and derivatives containers

    std::vector<RandomVariable> values(g->size(), RandomVariable(model_->size(), 0.0));
    std::vector<RandomVariable> derivatives(g->size(), RandomVariable(model_->size(), 0.0));

    // Populate random variates

    populateRandomVariates(values);
    boost::timer::nanosecond_type timing8 = timer.elapsed().wall;

    // Populate constants and model parameters

    baseModelParams_ = model_->modelParameters();
    populateConstants(values);
    populateModelParameters(values, baseModelParams_);
    boost::timer::nanosecond_type timing9 = timer.elapsed().wall;

    std::size_t rvMemMax = numberOfStochasticRvs(values) + numberOfStochasticRvs(derivatives);

    // Do a forward evaluation, keep the following values nodes
    // - constants
    // - model parameters
    // - values needed for derivatives (except in red blocks, by their definition)
    // - red block dependencies
    // - the random variates for bump sensis
    // - the pfExposureNodes to dump out the epe profile

    LOG("XvaEngineCG: do forward evaluation");

    Real eps = 0.0; // smoothing parameter for indicator functions
    ops_ = getRandomVariableOps(model_->size(), 4, QuantLib::LsmBasisSystem::Monomial, bumpCvaSensis_ ? eps : 0.0,
                                Null<Real>()); // todo set regression variance cutoff
    grads_ = getRandomVariableGradients(model_->size(), 4, QuantLib::LsmBasisSystem::Monomial, eps);
    opNodeRequirements_ = getRandomVariableOpNodeRequirements();

    std::vector<bool> keepNodes(g->size(), false);

    for (auto const& c : g->constants()) {
        keepNodes[c.second] = true;
    }

    for (auto const& [n, v] : baseModelParams_) {
        keepNodes[n] = true;
    }

    for (auto const n : g->redBlockDependencies()) {
        keepNodes[n] = true;
    }

    if (bumpCvaSensis_) {
        for (auto const& rv : model_->randomVariates())
            for (auto const& v : rv)
                keepNodes[v] = true;
    }

    for (auto const& n : pfExposureNodes) {
        keepNodes[n] = true;
    }

    forwardEvaluation(*g, values, ops_, RandomVariable::deleter, true, opNodeRequirements_, keepNodes);

    boost::timer::nanosecond_type timing10 = timer.elapsed().wall;

    // Write epe / ene profile out

    {
        epeReport_ = QuantLib::ext::make_shared<InMemoryReport>();
        epeReport_->addColumn("Date", Date()).addColumn("EPE", double(), 4).addColumn("ENE", double(), 4);

        for (Size i = 0; i < simulationDates.size() + 1; ++i) {
            epeReport_->next();
            epeReport_->add(i == 0 ? model_->referenceDate() : *std::next(simulationDates.begin(), i - 1))
                .add(expectation(max(values[pfExposureNodes[i]], RandomVariable(model_->size(), 0.0))).at(0))
                .add(expectation(max(-values[pfExposureNodes[i]], RandomVariable(model_->size(), 0.0))).at(0));
        }
        epeReport_->end();
        epeReport_->toFile("Output/xvacg-exposure.csv");
    }

    Real cva = expectation(values[cvaNode]).at(0);
    LOG("XvaEngineCG: Calcuated CVA (node " << cvaNode << ") = " << cva);

    rvMemMax = std::max(rvMemMax, numberOfStochasticRvs(values) + numberOfStochasticRvs(derivatives));

    // Do backward derivatives run

    boost::timer::nanosecond_type timing11 = timer.elapsed().wall;

    std::vector<double> modelParamDerivatives(baseModelParams_.size());

    if (!bumpCvaSensis_) {

        LOG("XvaEngineCG: run backward derivatives");

        derivatives[cvaNode] = RandomVariable(model_->size(), 1.0);

        std::vector<bool> keepNodesDerivatives(g->size(), false);

        for (auto const& [n, _] : baseModelParams_)
            keepNodesDerivatives[n] = true;

        // backward derivatives run

        backwardDerivatives(*g, values, derivatives, grads_, RandomVariable::deleter, keepNodesDerivatives, ops_,
                            opNodeRequirements_, keepNodes, RandomVariableOpCode::ConditionalExpectation,
                            ops_[RandomVariableOpCode::ConditionalExpectation]);

        // read model param derivatives

        Size i = 0;
        for (auto const& [n, v] : baseModelParams_) {
            modelParamDerivatives[i++] = expectation(derivatives[n]).at(0);
        }

        // get mem consumption

        rvMemMax = std::max(rvMemMax, numberOfStochasticRvs(values) + numberOfStochasticRvs(derivatives));

        LOG("XvaEngineCG: got " << modelParamDerivatives.size()
                                << " model parameter derivatives from run backward derivatives");

        timing11 = timer.elapsed().wall;

        // Delete values and derivatives vectors, they are not needed from this point on
        // except we are doing a full revaluation!

        values.clear();
        derivatives.clear();
    }

    // 13 generate sensitivity scenarios

    LOG("XvaEngineCG: running sensi scenarios");

    sensiScenarioGenerator_ = QuantLib::ext::make_shared<SensitivityScenarioGenerator>(
        sensitivityData_, simMarket_->baseScenario(), simMarketData_, simMarket_,
        QuantLib::ext::make_shared<DeltaScenarioFactory>(simMarket_->baseScenario()), false, std::string(), continueOnError,
        simMarket_->baseScenarioAbsolute());

    simMarket_->scenarioGenerator() = sensiScenarioGenerator_;

    auto resultCube = QuantLib::ext::make_shared<DoublePrecisionSensiCube>(std::set<std::string>{"CVA"}, asof_,
                                                                   sensiScenarioGenerator_->samples());
    resultCube->setT0(cva, 0, 0);

    model_->alwaysForwardNotifications();

    Size activeScenarios = 0;
    for (Size sample = 0; sample < resultCube->samples(); ++sample) {

        // update sim market to next scenario

        simMarket_->preUpdate();
        simMarket_->updateScenario(asof_);
        simMarket_->postUpdate(asof_, false);

        // recalibrate the model

        camBuilder_->recalibrate();

        Real sensi = 0.0;

        // calculate sensi if model was notified of a change

        if (!model_->isCalculated()) {

            model_->calculate();
            ++activeScenarios;

            if (!bumpCvaSensis_) {

                // calcuate CVA sensi using ad derivatives

                auto modelParameters = model_->modelParameters();
                Size i = 0;
                boost::accumulators::accumulator_set<
                    double, boost::accumulators::stats<boost::accumulators::tag::weighted_sum>, double>
                    acc;
                for (auto const& [n, v0] : baseModelParams_) {
                    Real v1 = modelParameters[i].second;
                    acc(modelParamDerivatives[i], boost::accumulators::weight = (v1 - v0));
                    ++i;
                }
                sensi = boost::accumulators::weighted_sum(acc);

            } else {

                // calcuate CVA sensi doing full recalc of CVA

                populateModelParameters(values, model_->modelParameters());
                forwardEvaluation(*g, values, ops_, RandomVariable::deleter, true, opNodeRequirements_, keepNodes);
                sensi = expectation(values[cvaNode]).at(0) - cva;

            }
        }

        // set result in cube

        resultCube->set(cva + sensi, 0, 0, sample, 0);
    }

    boost::timer::nanosecond_type timing12 = timer.elapsed().wall;

    LOG("XvaEngineCG: finished running " << resultCube->samples() << " sensi scenarios, thereof " << activeScenarios
                                         << " active.");

    // write out sensi report

    {
        sensiReport_ = QuantLib::ext::make_shared<InMemoryReport>();
        auto sensiCube = QuantLib::ext::make_shared<SensitivityCube>(
            resultCube, sensiScenarioGenerator_->scenarioDescriptions(), sensiScenarioGenerator_->shiftSizes(),
            sensiScenarioGenerator_->shiftSizes(), sensiScenarioGenerator_->shiftSchemes());
        auto sensiStream = QuantLib::ext::make_shared<SensitivityCubeStream>(sensiCube, simMarketData_->baseCcy());
        ReportWriter().writeScenarioReport(*sensiReport_, {sensiCube}, 0.0);
        sensiReport_->toFile("Output/xvacg-cva-sensi-scenario.csv");
    }

    // Output statistics

    LOG("XvaEngineCG: graph size               : " << g->size());
    LOG("XvaEngineCG: red nodes                : " << sumRedNodes);
    LOG("XvaEngineCG: red node dependendices   : " << g->redBlockDependencies().size());
    LOG("XvaEngineCG: Peak mem usage           : " << ore::data::os::getPeakMemoryUsageBytes() / 1024 / 1024 << " MB");
    LOG("XvaEngineCG: Peak theoretical rv mem  : " << static_cast<double>(rvMemMax) / 1024 / 1024 * 8 * model_->size()
                                                   << " MB");
    LOG("XvaEngineCG: T0 market build          : " << std::fixed << std::setprecision(1) << timing1 / 1E6 << " ms");
    LOG("XvaEngineCG: Sim market build         : " << std::fixed << std::setprecision(1) << (timing2 - timing1) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Part A CG build          : " << std::fixed << std::setprecision(1) << (timing3 - timing2) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Portfolio build          : " << std::fixed << std::setprecision(1) << (timing4 - timing3) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Part B CG build          : " << std::fixed << std::setprecision(1) << (timing5 - timing4) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Part C CG build          : " << std::fixed << std::setprecision(1) << (timing6 - timing5) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Part D CG build          : " << std::fixed << std::setprecision(1) << (timing7 - timing6) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: RV gen                   : " << std::fixed << std::setprecision(1) << (timing8 - timing7) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Const and Model params   : " << std::fixed << std::setprecision(1) << (timing9 - timing8) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Forward eval             : " << std::fixed << std::setprecision(1) << (timing10 - timing9) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Backward deriv           : " << std::fixed << std::setprecision(1) << (timing11 - timing10) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: Sensi Cube Gen           : " << std::fixed << std::setprecision(1) << (timing12 - timing11) / 1E6
                                                   << " ms");
    LOG("XvaEngineCG: total                    : " << std::fixed << std::setprecision(1) << timing12 / 1E6 << " ms");
}

Here is the call graph for this function:

Member Function Documentation

exposureReport()

QuantLib::ext::shared_ptr< InMemoryReport > exposureReport

(

)

Definition at line 67 of file xvaenginecg.hpp.

{ return epeReport_; }

Here is the caller graph for this function:

sensiReport()

QuantLib::ext::shared_ptr< InMemoryReport > sensiReport

(

)

Definition at line 68 of file xvaenginecg.hpp.

{ return sensiReport_; }

Here is the caller graph for this function:

populateRandomVariates()

void populateRandomVariates ( std::vector< RandomVariable > &  values ) const

private

Definition at line 505 of file xvaenginecg.cpp.

                                                                                {

    DLOG("XvaEngineCG: populate random variates");

    auto const& rv = model_->randomVariates();
    if (!rv.empty()) {
        auto gen = makeMultiPathVariateGenerator(scenarioGeneratorData_->sequenceType(), rv.size(), rv.front().size(),
                                                 scenarioGeneratorData_->seed(), scenarioGeneratorData_->ordering(),
                                                 scenarioGeneratorData_->directionIntegers());
        for (Size path = 0; path < model_->size(); ++path) {
            auto p = gen->next();
            for (Size j = 0; j < rv.front().size(); ++j) {
                for (Size k = 0; k < rv.size(); ++k) {
                    values[rv[k][j]].set(path, p.value[j][k]);
                }
            }
        }
        DLOG("XvaEngineCG: generated rvs for " << rv.size() << " underlyings and " << rv.front().size()
                                               << " time steps.");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

populateConstants()

void populateConstants ( std::vector< RandomVariable > &  values ) const

private

Definition at line 527 of file xvaenginecg.cpp.

                                                                           {

    DLOG("XvaEngineCG: populate constants");

    auto g = model_->computationGraph();
    for (auto const& c : g->constants()) {
        values[c.second] = RandomVariable(model_->size(), c.first);
    }

    DLOG("XvaEngineCG: set " << g->constants().size() << " constants");
}

Here is the caller graph for this function:

populateModelParameters()

void populateModelParameters ( std::vector< RandomVariable > &  values, const std::vector< std::pair< std::size_t, double > > &  modelParameters  ) const

private

Definition at line 539 of file xvaenginecg.cpp.

                                                                                                              {

    DLOG("XvaEngineCG: populate model parameters");

    for (auto const& [n, v] : modelParameters) {
        values[n] = RandomVariable(model_->size(), v);
    }

    DLOG("XvaEngineCG: set " << modelParameters.size() << " model parameters.");
}

Here is the caller graph for this function:

Member Data Documentation

asof_

Date asof_

private

Definition at line 77 of file xvaenginecg.hpp.

loader_

QuantLib::ext::shared_ptr<ore::data::Loader> loader_

private

Definition at line 78 of file xvaenginecg.hpp.

curveConfigs_

QuantLib::ext::shared_ptr<ore::data::CurveConfigurations> curveConfigs_

private

Definition at line 79 of file xvaenginecg.hpp.

todaysMarketParams_

QuantLib::ext::shared_ptr<ore::data::TodaysMarketParameters> todaysMarketParams_

private

Definition at line 80 of file xvaenginecg.hpp.

simMarketData_

QuantLib::ext::shared_ptr<ore::analytics::ScenarioSimMarketParameters> simMarketData_

private

Definition at line 81 of file xvaenginecg.hpp.

engineData_

QuantLib::ext::shared_ptr<ore::data::EngineData> engineData_

private

Definition at line 82 of file xvaenginecg.hpp.

crossAssetModelData_

QuantLib::ext::shared_ptr<ore::analytics::CrossAssetModelData> crossAssetModelData_

private

Definition at line 83 of file xvaenginecg.hpp.

scenarioGeneratorData_

QuantLib::ext::shared_ptr<ore::analytics::ScenarioGeneratorData> scenarioGeneratorData_

private

Definition at line 84 of file xvaenginecg.hpp.

portfolio_

QuantLib::ext::shared_ptr<ore::data::Portfolio> portfolio_

private

Definition at line 85 of file xvaenginecg.hpp.

marketConfiguration_

std::string marketConfiguration_

private

Definition at line 86 of file xvaenginecg.hpp.

marketConfigurationInCcy_

std::string marketConfigurationInCcy_

private

Definition at line 87 of file xvaenginecg.hpp.

sensitivityData_

QuantLib::ext::shared_ptr<ore::analytics::SensitivityScenarioData> sensitivityData_

private

Definition at line 88 of file xvaenginecg.hpp.

referenceData_

QuantLib::ext::shared_ptr<ReferenceDataManager> referenceData_

private

Definition at line 89 of file xvaenginecg.hpp.

iborFallbackConfig_

IborFallbackConfig iborFallbackConfig_

private

Definition at line 90 of file xvaenginecg.hpp.

bumpCvaSensis_

bool bumpCvaSensis_

private

Definition at line 91 of file xvaenginecg.hpp.

continueOnCalibrationError_

bool continueOnCalibrationError_

private

Definition at line 92 of file xvaenginecg.hpp.

continueOnError_

bool continueOnError_

private

Definition at line 93 of file xvaenginecg.hpp.

context_

std::string context_

private

Definition at line 94 of file xvaenginecg.hpp.

nodesA_

std::vector<bool> nodesA_

private

Definition at line 96 of file xvaenginecg.hpp.

nodesB_

std::vector<bool> nodesB_

private

Definition at line 97 of file xvaenginecg.hpp.

nodesC_

std::vector<bool> nodesC_

private

Definition at line 98 of file xvaenginecg.hpp.

nodesD_

std::vector<bool> nodesD_

private

Definition at line 99 of file xvaenginecg.hpp.

initMarket_

QuantLib::ext::shared_ptr<ore::data::Market> initMarket_

private

Definition at line 102 of file xvaenginecg.hpp.

simMarket_

QuantLib::ext::shared_ptr<ore::analytics::ScenarioSimMarket> simMarket_

private

Definition at line 103 of file xvaenginecg.hpp.

sensiScenarioGenerator_

QuantLib::ext::shared_ptr<SensitivityScenarioGenerator> sensiScenarioGenerator_

private

Definition at line 104 of file xvaenginecg.hpp.

camBuilder_

QuantLib::ext::shared_ptr<CrossAssetModelBuilder> camBuilder_

private

Definition at line 105 of file xvaenginecg.hpp.

model_

QuantLib::ext::shared_ptr<GaussianCamCG> model_

private

Definition at line 106 of file xvaenginecg.hpp.

baseModelParams_

std::vector<std::pair<std::size_t, double> > baseModelParams_

private

Definition at line 107 of file xvaenginecg.hpp.

opNodeRequirements_

std::vector<RandomVariableOpNodeRequirements> opNodeRequirements_

private

Definition at line 108 of file xvaenginecg.hpp.

ops_

std::vector<RandomVariableOp> ops_

private

Definition at line 109 of file xvaenginecg.hpp.

grads_

std::vector<RandomVariableGrad> grads_

private

Definition at line 110 of file xvaenginecg.hpp.

epeReport_

QuantLib::ext::shared_ptr<InMemoryReport> epeReport_

private

Definition at line 112 of file xvaenginecg.hpp.

sensiReport_

QuantLib::ext::shared_ptr<InMemoryReport> sensiReport_

private

Definition at line 112 of file xvaenginecg.hpp.
