#include <ored/scripting/models/gaussiancamcg.hpp>

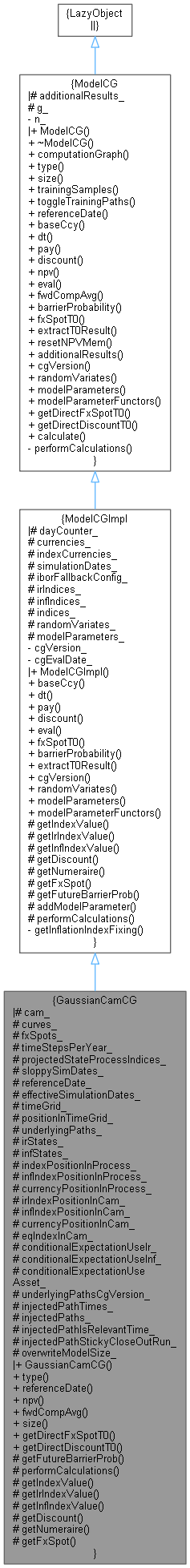

Inheritance diagram for GaussianCamCG:

Collaboration diagram for GaussianCamCG:

Public Member Functions
	GaussianCamCG (const Handle< CrossAssetModel > &cam, const Size paths, const std::vector< std::string > &currencies, const std::vector< Handle< YieldTermStructure > > &curves, const std::vector< Handle< Quote > > &fxSpots, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &irIndices, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &infIndices, const std::vector< std::string > &indices, const std::vector< std::string > &indexCurrencies, const std::set< Date > &simulationDates, const Size timeStepsPerYear=1, const IborFallbackConfig &iborFallbackConfig=IborFallbackConfig::defaultConfig(), const std::vector< Size > &projectedStateProcessIndices={}, const std::vector< std::string > &conditionalExpectationModelStates={}, const bool sloppySimDates=false)

Type	type () const override

const Date &	referenceDate () const override

std::size_t	npv (const std::size_t amount, const Date &obsdate, const std::size_t filter, const boost::optional< long > &memSlot, const std::size_t addRegressor1, const std::size_t addRegressor2) const override

std::size_t	fwdCompAvg (const bool isAvg, const std::string &indexInput, const Date &obsdate, const Date &start, const Date &end, const Real spread, const Real gearing, const Integer lookback, const Natural rateCutoff, const Natural fixingDays, const bool includeSpread, const Real cap, const Real floor, const bool nakedOption, const bool localCapFloor) const override

QuantLib::Size	size () const override

Real	getDirectFxSpotT0 (const std::string &forCcy, const std::string &domCcy) const override

Real	getDirectDiscountT0 (const Date &paydate, const std::string &currency) const override

Public Member Functions inherited from ModelCGImpl
	ModelCGImpl (const DayCounter &dayCounter, const Size size, const std::vector< std::string > &currencies, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &irIndices, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &infIndices, const std::vector< std::string > &indices, const std::vector< std::string > &indexCurrencies, const std::set< Date > &simulationDates, const IborFallbackConfig &iborFallbackConfig)

const std::string &	baseCcy () const override

std::size_t	dt (const Date &d1, const Date &d2) const override

std::size_t	pay (const std::size_t amount, const Date &obsdate, const Date &paydate, const std::string &currency) const override

std::size_t	discount (const Date &obsdate, const Date &paydate, const std::string &currency) const override

std::size_t	eval (const std::string &index, const Date &obsdate, const Date &fwddate, const bool returnMissingMissingAsNull=false, const bool ignoreTodaysFixing=false) const override

std::size_t	fxSpotT0 (const std::string &forCcy, const std::string &domCcy) const override

std::size_t	barrierProbability (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const override

Real	extractT0Result (const RandomVariable &value) const override

std::size_t	cgVersion () const override

const std::vector< std::vector< std::size_t > > &	randomVariates () const override

std::vector< std::pair< std::size_t, double > >	modelParameters () const override

std::vector< std::pair< std::size_t, std::function< double(void)> > > &	modelParameterFunctors () const override

Public Member Functions inherited from ModelCG
	ModelCG (const QuantLib::Size n)

virtual	~ModelCG ()

QuantLib::ext::shared_ptr< QuantExt::ComputationGraph >	computationGraph ()

virtual Type	type () const =0

virtual QuantLib::Size	size () const

virtual Size	trainingSamples () const

virtual void	toggleTrainingPaths () const

virtual const Date &	referenceDate () const =0

virtual const std::string &	baseCcy () const =0

virtual std::size_t	dt (const Date &d1, const Date &d2) const

virtual std::size_t	pay (const std::size_t amount, const Date &obsdate, const Date &paydate, const std::string &currency) const =0

virtual std::size_t	discount (const Date &obsdate, const Date &paydate, const std::string &currency) const =0

virtual std::size_t	npv (const std::size_t amount, const Date &obsdate, const std::size_t filter, const boost::optional< long > &memSlot, const std::size_t addRegressor1, const std::size_t addRegressor2) const =0

virtual std::size_t	eval (const std::string &index, const Date &obsdate, const Date &fwddate, const bool returnMissingFixingAsNull=false, const bool ignoreTodaysFixing=false) const =0

virtual std::size_t	fwdCompAvg (const bool isAvg, const std::string &index, const Date &obsdate, const Date &start, const Date &end, const Real spread, const Real gearing, const Integer lookback, const Natural rateCutoff, const Natural fixingDays, const bool includeSpread, const Real cap, const Real floor, const bool nakedOption, const bool localCapFloor) const =0

virtual std::size_t	barrierProbability (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const =0

virtual std::size_t	fxSpotT0 (const std::string &forCcy, const std::string &domCcy) const =0

virtual Real	extractT0Result (const QuantExt::RandomVariable &value) const =0

virtual void	resetNPVMem ()

const std::map< std::string, boost::any > &	additionalResults () const

virtual std::size_t	cgVersion () const =0

virtual const std::vector< std::vector< std::size_t > > &	randomVariates () const =0

virtual std::vector< std::pair< std::size_t, double > >	modelParameters () const =0

virtual std::vector< std::pair< std::size_t, std::function< double(void)> > > &	modelParameterFunctors () const =0

virtual Real	getDirectFxSpotT0 (const std::string &forCcy, const std::string &domCcy) const =0

virtual Real	getDirectDiscountT0 (const Date &paydate, const std::string &currency) const =0

void	calculate () const override

Protected Member Functions
virtual std::size_t	getFutureBarrierProb (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const override

void	performCalculations () const override

std::size_t	getIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const override

std::size_t	getIrIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const override

std::size_t	getInfIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const override

std::size_t	getDiscount (const Size idx, const Date &s, const Date &t) const override

std::size_t	getNumeraire (const Date &s) const override

std::size_t	getFxSpot (const Size idx) const override

Protected Member Functions inherited from ModelCGImpl
virtual std::size_t	getIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const =0

virtual std::size_t	getIrIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const =0

virtual std::size_t	getInfIndexValue (const Size indexNo, const Date &d, const Date &fwd) const =0

virtual std::size_t	getDiscount (const Size idx, const Date &s, const Date &t) const =0

virtual std::size_t	getNumeraire (const Date &s) const =0

virtual std::size_t	getFxSpot (const Size idx) const =0

virtual std::size_t	getFutureBarrierProb (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const =0

std::size_t	addModelParameter (const std::string &id, std::function< double(void)> f) const

void	performCalculations () const override

Protected Attributes
const Handle< CrossAssetModel >	cam_

const std::vector< Handle< YieldTermStructure > >	curves_

const std::vector< Handle< Quote > >	fxSpots_

const Size	timeStepsPerYear_

const std::vector< Size >	projectedStateProcessIndices_

const bool	sloppySimDates_

Date	referenceDate_

std::set< Date >	effectiveSimulationDates_

TimeGrid	timeGrid_

std::vector< Size >	positionInTimeGrid_

std::map< Date, std::vector< std::size_t > >	underlyingPaths_

std::map< Date, std::vector< std::size_t > >	irStates_

std::map< Date, std::vector< std::pair< std::size_t, std::size_t > > >	infStates_

std::vector< Size >	indexPositionInProcess_

std::vector< Size >	infIndexPositionInProcess_

std::vector< Size >	currencyPositionInProcess_

std::vector< Size >	irIndexPositionInCam_

std::vector< Size >	infIndexPositionInCam_

std::vector< Size >	currencyPositionInCam_

std::vector< Size >	eqIndexInCam_

bool	conditionalExpectationUseIr_

bool	conditionalExpectationUseInf_

bool	conditionalExpectationUseAsset_

std::size_t	underlyingPathsCgVersion_ = 0

const std::vector< QuantLib::Real > *	injectedPathTimes_ = nullptr

const std::vector< std::vector< std::size_t > > *	injectedPaths_ = nullptr

const std::vector< bool > *	injectedPathIsRelevantTime_

bool	injectedPathStickyCloseOutRun_

Size	overwriteModelSize_ = Null<Size>()

Protected Attributes inherited from ModelCGImpl
const DayCounter	dayCounter_

const std::vector< std::string >	currencies_

const std::vector< std::string >	indexCurrencies_

const std::set< Date >	simulationDates_

const IborFallbackConfig	iborFallbackConfig_

std::vector< std::pair< IndexInfo, QuantLib::ext::shared_ptr< InterestRateIndex > > >	irIndices_

std::vector< std::pair< IndexInfo, QuantLib::ext::shared_ptr< ZeroInflationIndex > > >	infIndices_

std::vector< IndexInfo >	indices_

std::vector< std::vector< size_t > >	randomVariates_

std::vector< std::pair< std::size_t, std::function< double(void)> > >	modelParameters_

Protected Attributes inherited from ModelCG
std::map< std::string, boost::any >	additionalResults_

QuantLib::ext::shared_ptr< QuantExt::ComputationGraph >	g_

Additional Inherited Members
Public Types inherited from ModelCG
enum class	Type { MC , FD }

Detailed Description

Definition at line 23 of file gaussiancamcg.hpp.

Constructor & Destructor Documentation

◆ GaussianCamCG()

GaussianCamCG	(	const Handle< CrossAssetModel > &	cam,
		const Size	paths,
		const std::vector< std::string > &	currencies,
		const std::vector< Handle< YieldTermStructure > > &	curves,
		const std::vector< Handle< Quote > > &	fxSpots,
		const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &	irIndices,
		const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &	infIndices,
		const std::vector< std::string > &	indices,
		const std::vector< std::string > &	indexCurrencies,
		const std::set< Date > &	simulationDates,
		const Size	timeStepsPerYear = `1`,
		const IborFallbackConfig &	iborFallbackConfig = `IborFallbackConfig::defaultConfig()`,
		const std::vector< Size > &	projectedStateProcessIndices = `{}`,
		const std::vector< std::string > &	conditionalExpectationModelStates = `{}`,
		const bool	sloppySimDates = `false`
	)

Definition at line 26 of file gaussiancamcg.cpp.

    : ModelCGImpl(curves.front()->dayCounter(), paths, currencies, irIndices, infIndices, indices, indexCurrencies,
                  simulationDates, iborFallbackConfig),
      cam_(cam), curves_(curves), fxSpots_(fxSpots), timeStepsPerYear_(timeStepsPerYear),
      projectedStateProcessIndices_(projectedStateProcessIndices), sloppySimDates_(sloppySimDates) {

    // check inputs

    QL_REQUIRE(!cam_.empty(), "model is empty");

    // check restrictions on cam model (ir-fx with hw, bs and Euler disc only at the moment)

    QL_REQUIRE(cam_->discretization() == CrossAssetModel::Discretization::Euler,
               "GaussianCamCG requires discretization 'Euler'.");

    QL_REQUIRE(cam_->components(CrossAssetModel::AssetType::IR) > 0, "GaussianCamCG: no IR component given");
    QL_REQUIRE(cam_->components(CrossAssetModel::AssetType::INF) == 0, "GaussianCamCG: asset type INF not supported");
    QL_REQUIRE(cam_->components(CrossAssetModel::AssetType::CR) == 0, "GaussianCamCG: asset type CR not supported");
    QL_REQUIRE(cam_->components(CrossAssetModel::AssetType::EQ) == 0, "GaussianCamCG: asset type EQ not supported");
    QL_REQUIRE(cam_->components(CrossAssetModel::AssetType::COM) == 0, "GaussianCamCG: asset type COM not supported");

    for (Size i = 0; i < cam_->components(CrossAssetModel::AssetType::IR); ++i) {
        QL_REQUIRE(cam_->modelType(CrossAssetModel::AssetType::IR, i) == CrossAssetModel::ModelType::LGM1F,
                   "GaussianCamCG: IR model type LGM required.");
    }
    for (Size i = 0; i < cam_->components(CrossAssetModel::AssetType::FX); ++i) {
        QL_REQUIRE(cam_->modelType(CrossAssetModel::AssetType::FX, i) == CrossAssetModel::ModelType::BS,
                   "GaussianCamCG: FX model type BS required.");
    }

    // register with observables

    for (auto const& o : curves_)
        registerWith(o);
    for (auto const& o : fxSpots_)
        registerWith(o);

    registerWith(cam_);

    // set conditional expectation model states

    conditionalExpectationUseIr_ =
        conditionalExpectationModelStates.empty() ||
        std::find(conditionalExpectationModelStates.begin(), conditionalExpectationModelStates.end(), "IR") !=
            conditionalExpectationModelStates.end();
    conditionalExpectationUseInf_ =
        conditionalExpectationModelStates.empty() ||
        std::find(conditionalExpectationModelStates.begin(), conditionalExpectationModelStates.end(), "INF") !=
            conditionalExpectationModelStates.end();
    conditionalExpectationUseAsset_ =
        conditionalExpectationModelStates.empty() ||
        std::find(conditionalExpectationModelStates.begin(), conditionalExpectationModelStates.end(), "Asset") !=
            conditionalExpectationModelStates.end();

} // GaussianCamCG ctor

Member Function Documentation

◆ type()

Type type ( ) const

overridevirtual

Implements ModelCG.

Definition at line 38 of file gaussiancamcg.hpp.

38{ return Type::MC; }

ore::data::ModelCG::Type::MC

@ MC

◆ referenceDate()

const Date & referenceDate ( ) const

overridevirtual

Implements ModelCG.

Definition at line 90 of file gaussiancamcg.cpp.

                                               {
    calculate();
    return referenceDate_;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ npv()

std::size_t npv	(	const std::size_t	amount,
		const Date &	obsdate,
		const std::size_t	filter,
		const boost::optional< long > &	memSlot,
		const std::size_t	addRegressor1,
		const std::size_t	addRegressor2
	)		const

overridevirtual

Implements ModelCG.

Definition at line 391 of file gaussiancamcg.cpp.

                                                                    {

    calculate();

    QL_REQUIRE(!memSlot, "GuassiaCamCG::npv() with memSlot not yet supported!");

    // if obsdate is today, take a plain expectation

    if (obsdate == referenceDate()) {
        return cg_conditionalExpectation(*g_, amount, {}, cg_const(*g_, 1.0));
    }

    // build the state

    std::vector<std::size_t> state;

    Date sd = getSloppyDate(obsdate, sloppySimDates_, effectiveSimulationDates_);
    state.push_back(irStates_.at(sd).at(0));

    if (addRegressor1 != ComputationGraph::nan)
        state.push_back(addRegressor1);
    if (addRegressor2 != ComputationGraph::nan)
        state.push_back(addRegressor2);

    // if the state is empty, return the plain expectation (no conditioning)

    if (state.empty()) {
        return cg_conditionalExpectation(*g_, amount, {}, cg_const(*g_, 1.0));
    }

    // if a memSlot is given and coefficients are stored, we use them
    // TODO ...

    // otherwise compute coefficients and store them if a memSlot is given
    // TODO ...

    // compute conditional expectation and return the result

    return cg_conditionalExpectation(*g_, amount, state, filter);
}

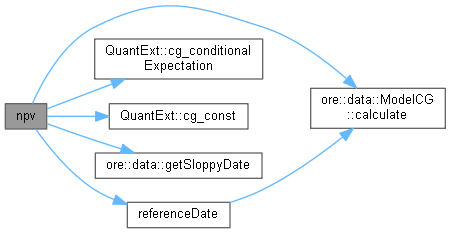

Here is the call graph for this function:

◆ fwdCompAvg()

std::size_t fwdCompAvg	(	const bool	isAvg,
		const std::string &	indexInput,
		const Date &	obsdate,
		const Date &	start,
		const Date &	end,
		const Real	spread,
		const Real	gearing,
		const Integer	lookback,
		const Natural	rateCutoff,
		const Natural	fixingDays,
		const bool	includeSpread,
		const Real	cap,
		const Real	floor,
		const bool	nakedOption,
		const bool	localCapFloor
	)		const

overridevirtual

Implements ModelCG.

Definition at line 326 of file gaussiancamcg.cpp.

                                                                                              {
    calculate();
    QL_FAIL("GaussianCamCG::fwdCompAvg(): not implemented");
}

Here is the call graph for this function:

◆ size()

Size size ( ) const

overridevirtual

Reimplemented from ModelCG.

Definition at line 95 of file gaussiancamcg.cpp.

                               {
    if (injectedPathTimes_ == nullptr)
        return ModelCG::size();
    else {
        return overwriteModelSize_;
    }
}

Here is the call graph for this function:

◆ getDirectFxSpotT0()

Real getDirectFxSpotT0	(	const std::string &	forCcy,
		const std::string &	domCcy
	)		const

overridevirtual

Implements ModelCG.

Definition at line 369 of file gaussiancamcg.cpp.

                                                                                            {
    auto c1 = std::find(currencies_.begin(), currencies_.end(), forCcy);
    auto c2 = std::find(currencies_.begin(), currencies_.end(), domCcy);
    QL_REQUIRE(c1 != currencies_.end(), "currency " << forCcy << " not handled");
    QL_REQUIRE(c2 != currencies_.end(), "currency " << domCcy << " not handled");
    Size cidx1 = std::distance(currencies_.begin(), c1);
    Size cidx2 = std::distance(currencies_.begin(), c2);
    Real fx = 1.0;
    if (cidx1 > 0)
        fx *= fxSpots_.at(cidx1 - 1)->value();
    if (cidx2 > 0)
        fx /= fxSpots_.at(cidx2 - 1)->value();
    return fx;
}

◆ getDirectDiscountT0()

Real getDirectDiscountT0	(	const Date &	paydate,
		const std::string &	currency
	)		const

overridevirtual

Implements ModelCG.

Definition at line 384 of file gaussiancamcg.cpp.

                                                                                            {
    auto c = std::find(currencies_.begin(), currencies_.end(), currency);
    QL_REQUIRE(c != currencies_.end(), "currency " << currency << " not handled");
    Size cidx = std::distance(currencies_.begin(), c);
    return curves_.at(cidx)->discount(paydate);
}

◆ getFutureBarrierProb()

virtual std::size_t getFutureBarrierProb	(	const std::string &	index,
		const Date &	obsdate1,
		const Date &	obsdate2,
		const std::size_t	barrier,
		const bool	above
	)		const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 55 of file gaussiancamcg.hpp.

                                                                                                       {
        QL_FAIL("getFutureBarrierProb not implemented by GaussianCamCG");
    }

◆ performCalculations()

void performCalculations ( ) const

overrideprotected

Definition at line 103 of file gaussiancamcg.cpp.

                                              {

    // needed for base class performCalculations()

    referenceDate_ = curves_.front()->referenceDate();

    // update cg version if necessary (eval date changed)

    ModelCGImpl::performCalculations();

    // if cg version has changed => update time grid related members and clear paths, so that they
    // are populated in derived classes

    if (cgVersion() != underlyingPathsCgVersion_) {

        // set up eff sim dates and time grid

        effectiveSimulationDates_.clear();
        effectiveSimulationDates_.insert(referenceDate());
        for (auto const& d : simulationDates_) {
            if (d >= referenceDate())
                effectiveSimulationDates_.insert(d);
        }

        std::vector<Real> times;
        for (auto const& d : effectiveSimulationDates_) {
            times.push_back(curves_.front()->timeFromReference(d));
        }

        Size steps = std::max(std::lround(timeStepsPerYear_ * times.back() + 0.5), 1l);
        timeGrid_ = TimeGrid(times.begin(), times.end(), steps);

        positionInTimeGrid_.resize(times.size());
        for (Size i = 0; i < positionInTimeGrid_.size(); ++i)
            positionInTimeGrid_[i] = timeGrid_.index(times[i]);

        // clear underlying paths

        underlyingPaths_.clear();
        underlyingPathsCgVersion_ = cgVersion();
    }

    // noting to do if underlying paths are populated

    if (!underlyingPaths_.empty())
        return;

    // exit if there are no future simulation dates (i.e. only the reference date)

    if (effectiveSimulationDates_.size() == 1)
        return;

    // init underlying path where we map a date to a node representing the path value

    for (auto const& d : effectiveSimulationDates_) {
        underlyingPaths_[d] = std::vector<std::size_t>(indices_.size(), ComputationGraph::nan);
        irStates_[d] = std::vector<std::size_t>(currencies_.size(), ComputationGraph::nan);
        infStates_[d] = std::vector<std::pair<std::size_t, std::size_t>>(
            infIndices_.size(), std::make_pair(ComputationGraph::nan, ComputationGraph::nan));
    }

    // populate index mappings

    currencyPositionInProcess_.clear();
    currencyPositionInCam_.clear();
    for (Size i = 0; i < currencies_.size(); ++i) {
        currencyPositionInProcess_.push_back(
            cam_->pIdx(CrossAssetModel::AssetType::IR, cam_->ccyIndex(parseCurrency(currencies_[i]))));
        currencyPositionInCam_.push_back(
            cam_->idx(CrossAssetModel::AssetType::IR, cam_->ccyIndex(parseCurrency(currencies_[i]))));
    }

    irIndexPositionInCam_.clear();
    for (Size i = 0; i < irIndices_.size(); ++i) {
        irIndexPositionInCam_.push_back(cam_->ccyIndex(irIndices_[i].second->currency()));
    }

    infIndexPositionInProcess_.clear();
    infIndexPositionInCam_.clear();
    for (Size i = 0; i < infIndices_.size(); ++i) {
        Size infIdx = cam_->infIndex(infIndices_[i].first.infName());
        infIndexPositionInProcess_.push_back(cam_->pIdx(CrossAssetModel::AssetType::INF, infIdx));
        infIndexPositionInCam_.push_back(infIdx);
    }

    indexPositionInProcess_.clear();
    for (Size i = 0; i < indices_.size(); ++i) {
        if (indices_[i].isFx()) {
            // FX
            Size ccyIdx = cam_->ccyIndex(parseCurrency(indexCurrencies_[i]));
            QL_REQUIRE(ccyIdx > 0, "fx index '" << indices_[i] << "' has unexpected for ccy = base ccy");
            indexPositionInProcess_.push_back(cam_->pIdx(CrossAssetModel::AssetType::FX, ccyIdx - 1));
            eqIndexInCam_.push_back(Null<Size>());
        } else if (indices_[i].isEq()) {
            // EQ
            Size eqIdx = cam_->eqIndex(indices_[i].eq()->name());
            indexPositionInProcess_.push_back(cam_->pIdx(CrossAssetModel::AssetType::EQ, eqIdx));
            eqIndexInCam_.push_back(eqIdx);
        } else {
            QL_FAIL("index '" << indices_[i].name() << "' expected to be FX or EQ");
        }
    }

    // set the required random variables to evolve the stochastic process

    randomVariates_ = std::vector<std::vector<std::size_t>>(cam_->brownians() + cam_->auxBrownians(),
                                                            std::vector<std::size_t>(timeGrid_.size() - 1));
    for (Size j = 0; j < cam_->brownians() + cam_->auxBrownians(); ++j) {
        for (Size i = 0; i < timeGrid_.size() - 1; ++i) {
            randomVariates_[j][i] = cg_insert(*g_);
        }
    }

    // evolve the stochastic process, for now we only evolve IR LGM process #0 as a PoC (!)

    auto cam(cam_);

    QL_REQUIRE(timeGrid_.size() == effectiveSimulationDates_.size(),
               "GaussianCamCG: time grid size ("
                   << timeGrid_.size() << ") does not match effective simulation dates size ("
                   << effectiveSimulationDates_.size()
                   << "), this is currently not supported. The parameter timeStepsPerYear (" << timeStepsPerYear_
                   << ") shoudl be 1");

    // Hull White with zero mean reversion (!) for testing numerical stability

    // std::vector<std::size_t> sigma(timeGrid_.size() - 1);
    // for (Size i = 0; i < timeGrid_.size() - 1; ++i) {
    //     Real t = timeGrid_[i + 1];
    //     sigma[i] = addModelParameter("__hw_" + currencies_[0] + "_sigma_" + std::to_string(i),
    //                                  [cam, t] { return cam->irlgm1f(0)->hullWhiteSigma(t); });
    // }

    // std::size_t last_y = cg_const(*g_, 0.0);
    // std::vector<std::size_t> y(timeGrid_.size() - 1);
    // for (Size i = 0; i < timeGrid_.size() - 1; ++i) {
    //     Real t = timeGrid_[i + 1];
    //     Real t0 = timeGrid_[i];
    //     y[i] = cg_add(*g_, last_y, cg_mult(*g_, cg_const(*g_, t - t0), cg_mult(*g_, sigma[i], sigma[i])));
    //     g_->setVariable("__hw_" + currencies_[0] + "_y_" +
    //                         ore::data::to_string(*std::next(effectiveSimulationDates_.begin(), i + 1)),
    //                     y[i]);
    //     last_y = y[i];
    // }

    // std::size_t irState = cg_const(*g_, 0.0);
    // std::size_t I = cg_const(*g_, 0.0);
    // std::size_t dateIndex = 1;
    // for (Size i = 0; i < timeGrid_.size() - 1; ++i) {
    //     Real t = timeGrid_[i + 1];
    //     Real t0 = timeGrid_[i];
    //     I = cg_add(*g_, I, cg_mult(*g_, cg_const(*g_, t - t0), irState));
    //     g_->setVariable("__hw_" + currencies_[0] + "_I_" +
    //                         ore::data::to_string(*std::next(effectiveSimulationDates_.begin(), i + 1)),
    //                     I);
    //     std::size_t drift = cg_mult(*g_, y[i], cg_const(*g_, t - t0));
    //     irState = cg_add(*g_, cg_add(*g_, irState, drift),
    //                      cg_mult(*g_, cg_mult(*g_, cg_const(*g_, std::sqrt(t - t0)), sigma[i]), randomVariates_[0][i]));
    //     if (positionInTimeGrid_[dateIndex] == i + 1) {
    //         irStates_[*std::next(effectiveSimulationDates_.begin(), dateIndex)][0] = irState;
    //         ++dateIndex;
    //     }
    // }
    // QL_REQUIRE(dateIndex == effectiveSimulationDates_.size(),
    //            "GaussianCamCG:internal error, did not populate all irState time steps.");

    // LGM

    std::size_t lastZeta = cg_const(*g_, 0.0);
    std::vector<std::size_t> diffusion(timeGrid_.size() - 1);
    for (Size i = 0; i < timeGrid_.size() - 1; ++i) {
        std::string id = "__lgm_" + currencies_[0] + "_zeta_" +
                         ore::data::to_string(*std::next(effectiveSimulationDates_.begin(), i + 1));
        Real t = timeGrid_[i + 1];
        std::size_t zeta = addModelParameter(id, [cam, t] { return cam->irlgm1f(0)->zeta(t); });
        diffusion[i] = cg_sqrt(*g_, cg_subtract(*g_, zeta, lastZeta));
        lastZeta = zeta;
    }

    std::string id = "__z_0";
    std::size_t irState;
    irState = addModelParameter(id, [cam] { return cam->stateProcess()->initialValues()[0]; });
    irStates_[*effectiveSimulationDates_.begin()][0] = irState;

    std::size_t dateIndex = 1;
    for (Size i = 0; i < timeGrid_.size() - 1; ++i) {
        irState = cg_add(*g_, irState, cg_mult(*g_, diffusion[i], randomVariates_[0][i]));
        if (positionInTimeGrid_[dateIndex] == i + 1) {
            irStates_[*std::next(effectiveSimulationDates_.begin(), dateIndex)][0] = irState;
            ++dateIndex;
        }
    }
    QL_REQUIRE(dateIndex == effectiveSimulationDates_.size(),
               "GaussianCamCG:internal error, did not populate all irState time steps.");
}

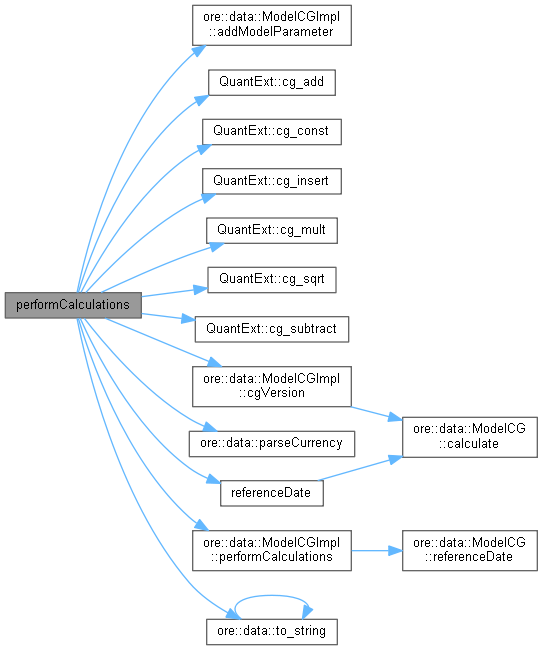

Here is the call graph for this function:

◆ getIndexValue()

std::size_t getIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null<Date>()`
	)		const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 299 of file gaussiancamcg.cpp.

                                                                                               {
    QL_FAIL("GaussianCamCG::getIndexValue(): not implemented");
}

◆ getIrIndexValue()

std::size_t getIrIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null<Date>()`
	)		const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 303 of file gaussiancamcg.cpp.

                                                                                                 {
    Date fixingDate = d;
    if (fwd != Null<Date>())
        fixingDate = fwd;
    // ensure a valid fixing date
    fixingDate = irIndices_[indexNo].second->fixingCalendar().adjust(fixingDate);
    Size currencyIdx = irIndexPositionInCam_[indexNo];
    auto cam(cam_);
    Date sd = getSloppyDate(d, sloppySimDates_, effectiveSimulationDates_);
    LgmCG lgmcg(
        currencies_[currencyIdx], *g_, [cam, currencyIdx] { return cam->irlgm1f(currencyIdx); }, modelParameters_,
        sloppySimDates_, effectiveSimulationDates_);
    return lgmcg.fixing(irIndices_[indexNo].second, fixingDate, sd, irStates_.at(sd).at(currencyIdx));
    // HwCG hwcg(
    //     currencies_[currencyIdx], *g_, [cam, currencyIdx] { return cam->irlgm1f(currencyIdx); }, modelParameters_,
    //     sloppySimDates_, effectiveSimulationDates_);
    // return hwcg.fixing(irIndices_[indexNo].second, fixingDate, sd, irStates_.at(sd).at(currencyIdx));
}

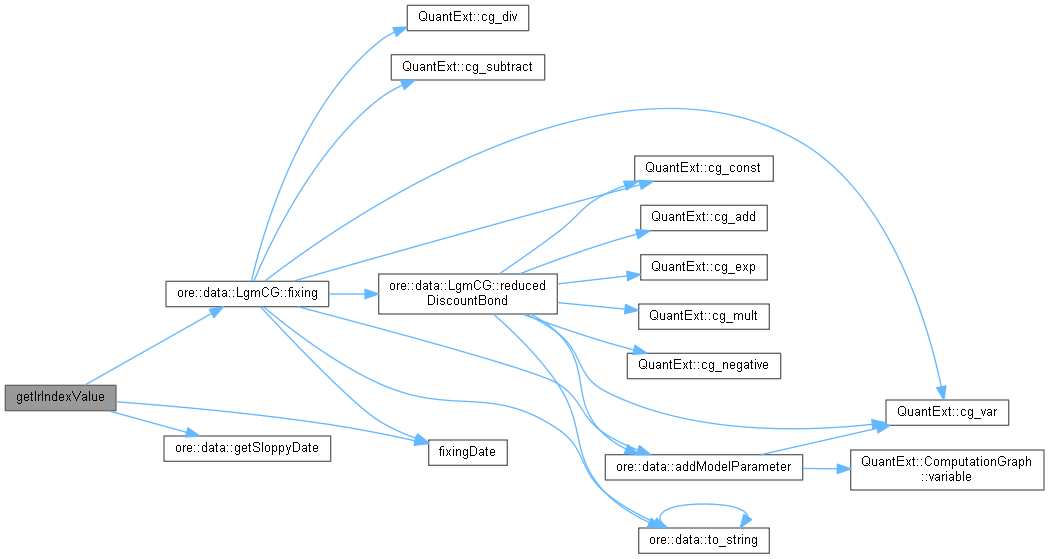

Here is the call graph for this function:

◆ getInfIndexValue()

std::size_t getInfIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null<Date>()`
	)		const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 322 of file gaussiancamcg.cpp.

                                                                                                  {
    QL_FAIL("GaussianCamCG::getInfIndexValue(): not implemented");
}

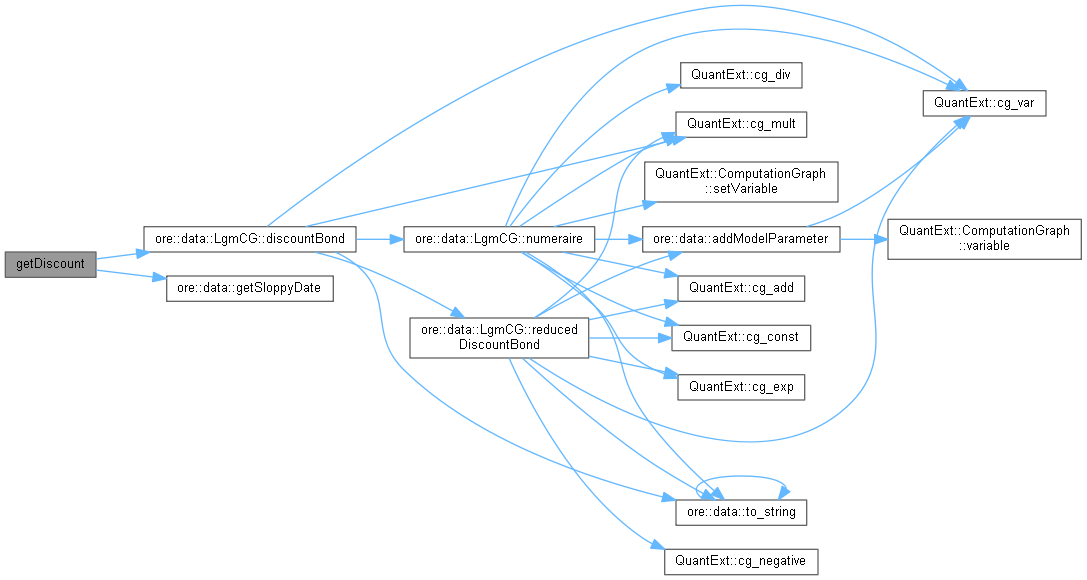

◆ getDiscount()

std::size_t getDiscount	(	const Size	idx,
		const Date &	s,
		const Date &	t
	)		const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 335 of file gaussiancamcg.cpp.

                                                                                       {
    auto cam(cam_);
    Size cpidx = currencyPositionInCam_[idx];
    Date sd = getSloppyDate(s, sloppySimDates_, effectiveSimulationDates_);
    LgmCG lgmcg(
        currencies_[idx], *g_, [cam, cpidx] { return cam->irlgm1f(cpidx); }, modelParameters_, sloppySimDates_,
        effectiveSimulationDates_);
    return lgmcg.discountBond(sd, t, irStates_.at(sd)[idx]);
    // HwCG hwcg(
    //     currencies_[idx], *g_, [cam, cpidx] { return cam->irlgm1f(cpidx); }, modelParameters_, sloppySimDates_,
    //     effectiveSimulationDates_);
    // return hwcg.discountBond(sd, t, irStates_.at(sd)[idx]);
}

Here is the call graph for this function:

◆ getNumeraire()

std::size_t getNumeraire ( const Date & s ) const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 349 of file gaussiancamcg.cpp.

                                                         {
    auto cam(cam_);
    Size cpidx = currencyPositionInCam_[0];
    Date sd = getSloppyDate(s, sloppySimDates_, effectiveSimulationDates_);
    LgmCG lgmcg(
        currencies_[0], *g_, [cam, cpidx] { return cam->irlgm1f(cpidx); }, modelParameters_, sloppySimDates_,
        effectiveSimulationDates_);
    return lgmcg.numeraire(sd, irStates_.at(sd)[0]);
    // HwCG hwcg(
    //     currencies_[0], *g_, [cam, cpidx] { return cam->irlgm1f(cpidx); }, modelParameters_, sloppySimDates_,
    //     effectiveSimulationDates_);
    // return hwcg.numeraire(sd, irStates_.at(sd)[0]);
}

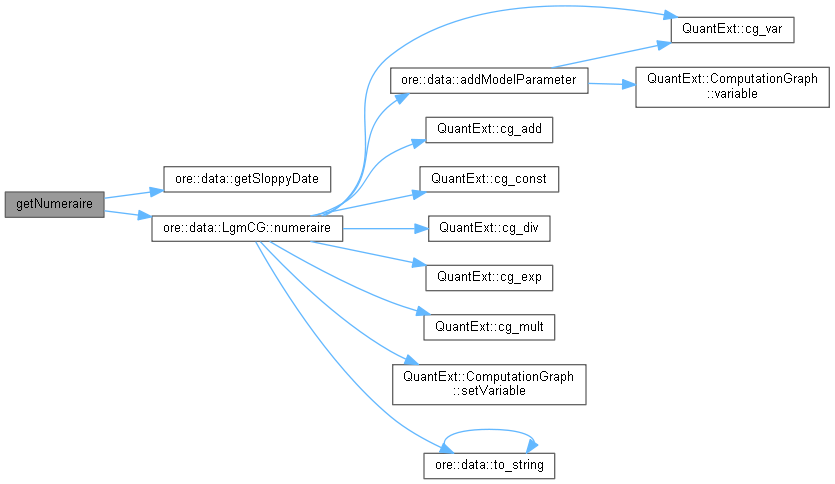

Here is the call graph for this function:

◆ getFxSpot()

std::size_t getFxSpot ( const Size idx ) const

overrideprotectedvirtual

Implements ModelCGImpl.

Definition at line 363 of file gaussiancamcg.cpp.

                                                       {
    std::string id = "__fxspot_" + std::to_string(idx);
    auto c = fxSpots_.at(idx);
    return addModelParameter(id, [c] { return c->value(); });
}

Here is the call graph for this function:

Member Data Documentation

◆ cam_

const Handle<CrossAssetModel> cam_

protected

Definition at line 69 of file gaussiancamcg.hpp.

◆ curves_

const std::vector<Handle<YieldTermStructure> > curves_

protected

Definition at line 70 of file gaussiancamcg.hpp.

◆ fxSpots_

const std::vector<Handle<Quote> > fxSpots_

protected

Definition at line 71 of file gaussiancamcg.hpp.

◆ timeStepsPerYear_

const Size timeStepsPerYear_

protected

Definition at line 72 of file gaussiancamcg.hpp.

◆ projectedStateProcessIndices_

const std::vector<Size> projectedStateProcessIndices_

protected

Definition at line 73 of file gaussiancamcg.hpp.

◆ sloppySimDates_

const bool sloppySimDates_

protected

Definition at line 74 of file gaussiancamcg.hpp.

◆ referenceDate_

Date referenceDate_

mutableprotected

Definition at line 77 of file gaussiancamcg.hpp.

◆ effectiveSimulationDates_

std::set<Date> effectiveSimulationDates_

mutableprotected

Definition at line 78 of file gaussiancamcg.hpp.

◆ timeGrid_

TimeGrid timeGrid_

mutableprotected

Definition at line 79 of file gaussiancamcg.hpp.

◆ positionInTimeGrid_

std::vector<Size> positionInTimeGrid_

mutableprotected

Definition at line 80 of file gaussiancamcg.hpp.

◆ underlyingPaths_

std::map<Date, std::vector<std::size_t> > underlyingPaths_

mutableprotected

Definition at line 81 of file gaussiancamcg.hpp.

◆ irStates_

std::map<Date, std::vector<std::size_t> > irStates_

mutableprotected

Definition at line 82 of file gaussiancamcg.hpp.

◆ infStates_

std::map<Date, std::vector<std::pair<std::size_t, std::size_t> > > infStates_

mutableprotected

Definition at line 84 of file gaussiancamcg.hpp.

◆ indexPositionInProcess_

std::vector<Size> indexPositionInProcess_

mutableprotected

Definition at line 85 of file gaussiancamcg.hpp.

◆ infIndexPositionInProcess_

std::vector<Size> infIndexPositionInProcess_

mutableprotected

Definition at line 86 of file gaussiancamcg.hpp.

◆ currencyPositionInProcess_

std::vector<Size> currencyPositionInProcess_

mutableprotected

Definition at line 87 of file gaussiancamcg.hpp.

◆ irIndexPositionInCam_

std::vector<Size> irIndexPositionInCam_

mutableprotected

Definition at line 88 of file gaussiancamcg.hpp.

◆ infIndexPositionInCam_

std::vector<Size> infIndexPositionInCam_

mutableprotected

Definition at line 89 of file gaussiancamcg.hpp.

◆ currencyPositionInCam_

std::vector<Size> currencyPositionInCam_

mutableprotected

Definition at line 90 of file gaussiancamcg.hpp.

◆ eqIndexInCam_

std::vector<Size> eqIndexInCam_

mutableprotected

Definition at line 91 of file gaussiancamcg.hpp.

◆ conditionalExpectationUseIr_

bool conditionalExpectationUseIr_

mutableprotected

Definition at line 92 of file gaussiancamcg.hpp.

◆ conditionalExpectationUseInf_

bool conditionalExpectationUseInf_

mutableprotected

Definition at line 93 of file gaussiancamcg.hpp.

◆ conditionalExpectationUseAsset_

bool conditionalExpectationUseAsset_

mutableprotected

Definition at line 94 of file gaussiancamcg.hpp.

◆ underlyingPathsCgVersion_

std::size_t underlyingPathsCgVersion_ = 0

mutableprotected

Definition at line 96 of file gaussiancamcg.hpp.

◆ injectedPathTimes_

const std::vector<QuantLib::Real>* injectedPathTimes_ = nullptr

protected

Definition at line 99 of file gaussiancamcg.hpp.

◆ injectedPaths_

const std::vector<std::vector<std::size_t> >* injectedPaths_ = nullptr

protected

Definition at line 100 of file gaussiancamcg.hpp.

◆ injectedPathIsRelevantTime_

const std::vector<bool>* injectedPathIsRelevantTime_

protected

Definition at line 101 of file gaussiancamcg.hpp.

◆ injectedPathStickyCloseOutRun_

bool injectedPathStickyCloseOutRun_

protected

Definition at line 102 of file gaussiancamcg.hpp.

◆ overwriteModelSize_

Size overwriteModelSize_ = Null<Size>()

protected

Definition at line 103 of file gaussiancamcg.hpp.

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GaussianCamCG()

Member Function Documentation

◆ type()

◆ referenceDate()

◆ npv()

◆ fwdCompAvg()

◆ size()

◆ getDirectFxSpotT0()

◆ getDirectDiscountT0()

◆ getFutureBarrierProb()

◆ performCalculations()

◆ getIndexValue()

◆ getIrIndexValue()

◆ getInfIndexValue()

◆ getDiscount()

◆ getNumeraire()

◆ getFxSpot()

Member Data Documentation

◆ cam_

◆ curves_

◆ fxSpots_

◆ timeStepsPerYear_

◆ projectedStateProcessIndices_

◆ sloppySimDates_

◆ referenceDate_

◆ effectiveSimulationDates_

◆ timeGrid_

◆ positionInTimeGrid_

◆ underlyingPaths_

◆ irStates_

◆ infStates_

◆ indexPositionInProcess_

◆ infIndexPositionInProcess_

◆ currencyPositionInProcess_

◆ irIndexPositionInCam_

◆ infIndexPositionInCam_

◆ currencyPositionInCam_

◆ eqIndexInCam_

◆ conditionalExpectationUseIr_

◆ conditionalExpectationUseInf_

◆ conditionalExpectationUseAsset_

◆ underlyingPathsCgVersion_

◆ injectedPathTimes_

◆ injectedPaths_

◆ injectedPathIsRelevantTime_

◆ injectedPathStickyCloseOutRun_

◆ overwriteModelSize_
