#include <ored/scripting/models/modelcgimpl.hpp>

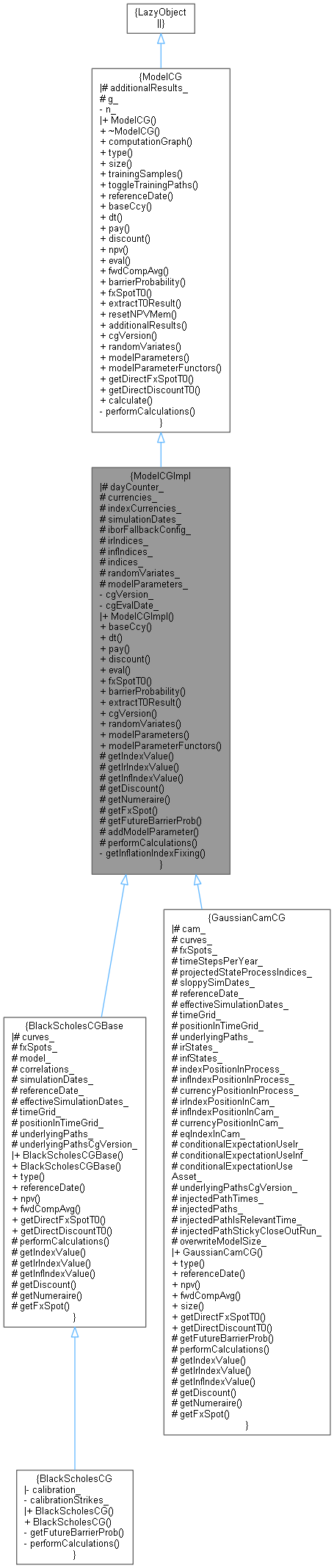

Inheritance diagram for ModelCGImpl:

Collaboration diagram for ModelCGImpl:

Public Member Functions
	ModelCGImpl (const DayCounter &dayCounter, const Size size, const std::vector< std::string > &currencies, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &irIndices, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &infIndices, const std::vector< std::string > &indices, const std::vector< std::string > &indexCurrencies, const std::set< Date > &simulationDates, const IborFallbackConfig &iborFallbackConfig)

const std::string &	baseCcy () const override

std::size_t	dt (const Date &d1, const Date &d2) const override

std::size_t	pay (const std::size_t amount, const Date &obsdate, const Date &paydate, const std::string &currency) const override

std::size_t	discount (const Date &obsdate, const Date &paydate, const std::string &currency) const override

std::size_t	eval (const std::string &index, const Date &obsdate, const Date &fwddate, const bool returnMissingMissingAsNull=false, const bool ignoreTodaysFixing=false) const override

std::size_t	fxSpotT0 (const std::string &forCcy, const std::string &domCcy) const override

std::size_t	barrierProbability (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const override

Real	extractT0Result (const RandomVariable &value) const override

std::size_t	cgVersion () const override

const std::vector< std::vector< std::size_t > > &	randomVariates () const override

std::vector< std::pair< std::size_t, double > >	modelParameters () const override

std::vector< std::pair< std::size_t, std::function< double(void)> > > &	modelParameterFunctors () const override

Public Member Functions inherited from ModelCG
	ModelCG (const QuantLib::Size n)

virtual	~ModelCG ()

QuantLib::ext::shared_ptr< QuantExt::ComputationGraph >	computationGraph ()

virtual Type	type () const =0

virtual QuantLib::Size	size () const

virtual Size	trainingSamples () const

virtual void	toggleTrainingPaths () const

virtual const Date &	referenceDate () const =0

virtual const std::string &	baseCcy () const =0

virtual std::size_t	dt (const Date &d1, const Date &d2) const

virtual std::size_t	pay (const std::size_t amount, const Date &obsdate, const Date &paydate, const std::string &currency) const =0

virtual std::size_t	discount (const Date &obsdate, const Date &paydate, const std::string &currency) const =0

virtual std::size_t	npv (const std::size_t amount, const Date &obsdate, const std::size_t filter, const boost::optional< long > &memSlot, const std::size_t addRegressor1, const std::size_t addRegressor2) const =0

virtual std::size_t	eval (const std::string &index, const Date &obsdate, const Date &fwddate, const bool returnMissingFixingAsNull=false, const bool ignoreTodaysFixing=false) const =0

virtual std::size_t	fwdCompAvg (const bool isAvg, const std::string &index, const Date &obsdate, const Date &start, const Date &end, const Real spread, const Real gearing, const Integer lookback, const Natural rateCutoff, const Natural fixingDays, const bool includeSpread, const Real cap, const Real floor, const bool nakedOption, const bool localCapFloor) const =0

virtual std::size_t	barrierProbability (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const =0

virtual std::size_t	fxSpotT0 (const std::string &forCcy, const std::string &domCcy) const =0

virtual Real	extractT0Result (const QuantExt::RandomVariable &value) const =0

virtual void	resetNPVMem ()

const std::map< std::string, boost::any > &	additionalResults () const

virtual std::size_t	cgVersion () const =0

virtual const std::vector< std::vector< std::size_t > > &	randomVariates () const =0

virtual std::vector< std::pair< std::size_t, double > >	modelParameters () const =0

virtual std::vector< std::pair< std::size_t, std::function< double(void)> > > &	modelParameterFunctors () const =0

virtual Real	getDirectFxSpotT0 (const std::string &forCcy, const std::string &domCcy) const =0

virtual Real	getDirectDiscountT0 (const Date &paydate, const std::string &currency) const =0

void	calculate () const override

Protected Member Functions
virtual std::size_t	getIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const =0

virtual std::size_t	getIrIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const =0

virtual std::size_t	getInfIndexValue (const Size indexNo, const Date &d, const Date &fwd) const =0

virtual std::size_t	getDiscount (const Size idx, const Date &s, const Date &t) const =0

virtual std::size_t	getNumeraire (const Date &s) const =0

virtual std::size_t	getFxSpot (const Size idx) const =0

virtual std::size_t	getFutureBarrierProb (const std::string &index, const Date &obsdate1, const Date &obsdate2, const std::size_t barrier, const bool above) const =0

std::size_t	addModelParameter (const std::string &id, std::function< double(void)> f) const

void	performCalculations () const override

Protected Attributes
const DayCounter	dayCounter_

const std::vector< std::string >	currencies_

const std::vector< std::string >	indexCurrencies_

const std::set< Date >	simulationDates_

const IborFallbackConfig	iborFallbackConfig_

std::vector< std::pair< IndexInfo, QuantLib::ext::shared_ptr< InterestRateIndex > > >	irIndices_

std::vector< std::pair< IndexInfo, QuantLib::ext::shared_ptr< ZeroInflationIndex > > >	infIndices_

std::vector< IndexInfo >	indices_

std::vector< std::vector< size_t > >	randomVariates_

std::vector< std::pair< std::size_t, std::function< double(void)> > >	modelParameters_

Protected Attributes inherited from ModelCG
std::map< std::string, boost::any >	additionalResults_

QuantLib::ext::shared_ptr< QuantExt::ComputationGraph >	g_

Private Member Functions
std::size_t	getInflationIndexFixing (const bool returnMissingFixingAsNull, const std::string &indexInput, const QuantLib::ext::shared_ptr< ZeroInflationIndex > &infIndex, const Size indexNo, const Date &limDate, const Date &obsdate, const Date &fwddate, const Date &baseDate) const

Private Attributes
std::size_t	cgVersion_ = 0

QuantLib::Date	cgEvalDate_ = Date()

Additional Inherited Members
Public Types inherited from ModelCG
enum class	Type { MC , FD }

Detailed Description

Definition at line 45 of file modelcgimpl.hpp.

Constructor & Destructor Documentation

◆ ModelCGImpl()

ModelCGImpl	(	const DayCounter &	dayCounter,
		const Size	size,
		const std::vector< std::string > &	currencies,
		const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &	irIndices,
		const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &	infIndices,
		const std::vector< std::string > &	indices,
		const std::vector< std::string > &	indexCurrencies,
		const std::set< Date > &	simulationDates,
		const IborFallbackConfig &	iborFallbackConfig
	)

Definition at line 37 of file modelcgimpl.cpp.

    : ModelCG(size), dayCounter_(dayCounter), currencies_(currencies), indexCurrencies_(indexCurrencies),
      simulationDates_(simulationDates), iborFallbackConfig_(iborFallbackConfig) {

    // populate index vectors

    for (auto const& str : indices) {
        indices_.push_back(IndexInfo(str));
    }

    for (auto const& p : irIndices) {
        irIndices_.push_back(std::make_pair(IndexInfo(p.first), p.second));
    }

    for (auto const& p : infIndices) {
        infIndices_.push_back(std::make_pair(IndexInfo(p.first), p.second));
    }

    // check consistency of inputs

    QL_REQUIRE(indexCurrencies_.size() == indices_.size(), "mismatch of indexCurrencies (" << indexCurrencies_.size()
                                                                                           << ") and indices ("
                                                                                           << indices_.size() << ")");

    for (auto const& c : currencies_)
        QL_REQUIRE(!c.empty(), "empty currency string");

    // look for fx indices, check consistency with currencies and index currencies vectors

    for (Size i = 0; i < indices_.size(); ++i) {
        if (indices_[i].isFx()) {
            QL_REQUIRE(indices_[i].fx()->targetCurrency().code() == currencies_.front(),
                       "fx index domestic currency (" << indices_[i].fx()->targetCurrency().code()
                                                      << ") does not match base currency (" << currencies_.front()
                                                      << ")");
            QL_REQUIRE(indices_[i].fx()->sourceCurrency().code() == indexCurrencies_[i],
                       "fx index foreign currency (" << indices_[i].fx()->sourceCurrency().code()
                                                     << ") does not match index currency (" << indexCurrencies_[i]);
            auto ccy = std::find(currencies_.begin(), currencies_.end(), indexCurrencies_[i]);
            QL_REQUIRE(ccy != currencies_.end(),
                       "fx index foreign currency (" << indexCurrencies_[i] << ") not found in model currencies");
        }
    }

    // register with observables

    for (auto const& i : irIndices_)
        registerWith(i.second);

    for (auto const& i : infIndices_)
        registerWith(i.second);

    for (auto const& i : indices_) {
        if (i.isComm()) {
            for (auto const& d : simulationDates_)
                registerWith(i.index(d));
        } else
            registerWith(i.index());
    }

} // ModelCGImpl ctor

Member Function Documentation

◆ baseCcy()

const std::string & baseCcy ( ) const

overridevirtual

Implements ModelCG.

Definition at line 72 of file modelcgimpl.hpp.

72{ return currencies_.front(); }

◆ dt()

std::size_t dt	(	const Date &	d1,
		const Date &	d2
	)		const

overridevirtual

Reimplemented from ModelCG.

Definition at line 103 of file modelcgimpl.cpp.

                                                              {
    return cg_const(*g_, dayCounter_.yearFraction(d1, d2));
}

Here is the call graph for this function:

◆ pay()

std::size_t pay	(	const std::size_t	amount,
		const Date &	obsdate,
		const Date &	paydate,
		const std::string &	currency
	)		const

overridevirtual

Implements ModelCG.

Definition at line 107 of file modelcgimpl.cpp.

                                                              {
    calculate();

    std::string id = "__pay_" + ore::data::to_string(obsdate) + "_" + ore::data::to_string(paydate) + "_" + currency;

    std::size_t n;
    if (n = cg_var(*g_, id, ComputationGraph::VarDoesntExist::Nan); n == ComputationGraph::nan) {

        // result is as of max(obsdate, refDate) by definition of pay()

        Date effectiveDate = std::max(obsdate, referenceDate());
        auto c = std::find(currencies_.begin(), currencies_.end(), currency);
        QL_REQUIRE(c != currencies_.end(), "currency " << currency << " not handled");
        Size cidx = std::distance(currencies_.begin(), c);

        // do we have a dynamic fx underlying to convert to base at the effective date?

        std::size_t fxSpot = 0;
        for (Size i = 0; i < indexCurrencies_.size(); ++i) {
            if (indices_.at(i).isFx() && currency == indexCurrencies_[i]) {
                fxSpot = getIndexValue(i, effectiveDate);
                break;
            }
        }

        // if no we use the zero vol fx spot at the effective date

        if (fxSpot == 0) {
            if (cidx > 0)
                fxSpot =
                    cg_div(*g_, cg_mult(*g_, getFxSpot(cidx - 1), getDiscount(cidx, referenceDate(), effectiveDate)),
                           getDiscount(0, referenceDate(), effectiveDate));
            else
                fxSpot = cg_const(*g_, 1.0);
        }

        // discount from pay to obs date on ccy curve, convert to base ccy and divide by the numeraire

        n = cg_mult(*g_, cg_div(*g_, getDiscount(cidx, effectiveDate, paydate), getNumeraire(effectiveDate)), fxSpot);
        g_->setVariable(id, n);
    }

    return cg_mult(*g_, amount, n);
}

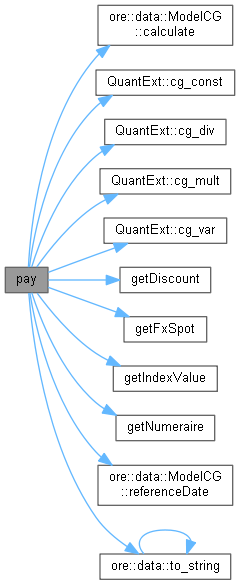

Here is the call graph for this function:

◆ discount()

std::size_t discount	(	const Date &	obsdate,
		const Date &	paydate,
		const std::string &	currency
	)		const

overridevirtual

Implements ModelCG.

Definition at line 153 of file modelcgimpl.cpp.

                                                                                                         {
    calculate();
    auto c = std::find(currencies_.begin(), currencies_.end(), currency);
    QL_REQUIRE(c != currencies_.end(), "currency " << currency << " not handled");
    Size cidx = std::distance(currencies_.begin(), c);
    return getDiscount(cidx, obsdate, paydate);
}

Here is the call graph for this function:

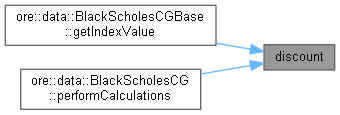

Here is the caller graph for this function:

◆ eval()

std::size_t eval	(	const std::string &	index,
		const Date &	obsdate,
		const Date &	fwddate,
		const bool	returnMissingMissingAsNull = `false`,
		const bool	ignoreTodaysFixing = `false`
	)		const

overridevirtual

Implements ModelCG.

Definition at line 197 of file modelcgimpl.cpp.

                                                                                                         {
    calculate();

    std::string id = "__eval_" + indexInput + "_" + ore::data::to_string(obsdate) + "_" +
                     ore::data::to_string(fwddate) + "_" + (returnMissingFixingAsNull ? "1" : "0") + "_" +
                     (ignoreTodaysFixing ? "1" : "0");

    if (std::size_t n = cg_var(*g_, id, ComputationGraph::VarDoesntExist::Nan); n != ComputationGraph::nan) {
        return n;
    }

    std::string index = indexInput;
    IndexInfo indexInfo(index);

    // 1 handle inflation indices
    QL_DEPRECATED_DISABLE_WARNING
    if (indexInfo.isInf()) {
        auto inf = std::find_if(infIndices_.begin(), infIndices_.end(), comp(indexInput));
        QL_REQUIRE(inf != infIndices_.end(),
                   "ModelCGImpl::eval(): did not find inflation index '" << indexInput << "' in model index list.");
        Date baseDate = inf->second->zeroInflationTermStructure()->baseDate();
        Date effectiveFixingDate = fwddate != Null<Date>() ? fwddate : obsdate;
        std::pair<Date, Date> lim = inflationPeriod(effectiveFixingDate, inf->second->frequency());
        std::size_t indexStart =
            getInflationIndexFixing(returnMissingFixingAsNull, indexInput, inf->second,
                                    std::distance(infIndices_.begin(), inf), lim.first, obsdate, fwddate, baseDate);
        // if the index is not interpolated we are done
        if (!indexInfo.inf()->interpolated()) {
            return indexStart;
        }
        // otherwise we need to get a second value and interpolate as in ZeroInflationIndex
        std::size_t indexEnd = getInflationIndexFixing(returnMissingFixingAsNull, indexInput, inf->second,
                                                       std::distance(infIndices_.begin(), inf), lim.second + 1, obsdate,
                                                       fwddate, baseDate);
        // this is not entirely correct, since we should use the days in the lagged period, but we don't know the lag
        std::size_t n = cg_add(*g_, indexStart,
                               cg_mult(*g_, cg_subtract(*g_, indexEnd, indexStart),
                                       cg_const(*g_, (static_cast<Real>(effectiveFixingDate - lim.first) /
                                                      static_cast<Real>(lim.second + 1 - lim.first)))));
        g_->setVariable(id, n);
        return n;
    }
    QL_DEPRECATED_ENABLE_WARNING
    // 2 handle non-inflation indices

    // 2a handle historical fixings and today's fixings (if given as a historical fixing)
    // for fx indices try to get the fixing both from the straight and the inverse index

    if (fwddate == Null<Date>()) {
        if (obsdate < referenceDate() || (obsdate == referenceDate() && !ignoreTodaysFixing)) {
            if (indexInfo.irIborFallback(iborFallbackConfig_, referenceDate())) {
                // handle ibor fallback indices, they don't fit into the below treatment...
                auto ir = std::find_if(irIndices_.begin(), irIndices_.end(), comp(indexInput));
                if (ir != irIndices_.end()) {
                    std::size_t n =
                        cg_const(*g_, ir->second->fixing(ir->second->fixingCalendar().adjust(obsdate, Preceding)));
                    g_->setVariable(id, n);
                    return n;
                } else {
                    QL_FAIL("ir (fallback ibor) index '" << indexInput
                                                         << "' not found in ir indices list, internal error.");
                }
            } else {
                // handle all other cases than ibor fallback indices
                QuantLib::ext::shared_ptr<Index> idx = indexInfo.index(obsdate);
                Real fixing = Null<Real>();
                try {
                    fixing = idx->fixing(idx->fixingCalendar().adjust(obsdate, Preceding));
                } catch (...) {
                }
                if (fixing != Null<Real>()) {
                    std::size_t n = cg_const(*g_, fixing);
                    g_->setVariable(id, n);
                    return n;
                } else {
                    // for dates < refDate we are stuck now
                    if (obsdate != referenceDate()) {
                        if (returnMissingFixingAsNull) {
                            std::size_t n = ComputationGraph::nan;
                            g_->setVariable(id, n);
                            return n;
                        } else {
                            QL_FAIL("missing "
                                    << idx->name() << " fixing for " << QuantLib::io::iso_date(obsdate)
                                    << " (adjusted fixing date = "
                                    << QuantLib::io::iso_date(idx->fixingCalendar().adjust(obsdate, Preceding)) << ")");
                        }
                    }
                }
            }
        }
    } else {
        // if fwd date is given, ensure we can project
        QL_REQUIRE(obsdate >= referenceDate(), "if fwd date is given ("
                                                   << QuantLib::io::iso_date(fwddate) << "), obsdate ("
                                                   << QuantLib::io::iso_date(obsdate) << ") must be >= refdate ("
                                                   << QuantLib::io::iso_date(referenceDate()) << ")");
    }

    // 2b handle fixings >= today (and fwd fixings, in which case we know fwddate > obsdate >= refdate)

    // 2b1 handle IR indices

    if (indexInfo.isIr()) {
        auto ir = std::find_if(irIndices_.begin(), irIndices_.end(), comp(indexInput));
        if (ir != irIndices_.end()) {
            std::size_t res = getIrIndexValue(std::distance(irIndices_.begin(), ir), obsdate, fwddate);
            QL_REQUIRE(res != ComputationGraph::nan, "internal error: could not project "
                                                         << ir->second->name() << " fixing for (obsdate/fwddate) = ("
                                                         << QuantLib::io::iso_date(obsdate) << ","
                                                         << QuantLib::io::iso_date(fwddate) << ")");
            g_->setVariable(id, res);
            return res;
        }
    }

    // 2b2 handle FX, EQ, COMM indices

    // if we have an FX index, we "normalise" the tag by GENERIC (since it does not matter for projections)

    if (indexInfo.isFx())
        indexInfo = IndexInfo("FX-GENERIC-" + indexInfo.fx()->sourceCurrency().code() + "-" +
                              indexInfo.fx()->targetCurrency().code());

    std::size_t res;
    auto i = std::find(indices_.begin(), indices_.end(), indexInfo);
    if (i != indices_.end()) {
        // we have the index directly as an underlying
        res = getIndexValue(std::distance(indices_.begin(), i), obsdate, fwddate);
    } else {
        // if not, we can only try something else for FX indices
        QL_REQUIRE(indexInfo.isFx(), "ModelCGImpl::eval(): index " << index << " not handled");
        // is it a trivial fx index (CCY-CCY) or can we triangulate it?
        std::size_t fx1 = cg_const(*g_, 1.0), fx2 = cg_const(*g_, 1.0);
        if (indexInfo.fx()->sourceCurrency() == indexInfo.fx()->targetCurrency()) {
            res = fx1;
            // no fwd correction required, if ccy1=ccy2 we have spot = fwd = 1
        } else {
            Size ind1 = Null<Size>(), ind2 = Null<Size>();
            for (Size i = 0; i < indexCurrencies_.size(); ++i) {
                if (indices_[i].isFx()) {
                    if (indexInfo.fx()->sourceCurrency().code() == indexCurrencies_[i])
                        ind1 = i;
                    if (indexInfo.fx()->targetCurrency().code() == indexCurrencies_[i])
                        ind2 = i;
                }
            }
            if (ind1 != Null<Size>()) {
                fx1 = getIndexValue(ind1, obsdate);
            }
            if (ind2 != Null<Size>()) {
                fx2 = getIndexValue(ind2, obsdate);
            }
            res = cg_div(*g_, fx1, fx2);
            if (fwddate != Null<Date>()) {
                auto ind1 = std::find(currencies_.begin(), currencies_.end(), indexInfo.fx()->sourceCurrency().code());
                auto ind2 = std::find(currencies_.begin(), currencies_.end(), indexInfo.fx()->targetCurrency().code());
                QL_REQUIRE(ind1 != currencies_.end(), "currency " << indexInfo.fx()->sourceCurrency().code()
                                                                  << " in index " << index << " not handled");
                QL_REQUIRE(ind2 != currencies_.end(), "currency " << indexInfo.fx()->targetCurrency().code()
                                                                  << " in index " << index << " not handled");
                res = cg_mult(*g_, res,
                              cg_div(*g_, getDiscount(std::distance(currencies_.begin(), ind1), obsdate, fwddate),
                                     getDiscount(std::distance(currencies_.begin(), ind2), obsdate, fwddate)));
            }
        }
    }
    g_->setVariable(id, res);
    return res;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fxSpotT0()

std::size_t fxSpotT0	(	const std::string &	forCcy,
		const std::string &	domCcy
	)		const

overridevirtual

Implements ModelCG.

Definition at line 369 of file modelcgimpl.cpp.

                                                                                      {
    calculate();
    std::string id = "__fxspott0_" + forCcy + "_" + domCcy;
    std::size_t fx;
    if (fx = cg_var(*g_, id, ComputationGraph::VarDoesntExist::Nan); fx == ComputationGraph::nan) {
        auto c1 = std::find(currencies_.begin(), currencies_.end(), forCcy);
        auto c2 = std::find(currencies_.begin(), currencies_.end(), domCcy);
        QL_REQUIRE(c1 != currencies_.end(), "currency " << forCcy << " not handled");
        QL_REQUIRE(c2 != currencies_.end(), "currency " << domCcy << " not handled");
        Size cidx1 = std::distance(currencies_.begin(), c1);
        Size cidx2 = std::distance(currencies_.begin(), c2);
        std::size_t fx = cg_const(*g_, 1.0);
        if (cidx1 > 0)
            fx = cg_mult(*g_, fx, getFxSpot(cidx1 - 1));
        if (cidx2 > 0)
            fx = cg_div(*g_, fx, getFxSpot(cidx2 - 1));
        g_->setVariable(id, fx);
    }
    return fx;
}

Here is the call graph for this function:

◆ barrierProbability()

std::size_t barrierProbability	(	const std::string &	index,
		const Date &	obsdate1,
		const Date &	obsdate2,
		const std::size_t	barrier,
		const bool	above
	)		const

overridevirtual

Implements ModelCG.

Definition at line 390 of file modelcgimpl.cpp.

                                                                                             {

    calculate();

    // determine the fixing calendar (assume that for commodity this is the same for different futures)

    IndexInfo ind(index);
    auto qlIndex = ind.index(obsdate1);

    // handle all dates < reference date here

    std::size_t barrierHit = cg_const(*g_, 0.0);
    Date d = obsdate1;
    while (d < std::min(referenceDate(), obsdate2)) {
        if (qlIndex->fixingCalendar().isBusinessDay(d)) {
            std::size_t f = eval(index, d, Null<Date>(), true);
            if (f != ComputationGraph::nan) {
                if (above) {
                    barrierHit =
                        cg_min(*g_, cg_const(*g_, 1.0), cg_add(*g_, barrierHit, cg_indicatorGeq(*g_, f, barrier)));
                } else {
                    barrierHit = cg_min(
                        *g_, cg_const(*g_, 1.0),
                        cg_add(*g_, barrierHit, cg_subtract(*g_, cg_const(*g_, 1.0), cg_indicatorGt(*g_, f, barrier))));
                }
            } else {
                // lax check of historical fixings, since e.g. for equity underlyings
                // we can't expect to get the actual fixing calendar from index info
                // TODO can we improve this by using the correct calendars?
                TLOG("ignore missing fixing for " << qlIndex->name() << " on " << QuantLib::io::iso_date(d)
                                                  << " in ModelCGImpl::barrierProbability()");
            }
        }
        ++d;
    }

    if (obsdate2 < referenceDate()) {
        return barrierHit;
    }

    // handle future part (call into derived classes, this is model dependent)

    std::size_t futureBarrierHit =
        getFutureBarrierProb(index, std::max<Date>(obsdate1, referenceDate()), obsdate2, barrier, above);

    // combine historical and future part and return result

    return cg_add(*g_, cg_mult(*g_, cg_subtract(*g_, cg_const(*g_, 1.0), barrierHit), futureBarrierHit), barrierHit);
}

Here is the call graph for this function:

◆ extractT0Result()

Real extractT0Result ( const RandomVariable & value ) const

overridevirtual

Implements ModelCG.

Definition at line 441 of file modelcgimpl.cpp.

441{ return expectation(value).at(0); }

value

SafeStack< ValueType > value

Definition: computationgraphbuilder.cpp:1478

QuantExt::expectation

RandomVariable expectation(const RandomVariable &r)

QuantExt::RandomVariable::at

Real at(const Size i) const

Here is the call graph for this function:

◆ cgVersion()

std::size_t cgVersion ( ) const

overridevirtual

Implements ModelCG.

Definition at line 453 of file modelcgimpl.cpp.

                                       {
    calculate();
    return cgVersion_;
}

Here is the call graph for this function:

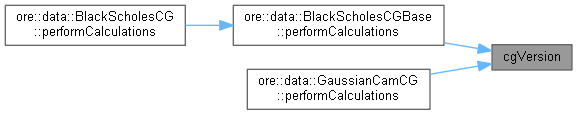

Here is the caller graph for this function:

◆ randomVariates()

const std::vector< std::vector< std::size_t > > & randomVariates ( ) const

overridevirtual

Implements ModelCG.

Definition at line 458 of file modelcgimpl.cpp.

                                                                         {
    calculate();
    return randomVariates_;
}

Here is the call graph for this function:

◆ modelParameters()

std::vector< std::pair< std::size_t, double > > modelParameters ( ) const

overridevirtual

Implements ModelCG.

Definition at line 463 of file modelcgimpl.cpp.

                                                                         {
    calculate();
    std::vector<std::pair<std::size_t, double>> res;
    for (auto const& f : modelParameters_) {
        res.push_back(std::make_pair(f.first, f.second()));
    }
    return res;
}

Here is the call graph for this function:

◆ modelParameterFunctors()

std::vector< std::pair< std::size_t, std::function< double(void)> > > & modelParameterFunctors ( ) const

overridevirtual

Implements ModelCG.

Definition at line 472 of file modelcgimpl.cpp.

                                                                                                    {
    return modelParameters_;
}

◆ getIndexValue()

virtual std::size_t getIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null< Date >()`
	)		const

protectedpure virtual

Implemented in BlackScholesCGBase, and GaussianCamCG.

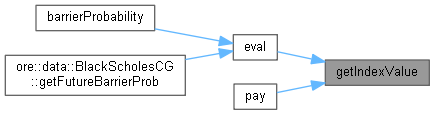

Here is the caller graph for this function:

◆ getIrIndexValue()

virtual std::size_t getIrIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null< Date >()`
	)		const

protectedpure virtual

Implemented in BlackScholesCGBase, and GaussianCamCG.

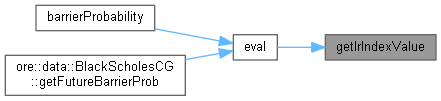

Here is the caller graph for this function:

◆ getInfIndexValue()

virtual std::size_t getInfIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd
	)		const

protectedpure virtual

Implemented in BlackScholesCGBase, and GaussianCamCG.

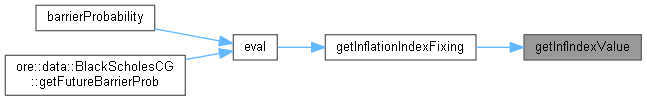

Here is the caller graph for this function:

◆ getDiscount()

virtual std::size_t getDiscount	(	const Size	idx,
		const Date &	s,
		const Date &	t
	)		const

protectedpure virtual

Implemented in BlackScholesCGBase, and GaussianCamCG.

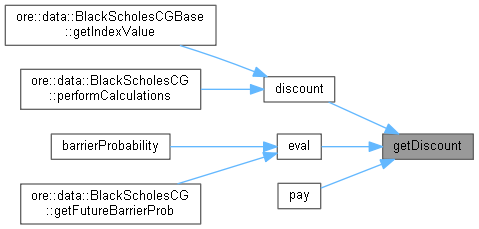

Here is the caller graph for this function:

◆ getNumeraire()

virtual std::size_t getNumeraire ( const Date & s ) const

protectedpure virtual

Implemented in BlackScholesCGBase, and GaussianCamCG.

Here is the caller graph for this function:

◆ getFxSpot()

virtual std::size_t getFxSpot ( const Size idx ) const

protectedpure virtual

Implemented in BlackScholesCGBase, and GaussianCamCG.

Here is the caller graph for this function:

◆ getFutureBarrierProb()

virtual std::size_t getFutureBarrierProb	(	const std::string &	index,
		const Date &	obsdate1,
		const Date &	obsdate2,
		const std::size_t	barrier,
		const bool	above
	)		const

protectedpure virtual

Implemented in BlackScholesCG, and GaussianCamCG.

Here is the caller graph for this function:

◆ addModelParameter()

std::size_t addModelParameter	(	const std::string &	id,
		std::function< double(void)>	f
	)		const

protected

Definition at line 476 of file modelcgimpl.cpp.

                                                                                               {
    return ::ore::data::addModelParameter(*g_, modelParameters_, id, f);
}

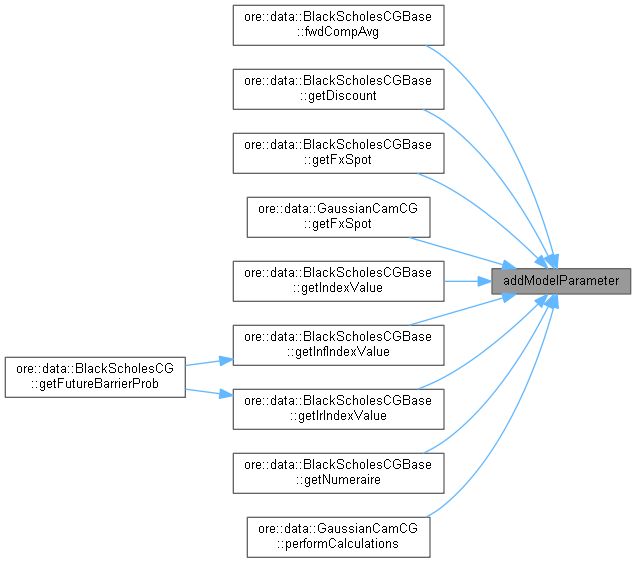

Here is the caller graph for this function:

◆ performCalculations()

void performCalculations ( ) const

overrideprotected

Definition at line 443 of file modelcgimpl.cpp.

                                            {
    if (cgEvalDate_ != referenceDate()) {
        ++cgVersion_;
        cgEvalDate_ = referenceDate();
        randomVariates_.clear();
        modelParameters_.clear();
        g_->clear();
    }
}

Here is the call graph for this function:

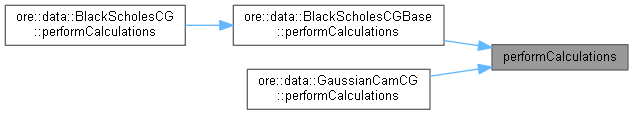

Here is the caller graph for this function:

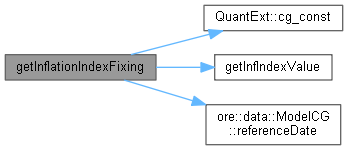

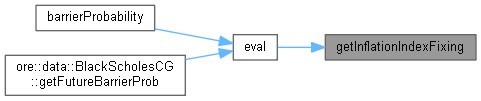

◆ getInflationIndexFixing()

std::size_t getInflationIndexFixing	(	const bool	returnMissingFixingAsNull,
		const std::string &	indexInput,
		const QuantLib::ext::shared_ptr< ZeroInflationIndex > &	infIndex,
		const Size	indexNo,
		const Date &	limDate,
		const Date &	obsdate,
		const Date &	fwddate,
		const Date &	baseDate
	)		const

private

Definition at line 171 of file modelcgimpl.cpp.

                                                                                                  {
    std::size_t res;
    Real f = infIndex->timeSeries()[limDate];
    // we exclude historical fixings
    // - which are "impossible" to know (limDate > refDate)
    // - which have to be projected because a fwd date is given and they are later than the obsdate
    if (f != Null<Real>() && !(limDate > referenceDate()) && (fwddate == Null<Date>() || limDate <= obsdate)) {
        res = cg_const(*g_, f);
    } else {
        Date effectiveObsDate = std::min(obsdate, limDate);
        if (effectiveObsDate >= baseDate) {
            res = getInfIndexValue(indexNo, effectiveObsDate, limDate);
        } else if (returnMissingFixingAsNull) {
            return ComputationGraph::nan;
        } else {
            QL_FAIL("missing " << indexInput << " fixing for " << QuantLib::io::iso_date(limDate) << " (obsdate="
                               << QuantLib::io::iso_date(obsdate) << ", fwddate=" << QuantLib::io::iso_date(fwddate)
                               << ", basedate=" << QuantLib::io::iso_date(baseDate) << ")");
        }
    }
    return res;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ dayCounter_

const DayCounter dayCounter_

protected

Definition at line 112 of file modelcgimpl.hpp.

◆ currencies_

const std::vector<std::string> currencies_

protected

Definition at line 113 of file modelcgimpl.hpp.

◆ indexCurrencies_

const std::vector<std::string> indexCurrencies_

protected

Definition at line 114 of file modelcgimpl.hpp.

◆ simulationDates_

const std::set<Date> simulationDates_

protected

Definition at line 115 of file modelcgimpl.hpp.

◆ iborFallbackConfig_

const IborFallbackConfig iborFallbackConfig_

protected

Definition at line 116 of file modelcgimpl.hpp.

◆ irIndices_

std::vector<std::pair<IndexInfo, QuantLib::ext::shared_ptr<InterestRateIndex> > > irIndices_

protected

Definition at line 118 of file modelcgimpl.hpp.

◆ infIndices_

std::vector<std::pair<IndexInfo, QuantLib::ext::shared_ptr<ZeroInflationIndex> > > infIndices_

protected

Definition at line 119 of file modelcgimpl.hpp.

◆ indices_

std::vector<IndexInfo> indices_

protected

Definition at line 120 of file modelcgimpl.hpp.

◆ randomVariates_

std::vector<std::vector<size_t> > randomVariates_

mutableprotected

Definition at line 123 of file modelcgimpl.hpp.

◆ modelParameters_

std::vector<std::pair<std::size_t, std::function<double(void)> > > modelParameters_

mutableprotected

Definition at line 124 of file modelcgimpl.hpp.

◆ cgVersion_

std::size_t cgVersion_ = 0

mutableprivate

Definition at line 133 of file modelcgimpl.hpp.

◆ cgEvalDate_

QuantLib::Date cgEvalDate_ = Date()

mutableprivate

Definition at line 134 of file modelcgimpl.hpp.

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ModelCGImpl()

Member Function Documentation

◆ baseCcy()

◆ dt()

◆ pay()

◆ discount()

◆ eval()

◆ fxSpotT0()

◆ barrierProbability()

◆ extractT0Result()

◆ cgVersion()

◆ randomVariates()

◆ modelParameters()

◆ modelParameterFunctors()

◆ getIndexValue()

◆ getIrIndexValue()

◆ getInfIndexValue()

◆ getDiscount()

◆ getNumeraire()

◆ getFxSpot()

◆ getFutureBarrierProb()

◆ addModelParameter()

◆ performCalculations()

◆ getInflationIndexFixing()

Member Data Documentation

◆ dayCounter_

◆ currencies_

◆ indexCurrencies_

◆ simulationDates_

◆ iborFallbackConfig_

◆ irIndices_

◆ infIndices_

◆ indices_

◆ randomVariates_

◆ modelParameters_

◆ cgVersion_

◆ cgEvalDate_
