commodityvolcurve.cpp File Reference

#include <boost/test/unit_test.hpp>
#include <boost/test/data/test_case.hpp>
#include <oret/datapaths.hpp>
#include <oret/toplevelfixture.hpp>
#include <boost/make_shared.hpp>
#include <cmath>
#include <ored/configuration/curveconfigurations.hpp>
#include <ored/marketdata/commodityvolcurve.hpp>
#include <ored/marketdata/csvloader.hpp>
#include <ored/marketdata/curvespec.hpp>
#include <ored/marketdata/loader.hpp>
#include <ored/marketdata/todaysmarket.hpp>
#include <ored/utilities/csvfilereader.hpp>
#include <ored/utilities/parsers.hpp>
#include <ored/utilities/to_string.hpp>
#include <ql/termstructures/volatility/equityfx/blackvariancesurface.hpp>
#include <qle/indexes/dividendmanager.hpp>
#include <qle/termstructures/aposurface.hpp>
#include <qle/termstructures/blackvariancesurfacesparse.hpp>
#include <qle/termstructures/blackvolsurfacedelta.hpp>
#include <qle/termstructures/blackvolsurfacewithatm.hpp>

Go to the source code of this file.

Functions
	BOOST_AUTO_TEST_CASE (testCommodityVolCurveTypeConstant)
	BOOST_AUTO_TEST_CASE (testCommodityVolCurveTypeCurve)
	BOOST_AUTO_TEST_CASE (testCommodityVolCurveTypeSurface)
	BOOST_AUTO_TEST_CASE (testCommodityVolSurfaceWildcardExpiriesWildcardStrikes)
	BOOST_AUTO_TEST_CASE (testCommodityVolSurfaceWildcardExpiriesExplicitStrikes)
	BOOST_AUTO_TEST_CASE (testCommodityVolSurfaceExplicitExpiriesWildcardStrikes)
	BOOST_AUTO_TEST_CASE (testCommodityVolSurfaceExplicitExpiriesExplicitStrikes)
	BOOST_DATA_TEST_CASE (testCommodityVolDeltaSurface, bdata::make(asofDates) *bdata::make(curveConfigs), asof, curveConfig)
	BOOST_DATA_TEST_CASE (testCommodityVolMoneynessSurface, bdata::make(asofDates) *bdata::make(curveConfigs), asof, curveConfig)
	BOOST_DATA_TEST_CASE (testCommodityApoSurface, bdata::make(asofDates), asof)
	BOOST_AUTO_TEST_CASE (testCommodityVolSurfaceMyrCrudePalmOil)

Variables
vector< Date >	asofDates {Date(13, Jan, 2020), Date(15, Jan, 2020)}
vector< string >	curveConfigs {"curveconfig_explicit_expiries.xml", "curveconfig_wildcard_expiries.xml"}

Function Documentation

BOOST_AUTO_TEST_CASE() [1/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolCurveTypeConstant

)

Definition at line 168 of file commodityvolcurve.cpp.

                                                        {

    BOOST_TEST_MESSAGE("Testing commodity vol curve building with a single configured volatility");

    // As of date
    Date asof(5, Feb, 2016);

    // Constant volatility config
    vector<QuantLib::ext::shared_ptr<VolatilityConfig>> cvc;
    cvc.push_back(QuantLib::ext::make_shared<ConstantVolatilityConfig>("COMMODITY_OPTION/RATE_LNVOL/GOLD/USD/2Y/ATM/AtmFwd"));

    // Volatility configuration with a single quote
    QuantLib::ext::shared_ptr<CommodityVolatilityConfig> curveConfig =
        QuantLib::ext::make_shared<CommodityVolatilityConfig>("GOLD_USD_VOLS", "", "USD", cvc, "A365", "NullCalendar");

    // Curve configurations
    CurveConfigurations curveConfigs;
    curveConfigs.add(CurveSpec::CurveType::CommodityVolatility, "GOLD_USD_VOLS", curveConfig);

    // Commodity curve spec
    CommodityVolatilityCurveSpec curveSpec("USD", "GOLD_USD_VOLS");

    // Market data loader
    MockLoader loader;

    // Empty Conventions
    Conventions conventions;

    // Check commodity volatility construction works
    QuantLib::ext::shared_ptr<CommodityVolCurve> curve;
    BOOST_CHECK_NO_THROW(curve = QuantLib::ext::make_shared<CommodityVolCurve>(asof, curveSpec, loader, curveConfigs));

    // Check volatilities are all equal to the configured volatility regardless of strike and expiry
    Real configuredVolatility = 0.10;
    QuantLib::ext::shared_ptr<BlackVolTermStructure> volatility = curve->volatility();
    BOOST_CHECK_CLOSE(volatility->blackVol(0.25, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(0.25, 1200.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 3 * Months, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 3 * Months, 1200.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(50.0, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(50.0, 1200.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 50 * Years, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 50 * Years, 1200.0), configuredVolatility, testTolerance);
}

BOOST_AUTO_TEST_CASE() [2/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolCurveTypeCurve

)

Definition at line 213 of file commodityvolcurve.cpp.

                                                     {

    BOOST_TEST_MESSAGE("Testing commodity vol curve building with time dependent volatilities");

    // As of date
    Date asof(5, Feb, 2016);

    // Quotes for the volatility curve
    vector<string> quotes{"COMMODITY_OPTION/RATE_LNVOL/GOLD/USD/1Y/ATM/AtmFwd",
                          "COMMODITY_OPTION/RATE_LNVOL/GOLD/USD/2Y/ATM/AtmFwd",
                          "COMMODITY_OPTION/RATE_LNVOL/GOLD/USD/5Y/ATM/AtmFwd"};

    // Volatility curve config with linear interpolation and flat extrapolation.
    vector<QuantLib::ext::shared_ptr<VolatilityConfig>> vcc;
    vcc.push_back(QuantLib::ext::make_shared<VolatilityCurveConfig>(quotes, "Linear", "Flat"));

    // Commodity volatility configuration with time dependent volatilities
    QuantLib::ext::shared_ptr<CommodityVolatilityConfig> curveConfig =
        QuantLib::ext::make_shared<CommodityVolatilityConfig>("GOLD_USD_VOLS", "", "USD", vcc, "A365", "NullCalendar");

    // Curve configurations
    CurveConfigurations curveConfigs;
    curveConfigs.add(CurveSpec::CurveType::CommodityVolatility,"GOLD_USD_VOLS", curveConfig);

    // Commodity curve spec
    CommodityVolatilityCurveSpec curveSpec("USD", "GOLD_USD_VOLS");

    // Market data loader
    MockLoader loader;

    // Empty Conventions
    Conventions conventions;

    // Check commodity volatility construction works
    QuantLib::ext::shared_ptr<CommodityVolCurve> curve;
    BOOST_CHECK_NO_THROW(curve = QuantLib::ext::make_shared<CommodityVolCurve>(asof, curveSpec, loader, curveConfigs));

    // Check time depending volatilities are as expected
    QuantLib::ext::shared_ptr<BlackVolTermStructure> volatility = curve->volatility();
    Real configuredVolatility;

    // Check configured pillar points: { (1Y, 0.11), (2Y, 0.10), (5Y, 0.09) }
    // Check also strike independence
    configuredVolatility = 0.11;
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 1 * Years, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 1 * Years, 1200.0), configuredVolatility, testTolerance);

    configuredVolatility = 0.10;
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 2 * Years, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 2 * Years, 1200.0), configuredVolatility, testTolerance);

    configuredVolatility = 0.09;
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 5 * Years, 1000.0), configuredVolatility, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 5 * Years, 1200.0), configuredVolatility, testTolerance);

    // Check briefly the default linear interpolation and extrapolation
    Time t_s = volatility->dayCounter().yearFraction(asof, asof + 2 * Years);
    Real v_s = 0.10;
    Time t_e = volatility->dayCounter().yearFraction(asof, asof + 5 * Years);
    Real v_e = 0.09;
    // at 3 years
    Time t = volatility->dayCounter().yearFraction(asof, asof + 3 * Years);
    Real v = sqrt((v_s * v_s * t_s + (v_e * v_e * t_e - v_s * v_s * t_s) * (t - t_s) / (t_e - t_s)) / t);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 3 * Years, 1000.0), v, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 3 * Years, 1200.0), v, testTolerance);
    // at 6 years, extrapolation is with a flat vol
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 6 * Years, 1000.0), v_e, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 6 * Years, 1200.0), v_e, testTolerance);
}

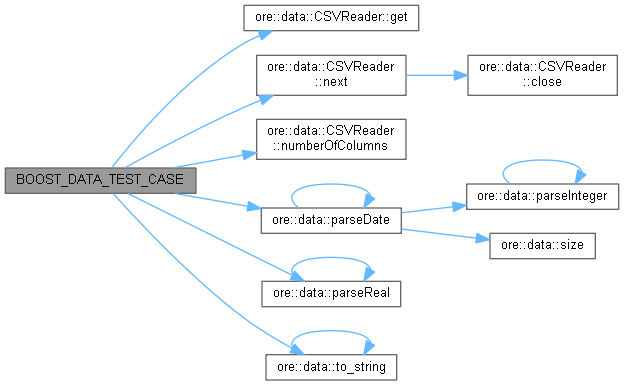

Here is the call graph for this function:

BOOST_AUTO_TEST_CASE() [3/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolCurveTypeSurface

)

Definition at line 283 of file commodityvolcurve.cpp.

                                                       {

    BOOST_TEST_MESSAGE("Testing commodity vol curve building with time and strike dependent volatilities");

    // As of date
    Date asof(5, Feb, 2016);

    // Volatility configuration with expiry period vs. absolute strike matrix. Bilinear interpolation and flat
    // extrapolation.
    vector<string> strikes{"1150", "1190"};
    vector<string> expiries{"1Y", "2Y", "5Y"};

    vector<QuantLib::ext::shared_ptr<VolatilityConfig>> vssc;
    vssc.push_back(
        QuantLib::ext::make_shared<VolatilityStrikeSurfaceConfig>(strikes, expiries, "Linear", "Linear", true, "Flat", "Flat"));

    // Commodity volatility configuration
    QuantLib::ext::shared_ptr<CommodityVolatilityConfig> curveConfig =
        QuantLib::ext::make_shared<CommodityVolatilityConfig>("GOLD_USD_VOLS", "", "USD", vssc, "A365", "NullCalendar");

    // Curve configurations
    CurveConfigurations curveConfigs;
    curveConfigs.add(CurveSpec::CurveType::CommodityVolatility, "GOLD_USD_VOLS", curveConfig);

    // Commodity curve spec
    CommodityVolatilityCurveSpec curveSpec("USD", "GOLD_USD_VOLS");

    // Market data loader
    MockLoader loader;

    // Empty Conventions
    Conventions conventions;

    // Check commodity volatility construction works
    QuantLib::ext::shared_ptr<CommodityVolCurve> curve;
    BOOST_CHECK_NO_THROW(curve = QuantLib::ext::make_shared<CommodityVolCurve>(asof, curveSpec, loader, curveConfigs));

    // Check time and strike depending volatilities are as expected
    QuantLib::ext::shared_ptr<BlackVolTermStructure> volatility = curve->volatility();

    // Check configured pillar points
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 1 * Years, 1150.0), 0.105, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 1 * Years, 1190.0), 0.115, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 2 * Years, 1150.0), 0.095, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 2 * Years, 1190.0), 0.105, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 5 * Years, 1150.0), 0.085, testTolerance);
    BOOST_CHECK_CLOSE(volatility->blackVol(asof + 5 * Years, 1190.0), 0.095, testTolerance);
}

BOOST_AUTO_TEST_CASE() [4/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolSurfaceWildcardExpiriesWildcardStrikes

)

Definition at line 332 of file commodityvolcurve.cpp.

                                                                             {

    // Testing commodity volatility curve building wildcard expiries and strikes in configuration and more than one
    // set of commodity volatility quotes in the market data. In particular, the market data in the wildcard_data
    // folder has commodity volatility data for two surfaces NYMEX:CL and ICE:B. Check here that the commodity
    // volatility curve building for NYMEX:CL uses only the 9 NYMEX:CL quotes - 3 tenors, each with 3 strikes.
    BOOST_TEST_MESSAGE("Testing commodity volatility curve building wildcard expiries and strikes in configuration");

    auto todaysMarket =
        createTodaysMarket(Date(16, Sep, 2019), "wildcard_data", "curveconfig_surface_wc_expiries_wc_strikes.xml");

    auto vts = todaysMarket->commodityVolatility("NYMEX:CL");

    // Wildcards in configuration so we know that a BlackVarianceSurfaceSparse has been created and fed to a
    // BlackVolatilityWithATM surface in TodaysMarket
    auto tmSurface = QuantLib::ext::dynamic_pointer_cast<BlackVolatilityWithATM>(*vts);
    BOOST_REQUIRE_MESSAGE(tmSurface, "Expected the commodity vol structure in TodaysMarket"
                                         << " to be of type BlackVolatilityWithATM");
    auto surface = QuantLib::ext::dynamic_pointer_cast<BlackVarianceSurfaceSparse>(tmSurface->surface());
    BOOST_REQUIRE_MESSAGE(tmSurface, "Expected the commodity vol structure in TodaysMarket to contain"
                                         << " a surface of type BlackVarianceSurfaceSparse");

    // The expected NYMEX CL volatility data
    NymexVolatilityData expData;

    // Check what is loaded against expected data as provided in market data file for NYMEX:CL.
    // Note: the BlackVarianceSurfaceSparse adds a dummy expiry slice at time zero
    BOOST_REQUIRE_EQUAL(surface->expiries().size() - 1, expData.expiries.size());
    for (Size i = 0; i < expData.strikes.size(); i++) {
        BOOST_CHECK_EQUAL(surface->expiries()[i + 1], expData.expiries[i]);
    }

    BOOST_REQUIRE_EQUAL(surface->strikes().size() - 1, expData.strikes.size());
    for (Size i = 0; i < expData.strikes.size(); i++) {

        // Check the strikes against the input
        Date e = expData.expiries[i];
        BOOST_REQUIRE_EQUAL(surface->strikes()[i + 1].size(), expData.strikes[e].size());
        for (Size j = 0; j < surface->strikes()[i + 1].size(); j++) {
            BOOST_CHECK_CLOSE(expData.strikes[e][j], surface->strikes()[i + 1][j], 1e-12);
        }

        // Check the volatilities against the input
        BOOST_REQUIRE_EQUAL(surface->values()[i + 1].size(), expData.volatilities[e].size());
        for (Size j = 0; j < surface->values()[i + 1].size(); j++) {
            BOOST_CHECK_CLOSE(expData.volatilities[e][j], surface->blackVol(e, surface->strikes()[i + 1][j]), 1e-12);
        }
    }
}

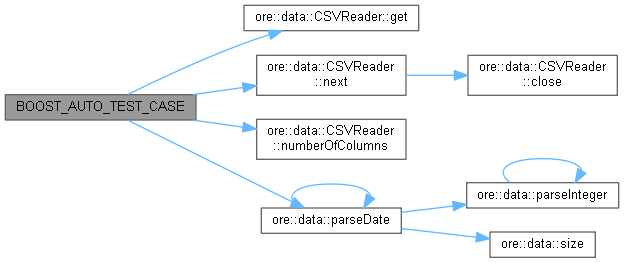

Here is the call graph for this function:

BOOST_AUTO_TEST_CASE() [5/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolSurfaceWildcardExpiriesExplicitStrikes

)

Definition at line 382 of file commodityvolcurve.cpp.

                                                                             {

    BOOST_TEST_MESSAGE(
        "Testing commodity volatility curve building wildcard expiries and explicit strikes in configuration");

    auto todaysMarket = createTodaysMarket(Date(16, Sep, 2019), "wildcard_data",
                                           "curveconfig_surface_wc_expiries_explicit_strikes.xml");

    auto vts = todaysMarket->commodityVolatility("NYMEX:CL");

    // Wildcards in configuration so we know that a BlackVarianceSurfaceSparse has been created and fed to a
    // BlackVolatilityWithATM surface in TodaysMarket
    auto tmSurface = QuantLib::ext::dynamic_pointer_cast<BlackVolatilityWithATM>(*vts);
    BOOST_REQUIRE_MESSAGE(tmSurface, "Expected the commodity vol structure in TodaysMarket"
                                         << " to be of type BlackVolatilityWithATM");
    auto surface = QuantLib::ext::dynamic_pointer_cast<BlackVarianceSurfaceSparse>(tmSurface->surface());
    BOOST_REQUIRE_MESSAGE(tmSurface, "Expected the commodity vol structure in TodaysMarket to contain"
                                         << " a surface of type BlackVarianceSurfaceSparse");

    // The expected NYMEX CL volatility data
    NymexVolatilityData expData;

    // Check what is loaded against expected data as provided in market data file for NYMEX:CL. The explicit strikes
    // that we have chosen lead have only two corresponding expiries i.e. 2019-10-17 and 2019-12-16
    // Note: the BlackVarianceSurfaceSparse adds a dummy expiry slice at time zero
    vector<Date> expExpiries{Date(17, Oct, 2019), Date(16, Dec, 2019)};
    BOOST_REQUIRE_EQUAL(surface->expiries().size() - 1, expExpiries.size());
    for (Size i = 0; i < expExpiries.size(); i++) {
        BOOST_CHECK_EQUAL(surface->expiries()[i + 1], expExpiries[i]);
    }

    // The explicit strikes in the config are 60 and 61
    vector<Real> expStrikes{60, 61};
    BOOST_REQUIRE_EQUAL(surface->strikes().size() - 1, expExpiries.size());
    for (Size i = 0; i < expExpiries.size(); i++) {

        // Check the strikes against the expected explicit strikes
        BOOST_REQUIRE_EQUAL(surface->strikes()[i + 1].size(), expStrikes.size());
        for (Size j = 0; j < surface->strikes()[i + 1].size(); j++) {
            BOOST_CHECK_CLOSE(expStrikes[j], surface->strikes()[i + 1][j], 1e-12);
        }

        // Check the volatilities against the input
        Date e = expExpiries[i];
        BOOST_REQUIRE_EQUAL(surface->values()[i + 1].size(), expStrikes.size());
        for (Size j = 0; j < surface->values()[i + 1].size(); j++) {
            // Find the index of the explicit strike in the input data
            Real expStrike = expStrikes[j];
            auto it = find_if(expData.strikes[e].begin(), expData.strikes[e].end(),
                              [expStrike](Real s) { return close(expStrike, s); });
            BOOST_REQUIRE_MESSAGE(it != expData.strikes[e].end(), "Strike not found in input strikes");
            auto idx = distance(expData.strikes[e].begin(), it);

            BOOST_CHECK_CLOSE(expData.volatilities[e][idx], surface->blackVol(e, surface->strikes()[i + 1][j]), 1e-12);
        }
    }
}

Here is the call graph for this function:

BOOST_AUTO_TEST_CASE() [6/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolSurfaceExplicitExpiriesWildcardStrikes

)

Definition at line 440 of file commodityvolcurve.cpp.

                                                                             {

    BOOST_TEST_MESSAGE(
        "Testing commodity volatility curve building explicit expiries and wildcard strikes in configuration");

    auto todaysMarket = createTodaysMarket(Date(16, Sep, 2019), "wildcard_data",
                                           "curveconfig_surface_explicit_expiries_wc_strikes.xml");

    auto vts = todaysMarket->commodityVolatility("NYMEX:CL");

    // Wildcards in configuration so we know that a BlackVarianceSurfaceSparse has been created and fed to a
    // BlackVolatilityWithATM surface in TodaysMarket
    auto tmSurface = QuantLib::ext::dynamic_pointer_cast<BlackVolatilityWithATM>(*vts);
    BOOST_REQUIRE_MESSAGE(tmSurface, "Expected the commodity vol structure in TodaysMarket"
                                         << " to be of type BlackVolatilityWithATM");
    auto surface = QuantLib::ext::dynamic_pointer_cast<BlackVarianceSurfaceSparse>(tmSurface->surface());
    BOOST_REQUIRE_MESSAGE(tmSurface, "Expected the commodity vol structure in TodaysMarket to contain"
                                         << " a surface of type BlackVarianceSurfaceSparse");

    // The expected NYMEX CL volatility data
    NymexVolatilityData expData;

    // Check what is loaded against expected data as provided in market data file for NYMEX:CL.
    // We have chosen the explicit expiries 2019-10-17 and 2019-12-16
    // Note: the BlackVarianceSurfaceSparse adds a dummy expiry slice at time zero
    vector<Date> expExpiries{Date(17, Oct, 2019), Date(16, Dec, 2019)};
    BOOST_REQUIRE_EQUAL(surface->expiries().size() - 1, expExpiries.size());
    for (Size i = 0; i < expExpiries.size(); i++) {
        BOOST_CHECK_EQUAL(surface->expiries()[i + 1], expExpiries[i]);
    }

    BOOST_REQUIRE_EQUAL(surface->strikes().size() - 1, expExpiries.size());
    for (Size i = 0; i < expExpiries.size(); i++) {

        // Check the strikes against the input
        Date e = expExpiries[i];
        BOOST_REQUIRE_EQUAL(surface->strikes()[i + 1].size(), expData.strikes[e].size());
        for (Size j = 0; j < surface->strikes()[i + 1].size(); j++) {
            BOOST_CHECK_CLOSE(expData.strikes[e][j], surface->strikes()[i + 1][j], 1e-12);
        }

        // Check the volatilities against the input
        BOOST_REQUIRE_EQUAL(surface->values()[i + 1].size(), expData.volatilities[e].size());
        for (Size j = 0; j < surface->values()[i + 1].size(); j++) {
            BOOST_CHECK_CLOSE(expData.volatilities[e][j], surface->blackVol(e, surface->strikes()[i + 1][j]), 1e-12);
        }
    }
}

Here is the call graph for this function:

BOOST_AUTO_TEST_CASE() [7/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolSurfaceExplicitExpiriesExplicitStrikes

)

Definition at line 489 of file commodityvolcurve.cpp.

                                                                             {

    BOOST_TEST_MESSAGE(
        "Testing commodity volatility curve building explicit expiries and explicit strikes in configuration");

    auto todaysMarket = createTodaysMarket(Date(16, Sep, 2019), "wildcard_data",
                                           "curveconfig_surface_explicit_expiries_explicit_strikes.xml");

    auto vts = todaysMarket->commodityVolatility("NYMEX:CL");

    // The expected NYMEX CL volatility data
    NymexVolatilityData expData;

    // We have provided two explicit expiries, 2019-10-17 and 2019-12-16, and two explicit strikes, 60 and 61.
    // We check the volatility term structure at these 4 points against the input data
    vector<Date> expExpiries{Date(17, Oct, 2019), Date(16, Dec, 2019)};
    vector<Real> expStrikes{60, 61};
    for (const Date& e : expExpiries) {
        for (Real s : expStrikes) {
            // Find the index of the explicit strike in the input data
            auto it = find_if(expData.strikes[e].begin(), expData.strikes[e].end(),
                              [s](Real strike) { return close(strike, s); });
            BOOST_REQUIRE_MESSAGE(it != expData.strikes[e].end(), "Strike not found in input strikes");
            auto idx = distance(expData.strikes[e].begin(), it);

            Real inputVol = expData.volatilities[e][idx];
            BOOST_CHECK_CLOSE(inputVol, vts->blackVol(e, s), 1e-12);
        }
    }
}

BOOST_DATA_TEST_CASE() [1/3]

BOOST_DATA_TEST_CASE	(	testCommodityVolDeltaSurface	,
		bdata::make(asofDates) *bdata::make(curveConfigs)	,
		asof	,
		curveConfig
	)

Definition at line 527 of file commodityvolcurve.cpp.

                                  {

    BOOST_TEST_MESSAGE("Testing commodity volatility delta surface building");

    auto todaysMarket = createTodaysMarket(asof, "delta_surface", curveConfig, "market.txt");

    // Get the built commodity volatility surface
    auto vts = todaysMarket->commodityVolatility("NYMEX:CL");

    // Cast to expected type and check that it succeeds
    // For some reason, todaysmarket wraps the surface built in CommodityVolCurve in a BlackVolatilityWithATM.
    auto bvwa = dynamic_pointer_cast<BlackVolatilityWithATM>(*vts);
    BOOST_REQUIRE(bvwa);
    auto bvsd = QuantLib::ext::dynamic_pointer_cast<BlackVolatilitySurfaceDelta>(bvwa->surface());
    BOOST_REQUIRE(bvsd);

    // Tolerance for float comparison
    Real tol = 1e-12;

    // Read in the expected on-grid results for the given date.
    string filename = "delta_surface/expected_grid_" + to_string(io::iso_date(asof)) + ".csv";
    CSVFileReader reader(TEST_INPUT_FILE(filename), true, ",");
    BOOST_REQUIRE_EQUAL(reader.numberOfColumns(), 3);

    while (reader.next()) {

        // Get the expected expiry date, strike and volatility grid point
        Date expiryDate = parseDate(reader.get(0));
        Real strike = parseReal(reader.get(1));
        Real volatility = parseReal(reader.get(2));

        // Check that the expected grid expiry date is one of the surface dates
        auto itExpiry = find(bvsd->dates().begin(), bvsd->dates().end(), expiryDate);
        BOOST_REQUIRE(itExpiry != bvsd->dates().end());

        // Get the smile section, cast to expected type and check cast succeeds.
        auto fxss = bvsd->blackVolSmile(expiryDate);
        auto iss = QuantLib::ext::dynamic_pointer_cast<InterpolatedSmileSection>(fxss);
        BOOST_REQUIRE(iss);

        // Check that the expected grid strike is one of the smile section strikes.
        auto itStrike =
            find_if(iss->strikes().begin(), iss->strikes().end(), [&](Real s) { return std::abs(s - strike) < tol; });
        BOOST_REQUIRE(itStrike != iss->strikes().end());

        // Check that the expected volatility is equal to that at the grid strike
        auto pos = distance(iss->strikes().begin(), itStrike);
        BOOST_CHECK_SMALL(volatility - iss->volatilities()[pos], tol);
    }

    // Check flat time extrapolation
    auto fxss = bvsd->blackVolSmile(bvsd->dates().back());
    auto iss = QuantLib::ext::dynamic_pointer_cast<InterpolatedSmileSection>(fxss);
    BOOST_REQUIRE(iss);
    vector<Real> lastVolatilities = iss->volatilities();

    fxss = bvsd->blackVolSmile(bvsd->dates().back() + 1 * Years);
    iss = QuantLib::ext::dynamic_pointer_cast<InterpolatedSmileSection>(fxss);
    BOOST_REQUIRE(iss);
    vector<Real> extrapVolatilities = iss->volatilities();

    BOOST_REQUIRE_EQUAL(lastVolatilities.size(), extrapVolatilities.size());
    for (Size i = 0; i < lastVolatilities.size(); i++) {
        BOOST_CHECK_SMALL(lastVolatilities[i] - extrapVolatilities[i], tol);
    }

    // Check flat strike extrapolation.
    Date testDate = asof + 1 * Years;

    fxss = bvsd->blackVolSmile(testDate);
    iss = QuantLib::ext::dynamic_pointer_cast<InterpolatedSmileSection>(fxss);
    BOOST_REQUIRE(iss);

    Volatility volAtMinStrike = iss->volatilities().front();
    Real minStrike = iss->strikes().front();
    Real extrapStrike = minStrike / 2.0;
    BOOST_CHECK_SMALL(volAtMinStrike - bvsd->blackVol(testDate, extrapStrike), tol);

    Volatility volAtMaxStrike = iss->volatilities().back();
    Real maxStrike = iss->strikes().back();
    extrapStrike = maxStrike * 2.0;
    BOOST_CHECK_SMALL(volAtMaxStrike - bvsd->blackVol(testDate, extrapStrike), tol);
}

Here is the call graph for this function:

BOOST_DATA_TEST_CASE() [2/3]

BOOST_DATA_TEST_CASE	(	testCommodityVolMoneynessSurface	,
		bdata::make(asofDates) *bdata::make(curveConfigs)	,
		asof	,
		curveConfig
	)

Definition at line 612 of file commodityvolcurve.cpp.

                                  {

    BOOST_TEST_MESSAGE("Testing commodity volatility forward moneyness surface building");

    Settings::instance().evaluationDate() = asof;
    auto todaysMarket = createTodaysMarket(asof, "moneyness_surface", curveConfig, "market.txt");

    // Get the built commodity volatility surface
    auto vts = todaysMarket->commodityVolatility("NYMEX:CL");

    // Tolerance for float comparison
    Real tol = 1e-12;

    // Read in the expected on-grid results for the given date.
    string filename = "moneyness_surface/expected_grid_" + to_string(io::iso_date(asof)) + ".csv";
    CSVFileReader reader(TEST_INPUT_FILE(filename), true, ",");
    BOOST_REQUIRE_EQUAL(reader.numberOfColumns(), 3);

    while (reader.next()) {

        // Get the expected expiry date, strike and volatility grid point
        Date expiryDate = parseDate(reader.get(0));
        Real strike = parseReal(reader.get(1));
        Real volatility = parseReal(reader.get(2));

        // Check the surface on the grid point.
        BOOST_CHECK_SMALL(volatility - vts->blackVol(expiryDate, strike), tol);
    }

    // Price term structure
    auto pts = todaysMarket->commodityPriceCurve("NYMEX:CL");

    // Pick two future expiries beyond max vol surface time and get their prices
    // This should correspond to moneyness 1.0 and we should see flat vol extrapolation.
    // This only passes because we have set sticky strike to false in CommodityVolCurve.
    Date extrapDate_1(20, Mar, 2024);
    Date extrapDate_2(22, Apr, 2024);
    Real strike_1 = pts->price(extrapDate_1);
    Real strike_2 = pts->price(extrapDate_2);
    Volatility vol_1 = vts->blackVol(extrapDate_1, strike_1);
    Volatility vol_2 = vts->blackVol(extrapDate_2, strike_2);
    BOOST_TEST_MESSAGE("The two time extrapolated volatilities are: " << fixed << setprecision(12) << vol_1 << ","
                                                                      << vol_2 << ".");
    BOOST_CHECK_SMALL(vol_1 - vol_2, tol);

    // Test flat strike extrapolation at lower and upper strikes i.e. at 50% and 150% forward moneyness.
    Date optionExpiry(14, Jan, 2021);
    Date futureExpiry(20, Jan, 2021);
    Real futurePrice = pts->price(futureExpiry);

    Real lowerStrike = 0.5 * futurePrice;
    Volatility volLowerStrike = vts->blackVol(optionExpiry, lowerStrike);
    Volatility volLowerExtrapStrike = vts->blackVol(optionExpiry, lowerStrike / 2.0);
    BOOST_TEST_MESSAGE("The two lower strike extrapolated volatilities are: "
                       << fixed << setprecision(12) << volLowerStrike << "," << volLowerExtrapStrike << ".");
    BOOST_CHECK_SMALL(volLowerStrike - volLowerExtrapStrike, tol);

    Real upperStrike = 1.5 * futurePrice;
    Volatility volUpperStrike = vts->blackVol(optionExpiry, upperStrike);
    Volatility volUpperExtrapStrike = vts->blackVol(optionExpiry, upperStrike * 2.0);
    BOOST_TEST_MESSAGE("The two upper strike extrapolated volatilities are: "
                       << fixed << setprecision(12) << volUpperStrike << "," << volUpperExtrapStrike << ".");
    BOOST_CHECK_SMALL(volUpperStrike - volUpperExtrapStrike, tol);
}

Here is the call graph for this function:

BOOST_DATA_TEST_CASE() [3/3]

BOOST_DATA_TEST_CASE	(	testCommodityApoSurface	,
		bdata::make(asofDates)	,
		asof
	)

Definition at line 678 of file commodityvolcurve.cpp.

                                                                          {

    BOOST_TEST_MESSAGE("Testing commodity volatility forward moneyness surface building");

    Settings::instance().evaluationDate() = asof;

    string fixingsFile = "fixings_" + to_string(io::iso_date(asof)) + ".txt";
    auto todaysMarket = createTodaysMarket(asof, "apo_surface", "curveconfig.xml", "market.txt", fixingsFile);

    // Get the built commodity volatility surface
    auto vts = todaysMarket->commodityVolatility("NYMEX:FF");

    // Tolerance for float comparison
    Real tol = 1e-12;

    // Read in the expected on-grid results for the given date.
    string filename = "apo_surface/expected_grid_" + to_string(io::iso_date(asof)) + ".csv";
    CSVFileReader reader(TEST_INPUT_FILE(filename), true, ",");
    BOOST_REQUIRE_EQUAL(reader.numberOfColumns(), 3);

    BOOST_TEST_MESSAGE("exp_vol,calc_vol,difference");
    while (reader.next()) {

        // Get the expected expiry date, strike and volatility grid point
        Date expiryDate = parseDate(reader.get(0));
        Real strike = parseReal(reader.get(1));
        Real volatility = parseReal(reader.get(2));

        // Check the surface on the grid point.
        auto calcVolatility = vts->blackVol(expiryDate, strike);
        auto difference = volatility - calcVolatility;
        BOOST_TEST_MESSAGE(std::fixed << std::setprecision(12) << strike << "," << volatility << "," << calcVolatility
                                      << "," << difference);
        BOOST_CHECK_SMALL(difference, tol);
    }
}

Here is the call graph for this function:

BOOST_AUTO_TEST_CASE() [8/8]

BOOST_AUTO_TEST_CASE

(

testCommodityVolSurfaceMyrCrudePalmOil

)

Definition at line 716 of file commodityvolcurve.cpp.

                                                             {

    BOOST_TEST_MESSAGE("Testing commodity volatility delta surface building for MYR Crude Palm Oil");

    Date asof(14, Oct, 2020);
    auto todaysMarket = createTodaysMarket(asof, "myr_crude_palm_oil", "curveconfig.xml", "market.txt");

    // Get the built commodity volatility surface
    auto vts = todaysMarket->commodityVolatility("XKLS:FCPO");

    // Check that it built ok i.e. can query a volatility.
    BOOST_CHECK_NO_THROW(vts->blackVol(1.0, 2800));

    // Cast to expected type and check that it succeeds
    // For some reason, todaysmarket wraps the surface built in CommodityVolCurve in a BlackVolatilityWithATM.
    auto bvwa = dynamic_pointer_cast<BlackVolatilityWithATM>(*vts);
    BOOST_REQUIRE(bvwa);
    auto bvsd = QuantLib::ext::dynamic_pointer_cast<BlackVolatilitySurfaceDelta>(bvwa->surface());
    BOOST_REQUIRE(bvsd);

    // Now check that the surface dates are as expected.

    // Calculated surface dates.
    const vector<Date>& surfaceDates = bvsd->dates();

    // Read in the expected dates.
    vector<Date> expectedDates;
    string filename = "myr_crude_palm_oil/expected_expiries.csv";
    CSVFileReader reader(TEST_INPUT_FILE(filename), true, ",");
    BOOST_REQUIRE_EQUAL(reader.numberOfColumns(), 1);
    while (reader.next()) {
        expectedDates.push_back(parseDate(reader.get(0)));
    }

    // Check equal.
    BOOST_CHECK_EQUAL_COLLECTIONS(surfaceDates.begin(), surfaceDates.end(), expectedDates.begin(), expectedDates.end());
}

Here is the call graph for this function:

Variable Documentation

asofDates

vector<Date> asofDates {Date(13, Jan, 2020), Date(15, Jan, 2020)}

Definition at line 522 of file commodityvolcurve.cpp.

curveConfigs

vector<string> curveConfigs {"curveconfig_explicit_expiries.xml", "curveconfig_wildcard_expiries.xml"}

Definition at line 525 of file commodityvolcurve.cpp.
