SensitivityScenarioGenerator Class Reference

Sensitivity Scenario Generator. More...

#include <orea/scenario/sensitivityscenariogenerator.hpp>

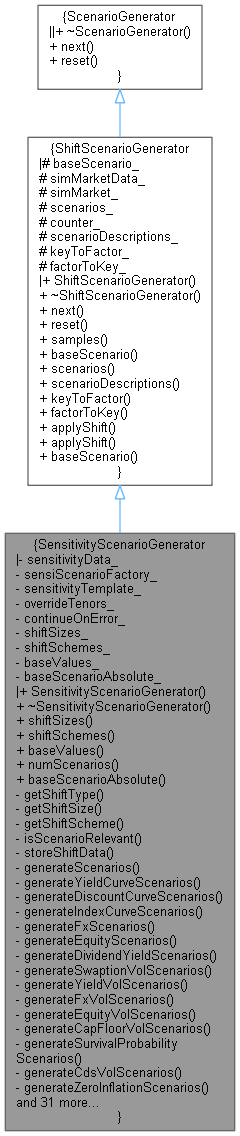

Inheritance diagram for SensitivityScenarioGenerator:

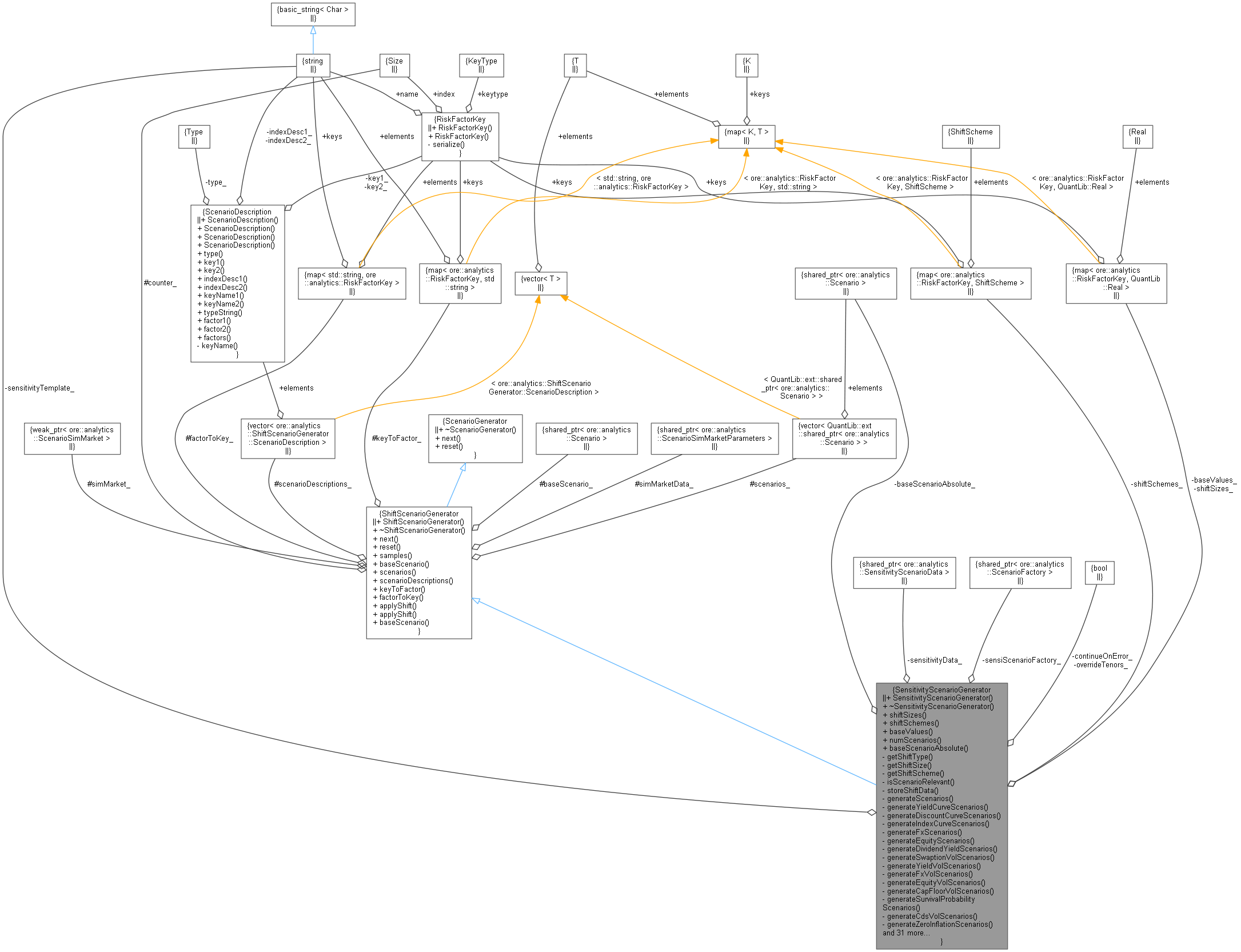

Collaboration diagram for SensitivityScenarioGenerator:

Public Member Functions
	SensitivityScenarioGenerator (const QuantLib::ext::shared_ptr< SensitivityScenarioData > &sensitivityData, const QuantLib::ext::shared_ptr< Scenario > &baseScenario, const QuantLib::ext::shared_ptr< ScenarioSimMarketParameters > &simMarketData, const QuantLib::ext::shared_ptr< ScenarioSimMarket > &simMarket, const QuantLib::ext::shared_ptr< ScenarioFactory > &sensiScenarioFactory, const bool overrideTenors, const std::string &sensitivityTemplate=std::string(), const bool continueOnError=false, const QuantLib::ext::shared_ptr< Scenario > &baseScenarioAbsolute=nullptr)
	Constructor. More...
	~SensitivityScenarioGenerator ()
	Default destructor. More...
const std::map< RiskFactorKey, QuantLib::Real > &	shiftSizes () const
const std::map< RiskFactorKey, ShiftScheme > &	shiftSchemes () const
const std::map< RiskFactorKey, QuantLib::Real > &	baseValues () const
Size	numScenarios () const
QuantLib::ext::shared_ptr< Scenario >	baseScenarioAbsolute () const
Public Member Functions inherited from ShiftScenarioGenerator
	ShiftScenarioGenerator (const QuantLib::ext::shared_ptr< Scenario > &baseScenario, const QuantLib::ext::shared_ptr< ScenarioSimMarketParameters > &simMarketData, const QuantLib::ext::weak_ptr< ScenarioSimMarket > &simMarket)
	Constructor. More...
	~ShiftScenarioGenerator ()
	Default destructor. More...
QuantLib::ext::shared_ptr< Scenario >	next (const Date &d) override
	Scenario Generator interface. More...
void	reset () override
	Reset the generator so calls to next() return the first scenario. More...
Size	samples ()
	Inspectors. More...
const QuantLib::ext::shared_ptr< Scenario > &	baseScenario ()
	Return the base scenario, i.e. cached initial values of all relevant market points. More...
const std::vector< QuantLib::ext::shared_ptr< Scenario > > &	scenarios ()
	Return vector of sensitivity scenarios, scenario 0 is the base scenario. More...
std::vector< ScenarioDescription >	scenarioDescriptions ()
	Return vector of scenario descriptions. More...
const std::map< RiskFactorKey, std::string > &	keyToFactor ()
const std::map< std::string, RiskFactorKey > &	factorToKey ()
	Return revers map of factors to RiskFactorKeys. More...
void	applyShift (Size j, Real shiftSize, bool up, ShiftType type, const vector< Time > &shiftTimes, const vector< Real > &values, const vector< Time > &times, vector< Real > &shiftedValues, bool initialise)
	Apply 1d triangular shift to 1d data such as yield curves, public to allow test suite access. More...
void	applyShift (Size j, Size k, Real shiftSize, bool up, ShiftType type, const vector< Time > &shiftX, const vector< Time > &shiftY, const vector< Time > &dataX, const vector< Time > &dataY, const vector< vector< Real > > &data, vector< vector< Real > > &shiftedData, bool initialise)
	Apply 2d shift to 2d matrix such as swaption volatilities, public to allow test suite access. More...
QuantLib::ext::shared_ptr< Scenario >	baseScenario () const
	return the base scenario More...
Public Member Functions inherited from ScenarioGenerator
virtual	~ScenarioGenerator ()
	Default destructor. More...
virtual QuantLib::ext::shared_ptr< Scenario >	next (const Date &d)=0
	Return the next scenario for the given date. More...
virtual void	reset ()=0
	Reset the generator so calls to next() return the first scenario. More...

Private Member Functions
ShiftType	getShiftType (SensitivityScenarioData::ShiftData &data) const
Real	getShiftSize (SensitivityScenarioData::ShiftData &data) const
ShiftScheme	getShiftScheme (SensitivityScenarioData::ShiftData &data) const
bool	isScenarioRelevant (bool up, SensitivityScenarioData::ShiftData &data) const
void	storeShiftData (const RiskFactorKey &key, const Real rate, const Real newRate)
void	generateScenarios ()
void	generateYieldCurveScenarios (bool up)
void	generateDiscountCurveScenarios (bool up)
void	generateIndexCurveScenarios (bool up)
void	generateFxScenarios (bool up)
void	generateEquityScenarios (bool up)
void	generateDividendYieldScenarios (bool up)
void	generateSwaptionVolScenarios (bool up)
void	generateYieldVolScenarios (bool up)
void	generateFxVolScenarios (bool up)
void	generateEquityVolScenarios (bool up)
void	generateCapFloorVolScenarios (bool up)
void	generateSurvivalProbabilityScenarios (bool up)
void	generateCdsVolScenarios (bool up)
void	generateZeroInflationScenarios (bool up)

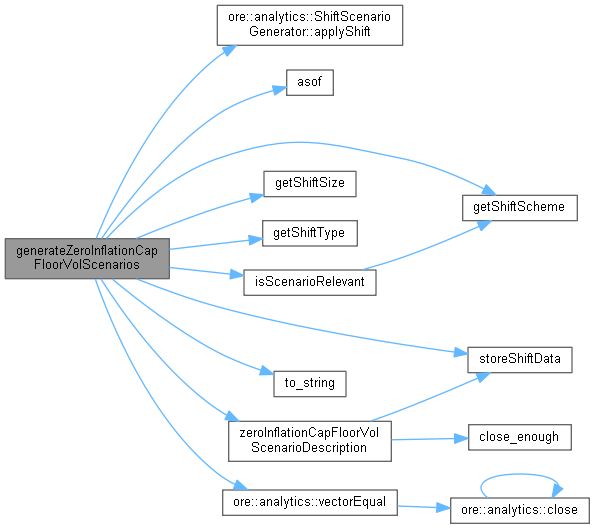

void	generateZeroInflationCapFloorVolScenarios (bool up)
void	generateYoYInflationScenarios (bool up)
void	generateYoYInflationCapFloorVolScenarios (bool up)
void	generateBaseCorrelationScenarios (bool up)
void	generateCommodityCurveScenarios (bool up)
void	generateCommodityVolScenarios (bool up)
void	generateSecuritySpreadScenarios (bool up)
void	generateCorrelationScenarios (bool up)
void	generateGenericYieldVolScenarios (bool up, RiskFactorKey::KeyType rfType)
ScenarioDescription	discountScenarioDescription (string ccy, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	indexScenarioDescription (string index, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	yieldScenarioDescription (string name, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	fxScenarioDescription (string ccypair, bool up, ShiftScheme shiftScheme)
ScenarioDescription	fxVolScenarioDescription (string ccypair, Size expiryBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	equityScenarioDescription (string equity, bool up, ShiftScheme shiftScheme)
ScenarioDescription	dividendYieldScenarioDescription (string equity, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	equityVolScenarioDescription (string equity, Size expiryBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	swaptionVolScenarioDescription (string ccy, Size expiryBucket, Size termBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	yieldVolScenarioDescription (string securityId, Size expiryBucket, Size termBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	capFloorVolScenarioDescription (string ccy, Size expiryBucket, Size strikeBucket, bool up, bool isAtm, ShiftScheme shiftScheme)
ScenarioDescription	survivalProbabilityScenarioDescription (string name, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	CdsVolScenarioDescription (string name, Size expiryBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	zeroInflationScenarioDescription (string index, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	yoyInflationScenarioDescription (string index, Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	zeroInflationCapFloorVolScenarioDescription (string name, Size expiryBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	yoyInflationCapFloorVolScenarioDescription (string name, Size expiryBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	baseCorrelationScenarioDescription (string indexName, Size lossLevelBucket, Size termBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	commodityCurveScenarioDescription (const std::string &commodityName, QuantLib::Size bucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	commodityVolScenarioDescription (const std::string &commodityName, QuantLib::Size expiryBucket, QuantLib::Size strikeBucket, bool up, ShiftScheme shiftScheme)
ScenarioDescription	securitySpreadScenarioDescription (string bond, bool up, ShiftScheme shiftScheme)
ScenarioDescription	correlationScenarioDescription (string pair, Size expiryBucket, Size strikeBucket, bool up, ShiftScheme shiftScheme)

Private Attributes
QuantLib::ext::shared_ptr< SensitivityScenarioData >	sensitivityData_
QuantLib::ext::shared_ptr< ScenarioFactory >	sensiScenarioFactory_
std::string	sensitivityTemplate_
const bool	overrideTenors_
const bool	continueOnError_
std::map< RiskFactorKey, QuantLib::Real >	shiftSizes_
	Holds the shift sizes for each risk factor key. More...
std::map< RiskFactorKey, ShiftScheme >	shiftSchemes_
	Holds the delta shift schemes for each risk factor key. More...
std::map< RiskFactorKey, QuantLib::Real >	baseValues_
	Holds the base valuesfor each risk factor key. More...
QuantLib::ext::shared_ptr< Scenario >	baseScenarioAbsolute_

Additional Inherited Members
Protected Attributes inherited from ShiftScenarioGenerator
const QuantLib::ext::shared_ptr< Scenario >	baseScenario_
const QuantLib::ext::shared_ptr< ScenarioSimMarketParameters >	simMarketData_
const QuantLib::ext::weak_ptr< ScenarioSimMarket >	simMarket_
std::vector< QuantLib::ext::shared_ptr< Scenario > >	scenarios_
Size	counter_
std::vector< ScenarioDescription >	scenarioDescriptions_
std::map< RiskFactorKey, std::string >	keyToFactor_
std::map< std::string, RiskFactorKey >	factorToKey_

Detailed Description

Sensitivity Scenario Generator.

This class builds a vector of sensitivity scenarios based on instructions in SensitivityScenarioData and ScenarioSimMarketParameters objects passed.

The ScenarioSimMarketParameters object determines the scope and structure of a "simulation" market (currencies, currency pairs, curve tenor points, vol matrix expiries and terms/strikes etc) to which sensitivity scenarios are applied in order to compute their NPV impact.

The SensitivityScenarioData object determines the structure of shift curves (shift tenor points can differ from the simulation market's tenor points), as well as type (relative/absolute) and size of shifts applied.

The generator then produces comprehensive scenarios that can be applied to the simulation market, i.e. covering all quotes in the simulation market, possibly filled with "base" scenario values.

Both UP and DOWN shifts are generated in order to facilitate delta and gamma calculation.

The generator currently covers the IR/FX asset class, with shifts for the following term structure types:

• FX spot rates
• FX ATM volatilities
• Discount curve zero rates
• Index curve zero rates
• Yield curve zero rates
• Swaption ATM volatility matrices
• Yield volatility matrices
• Cap/Floor volatility matrices (by expiry and strike)

For Credit the generator covers shifts to the following termstructure types:

• Default curve integrated hazard rates.

To apply shifts to the integrated hazard rates let:

• S(t) be the survival probability at time t
• &lambda(t) be the "instantaneous" hazard rate at time t
• &Lambda(t) be the averaged hazard rate at time t

The relationship between these three can be expressed as:

\[ S(t) = e^{-&Lambda(t) t} \]

\[ &Lambda(t) = \frac{ \int_{0}^t &lambda(t) du}{t} \]

The survival probability quotes from the scenarioSimMarket default curves are then converted as follows:

\[ &Lambda(t) = - \frac{ ln( S(t) )}{t} \]

Note:

• For yield curves, the class generates sensitivities in the Zero rate domain only. Conversion into par rate sensitivities has to be implemented as a postprocessor step.
• Likewise, Cap/Floor volatility sensitivities are computed in the optionlet domain. Conversion into par (flat cap/floor) volatility sensis has to be implemented as a postprocessor step.

If sensitivityData_->generateSpreadScenarios() = true spread scenarios will be generated for supported risk factor types.

Definition at line 102 of file sensitivityscenariogenerator.hpp.

Constructor & Destructor Documentation

SensitivityScenarioGenerator()

SensitivityScenarioGenerator	(	const QuantLib::ext::shared_ptr< SensitivityScenarioData > &	sensitivityData,
		const QuantLib::ext::shared_ptr< Scenario > &	baseScenario,
		const QuantLib::ext::shared_ptr< ScenarioSimMarketParameters > &	simMarketData,
		const QuantLib::ext::shared_ptr< ScenarioSimMarket > &	simMarket,
		const QuantLib::ext::shared_ptr< ScenarioFactory > &	sensiScenarioFactory,
		const bool	overrideTenors,
		const std::string &	sensitivityTemplate = std::string(),
		const bool	continueOnError = false,
		const QuantLib::ext::shared_ptr< Scenario > &	baseScenarioAbsolute = nullptr
	)

Constructor.

Definition at line 43 of file sensitivityscenariogenerator.cpp.

    : ShiftScenarioGenerator(baseScenario, simMarketData, simMarket), sensitivityData_(sensitivityData),
      sensiScenarioFactory_(sensiScenarioFactory), sensitivityTemplate_(sensitivityTemplate),
      overrideTenors_(overrideTenors), continueOnError_(continueOnError),
      baseScenarioAbsolute_(baseScenarioAbsolute == nullptr ? baseScenario : baseScenarioAbsolute) {

    QL_REQUIRE(sensitivityData_, "SensitivityScenarioGenerator: sensitivityData is null");

    generateScenarios();
}

Here is the call graph for this function:

~SensitivityScenarioGenerator()

~SensitivityScenarioGenerator

(

)

Default destructor.

Definition at line 114 of file sensitivityscenariogenerator.hpp.

{};

Member Function Documentation

shiftSizes()

const std::map< RiskFactorKey, QuantLib::Real > & shiftSizes

(

)

const

Return the map of absolute shift sizes by risk factor key for this generator

Warning:

Where there are tenor specific shifts the shift size is only meaningful if the tenors in the sensitivity configuration line up with the tenors in the simulation market configuration. If this is not the case, an absolute shift size of Null<Real>() is added for the given risk factor key

Definition at line 124 of file sensitivityscenariogenerator.hpp.

{ return shiftSizes_; }

shiftSchemes()

const std::map< RiskFactorKey, ShiftScheme > & shiftSchemes

(

)

const

Definition at line 127 of file sensitivityscenariogenerator.hpp.

{ return shiftSchemes_; }

baseValues()

const std::map< RiskFactorKey, QuantLib::Real > & baseValues

(

)

const

Similarly, reeturn the base values for each risk factor

Definition at line 130 of file sensitivityscenariogenerator.hpp.

{ return baseValues_; }

Here is the caller graph for this function:

numScenarios()

Size numScenarios

(

)

const

Definition at line 132 of file sensitivityscenariogenerator.hpp.

{ return scenarios_.size(); }

baseScenarioAbsolute()

QuantLib::ext::shared_ptr< Scenario > baseScenarioAbsolute

(

)

const

Definition at line 134 of file sensitivityscenariogenerator.hpp.

{ return baseScenarioAbsolute_; }

getShiftType()

ShiftType getShiftType ( SensitivityScenarioData::ShiftData &  data ) const

private

Definition at line 267 of file sensitivityscenariogenerator.cpp.

                                                                                                 {
    if (auto it = data.keyedShiftType.find(sensitivityTemplate_); it != data.keyedShiftType.end())
        return it->second;
    return data.shiftType;
}

Here is the caller graph for this function:

getShiftSize()

Real getShiftSize ( SensitivityScenarioData::ShiftData &  data ) const

private

Definition at line 273 of file sensitivityscenariogenerator.cpp.

                                                                                            {
    if (auto it = data.keyedShiftSize.find(sensitivityTemplate_); it != data.keyedShiftSize.end())
        return it->second;
    return data.shiftSize;
}

Here is the caller graph for this function:

getShiftScheme()

ShiftScheme getShiftScheme ( SensitivityScenarioData::ShiftData &  data ) const

private

Definition at line 279 of file sensitivityscenariogenerator.cpp.

                                                                                                     {
    if (auto it = data.keyedShiftScheme.find(sensitivityTemplate_); it != data.keyedShiftScheme.end())
        return it->second;
    return data.shiftScheme;
}

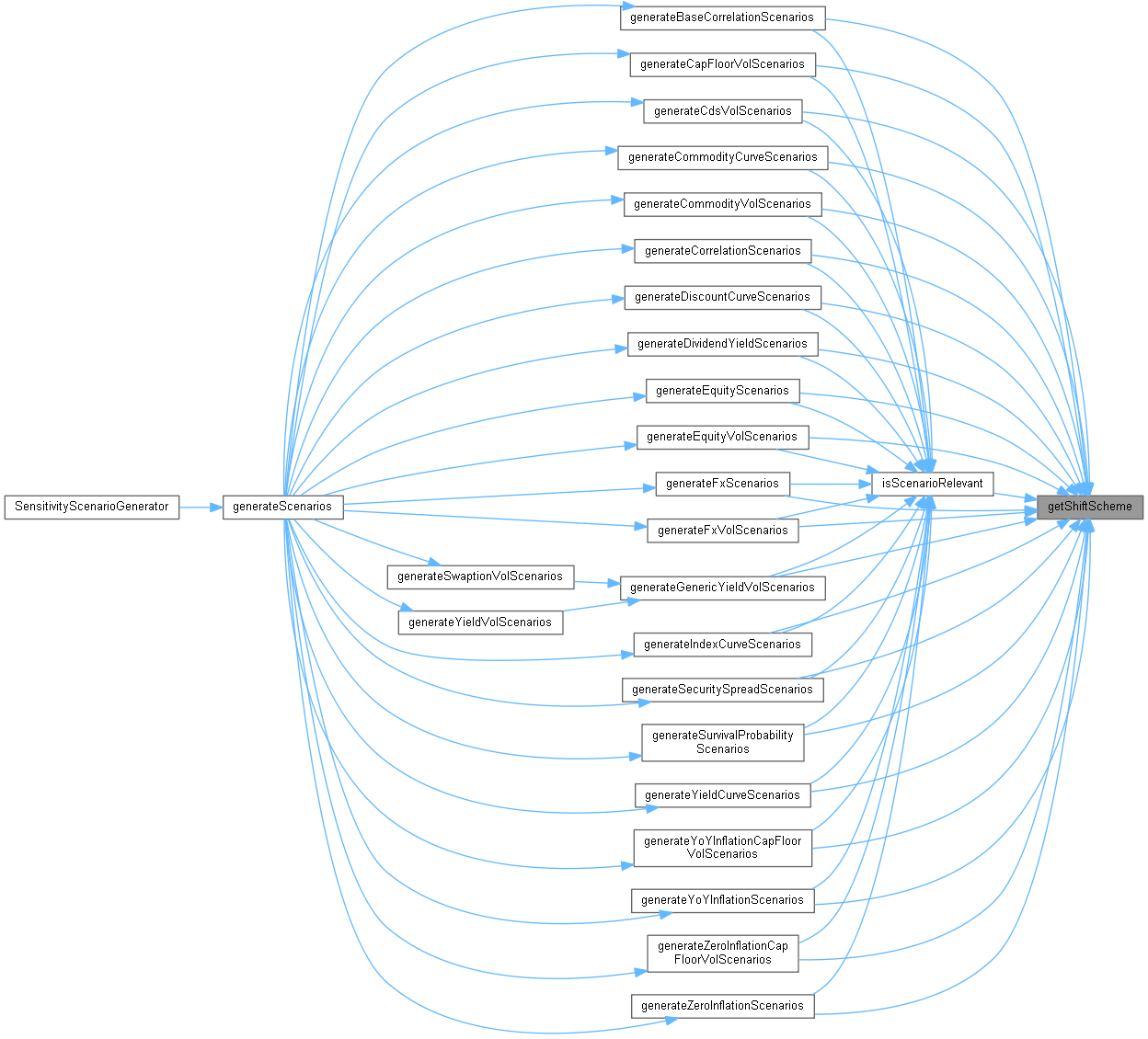

Here is the caller graph for this function:

isScenarioRelevant()

bool isScenarioRelevant ( bool  up, SensitivityScenarioData::ShiftData &  data  ) const

private

Definition at line 285 of file sensitivityscenariogenerator.cpp.

                                                                                                           {
    ShiftScheme scheme = getShiftScheme(data);
    return sensitivityData_->computeGamma() || (up && (scheme == ShiftScheme::Forward)) ||
           (!up && scheme == ShiftScheme::Backward) || scheme == ShiftScheme::Central;
}

Here is the call graph for this function:

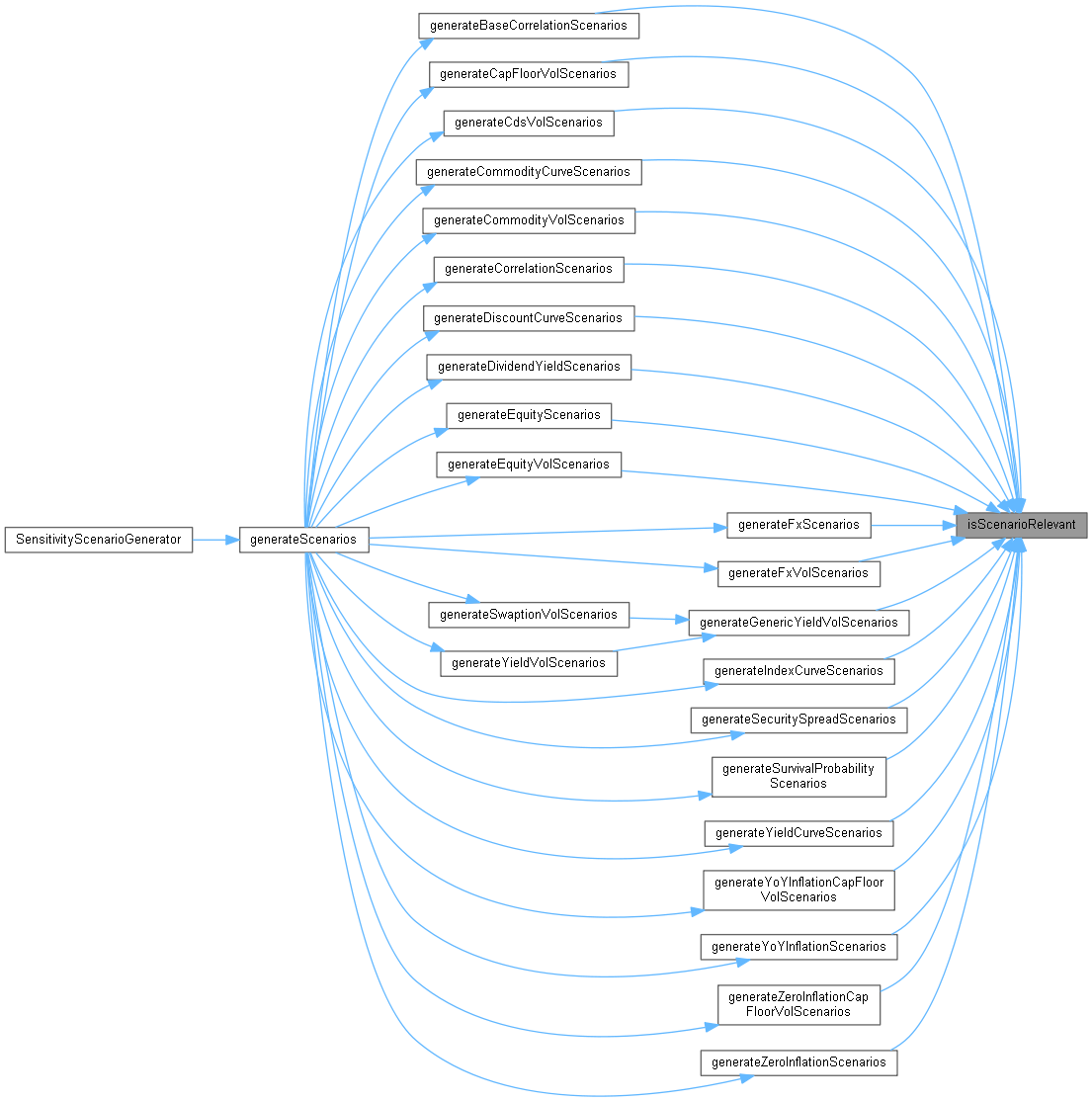

Here is the caller graph for this function:

storeShiftData()

void storeShiftData ( const RiskFactorKey &  key, const Real  rate, const Real  newRate  )

private

Definition at line 291 of file sensitivityscenariogenerator.cpp.

                                                                                                               {
    if (shiftSizes_.find(key) == shiftSizes_.end()) {
        shiftSizes_[key] = std::abs(newRate - rate);
        baseValues_[key] = rate;
    }
}

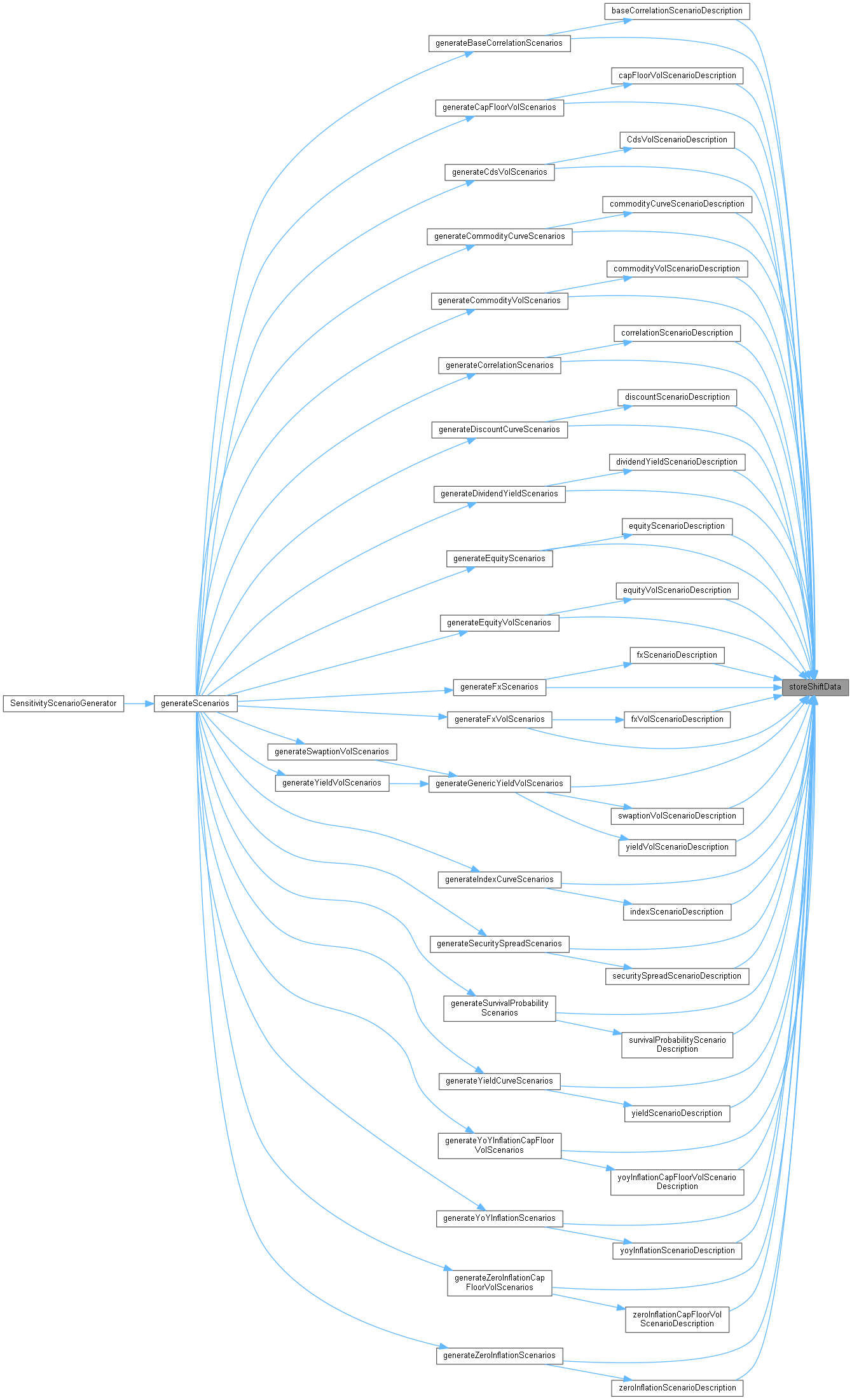

Here is the caller graph for this function:

generateScenarios()

void generateScenarios ( )

private

Definition at line 85 of file sensitivityscenariogenerator.cpp.

                                                     {
    Date asof = baseScenario_->asof();

    QL_REQUIRE(sensitivityData_->crossGammaFilter().empty() || sensitivityData_->computeGamma(),
               "SensitivityScenarioGenerator::generateScenarios(): if gamma computation is disabled, the cross gamma "
               "filter must be empty");

    generateDiscountCurveScenarios(true);
    generateDiscountCurveScenarios(false);

    generateIndexCurveScenarios(true);
    generateIndexCurveScenarios(false);

    generateYieldCurveScenarios(true);
    generateYieldCurveScenarios(false);

    if (simMarketData_->simulateFxSpots()) {
        generateFxScenarios(true);
        generateFxScenarios(false);
    }

    generateEquityScenarios(true);
    generateEquityScenarios(false);

    if (simMarketData_->simulateDividendYield()) {
        generateDividendYieldScenarios(true);
        generateDividendYieldScenarios(false);
    }

    generateZeroInflationScenarios(true);
    generateZeroInflationScenarios(false);

    generateYoYInflationScenarios(true);
    generateYoYInflationScenarios(false);

    if (simMarketData_->simulateYoYInflationCapFloorVols()) {
        generateYoYInflationCapFloorVolScenarios(true);
        generateYoYInflationCapFloorVolScenarios(false);
    }

    if (simMarketData_->simulateZeroInflationCapFloorVols()) {
        generateZeroInflationCapFloorVolScenarios(true);
        generateZeroInflationCapFloorVolScenarios(false);
    }

    if (simMarketData_->simulateFXVols()) {
        generateFxVolScenarios(true);
        generateFxVolScenarios(false);
    }

    if (simMarketData_->simulateEquityVols()) {
        generateEquityVolScenarios(true);
        generateEquityVolScenarios(false);
    }

    if (simMarketData_->simulateSwapVols()) {
        generateSwaptionVolScenarios(true);
        generateSwaptionVolScenarios(false);
    }

    if (simMarketData_->simulateYieldVols()) {
        generateYieldVolScenarios(true);
        generateYieldVolScenarios(false);
    }

    if (simMarketData_->simulateCapFloorVols()) {
        generateCapFloorVolScenarios(true);
        generateCapFloorVolScenarios(false);
    }

    if (simMarketData_->simulateSurvivalProbabilities()) {
        generateSurvivalProbabilityScenarios(true);
        generateSurvivalProbabilityScenarios(false);
    }

    if (simMarketData_->simulateCdsVols()) {
        generateCdsVolScenarios(true);
        generateCdsVolScenarios(false);
    }

    if (simMarketData_->simulateBaseCorrelations()) {
        generateBaseCorrelationScenarios(true);
        generateBaseCorrelationScenarios(false);
    }

    if (simMarketData_->commodityCurveSimulate()) {
        generateCommodityCurveScenarios(true);
        generateCommodityCurveScenarios(false);
    }

    if (simMarketData_->commodityVolSimulate()) {
        generateCommodityVolScenarios(true);
        generateCommodityVolScenarios(false);
    }

    if (simMarketData_->securitySpreadsSimulate()) {
        generateSecuritySpreadScenarios(true);
        generateSecuritySpreadScenarios(false);
    }

    if (simMarketData_->simulateCorrelations()) {
        generateCorrelationScenarios(true);
        generateCorrelationScenarios(false);
    }

    // fill keyToFactor and factorToKey maps from scenario descriptions

    DLOG("Fill maps linking factors with RiskFactorKeys");
    keyToFactor_.clear();
    factorToKey_.clear();
    for (Size i = 0; i < scenarioDescriptions_.size(); ++i) {
        RiskFactorKey key = scenarioDescriptions_[i].key1();
        string factor = scenarioDescriptions_[i].factor1();
        keyToFactor_[key] = factor;
        factorToKey_[factor] = key;
        DLOG("KeyToFactor map: " << key << " to " << factor);
    }

    // add simultaneous up-moves in two risk factors for cross gamma calculation

    for (Size i = 0; i < scenarios_.size(); ++i) {
        ScenarioDescription iDesc = scenarioDescriptions_[i];
        if (iDesc.type() != ScenarioDescription::Type::Up)
            continue;
        string iKeyName = iDesc.keyName1();

        // check if iKey matches filter
        if (find_if(sensitivityData_->crossGammaFilter().begin(), sensitivityData_->crossGammaFilter().end(),
                    findFactor(iKeyName)) == sensitivityData_->crossGammaFilter().end())
            continue;

        for (Size j = i + 1; j < scenarios_.size(); ++j) {
            ScenarioDescription jDesc = scenarioDescriptions_[j];
            if (jDesc.type() != ScenarioDescription::Type::Up)
                continue;
            string jKeyName = jDesc.keyName1();

            // check if jKey matches filter
            if (find_if(sensitivityData_->crossGammaFilter().begin(), sensitivityData_->crossGammaFilter().end(),
                        findPair(iKeyName, jKeyName)) == sensitivityData_->crossGammaFilter().end())
                continue;

            // build cross scenario
            QuantLib::ext::shared_ptr<Scenario> crossScenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            for (auto const& k : baseScenario_->keys()) {
                Real v1 = scenarios_[i]->get(k);
                Real v2 = scenarios_[j]->get(k);
                Real b = baseScenario_->get(k);
                if (!close_enough(v1, b) || !close_enough(v2, b))
                    // this is correct for both absolute and relative shifts
                    crossScenario->add(k, v1 + v2 - b);
            }

            scenarioDescriptions_.push_back(ScenarioDescription(iDesc, jDesc));
            crossScenario->label(to_string(scenarioDescriptions_.back()));
            scenarios_.push_back(crossScenario);
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << crossScenario->label() << " created");
        }
    }

    LOG("sensitivity scenario generator finished generating scenarios.");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateYieldCurveScenarios()

void generateYieldCurveScenarios ( bool  up )

private

Definition at line 621 of file sensitivityscenariogenerator.cpp.

                                                                      {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer yield curves than listed in the market
    // Log an ALERT if some yield curves in simmarket are excluded from the list
    for (auto sim_yc : simMarketData_->yieldCurveNames()) {
        if (sensitivityData_->yieldCurveShiftData().find(sim_yc) == sensitivityData_->yieldCurveShiftData().end()) {
            WLOG("Yield Curve " << sim_yc << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto y : sensitivityData_->yieldCurveShiftData()) {
        string name = y.first;
        Size n_ten;
        try {
            n_ten = simMarketData_->yieldCurveTenors(name).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for yield curve " << name << ": " << e.what());
            continue;
        }
        // original curves' buffer
        std::vector<Real> zeros(n_ten);
        std::vector<Real> times(n_ten);
        // buffer for shifted zero curves
        std::vector<Real> shiftedZeros(n_ten);
        SensitivityScenarioData::CurveShiftData data = *y.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->yieldCurve(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for yield curve " << name << ", using default A365");
        }

        Real quote = 0.0;
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->yieldCurveTenors(name)[j];
            times[j] = dc.yearFraction(asof, d);
            RiskFactorKey key(RiskFactorKey::KeyType::YieldCurve, name, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, quote, continueOnError_);
            zeros[j] = -std::log(quote) / times[j];
        }
        if (!valid)
            continue;

        const std::vector<Period>& shiftTenors = overrideTenors_ && simMarketData_->hasYieldCurveTenors(name)
                                                     ? simMarketData_->yieldCurveTenors(name)
                                                     : data.shiftTenors;
        checkShiftTenors(shiftTenors, data.shiftTenors, "Yield Curve " + name, continueOnError_);
        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Discount shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // apply zero rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, zeros, times, shiftedZeros, true);

            // store shifted discount curve in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                Real shiftedDiscount = exp(-shiftedZeros[k] * times[k]);
                RiskFactorKey key(RFType::YieldCurve, name, k);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    Real discount = exp(-zeros[k] * times[k]);
                    scenario->add(key, shiftedDiscount / discount);
                } else {
                    scenario->add(key, shiftedDiscount);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, zeros[k], shiftedZeros[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(yieldScenarioDescription(name, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");

        } // end of shift curve tenors
    }
    DLOG("Yield curve scenarios done");
}

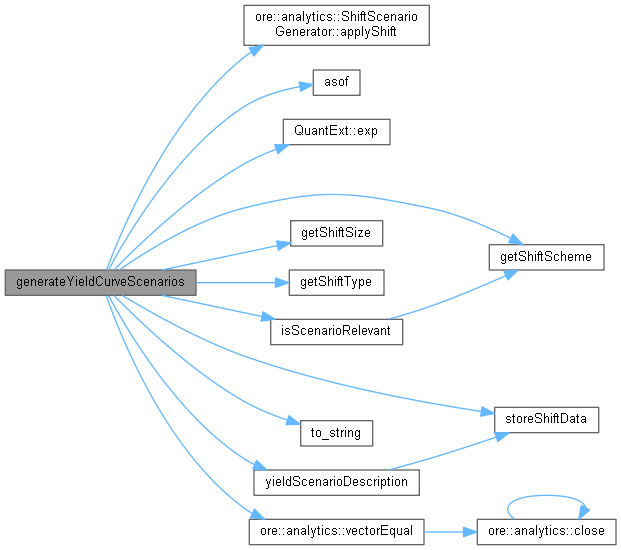

Here is the call graph for this function:

Here is the caller graph for this function:

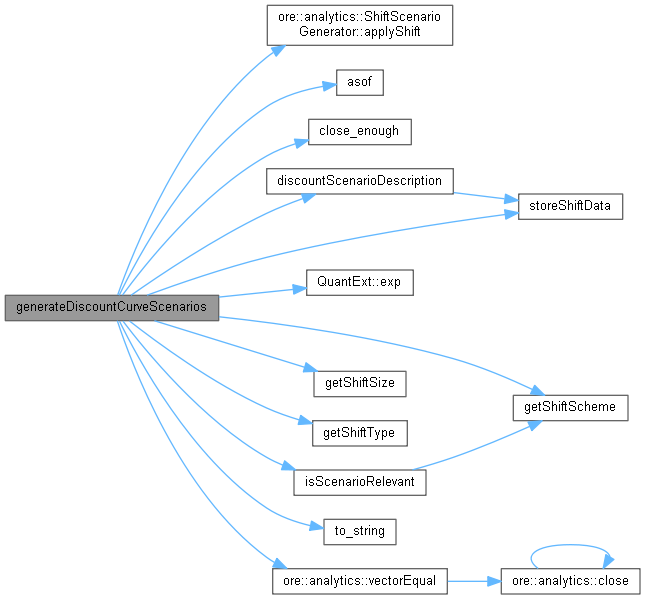

generateDiscountCurveScenarios()

void generateDiscountCurveScenarios ( bool  up )

private

Definition at line 415 of file sensitivityscenariogenerator.cpp.

                                                                         {
    Date asof = baseScenario_->asof();
    // Log an ALERT if some currencies in simmarket are excluded from the list
    for (auto sim_ccy : simMarketData_->ccys()) {
        if (sensitivityData_->discountCurveShiftData().find(sim_ccy) ==
            sensitivityData_->discountCurveShiftData().end()) {
            WLOG("Currency " << sim_ccy << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto c : sensitivityData_->discountCurveShiftData()) {
        string ccy = c.first;
        Size n_ten;
        try {
            n_ten = simMarketData_->yieldCurveTenors(ccy).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for discount curve " << ccy << ": " << e.what());
            continue;
        }
        // original curves' buffer
        std::vector<Real> zeros(n_ten);
        std::vector<Real> times(n_ten);
        // buffer for shifted zero curves
        std::vector<Real> shiftedZeros(n_ten);
        SensitivityScenarioData::CurveShiftData data = *c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->discountCurve(ccy)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for discount curve " << ccy << ", using default A365");
        }

        Real quote = 0.0;
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->yieldCurveTenors(ccy)[j];
            times[j] = dc.yearFraction(asof, d);

            RiskFactorKey key(RiskFactorKey::KeyType::DiscountCurve, ccy, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, quote, continueOnError_);
            zeros[j] = -std::log(quote) / times[j];
        }
        if (!valid)
            continue;

        std::vector<Period> shiftTenors = overrideTenors_ && simMarketData_->hasYieldCurveTenors(ccy)
                                              ? simMarketData_->yieldCurveTenors(ccy)
                                              : data.shiftTenors;
        checkShiftTenors(shiftTenors, data.shiftTenors, "Discount Curve " + ccy, continueOnError_);
        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Discount shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());
            // apply zero rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, zeros, times, shiftedZeros, true);

            // store shifted discount curve in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                RiskFactorKey key(RFType::DiscountCurve, ccy, k);
                // FIXME why do we have that here, but not in generateIndexCurveScenarios?
                if (!close_enough(shiftedZeros[k], zeros[k])) {
                    Real shiftedDiscount = exp(-shiftedZeros[k] * times[k]);
                    if (sensitivityData_->useSpreadedTermStructures()) {
                        Real discount = exp(-zeros[k] * times[k]);
                        scenario->add(key, shiftedDiscount / discount);
                    } else {
                        scenario->add(key, shiftedDiscount);
                    }
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, zeros[k], shiftedZeros[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(discountScenarioDescription(ccy, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");

        } // end of shift curve tenors
    }
    DLOG("Discount curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateIndexCurveScenarios()

void generateIndexCurveScenarios ( bool  up )

private

Definition at line 518 of file sensitivityscenariogenerator.cpp.

                                                                      {
    Date asof = baseScenario_->asof();

    for (auto sim_idx : simMarketData_->indices()) {
        if (sensitivityData_->indexCurveShiftData().find(sim_idx) == sensitivityData_->indexCurveShiftData().end()) {
            WLOG("Index " << sim_idx << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto idx : sensitivityData_->indexCurveShiftData()) {
        string indexName = idx.first;
        Size n_ten;
        try {
            n_ten = simMarketData_->yieldCurveTenors(indexName).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for index curve " << indexName << ": " << e.what());
            continue;
        }
        // original curves' buffer
        std::vector<Real> zeros(n_ten);
        std::vector<Real> times(n_ten);
        // buffer for shifted zero curves
        std::vector<Real> shiftedZeros(n_ten);

        SensitivityScenarioData::CurveShiftData data = *idx.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->iborIndex(indexName)->forwardingTermStructure()->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for index " << indexName << ", using default A365");
        }

        Real quote = 0.0;
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->yieldCurveTenors(indexName)[j];
            times[j] = dc.yearFraction(asof, d);
            RiskFactorKey key(RiskFactorKey::KeyType::IndexCurve, indexName, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, quote, continueOnError_);
            zeros[j] = -std::log(quote) / times[j];
        }
        if (!valid)
            continue;

        std::vector<Period> shiftTenors = overrideTenors_ && simMarketData_->hasYieldCurveTenors(indexName)
                                              ? simMarketData_->yieldCurveTenors(indexName)
                                              : data.shiftTenors;
        checkShiftTenors(shiftTenors, data.shiftTenors, "Index Curve " + indexName, continueOnError_);
        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Index shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // apply zero rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, zeros, times, shiftedZeros, true);

            // store shifted discount curve for this index in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                RiskFactorKey key(RFType::IndexCurve, indexName, k);

                Real shiftedDiscount = exp(-shiftedZeros[k] * times[k]);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    Real discount = exp(-zeros[k] * times[k]);
                    scenario->add(key, shiftedDiscount / discount);
                } else {
                    scenario->add(key, shiftedDiscount);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, zeros[k], shiftedZeros[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(indexScenarioDescription(indexName, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                           << " created for indexName " << indexName);

        } // end of shift curve tenors
    }
    DLOG("Index curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateFxScenarios()

void generateFxScenarios ( bool  up )

private

Definition at line 298 of file sensitivityscenariogenerator.cpp.

                                                              {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer FX risk factors than listed in the market
    // Is this too strict?
    // - implemented to avoid cases where input cross FX rates are not consistent
    // - Consider an example (baseCcy = EUR) of a GBPUSD FX trade - two separate routes to pricing
    // - (a) call GBPUSD FX rate from sim market
    // - (b) call GBPEUR and EURUSD FX rates, manually join them to obtain GBPUSD
    // - now, if GBPUSD is an explicit risk factor in sim market, consider what happens
    // - if we bump GBPUSD value and leave other FX rates unchanged (for e.g. a sensitivity analysis)
    // - (a) the value of the trade changes
    // - (b) the value of the GBPUSD trade stays the same
    // - in light of the above we restrict the universe of FX pairs that we support here for the time being
    string baseCcy = simMarketData_->baseCcy();
    for (auto sensi_fx : sensitivityData_->fxShiftData()) {
        string foreign = sensi_fx.first.substr(0, 3);
        string domestic = sensi_fx.first.substr(3);
        QL_REQUIRE((domestic == baseCcy) || (foreign == baseCcy),
                   "SensitivityScenarioGenerator does not support cross FX pairs("
                       << sensi_fx.first << ", but base currency is " << baseCcy << ")");
    }
    // Log an ALERT if some currencies in simmarket are excluded from the list
    for (auto sim_fx : simMarketData_->fxCcyPairs()) {
        if (sensitivityData_->fxShiftData().find(sim_fx) == sensitivityData_->fxShiftData().end()) {
            WLOG("FX pair " << sim_fx << " in simmarket is not included in sensitivities analysis");
        }
    }
    for (auto sensi_fx : sensitivityData_->fxShiftData()) {
        string ccypair = sensi_fx.first; // foreign + domestic;
        SensitivityScenarioData::SpotShiftData data = sensi_fx.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType type = getShiftType(data);
        Real size = (up ? 1.0 : -1.0) * getShiftSize(data);
        bool relShift = (type == ShiftType::Relative);

        Real rate;
        RiskFactorKey key(RiskFactorKey::KeyType::FXSpot, ccypair);
        if (!tryGetBaseScenarioValue(baseScenarioAbsolute_, key, rate, continueOnError_))
            continue;

        QuantLib::ext::shared_ptr<Scenario> scenario =
            sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

        Real newRate = relShift ? rate * (1.0 + size) : (rate + size);
        scenario->add(key, sensitivityData_->useSpreadedTermStructures() ? newRate / rate : newRate);

        storeShiftData(key, rate, newRate);


        scenarios_.push_back(scenario);
        scenarioDescriptions_.push_back(fxScenarioDescription(ccypair, up, getShiftScheme(data)));
        scenario->label(to_string(scenarioDescriptions_.back()));
        DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                       << " created: " << newRate);
    }
    DLOG("FX scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateEquityScenarios()

void generateEquityScenarios ( bool  up )

private

Definition at line 357 of file sensitivityscenariogenerator.cpp.

                                                                  {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some equities in simmarket are excluded from the sensitivities list
    for (auto sim_equity : simMarketData_->equityNames()) {
        if (sensitivityData_->equityShiftData().find(sim_equity) == sensitivityData_->equityShiftData().end()) {
            WLOG("Equity " << sim_equity << " in simmarket is not included in sensitivities analysis");
        }
    }
    for (auto e : sensitivityData_->equityShiftData()) {
        string equity = e.first;
        SensitivityScenarioData::SpotShiftData data = e.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType type = getShiftType(data);
        Real size = up ? getShiftSize(data) : -1.0 * getShiftSize(data);
        bool relShift = (type == ShiftType::Relative);

        Real rate;
        RiskFactorKey key(RiskFactorKey::KeyType::EquitySpot, equity);
        if (!tryGetBaseScenarioValue(baseScenarioAbsolute_, key, rate, continueOnError_))
            continue;

        QuantLib::ext::shared_ptr<Scenario> scenario =
            sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

        Real newRate = relShift ? rate * (1.0 + size) : (rate + size);
        // Real newRate = up ? rate * (1.0 + getShiftSize(data)) : rate * (1.0 - getShiftSize(data));
        scenario->add(key, sensitivityData_->useSpreadedTermStructures() ? newRate / rate : newRate);

        storeShiftData(key, rate, newRate);

        scenarios_.push_back(scenario);
        scenarioDescriptions_.push_back(equityScenarioDescription(equity, up, getShiftScheme(data)));
        scenario->label(to_string(scenarioDescriptions_.back()));
        DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                       << " created: " << newRate);
    }
    DLOG("Equity scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

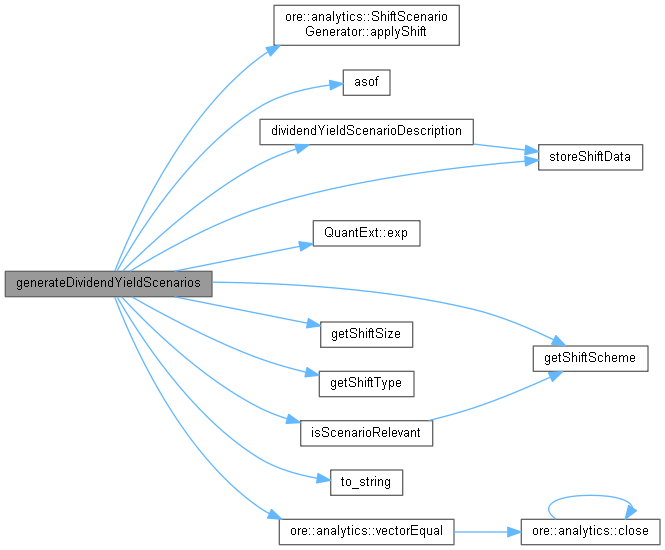

generateDividendYieldScenarios()

void generateDividendYieldScenarios ( bool  up )

private

Definition at line 721 of file sensitivityscenariogenerator.cpp.

                                                                         {
    Date asof = baseScenario_->asof();

    // We can choose to shift fewer yield curves than listed in the market
    // Log an ALERT if some yield curves in simmarket are excluded from the list
    for (auto sim : simMarketData_->equityNames()) {
        if (sensitivityData_->dividendYieldShiftData().find(sim) == sensitivityData_->dividendYieldShiftData().end()) {
            WLOG("Equity " << sim << " in simmarket is not included in dividend yield sensitivity analysis");
        }
    }

    for (auto d : sensitivityData_->dividendYieldShiftData()) {
        string name = d.first;
        Size n_ten;
        try {
            n_ten = simMarketData_->equityDividendTenors(name).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for div yield " << name << ": " << e.what());
            continue;
        }
        // original curves' buffer
        std::vector<Real> zeros(n_ten);
        std::vector<Real> times(n_ten);
        // buffer for shifted zero curves
        std::vector<Real> shiftedZeros(n_ten);
        SensitivityScenarioData::CurveShiftData data = *d.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->equityDividendCurve(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for dividend yield curve " << name
                                                                                            << ", using default A365");
        }

        Real quote = 0.0;
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->equityDividendTenors(name)[j];
            times[j] = dc.yearFraction(asof, d);
            RiskFactorKey key(RiskFactorKey::KeyType::DividendYield, name, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, quote, continueOnError_);
            zeros[j] = -std::log(quote) / times[j];
        }
        if (!valid)
            continue;

        const std::vector<Period>& shiftTenors = overrideTenors_ && simMarketData_->hasEquityDividendTenors(name)
                                                     ? simMarketData_->equityDividendTenors(name)
                                                     : data.shiftTenors;
        checkShiftTenors(shiftTenors, data.shiftTenors, "Dividend Yield " + name, continueOnError_);
        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Discount shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // apply zero rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, zeros, times, shiftedZeros, true);

            // store shifted discount curve in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                Real shiftedDiscount = exp(-shiftedZeros[k] * times[k]);
                RiskFactorKey key(RFType::DividendYield, name, k);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    Real discount = exp(-zeros[k] * times[k]);
                    scenario->add(key, shiftedDiscount / discount);
                } else {
                    scenario->add(key, shiftedDiscount);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, zeros[k], shiftedZeros[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(dividendYieldScenarioDescription(name, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");

        } // end of shift curve tenors
    }
    DLOG("Dividend yield curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateSwaptionVolScenarios()

void generateSwaptionVolScenarios ( bool  up )

private

Definition at line 1261 of file sensitivityscenariogenerator.cpp.

                                                                       {
    DLOG("starting swapVol sgen");
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some swaption currencies in simmarket are excluded from the list
    for (auto sim_key : simMarketData_->swapVolKeys()) {
        if (sensitivityData_->swaptionVolShiftData().find(sim_key) == sensitivityData_->swaptionVolShiftData().end()) {
            WLOG("Swaption key " << sim_key << " in simmarket is not included in sensitivities analysis");
        }
    }
    generateGenericYieldVolScenarios(up, RFType::SwaptionVolatility);
    DLOG("Swaption vol scenarios done");
}

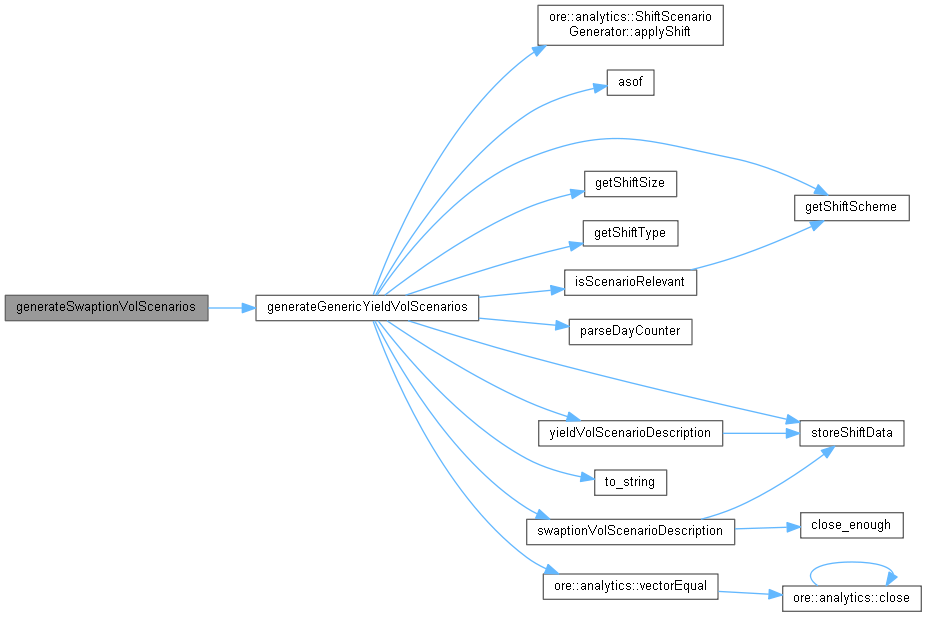

Here is the call graph for this function:

Here is the caller graph for this function:

generateYieldVolScenarios()

void generateYieldVolScenarios ( bool  up )

private

Definition at line 1274 of file sensitivityscenariogenerator.cpp.

                                                                    {
    DLOG("starting yieldVol sgen");
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some bond securityId in simmarket are excluded from the list
    for (auto sim_securityId : simMarketData_->yieldVolNames()) {
        if (sensitivityData_->yieldVolShiftData().find(sim_securityId) == sensitivityData_->yieldVolShiftData().end()) {
            WLOG("Bond securityId " << sim_securityId << " in simmarket is not included in sensitivities analysis");
        }
    }
    generateGenericYieldVolScenarios(up, RFType::YieldVolatility);
    DLOG("Yield vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateFxVolScenarios()

void generateFxVolScenarios ( bool  up )

private

Definition at line 823 of file sensitivityscenariogenerator.cpp.

                                                                 {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some FX vol pairs in simmarket are excluded from the list
    for (auto sim_fx : simMarketData_->fxVolCcyPairs()) {
        if (sensitivityData_->fxVolShiftData().find(sim_fx) == sensitivityData_->fxVolShiftData().end()) {
            WLOG("FX pair " << sim_fx << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto f : sensitivityData_->fxVolShiftData()) {
        string ccyPair = f.first;
        QL_REQUIRE(ccyPair.length() == 6, "invalid ccy pair length");

        Size n_fxvol_exp;
        try {
            n_fxvol_exp = simMarketData_->fxVolExpiries(ccyPair).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for fx vol " << ccyPair << ": " << e.what());
            continue;
        }
        std::vector<Real> times(n_fxvol_exp);
        Size n_fxvol_strikes;
        vector<Real> vol_strikes;
        if (!simMarketData_->fxVolIsSurface(ccyPair)) {
            vol_strikes = {0.0};
            n_fxvol_strikes = 1;
        } else if (simMarketData_->fxUseMoneyness(ccyPair)) {
            n_fxvol_strikes = simMarketData_->fxVolMoneyness(ccyPair).size();
            vol_strikes = simMarketData_->fxVolMoneyness(ccyPair);
        } else {
            n_fxvol_strikes = simMarketData_->fxVolStdDevs(ccyPair).size();
            vol_strikes = simMarketData_->fxVolStdDevs(ccyPair);
        }
        vector<vector<Real>> values(n_fxvol_exp, vector<Real>(n_fxvol_strikes, 0.0));

        // buffer for shifted zero curves
        vector<vector<Real>> shiftedValues(n_fxvol_exp, vector<Real>(n_fxvol_strikes, 0.0));

        SensitivityScenarioData::VolShiftData data = f.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        std::vector<Period> shiftTenors = data.shiftExpiries;
        std::vector<Real> shiftStrikes = data.shiftStrikes;
        std::vector<Time> shiftTimes(shiftTenors.size());
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "FX vol shift tenors not specified");

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->fxVol(ccyPair)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for fx vol surface " << ccyPair
                                                                                      << ", using default A365");
        }
        bool valid = true;
        for (Size j = 0; j < n_fxvol_exp; ++j) {
            Date d = asof + simMarketData_->fxVolExpiries(ccyPair)[j];
            times[j] = dc.yearFraction(asof, d);
            for (Size k = 0; k < n_fxvol_strikes; k++) {
                Size idx = k * n_fxvol_exp + j;
                RiskFactorKey key(RiskFactorKey::KeyType::FXVolatility, ccyPair, idx);
                valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, values[j][k], continueOnError_);
            }
        }
        if (!valid)
            continue;

        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes) && (vectorEqual(vol_strikes, shiftStrikes) ||
                                                                 (vol_strikes.size() == 1 && shiftStrikes.size() == 1));

        for (Size j = 0; j < shiftTenors.size(); ++j) {
            for (Size strikeBucket = 0; strikeBucket < shiftStrikes.size(); ++strikeBucket) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(j, strikeBucket, shiftSize, up, shiftType, shiftTimes, shiftStrikes, times, vol_strikes,
                           values, shiftedValues, true);

                for (Size k = 0; k < n_fxvol_strikes; ++k) {
                    for (Size l = 0; l < n_fxvol_exp; ++l) {
                        Size idx = k * n_fxvol_exp + l;
                        RiskFactorKey key(RFType::FXVolatility, ccyPair, idx);

                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedValues[l][k] - values[l][k]);
                        } else {
                            scenario->add(key, shiftedValues[l][k]);
                        }

                        // Possibly store valid shift size
                        if (validShiftSize && j == l && strikeBucket == k) {
                            storeShiftData(key, values[l][k], shiftedValues[l][k]);
                        }
                    }
                }

                // add this scenario to the scenario vector
                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(
                    fxVolScenarioDescription(ccyPair, j, strikeBucket, up, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("FX vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateEquityVolScenarios()

void generateEquityVolScenarios ( bool  up )

private

Definition at line 941 of file sensitivityscenariogenerator.cpp.

                                                                     {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if an Equity in simmarket are excluded from the simulation list
    for (auto sim_equity : simMarketData_->equityVolNames()) {
        if (sensitivityData_->equityVolShiftData().find(sim_equity) == sensitivityData_->equityVolShiftData().end()) {
            WLOG("Equity " << sim_equity << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto e : sensitivityData_->equityVolShiftData()) {
        string equity = e.first;
        SensitivityScenarioData::VolShiftData data = e.second;
        if (!isScenarioRelevant(up, data))
            continue;

        Size n_eqvol_exp;
        try {
            n_eqvol_exp = simMarketData_->equityVolExpiries(equity).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for eq vol " << equity << ": " << e.what());
            continue;
        }
        Size n_eqvol_strikes;
        vector<Real> vol_strikes;
        if (!simMarketData_->equityVolIsSurface(equity)) {
            vol_strikes = {0.0};
            n_eqvol_strikes = 1;
        } else if (simMarketData_->equityUseMoneyness(equity)) {
            vol_strikes = simMarketData_->equityVolMoneyness(equity);
            n_eqvol_strikes = simMarketData_->equityVolMoneyness(equity).size();
        } else {
            vol_strikes = simMarketData_->equityVolStandardDevs(equity);
            n_eqvol_strikes = simMarketData_->equityVolStandardDevs(equity).size();
        }

        // [strike] x [expiry]
        vector<vector<Real>> values(n_eqvol_strikes, vector<Real>(n_eqvol_exp, 0.0));
        vector<Real> times(n_eqvol_exp);

        // buffer for shifted vols
        vector<vector<Real>> shiftedValues(n_eqvol_strikes, vector<Real>(n_eqvol_exp, 0.0));

        ShiftType shiftType = getShiftType(data);
        vector<Period> shiftTenors = data.shiftExpiries;
        std::vector<Real> shiftStrikes = data.shiftStrikes;
        vector<Time> shiftTimes(shiftTenors.size());
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Equity vol shift tenors not specified");
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->equityVol(equity)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for equity vol surface " << equity
                                                                                          << ", using default A365");
        }
        bool valid = true;
        for (Size j = 0; j < n_eqvol_exp; ++j) {
            Date d = asof + simMarketData_->equityVolExpiries(equity)[j];
            times[j] = dc.yearFraction(asof, d);
            for (Size k = 0; k < n_eqvol_strikes; k++) {
                Size idx = k * n_eqvol_exp + j;
                RiskFactorKey key(RiskFactorKey::KeyType::EquityVolatility, equity, idx);
                valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, values[k][j], continueOnError_);
            }
        }
        if (!valid)
            continue;

        for (Size j = 0; j < shiftTenors.size(); ++j) {
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        }

        // Can we store a valid shift size?
        // Will only work currently if simulation market has a single strike
        bool validShiftSize = vectorEqual(times, shiftTimes);
        validShiftSize = validShiftSize && vectorEqual(vol_strikes, shiftStrikes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {
            for (Size strikeBucket = 0; strikeBucket < shiftStrikes.size(); ++strikeBucket) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(strikeBucket, j, shiftSize, up, shiftType, shiftStrikes, shiftTimes, vol_strikes, times,
                           values, shiftedValues, true);

                // update the scenario
                for (Size k = 0; k < n_eqvol_strikes; ++k) {
                    for (Size l = 0; l < n_eqvol_exp; l++) {
                        Size idx = k * n_eqvol_exp + l;
                        RiskFactorKey key(RFType::EquityVolatility, equity, idx);

                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedValues[k][l] - values[k][l]);
                        } else {
                            scenario->add(key, shiftedValues[k][l]);
                        }

                        // Possibly store valid shift size
                        if (validShiftSize && j == l && k == strikeBucket) {
                            storeShiftData(key, values[k][l], shiftedValues[k][l]);
                        }
                    }
                }

                // add this scenario to the scenario vector
                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(
                    equityVolScenarioDescription(equity, j, strikeBucket, up, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("Equity vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateCapFloorVolScenarios()

void generateCapFloorVolScenarios ( bool  up )

private

Definition at line 1287 of file sensitivityscenariogenerator.cpp.

                                                                       {
    Date asof = baseScenario_->asof();

    // Log an ALERT if some cap currencies in simmarket are excluded from the list
    for (auto sim_cap : simMarketData_->capFloorVolKeys()) {
        if (sensitivityData_->capFloorVolShiftData().find(sim_cap) == sensitivityData_->capFloorVolShiftData().end()) {
            WLOG("CapFloor key " << sim_cap << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto c : sensitivityData_->capFloorVolShiftData()) {
        std::string key = c.first;

        vector<Real> volStrikes;
        try {
            volStrikes = simMarketData_->capFloorVolStrikes(key);
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for cf vol " << key << ": " << e.what());
            continue;
        }
        // Strikes may be empty which indicates that the optionlet structure in the simulation market is an ATM curve
        if (volStrikes.empty()) {
            volStrikes = {0.0};
        }
        Size n_cfvol_strikes = volStrikes.size();

        Size n_cfvol_exp = simMarketData_->capFloorVolExpiries(key).size();
        SensitivityScenarioData::CapFloorVolShiftData data = *c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);
        vector<vector<Real>> volData(n_cfvol_exp, vector<Real>(n_cfvol_strikes, 0.0));
        vector<Real> volExpiryTimes(n_cfvol_exp, 0.0);
        vector<vector<Real>> shiftedVolData(n_cfvol_exp, vector<Real>(n_cfvol_strikes, 0.0));

        std::vector<Period> expiries = overrideTenors_ && simMarketData_->hasCapFloorVolExpiries(key)
                                           ? simMarketData_->capFloorVolExpiries(key)
                                           : data.shiftExpiries;
        QL_REQUIRE(expiries.size() == data.shiftExpiries.size(), "mismatch between effective shift expiries ("
                                                                     << expiries.size() << ") and shift tenors ("
                                                                     << data.shiftExpiries.size());
        vector<Real> shiftExpiryTimes(expiries.size(), 0.0);
        vector<Real> shiftStrikes = data.shiftStrikes;
        // Has an ATM shift been configured?
        bool sensiIsAtm = false;
        if (shiftStrikes.size() == 1 && shiftStrikes[0] == 0.0 && data.isRelative) {
            sensiIsAtm = true;
        }

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->capFloorVol(key)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for cap/floor vol surface " << key
                                                                                             << ", using default A365");
        }

        // cache original vol data
        for (Size j = 0; j < n_cfvol_exp; ++j) {
            Date expiry = asof + simMarketData_->capFloorVolExpiries(key)[j];
            volExpiryTimes[j] = dc.yearFraction(asof, expiry);
        }
        bool valid = true;
        for (Size j = 0; j < n_cfvol_exp; ++j) {
            for (Size k = 0; k < n_cfvol_strikes; ++k) {
                Size idx = j * n_cfvol_strikes + k;
                valid = valid &&
                        tryGetBaseScenarioValue(baseScenarioAbsolute_,
                                                RiskFactorKey(RiskFactorKey::KeyType::OptionletVolatility, key, idx),
                                                volData[j][k], continueOnError_);
            }
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j)
            shiftExpiryTimes[j] = dc.yearFraction(asof, asof + expiries[j]);

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(volExpiryTimes, shiftExpiryTimes);
        validShiftSize = validShiftSize && vectorEqual(volStrikes, shiftStrikes);

        // loop over shift expiries and terms
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j) {
            for (Size k = 0; k < shiftStrikes.size(); ++k) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(j, k, shiftSize, up, shiftType, shiftExpiryTimes, shiftStrikes, volExpiryTimes, volStrikes,
                           volData, shiftedVolData, true);

                // add shifted vol data to the scenario
                for (Size jj = 0; jj < n_cfvol_exp; ++jj) {
                    for (Size kk = 0; kk < n_cfvol_strikes; ++kk) {
                        Size idx = jj * n_cfvol_strikes + kk;
                        RiskFactorKey rfkey(RFType::OptionletVolatility, key, idx);

                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(rfkey, shiftedVolData[jj][kk] - volData[jj][kk]);
                        } else {
                            scenario->add(rfkey, shiftedVolData[jj][kk]);
                        }

                        // Possibly store valid shift size
                        if (validShiftSize && j == jj && k == kk) {
                            storeShiftData(rfkey, volData[jj][kk], shiftedVolData[jj][kk]);
                        }
                    }
                }

                // Give the scenario a label

                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(
                    capFloorVolScenarioDescription(key, j, k, up, sensiIsAtm, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("Optionlet vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateSurvivalProbabilityScenarios()

void generateSurvivalProbabilityScenarios ( bool  up )

private

Definition at line 1416 of file sensitivityscenariogenerator.cpp.

                                                                               {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer credit curves than listed in the market
    // Log an ALERT if some names in simmarket are excluded from the list
    for (auto sim_name : simMarketData_->defaultNames()) {
        if (sensitivityData_->creditCurveShiftData().find(sim_name) == sensitivityData_->creditCurveShiftData().end()) {
            WLOG("Credit Name " << sim_name << " in simmarket is not included in sensitivities analysis");
        }
    }
    Size n_ten;

    // original curves' buffer
    std::vector<Real> times;

    for (auto c : sensitivityData_->creditCurveShiftData()) {
        string name = c.first;
        try {
            n_ten = simMarketData_->defaultTenors(name).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for survival curve " << name << ": " << e.what());
            continue;
        }
        std::vector<Real> hazardRates(n_ten); // integrated hazard rates
        times.clear();
        times.resize(n_ten);
        // buffer for shifted survival prob curves
        std::vector<Real> shiftedHazardRates(n_ten);
        SensitivityScenarioData::CurveShiftData data = *c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->defaultCurve(name)->curve()->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for default curve " << name << ", using default A365");
        }
        Calendar calendar = parseCalendar(simMarketData_->defaultCurveCalendar(name));

        Real prob = 0.0;
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->defaultTenors(name)[j];
            times[j] = dc.yearFraction(asof, d);
            RiskFactorKey key(RiskFactorKey::KeyType::SurvivalProbability, name, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, prob, continueOnError_);
            // ensure we have a valid value, if prob = 0 we need to avoid nan to generate valid scenarios
            hazardRates[j] = -std::log(std::max(prob, 1E-8)) / times[j];
        }
        if (!valid)
            continue;

        std::vector<Period> shiftTenors = overrideTenors_ && simMarketData_->hasDefaultTenors(name)
                                              ? simMarketData_->defaultTenors(name)
                                              : data.shiftTenors;

        checkShiftTenors(shiftTenors, data.shiftTenors, "Default Curve " + name, continueOnError_);

        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Discount shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // apply averaged hazard rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, hazardRates, times, shiftedHazardRates, true);

            // store shifted survival Prob in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                RiskFactorKey key(RFType::SurvivalProbability, name, k);
                Real shiftedProb = exp(-shiftedHazardRates[k] * times[k]);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    Real prob = exp(-hazardRates[k] * times[k]);
                    scenario->add(key, shiftedProb / prob);
                } else {
                    scenario->add(key, shiftedProb);
                }

                // Possibly store valid shift size
                if (validShiftSize && k == j) {
                    storeShiftData(key, hazardRates[k], shiftedHazardRates[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(survivalProbabilityScenarioDescription(name, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");

        } // end of shift curve tenors
    }
    DLOG("Discount curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateCdsVolScenarios()

void generateCdsVolScenarios ( bool  up )

private

Definition at line 1523 of file sensitivityscenariogenerator.cpp.

                                                                  {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some swaption currencies in simmarket are excluded from the list
    for (auto sim_name : simMarketData_->cdsVolNames()) {
        if (sensitivityData_->cdsVolShiftData().find(sim_name) == sensitivityData_->cdsVolShiftData().end()) {
            WLOG("CDS name " << sim_name << " in simmarket is not included in sensitivities analysis");
        }
    }

    Size n_cdsvol_exp = simMarketData_->cdsVolExpiries().size();

    vector<Real> volData(n_cdsvol_exp, 0.0);
    vector<Real> volExpiryTimes(n_cdsvol_exp, 0.0);
    vector<Real> shiftedVolData(n_cdsvol_exp, 0.0);

    for (auto c : sensitivityData_->cdsVolShiftData()) {
        std::string name = c.first;
        SensitivityScenarioData::CdsVolShiftData data = c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);

        vector<Time> shiftExpiryTimes(data.shiftExpiries.size(), 0.0);

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->cdsVol(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for cds vol surface " << name
                                                                                       << ", using default A365");
        }

        // cache original vol data
        for (Size j = 0; j < n_cdsvol_exp; ++j) {
            Date expiry = asof + simMarketData_->cdsVolExpiries()[j];
            volExpiryTimes[j] = dc.yearFraction(asof, expiry);
        }
        bool valid = true;
        for (Size j = 0; j < n_cdsvol_exp; ++j) {
            RiskFactorKey key(RiskFactorKey::KeyType::CDSVolatility, name, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, volData[j], continueOnError_);
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j)
            shiftExpiryTimes[j] = dc.yearFraction(asof, asof + data.shiftExpiries[j]);

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(volExpiryTimes, shiftExpiryTimes);

        // loop over shift expiries and terms
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j) {
            Size strikeBucket = 0; // FIXME
            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            applyShift(j, shiftSize, up, shiftType, shiftExpiryTimes, volData, volExpiryTimes, shiftedVolData, true);
            // add shifted vol data to the scenario
            for (Size jj = 0; jj < n_cdsvol_exp; ++jj) {
                RiskFactorKey key(RFType::CDSVolatility, name, jj);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    scenario->add(key, shiftedVolData[jj] - volData[jj]);
                } else {
                    scenario->add(key, shiftedVolData[jj]);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == jj) {
                    storeShiftData(key, volData[jj], shiftedVolData[jj]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(CdsVolScenarioDescription(name, j, strikeBucket, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
        }
    }
    DLOG("CDS vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateZeroInflationScenarios()

void generateZeroInflationScenarios ( bool  up )

private

Definition at line 1613 of file sensitivityscenariogenerator.cpp.

                                                                         {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some ibor indices in simmarket are excluded from the list
    for (auto sim_idx : simMarketData_->zeroInflationIndices()) {
        if (sensitivityData_->zeroInflationCurveShiftData().find(sim_idx) ==
            sensitivityData_->zeroInflationCurveShiftData().end()) {
            WLOG("Zero Inflation Index " << sim_idx << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto z : sensitivityData_->zeroInflationCurveShiftData()) {
        string indexName = z.first;
        Size n_ten;
        try {
            n_ten = simMarketData_->zeroInflationTenors(indexName).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for zero inflation curve " << indexName << ": " << e.what());
            continue;
        }
        // original curves' buffer
        std::vector<Real> zeros(n_ten);
        std::vector<Real> times(n_ten);
        // buffer for shifted zero curves
        std::vector<Real> shiftedZeros(n_ten);
        SensitivityScenarioData::CurveShiftData data = *z.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->zeroInflationIndex(indexName)->zeroInflationTermStructure()->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for zero inflation index " << indexName
                                                                                            << ", using default A365");
        }
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->zeroInflationTenors(indexName)[j];
            RiskFactorKey key(RiskFactorKey::KeyType::ZeroInflationCurve, indexName, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, zeros[j], continueOnError_);
            times[j] = dc.yearFraction(asof, d);
        }
        if (!valid)
            continue;

        std::vector<Period> shiftTenors = overrideTenors_ && simMarketData_->hasZeroInflationTenors(indexName)
                                              ? simMarketData_->zeroInflationTenors(indexName)
                                              : data.shiftTenors;
        checkShiftTenors(shiftTenors, data.shiftTenors, "Zero Inflation " + indexName, continueOnError_);
        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j)
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "Zero Inflation Index shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // apply zero rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, zeros, times, shiftedZeros, true);

            // store shifted discount curve for this index in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                RiskFactorKey key(RFType::ZeroInflationCurve, indexName, k);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    scenario->add(key, shiftedZeros[k] - zeros[k]);
                } else {
                    scenario->add(key, shiftedZeros[k]);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, zeros[k], shiftedZeros[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(zeroInflationScenarioDescription(indexName, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                           << " created for indexName " << indexName);

        } // end of shift curve tenors
    }
    DLOG("Zero Inflation Index curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateZeroInflationCapFloorVolScenarios()

void generateZeroInflationCapFloorVolScenarios ( bool  up )

private

Definition at line 1927 of file sensitivityscenariogenerator.cpp.

                                                                                    {
    Date asof = baseScenario_->asof();
    for (auto sim_zci : simMarketData_->zeroInflationCapFloorVolNames()) {
        if (sensitivityData_->zeroInflationCapFloorVolShiftData().find(sim_zci) ==
            sensitivityData_->zeroInflationCapFloorVolShiftData().end()) {
            WLOG("Inflation index " << sim_zci << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto c : sensitivityData_->zeroInflationCapFloorVolShiftData()) {
        std::string name = c.first;
        Size n_strikes;
        try {
            n_strikes = simMarketData_->zeroInflationCapFloorVolStrikes(name).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for zero inflation cf vol " << name << ": " << e.what());
            continue;
        }
        Size n_exp = simMarketData_->zeroInflationCapFloorVolExpiries(name).size();
        vector<Real> volStrikes = simMarketData_->zeroInflationCapFloorVolStrikes(name);
        SensitivityScenarioData::VolShiftData data = *c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);
        vector<vector<Real>> volData(n_exp, vector<Real>(n_strikes, 0.0));
        vector<Real> volExpiryTimes(n_exp, 0.0);
        vector<vector<Real>> shiftedVolData(n_exp, vector<Real>(n_strikes, 0.0));

        std::vector<Period> expiries = overrideTenors_ && simMarketData_->hasZeroInflationCapFloorVolExpiries(name)
                                           ? simMarketData_->zeroInflationCapFloorVolExpiries(name)
                                           : data.shiftExpiries;
        QL_REQUIRE(expiries.size() == data.shiftExpiries.size(), "mismatch between effective shift expiries ("
                                                                     << expiries.size() << ") and shift tenors ("
                                                                     << data.shiftExpiries.size());
        vector<Real> shiftExpiryTimes(expiries.size(), 0.0);
        vector<Real> shiftStrikes = data.shiftStrikes;

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->cpiInflationCapFloorVolatilitySurface(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for cpi cap/floor vol surface "
                 << name << ", using default A365");
        }

        // cache original vol data
        for (Size j = 0; j < n_exp; ++j) {
            Date expiry = asof + simMarketData_->zeroInflationCapFloorVolExpiries(name)[j];
            volExpiryTimes[j] = dc.yearFraction(asof, expiry);
        }
        bool valid = true;
        for (Size j = 0; j < n_exp; ++j) {
            for (Size k = 0; k < n_strikes; ++k) {
                Size idx = j * n_strikes + k;
                RiskFactorKey key(RiskFactorKey::KeyType::ZeroInflationCapFloorVolatility, name, idx);
                valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, volData[j][k], continueOnError_);
            }
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j)
            shiftExpiryTimes[j] = dc.yearFraction(asof, asof + expiries[j]);

        bool validShiftSize = vectorEqual(volExpiryTimes, shiftExpiryTimes);
        validShiftSize = validShiftSize && vectorEqual(volStrikes, shiftStrikes);

        // loop over shift expiries and terms
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j) {
            for (Size k = 0; k < shiftStrikes.size(); ++k) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(j, k, shiftSize, up, shiftType, shiftExpiryTimes, shiftStrikes, volExpiryTimes, volStrikes,
                           volData, shiftedVolData, true);

                // add shifted vol data to the scenario
                for (Size jj = 0; jj < n_exp; ++jj) {
                    for (Size kk = 0; kk < n_strikes; ++kk) {
                        Size idx = jj * n_strikes + kk;
                        RiskFactorKey key(RFType::ZeroInflationCapFloorVolatility, name, idx);
                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedVolData[jj][kk] - volData[jj][kk]);
                        } else {
                            scenario->add(key, shiftedVolData[jj][kk]);
                        }

                        // Possibly store valid shift size
                        if (validShiftSize && j == jj && k == kk) {
                            storeShiftData(key, volData[jj][kk], shiftedVolData[jj][kk]);
                        }
                    }
                }

                // add this scenario to the scenario vector
                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(
                    zeroInflationCapFloorVolScenarioDescription(name, j, k, up, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("Zero inflation cap/floor vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateYoYInflationScenarios()

void generateYoYInflationScenarios ( bool  up )

private

Definition at line 1711 of file sensitivityscenariogenerator.cpp.

                                                                        {
    Date asof = baseScenario_->asof();

    // We can choose to shift fewer discount curves than listed in the market
    std::vector<string> yoyInfIndexNames;
    // Log an ALERT if some ibor indices in simmarket are excluded from the list
    for (auto sim_idx : simMarketData_->yoyInflationIndices()) {
        if (sensitivityData_->yoyInflationCurveShiftData().find(sim_idx) ==
            sensitivityData_->yoyInflationCurveShiftData().end()) {
            WLOG("YoY Inflation Index " << sim_idx << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto y : sensitivityData_->yoyInflationCurveShiftData()) {
        string indexName = y.first;
        Size n_ten;
        try {
            n_ten = simMarketData_->yoyInflationTenors(indexName).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for yoy inflation curve " << indexName << ": " << e.what());
            continue;
        }
        // original curves' buffer
        std::vector<Real> yoys(n_ten);
        std::vector<Real> times(n_ten);
        // buffer for shifted zero curves
        std::vector<Real> shiftedYoys(n_ten);
        auto itr = sensitivityData_->yoyInflationCurveShiftData().find(indexName);
        QL_REQUIRE(itr != sensitivityData_->yoyInflationCurveShiftData().end(),
                   "yoyinflation CurveShiftData not found for " << indexName);
        SensitivityScenarioData::CurveShiftData data = *y.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->yoyInflationIndex(indexName)->yoyInflationTermStructure()->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for yoy inflation index " << indexName
                                                                                           << ", using default A365");
        }
        bool valid = true;
        for (Size j = 0; j < n_ten; ++j) {
            Date d = asof + simMarketData_->yoyInflationTenors(indexName)[j];
            RiskFactorKey key(RiskFactorKey::KeyType::YoYInflationCurve, indexName, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, yoys[j], continueOnError_);
            times[j] = dc.yearFraction(asof, d);
        }
        if (!valid)
            continue;

        std::vector<Period> shiftTenors = overrideTenors_ && simMarketData_->hasYoyInflationTenors(indexName)
                                              ? simMarketData_->yoyInflationTenors(indexName)
                                              : data.shiftTenors;
        checkShiftTenors(shiftTenors, data.shiftTenors, "YoY Inflation " + indexName, continueOnError_);
        std::vector<Time> shiftTimes(shiftTenors.size());
        for (Size j = 0; j < shiftTenors.size(); ++j) {
            shiftTimes[j] = dc.yearFraction(asof, asof + shiftTenors[j]);
        }
        Real shiftSize = getShiftSize(data);
        QL_REQUIRE(shiftTenors.size() > 0, "YoY Inflation Index shift tenors not specified");

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        for (Size j = 0; j < shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // apply zero rate shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, yoys, times, shiftedYoys, true);

            // store shifted discount curve for this index in the scenario
            for (Size k = 0; k < n_ten; ++k) {
                RiskFactorKey key(RFType::YoYInflationCurve, indexName, k);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    scenario->add(key, shiftedYoys[k] - yoys[k]);
                } else {
                    scenario->add(key, shiftedYoys[k]);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, yoys[k], shiftedYoys[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(yoyInflationScenarioDescription(indexName, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                           << " created for indexName " << indexName);

        } // end of shift curve tenors
    }
    DLOG("YoY Inflation Index curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateYoYInflationCapFloorVolScenarios()

void generateYoYInflationCapFloorVolScenarios ( bool  up )

private

Definition at line 1815 of file sensitivityscenariogenerator.cpp.

                                                                                   {
    Date asof = baseScenario_->asof();
    for (auto sim_yoy : simMarketData_->yoyInflationCapFloorVolNames()) {
        if (sensitivityData_->yoyInflationCapFloorVolShiftData().find(sim_yoy) ==
            sensitivityData_->yoyInflationCapFloorVolShiftData().end()) {
            WLOG("Inflation index " << sim_yoy << " in simmarket is not included in sensitivities analysis");
        }
    }

    for (auto c : sensitivityData_->yoyInflationCapFloorVolShiftData()) {
        std::string name = c.first;
        Size n_yoyvol_strikes;
        try {
            n_yoyvol_strikes = simMarketData_->yoyInflationCapFloorVolStrikes(name).size();
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for yoy inflation cf vol " << name << ": " << e.what());
            continue;
        }
        vector<Real> volStrikes = simMarketData_->yoyInflationCapFloorVolStrikes(name);
        Size n_yoyvol_exp = simMarketData_->yoyInflationCapFloorVolExpiries(name).size();
        SensitivityScenarioData::VolShiftData data = *c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);
        vector<vector<Real>> volData(n_yoyvol_exp, vector<Real>(n_yoyvol_strikes, 0.0));
        vector<Real> volExpiryTimes(n_yoyvol_exp, 0.0);
        vector<vector<Real>> shiftedVolData(n_yoyvol_exp, vector<Real>(n_yoyvol_strikes, 0.0));

        std::vector<Period> expiries = overrideTenors_ && simMarketData_->hasYoYInflationCapFloorVolExpiries(name)
                                           ? simMarketData_->yoyInflationCapFloorVolExpiries(name)
                                           : data.shiftExpiries;
        QL_REQUIRE(expiries.size() == data.shiftExpiries.size(), "mismatch between effective shift expiries ("
                                                                     << expiries.size() << ") and shift tenors ("
                                                                     << data.shiftExpiries.size());
        vector<Real> shiftExpiryTimes(expiries.size(), 0.0);
        vector<Real> shiftStrikes = data.shiftStrikes;

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->yoyCapFloorVol(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for yoy cap/floor vol surface "
                 << name << ", using default A365");
        }

        // cache original vol data
        for (Size j = 0; j < n_yoyvol_exp; ++j) {
            Date expiry = asof + simMarketData_->yoyInflationCapFloorVolExpiries(name)[j];
            volExpiryTimes[j] = dc.yearFraction(asof, expiry);
        }
        bool valid = true;
        for (Size j = 0; j < n_yoyvol_exp; ++j) {
            for (Size k = 0; k < n_yoyvol_strikes; ++k) {
                Size idx = j * n_yoyvol_strikes + k;
                RiskFactorKey key(RiskFactorKey::KeyType::YoYInflationCapFloorVolatility, name, idx);
                valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, volData[j][k], continueOnError_);
            }
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j)
            shiftExpiryTimes[j] = dc.yearFraction(asof, asof + expiries[j]);

        bool validShiftSize = vectorEqual(volExpiryTimes, shiftExpiryTimes);
        validShiftSize = validShiftSize && vectorEqual(volStrikes, shiftStrikes);

        // loop over shift expiries and terms
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j) {
            for (Size k = 0; k < shiftStrikes.size(); ++k) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(j, k, shiftSize, up, shiftType, shiftExpiryTimes, shiftStrikes, volExpiryTimes, volStrikes,
                           volData, shiftedVolData, true);

                // add shifted vol data to the scenario
                for (Size jj = 0; jj < n_yoyvol_exp; ++jj) {
                    for (Size kk = 0; kk < n_yoyvol_strikes; ++kk) {
                        Size idx = jj * n_yoyvol_strikes + kk;
                        RiskFactorKey key(RFType::YoYInflationCapFloorVolatility, name, idx);
                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedVolData[jj][kk] - volData[jj][kk]);
                        } else {
                            scenario->add(key, shiftedVolData[jj][kk]);
                        }

                        // Possibly store valid shift size
                        if (validShiftSize && j == jj && k == kk) {
                            storeShiftData(key, volData[jj][kk], shiftedVolData[jj][kk]);
                        }
                    }
                }

                // add this scenario to the scenario vector
                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(
                    yoyInflationCapFloorVolScenarioDescription(name, j, k, up, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("YoY inflation optionlet vol scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateBaseCorrelationScenarios()

void generateBaseCorrelationScenarios ( bool  up )

private

Definition at line 2039 of file sensitivityscenariogenerator.cpp.

                                                                           {
    Date asof = baseScenario_->asof();
    // We can choose to shift fewer discount curves than listed in the market
    // Log an ALERT if some names in simmarket are excluded from the list
    for (auto name : simMarketData_->baseCorrelationNames()) {
        if (sensitivityData_->baseCorrelationShiftData().find(name) ==
            sensitivityData_->baseCorrelationShiftData().end()) {
            WLOG("Base Correlation " << name << " in simmarket is not included in sensitivities analysis");
        }
    }

    Size n_bc_terms = simMarketData_->baseCorrelationTerms().size();
    Size n_bc_levels = simMarketData_->baseCorrelationDetachmentPoints().size();

    vector<vector<Real>> bcData(n_bc_levels, vector<Real>(n_bc_terms, 0.0));
    vector<vector<Real>> shiftedBcData(n_bc_levels, vector<Real>(n_bc_levels, 0.0));
    vector<Real> termTimes(n_bc_terms, 0.0);
    vector<Real> levels = simMarketData_->baseCorrelationDetachmentPoints();

    for (auto b : sensitivityData_->baseCorrelationShiftData()) {
        std::string name = b.first;
        SensitivityScenarioData::BaseCorrelationShiftData data = b.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);

        vector<Real> shiftLevels = data.shiftLossLevels;
        vector<Real> shiftTermTimes(data.shiftTerms.size(), 0.0);

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->baseCorrelation(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for base correlation structure "
                 << name << ", using default A365");
        }

        // cache original base correlation data
        for (Size j = 0; j < n_bc_terms; ++j) {
            Date term = asof + simMarketData_->baseCorrelationTerms()[j];
            termTimes[j] = dc.yearFraction(asof, term);
        }
        bool valid = true;
        for (Size j = 0; j < n_bc_levels; ++j) {
            for (Size k = 0; k < n_bc_terms; ++k) {
                RiskFactorKey key(RiskFactorKey::KeyType::BaseCorrelation, name, j);
                valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, bcData[j][k], continueOnError_);
            }
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftTermTimes.size(); ++j)
            shiftTermTimes[j] = dc.yearFraction(asof, asof + data.shiftTerms[j]);

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(termTimes, shiftTermTimes);
        validShiftSize = validShiftSize && vectorEqual(levels, shiftLevels);

        // loop over shift levels and terms
        for (Size j = 0; j < shiftLevels.size(); ++j) {
            for (Size k = 0; k < shiftTermTimes.size(); ++k) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(j, k, shiftSize, up, shiftType, shiftLevels, shiftTermTimes, levels, termTimes, bcData,
                           shiftedBcData, true);

                // add shifted vol data to the scenario
                for (Size jj = 0; jj < n_bc_levels; ++jj) {
                    for (Size kk = 0; kk < n_bc_terms; ++kk) {
                        Size idx = jj * n_bc_terms + kk;
                        if (shiftedBcData[jj][kk] < 0.0) {
                            ALOG("invalid shifted base correlation " << shiftedBcData[jj][kk] << " at lossLevelIndex "
                                                                     << jj << " and termIndex " << kk
                                                                     << " set to zero");
                            shiftedBcData[jj][kk] = 0.0;
                        } else if (shiftedBcData[jj][kk] > 1.0) {
                            ALOG("invalid shifted base correlation " << shiftedBcData[jj][kk] << " at lossLevelIndex "
                                                                     << jj << " and termIndex " << kk
                                                                     << " set to 1 - epsilon");
                            shiftedBcData[jj][kk] = 1.0 - QL_EPSILON;
                        }

                        RiskFactorKey key(RFType::BaseCorrelation, name, idx);
                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedBcData[jj][kk] - bcData[jj][kk]);
                        } else {
                            scenario->add(key, shiftedBcData[jj][kk]);
                        }
                        // Possibly store valid shift size
                        if (validShiftSize && j == jj && k == kk) {
                            storeShiftData(key, bcData[jj][kk], shiftedBcData[jj][kk]);
                        }
                    }
                }

                // add this scenario to the scenario vector
                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(
                    baseCorrelationScenarioDescription(name, j, k, up, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("Base correlation scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateCommodityCurveScenarios()

void generateCommodityCurveScenarios ( bool  up )

private

Definition at line 2154 of file sensitivityscenariogenerator.cpp.

                                                                          {

    Date asof = baseScenario_->asof();

    // Log an ALERT if some commodity curves in simulation market are not in the list
    for (const string& name : simMarketData_->commodityNames()) {
        if (sensitivityData_->commodityCurveShiftData().find(name) ==
            sensitivityData_->commodityCurveShiftData().end()) {
            ALOG("Commodity " << name
                              << " in simulation market is not "
                                 "included in commodity sensitivity analysis");
        }
    }

    for (auto c : sensitivityData_->commodityCurveShiftData()) {
        string name = c.first;
        // Tenors for this name in simulation market
        vector<Period> simMarketTenors;
        try {
            simMarketTenors = simMarketData_->commodityCurveTenors(name);
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for comm curve " << name << ": " << e.what());
            continue;
        }
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->commodityPriceCurve(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for commodity price curve " << name
                                                                                             << ", using default A365");
        }

        vector<Real> times(simMarketTenors.size());
        vector<Real> basePrices(times.size());
        vector<Real> shiftedPrices(times.size());

        // Get the base prices for this name from the base scenario
        bool valid = true;
        for (Size j = 0; j < times.size(); ++j) {
            times[j] = dc.yearFraction(asof, asof + simMarketTenors[j]);
            RiskFactorKey key(RiskFactorKey::KeyType::CommodityCurve, name, j);
            valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, basePrices[j], continueOnError_);
        }
        if (!valid)
            continue;

        // Get the sensitivity data for this name
        SensitivityScenarioData::CurveShiftData data = *c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);

        // Get the times at which we want to apply the shifts
        QL_REQUIRE(!data.shiftTenors.empty(), "Commodity curve shift tenors have not been given");
        vector<Time> shiftTimes(data.shiftTenors.size());
        for (Size j = 0; j < data.shiftTenors.size(); ++j) {
            shiftTimes[j] = dc.yearFraction(asof, asof + data.shiftTenors[j]);
        }

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);

        // Generate the scenarios for each shift
        for (Size j = 0; j < data.shiftTenors.size(); ++j) {

            QuantLib::ext::shared_ptr<Scenario> scenario =
                sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

            // Apply shift at tenor point j
            applyShift(j, shiftSize, up, shiftType, shiftTimes, basePrices, times, shiftedPrices, true);

            // store shifted commodity price curve in the scenario
            for (Size k = 0; k < times.size(); ++k) {
                RiskFactorKey key(RFType::CommodityCurve, name, k);
                if (sensitivityData_->useSpreadedTermStructures()) {
                    scenario->add(key, shiftedPrices[k] - basePrices[k]);
                } else {
                    scenario->add(key, shiftedPrices[k]);
                }

                // Possibly store valid shift size
                if (validShiftSize && j == k) {
                    storeShiftData(key, basePrices[k], shiftedPrices[k]);
                }
            }

            // add this scenario to the scenario vector
            scenarios_.push_back(scenario);
            scenarioDescriptions_.push_back(commodityCurveScenarioDescription(name, j, up, getShiftScheme(data)));
            scenario->label(to_string(scenarioDescriptions_.back()));
            DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
        }
    }
    DLOG("Commodity curve scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateCommodityVolScenarios()

void generateCommodityVolScenarios ( bool  up )

private

Definition at line 2255 of file sensitivityscenariogenerator.cpp.

                                                                        {

    // Log an ALERT if some commodity vol names in simulation market are not in the list
    for (const string& name : simMarketData_->commodityVolNames()) {
        if (sensitivityData_->commodityVolShiftData().find(name) == sensitivityData_->commodityVolShiftData().end()) {
            ALOG("Commodity volatility " << name
                                         << " in simulation market is not "
                                            "included in commodity sensitivity analysis");
        }
    }

    // Loop over each commodity and create volatility scenario
    Date asof = baseScenario_->asof();
    for (auto c : sensitivityData_->commodityVolShiftData()) {
        string name = c.first;
        // Simulation market data for the current name
        vector<Period> expiries;
        try {
            expiries = simMarketData_->commodityVolExpiries(name);
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for comm vol " << name << ": " << e.what());
            continue;
        }
        const vector<Real>& moneyness = simMarketData_->commodityVolMoneyness(name);
        QL_REQUIRE(!expiries.empty(), "Sim market commodity volatility expiries have not been specified for " << name);
        QL_REQUIRE(!moneyness.empty(), "Sim market commodity volatility moneyness has not been specified for " << name);
        // Store base scenario volatilities, strike x expiry
        vector<vector<Real>> baseValues(moneyness.size(), vector<Real>(expiries.size()));
        // Time to each expiry
        vector<Time> times(expiries.size());
        // Store shifted scenario volatilities
        vector<vector<Real>> shiftedValues = baseValues;

        SensitivityScenarioData::VolShiftData sd = c.second;
        if (!isScenarioRelevant(up, sd))
            continue;
        QL_REQUIRE(!sd.shiftExpiries.empty(), "commodity volatility shift tenors must be specified");

        ShiftType shiftType = getShiftType(sd);
        vector<Time> shiftTimes(sd.shiftExpiries.size());
        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->commodityVolatility(name)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for commodity vol surface " << name
                                                                                             << ", using default A365");
        }

        // Get the base scenario volatility values
        bool valid = true;
        for (Size j = 0; j < expiries.size(); j++) {
            times[j] = dc.yearFraction(asof, asof + expiries[j]);
            for (Size i = 0; i < moneyness.size(); i++) {
                RiskFactorKey key(RiskFactorKey::KeyType::CommodityVolatility, name, i * expiries.size() + j);
                valid =
                    valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, baseValues[i][j], continueOnError_);
            }
        }
        if (!valid)
            continue;

        // Store the shift expiry times
        for (Size sj = 0; sj < sd.shiftExpiries.size(); ++sj) {
            shiftTimes[sj] = dc.yearFraction(asof, asof + sd.shiftExpiries[sj]);
        }

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(times, shiftTimes);
        validShiftSize = validShiftSize && vectorEqual(moneyness, sd.shiftStrikes);

        // Loop and apply scenarios
        for (Size sj = 0; sj < sd.shiftExpiries.size(); ++sj) {
            for (Size si = 0; si < sd.shiftStrikes.size(); ++si) {

                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(si, sj, getShiftSize(sd), up, shiftType, sd.shiftStrikes, shiftTimes, moneyness, times,
                           baseValues, shiftedValues, true);

                Size counter = 0;
                for (Size i = 0; i < moneyness.size(); i++) {
                    for (Size j = 0; j < expiries.size(); ++j) {
                        RiskFactorKey key(RFType::CommodityVolatility, name, counter++);
                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedValues[i][j] - baseValues[i][j]);
                        } else {
                            scenario->add(key, shiftedValues[i][j]);
                        }
                        // Possibly store valid shift size
                        if (validShiftSize && si == i && sj == j) {
                            storeShiftData(key, baseValues[i][j], shiftedValues[i][j]);
                        }
                    }
                }

                // Give the scenario a label

                // Add the final scenario to the scenario vector
                scenarioDescriptions_.push_back(commodityVolScenarioDescription(name, sj, si, up, getShiftScheme(sd)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                scenarios_.push_back(scenario);
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("Commodity volatility scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateSecuritySpreadScenarios()

void generateSecuritySpreadScenarios ( bool  up )

private

Definition at line 2480 of file sensitivityscenariogenerator.cpp.

                                                                          {
    // We can choose to shift fewer discount curves than listed in the market
    Date asof = baseScenario_->asof();
    // Log an ALERT if some equities in simmarket are excluded from the sensitivities list
    for (auto sim_security : simMarketData_->securities()) {
        if (sensitivityData_->securityShiftData().find(sim_security) == sensitivityData_->securityShiftData().end()) {
            WLOG("Security " << sim_security << " in simmarket is not included in sensitivities analysis");
        }
    }
    for (auto s : sensitivityData_->securityShiftData()) {
        string bond = s.first;
        SensitivityScenarioData::SpotShiftData data = s.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType type = getShiftType(data);
        Real size = up ? getShiftSize(data) : -1.0 * getShiftSize(data);
        bool relShift = (type == ShiftType::Relative);

        QuantLib::ext::shared_ptr<Scenario> scenario =
            sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

        RiskFactorKey key(RiskFactorKey::KeyType::SecuritySpread, bond);
        Real base_spread;
        if (!tryGetBaseScenarioValue(baseScenarioAbsolute_, key, base_spread, continueOnError_))
            continue;
        Real newSpread = relShift ? base_spread * (1.0 + size) : (base_spread + size);
        // Real newRate = up ? rate * (1.0 + getShiftSize(data)) : rate * (1.0 - getShiftSize(data));
        scenario->add(key, sensitivityData_->useSpreadedTermStructures() ? newSpread - base_spread : newSpread);

        storeShiftData(key, base_spread, newSpread);

        scenarios_.push_back(scenario);
        scenarioDescriptions_.push_back(securitySpreadScenarioDescription(bond, up, getShiftScheme(data)));
        scenario->label(to_string(scenarioDescriptions_.back()));
        DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                       << " created: " << newSpread);
    }
    DLOG("Security scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateCorrelationScenarios()

void generateCorrelationScenarios ( bool  up )

private

Definition at line 2368 of file sensitivityscenariogenerator.cpp.

                                                                       {
    Date asof = baseScenario_->asof();
    for (auto sim_cap : simMarketData_->correlationPairs()) {
        if (sensitivityData_->correlationShiftData().find(sim_cap) == sensitivityData_->correlationShiftData().end()) {
            WLOG("Correlation " << sim_cap << " in simmarket is not included in sensitivities analysis");
        }
    }

    Size n_c_strikes = simMarketData_->correlationStrikes().size();
    vector<Real> corrStrikes = simMarketData_->correlationStrikes();

    for (auto c : sensitivityData_->correlationShiftData()) {
        std::string label = c.first;
        std::vector<std::string> tokens = ore::data::getCorrelationTokens(label);
        std::pair<string, string> pair(tokens[0], tokens[1]);
        Size n_c_exp = simMarketData_->correlationExpiries().size();
        SensitivityScenarioData::VolShiftData data = c.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);
        vector<vector<Real>> corrData(n_c_exp, vector<Real>(n_c_strikes, 0.0));
        vector<Real> corrExpiryTimes(n_c_exp, 0.0);
        vector<vector<Real>> shiftedCorrData(n_c_exp, vector<Real>(n_c_strikes, 0.0));

        std::vector<Period> expiries = overrideTenors_ ? simMarketData_->correlationExpiries() : data.shiftExpiries;
        QL_REQUIRE(expiries.size() == data.shiftExpiries.size(), "mismatch between effective shift expiries ("
                                                                     << expiries.size() << ") and shift tenors ("
                                                                     << data.shiftExpiries.size());
        vector<Real> shiftExpiryTimes(expiries.size(), 0.0);
        vector<Real> shiftStrikes = data.shiftStrikes;

        DayCounter dc = Actual365Fixed();
        try {
            if (auto s = simMarket_.lock()) {
                dc = s->correlationCurve(pair.first, pair.second)->dayCounter();
            } else {
                QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
            }
        } catch (const std::exception&) {
            WLOG("Day counter lookup in simulation market failed for correlation curve "
                 << pair.first << " - " << pair.second << ", using default A365");
        }

        // cache original vol data
        for (Size j = 0; j < n_c_exp; ++j) {
            Date expiry = asof + simMarketData_->correlationExpiries()[j];
            corrExpiryTimes[j] = dc.yearFraction(asof, expiry);
        }
        bool valid = true;
        for (Size j = 0; j < n_c_exp; ++j) {
            for (Size k = 0; k < n_c_strikes; ++k) {
                Size idx = j * n_c_strikes + k;
                RiskFactorKey key(RiskFactorKey::KeyType::Correlation, label, idx);
                valid = valid && tryGetBaseScenarioValue(baseScenarioAbsolute_, key, corrData[j][k], continueOnError_);
            }
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j)
            shiftExpiryTimes[j] = dc.yearFraction(asof, asof + expiries[j]);

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(corrExpiryTimes, shiftExpiryTimes);
        validShiftSize = validShiftSize && vectorEqual(corrStrikes, shiftStrikes);

        // loop over shift expiries and terms
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j) {
            for (Size k = 0; k < shiftStrikes.size(); ++k) {
                QuantLib::ext::shared_ptr<Scenario> scenario =
                    sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                applyShift(j, k, shiftSize, up, shiftType, shiftExpiryTimes, shiftStrikes, corrExpiryTimes, corrStrikes,
                           corrData, shiftedCorrData, true);

                // add shifted vol data to the scenario
                for (Size jj = 0; jj < n_c_exp; ++jj) {
                    for (Size kk = 0; kk < n_c_strikes; ++kk) {
                        Size idx = jj * n_c_strikes + kk;
                        RiskFactorKey key(RFType::Correlation, label, idx);

                        if (shiftedCorrData[jj][kk] > 1) {
                            shiftedCorrData[jj][kk] = 1;
                        } else if (shiftedCorrData[jj][kk] < -1) {
                            shiftedCorrData[jj][kk] = -1;
                        }

                        if (sensitivityData_->useSpreadedTermStructures()) {
                            scenario->add(key, shiftedCorrData[jj][kk] - corrData[jj][kk]);
                        } else {
                            scenario->add(key, shiftedCorrData[jj][kk]);
                        }
                        // Possibly store valid shift size
                        if (validShiftSize && j == jj && k == kk) {
                            storeShiftData(key, corrData[jj][kk], shiftedCorrData[jj][kk]);
                        }
                    }
                }

                // add this scenario to the scenario vector
                scenarios_.push_back(scenario);
                scenarioDescriptions_.push_back(correlationScenarioDescription(label, j, k, up, getShiftScheme(data)));
                scenario->label(to_string(scenarioDescriptions_.back()));
                DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label() << " created");
            }
        }
    }
    DLOG("Correlation scenarios done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

generateGenericYieldVolScenarios()

void generateGenericYieldVolScenarios ( bool  up, RiskFactorKey::KeyType  rfType  )

private

Definition at line 1062 of file sensitivityscenariogenerator.cpp.

                                                                                                        {

    Date asof = baseScenario_->asof();

    // set parameters for swaption resp. yield vol scenarios

    bool atmOnly;
    map<string, SensitivityScenarioData::GenericYieldVolShiftData> shiftData;
    function<Size(string)> get_n_term;
    function<Size(string)> get_n_expiry;
    function<vector<Real>(string)> getVolStrikes;
    function<vector<Period>(string)> getVolExpiries;
    function<vector<Period>(string)> getVolTerms;
    function<string(string)> getDayCounter;
    function<ScenarioDescription(string, Size, Size, Size, bool, SensitivityScenarioData::ShiftData&)>
        getScenarioDescription;

    if (rfType == RFType::SwaptionVolatility) {
        atmOnly = simMarketData_->simulateSwapVolATMOnly();
        shiftData = sensitivityData_->swaptionVolShiftData();
        get_n_term = [this](const string& k) { return simMarketData_->swapVolTerms(k).size(); };
        get_n_expiry = [this](const string& k) { return simMarketData_->swapVolExpiries(k).size(); };
        getVolStrikes = [this](const string& k) { return simMarketData_->swapVolStrikeSpreads(k); };
        getVolExpiries = [this](const string& k) { return simMarketData_->swapVolExpiries(k); };
        getVolTerms = [this](const string& k) { return simMarketData_->swapVolTerms(k); };
        getDayCounter = [this](const string& k) {
            try {
                if (auto s = simMarket_.lock()) {
                    return to_string(s->swaptionVol(k)->dayCounter());
                } else {
                    QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
                }
            } catch (const std::exception&) {
                WLOG("Day counter lookup in simulation market failed for swaption vol '" << k
                                                                                         << "', using default A365");
                return std::string("A365F");
            }
        };
        getScenarioDescription = [this](string q, Size n, Size m, Size k, bool up,
                                        SensitivityScenarioData::ShiftData& data) {
            return swaptionVolScenarioDescription(q, n, m, k, up, getShiftScheme(data));
        };
    } else if (rfType == RFType::YieldVolatility) {
        atmOnly = true;
        shiftData = sensitivityData_->yieldVolShiftData();
        get_n_term = [this](const string& k) { return simMarketData_->yieldVolTerms().size(); };
        get_n_expiry = [this](const string& k) { return simMarketData_->yieldVolExpiries().size(); };
        getVolStrikes = [](const string& k) { return vector<Real>({0.0}); };
        getVolExpiries = [this](const string& k) { return simMarketData_->yieldVolExpiries(); };
        getVolTerms = [this](const string& k) { return simMarketData_->yieldVolTerms(); };
        getDayCounter = [this](const string& k) {
            try {
                if (auto s = simMarket_.lock()) {
                    return to_string(s->yieldVol(k)->dayCounter());
                } else {
                    QL_FAIL("Internal error: could not lock simMarket. Contact dev.");
                }
            } catch (const std::exception&) {
                WLOG("Day counter lookup in simulation market failed for swaption vol '" << k
                                                                                         << "', using default A365");
                return std::string("A365F");
            }
        };
        getScenarioDescription = [this](string q, Size n, Size m, Size k, bool up,
                                        SensitivityScenarioData::ShiftData& data) {
            return yieldVolScenarioDescription(q, n, m, up, getShiftScheme(data));
        };
    } else {
        QL_FAIL("SensitivityScenarioGenerator::generateGenericYieldVolScenarios: risk factor type " << rfType
                                                                                                    << " not handled.");
    }

    // generate scenarios
    for (auto s : shiftData) {
        std::string qualifier = s.first;

        Size n_term;
        try {
            n_term = get_n_term(qualifier);
        } catch (const std::exception& e) {
            ALOG("skip scenario generation for general yield vol " << qualifier << ": " << e.what());
            continue;
        }
        Size n_expiry = get_n_expiry(qualifier);

        vector<Real> volExpiryTimes(n_expiry, 0.0);
        vector<Real> volTermTimes(n_term, 0.0);
        Size n_strike = getVolStrikes(qualifier).size();

        vector<vector<vector<Real>>> volData(n_strike, vector<vector<Real>>(n_expiry, vector<Real>(n_term, 0.0)));
        vector<vector<vector<Real>>> shiftedVolData = volData;

        SensitivityScenarioData::GenericYieldVolShiftData data = s.second;
        if (!isScenarioRelevant(up, data))
            continue;
        ShiftType shiftType = getShiftType(data);
        Real shiftSize = getShiftSize(data);

        vector<Real> shiftExpiryTimes(data.shiftExpiries.size(), 0.0);
        vector<Real> shiftTermTimes(data.shiftTerms.size(), 0.0);

        vector<Real> shiftStrikes;
        if (!atmOnly) {
            shiftStrikes = data.shiftStrikes;
            QL_REQUIRE(data.shiftStrikes.size() == n_strike,
                       "number of simulated strikes must equal number of sensitivity strikes");
        } else {
            shiftStrikes = {0.0};
        }

        DayCounter dc = parseDayCounter(getDayCounter(qualifier));

        // cache original vol data
        for (Size j = 0; j < n_expiry; ++j) {
            Date expiry = asof + getVolExpiries(qualifier)[j];
            volExpiryTimes[j] = dc.yearFraction(asof, expiry);
        }
        for (Size j = 0; j < n_term; ++j) {
            Date term = asof + getVolTerms(qualifier)[j];
            volTermTimes[j] = dc.yearFraction(asof, term);
        }

        bool valid = true;
        for (Size j = 0; j < n_expiry; ++j) {
            for (Size k = 0; k < n_term; ++k) {
                for (Size l = 0; l < n_strike; ++l) {
                    Size idx = j * n_term * n_strike + k * n_strike + l;
                    RiskFactorKey key(rfType, qualifier, idx);
                    valid = valid &&
                            tryGetBaseScenarioValue(baseScenarioAbsolute_, key, volData[l][j][k], continueOnError_);
                }
            }
        }
        if (!valid)
            continue;

        // cache tenor times
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j)
            shiftExpiryTimes[j] = dc.yearFraction(asof, asof + data.shiftExpiries[j]);
        for (Size j = 0; j < shiftTermTimes.size(); ++j)
            shiftTermTimes[j] = dc.yearFraction(asof, asof + data.shiftTerms[j]);

        // Can we store a valid shift size?
        bool validShiftSize = vectorEqual(volExpiryTimes, shiftExpiryTimes);
        validShiftSize = validShiftSize && vectorEqual(volTermTimes, shiftTermTimes);
        validShiftSize = validShiftSize && vectorEqual(getVolStrikes(qualifier), shiftStrikes);

        // loop over shift expiries, terms and strikes
        for (Size j = 0; j < shiftExpiryTimes.size(); ++j) {
            for (Size k = 0; k < shiftTermTimes.size(); ++k) {
                for (Size l = 0; l < shiftStrikes.size(); ++l) {
                    Size strikeBucket = l;
                    QuantLib::ext::shared_ptr<Scenario> scenario =
                        sensiScenarioFactory_->buildScenario(asof, !sensitivityData_->useSpreadedTermStructures());

                    // if simulating atm only we shift all strikes otherwise we shift each strike individually
                    Size loopStart = atmOnly ? 0 : l;
                    Size loopEnd = atmOnly ? n_strike : loopStart + 1;

                    for (Size ll = loopStart; ll < loopEnd; ++ll) {
                        applyShift(j, k, shiftSize, up, shiftType, shiftExpiryTimes, shiftTermTimes, volExpiryTimes,
                                   volTermTimes, volData[ll], shiftedVolData[ll], true);
                    }

                    for (Size jj = 0; jj < n_expiry; ++jj) {
                        for (Size kk = 0; kk < n_term; ++kk) {
                            for (Size ll = 0; ll < n_strike; ++ll) {

                                Size idx = jj * n_term * n_strike + kk * n_strike + ll;
                                RiskFactorKey key(rfType, qualifier, idx);

                                if (ll >= loopStart && ll < loopEnd) {
                                    if (sensitivityData_->useSpreadedTermStructures()) {
                                        scenario->add(key, shiftedVolData[ll][jj][kk] - volData[ll][jj][kk]);
                                    } else {
                                        scenario->add(key, shiftedVolData[ll][jj][kk]);
                                    }
                                }

                                // Possibly store valid shift size
                                if (validShiftSize && j == jj && k == kk && l == ll) {
                                    storeShiftData(key, volData[ll][jj][kk], shiftedVolData[ll][jj][kk]);
                                }
                            }
                        }
                    }

                    // add this scenario to the scenario vector
                    scenarios_.push_back(scenario);
                    scenarioDescriptions_.push_back(getScenarioDescription(qualifier, j, k, strikeBucket, up, data));
                    scenario->label(to_string(scenarioDescriptions_.back()));
                    DLOG("Sensitivity scenario # " << scenarios_.size() << ", label " << scenario->label()
                                                   << " created for generic yield vol " << qualifier);
                }
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

discountScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription discountScenarioDescription ( string  ccy, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2559 of file sensitivityscenariogenerator.cpp.

                                                                                                                   {
    QL_REQUIRE(sensitivityData_->discountCurveShiftData().find(ccy) != sensitivityData_->discountCurveShiftData().end(),
               "currency " << ccy << " not found in discount shift data");
    QL_REQUIRE(bucket < sensitivityData_->discountCurveShiftData()[ccy]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::DiscountCurve, ccy, bucket);
    std::ostringstream o;
    o << sensitivityData_->discountCurveShiftData()[ccy]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

indexScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription indexScenarioDescription ( string  index, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2576 of file sensitivityscenariogenerator.cpp.

                                                                                                                  {
    QL_REQUIRE(sensitivityData_->indexCurveShiftData().find(index) != sensitivityData_->indexCurveShiftData().end(),
               "currency " << index << " not found in index shift data");
    QL_REQUIRE(bucket < sensitivityData_->indexCurveShiftData()[index]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::IndexCurve, index, bucket);
    std::ostringstream o;
    o << sensitivityData_->indexCurveShiftData()[index]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

yieldScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription yieldScenarioDescription ( string  name, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2593 of file sensitivityscenariogenerator.cpp.

                                                                                                                 {
    QL_REQUIRE(sensitivityData_->yieldCurveShiftData().find(name) != sensitivityData_->yieldCurveShiftData().end(),
               "currency " << name << " not found in index shift data");
    QL_REQUIRE(bucket < sensitivityData_->yieldCurveShiftData()[name]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::YieldCurve, name, bucket);
    std::ostringstream o;
    o << sensitivityData_->yieldCurveShiftData()[name]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

fxScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription fxScenarioDescription ( string  ccypair, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2521 of file sensitivityscenariogenerator.cpp.

                                                                                                    {
    RiskFactorKey key(RiskFactorKey::KeyType::FXSpot, ccypair);
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, "spot");
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

fxVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription fxVolScenarioDescription ( string  ccypair, Size  expiryBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2610 of file sensitivityscenariogenerator.cpp.

                                                                                {
    QL_REQUIRE(sensitivityData_->fxVolShiftData().find(ccypair) != sensitivityData_->fxVolShiftData().end(),
               "currency pair " << ccypair << " not found in fx vol shift data");
    SensitivityScenarioData::VolShiftData data = sensitivityData_->fxVolShiftData()[ccypair];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    Size index = strikeBucket * data.shiftExpiries.size() + expiryBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::FXVolatility, ccypair, index);
    std::ostringstream o;
    if (data.shiftStrikes.size() == 0 ||
        close_enough(data.shiftStrikes[strikeBucket], 0)) { // shiftStrikes defaults to {0.00}
        o << data.shiftExpiries[expiryBucket] << "/ATM";
    } else {
        QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
        o << data.shiftExpiries[expiryBucket] << "/" << data.shiftStrikes[strikeBucket];
    }
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

equityScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription equityScenarioDescription ( string  equity, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2531 of file sensitivityscenariogenerator.cpp.

                                                                                                       {
    RiskFactorKey key(RiskFactorKey::KeyType::EquitySpot, equity);
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, "spot");
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

dividendYieldScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription dividendYieldScenarioDescription ( string  equity, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2541 of file sensitivityscenariogenerator.cpp.

                                                                                                                         {
    QL_REQUIRE(sensitivityData_->dividendYieldShiftData().find(name) !=
                   sensitivityData_->dividendYieldShiftData().end(),
               "equity " << name << " not found in dividend yield shift data");
    QL_REQUIRE(bucket < sensitivityData_->dividendYieldShiftData()[name]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::DividendYield, name, bucket);
    std::ostringstream o;
    o << sensitivityData_->dividendYieldShiftData()[name]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

equityVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription equityVolScenarioDescription ( string  equity, Size  expiryBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2635 of file sensitivityscenariogenerator.cpp.

                                                                                    {
    QL_REQUIRE(sensitivityData_->equityVolShiftData().find(equity) != sensitivityData_->equityVolShiftData().end(),
               "currency pair " << equity << " not found in fx vol shift data");
    SensitivityScenarioData::VolShiftData data = sensitivityData_->equityVolShiftData()[equity];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    Size index = strikeBucket * data.shiftExpiries.size() + expiryBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::EquityVolatility, equity, index);
    std::ostringstream o;
    if (data.shiftStrikes.size() == 0 || close_enough(data.shiftStrikes[strikeBucket], 0)) {
        o << data.shiftExpiries[expiryBucket] << "/ATM";
    } else {
        QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
        o << data.shiftExpiries[expiryBucket] << "/" << data.shiftStrikes[strikeBucket];
    }
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

swaptionVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription swaptionVolScenarioDescription ( string  ccy, Size  expiryBucket, Size  termBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2659 of file sensitivityscenariogenerator.cpp.

                                                                                                                  {
    QL_REQUIRE(sensitivityData_->swaptionVolShiftData().find(ccy) != sensitivityData_->swaptionVolShiftData().end(),
               "currency " << ccy << " not found in swaption vol shift data");
    SensitivityScenarioData::GenericYieldVolShiftData data = sensitivityData_->swaptionVolShiftData()[ccy];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    QL_REQUIRE(termBucket < data.shiftTerms.size(), "term bucket " << termBucket << " out of range");
    QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
    Size index = expiryBucket * data.shiftStrikes.size() * data.shiftTerms.size() +
                 termBucket * data.shiftStrikes.size() + strikeBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::SwaptionVolatility, ccy, index);
    std::ostringstream o;
    if (data.shiftStrikes.size() == 0 || close_enough(data.shiftStrikes[strikeBucket], 0)) {
        o << data.shiftExpiries[expiryBucket] << "/" << data.shiftTerms[termBucket] << "/ATM";
    } else {
        o << data.shiftExpiries[expiryBucket] << "/" << data.shiftTerms[termBucket] << "/" << std::setprecision(4)
          << data.shiftStrikes[strikeBucket];
    }
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

yieldVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription yieldVolScenarioDescription ( string  securityId, Size  expiryBucket, Size  termBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2686 of file sensitivityscenariogenerator.cpp.

                                                                                            {
    QL_REQUIRE(sensitivityData_->yieldVolShiftData().find(securityId) != sensitivityData_->yieldVolShiftData().end(),
               "currency " << securityId << " not found in yield vol shift data");
    SensitivityScenarioData::GenericYieldVolShiftData data = sensitivityData_->yieldVolShiftData()[securityId];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    QL_REQUIRE(termBucket < data.shiftTerms.size(), "term bucket " << termBucket << " out of range");
    Size index =
        expiryBucket * data.shiftStrikes.size() * data.shiftTerms.size() + termBucket * data.shiftStrikes.size();
    RiskFactorKey key(RiskFactorKey::KeyType::YieldVolatility, securityId, index);
    std::ostringstream o;
    o << data.shiftExpiries[expiryBucket] << "/" << data.shiftTerms[termBucket] << "/ATM";
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

capFloorVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription capFloorVolScenarioDescription ( string  ccy, Size  expiryBucket, Size  strikeBucket, bool  up, bool  isAtm, ShiftScheme  shiftScheme  )

private

Definition at line 2707 of file sensitivityscenariogenerator.cpp.

                                                                                                  {
    QL_REQUIRE(sensitivityData_->capFloorVolShiftData().find(ccy) != sensitivityData_->capFloorVolShiftData().end(),
               "currency " << ccy << " not found in cap/floor vol shift data");
    SensitivityScenarioData::CapFloorVolShiftData data = *sensitivityData_->capFloorVolShiftData()[ccy];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
    Size index = expiryBucket * data.shiftStrikes.size() + strikeBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::OptionletVolatility, ccy, index);
    std::ostringstream o;
    o << data.shiftExpiries[expiryBucket] << "/";
    if (isAtm) {
        o << "ATM";
    } else {
        o << std::setprecision(4) << data.shiftStrikes[strikeBucket];
    }
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, o.str());
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

survivalProbabilityScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription survivalProbabilityScenarioDescription ( string  name, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2731 of file sensitivityscenariogenerator.cpp.

                                                                                              {
    QL_REQUIRE(sensitivityData_->creditCurveShiftData().find(name) != sensitivityData_->creditCurveShiftData().end(),
               "Name " << name << " not found in credit shift data");
    QL_REQUIRE(bucket < sensitivityData_->creditCurveShiftData()[name]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::SurvivalProbability, name, bucket);
    std::ostringstream o;
    o << sensitivityData_->creditCurveShiftData()[name]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

CdsVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription CdsVolScenarioDescription ( string  name, Size  expiryBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2749 of file sensitivityscenariogenerator.cpp.

                                                                                 {
    QL_REQUIRE(sensitivityData_->cdsVolShiftData().find(name) != sensitivityData_->cdsVolShiftData().end(),
               "name " << name << " not found in swaption name shift data");
    SensitivityScenarioData::CdsVolShiftData data = sensitivityData_->cdsVolShiftData()[name];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    Size index = strikeBucket * data.shiftExpiries.size() + expiryBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::CDSVolatility, name, index);
    std::ostringstream o;
    o << data.shiftExpiries[expiryBucket] << "/"
      << "ATM";
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

zeroInflationScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription zeroInflationScenarioDescription ( string  index, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2769 of file sensitivityscenariogenerator.cpp.

                                                                                                                          {
    QL_REQUIRE(sensitivityData_->zeroInflationCurveShiftData().find(index) !=
                   sensitivityData_->zeroInflationCurveShiftData().end(),
               "inflation index " << index << " not found in zero inflation index shift data");
    QL_REQUIRE(bucket < sensitivityData_->zeroInflationCurveShiftData()[index]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::ZeroInflationCurve, index, bucket);
    std::ostringstream o;
    o << sensitivityData_->zeroInflationCurveShiftData()[index]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

yoyInflationScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription yoyInflationScenarioDescription ( string  index, Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2787 of file sensitivityscenariogenerator.cpp.

                                                                                                                         {
    QL_REQUIRE(sensitivityData_->yoyInflationCurveShiftData().find(index) !=
                   sensitivityData_->yoyInflationCurveShiftData().end(),
               "yoy inflation index " << index << " not found in zero inflation index shift data");
    QL_REQUIRE(bucket < sensitivityData_->yoyInflationCurveShiftData()[index]->shiftTenors.size(),
               "bucket " << bucket << " out of range");
    RiskFactorKey key(RiskFactorKey::KeyType::YoYInflationCurve, index, bucket);
    std::ostringstream o;
    o << sensitivityData_->yoyInflationCurveShiftData()[index]->shiftTenors[bucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

zeroInflationCapFloorVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription zeroInflationCapFloorVolScenarioDescription ( string  name, Size  expiryBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2828 of file sensitivityscenariogenerator.cpp.

                                                                                                   {
    QL_REQUIRE(sensitivityData_->zeroInflationCapFloorVolShiftData().find(name) !=
                   sensitivityData_->zeroInflationCapFloorVolShiftData().end(),
               "currency " << name << " not found in zero inflation cap/floor vol shift data");
    SensitivityScenarioData::VolShiftData data = *sensitivityData_->zeroInflationCapFloorVolShiftData()[name];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
    Size index = expiryBucket * data.shiftStrikes.size() + strikeBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::ZeroInflationCapFloorVolatility, name, index);
    std::ostringstream o;
    if (data.shiftStrikes.size() == 0 || close_enough(data.shiftStrikes[strikeBucket], 0)) {
        o << data.shiftExpiries[expiryBucket] << "/ATM";
    } else {
        o << data.shiftExpiries[expiryBucket] << "/" << std::setprecision(4) << data.shiftStrikes[strikeBucket];
    }
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

yoyInflationCapFloorVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription yoyInflationCapFloorVolScenarioDescription ( string  name, Size  expiryBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2805 of file sensitivityscenariogenerator.cpp.

                                                                                                  {
    QL_REQUIRE(sensitivityData_->yoyInflationCapFloorVolShiftData().find(name) !=
                   sensitivityData_->yoyInflationCapFloorVolShiftData().end(),
               "index " << name << " not found in yoy cap/floor vol shift data");
    SensitivityScenarioData::CapFloorVolShiftData data = *sensitivityData_->yoyInflationCapFloorVolShiftData()[name];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
    Size index = expiryBucket * data.shiftStrikes.size() + strikeBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::YoYInflationCapFloorVolatility, name, index);
    std::ostringstream o;
    // Currently CapFloorVolShiftData must have a collection of absolute strikes for yoy inflation cap/floor vols
    o << data.shiftExpiries[expiryBucket] << "/" << std::setprecision(4) << data.shiftStrikes[strikeBucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

baseCorrelationScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription baseCorrelationScenarioDescription ( string  indexName, Size  lossLevelBucket, Size  termBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2854 of file sensitivityscenariogenerator.cpp.

                                                                                                                    {
    QL_REQUIRE(sensitivityData_->baseCorrelationShiftData().find(indexName) !=
                   sensitivityData_->baseCorrelationShiftData().end(),
               "name " << indexName << " not found in base correlation shift data");
    SensitivityScenarioData::BaseCorrelationShiftData data = sensitivityData_->baseCorrelationShiftData()[indexName];
    QL_REQUIRE(termBucket < data.shiftTerms.size(), "term bucket " << termBucket << " out of range");
    QL_REQUIRE(lossLevelBucket < data.shiftLossLevels.size(),
               "loss level bucket " << lossLevelBucket << " out of range");
    Size index = lossLevelBucket * data.shiftTerms.size() + termBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::BaseCorrelation, indexName, index);
    std::ostringstream o;
    o << data.shiftLossLevels[lossLevelBucket] << "/" << data.shiftTerms[termBucket];
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

commodityCurveScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription commodityCurveScenarioDescription ( const std::string &  commodityName, QuantLib::Size  bucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2876 of file sensitivityscenariogenerator.cpp.

                                                                                         {

    QL_REQUIRE(sensitivityData_->commodityCurveShiftData().count(commodityName) > 0,
               "Name " << commodityName << " not found in commodity curve shift data");
    vector<Period>& shiftTenors = sensitivityData_->commodityCurveShiftData()[commodityName]->shiftTenors;
    QL_REQUIRE(bucket < shiftTenors.size(), "bucket " << bucket << " out of commodity curve bucket range");

    RiskFactorKey key(RiskFactorKey::KeyType::CommodityCurve, commodityName, bucket);
    ostringstream oss;
    oss << shiftTenors[bucket];
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return ScenarioDescription(type, key, oss.str());
}

Here is the call graph for this function:

Here is the caller graph for this function:

commodityVolScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription commodityVolScenarioDescription ( const std::string &  commodityName, QuantLib::Size  expiryBucket, QuantLib::Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2894 of file sensitivityscenariogenerator.cpp.

                                                                                                                   {

    QL_REQUIRE(sensitivityData_->commodityVolShiftData().count(commodityName) > 0,
               "commodity " << commodityName << " not found in commodity vol shift data");

    SensitivityScenarioData::VolShiftData data = sensitivityData_->commodityVolShiftData()[commodityName];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    Size index = strikeBucket * data.shiftExpiries.size() + expiryBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::CommodityVolatility, commodityName, index);
    ostringstream o;
    if (data.shiftStrikes.size() == 0 || close_enough(data.shiftStrikes[strikeBucket], 1.0)) {
        o << data.shiftExpiries[expiryBucket] << "/ATM";
    } else {
        QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
        o << data.shiftExpiries[expiryBucket] << "/" << data.shiftStrikes[strikeBucket];
    }
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return ScenarioDescription(type, key, o.str());
}

Here is the call graph for this function:

Here is the caller graph for this function:

securitySpreadScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription securitySpreadScenarioDescription ( string  bond, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2943 of file sensitivityscenariogenerator.cpp.

                                                                                                             {
    RiskFactorKey key(RiskFactorKey::KeyType::SecuritySpread, bond);
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, "spread");
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

correlationScenarioDescription()

SensitivityScenarioGenerator::ScenarioDescription correlationScenarioDescription ( string  pair, Size  expiryBucket, Size  strikeBucket, bool  up, ShiftScheme  shiftScheme  )

private

Definition at line 2918 of file sensitivityscenariogenerator.cpp.

                                                                                      {
    QL_REQUIRE(sensitivityData_->correlationShiftData().find(pair) != sensitivityData_->correlationShiftData().end(),
               "pair " << pair << " not found in correlation shift data");
    SensitivityScenarioData::VolShiftData data = sensitivityData_->correlationShiftData()[pair];
    QL_REQUIRE(expiryBucket < data.shiftExpiries.size(), "expiry bucket " << expiryBucket << " out of range");
    QL_REQUIRE(strikeBucket < data.shiftStrikes.size(), "strike bucket " << strikeBucket << " out of range");
    // Size index = strikeBucket * data.shiftExpiries.size() + expiryBucket;
    Size index = expiryBucket * data.shiftStrikes.size() + strikeBucket;
    RiskFactorKey key(RiskFactorKey::KeyType::Correlation, pair, index);
    std::ostringstream o;
    if (data.shiftStrikes.size() == 0 || close_enough(data.shiftStrikes[strikeBucket], 0)) {
        o << data.shiftExpiries[expiryBucket] << "/ATM";
    } else {
        o << data.shiftExpiries[expiryBucket] << "/" << std::setprecision(4) << data.shiftStrikes[strikeBucket];
    }
    string text = o.str();
    ScenarioDescription::Type type = up ? ScenarioDescription::Type::Up : ScenarioDescription::Type::Down;
    ScenarioDescription desc(type, key, text);
    shiftSchemes_[key] = shiftScheme;
    storeShiftData(key, 0.0, 0.0); // default, only used if not popoulated before
    return desc;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

sensitivityData_

QuantLib::ext::shared_ptr<SensitivityScenarioData> sensitivityData_

private

Definition at line 206 of file sensitivityscenariogenerator.hpp.

sensiScenarioFactory_

QuantLib::ext::shared_ptr<ScenarioFactory> sensiScenarioFactory_

private

Definition at line 207 of file sensitivityscenariogenerator.hpp.

sensitivityTemplate_

std::string sensitivityTemplate_

private

Definition at line 208 of file sensitivityscenariogenerator.hpp.

overrideTenors_

const bool overrideTenors_

private

Definition at line 209 of file sensitivityscenariogenerator.hpp.

continueOnError_

const bool continueOnError_

private

Definition at line 209 of file sensitivityscenariogenerator.hpp.

shiftSizes_

std::map<RiskFactorKey, QuantLib::Real> shiftSizes_

private

Holds the shift sizes for each risk factor key.

Definition at line 212 of file sensitivityscenariogenerator.hpp.

shiftSchemes_

std::map<RiskFactorKey, ShiftScheme> shiftSchemes_

private

Holds the delta shift schemes for each risk factor key.

Definition at line 214 of file sensitivityscenariogenerator.hpp.

baseValues_

std::map<RiskFactorKey, QuantLib::Real> baseValues_

private

Holds the base valuesfor each risk factor key.

Definition at line 216 of file sensitivityscenariogenerator.hpp.

baseScenarioAbsolute_

QuantLib::ext::shared_ptr<Scenario> baseScenarioAbsolute_

private

Definition at line 218 of file sensitivityscenariogenerator.hpp.
