StressTestScenarioData Class Reference
Scenario

Description of sensitivity shift scenarios. More...

#include <orea/scenario/stressscenariodata.hpp>

+ Inheritance diagram for StressTestScenarioData:
+ Collaboration diagram for StressTestScenarioData:

Classes

struct  CapFloorVolShiftData

struct  CurveShiftData

struct  SpotShiftData

struct  StressTestData

struct  SwaptionVolShiftData

struct  VolShiftData


Public Member Functions

 StressTestScenarioData ()
 Default constructor. More...

Inspectors
const vector< StressTestData > & data () const

const bool useSpreadedTermStructures () const

const bool hasScenarioWithParShifts () const

const bool withIrCurveParShifts () const

const bool withCreditCurveParShifts () const

const bool withIrCapFloorParShifts () const

Setters
vector< StressTestData > & data ()

bool & useSpreadedTermStructures ()

Serialisation
virtual void fromXML (XMLNode *node) override

virtual XMLNode * toXML (ore::data::XMLDocument &doc) const override

- Public Member Functions inherited from XMLSerializable
virtual ~XMLSerializable ()

virtual void fromXML (XMLNode *node)=0

virtual XMLNode * toXML (XMLDocument &doc) const=0

void fromFile (const std::string &filename)

void toFile (const std::string &filename) const

void fromXMLString (const std::string &xml)

std::string toXMLString () const


Private Attributes

Equality Operators
vector< StressTestData > data_

bool useSpreadedTermStructures_ = false


Detailed Description

Description of sensitivity shift scenarios.

Definition at line 47 of file stressscenariodata.hpp.

Constructor & Destructor Documentation

◆ StressTestScenarioData()

StressTestScenarioData ( )

Default constructor.

Definition at line 102 of file stressscenariodata.hpp.

102{};

Member Function Documentation

◆ data() [1/2]

const vector< StressTestData > & data ( ) const

Definition at line 106 of file stressscenariodata.hpp.

106{ return data_; }
+ Here is the caller graph for this function:

◆ useSpreadedTermStructures() [1/2]

const bool useSpreadedTermStructures ( ) const

Definition at line 107 of file stressscenariodata.hpp.

107{ return useSpreadedTermStructures_; }

◆ hasScenarioWithParShifts()

const bool hasScenarioWithParShifts ( ) const

Definition at line 109 of file stressscenariodata.hpp.

109 {
110 for (const auto& scenario : data_) {
111 if (scenario.containsParShifts())
112 return true;
113 }
114 return false;
115 }

◆ withIrCurveParShifts()

const bool withIrCurveParShifts ( ) const

Definition at line 117 of file stressscenariodata.hpp.

117 {
118 for (const auto& scenario : data_) {
119 if (scenario.irCurveParShifts)
120 return true;
121 }
122 return false;
123 }

◆ withCreditCurveParShifts()

const bool withCreditCurveParShifts ( ) const

Definition at line 125 of file stressscenariodata.hpp.

125 {
126 for (const auto& scenario : data_) {
127 if (scenario.creditCurveParShifts)
128 return true;
129 }
130 return false;
131 }

◆ withIrCapFloorParShifts()

const bool withIrCapFloorParShifts ( ) const

Definition at line 133 of file stressscenariodata.hpp.

133 {
134 for (const auto& scenario : data_) {
135 if (scenario.irCapFloorParShifts)
136 return true;
137 }
138 return false;
139 }

◆ data() [2/2]

vector< StressTestData > & data ( )

Definition at line 144 of file stressscenariodata.hpp.

144{ return data_; }

◆ useSpreadedTermStructures() [2/2]

bool & useSpreadedTermStructures ( )

Definition at line 145 of file stressscenariodata.hpp.

145{ return useSpreadedTermStructures_; }

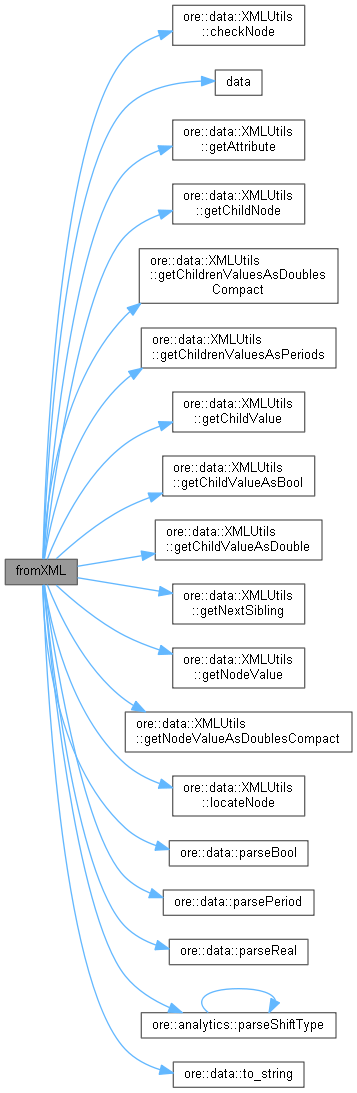

◆ fromXML()

void fromXML ( XMLNode *  node)
overridevirtual

Implements XMLSerializable.

Definition at line 30 of file stressscenariodata.cpp.

30 {
31 data_.clear();
32
33 XMLNode* node = XMLUtils::locateNode(root, "StressTesting");
34 XMLUtils::checkNode(node, "StressTesting");
35
36 useSpreadedTermStructures_ =
37 ore::data::parseBool(XMLUtils::getChildValue(node, "UseSpreadedTermStructures", false, "false"));
38
39 for (XMLNode* testCase = XMLUtils::getChildNode(node, "StressTest"); testCase;
40 testCase = XMLUtils::getNextSibling(testCase)) {
41
42 StressTestData test;
43 test.label = XMLUtils::getAttribute(testCase, "id");
44 // XMLUtils::getChildValue(testCase, "Label", true);
45
46 LOG("Load stress test label " << test.label);
47
48 XMLNode* parShiftsNode = XMLUtils::getChildNode(testCase, "ParShifts");
49 if (parShiftsNode) {
50 test.irCurveParShifts = XMLUtils::getChildValueAsBool(parShiftsNode, "IRCurves", false, false);
51 test.irCapFloorParShifts =
52 XMLUtils::getChildValueAsBool(parShiftsNode, "CapFloorVolatilities", false, false);
53 test.creditCurveParShifts =
54 XMLUtils::getChildValueAsBool(parShiftsNode, "SurvivalProbability", false, false);
55 }
56
57 LOG("Get recovery rate shift parameters");
58
59 test.recoveryRateShifts.clear();
60 XMLNode* recoveryRates = XMLUtils::getChildNode(testCase, "RecoveryRates");
61 if (recoveryRates) {
62 for (XMLNode* child = XMLUtils::getChildNode(recoveryRates, "RecoveryRate"); child;
63 child = XMLUtils::getNextSibling(child)) {
64 string isin = XMLUtils::getAttribute(child, "id");
65 LOG("Loading stress parameters for recovery rate for " << isin);
66 SpotShiftData data;
67 data.shiftSize = XMLUtils::getChildValueAsDouble(child, "ShiftSize", true);
68 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
69 test.recoveryRateShifts[isin] = data;
70 }
71 }
72 LOG("Get survival probability shift parameters");
73 XMLNode* survivalProbability = XMLUtils::getChildNode(testCase, "SurvivalProbabilities");
74 QL_REQUIRE(survivalProbability, "Survival Probabilities node not found");
75 test.survivalProbabilityShifts.clear();
76 for (XMLNode* child = XMLUtils::getChildNode(survivalProbability, "SurvivalProbability"); child;
77 child = XMLUtils::getNextSibling(child)) {
78 string name = XMLUtils::getAttribute(child, "name");
79 LOG("Loading stress parameters for survival probability for " << name);
80 CurveShiftData data;
81 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
82 data.shifts = XMLUtils::getChildrenValuesAsDoublesCompact(child, "Shifts", true);
83 data.shiftTenors = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftTenors", true);
84 QL_REQUIRE(data.shifts.size() == data.shiftTenors.size(),
85 "number of tenors and shifts does not match in survival probability stress data");
86 QL_REQUIRE(data.shifts.size() > 0, "no shifts provided in survival probability stress data");
87 test.survivalProbabilityShifts[name] = data;
88 }
89
90 LOG("Get discount curve shift parameters");
91 XMLNode* discountCurves = XMLUtils::getChildNode(testCase, "DiscountCurves");
92 QL_REQUIRE(discountCurves, "DiscountCurves node not found");
93 test.discountCurveShifts.clear();
94 for (XMLNode* child = XMLUtils::getChildNode(discountCurves, "DiscountCurve"); child;
95 child = XMLUtils::getNextSibling(child)) {
96 string ccy = XMLUtils::getAttribute(child, "ccy");
97 LOG("Loading stress parameters for discount curve for ccy " << ccy);
98 CurveShiftData data;
99 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
100 data.shifts = XMLUtils::getChildrenValuesAsDoublesCompact(child, "Shifts", true);
101 data.shiftTenors = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftTenors", true);
102 QL_REQUIRE(data.shifts.size() == data.shiftTenors.size(),
103 "number of tenors (" << data.shiftTenors.size() << ")and shifts (" << data.shifts.size()
104 << ") does not match in discount curve stress data for ccy = " << ccy);
105 QL_REQUIRE(data.shifts.size() > 0, "no shifts provided in discount curve stress data for ccy = " << ccy);
106 test.discountCurveShifts[ccy] = data;
107 }
108
109 LOG("Get index curve stress parameters");
110 XMLNode* indexCurves = XMLUtils::getChildNode(testCase, "IndexCurves");
111 QL_REQUIRE(indexCurves, "IndexCurves node not found");
112 test.indexCurveShifts.clear();
113 for (XMLNode* child = XMLUtils::getChildNode(indexCurves, "IndexCurve"); child;
114 child = XMLUtils::getNextSibling(child)) {
115 string index = XMLUtils::getAttribute(child, "index");
116 LOG("Loading stress parameters for index " << index);
117 // same as discount curve sensitivity loading from here ...
118 CurveShiftData data;
119 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
120 data.shifts = XMLUtils::getChildrenValuesAsDoublesCompact(child, "Shifts", true);
121 data.shiftTenors = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftTenors", true);
122 QL_REQUIRE(data.shifts.size() == data.shiftTenors.size(),
123 "number of tenors (" << data.shiftTenors.size() << ")and shifts (" << data.shifts.size()
124 << ") does not match in index curve stress data curve = " << index);
125 QL_REQUIRE(data.shifts.size() > 0, "no shifts provided in index curve stress data curve = " << index);
126 test.indexCurveShifts[index] = data;
127 }
128
129 LOG("Get yield curve stress parameters");
130 XMLNode* yieldCurves = XMLUtils::getChildNode(testCase, "YieldCurves");
131 QL_REQUIRE(yieldCurves, "YieldCurves node not found");
132 test.yieldCurveShifts.clear();
133 for (XMLNode* child = XMLUtils::getChildNode(yieldCurves, "YieldCurve"); child;
134 child = XMLUtils::getNextSibling(child)) {
135 string name = XMLUtils::getAttribute(child, "name");
136 LOG("Loading stress parameters for yield curve " << name);
137 // same as discount curve sensitivity loading from here ...
138 CurveShiftData data;
139 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
140 data.shifts = XMLUtils::getChildrenValuesAsDoublesCompact(child, "Shifts", true);
141 data.shiftTenors = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftTenors", true);
142 QL_REQUIRE(data.shifts.size() == data.shiftTenors.size(),
143 "number of tenors (" << data.shiftTenors.size() << ")and shifts (" << data.shifts.size()
144 << ") does not match in yield curve stress data curve = " << name);
145 QL_REQUIRE(data.shifts.size() > 0, "no shifts provided in yield curve stress data curve = " << name);
146 test.yieldCurveShifts[name] = data;
147 }
148
149 LOG("Get FX spot stress parameters");
150 XMLNode* fxSpots = XMLUtils::getChildNode(testCase, "FxSpots");
151 QL_REQUIRE(fxSpots, "FxSpots node not found");
152 test.fxShifts.clear();
153 for (XMLNode* child = XMLUtils::getChildNode(fxSpots, "FxSpot"); child;
154 child = XMLUtils::getNextSibling(child)) {
155 string ccypair = XMLUtils::getAttribute(child, "ccypair");
156 LOG("Loading stress parameters for FX " << ccypair);
157 SpotShiftData data;
158 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
159 data.shiftSize = XMLUtils::getChildValueAsDouble(child, "ShiftSize", true);
160 test.fxShifts[ccypair] = data;
161 }
162
163 LOG("Get fx vol stress parameters");
164 XMLNode* fxVols = XMLUtils::getChildNode(testCase, "FxVolatilities");
165 test.fxVolShifts.clear();
166 if (fxVols) {
167 for (XMLNode* child = XMLUtils::getChildNode(fxVols, "FxVolatility"); child;
168 child = XMLUtils::getNextSibling(child)) {
169 string ccypair = XMLUtils::getAttribute(child, "ccypair");
170 LOG("Loading stress parameters for FX vols " << ccypair);
171 VolShiftData data;
172 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType"));
173 data.shifts = XMLUtils::getChildrenValuesAsDoublesCompact(child, "Shifts", true);
174 data.shiftExpiries = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftExpiries", true);
175 test.fxVolShifts[ccypair] = data;
176 }
177 }
178 LOG("Get Equity spot stress parameters");
179 XMLNode* equitySpots = XMLUtils::getChildNode(testCase, "EquitySpots");
180 test.equityShifts.clear();
181 if (equitySpots) {
182 for (XMLNode* child = XMLUtils::getChildNode(equitySpots, "EquitySpot"); child;
183 child = XMLUtils::getNextSibling(child)) {
184 string equity = XMLUtils::getAttribute(child, "equity");
185 LOG("Loading stress parameters for Equity " << equity);
186 SpotShiftData data;
187 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
188 data.shiftSize = XMLUtils::getChildValueAsDouble(child, "ShiftSize", true);
189 test.equityShifts[equity] = data;
190 }
191 }
192 LOG("Get equity vol stress parameters");
193 XMLNode* equityVols = XMLUtils::getChildNode(testCase, "EquityVolatilities");
194 QL_REQUIRE(equityVols, "EquityVolatilities node not found");
195 test.equityVolShifts.clear();
196 for (XMLNode* child = XMLUtils::getChildNode(equityVols, "EquityVolatility"); child;
197 child = XMLUtils::getNextSibling(child)) {
198 string equity = XMLUtils::getAttribute(child, "equity");
199 LOG("Loading stress parameters for Equity vols " << equity);
200 VolShiftData data;
201 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType"));
202 data.shifts = XMLUtils::getChildrenValuesAsDoublesCompact(child, "Shifts", true);
203 data.shiftExpiries = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftExpiries", true);
204 test.equityVolShifts[equity] = data;
205 }
206
207 LOG("Get swaption vol stress parameters");
208 XMLNode* swaptionVols = XMLUtils::getChildNode(testCase, "SwaptionVolatilities");
209 QL_REQUIRE(swaptionVols, "SwaptionVols node not found");
210 test.swaptionVolShifts.clear();
211 for (XMLNode* child = XMLUtils::getChildNode(swaptionVols, "SwaptionVolatility"); child;
212 child = XMLUtils::getNextSibling(child)) {
213 string ccy = XMLUtils::getAttribute(child, "ccy");
214 LOG("Loading stress parameters for swaption vols " << ccy);
215 SwaptionVolShiftData data;
216 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
217 data.shiftTerms = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftTerms", true);
218 data.shiftExpiries = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftExpiries", true);
219 XMLNode* shiftSizes = XMLUtils::getChildNode(child, "Shifts");
220 data.parallelShiftSize = 0.0;
221 for (XMLNode* child2 = XMLUtils::getChildNode(shiftSizes, "Shift"); child2;
222 child2 = XMLUtils::getNextSibling(child2)) {
223 string expiry = XMLUtils::getAttribute(child2, "expiry");
224 string term = XMLUtils::getAttribute(child2, "term");
225 if (expiry == "" && term == "")
226 data.parallelShiftSize = ore::data::parseReal(XMLUtils::getNodeValue(child2));
227 else {
228 QL_REQUIRE(expiry != "" && term != "", "expiry and term attributes required on shift size nodes");
229 Period e = ore::data::parsePeriod(expiry);
230 Period t = ore::data::parsePeriod(term);
231 Real value = ore::data::parseReal(XMLUtils::getNodeValue(child2));
232 pair<Period, Period> key(e, t);
233 data.shifts[key] = value;
234 }
235 }
236 test.swaptionVolShifts[ccy] = data;
237 }
238
239 LOG("Get cap/floor vol stress parameters");
240 XMLNode* capVols = XMLUtils::getChildNode(testCase, "CapFloorVolatilities");
241 QL_REQUIRE(capVols, "CapVols node not found");
242 test.capVolShifts.clear();
243 for (XMLNode* child = XMLUtils::getChildNode(capVols, "CapFloorVolatility"); child;
244 child = XMLUtils::getNextSibling(child)) {
245 string key = XMLUtils::getAttribute(child, "key");
246 if (key.empty()) {
247 string ccyAttr = XMLUtils::getAttribute(child, "ccy");
248 if (!ccyAttr.empty()) {
249 key = ccyAttr;
250 WLOG("StressScenarioData: 'ccy' is deprecated as an attribute for CapFloorVolatilities, use 'key' "
251 "instead.");
252 }
253 }
254 CapFloorVolShiftData data;
255 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
256 data.shiftExpiries = XMLUtils::getChildrenValuesAsPeriods(child, "ShiftExpiries", true);
257 data.shiftStrikes = XMLUtils::getChildrenValuesAsDoublesCompact(child, "ShiftStrikes", false);
258 XMLNode* shiftSizesNode = XMLUtils::getChildNode(child, "Shifts");
259 for (XMLNode* shiftNode = XMLUtils::getChildNode(shiftSizesNode, "Shift"); shiftNode;
260 shiftNode = XMLUtils::getNextSibling(shiftNode)) {
261 Period tenor = ore::data::parsePeriod(XMLUtils::getAttribute(shiftNode, "tenor"));
262 data.shifts[tenor] = XMLUtils::getNodeValueAsDoublesCompact(shiftNode);
263 QL_REQUIRE((data.shiftStrikes.empty() && data.shifts[tenor].size() == 1) ||
264 (data.shifts[tenor].size() == data.shiftStrikes.size()),
265 "StressScenarioData: CapFloor " << key << ": Mismatch between size of strikes ("
266 << data.shiftStrikes.size() << ") and shifts ("
267 << data.shifts[tenor].size() << ") for tenor "
268 << ore::data::to_string(tenor));
269 }
270 QL_REQUIRE(data.shifts.size() == data.shiftExpiries.size(),
271 "StressScenarioData: CapFloor " << key << ": Mismatch between size of expiries ("
272 << data.shiftExpiries.size() << ") and shifts("
273 << data.shifts.size() << ")");
274 test.capVolShifts[key] = data;
275 }
276 LOG("Get Security spread stress parameters");
277 XMLNode* securitySpreads = XMLUtils::getChildNode(testCase, "SecuritySpreads");
278 QL_REQUIRE(securitySpreads, "SecuritySpreads node not found");
279 test.securitySpreadShifts.clear();
280 for (XMLNode* child = XMLUtils::getChildNode(securitySpreads, "SecuritySpread"); child;
281 child = XMLUtils::getNextSibling(child)) {
282 string bond = XMLUtils::getAttribute(child, "security");
283 LOG("Loading stress parameters for Security spreads " << bond);
284 SpotShiftData data;
285 data.shiftType = parseShiftType(XMLUtils::getChildValue(child, "ShiftType", true));
286 data.shiftSize = XMLUtils::getChildValueAsDouble(child, "ShiftSize", true);
287 test.securitySpreadShifts[bond] = data;
288 }
289 data_.push_back(test);
290 LOG("Loading stress test label " << test.label << " done");
291 }
292 LOG("Loading stress tests done");
293}
ore::analytics::StressTestScenarioData::data
const vector< StressTestData > & data() const
Definition: stressscenariodata.hpp:106
ore::data::XMLUtils::getAttribute
static string getAttribute(XMLNode *node, const string &attrName)
ore::data::XMLUtils::checkNode
static void checkNode(XMLNode *n, const string &expectedName)
ore::data::XMLUtils::getChildValueAsDouble
static Real getChildValueAsDouble(XMLNode *node, const string &name, bool mandatory=false, double defaultValue=0.0)
ore::data::XMLUtils::locateNode
static XMLNode * locateNode(XMLNode *n, const string &name="")
ore::data::XMLUtils::getChildValue
static string getChildValue(XMLNode *node, const string &name, bool mandatory=false, const string &defaultValue=string())
ore::data::XMLUtils::getChildValueAsBool
static bool getChildValueAsBool(XMLNode *node, const string &name, bool mandatory=false, bool defaultValue=true)
ore::data::XMLUtils::getChildNode
static XMLNode * getChildNode(XMLNode *n, const string &name="")
ore::data::XMLUtils::getNodeValue
static string getNodeValue(XMLNode *node)
ore::data::XMLUtils::getNextSibling
static XMLNode * getNextSibling(XMLNode *node, const string &name="")
ore::data::XMLUtils::getChildrenValuesAsDoublesCompact
static vector< Real > getChildrenValuesAsDoublesCompact(XMLNode *node, const string &name, bool mandatory=false)
ore::data::XMLUtils::getChildrenValuesAsPeriods
static vector< Period > getChildrenValuesAsPeriods(XMLNode *node, const string &name, bool mandatory=false)
ore::data::XMLUtils::getNodeValueAsDoublesCompact
static vector< Real > getNodeValueAsDoublesCompact(XMLNode *node)
rapidxml::xml_node
value
SafeStack< ValueType > value
ore::data::parsePeriod
Period parsePeriod(const string &s)
ore::data::parseBool
bool parseBool(const string &s)
ore::data::parseReal
Real parseReal(const string &s)
LOG
#define LOG(text)
WLOG
#define WLOG(text)
ore::analytics::parseShiftType
ShiftType parseShiftType(const std::string &s)
Definition: scenario.cpp:216
ore::data::to_string
std::string to_string(const LocationInfo &l)
CurveShiftData
SensitivityScenarioData::CurveShiftData CurveShiftData
Definition: scenarioshiftcalculator.cpp:21
SpotShiftData
SensitivityScenarioData::SpotShiftData SpotShiftData
Definition: scenarioshiftcalculator.cpp:22
name
string name

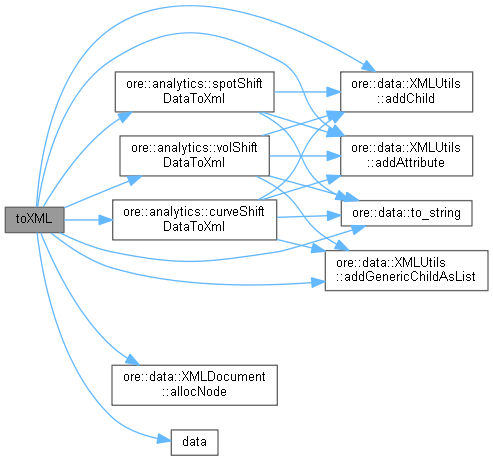

+ Here is the call graph for this function:

◆ toXML()

XMLNode * toXML ( ore::data::XMLDocument &  doc) const
overridevirtual

Implements XMLSerializable.

Definition at line 335 of file stressscenariodata.cpp.

335 {
336 XMLNode* node = doc.allocNode("StressTesting");
337
338 XMLUtils::addChild(doc, node, "UseSpreadedTermStructures", ore::data::to_string(useSpreadedTermStructures_));
339 for (const auto& test : data_) {
340 // Add test node
341 auto testNode = XMLUtils::addChild(doc, node, "StressTest");
342 XMLUtils::addAttribute(doc, testNode, "id", test.label);
343 // Add Par Shifts node
344 auto parShiftsNode = XMLUtils::addChild(doc, testNode, "ParShifts");
345 XMLUtils::addChild(doc, parShiftsNode, "IRCurves", test.irCurveParShifts);
346 XMLUtils::addChild(doc, parShiftsNode, "CapFloorVolatilities", test.irCapFloorParShifts);
347 XMLUtils::addChild(doc, parShiftsNode, "SurvivalProbability", test.creditCurveParShifts);
348 // IR
349 curveShiftDataToXml(doc, testNode, test.discountCurveShifts, "ccy", "DiscountCurve");
350 curveShiftDataToXml(doc, testNode, test.indexCurveShifts, "index", "IndexCurve");
351 curveShiftDataToXml(doc, testNode, test.yieldCurveShifts, "name", "YieldCurve");
352
353 LOG("Write capFloor vol stress parameters");
354 XMLNode* capFloorVolsNode = XMLUtils::addChild(doc, testNode, "CapFloorVolatilities");
355 for (const auto& [key, data] : test.capVolShifts) {
356 XMLNode* capFloorVolNode = XMLUtils::addChild(doc, capFloorVolsNode, "CapFloorVolatility");
357 XMLUtils::addAttribute(doc, capFloorVolNode, "key", key);
358 XMLUtils::addChild(doc, capFloorVolNode, "ShiftType", ore::data::to_string(data.shiftType));
359 XMLNode* shiftSizesNode = XMLUtils::addChild(doc, capFloorVolNode, "Shifts");
360 for (const auto& [tenor, shifts] : data.shifts) {
361 XMLUtils::addGenericChildAsList(doc, shiftSizesNode, "Shift", shifts, "tenor",
362 ore::data::to_string(tenor));
363 }
364 XMLUtils::addGenericChildAsList(doc, capFloorVolNode, "ShiftExpiries", data.shiftExpiries);
365 XMLUtils::addGenericChildAsList(doc, capFloorVolNode, "ShiftStrikes", data.shiftStrikes);
366 }
367 // SwaptionVolData
368 // TODO: SwaptionVolData Missing
369 LOG("Write swaption vol stress parameters");
370 XMLNode* swaptionVolsNode = XMLUtils::addChild(doc, testNode, "SwaptionVolatilities");
371 const std::vector<std::string> swaptionAttributeNames = {"expiry", "term"};
372 for (const auto& [key, data] : test.swaptionVolShifts) {
373 XMLNode* swaptionVolNode = XMLUtils::addChild(doc, swaptionVolsNode, "SwaptionVolatility");
374 XMLUtils::addAttribute(doc, swaptionVolNode, "ccy", key);
375 XMLUtils::addChild(doc, swaptionVolNode, "ShiftType", ore::data::to_string(data.shiftType));
376 XMLUtils::addGenericChildAsList(doc, swaptionVolNode, "ShiftTerms", data.shiftTerms);
377 XMLUtils::addGenericChildAsList(doc, swaptionVolNode, "ShiftExpiries", data.shiftExpiries);
378 XMLNode* shiftSizesNode = XMLUtils::addChild(doc, swaptionVolNode, "Shifts");
379
380 if (data.shifts.empty()) {
381 XMLUtils::addChild(doc, shiftSizesNode, "Shift", ore::data::to_string(data.parallelShiftSize),
382 swaptionAttributeNames, {"", ""});
383 } else {
384 for (const auto& [key, shift] : data.shifts) {
385 const auto& [expiry, term] = key;
386 std::vector<std::string> attributeValues = {ore::data::to_string(expiry),
387 ore::data::to_string(term)};
388 XMLUtils::addChild(doc, shiftSizesNode, "Shift", ore::data::to_string(shift),
389 swaptionAttributeNames, attributeValues);
390 }
391 }
392 }
393 // Credit
394 curveShiftDataToXml(doc, testNode, test.survivalProbabilityShifts, "name", "SurvivalProbability",
395 "SurvivalProbabilities");
396 spotShiftDataToXml(doc, testNode, test.recoveryRateShifts, "id", "RecoveryRate");
397 spotShiftDataToXml(doc, testNode, test.securitySpreadShifts, "security", "SecuritySpread");
398 // Equity
399 spotShiftDataToXml(doc, testNode, test.equityShifts, "equity", "EquitySpot");
400 volShiftDataToXml(doc, testNode, test.equityVolShifts, "equity", "EquityVolatility", "EquityVolatilities");
401 // FX
402 spotShiftDataToXml(doc, testNode, test.fxShifts, "ccypair", "FxSpot");
403 volShiftDataToXml(doc, testNode, test.fxVolShifts, "ccypair", "FxVolatility", "FxVolatilities");
404 }
405 return node;
406}
ore::data::XMLDocument::allocNode
XMLNode * allocNode(const string &nodeName)
ore::data::XMLUtils::addAttribute
static void addAttribute(XMLDocument &doc, XMLNode *node, const string &attrName, const string &attrValue)
ore::data::XMLUtils::addGenericChildAsList
static void addGenericChildAsList(XMLDocument &doc, XMLNode *n, const string &name, const vector< T > &values, const string &attrName="", const string &attr="")
ore::data::XMLUtils::addChild
static XMLNode * addChild(XMLDocument &doc, XMLNode *n, const string &name)
ore::analytics::curveShiftDataToXml
void curveShiftDataToXml(ore::data::XMLDocument &doc, XMLNode *node, const std::map< std::string, StressTestScenarioData::CurveShiftData > &data, const std::string &identifier, const std::string &nodeName, const std::string &parentNodeName=std::string())
Definition: stressscenariodata.cpp:295
ore::analytics::volShiftDataToXml
void volShiftDataToXml(ore::data::XMLDocument &doc, XMLNode *node, const std::map< std::string, StressTestScenarioData::VolShiftData > &data, const std::string &identifier, const std::string &nodeName, const std::string &parentNodeName)
Definition: stressscenariodata.cpp:310
ore::analytics::spotShiftDataToXml
void spotShiftDataToXml(ore::data::XMLDocument &doc, XMLNode *node, const std::map< std::string, StressTestScenarioData::SpotShiftData > &data, const std::string &identifier, const std::string &nodeName)
Definition: stressscenariodata.cpp:323
+ Here is the call graph for this function:

Member Data Documentation

◆ data_

vector<StressTestData> data_
private

Definition at line 161 of file stressscenariodata.hpp.

◆ useSpreadedTermStructures_

bool useSpreadedTermStructures_ = false
private

Definition at line 162 of file stressscenariodata.hpp.

Generated by Doxygen 1.9.5
