YieldCurve Class Reference

Wrapper class for building yield term structures. More...

#include <ored/marketdata/yieldcurve.hpp>

Collaboration diagram for YieldCurve:

Public Types
enum class	InterpolationVariable { Zero , Discount , Forward }
	Supported interpolation variables. More...
enum class	InterpolationMethod {   Linear , LogLinear , NaturalCubic , FinancialCubic ,   ConvexMonotone , Quadratic , LogQuadratic , LogNaturalCubic ,   LogFinancialCubic , LogCubicSpline , Hermite , CubicSpline ,   DefaultLogMixedLinearCubic , MonotonicLogMixedLinearCubic , KrugerLogMixedLinearCubic , LogMixedLinearCubicNaturalSpline ,   ExponentialSplines , NelsonSiegel , Svensson }
	Supported interpolation methods. More...

Public Member Functions
	YieldCurve (Date asof, YieldCurveSpec curveSpec, const CurveConfigurations &curveConfigs, const Loader &loader, const map< string, QuantLib::ext::shared_ptr< YieldCurve > > &requiredYieldCurves=map< string, QuantLib::ext::shared_ptr< YieldCurve > >(), const map< string, QuantLib::ext::shared_ptr< DefaultCurve > > &requiredDefaultCurves=map< string, QuantLib::ext::shared_ptr< DefaultCurve > >(), const FXTriangulation &fxTriangulation=FXTriangulation(), const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceData=nullptr, const IborFallbackConfig &iborfallbackConfig=IborFallbackConfig::defaultConfig(), const bool preserveQuoteLinkage=false, const bool buildCalibrationInfo=true, const Market *market=nullptr)
	Constructor. More...

Inspectors
Date	asofDate_
Currency	currency_
YieldCurveSpec	curveSpec_
DayCounter	zeroDayCounter_
bool	extrapolation_
QuantLib::ext::shared_ptr< YieldCurve >	discountCurve_
const Loader &	loader_
RelinkableHandle< YieldTermStructure >	h_
QuantLib::ext::shared_ptr< YieldTermStructure >	p_
QuantLib::ext::shared_ptr< YieldCurveCalibrationInfo >	calibrationInfo_
QuantLib::ext::shared_ptr< YieldCurveConfig >	curveConfig_
vector< QuantLib::ext::shared_ptr< YieldCurveSegment > >	curveSegments_
InterpolationVariable	interpolationVariable_
InterpolationMethod	interpolationMethod_
Size	mixedInterpolationSize_ = 0
map< string, QuantLib::ext::shared_ptr< YieldCurve > >	requiredYieldCurves_
map< string, QuantLib::ext::shared_ptr< DefaultCurve > >	requiredDefaultCurves_
const FXTriangulation &	fxTriangulation_
const QuantLib::ext::shared_ptr< ReferenceDataManager >	referenceData_
IborFallbackConfig	iborFallbackConfig_
const bool	preserveQuoteLinkage_
bool	buildCalibrationInfo_
const Market *	market_
const Handle< YieldTermStructure > &	handle () const
YieldCurveSpec	curveSpec () const
const Date &	asofDate () const
const Currency &	currency () const
QuantLib::ext::shared_ptr< YieldCurveCalibrationInfo >	calibrationInfo () const
void	buildDiscountCurve ()
void	buildZeroCurve ()
void	buildZeroSpreadedCurve ()
void	buildBootstrappedCurve ()
void	buildDiscountRatioCurve ()
	Build a yield curve that uses QuantExt::DiscountRatioModifiedCurve. More...
void	buildFittedBondCurve ()
	Build a yield curve that uses QuantLib::FittedBondCurve. More...
void	buildWeightedAverageCurve ()
	Build a yield curve that uses QuantExt::WeightedYieldTermStructure. More...
void	buildYieldPlusDefaultCurve ()
	Build a yield curve that uses QuantExt::YieldPlusDefaultYieldTermStructure. More...
void	buildIborFallbackCurve ()
	Build a yield curve that uses QuantExt::IborFallbackCurve. More...
void	buildBondYieldShiftedCurve ()
	Build a yield curve that uses QuantExt::bondYieldShiftedCurve. More...
QuantLib::ext::shared_ptr< YieldCurve >	getYieldCurve (const std::string &ccy, const std::string &id) const
	Return the yield curve with the given id from the requiredYieldCurves_ map. More...
QuantLib::ext::shared_ptr< YieldTermStructure >	piecewisecurve (vector< QuantLib::ext::shared_ptr< RateHelper > > instruments)
void	addDeposits (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addFutures (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addFras (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addOISs (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addSwaps (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addAverageOISs (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addTenorBasisSwaps (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addTenorBasisTwoSwaps (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addBMABasisSwaps (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addFXForwards (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addCrossCcyBasisSwaps (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
void	addCrossCcyFixFloatSwaps (const QuantLib::ext::shared_ptr< YieldCurveSegment > &segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &instruments)
QuantLib::ext::shared_ptr< FXSpotQuote >	getFxSpotQuote (string spotId)

Detailed Description

Wrapper class for building yield term structures.

Given yield curve specification and its configuration this class will actually build a QuantLib yield termstructure.

Definition at line 61 of file yieldcurve.hpp.

Member Enumeration Documentation

InterpolationVariable

enum class InterpolationVariable

strong

Supported interpolation variables.

Enumerator
Zero
Discount
Forward

Definition at line 64 of file yieldcurve.hpp.

{ Zero, Discount, Forward };

InterpolationMethod

enum class InterpolationMethod

strong

Supported interpolation methods.

Enumerator
Linear
LogLinear
NaturalCubic
FinancialCubic
ConvexMonotone
Quadratic
LogQuadratic
LogNaturalCubic
LogFinancialCubic
LogCubicSpline
Hermite
CubicSpline
DefaultLogMixedLinearCubic
MonotonicLogMixedLinearCubic
KrugerLogMixedLinearCubic
LogMixedLinearCubicNaturalSpline
ExponentialSplines
NelsonSiegel
Svensson

Definition at line 67 of file yieldcurve.hpp.

                                   {
        Linear,
        LogLinear,
        NaturalCubic,
        FinancialCubic,
        ConvexMonotone,
        Quadratic,
        LogQuadratic,
        LogNaturalCubic,
        LogFinancialCubic,
        LogCubicSpline,
        Hermite,
        CubicSpline,
        DefaultLogMixedLinearCubic,
        MonotonicLogMixedLinearCubic,
        KrugerLogMixedLinearCubic,
        LogMixedLinearCubicNaturalSpline,
        ExponentialSplines, // fitted bond curves only
        NelsonSiegel,       // fitted bond curves only
        Svensson            // fitted bond curves only
    };

Constructor & Destructor Documentation

YieldCurve()

YieldCurve	(	Date	asof,
		YieldCurveSpec	curveSpec,
		const CurveConfigurations &	curveConfigs,
		const Loader &	loader,
		const map< string, QuantLib::ext::shared_ptr< YieldCurve > > &	requiredYieldCurves = map<string, QuantLib::ext::shared_ptr<YieldCurve>>(),
		const map< string, QuantLib::ext::shared_ptr< DefaultCurve > > &	requiredDefaultCurves = map<string, QuantLib::ext::shared_ptr<DefaultCurve>>(),
		const FXTriangulation &	fxTriangulation = FXTriangulation(),
		const QuantLib::ext::shared_ptr< ReferenceDataManager > &	referenceData = nullptr,
		const IborFallbackConfig &	iborfallbackConfig = IborFallbackConfig::defaultConfig(),
		const bool	preserveQuoteLinkage = false,
		const bool	buildCalibrationInfo = true,
		const Market *	market = nullptr
	)

Constructor.

Parameters

asof	Valuation date
curveSpec	Yield curve specification
curveConfigs	Repository of yield curve configurations
loader	Market data loader
requiredYieldCurves	Map of underlying yield curves if required
requiredDefaultCurves	Map of underlying default curves if required
fxTriangulation	FxTriangultion to get FX rate from cross if needed
referenceData	optional pointer to reference data, needed to build fitted bond curves
iborfallbackConfig	ibor fallback config
preserveQuoteLinkage	if true keep qloader quotes linked to yield ts, otherwise detach them
buildCalibrationInfo	build calibration info
market	market object to look up external discount curves

Definition at line 277 of file yieldcurve.cpp.

    : asofDate_(asof), curveSpec_(curveSpec), loader_(loader), requiredYieldCurves_(requiredYieldCurves),
      requiredDefaultCurves_(requiredDefaultCurves), fxTriangulation_(fxTriangulation), referenceData_(referenceData),
      iborFallbackConfig_(iborFallbackConfig), preserveQuoteLinkage_(preserveQuoteLinkage),
      buildCalibrationInfo_(buildCalibrationInfo), market_(market) {

    try {

        curveConfig_ = curveConfigs.yieldCurveConfig(curveSpec_.curveConfigID());
        QL_REQUIRE(curveConfig_, "No yield curve configuration found "
                                 "for config ID "
                                     << curveSpec_.curveConfigID());
        currency_ = parseCurrency(curveConfig_->currency());

        /* If discount curve is not the curve being built, look for it in the map that is passed in. */
        string discountCurveID = curveConfig_->discountCurveID();
        if (discountCurveID != curveConfig_->curveID() && !discountCurveID.empty()) {
            discountCurveID = yieldCurveKey(currency_, discountCurveID, asofDate_);
            map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
            it = requiredYieldCurves_.find(discountCurveID);
            if (it != requiredYieldCurves_.end()) {
                discountCurve_ = it->second;
            } else {
                QL_FAIL("The discount curve, " << discountCurveID
                                               << ", required in the building "
                                                  "of the curve, "
                                               << curveSpec_.name() << ", was not found.");
            }
        }

        curveSegments_ = curveConfig_->curveSegments();
        interpolationMethod_ = parseYieldCurveInterpolationMethod(curveConfig_->interpolationMethod());
        interpolationVariable_ = parseYieldCurveInterpolationVariable(curveConfig_->interpolationVariable());
        zeroDayCounter_ = parseDayCounter(curveConfig_->zeroDayCounter());
        extrapolation_ = curveConfig_->extrapolation();

        if (curveSegments_[0]->type() == YieldCurveSegment::Type::Discount) {
            DLOG("Building DiscountCurve " << curveSpec_);
            buildDiscountCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::Zero) {
            DLOG("Building ZeroCurve " << curveSpec_);
            buildZeroCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::ZeroSpread) {
            DLOG("Building ZeroSpreadedCurve " << curveSpec_);
            buildZeroSpreadedCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::DiscountRatio) {
            DLOG("Building discount ratio yield curve " << curveSpec_);
            buildDiscountRatioCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::FittedBond) {
            DLOG("Building FittedBondCurve " << curveSpec_);
            buildFittedBondCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::WeightedAverage) {
            DLOG("Building WeightedAverageCurve " << curveSpec_);
            buildWeightedAverageCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::YieldPlusDefault) {
            DLOG("Building YieldPlusDefaultCurve " << curveSpec_);
            buildYieldPlusDefaultCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::IborFallback) {
            DLOG("Building IborFallbackCurve " << curveSpec_);
            buildIborFallbackCurve();
        } else if (curveSegments_[0]->type() == YieldCurveSegment::Type::BondYieldShifted) {
            DLOG("Building BondYieldShiftedCurve " << curveSpec_);
            buildBondYieldShiftedCurve();
        } else {
            DLOG("Bootstrapping YieldCurve " << curveSpec_);
            buildBootstrappedCurve();
        }

        h_.linkTo(p_);
        if (extrapolation_) {
            h_->enableExtrapolation();
        }

        // populate shared calibration info

        if (buildCalibrationInfo_) {
            if (calibrationInfo_ == nullptr)
                calibrationInfo_ = QuantLib::ext::make_shared<YieldCurveCalibrationInfo>();
            calibrationInfo_->dayCounter = zeroDayCounter_.name();
            calibrationInfo_->currency = currency_.code();
            if (calibrationInfo_->pillarDates.empty()) {
                for (auto const& p : YieldCurveCalibrationInfo::defaultPeriods)
                    calibrationInfo_->pillarDates.push_back(asofDate_ + p);
            }
            for (auto const& d : calibrationInfo_->pillarDates) {
                calibrationInfo_->zeroRates.push_back(p_->zeroRate(d, zeroDayCounter_, Continuous));
                calibrationInfo_->discountFactors.push_back(p_->discount(d));
                calibrationInfo_->times.push_back(p_->timeFromReference(d));
            }
        }

    } catch (QuantLib::Error& e) {
        QL_FAIL("yield curve building failed for curve " << curveSpec_.curveConfigID() << " on date "
                                                         << io::iso_date(asof) << ": " << e.what());
    } catch (std::exception& e) {
        QL_FAIL(e.what());
    } catch (...) {
        QL_FAIL("unknown error");
    }

    // force bootstrap so that errors are thrown during the build, not later
    h_->discount(QL_EPSILON);

    DLOG("Yield curve " << curveSpec_.name() << " built");
}

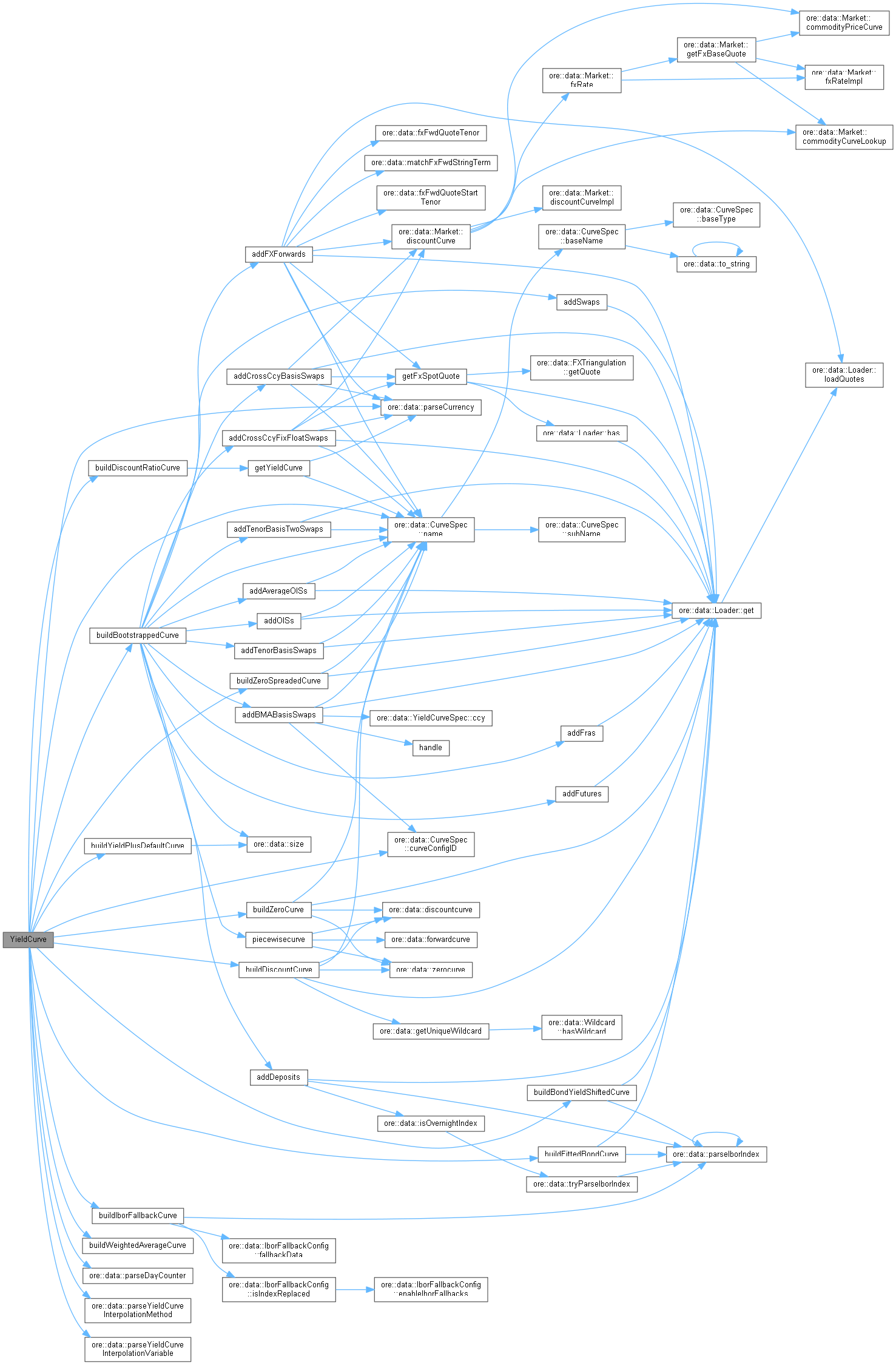

Here is the call graph for this function:

Member Function Documentation

handle()

const Handle< YieldTermStructure > & handle

(

)

const

Definition at line 120 of file yieldcurve.hpp.

{ return h_; }

Here is the caller graph for this function:

curveSpec()

YieldCurveSpec curveSpec

(

)

const

Definition at line 121 of file yieldcurve.hpp.

{ return curveSpec_; }

asofDate()

const Date & asofDate

(

)

const

Definition at line 122 of file yieldcurve.hpp.

{ return asofDate_; }

currency()

const Currency & currency

(

)

const

Definition at line 123 of file yieldcurve.hpp.

{ return currency_; }

calibrationInfo()

QuantLib::ext::shared_ptr< YieldCurveCalibrationInfo > calibrationInfo

(

)

const

Definition at line 125 of file yieldcurve.hpp.

{ return calibrationInfo_; }

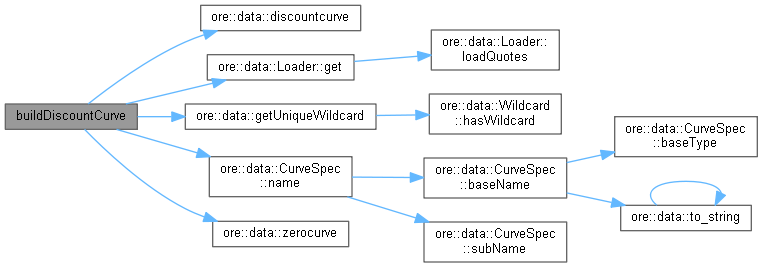

buildDiscountCurve()

void buildDiscountCurve ( )

private

Definition at line 1090 of file yieldcurve.cpp.

                                    {

    QL_REQUIRE(curveSegments_.size() <= 1, "More than one discount curve "
                                           "segment not supported yet.");
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::Discount,
               "The curve segment is not of type Discount.");

    // Create the (date, discount) pairs.
    map<Date, DiscountFactor> data;
    QuantLib::ext::shared_ptr<DirectYieldCurveSegment> discountCurveSegment =
        QuantLib::ext::dynamic_pointer_cast<DirectYieldCurveSegment>(curveSegments_[0]);
    auto discountQuoteIDs = discountCurveSegment->quotes();

    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention;

    vector<string> quotes;
    quotes.reserve(discountQuoteIDs.size()); // Reserve space for efficiency

    std::transform(discountQuoteIDs.begin(), discountQuoteIDs.end(), std::back_inserter(quotes),
                   [](const std::pair<string, bool>& pair) {
                       return pair.first; // Extract only the quote part
                   });

    auto wildcard = getUniqueWildcard(quotes);

    std::set<QuantLib::ext::shared_ptr<MarketDatum>> marketData;
    if (wildcard) {
        marketData = loader_.get(*wildcard, asofDate_);
    } else {
        std::ostringstream ss;
        ss << MarketDatum::InstrumentType::DISCOUNT << "/" << MarketDatum::QuoteType::RATE << "/" << currency_ << "/*";
        Wildcard w(ss.str());
        marketData = loader_.get(w, asofDate_);
    }

    for (const auto& marketQuote : marketData) {
        QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::DISCOUNT,
                    "Market quote not of type Discount.");
        QuantLib::ext::shared_ptr<DiscountQuote> discountQuote = QuantLib::ext::dynamic_pointer_cast<DiscountQuote>(marketQuote);

        // filtering
        if (!wildcard) {
            vector<string>::const_iterator it = find(quotes.begin(), quotes.end(), discountQuote->name());
            if (it == quotes.end())
                continue;
        }

        if (discountQuote->date() != Date()) {

            data[discountQuote->date()] = discountQuote->quote()->value();

        } else if (discountQuote->tenor() != Period()) {

            if (!convention)
                convention = conventions->get(discountCurveSegment->conventionsID());
            QuantLib::ext::shared_ptr<ZeroRateConvention> zeroConvention =
                QuantLib::ext::dynamic_pointer_cast<ZeroRateConvention>(convention);
            QL_REQUIRE(zeroConvention, "could not cast to ZeroRateConvention");

            Calendar cal = zeroConvention->tenorCalendar();
            BusinessDayConvention rollConvention = zeroConvention->rollConvention();
            Date date = cal.adjust(cal.adjust(asofDate_, rollConvention) + discountQuote->tenor(), rollConvention);
            DLOG("YieldCurve::buildDiscountCurve - tenor " << discountQuote->tenor() << " to date "
                                                            << io::iso_date(date));
            data[date] = discountQuote->quote()->value();

        } else {
            QL_FAIL("YieldCurve::buildDiscountCurve - neither date nor tenor recognised");
        }
    }

    // Some logging and checks
    QL_REQUIRE(data.size() > 0, "No market data found for curve spec " << curveSpec_.name() << " with as of date "
                                                                       << io::iso_date(asofDate_));
    if (!wildcard) {
        QL_REQUIRE(data.size() == quotes.size(), "Found " << data.size() << " quotes, but "
                                                          << quotes.size()
                                                          << " quotes given in config " << curveConfig_->curveID());
    }

    if (data.begin()->first > asofDate_) {
        DLOG("Insert discount curve point at time zero for " << curveSpec_.name());
        data[asofDate_] = 1.0;
    }

    QL_REQUIRE(data.size() > 1, "The single discount quote provided "
                                "should be associated with a date greater than as of date.");

    // First build a temporary discount curve
    vector<Date> dates;
    vector<DiscountFactor> discounts;
    map<Date, DiscountFactor>::iterator it;
    for (it = data.begin(); it != data.end(); ++it) {
        dates.push_back(it->first);
        discounts.push_back(it->second);
        DLOG("Add discount curve point for " << curveSpec_.name() << ": " << io::iso_date(dates.back()) << " "
                                            << discounts.back());
    }

    QL_REQUIRE(dates.size() == discounts.size(), "Date and discount vectors differ in size.");

    QuantLib::ext::shared_ptr<YieldTermStructure> tempDiscCurve =
        discountcurve(dates, discounts, zeroDayCounter_, interpolationMethod_);

    // Now build curve with requested conventions
    if (interpolationVariable_ == YieldCurve::InterpolationVariable::Discount) {
        p_ = tempDiscCurve;
    } else if (interpolationVariable_ == YieldCurve::InterpolationVariable::Zero) {
        vector<Rate> zeroes;
        for (Size i = 0; i < dates.size(); ++i) {
            Rate zero = tempDiscCurve->zeroRate(dates[i], zeroDayCounter_, Continuous);
            zeroes.push_back(zero);
        }
        p_ = zerocurve(dates, zeroes, zeroDayCounter_, interpolationMethod_);
    } else {
        QL_FAIL("Unknown yield curve interpolation variable.");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildZeroCurve()

void buildZeroCurve ( )

private

Definition at line 845 of file yieldcurve.cpp.

                                {

    QL_REQUIRE(curveSegments_.size() <= 1, "More than one zero curve "
                                           "segment not supported yet.");
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::Zero, "The curve segment is not of type Zero.");

    const QuantLib::ext::shared_ptr<Conventions>& conventions = InstrumentConventions::instance().conventions();

    // Fill a vector of zero quotes.
    vector<QuantLib::ext::shared_ptr<ZeroQuote>> zeroQuotes;
    QuantLib::ext::shared_ptr<DirectYieldCurveSegment> zeroCurveSegment =
        QuantLib::ext::dynamic_pointer_cast<DirectYieldCurveSegment>(curveSegments_[0]);
    auto zeroQuoteIDs = zeroCurveSegment->quotes();

    for (Size i = 0; i < zeroQuoteIDs.size(); ++i) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(zeroQuoteIDs[i], asofDate_);
        if (marketQuote) {
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::ZERO,
                       "Market quote not of type zero.");
            QuantLib::ext::shared_ptr<ZeroQuote> zeroQuote = QuantLib::ext::dynamic_pointer_cast<ZeroQuote>(marketQuote);
            zeroQuotes.push_back(zeroQuote);
        }
    }

    // Create the (date, zero) pairs.
    map<Date, Rate> data;
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(curveSegments_[0]->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << curveSegments_[0]->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::Zero, "Conventions ID does not give zero rate conventions.");
    QuantLib::ext::shared_ptr<ZeroRateConvention> zeroConvention = QuantLib::ext::dynamic_pointer_cast<ZeroRateConvention>(convention);
    DayCounter quoteDayCounter = zeroConvention->dayCounter();
    for (Size i = 0; i < zeroQuotes.size(); ++i) {
        QL_REQUIRE(quoteDayCounter == zeroQuotes[i]->dayCounter(),
                   "The day counter should be the same between the conventions"
                   "and the quote.");
        if (!zeroQuotes[i]->tenorBased()) {
            data[zeroQuotes[i]->date()] = zeroQuotes[i]->quote()->value();
        } else {
            QL_REQUIRE(zeroConvention->tenorBased(), "Using tenor based "
                                                     "zero rates without tenor based zero rate conventions.");
            Date zeroDate = asofDate_;
            if (zeroConvention->spotLag() > 0) {
                zeroDate = zeroConvention->spotCalendar().advance(zeroDate, zeroConvention->spotLag() * Days);
            }
            zeroDate = zeroConvention->tenorCalendar().advance(zeroDate, zeroQuotes[i]->tenor(),
                                                               zeroConvention->rollConvention(), zeroConvention->eom());
            data[zeroDate] = zeroQuotes[i]->quote()->value();
        }
    }

    QL_REQUIRE(data.size() > 0, "No market data found for curve spec " << curveSpec_.name() << " with as of date "
                                                                       << io::iso_date(asofDate_));

    // \todo review - more flexible (flat vs. linear extrap)?
    if (data.begin()->first > asofDate_) {
        Rate rate = data.begin()->second;
        data[asofDate_] = rate;
        DLOG("Insert zero curve point at time zero for " << curveSpec_.name() << ": "
                                                        << "date " << QuantLib::io::iso_date(asofDate_) << ", "
                                                        << "zero " << fixed << setprecision(4) << data[asofDate_]);
    }

    QL_REQUIRE(data.size() > 1, "The single zero rate quote provided "
                                "should be associated with a date greater than as of date.");

    // First build temporary curves
    vector<Date> dates;
    vector<Rate> zeroes, discounts;
    dates.push_back(data.begin()->first);
    zeroes.push_back(data.begin()->second);
    discounts.push_back(1.0);

    Compounding zeroCompounding = zeroConvention->compounding();
    Frequency zeroCompoundingFreq = zeroConvention->compoundingFrequency();
    map<Date, Rate>::iterator it;
    for (it = ++data.begin(); it != data.end(); ++it) {
        dates.push_back(it->first);
        InterestRate tempRate(it->second, quoteDayCounter, zeroCompounding, zeroCompoundingFreq);
        Time t = quoteDayCounter.yearFraction(asofDate_, it->first);
        /* Convert zero rate to continuously compounded if necessary */
        if (zeroCompounding == Continuous) {
            zeroes.push_back(it->second);
        } else {
            zeroes.push_back(tempRate.equivalentRate(Continuous, NoFrequency, t));
        }
        discounts.push_back(tempRate.discountFactor(t));
        DLOG("Add zero curve point for " << curveSpec_.name() << ": " << io::iso_date(dates.back()) << " " << fixed
                                        << setprecision(4) << zeroes.back() << " / " << discounts.back());
    }

    QL_REQUIRE(dates.size() == zeroes.size(), "Date and zero vectors differ in size.");
    QL_REQUIRE(dates.size() == discounts.size(), "Date and discount vectors differ in size.");

    // Now build curve with requested conventions
    if (interpolationVariable_ == YieldCurve::InterpolationVariable::Zero) {
        QuantLib::ext::shared_ptr<YieldTermStructure> tempCurve =
            zerocurve(dates, zeroes, quoteDayCounter, interpolationMethod_);
        zeroes.clear();
        for (Size i = 0; i < dates.size(); ++i) {
            Rate zero = tempCurve->zeroRate(dates[i], zeroDayCounter_, Continuous);
            zeroes.push_back(zero);
        }
        p_ = zerocurve(dates, zeroes, zeroDayCounter_, interpolationMethod_);
    } else if (interpolationVariable_ == YieldCurve::InterpolationVariable::Discount) {
        QuantLib::ext::shared_ptr<YieldTermStructure> tempCurve =
            discountcurve(dates, discounts, quoteDayCounter, interpolationMethod_);
        discounts.clear();
        for (Size i = 0; i < dates.size(); ++i) {
            DiscountFactor discount = tempCurve->discount(dates[i]);
            discounts.push_back(discount);
        }
        p_ = discountcurve(dates, discounts, zeroDayCounter_, interpolationMethod_);
    } else {
        QL_FAIL("Unknown yield curve interpolation variable.");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

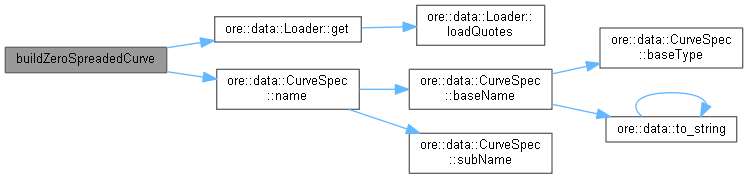

buildZeroSpreadedCurve()

void buildZeroSpreadedCurve ( )

private

Definition at line 962 of file yieldcurve.cpp.

                                        {
    QL_REQUIRE(curveSegments_.size() <= 1, "More than one zero spreaded curve "
                                           "segment not supported yet.");
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::ZeroSpread,
               "The curve segment is not of type Zero Spread.");

    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();

    // Fill a vector of zero spread quotes.
    vector<QuantLib::ext::shared_ptr<ZeroQuote>> quotes;
    QuantLib::ext::shared_ptr<ZeroSpreadedYieldCurveSegment> segment =
        QuantLib::ext::dynamic_pointer_cast<ZeroSpreadedYieldCurveSegment>(curveSegments_[0]);
    auto quoteIDs = segment->quotes();

    Date today = Settings::instance().evaluationDate();
    vector<Date> dates;
    vector<Handle<Quote>> quoteHandles;
    for (Size i = 0; i < quoteIDs.size(); ++i) {
        if (QuantLib::ext::shared_ptr<MarketDatum> md = loader_.get(quoteIDs[i], asofDate_)) {
            QL_REQUIRE(md->instrumentType() == MarketDatum::InstrumentType::ZERO, "Market quote not of type zero.");
            QL_REQUIRE(md->quoteType() == MarketDatum::QuoteType::YIELD_SPREAD,
                       "Market quote not of type yield spread.");
            QuantLib::ext::shared_ptr<ZeroQuote> zeroQuote = QuantLib::ext::dynamic_pointer_cast<ZeroQuote>(md);
            quotes.push_back(zeroQuote);
            dates.push_back(zeroQuote->tenorBased() ? today + zeroQuote->tenor() : zeroQuote->date());
            quoteHandles.push_back(zeroQuote->quote());
        }
    }

    QL_REQUIRE(!quotes.empty(),
               "Cannot build curve with spec " << curveSpec_.name() << " because there are no spread quotes");

    string referenceCurveID = segment->referenceCurveID();
    QuantLib::ext::shared_ptr<YieldCurve> referenceCurve;
    if (referenceCurveID != curveConfig_->curveID() && !referenceCurveID.empty()) {
        referenceCurveID = yieldCurveKey(currency_, referenceCurveID, asofDate_);
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(referenceCurveID);
        if (it != requiredYieldCurves_.end()) {
            referenceCurve = it->second;
        } else {
            QL_FAIL("The reference curve, " << referenceCurveID
                                            << ", required in the building "
                                               "of the curve, "
                                            << curveSpec_.name() << ", was not found.");
        }
    }

    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::Zero, "Conventions ID does not give zero rate conventions.");
    QuantLib::ext::shared_ptr<ZeroRateConvention> zeroConvention = QuantLib::ext::dynamic_pointer_cast<ZeroRateConvention>(convention);
    DayCounter quoteDayCounter = zeroConvention->dayCounter();
    Compounding comp = zeroConvention->compounding();
    Frequency freq = zeroConvention->compoundingFrequency();

    p_ = QuantLib::ext::shared_ptr<YieldTermStructure>(new PiecewiseZeroSpreadedTermStructure(
        referenceCurve->handle(), quoteHandles, dates, comp, freq, quoteDayCounter));
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildBootstrappedCurve()

void buildBootstrappedCurve ( )

private

Definition at line 1210 of file yieldcurve.cpp.

                                        {

    QL_REQUIRE(!curveSegments_.empty(), "no curve segments defined.");

    /* Loop over segments and add helpers for each segment. */

    DLOG("Building instrument sets for yield curve segments 0..." << curveSegments_.size() - 1);

    std::vector<vector<QuantLib::ext::shared_ptr<RateHelper>>> instrumentsPerSegment(curveSegments_.size());

    for (Size i = 0; i < curveSegments_.size(); ++i) {
        switch (curveSegments_[i]->type()) {
        case YieldCurveSegment::Type::Deposit:
            addDeposits(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::FRA:
            addFras(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::Future:
            addFutures(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::OIS:
            addOISs(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::Swap:
            addSwaps(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::AverageOIS:
            addAverageOISs(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::TenorBasis:
            addTenorBasisSwaps(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::TenorBasisTwo:
            addTenorBasisTwoSwaps(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::BMABasis:
            addBMABasisSwaps(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::FXForward:
            addFXForwards(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::CrossCcyBasis:
            addCrossCcyBasisSwaps(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        case YieldCurveSegment::Type::CrossCcyFixFloat:
            addCrossCcyFixFloatSwaps(curveSegments_[i], instrumentsPerSegment[i]);
            break;
        default:
            QL_FAIL("Yield curve segment type not recognized.");
            break;
        }
    }

    /* If we have two instruments with identical pillar dates wthin a segment, remove the earlier one */

    for (Size i = 0; i < curveSegments_.size(); ++i) {
        for (auto it = instrumentsPerSegment[i].begin(); it != instrumentsPerSegment[i].end();) {
            if (std::next(it, 1) != instrumentsPerSegment[i].end() &&
                (*it)->pillarDate() == (*std::next(it, 1))->pillarDate()) {
                DLOG("Removing instrument with pillar date "
                     << (*it)->pillarDate() << " in segment #" << i
                     << " because the next instrument in the same segment has the same pillar date");
                it = instrumentsPerSegment[i].erase(it);
            } else
                ++it;
        }
    }

    /* Determine min and max pillar date in each segment */

    std::vector<std::pair<Date, Date>> minMaxDatePerSegment(curveSegments_.size(),
                                                            std::make_pair(Date::maxDate(), Date::minDate()));
    for (Size i = 0; i < curveSegments_.size(); ++i) {
        if (!instrumentsPerSegment[i].empty()) {
            auto [minIt, maxIt] =
                std::minmax_element(instrumentsPerSegment[i].begin(), instrumentsPerSegment[i].end(),
                                    [](const QuantLib::ext::shared_ptr<RateHelper>& h, const QuantLib::ext::shared_ptr<RateHelper>& j) {
                                        return h->pillarDate() < h->pillarDate();
                                    });
            minMaxDatePerSegment[i] = std::make_pair((*minIt)->pillarDate(), (*maxIt)->pillarDate());
        }
    }

    /* If there are two segments with different priorities and overlapping instruments, remove instruments as
     * appropriate */

    for (Size i = 0; i < curveSegments_.size(); ++i) {
        if (i < curveSegments_.size() - 1 && curveSegments_[i]->priority() > curveSegments_[i + 1]->priority()) {
            for (auto it = instrumentsPerSegment[i].begin(); it != instrumentsPerSegment[i].end();) {
                if ((*it)->pillarDate() > minMaxDatePerSegment[i + 1].first - curveSegments_[i]->minDistance()) {
                    DLOG("Removing instrument in segment #"
                         << i << " (priority " << curveSegments_[i]->priority() << ") because its pillar date "
                         << (*it)->pillarDate() << " > " << minMaxDatePerSegment[i + 1].first
                         << " (min pillar date in segment #" << (i + 1) << ", priority "
                         << curveSegments_[i + 1]->priority() << ") minus " << curveSegments_[i]->minDistance()
                         << " (min distance in segment #" << i << ")");
                    it = instrumentsPerSegment[i].erase(it);
                } else
                    ++it;
            }
        }
        if (i > 0 && curveSegments_[i - 1]->priority() < curveSegments_[i]->priority()) {
            for (auto it = instrumentsPerSegment[i].begin(); it != instrumentsPerSegment[i].end();) {
                if ((*it)->pillarDate() < minMaxDatePerSegment[i - 1].second + curveSegments_[i - 1]->minDistance()) {
                    DLOG("Removing instrument in segment #"
                         << i << " (priority " << curveSegments_[i]->priority() << ") because its pillar date "
                         << (*it)->pillarDate() << " < " << minMaxDatePerSegment[i - 1].second
                         << " (max pillar date in segment #" << (i - 1) << ", priority "
                         << curveSegments_[i - 1]->priority() << ") plus " << curveSegments_[i - 1]->minDistance()
                         << " (min distance in segment #" << (i - 1) << ")");
                    it = instrumentsPerSegment[i].erase(it);
                } else
                    ++it;
            }
        }
    }

    /* Set mixed interpolation size using the specified cutoff for the number of segments */

    mixedInterpolationSize_ = 0;
    for (Size i = 0; i < curveConfig_->mixedInterpolationCutoff(); ++i)
        mixedInterpolationSize_ += instrumentsPerSegment[i].size();

    /* Now put all remaining instruments into a single vector. */

    vector<QuantLib::ext::shared_ptr<RateHelper>> instruments;
    for (Size i = 0; i < curveSegments_.size(); ++i) {
        instruments.insert(instruments.end(), instrumentsPerSegment[i].begin(), instrumentsPerSegment[i].end());
        DLOG("Adding " << instrumentsPerSegment[i].size() << " instruments for segment #" << i);
    }

    /* Build the bootstrapped curve from the instruments. */

    DLOG("Bootstrapping with " << instruments.size() << " instruments");
    QL_REQUIRE(instruments.size() > 0,
               "Empty instrument list for date = " << io::iso_date(asofDate_) << " and curve = " << curveSpec_.name());
    p_ = piecewisecurve(instruments);
}

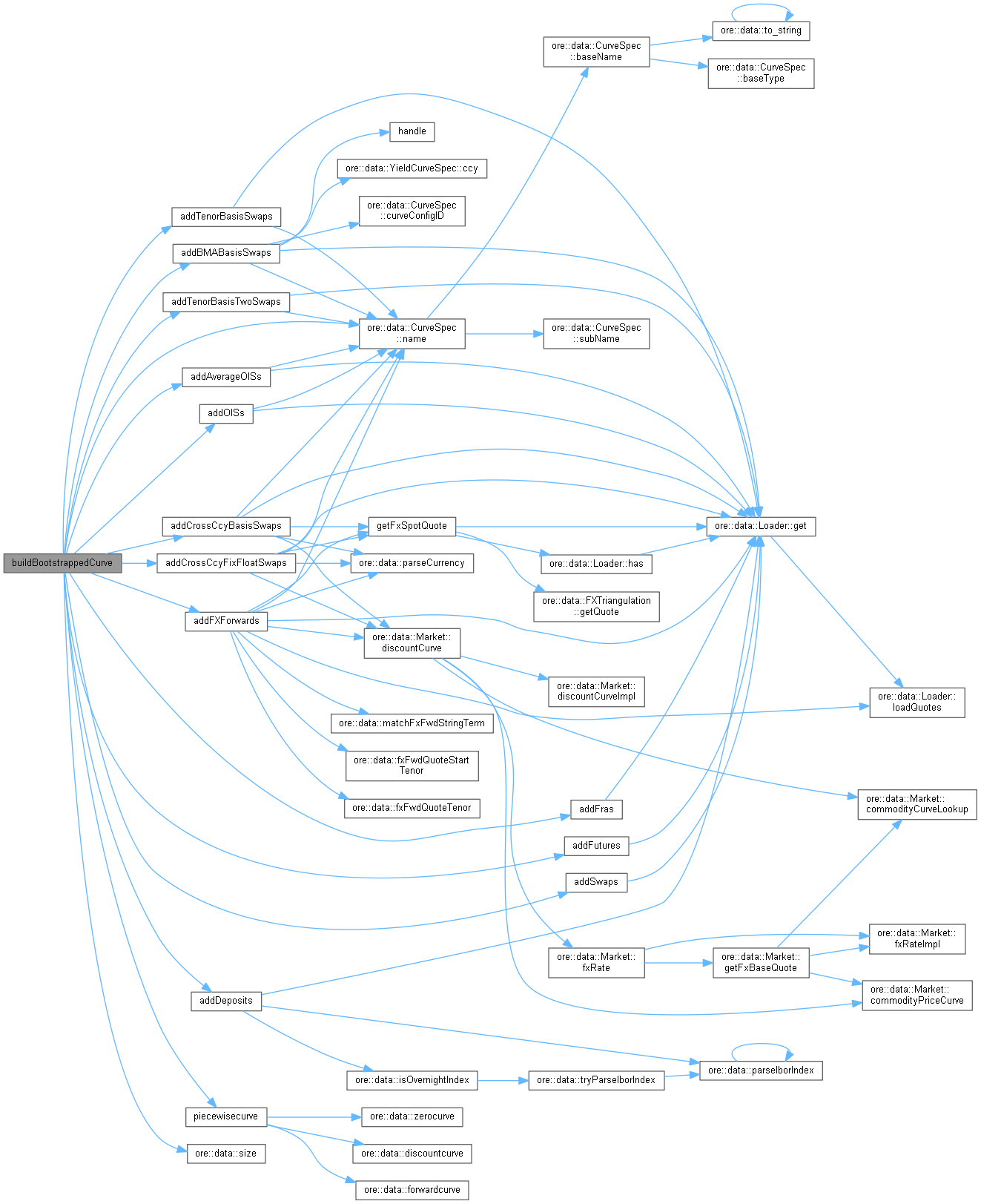

Here is the call graph for this function:

Here is the caller graph for this function:

buildDiscountRatioCurve()

void buildDiscountRatioCurve ( )

private

Build a yield curve that uses QuantExt::DiscountRatioModifiedCurve.

Definition at line 1350 of file yieldcurve.cpp.

                                         {
    QL_REQUIRE(curveSegments_.size() == 1, "A discount ratio curve must contain exactly one segment");
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::DiscountRatio,
               "The curve segment is not of type 'DiscountRatio'.");

    QuantLib::ext::shared_ptr<DiscountRatioYieldCurveSegment> segment =
        QuantLib::ext::dynamic_pointer_cast<DiscountRatioYieldCurveSegment>(curveSegments_[0]);

    // Find the underlying curves in the reference curves
    QuantLib::ext::shared_ptr<YieldCurve> baseCurve = getYieldCurve(segment->baseCurveCurrency(), segment->baseCurveId());
    QL_REQUIRE(baseCurve, "The base curve '" << segment->baseCurveId() << "' cannot be empty");

    QuantLib::ext::shared_ptr<YieldCurve> numCurve =
        getYieldCurve(segment->numeratorCurveCurrency(), segment->numeratorCurveId());
    QL_REQUIRE(numCurve, "The numerator curve '" << segment->numeratorCurveId() << "' cannot be empty");

    QuantLib::ext::shared_ptr<YieldCurve> denCurve =
        getYieldCurve(segment->denominatorCurveCurrency(), segment->denominatorCurveId());
    QL_REQUIRE(denCurve, "The denominator curve '" << segment->denominatorCurveId() << "' cannot be empty");

    p_ = QuantLib::ext::make_shared<DiscountRatioModifiedCurve>(baseCurve->handle(), numCurve->handle(), denCurve->handle());
}

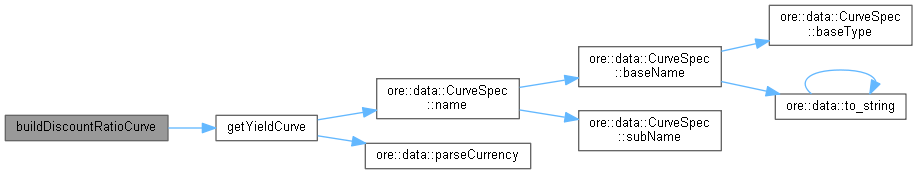

Here is the call graph for this function:

Here is the caller graph for this function:

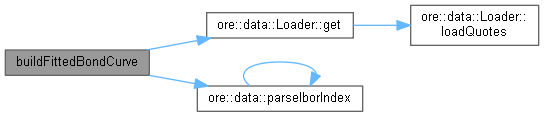

buildFittedBondCurve()

void buildFittedBondCurve ( )

private

Build a yield curve that uses QuantLib::FittedBondCurve.

Definition at line 1386 of file yieldcurve.cpp.

                                      {
    QL_REQUIRE(curveSegments_.size() == 1, "FittedBond curve must contain exactly one segment.");
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::FittedBond,
               "The curve segment is not of type 'FittedBond'.");

    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();

    QuantLib::ext::shared_ptr<FittedBondYieldCurveSegment> curveSegment =
        QuantLib::ext::dynamic_pointer_cast<FittedBondYieldCurveSegment>(curveSegments_[0]);
    QL_REQUIRE(curveSegment != nullptr, "could not cast to FittedBondYieldCurveSegment, this is unexpected");

    // init calibration info for this curve

    auto calInfo = QuantLib::ext::make_shared<FittedBondCurveCalibrationInfo>();
    if (buildCalibrationInfo_) {
        calInfo->dayCounter = zeroDayCounter_.name();
        calInfo->currency = currency_.code();
    }

    // build vector of bond helpers

    auto quoteIDs = curveSegment->quotes();
    std::vector<QuantLib::ext::shared_ptr<QuantLib::Bond>> bonds;
    std::vector<QuantLib::ext::shared_ptr<BondHelper>> helpers;
    std::vector<Real> marketPrices, marketYields;
    std::vector<std::string> securityIDs;
    std::vector<Date> securityMaturityDates;
    Date lastMaturity = Date::minDate(), firstMaturity = Date::maxDate();

    // not really relevant, we just need a working engine configuration so that the bond can be built
    // the pricing engine here is _not_ used during the curve fitting, for this a local engine is
    // set up within FittedBondDiscountCurve
    auto engineData = QuantLib::ext::make_shared<EngineData>();
    engineData->model("Bond") = "DiscountedCashflows";
    engineData->engine("Bond") = "DiscountingRiskyBondEngine";
    engineData->engineParameters("Bond") = {{"TimestepPeriod", "6M"}};

    std::map<std::string, Handle<YieldTermStructure>> iborCurveMapping;
    for (auto const& c : curveSegment->iborIndexCurves()) {
        auto index = parseIborIndex(c.first);
        auto key = yieldCurveKey(index->currency(), c.second, asofDate_);
        auto y = requiredYieldCurves_.find(key);
        QL_REQUIRE(y != requiredYieldCurves_.end(), "required yield curve '" << key << "' for iborIndex '" << c.first
                                                                             << "' not provided for fitted bond curve");
        iborCurveMapping[c.first] = y->second->handle();
    }

    auto engineFactory =
        QuantLib::ext::make_shared<EngineFactory>(engineData, QuantLib::ext::make_shared<FittedBondCurveHelperMarket>(iborCurveMapping),
                                          std::map<MarketContext, string>(), referenceData_, iborFallbackConfig_);

    for (Size i = 0; i < quoteIDs.size(); ++i) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(quoteIDs[i], asofDate_);
        if (marketQuote) {
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::BOND &&
                           marketQuote->quoteType() == MarketDatum::QuoteType::PRICE,
                       "Market quote not of type Bond / Price.");
            QuantLib::ext::shared_ptr<BondPriceQuote> bondQuote = QuantLib::ext::dynamic_pointer_cast<BondPriceQuote>(marketQuote);
            QL_REQUIRE(bondQuote, "market quote has type bond quote, but can not be casted, this is unexpected.");
            auto m = [](Real x) { return 100.0 * x; };
            Handle<Quote> rescaledBondQuote(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(bondQuote->quote(), m));
            string securityID = bondQuote->securityID();

            QL_REQUIRE(referenceData_ != nullptr, "reference data required to build fitted bond curve");
            auto res = BondFactory::instance().build(engineFactory, referenceData_, securityID);
            auto qlInstr = res.bond;
            // skip bonds with settlement date <= curve reference date or which are otherwise non-tradeable
            if (qlInstr->settlementDate() > asofDate_ && QuantLib::BondFunctions::isTradable(*qlInstr)) {
                bonds.push_back(qlInstr);
                helpers.push_back(QuantLib::ext::make_shared<BondHelper>(rescaledBondQuote, qlInstr));
                Date thisMaturity = qlInstr->maturityDate();
                lastMaturity = std::max(lastMaturity, thisMaturity);
                firstMaturity = std::min(firstMaturity, thisMaturity);
                Real inflationFactor = res.inflationFactor();
                Real marketYield = qlInstr->yield(rescaledBondQuote->value() * inflationFactor,
                                                  ActualActual(ActualActual::ISDA),
                                                  Continuous, NoFrequency);
                DLOG("added bond " << securityID << ", maturity = " << QuantLib::io::iso_date(thisMaturity)
                                   << ", clean price = " << rescaledBondQuote->value() * inflationFactor
                                   << ", yield (cont,act/act) = " << marketYield);
                marketPrices.push_back(bondQuote->quote()->value() * inflationFactor);
                securityIDs.push_back(securityID);
                marketYields.push_back(marketYield);
                securityMaturityDates.push_back(thisMaturity);
            } else {
                DLOG("skipped bond " << securityID << " with settlement date "
                                     << QuantLib::io::iso_date(qlInstr->settlementDate()) << ", isTradable = "
                                     << std::boolalpha << QuantLib::BondFunctions::isTradable(*qlInstr));
            }
        }
    }

    calInfo->securities = securityIDs;
    calInfo->securityMaturityDates = securityMaturityDates;
    calInfo->marketPrices = marketPrices;
    calInfo->marketYields = marketYields;

    // fit bond curve to helpers

    QL_REQUIRE(helpers.size() >= 1, "no bonds for fitting bond curve");
    DLOG("Fitting bond curve with " << helpers.size() << " bonds.");

    Real minCutoffTime = 0.0, maxCutoffTime = QL_MAX_REAL;
    if (curveSegment->extrapolateFlat()) {
        minCutoffTime = zeroDayCounter_.yearFraction(asofDate_, firstMaturity);
        maxCutoffTime = zeroDayCounter_.yearFraction(asofDate_, lastMaturity);
        DLOG("extrapolate flat outside " << minCutoffTime << "," << maxCutoffTime);
    }

    QuantLib::ext::shared_ptr<FittedBondDiscountCurve::FittingMethod> method;
    switch (interpolationMethod_) {
    case InterpolationMethod::ExponentialSplines:
        method = QuantLib::ext::make_shared<ExponentialSplinesFitting>(true, Array(), ext::shared_ptr<OptimizationMethod>(),
                                                               Array(), minCutoffTime, maxCutoffTime);
        calInfo->fittingMethod = "ExponentialSplines";
        break;
    case InterpolationMethod::NelsonSiegel:
        method = QuantLib::ext::make_shared<NelsonSiegelFitting>(Array(), ext::shared_ptr<OptimizationMethod>(), Array(),
                                                         minCutoffTime, maxCutoffTime);
        calInfo->fittingMethod = "NelsonSiegel";
        break;
    case InterpolationMethod::Svensson:
        method = QuantLib::ext::make_shared<SvenssonFitting>(Array(), ext::shared_ptr<OptimizationMethod>(), Array(),
                                                     minCutoffTime, maxCutoffTime);
        calInfo->fittingMethod = "Svensson";
        break;
    default:
        QL_FAIL("unknown fitting method");
    }

    QuantLib::ext::shared_ptr<FittedBondDiscountCurve> tmp, current;
    Real minError = QL_MAX_REAL;
    HaltonRsg halton(method->size(), 42);
    // TODO randomised optimisation seeds are only implemented for NelsonSiegel so far
    Size trials = 1;
    if (interpolationMethod_ == InterpolationMethod::NelsonSiegel) {
        trials = curveConfig_->bootstrapConfig().maxAttempts();
    } else {
        if (curveConfig_->bootstrapConfig().maxAttempts() > 1) {
            WLOG("randomised optimisation seeds not implemented for given interpolation method");
        }
    }
    for (Size i = 0; i < trials; ++i) {
        Array guess;
        // first guess is the default guess (empty array, will be set to a zero vector in
        // FittedBondDiscountCurve::calculate())
        if (i == 0) {
            if (interpolationMethod_ == InterpolationMethod::NelsonSiegel) {
                // first guess will be based on the last bond yield and first bond yield
                guess = Array(4);
                Integer maxMaturity = static_cast<Integer>(
                    std::distance(securityMaturityDates.begin(),
                                  std::max_element(securityMaturityDates.begin(), securityMaturityDates.end())));
                Integer minMaturity = static_cast<Integer>(
                    std::distance(securityMaturityDates.begin(),
                                  std::min_element(securityMaturityDates.begin(), securityMaturityDates.end())));
                guess[0] = marketYields[maxMaturity];            // long term yield
                guess[1] = marketYields[minMaturity] - guess[0]; // short term component
                guess[2] = 0.0;
                guess[3] = 5.0;
                DLOG("using smart NelsonSiegel guess for trial #" << (i + 1) << ": " << guess);
            }
        } else {
            auto seq = halton.nextSequence();
            guess = Array(seq.value.begin(), seq.value.end());
            if (interpolationMethod_ == InterpolationMethod::NelsonSiegel) {
                guess[0] = guess[0] * 0.10 - 0.05; // long term yield
                guess[1] = guess[1] * 0.10 - 0.05; // short term component
                guess[2] = guess[2] * 0.10 - 0.05; // medium term component
                guess[3] = guess[3] * 5.0;         // decay factor
                DLOG("using random NelsonSiegel guess for trial #" << (i + 1) << ": " << guess);
            } else {
                QL_FAIL("randomised optimisation seed not implemented");
            }
        }
        current = QuantLib::ext::make_shared<FittedBondDiscountCurve>(asofDate_, helpers, zeroDayCounter_, *method, 1.0e-10,
                                                              10000, guess);
        Real cost = std::sqrt(current->fitResults().minimumCostValue());
        if (cost < minError) {
            minError = cost;
            tmp = current;
        }
        DLOG("calibration trial #" << (i + 1) << " out of " << trials << ": cost = " << cost
                                   << ", best so far = " << minError);
        if (cost < curveConfig_->bootstrapConfig().accuracy()) {
            DLOG("reached desired accuracy (" << curveConfig_->bootstrapConfig().accuracy()
                                              << ") - do not attempt more calibrations");
            break;
        }
    }
    QL_REQUIRE(tmp, "no best solution found for fitted bond curve - this is unexpected.");

    if (Norm2(tmp->fitResults().solution()) < 1.0e-4) {
        WLOG("Fit solution is close to 0. The curve fitting should be reviewed.");
    }

    DLOG("Fitted Bond Curve Summary:");
    DLOG("   solution:   " << tmp->fitResults().solution());
    DLOG("   iterations: " << tmp->fitResults().numberOfIterations());
    DLOG("   cost value: " << minError);

    std::vector<Real> modelPrices, modelYields;
    auto engine = QuantLib::ext::make_shared<DiscountingBondEngine>(Handle<YieldTermStructure>(tmp));
    for (Size i = 0; i < bonds.size(); ++i) {
        bonds[i]->setPricingEngine(engine);
        modelPrices.push_back(bonds[i]->cleanPrice() / 100.0);
        modelYields.push_back(bonds[i]->yield(bonds[i]->cleanPrice(), ActualActual(ActualActual::ISDA), Continuous, NoFrequency));
        DLOG("bond " << securityIDs[i] << ", model clean price = " << modelPrices.back()
                     << ", yield (cont,actact) = " << modelYields.back() << ", NPV = " << bonds[i]->NPV());
    }

    Real tolerance = curveConfig_->bootstrapConfig().globalAccuracy() == Null<Real>()
                         ? curveConfig_->bootstrapConfig().accuracy()
                         : curveConfig_->bootstrapConfig().globalAccuracy();
    QL_REQUIRE(curveConfig_->bootstrapConfig().dontThrow() || minError < tolerance,
               "Fitted Bond Curve cost value (" << minError << ") exceeds tolerance (" << tolerance << ")");

    if (extrapolation_)
        tmp->enableExtrapolation();

    p_ = tmp;

    Array solution = tmp->fitResults().solution();

    if (buildCalibrationInfo_) {
        calInfo->modelPrices = modelPrices;
        calInfo->modelYields = modelYields;
        calInfo->tolerance = tolerance;
        calInfo->costValue = minError;
        calInfo->solution = std::vector<double>(solution.begin(), solution.end());
        calInfo->iterations = static_cast<int>(tmp->fitResults().numberOfIterations());
        calibrationInfo_ = calInfo;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildWeightedAverageCurve()

void buildWeightedAverageCurve ( )

private

Build a yield curve that uses QuantExt::WeightedYieldTermStructure.

Definition at line 1022 of file yieldcurve.cpp.

                                           {
    QL_REQUIRE(curveSegments_.size() == 1,
               "One segment required for weighted average curve, got " << curveSegments_.size());
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::WeightedAverage,
               "The curve segment is not of type Weighted Average.");
    auto segment = QuantLib::ext::dynamic_pointer_cast<WeightedAverageYieldCurveSegment>(curveSegments_[0]);
    QL_REQUIRE(segment != nullptr, "expected WeightedAverageYieldCurveSegment, this is unexpected");
    auto it1 = requiredYieldCurves_.find(yieldCurveKey(currency_, segment->referenceCurveID1(), asofDate_));
    auto it2 = requiredYieldCurves_.find(yieldCurveKey(currency_, segment->referenceCurveID2(), asofDate_));
    QL_REQUIRE(it1 != requiredYieldCurves_.end(), "Could not find reference curve1: " << segment->referenceCurveID1());
    QL_REQUIRE(it2 != requiredYieldCurves_.end(), "Could not find reference curve2: " << segment->referenceCurveID2());
    p_ = QuantLib::ext::make_shared<WeightedYieldTermStructure>(it1->second->handle(), it2->second->handle(),
                                                        segment->weight1(), segment->weight2());
}

Here is the caller graph for this function:

buildYieldPlusDefaultCurve()

void buildYieldPlusDefaultCurve ( )

private

Build a yield curve that uses QuantExt::YieldPlusDefaultYieldTermStructure.

Definition at line 1037 of file yieldcurve.cpp.

                                            {
    QL_REQUIRE(curveSegments_.size() == 1,
               "One segment required for yield plus default curve, got " << curveSegments_.size());
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::YieldPlusDefault,
               "The curve segment is not of type Yield Plus Default.");
    auto segment = QuantLib::ext::dynamic_pointer_cast<YieldPlusDefaultYieldCurveSegment>(curveSegments_[0]);
    QL_REQUIRE(segment != nullptr, "expected YieldPlusDefaultCurveSegment, this is unexpected");
    auto it = requiredYieldCurves_.find(yieldCurveKey(currency_, segment->referenceCurveID(), asofDate_));
    QL_REQUIRE(it != requiredYieldCurves_.end(), "Could not find reference curve: " << segment->referenceCurveID());
    std::vector<Handle<DefaultProbabilityTermStructure>> defaultCurves;
    std::vector<Handle<Quote>> recRates;
    for (Size i = 0; i < segment->defaultCurveIDs().size(); ++i) {
        auto it = requiredDefaultCurves_.find(segment->defaultCurveIDs()[i]);
        QL_REQUIRE(it != requiredDefaultCurves_.end(),
                   "Could not find default curve: " << segment->defaultCurveIDs()[i]);
        defaultCurves.push_back(Handle<DefaultProbabilityTermStructure>(it->second->creditCurve()->curve()));
        recRates.push_back(Handle<Quote>(QuantLib::ext::make_shared<SimpleQuote>(it->second->recoveryRate())));
    }
    p_ = QuantLib::ext::make_shared<YieldPlusDefaultYieldTermStructure>(it->second->handle(), defaultCurves, recRates,
                                                                segment->weights());
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildIborFallbackCurve()

void buildIborFallbackCurve ( )

private

Build a yield curve that uses QuantExt::IborFallbackCurve.

Definition at line 1059 of file yieldcurve.cpp.

                                        {
    QL_REQUIRE(curveSegments_.size() == 1,
               "One segment required for ibor fallback curve, got " << curveSegments_.size());
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::IborFallback,
               "The curve segment is not of type Ibor Fallback");
    auto segment = QuantLib::ext::dynamic_pointer_cast<IborFallbackCurveSegment>(curveSegments_[0]);
    QL_REQUIRE(segment != nullptr, "expected IborFallbackCurve, internal error");
    auto it = requiredYieldCurves_.find(segment->rfrCurve());
    QL_REQUIRE(it != requiredYieldCurves_.end(), "Could not find rfr curve: '" << segment->rfrCurve() << "')");
    QL_REQUIRE(
        (segment->rfrIndex() && segment->spread()) || iborFallbackConfig_.isIndexReplaced(segment->iborIndex()),
        "buildIborFallbackCurve(): ibor index '"
            << segment->iborIndex()
            << "' must be specified in ibor fallback config, if RfrIndex or Spread is not specified in curve config");
    std::string rfrIndexName = segment->rfrIndex() ? *segment->rfrIndex() : iborFallbackConfig_.fallbackData(segment->iborIndex()).rfrIndex;
    Real spread = segment->spread() ? *segment->spread() : iborFallbackConfig_.fallbackData(segment->iborIndex()).spread;
    // we don't support convention based indices here, this might change with ore ticket 1758
    Handle<YieldTermStructure> dummyCurve(QuantLib::ext::make_shared<FlatForward>(asofDate_, 0.0, zeroDayCounter_));
    auto originalIndex = parseIborIndex(segment->iborIndex(), dummyCurve);
    auto rfrIndex = QuantLib::ext::dynamic_pointer_cast<OvernightIndex>(parseIborIndex(rfrIndexName, it->second->handle()));
    QL_REQUIRE(rfrIndex, "buidlIborFallbackCurve(): rfr index '"
                             << rfrIndexName << "' could not be cast to OvernightIndex, is this index name correct?");
    DLOG("building ibor fallback curve for '" << segment->iborIndex() << "' with rfrIndex='" << rfrIndexName
                                              << "' and spread=" << spread);
    if (auto on = QuantLib::ext::dynamic_pointer_cast<OvernightIndex>(originalIndex)) {
        p_ = QuantLib::ext::make_shared<OvernightFallbackCurve>(on, rfrIndex, spread, Date::minDate());
    } else {
        p_ = QuantLib::ext::make_shared<IborFallbackCurve>(originalIndex, rfrIndex, spread, Date::minDate());
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

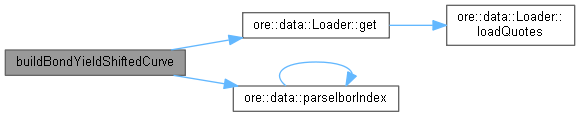

buildBondYieldShiftedCurve()

void buildBondYieldShiftedCurve ( )

private

Build a yield curve that uses QuantExt::bondYieldShiftedCurve.

Definition at line 1621 of file yieldcurve.cpp.

                                            {
    QL_REQUIRE(curveSegments_.size() == 1,
               "One segment required for bond yield shifted curve, got " << curveSegments_.size());
    QL_REQUIRE(curveSegments_[0]->type() == YieldCurveSegment::Type::BondYieldShifted,
               "The curve segment is not of type Bond Yield Shifted.");
    auto segment = QuantLib::ext::dynamic_pointer_cast<BondYieldShiftedYieldCurveSegment>(curveSegments_[0]);
    QL_REQUIRE(segment != nullptr, "expected BondYieldShiftedYieldCurveSegment, this is unexpected");
    auto it = requiredYieldCurves_.find(yieldCurveKey(currency_, segment->referenceCurveID(), asofDate_));
    QL_REQUIRE(it != requiredYieldCurves_.end(), "Could not find reference curve: " << segment->referenceCurveID());

    //prepare parameters
    auto quoteIDs = segment->quotes();
    QuantLib::ext::shared_ptr<QuantLib::Bond> bond;
    string securityID;
    Date securityMaturityDate;
    Rate bondYield = Null<Real>();
    Real thisDuration = Null<Real>();

    auto engineData = QuantLib::ext::make_shared<EngineData>();
    engineData->model("Bond") = "DiscountedCashflows";
    engineData->engine("Bond") = "DiscountingRiskyBondEngine";
    engineData->engineParameters("Bond") = {{"TimestepPeriod", "3M"}};

    //  needed to link the ibors in case bond is a floater
    std::map<std::string, Handle<YieldTermStructure>> iborCurveMapping;
    for (auto const& c : segment->iborIndexCurves()) {
        auto index = parseIborIndex(c.first);
        auto key = yieldCurveKey(index->currency(), c.second, asofDate_);
        auto y = requiredYieldCurves_.find(key);
        QL_REQUIRE(y != requiredYieldCurves_.end(), "required ibor curve '" << key << "' for iborIndex '" << c.first
                                                                             << "' not provided");
        iborCurveMapping[c.first] = y->second->handle();
    }

    auto engineFactory = QuantLib::ext::make_shared<EngineFactory>(engineData,
                                                            QuantLib::ext::make_shared<FittedBondCurveHelperMarket>(iborCurveMapping),
                                                            std::map<MarketContext, string>(),
                                                            referenceData_,
                                                            iborFallbackConfig_);

    QL_REQUIRE(quoteIDs.size() > 0, "at least one bond for shifting of the reference curve required.");

    std::vector<Real> bondYields, bondDurations;

    for (Size b = 0; b < quoteIDs.size(); ++b) {

        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(quoteIDs[b], asofDate_);

        QL_REQUIRE(marketQuote != nullptr,"no quotes for the bond " << quoteIDs[b].first << " found. this is unexpected");

        QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::BOND && marketQuote->quoteType() == MarketDatum::QuoteType::PRICE,
                "Market quote not of type Bond / Price.");
        QuantLib::ext::shared_ptr<BondPriceQuote> bondQuote = QuantLib::ext::dynamic_pointer_cast<BondPriceQuote>(marketQuote);
        QL_REQUIRE(bondQuote, "market quote has type bond quote, but can not be casted, this is unexpected.");
        auto m = [bondQuote](Real x) { return x * 100.0; };
        Handle<Quote> rescaledBondQuote(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(bondQuote->quote(), m));

        securityID = bondQuote->securityID();
        QL_REQUIRE(referenceData_ != nullptr, "reference data required to build bond yield shifted curve");

        auto res = BondFactory::instance().build(engineFactory, referenceData_, securityID);
        auto qlInstr = res.bond;
        auto inflationQuoteFactor = res.inflationFactor();

        // skip bonds with settlement date <= curve reference date or which are otherwise non-tradeable
        if (qlInstr->settlementDate() > asofDate_ && QuantLib::BondFunctions::isTradable(*qlInstr)) {

            Date thisMaturity = qlInstr->maturityDate();
            bondYield = qlInstr->yield(rescaledBondQuote->value() * inflationQuoteFactor,
                                                      ActualActual(ActualActual::ISDA), Continuous, NoFrequency);

            thisDuration = QuantLib::BondFunctions::duration(*qlInstr,InterestRate(bondYield,ActualActual(ActualActual::ISDA),Continuous,NoFrequency)
                                                                           ,Duration::Modified,asofDate_);

            DLOG("found bond " << securityID << ", maturity = " << QuantLib::io::iso_date(thisMaturity)
                << ", clean price = " << rescaledBondQuote->value() * inflationQuoteFactor
                << ", yield (cont,act/act) = " << bondYield
                << ", duration = " << thisDuration);

            bondYields.push_back(bondYield);
            bondDurations.push_back(thisDuration);

            DLOG("calculated duration of the bond " << securityID << " is equal to " << thisDuration)

        } else {

            DLOG("Skipping bond " << securityID
                << ", with settlement date " << QuantLib::io::iso_date(qlInstr->settlementDate())
                << ", isTradable = " << std::boolalpha << QuantLib::BondFunctions::isTradable(*qlInstr));
        }

    }

    p_ = QuantLib::ext::make_shared<BondYieldShiftedCurveTermStructure>(it->second->handle(), bondYields, bondDurations);

}

Here is the call graph for this function:

Here is the caller graph for this function:

getYieldCurve()

QuantLib::ext::shared_ptr< YieldCurve > getYieldCurve ( const std::string &  ccy, const std::string &  id  ) const

private

Return the yield curve with the given id from the requiredYieldCurves_ map.

Definition at line 1373 of file yieldcurve.cpp.

                                                                                                     {
    if (id != curveConfig_->curveID() && !id.empty()) {
        string idLookup = yieldCurveKey(parseCurrency(ccy), id, asofDate_);
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::const_iterator it = requiredYieldCurves_.find(idLookup);
        QL_REQUIRE(it != requiredYieldCurves_.end(), "The curve '" << idLookup
                                                                   << "' required in the building of the curve '"
                                                                   << curveSpec_.name() << "' was not found.");
        return it->second;
    } else {
        return nullptr;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

piecewisecurve()

QuantLib::ext::shared_ptr< YieldTermStructure > piecewisecurve ( vector< QuantLib::ext::shared_ptr< RateHelper > >  instruments )

private

Definition at line 390 of file yieldcurve.cpp.

                                                                                {

    // Ensure that the instruments are sorted. This is done in IterativeBootstrap, but we need
    // a sorted instruments vector in the code here as well.
    std::sort(instruments.begin(), instruments.end(), QuantLib::detail::BootstrapHelperSorter());

    // Get configuration values for bootstrap
    Real accuracy = curveConfig_->bootstrapConfig().accuracy();
    Real globalAccuracy = curveConfig_->bootstrapConfig().globalAccuracy();
    bool dontThrow = curveConfig_->bootstrapConfig().dontThrow();
    Size maxAttempts = curveConfig_->bootstrapConfig().maxAttempts();
    Real maxFactor = curveConfig_->bootstrapConfig().maxFactor();
    Real minFactor = curveConfig_->bootstrapConfig().minFactor();
    Size dontThrowSteps = curveConfig_->bootstrapConfig().dontThrowSteps();

    QuantLib::ext::shared_ptr<YieldTermStructure> yieldts;
    switch (interpolationVariable_) {
    case InterpolationVariable::Zero:
        switch (interpolationMethod_) {
        case InterpolationMethod::Linear: {
            typedef PiecewiseYieldCurve<ZeroYield, Linear, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, Linear(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::LogLinear: {
            typedef PiecewiseYieldCurve<ZeroYield, LogLinear, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, LogLinear(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::NaturalCubic: {
            typedef PiecewiseYieldCurve<ZeroYield, Cubic, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, Cubic(CubicInterpolation::Kruger, true),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::FinancialCubic: {
            typedef PiecewiseYieldCurve<ZeroYield, Cubic, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_,
                Cubic(CubicInterpolation::Kruger, true, CubicInterpolation::SecondDerivative, 0.0,
                      CubicInterpolation::FirstDerivative),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::ConvexMonotone: {
            typedef PiecewiseYieldCurve<ZeroYield, ConvexMonotone, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, ConvexMonotone(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::Hermite: {
             typedef PiecewiseYieldCurve<ZeroYield, Cubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, Cubic(CubicInterpolation::Parabolic),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::CubicSpline: {
             typedef PiecewiseYieldCurve<ZeroYield, Cubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 Cubic(CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::Quadratic: {
             typedef PiecewiseYieldCurve<ZeroYield, QuantExt::Quadratic, QuantExt::IterativeBootstrap> my_curve;
             yieldts =
                 QuantLib::ext::make_shared<my_curve>(
                    asofDate_, instruments, zeroDayCounter_, QuantExt::Quadratic(1, 0, 1, 0, 1),
                    my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                           minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogQuadratic: {
             typedef PiecewiseYieldCurve<ZeroYield, QuantExt::LogQuadratic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, QuantExt::LogQuadratic(1, 0, -1, 0, 1),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogNaturalCubic: {
             typedef PiecewiseYieldCurve<ZeroYield, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, LogCubic(CubicInterpolation::Kruger, true),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogFinancialCubic: {
             typedef PiecewiseYieldCurve<ZeroYield, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogCubic(CubicInterpolation::Kruger, true, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::FirstDerivative),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::LogCubicSpline: {
             typedef PiecewiseYieldCurve<ZeroYield, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogCubic(CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                          CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::DefaultLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<ZeroYield, DefaultLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, DefaultLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::MonotonicLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<ZeroYield, MonotonicLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, MonotonicLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::KrugerLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<ZeroYield, KrugerLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, KrugerLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogMixedLinearCubicNaturalSpline: {
             typedef PiecewiseYieldCurve<ZeroYield, LogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogMixedLinearCubic(mixedInterpolationSize_, MixedInterpolation::ShareRanges,
                                     CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                                     CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
        default:
            QL_FAIL("Interpolation method '" << interpolationMethod_ << "' not recognised.");
        }
        break;
    case InterpolationVariable::Discount:
        switch (interpolationMethod_) {
        case InterpolationMethod::Linear: {
            typedef PiecewiseYieldCurve<Discount, Linear, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, Linear(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::LogLinear: {
            typedef PiecewiseYieldCurve<Discount, LogLinear, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, LogLinear(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::NaturalCubic: {
            typedef PiecewiseYieldCurve<Discount, Cubic, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, Cubic(CubicInterpolation::Kruger, true),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::FinancialCubic: {
            typedef PiecewiseYieldCurve<Discount, Cubic, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_,
                Cubic(CubicInterpolation::Kruger, true, CubicInterpolation::SecondDerivative, 0.0,
                      CubicInterpolation::FirstDerivative),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::ConvexMonotone: {
            typedef PiecewiseYieldCurve<Discount, ConvexMonotone, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, ConvexMonotone(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::Hermite: {
             typedef PiecewiseYieldCurve<Discount, Cubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, Cubic(CubicInterpolation::Parabolic),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::CubicSpline: {
             typedef PiecewiseYieldCurve<Discount, Cubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 Cubic(CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::Quadratic: {
             typedef PiecewiseYieldCurve<Discount, QuantExt::Quadratic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, QuantExt::Quadratic(1, 0, 1, 0, 1),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogQuadratic: {
             typedef PiecewiseYieldCurve<Discount, QuantExt::LogQuadratic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, QuantExt::LogQuadratic(1, 0, -1, 0, 1),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogNaturalCubic: {
             typedef PiecewiseYieldCurve<Discount, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, LogCubic(CubicInterpolation::Kruger, true),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogFinancialCubic: {
             typedef PiecewiseYieldCurve<Discount, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 QuantLib::LogCubic(CubicInterpolation::Kruger, true, CubicInterpolation::SecondDerivative, 0.0,
                                 CubicInterpolation::FirstDerivative),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::LogCubicSpline: {
             typedef PiecewiseYieldCurve<Discount,LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogCubic(CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::DefaultLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<Discount, DefaultLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, DefaultLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::MonotonicLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<Discount, MonotonicLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, MonotonicLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::KrugerLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<Discount, KrugerLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, KrugerLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogMixedLinearCubicNaturalSpline: {
             typedef PiecewiseYieldCurve<Discount, LogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogMixedLinearCubic(mixedInterpolationSize_, MixedInterpolation::ShareRanges,
                                     CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                                     CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
        default:
            QL_FAIL("Interpolation method '" << interpolationMethod_ << "' not recognised.");
        }
        break;
    case InterpolationVariable::Forward:
        switch (interpolationMethod_) {
        case InterpolationMethod::Linear: {
            typedef PiecewiseYieldCurve<ForwardRate, Linear, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, Linear(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::LogLinear: {
            typedef PiecewiseYieldCurve<ForwardRate, LogLinear, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, LogLinear(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::NaturalCubic: {
            typedef PiecewiseYieldCurve<ForwardRate, Cubic, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, Cubic(CubicInterpolation::Kruger, true),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::FinancialCubic: {
            typedef PiecewiseYieldCurve<ForwardRate, Cubic, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_,
                Cubic(CubicInterpolation::Kruger, true, CubicInterpolation::SecondDerivative, 0.0,
                      CubicInterpolation::FirstDerivative),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::ConvexMonotone: {
            typedef PiecewiseYieldCurve<ForwardRate, ConvexMonotone, QuantExt::IterativeBootstrap> my_curve;
            yieldts = QuantLib::ext::make_shared<my_curve>(
                asofDate_, instruments, zeroDayCounter_, ConvexMonotone(),
                my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                       minFactor, dontThrowSteps));
        } break;
        case InterpolationMethod::Hermite: {
             typedef PiecewiseYieldCurve<ForwardRate, Cubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, Cubic(CubicInterpolation::Parabolic),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::CubicSpline: {
             typedef PiecewiseYieldCurve<ForwardRate, Cubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 Cubic(CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::Quadratic: {
             typedef PiecewiseYieldCurve<ForwardRate, QuantExt::Quadratic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, QuantExt::Quadratic(1, 0, 1, 0, 1),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogQuadratic: {
             typedef PiecewiseYieldCurve<ForwardRate, QuantExt::LogQuadratic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, QuantExt::LogQuadratic(1, 0, -1, 0, 1),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogNaturalCubic: {
             typedef PiecewiseYieldCurve<ForwardRate, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, LogCubic(CubicInterpolation::Kruger, true),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::LogFinancialCubic: {
             typedef PiecewiseYieldCurve<ForwardRate, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogCubic(CubicInterpolation::Kruger, true, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::FirstDerivative),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::LogCubicSpline: {
             typedef PiecewiseYieldCurve<ForwardRate, LogCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogCubic(CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                       CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor, minFactor,
                                          dontThrowSteps));
         } break;
         case InterpolationMethod::DefaultLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<ForwardRate, DefaultLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, DefaultLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::MonotonicLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<ForwardRate, MonotonicLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, MonotonicLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::KrugerLogMixedLinearCubic: {
             typedef PiecewiseYieldCurve<ForwardRate, KrugerLogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_, KrugerLogMixedLinearCubic(mixedInterpolationSize_),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
         case InterpolationMethod::LogMixedLinearCubicNaturalSpline: {
             typedef PiecewiseYieldCurve<ForwardRate, LogMixedLinearCubic, QuantExt::IterativeBootstrap> my_curve;
             yieldts = QuantLib::ext::make_shared<my_curve>(
                 asofDate_, instruments, zeroDayCounter_,
                 LogMixedLinearCubic(mixedInterpolationSize_, MixedInterpolation::ShareRanges,
                                     CubicInterpolation::Spline, false, CubicInterpolation::SecondDerivative, 0.0,
                                     CubicInterpolation::SecondDerivative, 0.0),
                 my_curve::bootstrap_type(accuracy, globalAccuracy, dontThrow, maxAttempts, maxFactor,
                                                        minFactor, dontThrowSteps));
         } break;
        default:
            QL_FAIL("Interpolation method '" << interpolationMethod_ << "' not recognised.");
        }
        break;
    default:
        QL_FAIL("Interpolation variable not recognised.");
    }

    if (preserveQuoteLinkage_)
        p_ = yieldts;
    else {
        // Build fixed zero/discount curve that matches the bootstrapped curve
        // initially, but does NOT react to quote changes: This is a workaround
        // for a QuantLib problem, where a fixed reference date piecewise
        // yield curve reacts to evaluation date changes because the bootstrap
        // helper recompute their start date (because they are relative date
        // helper for deposits, fras, swaps, etc.).
        vector<Date> dates(instruments.size() + 1, asofDate_);
        vector<Real> zeros(instruments.size() + 1, 0.0);
        vector<Real> discounts(instruments.size() + 1, 1.0);
        vector<Real> forwards(instruments.size() + 1, 0.0);

        if (extrapolation_) {
            yieldts->enableExtrapolation();
        }
        for (Size i = 0; i < instruments.size(); i++) {
            dates[i + 1] = instruments[i]->pillarDate();
            zeros[i + 1] = yieldts->zeroRate(dates[i + 1], zeroDayCounter_, Continuous);
            discounts[i + 1] = yieldts->discount(dates[i + 1]);
            forwards[i + 1] = yieldts->forwardRate(dates[i + 1], dates[i + 1], zeroDayCounter_, Continuous);
        }
        zeros[0] = zeros[1];
        forwards[0] = forwards[1];
        if (interpolationVariable_ == InterpolationVariable::Zero)
            p_ = zerocurve(dates, zeros, zeroDayCounter_, interpolationMethod_, mixedInterpolationSize_);
        else if (interpolationVariable_ == InterpolationVariable::Discount)
            p_ = discountcurve(dates, discounts, zeroDayCounter_, interpolationMethod_, mixedInterpolationSize_);
        else if (interpolationVariable_ == InterpolationVariable::Forward)
            p_ = forwardcurve(dates, forwards, zeroDayCounter_, interpolationMethod_, mixedInterpolationSize_);
        else
            QL_FAIL("Interpolation variable not recognised.");
    }

    // set calibration info
    if (buildCalibrationInfo_) {
        calibrationInfo_ = QuantLib::ext::make_shared<PiecewiseYieldCurveCalibrationInfo>();
        for (Size i = 0; i < instruments.size(); ++i) {
            calibrationInfo_->pillarDates.push_back(instruments[i]->pillarDate());
        }
    }

    return p_;
}

Here is the call graph for this function:

Here is the caller graph for this function:

addDeposits()

void addDeposits ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 1718 of file yieldcurve.cpp.

                                                                                     {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::Deposit,
               "Conventions ID does not give deposit rate conventions.");
    QuantLib::ext::shared_ptr<DepositConvention> depositConvention = QuantLib::ext::dynamic_pointer_cast<DepositConvention>(convention);

    QuantLib::ext::shared_ptr<SimpleYieldCurveSegment> depositSegment =
        QuantLib::ext::dynamic_pointer_cast<SimpleYieldCurveSegment>(segment);
    auto depositQuoteIDs = depositSegment->quotes();

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "Deposit segment does not support pillar choice " << segment->pillarChoice());
    for (Size i = 0; i < depositQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(depositQuoteIDs[i], asofDate_);

        // Check that we have a valid deposit quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<MoneyMarketQuote> depositQuote;
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::MM,
                       "Market quote not of type Deposit.");
            depositQuote = QuantLib::ext::dynamic_pointer_cast<MoneyMarketQuote>(marketQuote);

            // Create a deposit helper if we do.
            QuantLib::ext::shared_ptr<RateHelper> depositHelper;
            Period depositTerm = depositQuote->term();
            Period fwdStart = depositQuote->fwdStart();
            Natural fwdStartDays = static_cast<Natural>(fwdStart.length());
            Handle<Quote> hQuote(depositQuote->quote());

            QL_REQUIRE(fwdStart.units() == Days, "The forward start time unit for deposits "
                                                 "must be expressed in days.");

            if (depositConvention->indexBased()) {
                // indexName will have the form ccy-name so examples would be:
                // EUR-EONIA, USD-FedFunds, EUR-EURIBOR, USD-LIBOR, etc.
                string indexName = depositConvention->index();
                QuantLib::ext::shared_ptr<IborIndex> index;
                if (isOvernightIndex(indexName)) {
                    // No need for the term here
                    index = parseIborIndex(indexName);
                } else {
                    // Note that a depositTerm with units Days here could end up as a string with another unit
                    // For example:
                    // 7 * Days will go to ccy-tenor-1W - CNY IR index is a case
                    // 28 * Days will go to ccy-tenor-4W - MXN TIIE is a case
                    // parseIborIndex should be able to handle this for appropriate depositTerm values
                    stringstream ss;
                    ss << indexName << "-" << io::short_period(depositTerm);
                    indexName = ss.str();
                    index = parseIborIndex(indexName);
                }
                depositHelper = QuantLib::ext::make_shared<DepositRateHelper>(
                    hQuote, depositTerm, fwdStartDays, index->fixingCalendar(), index->businessDayConvention(),
                    index->endOfMonth(), index->dayCounter());
            } else {
                depositHelper = QuantLib::ext::make_shared<DepositRateHelper>(
                    hQuote, depositTerm, fwdStartDays, depositConvention->calendar(), depositConvention->convention(),
                    depositConvention->eom(), depositConvention->dayCounter());
            }
            instruments.push_back(depositHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addFutures()

void addFutures ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 1789 of file yieldcurve.cpp.

                                                                                    {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::Future,
               "Conventions ID does not give deposit rate conventions.");
    QuantLib::ext::shared_ptr<FutureConvention> futureConvention = QuantLib::ext::dynamic_pointer_cast<FutureConvention>(convention);

    QuantLib::ext::shared_ptr<SimpleYieldCurveSegment> futureSegment =
        QuantLib::ext::dynamic_pointer_cast<SimpleYieldCurveSegment>(segment);
    auto futureQuoteIDs = futureSegment->quotes();

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "Future segment does not support pillar choice " << segment->pillarChoice());
    for (Size i = 0; i < futureQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(futureQuoteIDs[i], asofDate_);

        // Check that we have a valid future quote
        if (marketQuote) {

            if (auto on = QuantLib::ext::dynamic_pointer_cast<OvernightIndex>(futureConvention->index())) {
                // Overnight Index Future
                QuantLib::ext::shared_ptr<OIFutureQuote> futureQuote;
                QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::OI_FUTURE,
                           "Market quote not of type Overnight Index Future.");
                futureQuote = QuantLib::ext::dynamic_pointer_cast<OIFutureQuote>(marketQuote);

                // check that the tenor of the quote is expressed in months or years, otherwise the date calculations
                // below do not make sense
                QL_REQUIRE(futureQuote->tenor().units() == Months || futureQuote->tenor().units() == Years,
                           "Tenor of future quote (" << futureQuote->name()
                                                     << ") must be expressed in months or years");

                // Create a Overnight index future helper
                Date startDate, endDate;
                if (futureConvention->dateGenerationRule() == FutureConvention::DateGenerationRule::IMM) {
                    Date refEnd = Date(1, futureQuote->expiryMonth(), futureQuote->expiryYear());
                    Date refStart = refEnd - futureQuote->tenor();
                    startDate = IMM::nextDate(refStart, false);
                    endDate = IMM::nextDate(refEnd, false);
                } else if (futureConvention->dateGenerationRule() ==
                           FutureConvention::DateGenerationRule::FirstDayOfMonth) {
                    endDate = Date(1, futureQuote->expiryMonth(), futureQuote->expiryYear()) + 1 * Months;
                    startDate = endDate - futureQuote->tenor();
                }

                if (endDate <= asofDate_) {
                    DLOG("Skipping the " << io::ordinal(i + 1) << " overnight index future instrument because its "
                                         << "end date, " << io::iso_date(endDate)
                                         << ", is on or before the valuation date, " << io::iso_date(asofDate_) << ".");
                    continue;
                }

                QuantLib::ext::shared_ptr<RateHelper> futureHelper = QuantLib::ext::make_shared<OvernightIndexFutureRateHelper>(
                    futureQuote->quote(), startDate, endDate, on, Handle<Quote>(),
                    futureConvention->overnightIndexFutureNettingType());
                instruments.push_back(futureHelper);

                TLOG("adding OI future helper: price=" << futureQuote->quote()->value() << " start=" << startDate
                                                       << " end=" << endDate << " nettingType="
                                                       << futureConvention->overnightIndexFutureNettingType());

            } else {
                // MM Future
                QuantLib::ext::shared_ptr<MMFutureQuote> futureQuote;
                QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::MM_FUTURE,
                           "Market quote not of type Money Market Future.");
                futureQuote = QuantLib::ext::dynamic_pointer_cast<MMFutureQuote>(marketQuote);

                // Create a MM future helper
                QL_REQUIRE(
                    futureConvention->dateGenerationRule() == FutureConvention::DateGenerationRule::IMM,
                    "For MM Futures only 'IMM' is allowed as the date generation rule, check the future convention '"
                        << segment->conventionsID() << "'");
                Date refDate(1, futureQuote->expiryMonth(), futureQuote->expiryYear());
                Date immDate = IMM::nextDate(refDate, false);

                if (immDate < asofDate_) {
                    DLOG("Skipping the " << io::ordinal(i + 1) << " money market future instrument because its "
                                         << "start date, " << io::iso_date(immDate)
                                         << ", is before the valuation date, " << io::iso_date(asofDate_) << ".");
                    continue;
                }

                QuantLib::ext::shared_ptr<RateHelper> futureHelper =
                    QuantLib::ext::make_shared<FuturesRateHelper>(futureQuote->quote(), immDate, futureConvention->index());

                instruments.push_back(futureHelper);
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addFras()

void addFras ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 1887 of file yieldcurve.cpp.

                                                                                 {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::FRA, "Conventions ID does not give FRA conventions.");
    QuantLib::ext::shared_ptr<FraConvention> fraConvention = QuantLib::ext::dynamic_pointer_cast<FraConvention>(convention);

    QuantLib::ext::shared_ptr<SimpleYieldCurveSegment> fraSegment =
        QuantLib::ext::dynamic_pointer_cast<SimpleYieldCurveSegment>(segment);
    auto fraQuoteIDs = fraSegment->quotes();

    for (Size i = 0; i < fraQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(fraQuoteIDs[i], asofDate_);

        // Check that we have a valid FRA quote
        if (marketQuote) {
            QL_REQUIRE((marketQuote->instrumentType() == MarketDatum::InstrumentType::FRA) ||
                           (marketQuote->instrumentType() == MarketDatum::InstrumentType::IMM_FRA),
                       "Market quote not of type FRA.");

            // Create a FRA helper if we do.

            QuantLib::ext::shared_ptr<RateHelper> fraHelper;

            if (marketQuote->instrumentType() == MarketDatum::InstrumentType::IMM_FRA) {
                QuantLib::ext::shared_ptr<ImmFraQuote> immFraQuote;
                immFraQuote = QuantLib::ext::dynamic_pointer_cast<ImmFraQuote>(marketQuote);
                Size imm1 = immFraQuote->imm1();
                Size imm2 = immFraQuote->imm2();
                fraHelper = QuantLib::ext::make_shared<ImmFraRateHelper>(immFraQuote->quote(), imm1, imm2,
                                                                 fraConvention->index(), fraSegment->pillarChoice());
            } else if (marketQuote->instrumentType() == MarketDatum::InstrumentType::FRA) {
                QuantLib::ext::shared_ptr<FRAQuote> fraQuote;
                fraQuote = QuantLib::ext::dynamic_pointer_cast<FRAQuote>(marketQuote);
                Period periodToStart = fraQuote->fwdStart();
                fraHelper = QuantLib::ext::make_shared<FraRateHelper>(fraQuote->quote(), periodToStart, fraConvention->index(),
                                                              fraSegment->pillarChoice());
            } else {
                QL_FAIL("Market quote not of type FRA.");
            }

            instruments.push_back(fraHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addOISs()

void addOISs ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 1938 of file yieldcurve.cpp.

                                                                                 {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::OIS, "Conventions ID does not give OIS conventions.");
    QuantLib::ext::shared_ptr<OisConvention> oisConvention = QuantLib::ext::dynamic_pointer_cast<OisConvention>(convention);

    QuantLib::ext::shared_ptr<SimpleYieldCurveSegment> oisSegment =
        QuantLib::ext::dynamic_pointer_cast<SimpleYieldCurveSegment>(segment);

    // If projection curve ID is not the this curve.
    string projectionCurveID = oisSegment->projectionCurveID();
    QuantLib::ext::shared_ptr<OvernightIndex> onIndex = oisConvention->index();
    if (projectionCurveID != curveConfig_->curveID() && !projectionCurveID.empty()) {
        projectionCurveID = yieldCurveKey(currency_, projectionCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> projectionCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(projectionCurveID);
        if (it != requiredYieldCurves_.end()) {
            projectionCurve = it->second;
        } else {
            QL_FAIL("The projection curve, " << projectionCurveID
                                             << ", required in the building "
                                                "of the curve, "
                                             << curveSpec_.name() << ", was not found.");
        }
        onIndex = QuantLib::ext::dynamic_pointer_cast<OvernightIndex>(onIndex->clone(projectionCurve->handle()));
    }

    // BRL CDI overnight needs a specialised rate helper so we use this below to switch
    QuantLib::ext::shared_ptr<BRLCdi> brlCdiIndex = QuantLib::ext::dynamic_pointer_cast<BRLCdi>(onIndex);

    auto oisQuoteIDs = oisSegment->quotes();
    for (Size i = 0; i < oisQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(oisQuoteIDs[i], asofDate_);

        // Check that we have a valid OIS quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<SwapQuote> oisQuote;
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::IR_SWAP,
                       "Market quote (" << marketQuote->name() << ") not of type swap.");
            oisQuote = QuantLib::ext::dynamic_pointer_cast<SwapQuote>(marketQuote);

            // Create a swap helper if we do.
            Period oisTenor = oisQuote->term();
            QuantLib::ext::shared_ptr<RateHelper> oisHelper;
            if (brlCdiIndex) {
                QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
                           "OIS segment for BRL-CDI does not support pillar choice " << segment->pillarChoice());
                oisHelper = QuantLib::ext::make_shared<BRLCdiRateHelper>(
                    oisTenor, oisQuote->quote(), brlCdiIndex,
                    discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(), true);
            } else {

                if (oisQuote->startDate() == Null<Date>() || oisQuote->maturityDate() == Null<Date>())
                    oisHelper = QuantLib::ext::make_shared<QuantExt::OISRateHelper>(
                        oisConvention->spotLag(), oisTenor, oisQuote->quote(), onIndex, oisConvention->fixedDayCounter(),
                        oisConvention->fixedCalendar(), oisConvention->paymentLag(), oisConvention->eom(),
                        oisConvention->fixedFrequency(), oisConvention->fixedConvention(),
                        oisConvention->fixedPaymentConvention(), oisConvention->rule(),
                        discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(), true,
                        oisSegment->pillarChoice());
                else {
                    oisHelper = QuantLib::ext::make_shared<QuantExt::DatedOISRateHelper>(oisQuote->startDate(),
                        oisQuote->maturityDate(), oisQuote->quote(), onIndex, oisConvention->fixedDayCounter(),
                        oisConvention->fixedCalendar(), oisConvention->paymentLag(),
                        oisConvention->fixedFrequency(), oisConvention->fixedConvention(),
                        oisConvention->fixedPaymentConvention(), oisConvention->rule(),
                        discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(), true,
                        oisSegment->pillarChoice());
                }
            }
            instruments.push_back(oisHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addSwaps()

void addSwaps ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2020 of file yieldcurve.cpp.

                                                                                  {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::Swap, "Conventions ID does not give swap conventions.");
    QuantLib::ext::shared_ptr<IRSwapConvention> swapConvention = QuantLib::ext::dynamic_pointer_cast<IRSwapConvention>(convention);

    QuantLib::ext::shared_ptr<SimpleYieldCurveSegment> swapSegment =
        QuantLib::ext::dynamic_pointer_cast<SimpleYieldCurveSegment>(segment);
    if (swapSegment->projectionCurveID() != curveConfig_->curveID() && !swapSegment->projectionCurveID().empty()) {
        QL_FAIL("Solving for discount curve given the projection"
                " curve is not implemented yet");
    }
    auto swapQuoteIDs = swapSegment->quotes();

    for (Size i = 0; i < swapQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(swapQuoteIDs[i], asofDate_);

        // Check that we have a valid swap quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<SwapQuote> swapQuote;
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::IR_SWAP,
                       "Market quote not of type swap.");
            swapQuote = QuantLib::ext::dynamic_pointer_cast<SwapQuote>(marketQuote);
            QL_REQUIRE(swapQuote->startDate() == Null<Date>(),
                       "swap quote with fixed start date is not supported for ibor / subperiods swap instruments");
            // Create a swap helper if we do.
            Period swapTenor = swapQuote->term();
            QuantLib::ext::shared_ptr<RateHelper> swapHelper;
            if (swapConvention->hasSubPeriod()) {
                QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
                           "Subperiod Swap segment does not support pillar choice " << segment->pillarChoice());
                swapHelper = QuantLib::ext::make_shared<SubPeriodsSwapHelper>(
                    swapQuote->quote(), swapTenor, Period(swapConvention->fixedFrequency()),
                    swapConvention->fixedCalendar(), swapConvention->fixedDayCounter(),
                    swapConvention->fixedConvention(), Period(swapConvention->floatFrequency()),
                    swapConvention->index(), swapConvention->index()->dayCounter(),
                    discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(),
                    swapConvention->subPeriodsCouponType());
            } else {
                swapHelper = QuantLib::ext::make_shared<SwapRateHelper>(
                    swapQuote->quote(), swapTenor, swapConvention->fixedCalendar(), swapConvention->fixedFrequency(),
                    swapConvention->fixedConvention(), swapConvention->fixedDayCounter(), swapConvention->index(),
                    Handle<Quote>(), 0 * Days, discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(),
                    Null<Natural>(), swapSegment->pillarChoice());
            }

            instruments.push_back(swapHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addAverageOISs()

void addAverageOISs ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2077 of file yieldcurve.cpp.

                                                                                        {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::AverageOIS,
               "Conventions ID does not give average OIS conventions.");
    QuantLib::ext::shared_ptr<AverageOisConvention> averageOisConvention =
        QuantLib::ext::dynamic_pointer_cast<AverageOisConvention>(convention);

    QuantLib::ext::shared_ptr<AverageOISYieldCurveSegment> averageOisSegment =
        QuantLib::ext::dynamic_pointer_cast<AverageOISYieldCurveSegment>(segment);

    // If projection curve ID is not the this curve.
    string projectionCurveID = averageOisSegment->projectionCurveID();
    QuantLib::ext::shared_ptr<OvernightIndex> onIndex = averageOisConvention->index();
    if (projectionCurveID != curveConfig_->curveID() && !projectionCurveID.empty()) {
        projectionCurveID = yieldCurveKey(currency_, projectionCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> projectionCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(projectionCurveID);
        if (it != requiredYieldCurves_.end()) {
            projectionCurve = it->second;
        } else {
            QL_FAIL("The projection curve, " << projectionCurveID
                                             << ", required in the building "
                                                "of the curve, "
                                             << curveSpec_.name() << ", was not found.");
        }
        onIndex = QuantLib::ext::dynamic_pointer_cast<OvernightIndex>(onIndex->clone(projectionCurve->handle()));
    }

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "Average OIS segment does not support pillar choice " << segment->pillarChoice());
    auto averageOisQuoteIDs = averageOisSegment->quotes();
    for (Size i = 0; i < averageOisQuoteIDs.size(); i += 2) {
        // we are assuming i = spread, i+1 = rate
        QL_REQUIRE(i % 2 == 0, "i is not even");
        /* An average OIS quote is a composite of a swap quote and a basis
           spread quote. Check first that we have these. */
        // Firstly, the rate quote.
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(averageOisQuoteIDs[i], asofDate_);
        QuantLib::ext::shared_ptr<SwapQuote> swapQuote;
        if (marketQuote) {
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::IR_SWAP,
                       "Market quote not of type swap.");
            swapQuote = QuantLib::ext::dynamic_pointer_cast<SwapQuote>(marketQuote);
            QL_REQUIRE(swapQuote->startDate() == Null<Date>(),
                       "swap quote with fixed start date is not supported for average ois instrument");

            // Secondly, the basis spread quote.
            marketQuote = loader_.get(averageOisQuoteIDs[i + 1], asofDate_);
            QuantLib::ext::shared_ptr<BasisSwapQuote> basisQuote;
            if (marketQuote) {
                QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::BASIS_SWAP,
                           "Market quote not of type basis swap.");
                basisQuote = QuantLib::ext::dynamic_pointer_cast<BasisSwapQuote>(marketQuote);

                // Create an average OIS helper if we do.
                Period AverageOisTenor = swapQuote->term();
                QL_REQUIRE(AverageOisTenor == basisQuote->maturity(),
                           "The swap "
                           "and basis swap components of the Average OIS must "
                           "have the same maturity.");
                QuantLib::ext::shared_ptr<RateHelper> averageOisHelper(new QuantExt::AverageOISRateHelper(
                    swapQuote->quote(), averageOisConvention->spotLag() * Days, AverageOisTenor,
                    averageOisConvention->fixedTenor(), averageOisConvention->fixedDayCounter(),
                    averageOisConvention->fixedCalendar(), averageOisConvention->fixedConvention(),
                    averageOisConvention->fixedPaymentConvention(), onIndex, averageOisConvention->onTenor(),
                    basisQuote->quote(), averageOisConvention->rateCutoff(),
                    discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(), true));

                instruments.push_back(averageOisHelper);
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addTenorBasisSwaps()

void addTenorBasisSwaps ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2159 of file yieldcurve.cpp.

                                                                                            {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::TenorBasisSwap,
               "Conventions ID does not give tenor basis swap conventions.");
    QuantLib::ext::shared_ptr<TenorBasisSwapConvention> basisSwapConvention =
        QuantLib::ext::dynamic_pointer_cast<TenorBasisSwapConvention>(convention);

    QuantLib::ext::shared_ptr<TenorBasisYieldCurveSegment> basisSwapSegment =
        QuantLib::ext::dynamic_pointer_cast<TenorBasisYieldCurveSegment>(segment);

    // If short index projection curve ID is not this curve.
    string receiveCurveID = basisSwapSegment->receiveProjectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> receiveIndex = basisSwapConvention->receiveIndex();
    if (receiveCurveID != curveConfig_->curveID() && !receiveCurveID.empty()) {
        receiveCurveID = yieldCurveKey(currency_, receiveCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> shortCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(receiveCurveID);
        if (it != requiredYieldCurves_.end()) {
            shortCurve = it->second;
        } else {
            QL_FAIL("The short side projection curve, " << receiveCurveID
                                                        << ", required in the building "
                                                           "of the curve, "
                                                        << curveSpec_.name() << ", was not found.");
        }
        receiveIndex = receiveIndex->clone(shortCurve->handle());
    }

    // If long index projection curve ID is not this curve.
    string payCurveID = basisSwapSegment->payProjectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> payIndex = basisSwapConvention->payIndex();
    if (payCurveID != curveConfig_->curveID() && !payCurveID.empty()) {
        payCurveID = yieldCurveKey(currency_, payCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> longCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(payCurveID);
        if (it != requiredYieldCurves_.end()) {
            longCurve = it->second;
        } else {
            QL_FAIL("The long side projection curve, " << payCurveID
                                                       << ", required in the building "
                                                          "of the curve, "
                                                       << curveSpec_.name() << ", was not found.");
        }
        payIndex = payIndex->clone(longCurve->handle());
    }

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "Tenor basis swap segment does not support pillar choice " << segment->pillarChoice());
    auto basisSwapQuoteIDs = basisSwapSegment->quotes();
    for (Size i = 0; i < basisSwapQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(basisSwapQuoteIDs[i], asofDate_);

        // Check that we have a valid basis swap quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<BasisSwapQuote> basisSwapQuote;
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::BASIS_SWAP,
                       "Market quote not of type basis swap.");
            basisSwapQuote = QuantLib::ext::dynamic_pointer_cast<BasisSwapQuote>(marketQuote);

            // Create a tenor basis swap helper if we do.
            Period basisSwapTenor = basisSwapQuote->maturity();
            QuantLib::ext::shared_ptr<RateHelper> basisSwapHelper;
            bool telescopicValueDates = true;
            basisSwapHelper.reset(
                new TenorBasisSwapHelper(basisSwapQuote->quote(), basisSwapTenor, payIndex, receiveIndex,
                                         discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>(),
                                         basisSwapConvention->spreadOnRec(), basisSwapConvention->includeSpread(),
                                         basisSwapConvention->payFrequency(), basisSwapConvention->receiveFrequency(),
                                         telescopicValueDates, basisSwapConvention->subPeriodsCouponType()));

            instruments.push_back(basisSwapHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addTenorBasisTwoSwaps()

void addTenorBasisTwoSwaps ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2243 of file yieldcurve.cpp.

                                                                                               {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::TenorBasisTwoSwap,
               "Conventions ID does not give tenor basis two swap conventions.");
    QuantLib::ext::shared_ptr<TenorBasisTwoSwapConvention> basisSwapConvention =
        QuantLib::ext::dynamic_pointer_cast<TenorBasisTwoSwapConvention>(convention);

    QuantLib::ext::shared_ptr<TenorBasisYieldCurveSegment> basisSwapSegment =
        QuantLib::ext::dynamic_pointer_cast<TenorBasisYieldCurveSegment>(segment);

    // If short index projection curve ID is not this curve.
    string shortCurveID = basisSwapSegment->receiveProjectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> shortIndex = basisSwapConvention->shortIndex();
    if (shortCurveID != curveConfig_->curveID() && !shortCurveID.empty()) {
        shortCurveID = yieldCurveKey(currency_, shortCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> shortCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(shortCurveID);
        if (it != requiredYieldCurves_.end()) {
            shortCurve = it->second;
        } else {
            QL_FAIL("The short side projection curve, " << shortCurveID
                                                        << ", required in the building "
                                                           "of the curve, "
                                                        << curveSpec_.name() << ", was not found.");
        }
        shortIndex = shortIndex->clone(shortCurve->handle());
    }

    // If long index projection curve ID is not this curve.
    string longCurveID = basisSwapSegment->payProjectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> longIndex = basisSwapConvention->longIndex();
    if (longCurveID != curveConfig_->curveID() && !longCurveID.empty()) {
        longCurveID = yieldCurveKey(currency_, longCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> longCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(longCurveID);
        if (it != requiredYieldCurves_.end()) {
            longCurve = it->second;
        } else {
            QL_FAIL("The projection curve, " << longCurveID
                                             << ", required in the building "
                                                "of the curve, "
                                             << curveSpec_.name() << ", was not found.");
        }
        longIndex = longIndex->clone(longCurve->handle());
    }

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "Tenor basis two swap segment does not support pillar choice " << segment->pillarChoice());
    auto basisSwapQuoteIDs = basisSwapSegment->quotes();
    for (Size i = 0; i < basisSwapQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(basisSwapQuoteIDs[i], asofDate_);

        // Check that we have a valid basis swap quote
        QuantLib::ext::shared_ptr<BasisSwapQuote> basisSwapQuote;
        if (marketQuote) {
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::BASIS_SWAP,
                       "Market quote not of type basis swap.");
            basisSwapQuote = QuantLib::ext::dynamic_pointer_cast<BasisSwapQuote>(marketQuote);

            // Create a tenor basis swap helper if we do.
            Period basisSwapTenor = basisSwapQuote->maturity();
            QuantLib::ext::shared_ptr<RateHelper> basisSwapHelper(new BasisTwoSwapHelper(
                basisSwapQuote->quote(), basisSwapTenor, basisSwapConvention->calendar(),
                basisSwapConvention->longFixedFrequency(), basisSwapConvention->longFixedConvention(),
                basisSwapConvention->longFixedDayCounter(), longIndex, basisSwapConvention->shortFixedFrequency(),
                basisSwapConvention->shortFixedConvention(), basisSwapConvention->shortFixedDayCounter(), shortIndex,
                basisSwapConvention->longMinusShort(),
                discountCurve_ ? discountCurve_->handle() : Handle<YieldTermStructure>()));

            instruments.push_back(basisSwapHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addBMABasisSwaps()

void addBMABasisSwaps ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2326 of file yieldcurve.cpp.

                                                                                          {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::BMABasisSwap,
               "Conventions ID does not give bma basis swap conventions.");
    QuantLib::ext::shared_ptr<BMABasisSwapConvention> bmaBasisSwapConvention =
        QuantLib::ext::dynamic_pointer_cast<BMABasisSwapConvention>(convention);

    QuantLib::ext::shared_ptr<SimpleYieldCurveSegment> bmaBasisSwapSegment =
        QuantLib::ext::dynamic_pointer_cast<SimpleYieldCurveSegment>(segment);
    QL_REQUIRE(bmaBasisSwapSegment, "BMA basis swap segment of " + curveSpec_.ccy() + "/" + curveSpec_.curveConfigID() +
                                        " did not successfully cast to a BMA basis swap yield curve segment!");

    // TODO: should be checking here whether or not the bma index is forwarding on this curve. either way, we make sure!
    QuantLib::ext::shared_ptr<BMAIndexWrapper> bmaIndex = bmaBasisSwapConvention->bmaIndex();
    bmaIndex = dynamic_pointer_cast<BMAIndexWrapper>(bmaIndex->clone(handle()));

    // If libor index projection curve ID is not this curve.
    string liborCurveID = bmaBasisSwapSegment->projectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> liborIndex = bmaBasisSwapConvention->liborIndex();
    liborCurveID = yieldCurveKey(currency_, liborCurveID, asofDate_);
    QuantLib::ext::shared_ptr<YieldCurve> liborCurve;
    map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
    it = requiredYieldCurves_.find(liborCurveID);
    if (it != requiredYieldCurves_.end()) {
        liborCurve = it->second;
    } else {
        QL_FAIL("The libor side projection curve, " << liborCurveID
                                                    << ", required in the building "
                                                       "of the curve, "
                                                    << curveSpec_.name() << ", was not found.");
    }
    liborIndex = liborIndex->clone(liborCurve->handle());

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "BMA swap segment does not support pillar choice " << segment->pillarChoice());
    auto bmaBasisSwapQuoteIDs = bmaBasisSwapSegment->quotes();
    for (Size i = 0; i < bmaBasisSwapQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(bmaBasisSwapQuoteIDs[i], asofDate_);

        // Check that we have a valid bma basis swap quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<BMASwapQuote> bmaBasisSwapQuote;
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::BMA_SWAP,
                       "Market quote not of type bma swap.");
            QL_REQUIRE(marketQuote->quoteType() == MarketDatum::QuoteType::RATIO, "Market quote not of type ratio.");
            bmaBasisSwapQuote = QuantLib::ext::dynamic_pointer_cast<BMASwapQuote>(marketQuote);

            // Create bma basis swap helper if we do.
            QuantLib::ext::shared_ptr<RateHelper> bmaSwapHelper;
            bmaSwapHelper.reset(new BMASwapRateHelper(bmaBasisSwapQuote->quote(), bmaBasisSwapQuote->maturity(),
                                                      bmaIndex->fixingDays(), bmaIndex->fixingCalendar(),
                                                      bmaBasisSwapQuote->term(), bmaIndex->businessDayConvention(),
                                                      bmaIndex->dayCounter(), bmaIndex->bma(), liborIndex));
            instruments.push_back(bmaSwapHelper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addFXForwards()

void addFXForwards ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2391 of file yieldcurve.cpp.

                                                                                       {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::FX, "Conventions ID does not give FX forward conventions.");

    QuantLib::ext::shared_ptr<FXConvention> fxConvention = QuantLib::ext::dynamic_pointer_cast<FXConvention>(convention);

    QuantLib::ext::shared_ptr<CrossCcyYieldCurveSegment> fxForwardSegment =
        QuantLib::ext::dynamic_pointer_cast<CrossCcyYieldCurveSegment>(segment);

    /* Need to retrieve the discount curve in the other currency. These are called the known discount
       curve and known discount currency respectively. */
    Currency knownCurrency;
    if (currency_ == fxConvention->sourceCurrency()) {
        knownCurrency = fxConvention->targetCurrency();
    } else if (currency_ == fxConvention->targetCurrency()) {
        knownCurrency = fxConvention->sourceCurrency();
    } else {
        QL_FAIL("One of the currencies in the FX forward bootstrap "
                "instruments needs to match the yield curve currency.");
    }

    string knownDiscountID = fxForwardSegment->foreignDiscountCurveID();
    Handle<YieldTermStructure> knownDiscountCurve;

    if (!knownDiscountID.empty()) {
        knownDiscountID = yieldCurveKey(knownCurrency, knownDiscountID, asofDate_);
        auto it = requiredYieldCurves_.find(knownDiscountID);
        if (it != requiredYieldCurves_.end()) {
            knownDiscountCurve = it->second->handle();
        } else {
            QL_FAIL("The foreign discount curve, " << knownDiscountID
                << ", required in the building "
                "of the curve, "
                << curveSpec_.name() << ", was not found.");
        }
    } else {
        // fall back on the foreign discount curve if no index given
        // look up the inccy discount curve - falls back to defualt if no inccy
        DLOG("YieldCurve::addFXForwards No discount curve provided for building curve " <<
            curveSpec_.name() << ", looking up the inccy curve in the market.")
        knownDiscountCurve = market_->discountCurve(knownCurrency.code(), Market::inCcyConfiguration);
    }


    /* Need to retrieve the market FX spot rate */
    string spotRateID = fxForwardSegment->spotRateID();
    QuantLib::ext::shared_ptr<FXSpotQuote> fxSpotQuote = getFxSpotQuote(spotRateID);

    /* Create an FX spot quote from the retrieved FX spot rate */
    Currency fxSpotSourceCcy = parseCurrency(fxSpotQuote->unitCcy());
    Currency fxSpotTargetCcy = parseCurrency(fxSpotQuote->ccy());

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "FX Forward segment does not support pillar choice " << segment->pillarChoice());
    DLOG("YieldCurve::addFXForwards(), create FX forward quotes and helpers");
    auto fxForwardQuoteIDs = fxForwardSegment->quotes();
    for (Size i = 0; i < fxForwardQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(fxForwardQuoteIDs[i], asofDate_);

        // Check that we have a valid FX forward quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<FXForwardQuote> fxForwardQuote;
            Handle<Quote> spotFx;

            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::FX_FWD,
                       "Market quote not of type FX forward.");
            fxForwardQuote = QuantLib::ext::dynamic_pointer_cast<FXForwardQuote>(marketQuote);

            QL_REQUIRE(fxSpotQuote->unitCcy() == fxForwardQuote->unitCcy() &&
                           fxSpotQuote->ccy() == fxForwardQuote->ccy(),
                       "Currency mismatch between spot \"" << spotRateID << "\" and fwd \""
                                                           << fxForwardQuoteIDs[i].first << "\"");

            // QL expects the FX Fwd quote to be per spot, not points. If the quote is an outright, handle conversion to points convention here.

            Handle<Quote> qlFXForwardQuote;
            if (fxForwardQuote->quoteType() == MarketDatum::QuoteType::PRICE) {
                auto m = [f = fxSpotQuote->quote()->value()](Real x) { return x - f; };
                qlFXForwardQuote =
                    Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(fxForwardQuote->quote(), m));
            } else {
                auto m = [p = fxConvention->pointsFactor()](Real x) { return x / p; };
                qlFXForwardQuote =
                    Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(fxForwardQuote->quote(), m));
            }

            Natural spotDays = fxConvention->spotDays();
            if (matchFxFwdStringTerm(fxForwardQuote->term(), FXForwardQuote::FxFwdString::ON)) {
                // Overnight rate is the spread over todays fx, for settlement on t+1. We need 'todays' rate in order
                // to use this to determine yield curve value at t+1.
                // If spotDays is 0 it is spread over Spot.
                // If spotDays is 1 we can subtract the ON spread from spot to get todays fx.
                // If spotDays is 2 we also need Tomorrow next rate to get todays fx.
                // If spotDays is greater than 2 we can't use this.
                Real tnSpread = Null<Real>();
                Real totalSpread = 0.0;
                switch (spotDays) {
                case 0:
                    spotFx = fxSpotQuote->quote();
                    break;
                case 1: {
                    // TODO: this isn't registeredWith the ON basis quote
                    auto m = [f = qlFXForwardQuote->value()](Real x) { return x - f; };
                    spotFx = Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(fxSpotQuote->quote(), m));
                    break;
                }
                case 2: {
                    // find the TN quote
                    for (auto q : loader_.loadQuotes(asofDate_)) {
                        if (q->instrumentType() == MarketDatum::InstrumentType::FX_FWD) {
                            auto fxq = QuantLib::ext::dynamic_pointer_cast<FXForwardQuote>(q);
                            if (fxq && fxSpotQuote->unitCcy() == fxq->unitCcy() && fxSpotQuote->ccy() == fxq->ccy() &&
                                matchFxFwdStringTerm(fxq->term(), FXForwardQuote::FxFwdString::TN)) {
                                tnSpread = fxq->quote()->value() / fxConvention->pointsFactor();
                                break;
                            }
                        }
                    }
                    if (tnSpread == Null<Real>()) {
                        WLOG("YieldCurve::AddFxForwards cannot use ON rate, when SpotDays are 2 we also require the TN "
                             "rate");
                        continue;
                    }
                    totalSpread = tnSpread + qlFXForwardQuote->value();
                    // TODO: this isn't registeredWith the ON or TN basis quote
                    auto m2 = [totalSpread](Real x) { return x - totalSpread; };
                    spotFx = Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m2)>>(fxSpotQuote->quote(), m2));
                    break;
                }
                default:
                    WLOG("YieldCurve::AddFxForwards cannot use ON rate, when SpotDays are " << spotDays <<
                        ", only valid for SpotDays of 0, 1 or 2.");
                    continue;
                }
            } else if (matchFxFwdStringTerm(fxForwardQuote->term(), FXForwardQuote::FxFwdString::TN)) {
                // TODO: this isn't registeredWith the TN basis quote
                auto m = [f = qlFXForwardQuote->value()](Real x) { return x - f; };
                spotFx = Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(fxSpotQuote->quote(), m));
            } else {
                spotFx = fxSpotQuote->quote();
            }

            Period fxForwardTenor = fxFwdQuoteTenor(fxForwardQuote->term());
            Period fxStartTenor = fxFwdQuoteStartTenor(fxForwardQuote->term(), fxConvention);
            bool isFxBaseCurrencyCollateralCurrency = knownCurrency == fxSpotSourceCcy;

            QuantLib::ext::shared_ptr<RateHelper> fxForwardHelper(new FxSwapRateHelper(
                qlFXForwardQuote, spotFx, fxForwardTenor, fxStartTenor.length(), fxConvention->advanceCalendar(),
                fxConvention->convention(), fxConvention->endOfMonth(), isFxBaseCurrencyCollateralCurrency,
                knownDiscountCurve));

            instruments.push_back(fxForwardHelper);
        }
    }

    DLOG("YieldCurve::addFXForwards() done");
}

Here is the call graph for this function:

Here is the caller graph for this function:

addCrossCcyBasisSwaps()

void addCrossCcyBasisSwaps ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2556 of file yieldcurve.cpp.

                                                                                               {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::CrossCcyBasis, "Conventions ID does not give cross currency "
                                                                      "basis swap conventions.");
    QuantLib::ext::shared_ptr<CrossCcyBasisSwapConvention> basisSwapConvention =
        QuantLib::ext::dynamic_pointer_cast<CrossCcyBasisSwapConvention>(convention);

    /* Is this yield curve on the flat side or spread side */
    bool onFlatSide = (currency_ == basisSwapConvention->flatIndex()->currency());

    QuantLib::ext::shared_ptr<CrossCcyYieldCurveSegment> basisSwapSegment =
        QuantLib::ext::dynamic_pointer_cast<CrossCcyYieldCurveSegment>(segment);

    /* Need to retrieve the market FX spot rate */
    string spotRateID = basisSwapSegment->spotRateID();
    QuantLib::ext::shared_ptr<FXSpotQuote> fxSpotQuote = getFxSpotQuote(spotRateID);

    /* Create an FX spot quote from the retrieved FX spot rate */
    Currency fxSpotSourceCcy = parseCurrency(fxSpotQuote->unitCcy());
    Currency fxSpotTargetCcy = parseCurrency(fxSpotQuote->ccy());

    /* Need to retrieve the discount curve in the other (foreign) currency. */
    string foreignDiscountID = basisSwapSegment->foreignDiscountCurveID();
    Currency foreignCcy = fxSpotSourceCcy == currency_ ? fxSpotTargetCcy : fxSpotSourceCcy;
    Handle<YieldTermStructure> foreignDiscountCurve;
    if (!foreignDiscountID.empty()) {
        foreignDiscountID = yieldCurveKey(foreignCcy, foreignDiscountID, asofDate_);
        auto it = requiredYieldCurves_.find(foreignDiscountID);
        if (it != requiredYieldCurves_.end()) {
            foreignDiscountCurve = it->second->handle();
        } else {
            QL_FAIL("The foreign discount curve, " << foreignDiscountID
                << ", required in the building "
                "of the curve, "
                << curveSpec_.name() << ", was not found.");
        }
    } else {
        // fall back on the foreign discount curve if no index given
        // look up the inccy discount curve - falls back to defualt if no inccy
        DLOG("YieldCurve::addCrossCcyBasisSwaps No discount curve provided for building curve "
             << curveSpec_.name() << ", looking up the inccy curve in the market.")
        foreignDiscountCurve = market_->discountCurve(foreignCcy.code(), Market::inCcyConfiguration);
    }

    /* Need to retrieve the foreign projection curve in the other currency. If its ID is empty,
       set it equal to the foreign discount curve. */
    string foreignProjectionCurveID = basisSwapSegment->foreignProjectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> foreignIndex =
        onFlatSide ? basisSwapConvention->spreadIndex() : basisSwapConvention->flatIndex();
    if (foreignProjectionCurveID.empty()) {
        foreignIndex = foreignIndex->clone(foreignDiscountCurve);
    } else {
        foreignProjectionCurveID = yieldCurveKey(foreignCcy, foreignProjectionCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> foreignProjectionCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(foreignProjectionCurveID);
        if (it != requiredYieldCurves_.end()) {
            foreignProjectionCurve = it->second;
        } else {
            QL_FAIL("The foreign projection curve, " << foreignProjectionCurveID
                                                     << ", required in the building "
                                                        "of the curve, "
                                                     << curveSpec_.name() << ", was not found.");
        }
        foreignIndex = foreignIndex->clone(foreignProjectionCurve->handle());
    }

    // If domestic index projection curve ID is not this curve.
    string domesticProjectionCurveID = basisSwapSegment->domesticProjectionCurveID();
    QuantLib::ext::shared_ptr<IborIndex> domesticIndex =
        onFlatSide ? basisSwapConvention->flatIndex() : basisSwapConvention->spreadIndex();
    if (domesticProjectionCurveID != curveConfig_->curveID() && !domesticProjectionCurveID.empty()) {
        domesticProjectionCurveID = yieldCurveKey(currency_, domesticProjectionCurveID, asofDate_);
        QuantLib::ext::shared_ptr<YieldCurve> domesticProjectionCurve;
        map<string, QuantLib::ext::shared_ptr<YieldCurve>>::iterator it;
        it = requiredYieldCurves_.find(domesticProjectionCurveID);
        if (it != requiredYieldCurves_.end()) {
            domesticProjectionCurve = it->second;
        } else {
            QL_FAIL("The domestic projection curve, " << domesticProjectionCurveID
                                                      << ", required in the"
                                                         " building of the curve, "
                                                      << curveSpec_.name() << ", was not found.");
        }
        domesticIndex = domesticIndex->clone(domesticProjectionCurve->handle());
    }

    /* Arrange the discount curves and indices for use in the helper */
    RelinkableHandle<YieldTermStructure> flatDiscountCurve;
    RelinkableHandle<YieldTermStructure> spreadDiscountCurve;
    QuantLib::ext::shared_ptr<IborIndex> flatIndex;
    QuantLib::ext::shared_ptr<IborIndex> spreadIndex;
    if (onFlatSide) {
        if (discountCurve_) {
            flatDiscountCurve.linkTo(*discountCurve_->handle());
        }
        spreadDiscountCurve.linkTo(*foreignDiscountCurve);
        flatIndex = domesticIndex;
        spreadIndex = foreignIndex;
    } else {
        flatDiscountCurve.linkTo(*foreignDiscountCurve);
        if (discountCurve_) {
            spreadDiscountCurve.linkTo(*discountCurve_->handle());
        }
        flatIndex = foreignIndex;
        spreadIndex = domesticIndex;
    }

    Period flatTenor = basisSwapConvention->flatTenor();
    Period spreadTenor = basisSwapConvention->spreadTenor();

    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "XCcy basis segment does not support pillar choice " << segment->pillarChoice());
    auto basisSwapQuoteIDs = basisSwapSegment->quotes();
    for (Size i = 0; i < basisSwapQuoteIDs.size(); i++) {
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(basisSwapQuoteIDs[i], asofDate_);

        // Check that we have a valid basis swap quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<CrossCcyBasisSwapQuote> basisSwapQuote;
            QL_REQUIRE(marketQuote->instrumentType() == MarketDatum::InstrumentType::CC_BASIS_SWAP,
                       "Market quote not of type cross "
                       "currency basis swap.");
            basisSwapQuote = QuantLib::ext::dynamic_pointer_cast<CrossCcyBasisSwapQuote>(marketQuote);

            // Create a cross currency basis swap helper if we do.
            Period basisSwapTenor = basisSwapQuote->maturity();
            bool isResettableSwap = basisSwapConvention->isResettable();
            if (!isResettableSwap) {
                instruments.push_back(QuantLib::ext::make_shared<CrossCcyBasisSwapHelper>(
                    basisSwapQuote->quote(), fxSpotQuote->quote(), basisSwapConvention->settlementDays(),
                    basisSwapConvention->settlementCalendar(), basisSwapTenor, basisSwapConvention->rollConvention(),
                    flatIndex, spreadIndex, flatDiscountCurve, spreadDiscountCurve, basisSwapConvention->eom(),
                    flatIndex->currency().code() != fxSpotQuote->unitCcy(), flatTenor, spreadTenor, 0.0, 1.0, 1.0,
                    Calendar(), Calendar(), std::vector<Natural>(), std::vector<Calendar>(),
                    basisSwapConvention->paymentLag(), basisSwapConvention->flatPaymentLag(),
                    basisSwapConvention->includeSpread(), basisSwapConvention->lookback(),
                    basisSwapConvention->fixingDays(), basisSwapConvention->rateCutoff(),
                    basisSwapConvention->isAveraged(), basisSwapConvention->flatIncludeSpread(),
                    basisSwapConvention->flatLookback(), basisSwapConvention->flatFixingDays(),
                    basisSwapConvention->flatRateCutoff(), basisSwapConvention->flatIsAveraged(), true));
            } else { // the quote is for a cross currency basis swap with a resetting notional
                bool resetsOnFlatLeg = basisSwapConvention->flatIndexIsResettable();
                // the convention here is to call the resetting leg the "domestic leg",
                // and the constant notional leg the "foreign leg"
                bool spreadOnForeignCcy = resetsOnFlatLeg ? true : false;
                QuantLib::ext::shared_ptr<IborIndex> foreignIndex = resetsOnFlatLeg ? spreadIndex : flatIndex;
                Handle<YieldTermStructure> foreignDiscount = resetsOnFlatLeg ? spreadDiscountCurve : flatDiscountCurve;
                QuantLib::ext::shared_ptr<IborIndex> domesticIndex = resetsOnFlatLeg ? flatIndex : spreadIndex;
                Handle<YieldTermStructure> domesticDiscount = resetsOnFlatLeg ? flatDiscountCurve : spreadDiscountCurve;
                Handle<Quote> finalFxSpotQuote = fxSpotQuote->quote();
                // we might have to flip the given fx spot quote
                if (foreignIndex->currency().code() != fxSpotQuote->unitCcy()) {
                    auto m = [](Real x) { return 1.0 / x; };
                    finalFxSpotQuote =
                        Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(fxSpotQuote->quote(), m));
                }
                Period foreignTenor = resetsOnFlatLeg ? spreadTenor : flatTenor;
                Period domesticTenor = resetsOnFlatLeg ? flatTenor : spreadTenor;

                // Use foreign and dom discount curves for projecting FX forward rates (for e.g. resetting cashflows)
                instruments.push_back(QuantLib::ext::make_shared<CrossCcyBasisMtMResetSwapHelper>(
                    basisSwapQuote->quote(), finalFxSpotQuote, basisSwapConvention->settlementDays(),
                    basisSwapConvention->settlementCalendar(), basisSwapTenor, basisSwapConvention->rollConvention(),
                    foreignIndex, domesticIndex, foreignDiscount, domesticDiscount, Handle<YieldTermStructure>(),
                    Handle<YieldTermStructure>(), basisSwapConvention->eom(), spreadOnForeignCcy, foreignTenor,
                    domesticTenor, basisSwapConvention->paymentLag(), basisSwapConvention->flatPaymentLag(),
                    basisSwapConvention->includeSpread(), basisSwapConvention->lookback(),
                    basisSwapConvention->fixingDays(), basisSwapConvention->rateCutoff(),
                    basisSwapConvention->isAveraged(), basisSwapConvention->flatIncludeSpread(),
                    basisSwapConvention->flatLookback(), basisSwapConvention->flatFixingDays(),
                    basisSwapConvention->flatRateCutoff(), basisSwapConvention->flatIsAveraged(), true));
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addCrossCcyFixFloatSwaps()

void addCrossCcyFixFloatSwaps ( const QuantLib::ext::shared_ptr< YieldCurveSegment > &  segment, vector< QuantLib::ext::shared_ptr< RateHelper > > &  instruments  )

private

Definition at line 2739 of file yieldcurve.cpp.

                                                                                                  {

    DLOG("Adding Segment " << segment->typeID() << " with conventions \"" << segment->conventionsID() << "\"");

    // Get the conventions associated with the segment
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<Convention> convention = conventions->get(segment->conventionsID());
    QL_REQUIRE(convention, "No conventions found with ID: " << segment->conventionsID());
    QL_REQUIRE(convention->type() == Convention::Type::CrossCcyFixFloat,
               "Conventions ID does not give cross currency fix float swap conventions.");
    QuantLib::ext::shared_ptr<CrossCcyFixFloatSwapConvention> swapConvention =
        QuantLib::ext::dynamic_pointer_cast<CrossCcyFixFloatSwapConvention>(convention);

    QL_REQUIRE(swapConvention->fixedCurrency() == currency_,
               "The yield curve currency must "
                   << "equal the cross currency fix float swap's fixed leg currency");

    // Cast the segment
    QuantLib::ext::shared_ptr<CrossCcyYieldCurveSegment> swapSegment =
        QuantLib::ext::dynamic_pointer_cast<CrossCcyYieldCurveSegment>(segment);

    // Retrieve the discount curve on the float leg
    QuantLib::ext::shared_ptr<IborIndex> floatIndex = swapConvention->index();
    Currency floatLegCcy = floatIndex->currency();
    string foreignDiscountID = swapSegment->foreignDiscountCurveID();
    Handle<YieldTermStructure> floatLegDisc;

    QuantLib::ext::shared_ptr<YieldCurve> foreignDiscountCurve;
    if (!foreignDiscountID.empty()) {
        string floatLegDiscId = yieldCurveKey(floatLegCcy, foreignDiscountID, asofDate_);
        auto it = requiredYieldCurves_.find(floatLegDiscId);
        if (it != requiredYieldCurves_.end()) {
            floatLegDisc = it->second->handle();
        } else {
            QL_FAIL("The foreign discount curve, " << floatLegDiscId
                << ", required in the building "
                "of the curve, "
                << curveSpec_.name() << ", was not found.");
        }
    } else {
        // fall back on the foreign discount curve if no index given
        // look up the inccy discount curve - falls back to defualt if no inccy
        DLOG("YieldCurve::addCrossCcyFixFloatSwaps No discount curve provided for building curve "
             << curveSpec_.name() << ", looking up the inccy curve in the market.")
        floatLegDisc = market_->discountCurve(floatLegCcy.code(), Market::inCcyConfiguration);
    }

    // Retrieve the projection curve on the float leg. If empty, use discount curve.
    string floatLegProjId = swapSegment->foreignProjectionCurveID();
    if (floatLegProjId.empty()) {
        floatIndex = floatIndex->clone(floatLegDisc);
    } else {
        floatLegProjId = yieldCurveKey(floatLegCcy, floatLegProjId, asofDate_);
        auto it = requiredYieldCurves_.find(floatLegProjId);
        QL_REQUIRE(it != requiredYieldCurves_.end(), "The projection curve " << floatLegProjId
                                                                             << " required in the building of curve "
                                                                             << curveSpec_.name() << " was not found.");
        floatIndex = floatIndex->clone(it->second->handle());
    }

    // Create the FX spot quote for the helper. The quote needs to be number of units of fixed leg
    // currency for 1 unit of float leg currency. We convert the market quote here if needed.
    string fxSpotId = swapSegment->spotRateID();
    QuantLib::ext::shared_ptr<FXSpotQuote> fxSpotMd = getFxSpotQuote(fxSpotId);
    Currency mdUnitCcy = parseCurrency(fxSpotMd->unitCcy());
    Currency mdCcy = parseCurrency(fxSpotMd->ccy());
    Handle<Quote> fxSpotQuote;
    if (mdUnitCcy == floatLegCcy && mdCcy == currency_) {
        fxSpotQuote = fxSpotMd->quote();
    } else if (mdUnitCcy == currency_ && mdCcy == floatLegCcy) {
    auto m=[](Real x) { return 1.0/x;};
        fxSpotQuote = Handle<Quote>(QuantLib::ext::make_shared<DerivedQuote<decltype(m)>>(fxSpotMd->quote(), m));
    } else {
        QL_FAIL("The FX spot market quote " << mdUnitCcy << "/" << mdCcy << " cannot be used "
                                            << "in the building of the curve " << curveSpec_.name() << ".");
    }

    // Create the helpers
    QL_REQUIRE(segment->pillarChoice() == QuantLib::Pillar::LastRelevantDate,
               "XCcy fix-float basis segment does not support pillar choice " << segment->pillarChoice());
    auto quoteIds = swapSegment->quotes();
    for (Size i = 0; i < quoteIds.size(); i++) {

        // Throws if quote not found
        QuantLib::ext::shared_ptr<MarketDatum> marketQuote = loader_.get(quoteIds[i], asofDate_);

        // Check that we have a valid basis swap quote
        if (marketQuote) {
            QuantLib::ext::shared_ptr<CrossCcyFixFloatSwapQuote> swapQuote =
                QuantLib::ext::dynamic_pointer_cast<CrossCcyFixFloatSwapQuote>(marketQuote);
            QL_REQUIRE(swapQuote, "Market quote should be of type 'CrossCcyFixFloatSwapQuote'");
            bool isResettableSwap = swapConvention->isResettable();
            QuantLib::ext::shared_ptr<RateHelper> helper;
            if (!isResettableSwap) {
                // Create the helper
                helper = QuantLib::ext::make_shared<CrossCcyFixFloatSwapHelper>(
                    swapQuote->quote(), fxSpotQuote, swapConvention->settlementDays(), swapConvention->settlementCalendar(),
                    swapConvention->settlementConvention(), swapQuote->maturity(), currency_,
                    swapConvention->fixedFrequency(), swapConvention->fixedConvention(), swapConvention->fixedDayCounter(),
                    floatIndex, floatLegDisc, Handle<Quote>(), swapConvention->eom());
            } else {
                bool resetsOnFloatLeg = swapConvention->floatIndexIsResettable();
                helper = QuantLib::ext::make_shared<CrossCcyFixFloatMtMResetSwapHelper>(
                    swapQuote->quote(), fxSpotQuote, swapConvention->settlementDays(), swapConvention->settlementCalendar(),
                    swapConvention->settlementConvention(), swapQuote->maturity(), currency_, swapConvention->fixedFrequency(),
                    swapConvention->fixedConvention(), swapConvention->fixedDayCounter(), floatIndex,
                    floatLegDisc, Handle<Quote>(), swapConvention->eom(), resetsOnFloatLeg);
            }
            instruments.push_back(helper);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

getFxSpotQuote()

QuantLib::ext::shared_ptr< FXSpotQuote > getFxSpotQuote ( string  spotId )

private

Definition at line 2853 of file yieldcurve.cpp.

                                                                           {
    // check the spot id, if like FX/RATE/CCY/CCY we go straight to the loader first
    std::vector<string> tokens;
    split(tokens, spotId, boost::is_any_of("/"));

    QuantLib::ext::shared_ptr<FXSpotQuote> fxSpotQuote;
    if (tokens.size() == 4 && tokens[0] == "FX" && tokens[1] == "RATE") {
        if (loader_.has(spotId, asofDate_)) {
            QuantLib::ext::shared_ptr<MarketDatum> fxSpotMarketQuote = loader_.get(spotId, asofDate_);

            if (fxSpotMarketQuote) {
                QL_REQUIRE(fxSpotMarketQuote->instrumentType() == MarketDatum::InstrumentType::FX_SPOT,
                           "Market quote not of type FX spot.");
                fxSpotQuote = QuantLib::ext::dynamic_pointer_cast<FXSpotQuote>(fxSpotMarketQuote);
                return fxSpotQuote;
            }
        }
    }

    // Try to use triangulation otherwise
    string unitCcy;
    string ccy;
    Handle<Quote> spot;
    if (tokens.size() > 1 && tokens[0] == "FX") {
        if (tokens.size() == 3) {
            unitCcy = tokens[1];
            ccy = tokens[2];
        } else if (tokens.size() == 4 && tokens[1] == "RATE") {
            unitCcy = tokens[2];
            ccy = tokens[3];
        } else {
            QL_FAIL("Invalid FX spot ID " << spotId);
        }
    } else if (tokens.size() == 1 && spotId.size() == 6) {
        unitCcy = spotId.substr(0, 3);
        ccy = spotId.substr(3);
    } else {
        QL_FAIL("Could not find quote for ID " << spotId << " with as of date " << io::iso_date(asofDate_) << ".");
    }
    spot = fxTriangulation_.getQuote(unitCcy + ccy);
    fxSpotQuote =
        QuantLib::ext::make_shared<FXSpotQuote>(spot->value(), asofDate_, spotId, MarketDatum::QuoteType::RATE, unitCcy, ccy);
    return fxSpotQuote;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

asofDate_

Date asofDate_

private

Definition at line 129 of file yieldcurve.hpp.

currency_

Currency currency_

private

Definition at line 130 of file yieldcurve.hpp.

curveSpec_

YieldCurveSpec curveSpec_

private

Definition at line 131 of file yieldcurve.hpp.

zeroDayCounter_

DayCounter zeroDayCounter_

private

Definition at line 132 of file yieldcurve.hpp.

extrapolation_

bool extrapolation_

private

Definition at line 133 of file yieldcurve.hpp.

discountCurve_

QuantLib::ext::shared_ptr<YieldCurve> discountCurve_

private

Definition at line 134 of file yieldcurve.hpp.

loader_

const Loader& loader_

private

Definition at line 137 of file yieldcurve.hpp.

h_

RelinkableHandle<YieldTermStructure> h_

private

Definition at line 138 of file yieldcurve.hpp.

p_

QuantLib::ext::shared_ptr<YieldTermStructure> p_

private

Definition at line 139 of file yieldcurve.hpp.

calibrationInfo_

QuantLib::ext::shared_ptr<YieldCurveCalibrationInfo> calibrationInfo_

private

Definition at line 140 of file yieldcurve.hpp.

curveConfig_

QuantLib::ext::shared_ptr<YieldCurveConfig> curveConfig_

private

Definition at line 162 of file yieldcurve.hpp.

curveSegments_

vector<QuantLib::ext::shared_ptr<YieldCurveSegment> > curveSegments_

private

Definition at line 163 of file yieldcurve.hpp.

interpolationVariable_

InterpolationVariable interpolationVariable_

private

Definition at line 164 of file yieldcurve.hpp.

interpolationMethod_

InterpolationMethod interpolationMethod_

private

Definition at line 165 of file yieldcurve.hpp.

mixedInterpolationSize_

Size mixedInterpolationSize_ = 0

private

Definition at line 166 of file yieldcurve.hpp.

requiredYieldCurves_

map<string, QuantLib::ext::shared_ptr<YieldCurve> > requiredYieldCurves_

private

Definition at line 167 of file yieldcurve.hpp.

requiredDefaultCurves_

map<string, QuantLib::ext::shared_ptr<DefaultCurve> > requiredDefaultCurves_

private

Definition at line 168 of file yieldcurve.hpp.

fxTriangulation_

const FXTriangulation& fxTriangulation_

private

Definition at line 169 of file yieldcurve.hpp.

referenceData_

const QuantLib::ext::shared_ptr<ReferenceDataManager> referenceData_

private

Definition at line 170 of file yieldcurve.hpp.

iborFallbackConfig_

IborFallbackConfig iborFallbackConfig_

private

Definition at line 171 of file yieldcurve.hpp.

preserveQuoteLinkage_

const bool preserveQuoteLinkage_

private

Definition at line 172 of file yieldcurve.hpp.

buildCalibrationInfo_

bool buildCalibrationInfo_

private

Definition at line 173 of file yieldcurve.hpp.

market_

const Market* market_

private

Definition at line 174 of file yieldcurve.hpp.
