ScriptedTradeEngineBuilder Class Reference

#include <ored/portfolio/builders/scriptedtrade.hpp>

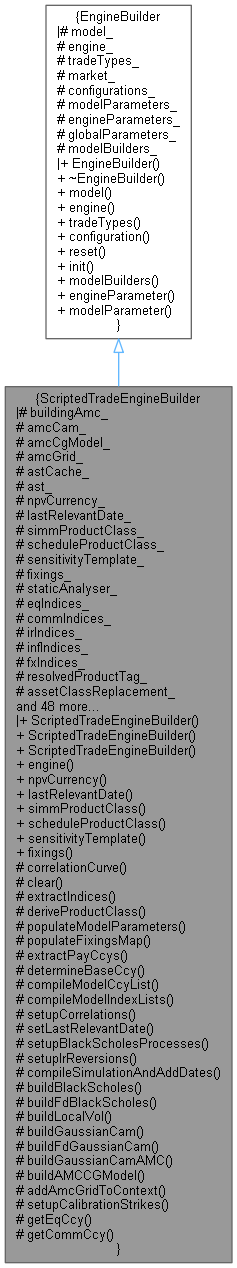

Inheritance diagram for ScriptedTradeEngineBuilder:

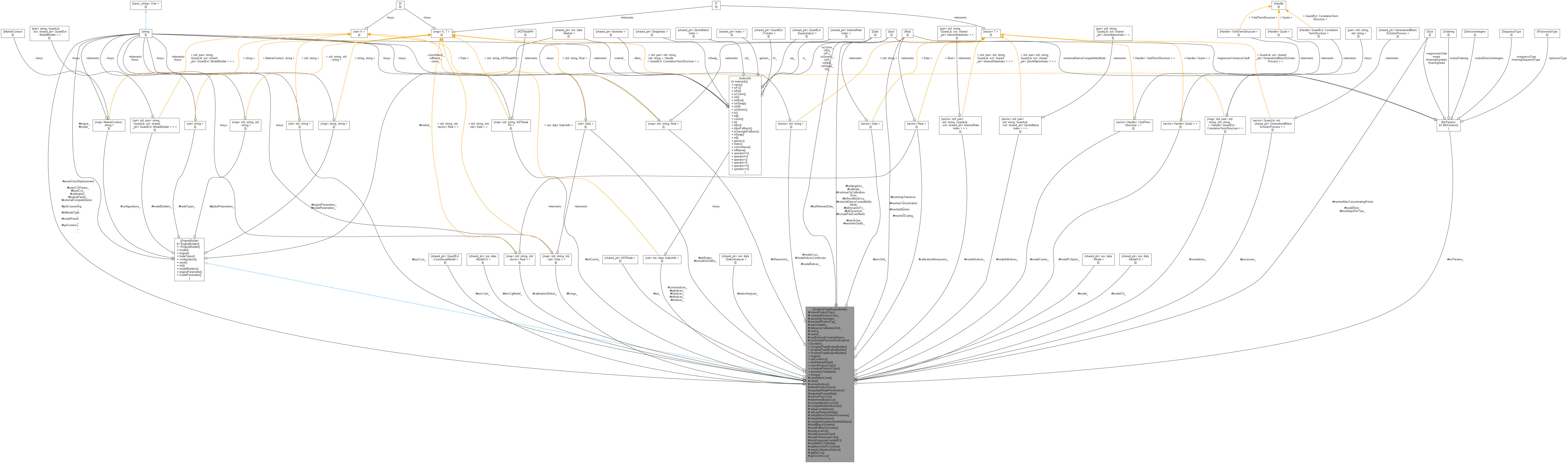

Collaboration diagram for ScriptedTradeEngineBuilder:

Public Member Functions
	ScriptedTradeEngineBuilder ()
	constructor that builds a usual pricing engine More...
	ScriptedTradeEngineBuilder (const QuantLib::ext::shared_ptr< QuantExt::CrossAssetModel > &amcCam, const std::vector< Date > &amcGrid)
	constructor that builds an AMC - enabled pricing engine More...
	ScriptedTradeEngineBuilder (const QuantLib::ext::shared_ptr< ore::data::ModelCG > &amcCgModel, const std::vector< Date > &amcGrid)
	constructor that builds an AMCCG pricing engine More...
QuantLib::ext::shared_ptr< QuantExt::ScriptedInstrument::engine >	engine (const std::string &id, const ScriptedTrade &scriptedTrade, const QuantLib::ext::shared_ptr< ore::data::ReferenceDataManager > &referenceData=nullptr, const IborFallbackConfig &iborFallbackConfig=IborFallbackConfig::defaultConfig())
const std::string &	npvCurrency () const
const QuantLib::Date &	lastRelevantDate () const
const std::string &	simmProductClass () const
const std::string &	scheduleProductClass () const
const std::string &	sensitivityTemplate () const
const std::map< std::string, std::set< Date > > &	fixings () const
Public Member Functions inherited from EngineBuilder
	EngineBuilder (const string &model, const string &engine, const set< string > &tradeTypes)
virtual	~EngineBuilder ()
	Virtual destructor. More...
const string &	model () const
	Return the model name. More...
const string &	engine () const
	Return the engine name. More...
const set< string > &	tradeTypes () const
	Return the possible trade types. More...
const string &	configuration (const MarketContext &key)
	Return a configuration (or the default one if key not found) More...
virtual void	reset ()
	reset the builder (e.g. clear cache) More...
void	init (const QuantLib::ext::shared_ptr< Market > market, const map< MarketContext, string > &configurations, const map< string, string > &modelParameters, const map< string, string > &engineParameters, const std::map< std::string, std::string > &globalParameters={})
	Initialise this Builder with the market and parameters to use. More...
const set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > > &	modelBuilders () const
	return model builders More...
std::string	engineParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const
std::string	modelParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const

Protected Member Functions
virtual QuantLib::Handle< QuantExt::CorrelationTermStructure >	correlationCurve (const std::string &index1, const std::string &index2)
void	clear ()

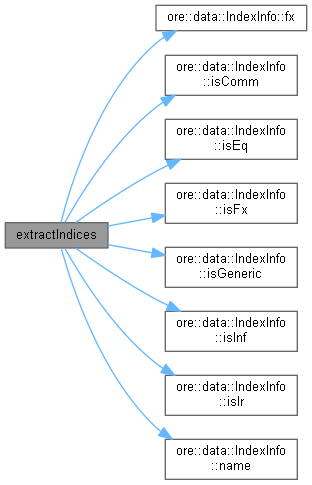

void	extractIndices (const QuantLib::ext::shared_ptr< ore::data::ReferenceDataManager > &referenceData=nullptr)

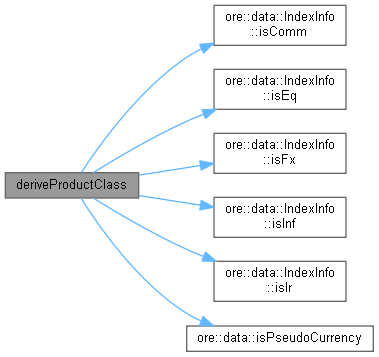

void	deriveProductClass (const std::vector< ScriptedTradeValueTypeData > &indices)

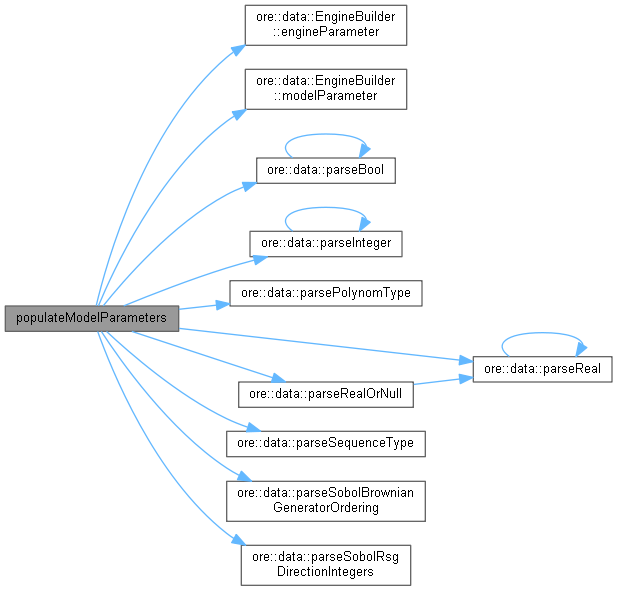

void	populateModelParameters ()

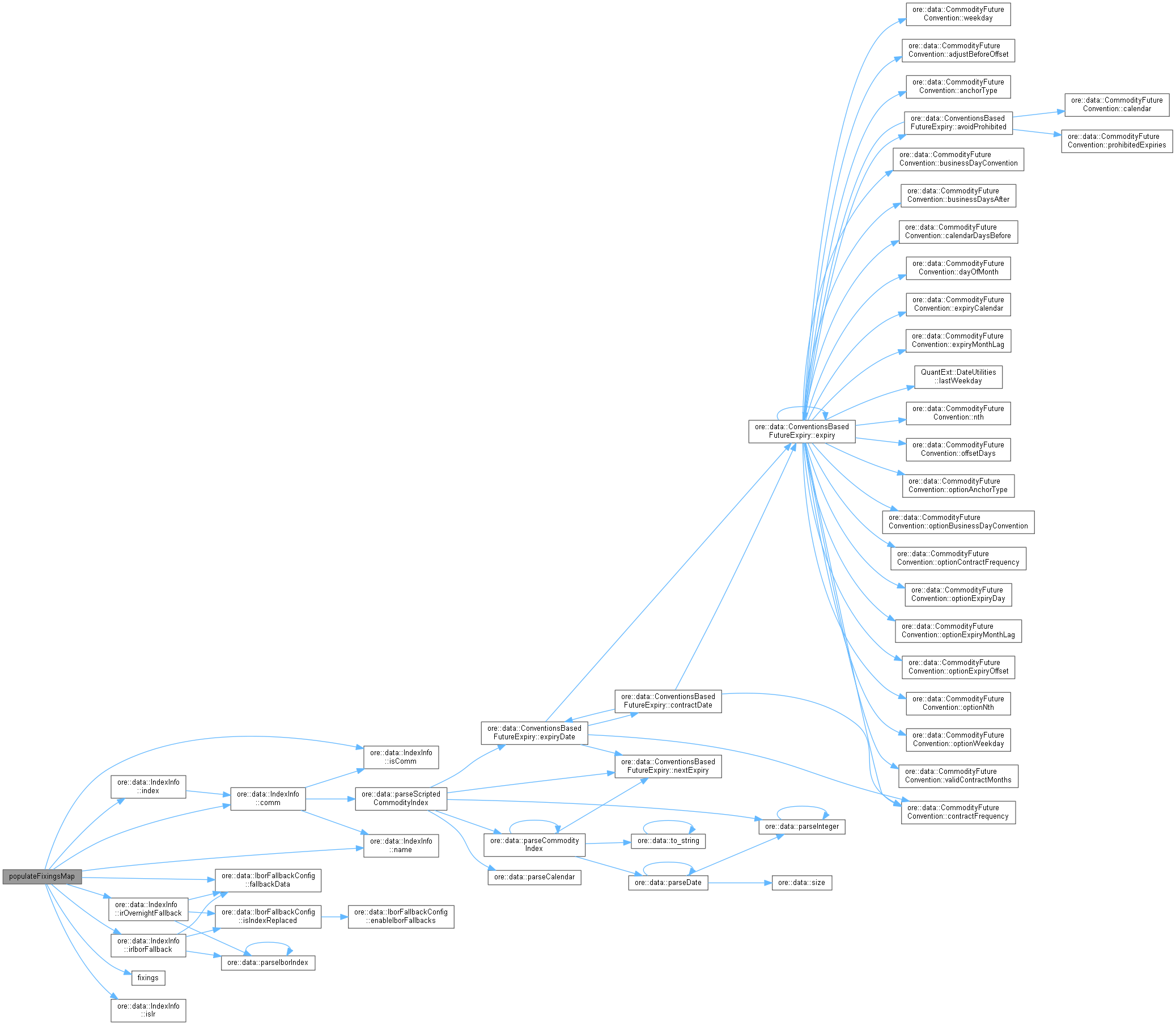

void	populateFixingsMap (const IborFallbackConfig &iborFallbackConfig)
void	extractPayCcys ()
void	determineBaseCcy ()

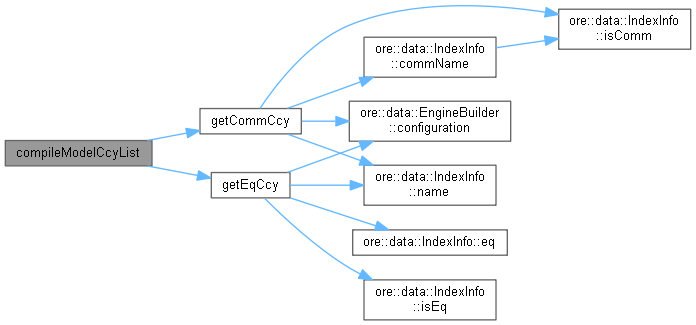

void	compileModelCcyList ()

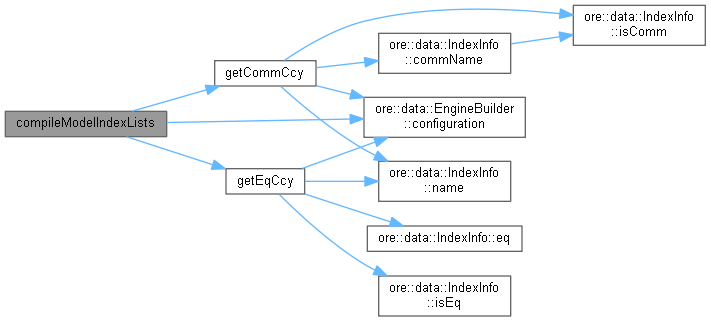

void	compileModelIndexLists ()

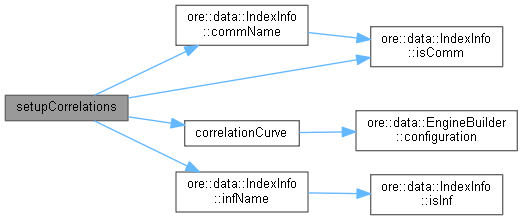

void	setupCorrelations ()
void	setLastRelevantDate ()

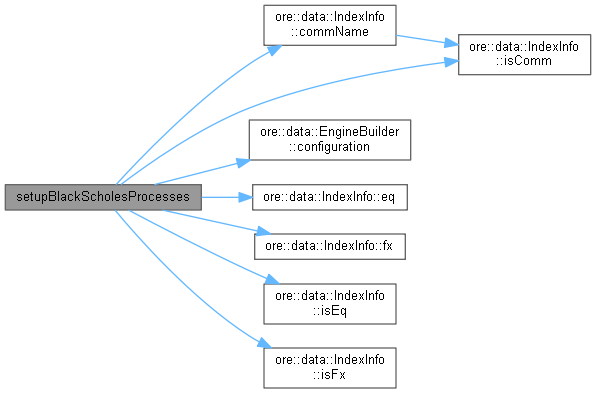

virtual void	setupBlackScholesProcesses ()

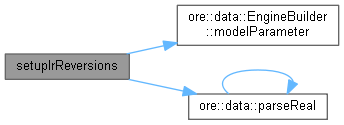

void	setupIrReversions ()

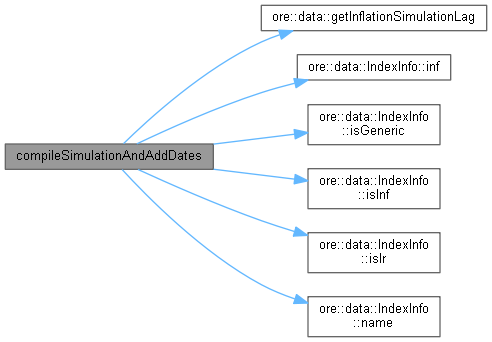

void	compileSimulationAndAddDates ()
void	buildBlackScholes (const std::string &id, const IborFallbackConfig &iborFallbackConfig)
void	buildFdBlackScholes (const std::string &id, const IborFallbackConfig &iborFallbackConfig)
void	buildLocalVol (const std::string &id, const IborFallbackConfig &iborFallbackConfig)

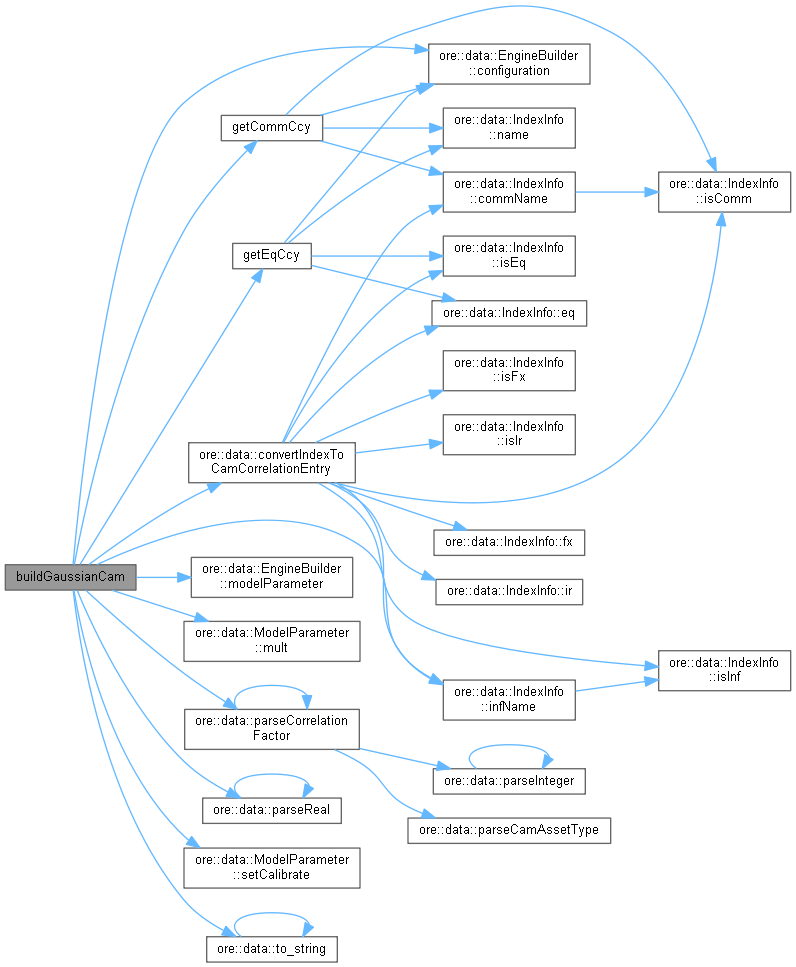

void	buildGaussianCam (const std::string &id, const IborFallbackConfig &iborFallbackConfig, const std::vector< std::string > &conditionalExpectationModelStates)

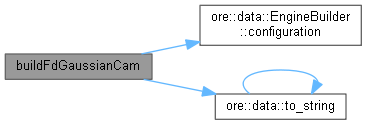

void	buildFdGaussianCam (const std::string &id, const IborFallbackConfig &iborFallbackConfig)

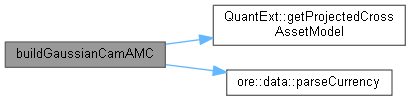

void	buildGaussianCamAMC (const std::string &id, const IborFallbackConfig &iborFallbackConfig, const std::vector< std::string > &conditionalExpectationModelStates)
void	buildAMCCGModel (const std::string &id, const IborFallbackConfig &iborFallbackConfig, const std::vector< std::string > &conditionalExpectationModelStates)
void	addAmcGridToContext (QuantLib::ext::shared_ptr< Context > &context) const

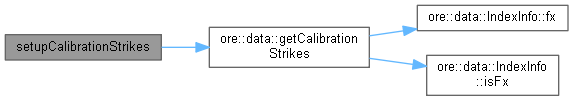

void	setupCalibrationStrikes (const ScriptedTradeScriptData &script, const QuantLib::ext::shared_ptr< Context > &context)

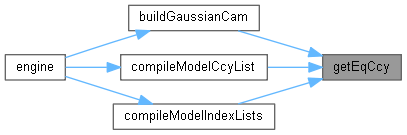

std::string	getEqCcy (const IndexInfo &e)

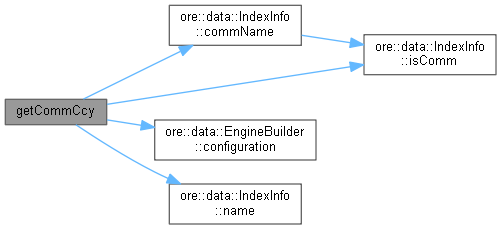

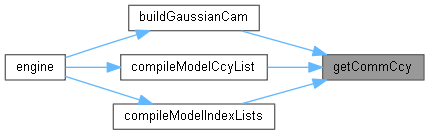

std::string	getCommCcy (const IndexInfo &e)

Protected Attributes
bool	buildingAmc_ = false
const QuantLib::ext::shared_ptr< QuantExt::CrossAssetModel >	amcCam_
const QuantLib::ext::shared_ptr< ore::data::ModelCG >	amcCgModel_
const std::vector< Date >	amcGrid_
std::map< std::string, ASTNodePtr >	astCache_
ASTNodePtr	ast_
std::string	npvCurrency_
QuantLib::Date	lastRelevantDate_
std::string	simmProductClass_
std::string	scheduleProductClass_
std::string	sensitivityTemplate_
std::map< std::string, std::set< Date > >	fixings_
QuantLib::ext::shared_ptr< StaticAnalyser >	staticAnalyser_
std::set< IndexInfo >	eqIndices_
std::set< IndexInfo >	commIndices_
std::set< IndexInfo >	irIndices_
std::set< IndexInfo >	infIndices_
std::set< IndexInfo >	fxIndices_
std::string	resolvedProductTag_
std::string	assetClassReplacement_
std::set< std::string >	payCcys_
std::string	baseCcy_
std::vector< std::string >	modelCcys_
std::vector< Handle< YieldTermStructure > >	modelCurves_
std::vector< Handle< Quote > >	modelFxSpots_
std::vector< std::string >	modelIndices_
std::vector< std::string >	modelIndicesCurrencies_
std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > >	modelIrIndices_
std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > >	modelInfIndices_
std::map< std::pair< std::string, std::string >, Handle< QuantExt::CorrelationTermStructure > >	correlations_
std::vector< QuantLib::ext::shared_ptr< GeneralizedBlackScholesProcess > >	processes_
std::map< std::string, Real >	irReversions_
std::set< Date >	simulationDates_
std::set< Date >	addDates_
QuantLib::ext::shared_ptr< Model >	model_
QuantLib::ext::shared_ptr< ModelCG >	modelCG_
std::map< std::string, std::vector< Real > >	calibrationStrikes_
std::string	modelParam_
std::string	infModelType_
std::string	engineParam_
std::string	baseCcyParam_
std::string	gridCoarsening_
bool	fullDynamicFx_
bool	fullDynamicIr_
bool	enforceBaseCcy_
Size	modelSize_
Size	timeStepsPerYear_
Model::McParams	mcParams_
bool	interactive_
bool	zeroVolatility_
bool	continueOnCalibrationError_
std::vector< Real >	calibrationMoneyness_
Real	mesherEpsilon_
Real	mesherScaling_
Real	mesherConcentration_
Size	mesherMaxConcentratingPoints_
bool	mesherIsStatic_
std::string	referenceCalibrationGrid_
Real	bootstrapTolerance_
bool	calibrate_
std::string	calibration_
bool	useCg_
bool	useAd_
bool	useExternalComputeDevice_
bool	useDoublePrecisionForExternalCalculation_
bool	externalDeviceCompatibilityMode_
std::string	externalComputeDevice_
bool	includePastCashflows_
Protected Attributes inherited from EngineBuilder
string	model_
string	engine_
set< string >	tradeTypes_
QuantLib::ext::shared_ptr< Market >	market_
map< MarketContext, string >	configurations_
map< string, string >	modelParameters_
map< string, string >	engineParameters_
std::map< std::string, std::string >	globalParameters_
set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > >	modelBuilders_

Detailed Description

Definition at line 38 of file scriptedtrade.hpp.

Constructor & Destructor Documentation

ScriptedTradeEngineBuilder() [1/3]

ScriptedTradeEngineBuilder

(

)

constructor that builds a usual pricing engine

Definition at line 41 of file scriptedtrade.hpp.

: EngineBuilder("Generic", "Generic", {"ScriptedTrade"}) {}

ScriptedTradeEngineBuilder() [2/3]

ScriptedTradeEngineBuilder	(	const QuantLib::ext::shared_ptr< QuantExt::CrossAssetModel > &	amcCam,
		const std::vector< Date > &	amcGrid
	)

constructor that builds an AMC - enabled pricing engine

Definition at line 44 of file scriptedtrade.hpp.

        : EngineBuilder("Generic", "Generic", {"ScriptedTrade"}), buildingAmc_(true), amcCam_(amcCam),
          amcGrid_(amcGrid) {}

ScriptedTradeEngineBuilder() [3/3]

ScriptedTradeEngineBuilder	(	const QuantLib::ext::shared_ptr< ore::data::ModelCG > &	amcCgModel,
		const std::vector< Date > &	amcGrid
	)

constructor that builds an AMCCG pricing engine

Definition at line 50 of file scriptedtrade.hpp.

        : EngineBuilder("Generic", "Generic", {"ScriptedTrade"}), buildingAmc_(true), amcCgModel_(amcCgModel),
          amcGrid_(amcGrid) {}

Member Function Documentation

engine()

QuantLib::ext::shared_ptr< ScriptedInstrument::engine > engine	(	const std::string &	id,
		const ScriptedTrade &	scriptedTrade,
		const QuantLib::ext::shared_ptr< ore::data::ReferenceDataManager > &	referenceData = nullptr,
		const IborFallbackConfig &	iborFallbackConfig = IborFallbackConfig::defaultConfig()
	)

Definition at line 78 of file scriptedtrade.cpp.

                                                                                 {

    const std::vector<ScriptedTradeEventData>& events = scriptedTrade.events();
    const std::vector<ScriptedTradeValueTypeData>& numbers = scriptedTrade.numbers();
    const std::vector<ScriptedTradeValueTypeData>& indices = scriptedTrade.indices();
    const std::vector<ScriptedTradeValueTypeData>& currencies = scriptedTrade.currencies();
    const std::vector<ScriptedTradeValueTypeData>& daycounters = scriptedTrade.daycounters();

    LOG("Building engine for scripted trade " << id);

    // 0 clear members

    clear();

    // 1 set the SIMM product class, simple EQ > COM > FX approach for Hybrids, that's all we can do automatically?
    //   also set the assetClassReplacement string which is used to replace {AssetClass} in product tags

    deriveProductClass(indices);

    // 1b get product tag from scripted trade or library and build resolved product tag

    std::string productTag = getScript(scriptedTrade, ScriptLibraryStorage::instance().get(), "", false).first;
    resolvedProductTag_ = boost::replace_all_copy(productTag, "{AssetClass}", assetClassReplacement_);
    DLOG("got product tag '" << productTag << "', resolved product tag is '" << resolvedProductTag_);

    // 2 populate model and engine parameters

    populateModelParameters();

    // 3 define purpose, get suitable script and build ast (i.e. parse it or retrieve it from cache)

    std::string purpose = "";
    if (buildingAmc_)
        purpose = "AMC";
    else if (engineParam_ == "FD")
        purpose = "FD";

    ScriptedTradeScriptData script =
        getScript(scriptedTrade, ScriptLibraryStorage::instance().get(), purpose, true).second;

    auto f = astCache_.find(script.code());

    if (f != astCache_.end()) {
        ast_ = f->second;
        DLOG("retrieved ast from cache");
    } else {
        ast_ = parseScript(script.code());
        astCache_[script.code()] = ast_;
        DLOGGERSTREAM("built ast:\n" << to_string(ast_));
    }

    // 4 set up context

    auto context = makeContext(modelSize_, gridCoarsening_, script.schedulesEligibleForCoarsening(), referenceData,
                               events, numbers, indices, currencies, daycounters);
    addAmcGridToContext(context);
    addNewSchedulesToContext(context, script.newSchedules());

    DLOG("Built initial context:");
    DLOGGERSTREAM(*context);

    // 4b set up calibration strike information

    if (!buildingAmc_)
        setupCalibrationStrikes(script, context);

    // 5 run static analyser

    DLOG("Run static analyser on script");
    staticAnalyser_ = QuantLib::ext::make_shared<StaticAnalyser>(ast_, context);
    staticAnalyser_->run(script.code());

    // 6 extract eq, fx, ir indices from script

    extractIndices(referenceData);

    // 7 populate fixings map

    populateFixingsMap(iborFallbackConfig);

    // 8 init result variable for NPV

    checkDuplicateName(context, script.npv());
    context->scalars[script.npv()] = RandomVariable(modelSize_, 0.0);

    // 9 extract pay currencies

    extractPayCcys();

    // 10 determine base ccy, this might be overwritten in 11 when an AMC engine is built, see the implementation of 11

    determineBaseCcy();

    // 11 compile the model currency list (depends on the model actually)

    compileModelCcyList();

    // 12 get the t0 curves for each model ccy

    std::string externalDiscountCurve = scriptedTrade.envelope().additionalField("discount_curve", false);
    std::string externalSecuritySpread = scriptedTrade.envelope().additionalField("security_spread", false);
    for (auto const& c : modelCcys_) {
        // for base ccy we account for an external discount curve and security spread if given
        Handle<YieldTermStructure> yts =
            externalDiscountCurve.empty() || c != baseCcy_
                ? market_->discountCurve(c, configuration(MarketContext::pricing))
                : indexOrYieldCurve(market_, externalDiscountCurve, configuration(MarketContext::pricing));
        if (!externalSecuritySpread.empty() && c == baseCcy_)
            yts = Handle<YieldTermStructure>(QuantLib::ext::make_shared<ZeroSpreadedTermStructure>(
                yts, market_->securitySpread(externalSecuritySpread, configuration(MarketContext::pricing))));
        modelCurves_.push_back(yts);
        DLOG("curve for " << c << " added.");
    }

    // 13 get the fx spots for each model ccy vs. the base ccy

    for (Size i = 1; i < modelCcys_.size(); ++i) {
        modelFxSpots_.push_back(market_->fxRate(modelCcys_[i] + baseCcy_, configuration(MarketContext::pricing)));
        DLOG("fx spot " << modelCcys_[i] + baseCcy_ << " added.");
    }

    // 14 compile the model index (eq, fx, comm) and ir index lists

    compileModelIndexLists();

    // 15 determine last relevant date as max over index eval, regression, pay obs/pay dates

    setLastRelevantDate();

    // 16 set up correlations between model indices (ir, eq, fx, comm)

    setupCorrelations();

    // 17 compile the processes (needed for BlackScholes, LocalVol only)

    if (modelParam_ == "BlackScholes" || modelParam_ == "LocalVolDupire" || modelParam_ == "LocalVolAndreasenHuge")
        setupBlackScholesProcesses();

    // 18 setup IR reversion values (needed for Gaussian CAM only)

    if (modelParam_ == "GaussianCam") {
        setupIrReversions();
    }

    // 19 compile the sim and add dates required by the model ctors below

    compileSimulationAndAddDates();

    // 20 build the model adapter

    QL_REQUIRE(!buildingAmc_ || modelParam_ == "GaussianCam",
               "model/engine = GaussianCam/MC required to build an amc model, got " << modelParam_ << "/"
                                                                                    << engineParam_);

    if(staticAnalyser_->regressionDates().empty())
        mcParams_.trainingSamples = Null<Size>();

    if (modelParam_ == "BlackScholes" && engineParam_ == "MC") {
        buildBlackScholes(id, iborFallbackConfig);
    } else if (modelParam_ == "BlackScholes" && engineParam_ == "FD") {
        buildFdBlackScholes(id, iborFallbackConfig);
    } else if ((modelParam_ == "LocalVolDupire" || modelParam_ == "LocalVolAndreasenHuge") && engineParam_ == "MC") {
        buildLocalVol(id, iborFallbackConfig);
    } else if (modelParam_ == "GaussianCam" && engineParam_ == "MC") {
        if (amcCam_) {
            buildGaussianCamAMC(id, iborFallbackConfig, script.conditionalExpectationModelStates());
        } else if (amcCgModel_) {
            buildAMCCGModel(id, iborFallbackConfig, script.conditionalExpectationModelStates());
        } else {
            buildGaussianCam(id, iborFallbackConfig, script.conditionalExpectationModelStates());
        }
    } else if (modelParam_ == "GaussianCam" && engineParam_ == "FD") {
        buildFdGaussianCam(id, iborFallbackConfig);
    } else {
        QL_FAIL("model '" << modelParam_ << "' / engine '" << engineParam_
                          << "' not recognised, expected BlackScholes/[MC|FD], LocalVolDupire/MC, "
                             "LocalVolAndreasenHuge/MC, GaussianCam/MC");
    }

    QL_REQUIRE(model_ != nullptr || modelCG_ != nullptr, "internal error: both model_ and modelCG_ are null");

    // 21 log some summary information

    DLOG("built model          : " << modelParam_ << " / " << engineParam_);
    DLOG("useCg                = " << std::boolalpha << useCg_);
    DLOG("useAd                = " << std::boolalpha << useAd_);
    DLOG("useExternalDevice    = " << std::boolalpha << useExternalComputeDevice_);
    DLOG("useDblPrecExtCalc    = " << std::boolalpha << useDoublePrecisionForExternalCalculation_);
    DLOG("extDeviceCompatMode  = " << std::boolalpha << externalDeviceCompatibilityMode_);
    DLOG("externalDevice       = " << (useExternalComputeDevice_ ? externalComputeDevice_ : "na"));
    DLOG("calibration          = " << calibration_);
    DLOG("base ccy             = " << baseCcy_);
    DLOG("model base (npv) ccy = " << (model_ != nullptr ? model_->baseCcy() : modelCG_->baseCcy()));
    DLOG("ccys                 = " << modelCcys_.size());
    DLOG("eq,fx,com indices    = " << modelIndices_.size());
    DLOG("ir indices           = " << irIndices_.size());
    DLOG("inf indices          = " << infIndices_.size());
    DLOG("sim dates            = " << simulationDates_.size());
    DLOG("add dates            = " << addDates_.size());
    DLOG("timeStepsPerYear     = " << timeStepsPerYear_);
    DLOG("fullDynamicFx        = " << std::boolalpha << fullDynamicFx_);
    if (engineParam_ == "MC") {
        DLOG("seed                 = " << mcParams_.seed);
        DLOG("paths                = " << modelSize_);
        DLOG("regressionOrder      = " << mcParams_.regressionOrder);
        DLOG("sequence type        = " << mcParams_.sequenceType);
        DLOG("polynom type         = " << mcParams_.polynomType);
        if (mcParams_.trainingSamples != Null<Size>()) {
            DLOG("training seed        = " << mcParams_.trainingSeed);
            DLOG("training paths       = " << mcParams_.trainingSamples);
            DLOG("training seq. type   = " << mcParams_.trainingSequenceType);
        }
        DLOG("sobol bb ordering    = " << mcParams_.sobolOrdering);
        DLOG("sobol direction int. = " << mcParams_.sobolDirectionIntegers);
    } else if (engineParam_ == "FD") {
        DLOG("stateGridPoints      = " << modelSize_);
        DLOG("mesherEpsilon        = " << mesherEpsilon_);
        DLOG("mesherScaling        = " << mesherScaling_);
        DLOG("mesherConcentration  = " << mesherConcentration_);
        DLOG("mesherMaxConcentrPts = " << mesherMaxConcentratingPoints_);
        DLOG("mesherIsStatic       = " << std::boolalpha << mesherIsStatic_);
    }
    if (modelParam_ == "GaussianCam") {
        DLOG("fullDynamicIr        = " << std::boolalpha << fullDynamicIr_);
        DLOG("ref calibration grid = " << referenceCalibrationGrid_);
        DLOG("bootstrap tolerance  = " << bootstrapTolerance_);
        DLOG("infModelType         = " << infModelType_);
        DLOG("condExpMdlStates     = " << boost::algorithm::join(script.conditionalExpectationModelStates(), ","));
    } else if (modelParam_ == "LocalVolAndreasenHuge") {
        DLOG("moneyness points = " << calibrationMoneyness_.size());
    }

    // 22 build the pricing engine and return it

    bool generateAdditionalResults = false;
    auto p = globalParameters_.find("GenerateAdditionalResults");
    if (p != globalParameters_.end()) {
        generateAdditionalResults = parseBool(p->second);
    }

    QuantLib::ext::shared_ptr<ScriptedInstrument::engine> engine;
    if (model_) {
        engine = QuantLib::ext::make_shared<ScriptedInstrumentPricingEngine>(
            script.npv(), script.results(), model_, ast_, context, script.code(), interactive_, amcCam_ != nullptr,
            std::set<std::string>(script.stickyCloseOutStates().begin(), script.stickyCloseOutStates().end()),
            generateAdditionalResults, includePastCashflows_);
    } else if (modelCG_) {
        auto rt = globalParameters_.find("RunType");
        std::string runType = rt != globalParameters_.end() ? rt->second : "<<no run type set>>";
        bool useCachedSensis = useAd_ && (runType == "SensitivityDelta");
        bool useExternalDev = useExternalComputeDevice_ && !generateAdditionalResults && !useCachedSensis;
        if (useAd_ && !useCachedSensis) {
            WLOG("Will not apply AD although useAD is configured, because runType ("
                 << runType << ") does not match SensitivitiyDelta");
        }
        if (useExternalComputeDevice_ && !useExternalDev) {
            WLOG("Will not use exxternal compute deivce although useExternalComputeDevice is configured, because we "
                 "are either applying AD ("
                 << std::boolalpha << useCachedSensis << ") or we are generating add results ("
                 << generateAdditionalResults << "), both of which do not support external devices at the moment.");
        }
        engine = QuantLib::ext::make_shared<ScriptedInstrumentPricingEngineCG>(
            script.npv(), script.results(), modelCG_, ast_, context, mcParams_, script.code(), interactive_,
            generateAdditionalResults, includePastCashflows_, useCachedSensis, useExternalDev,
            useDoublePrecisionForExternalCalculation_);
        if (useExternalDev) {
            ComputeEnvironment::instance().selectContext(externalComputeDevice_);
        }
    }

    LOG("engine built for model " << modelParam_ << " / " << engineParam_ << ", modelSize = " << modelSize_
                                  << ", interactive = " << interactive_ << ", amcEnabled = " << buildingAmc_
                                  << ", generateAdditionalResults = " << generateAdditionalResults);
    return engine;
}

Here is the call graph for this function:

npvCurrency()

const std::string & npvCurrency

(

)

const

Definition at line 61 of file scriptedtrade.hpp.

{ return model_ ? model_->baseCcy() : modelCG_->baseCcy(); }

lastRelevantDate()

const QuantLib::Date & lastRelevantDate

(

)

const

Definition at line 62 of file scriptedtrade.hpp.

{ return lastRelevantDate_; }

simmProductClass()

const std::string & simmProductClass

(

)

const

Definition at line 63 of file scriptedtrade.hpp.

{ return simmProductClass_; }

scheduleProductClass()

const std::string & scheduleProductClass

(

)

const

Definition at line 64 of file scriptedtrade.hpp.

{ return scheduleProductClass_; }

sensitivityTemplate()

const std::string & sensitivityTemplate

(

)

const

Definition at line 65 of file scriptedtrade.hpp.

{ return sensitivityTemplate_; }

fixings()

const std::map< std::string, std::set< Date > > & fixings

(

)

const

Definition at line 66 of file scriptedtrade.hpp.

{ return fixings_; }

Here is the caller graph for this function:

correlationCurve()

QuantLib::Handle< QuantExt::CorrelationTermStructure > correlationCurve ( const std::string &  index1, const std::string &  index2  )

protectedvirtual

Definition at line 65 of file scriptedtrade.cpp.

                                                                                             {
    if (index1 == index2) {
        // need to handle this case here, we might have calls with index1 == index arising from COMM
        // indices with different spot / future reference, for which we expect the correlation on
        // the name level (i.e. for the spot index)
        return Handle<QuantExt::CorrelationTermStructure>(
            QuantLib::ext::make_shared<FlatCorrelation>(0, NullCalendar(), 1.0, ActualActual(ActualActual::ISDA)));
    } else {
        return market_->correlationCurve(index1, index2, configuration(MarketContext::pricing));
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

clear()

void clear ( )

protected

Definition at line 356 of file scriptedtrade.cpp.

                                       {
    fixings_.clear();
    eqIndices_.clear();
    commIndices_.clear();
    irIndices_.clear();
    infIndices_.clear();
    fxIndices_.clear();
    payCcys_.clear();
    modelCcys_.clear();
    modelCurves_.clear();
    modelFxSpots_.clear();
    modelIndices_.clear();
    modelIndicesCurrencies_.clear();
    modelIrIndices_.clear();
    modelInfIndices_.clear();
    correlations_.clear();
    processes_.clear();
    irReversions_.clear();
    simulationDates_.clear();
    addDates_.clear();
    calibrationStrikes_.clear();
}

Here is the caller graph for this function:

extractIndices()

void extractIndices ( const QuantLib::ext::shared_ptr< ore::data::ReferenceDataManager > &  referenceData = nullptr )

protected

Definition at line 379 of file scriptedtrade.cpp.

                                                                             {
    DLOG("Extract indices from script:");
    for (auto const& i : staticAnalyser_->indexEvalDates()) {
        IndexInfo ind(i.first);
        if (ind.isEq()) {
            eqIndices_.insert(ind);
        } else if (ind.isIr()) {
            irIndices_.insert(ind);
        } else if (ind.isInf()) {
            infIndices_.insert(ind);
        } else if (ind.isFx()) {
            // ignore trivial fx indices
            if (ind.fx()->sourceCurrency() != ind.fx()->targetCurrency())
                fxIndices_.insert(ind);
        } else if (ind.isComm()) {
            commIndices_.insert(ind);
        } else if (ind.isGeneric()) {
            // ignore generic indices, only historical fixings can be retrieved from them
        } else {
            QL_FAIL("unexpected index type for '" << ind.name() << "'");
        }
        DLOG("got " << ind);
    }
    for (auto const& i : staticAnalyser_->fwdCompAvgFixingDates()) {
        IndexInfo ind(i.first);
        QL_REQUIRE(ind.isIr(), "expected IR (ON) index for " << ind.name());
        irIndices_.insert(ind);
        DLOG("got " << ind);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

deriveProductClass()

void deriveProductClass ( const std::vector< ScriptedTradeValueTypeData > &  indices )

protected

Definition at line 411 of file scriptedtrade.cpp.

                                                                                                        {
    std::set<std::string> names;
    std::set<IndexInfo> commIndices, eqIndices, fxIndices, irIndices, infIndices;

    for (auto const& i : indices) {
        if (i.isArray()) {
            names.insert(i.values().begin(), i.values().end());
        } else {
            names.insert(i.value());
        }
    }

    for (auto const& n : names) {
        IndexInfo ind(n);
        if (ind.isFx())
            fxIndices.insert(ind);
        else if (ind.isEq())
            eqIndices.insert(ind);
        else if (ind.isComm())
            commIndices.insert(ind);
        else if (ind.isIr())
            irIndices.insert(ind);
        else if (ind.isInf())
            infIndices.insert(ind);
    }

    assetClassReplacement_ = "";
    if (!commIndices.empty()) {
        simmProductClass_ = "Commodity";
        scheduleProductClass_ = "Commodity";
        assetClassReplacement_ = "COMM";
    } else if (!eqIndices.empty()) {
        simmProductClass_ = "Equity";
        scheduleProductClass_ = "Equity";
        assetClassReplacement_ = "EQ";
    } else if (!fxIndices.empty()) {
        simmProductClass_ = "RatesFX";
        scheduleProductClass_ = "FX";
        assetClassReplacement_ = "FX";
        for (auto const& i : fxIndices) {
            std::string f = i.fx()->sourceCurrency().code();
            std::string d = i.fx()->targetCurrency().code();
            if (isPseudoCurrency(f) || isPseudoCurrency(d)) {
                simmProductClass_ = "Commodity";
                scheduleProductClass_ = "Commodity";
                // in terms of the asset class replacement we stick with FX for precious metals
                // assetClassReplacement_ = "COMM";
            }
        }
    } else if (!irIndices.empty() || !infIndices.empty()) {
        simmProductClass_ = "RatesFX";
        scheduleProductClass_ = "Rates";
    } else {
        simmProductClass_ = "RatesFx";   // fallback if we do not have any indices (an edge case really...)
        scheduleProductClass_ = "Rates"; // fallback if we do not have any indices (an edge case really...)
    }

    if ((int)!eqIndices.empty() + (int)!fxIndices.empty() + (int)!commIndices.empty() > 1) {
        WLOG("SIMM product class for hybrid trade is set to " << simmProductClass_);
        WLOG("IM Schedule product class for hybrid trade is set to " << scheduleProductClass_);
        assetClassReplacement_ = "HYBRID";
    } else {
        LOG("SIMM product class is set to " << simmProductClass_);
        LOG("IM Schedule product class is set to " << scheduleProductClass_);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

populateModelParameters()

void populateModelParameters ( )

protected

Definition at line 478 of file scriptedtrade.cpp.

                                                         {
    DLOG("Retrieve model and engine parameters using product tag '" << resolvedProductTag_ << "'");

    // mandatory parameters

    modelParam_ = modelParameter("Model", {resolvedProductTag_});
    baseCcyParam_ = modelParameter("BaseCcy", {resolvedProductTag_});
    fullDynamicFx_ = parseBool(modelParameter("FullDynamicFx", {resolvedProductTag_}));
    enforceBaseCcy_ = parseBool(modelParameter("EnforceBaseCcy", {resolvedProductTag_}));
    gridCoarsening_ = modelParameter("GridCoarsening", {resolvedProductTag_});

    engineParam_ = engineParameter("Engine", {resolvedProductTag_});
    timeStepsPerYear_ = parseInteger(engineParameter("TimeStepsPerYear", {resolvedProductTag_}));
    interactive_ = parseBool(engineParameter("Interactive", {resolvedProductTag_}));

    // optional parameters

    zeroVolatility_ = parseBool(engineParameter("ZeroVolatility", {resolvedProductTag_}, false, "false"));
    calibration_ = modelParameter("Calibration", {resolvedProductTag_}, false, "Deal");
    useCg_ = parseBool(engineParameter("UseCG", {resolvedProductTag_}, false, "false"));
    useAd_ = parseBool(engineParameter("UseAD", {resolvedProductTag_}, false, "false"));
    useExternalComputeDevice_ =
        parseBool(engineParameter("UseExternalComputeDevice", {resolvedProductTag_}, false, "false"));
    useDoublePrecisionForExternalCalculation_ =
        parseBool(engineParameter("UseDoublePrecisionForExternalCalculation", {resolvedProductTag_}, false, "false"));
    externalComputeDevice_ = engineParameter("ExternalComputeDevice", {}, false, "");
    externalDeviceCompatibilityMode_ = parseBool(engineParameter("ExternalDeviceCompatibilityMode", {}, false, "false"));
    includePastCashflows_ = parseBool(engineParameter("IncludePastCashflows", {resolvedProductTag_}, false, "false"));

    // usage of ad or an external device implies usage of cg
    if (useAd_ || useExternalComputeDevice_)
        useCg_ = true;

    // default values for parameters that are only read for specific models

    fullDynamicIr_ = false;
    referenceCalibrationGrid_ = "";
    bootstrapTolerance_ = 0.0;
    infModelType_ = "DK";
    mesherEpsilon_ = 1.0E-4;
    mesherScaling_ = 1.5;
    mesherConcentration_ = 0.1;
    mesherMaxConcentratingPoints_ = 9999;
    mesherIsStatic_ = false;

    // parameters only needed for certain model / engine pairs

    DLOG("Retrieve model / engine specific parameters for " << modelParam_ << " / " << engineParam_);

    if (modelParam_ == "GaussianCam") {
        fullDynamicIr_ = parseBool(modelParameter("FullDynamicIr", {resolvedProductTag_}));
        referenceCalibrationGrid_ = modelParameter("ReferenceCalibrationGrid", {resolvedProductTag_}, false, "");
        bootstrapTolerance_ = parseReal(engineParameter("BootstrapTolerance", {resolvedProductTag_}));
        infModelType_ = modelParameter("InfModelType", {resolvedProductTag_}, false, "DK");
    } else if (modelParam_ == "LocalVolAndreasenHuge") {
        calibrationMoneyness_ =
            parseListOfValues<Real>(engineParameter("CalibrationMoneyness", {resolvedProductTag_}), &parseReal);
    }

    if (engineParam_ == "MC") {
        mcParams_.seed = parseInteger(engineParameter("Seed", {resolvedProductTag_}, false, "42"));
        modelSize_ = parseInteger(engineParameter("Samples", {resolvedProductTag_}));
        mcParams_.regressionOrder = parseInteger(engineParameter("RegressionOrder", {resolvedProductTag_}));
        mcParams_.sequenceType =
            parseSequenceType(engineParameter("SequenceType", {resolvedProductTag_}, false, "SobolBrownianBridge"));
        mcParams_.polynomType =
            parsePolynomType(engineParameter("PolynomType", {resolvedProductTag_}, false, "Monomial"));
        mcParams_.trainingSequenceType =
            parseSequenceType(engineParameter("TrainingSequenceType", {resolvedProductTag_}, false, "MersenneTwister"));
        mcParams_.sobolOrdering = parseSobolBrownianGeneratorOrdering(
            engineParameter("SobolOrdering", {resolvedProductTag_}, false, "Steps"));
        mcParams_.sobolDirectionIntegers = parseSobolRsgDirectionIntegers(
            engineParameter("SobolDirectionIntegers", {resolvedProductTag_}, false, "JoeKuoD7"));
        if (auto tmp = engineParameter("TrainingSamples", {resolvedProductTag_}, false, ""); !tmp.empty()) {
            mcParams_.trainingSamples = parseInteger(tmp);
            mcParams_.trainingSeed = parseInteger(engineParameter("TrainingSeed", {resolvedProductTag_}, false, "43"));
        } else {
            mcParams_.trainingSamples = Null<Size>();
        }
        mcParams_.regressionVarianceCutoff =
            parseRealOrNull(engineParameter("RegressionVarianceCutoff", {resolvedProductTag_}, false, std::string()));
        mcParams_.externalDeviceCompatibilityMode = externalDeviceCompatibilityMode_;
    } else if (engineParam_ == "FD") {
        modelSize_ = parseInteger(engineParameter("StateGridPoints", {resolvedProductTag_}));
        mesherEpsilon_ = parseReal(engineParameter("MesherEpsilon", {resolvedProductTag_}, false, "1.0E-4"));
        mesherScaling_ = parseReal(engineParameter("MesherScaling", {resolvedProductTag_}, false, "1.5"));
        mesherConcentration_ = parseReal(engineParameter("MesherConcentration", {resolvedProductTag_}, false, "0.1"));
        mesherMaxConcentratingPoints_ =
            parseInteger(engineParameter("MesherMaxConcentratingPoints", {resolvedProductTag_}, false, "9999"));
        mesherIsStatic_ = parseBool(engineParameter("MesherIsStatic", {resolvedProductTag_}, false, "false"));
    }

    // global parameters that are relevant

    calibrate_ = globalParameters_.count("Calibrate") == 0 || parseBool(globalParameters_.at("Calibrate"));

    if (!calibrate_) {
        DLOG("model calibration is disalbed in global pricing engine parameters");
    }

    continueOnCalibrationError_ = globalParameters_.count("ContinueOnCalibrationError") > 0 &&
                                  parseBool(globalParameters_.at("ContinueOnCalibrationError"));

    // sensitivity template

    sensitivityTemplate_ = engineParameter("SensitivityTemplate", {resolvedProductTag_}, false, std::string());
}

Here is the call graph for this function:

Here is the caller graph for this function:

populateFixingsMap()

void populateFixingsMap ( const IborFallbackConfig &  iborFallbackConfig )

protected

Definition at line 586 of file scriptedtrade.cpp.

                                                                                                {
    DLOG("Populate fixing map");

    // this might be a superset of the actually required fixings, since index evaluations with fwd date are also
    // returned, in which case only future estimations are allowed

    std::map<std::string, std::set<std::pair<Date, bool>>> indexFixings;

    for (auto const& [name, fixings] : staticAnalyser_->probFixingDates()) {
        for (auto const& d : fixings) {
            indexFixings[name].insert(std::make_pair(d, true));
        }
    }

    for (auto const& [name, fixings] : staticAnalyser_->indexEvalDates()) {
        for (auto const& d : fixings) {
            indexFixings[name].insert(std::make_pair(d, false));
        }
    }

    for (auto const& [name, fixings] : indexFixings) {
        IndexInfo i(name);
        if (i.isComm()) {
            // COMM indices require a special treatment, since they might need resolution
            std::map<std::string, Size> stats;
            for (auto const& [d, _] : fixings) {
                auto idx = i.comm(d);
                std::string name = idx->name();
                fixings_[name].insert(idx->fixingCalendar().adjust(d, Preceding));
                stats[name]++;
            }
            for (auto const& s : stats) {
                DLOG("added " << s.second << " fixings for '" << s.first << "' (from eval op, prob fcts)");
            }
        } else {
            // all other indices can be handled generically, notice for inf we include the scripting specific
            // suffixes #L, #F in the index name, this is handled in the scripted trade builder when populating the
            // required fixings

            if (i.irIborFallback(iborFallbackConfig)) {
                // well, except ibor fallback indices that we handle here...
                Size nIbor = 0, nRfr = 0;
                for (auto [d, _] : fixings) {
                    d = i.index()->fixingCalendar().adjust(d, Preceding);
                    if (d >= i.irIborFallback(iborFallbackConfig)->switchDate()) {
                        auto fd = i.irIborFallback(iborFallbackConfig)->onCoupon(d)->fixingDates();
                        fixings_[iborFallbackConfig.fallbackData(name).rfrIndex].insert(fd.begin(), fd.end());
                        nRfr += fd.size();
                    } else {
                        fixings_[i.name()].insert(d);
                        nIbor++;
                    }
                }
                DLOG("added " << nIbor << " Ibor and " << nRfr << " Rfr fixings for ibor fallback '" << i.name()
                              << "' (from eval op, prob fcts)");
            } else if (i.irOvernightFallback(iborFallbackConfig)) {
                Size nOis = 0, nRfr = 0;
                for (auto [d, _] : fixings) {
                    d = i.index()->fixingCalendar().adjust(d, Preceding);
                    if (d >= i.irOvernightFallback(iborFallbackConfig)->switchDate()) {
                        fixings_[iborFallbackConfig.fallbackData(name).rfrIndex].insert(d);
                        nRfr++;
                    } else {
                        fixings_[i.name()].insert(d);
                        nOis++;
                    }
                }
                DLOG("added " << nOis << " OIS and " << nRfr << " Rfr fallback fixings for OIS fallback '" << i.name()
                              << "' (from eval op, prob fcts)");
            } else {
                // ... and all the others here:
                IndexInfo imkt(name, market_);
                for (const auto& [d, prob] : fixings) {
                    fixings_[i.name()].insert((prob ? imkt : i).index()->fixingCalendar().adjust(d, Preceding));
                }
                DLOG("added " << fixings.size() << " fixings for '" << i.name() << "' (from eval op, prob fcts)");
            }
        }
    }

    // add fixings from FWDCOMP(), FWDAVG()
    for (auto const& f : staticAnalyser_->fwdCompAvgFixingDates()) {
        QL_REQUIRE(IndexInfo(f.first).isIr(),
                   "FWD[COMP|AVG]() only supports IR ON indices, got '" << f.first << "' during fixing map population");
        fixings_[f.first].insert(f.second.begin(), f.second.end());
        DLOG("added " << f.second.size() << " fixings for '" << f.first << "' (from FWD[COMP|AVG]())");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

extractPayCcys()

void extractPayCcys ( )

protected

Definition at line 675 of file scriptedtrade.cpp.

                                                {
    DLOG("Extract pay ccys and determine the model's base ccy");
    for (auto const& c : staticAnalyser_->payObsDates()) {
        payCcys_.insert(c.first);
        DLOG("got pay currency " << c.first);
    }
}

Here is the caller graph for this function:

determineBaseCcy()

void determineBaseCcy ( )

protected

Definition at line 683 of file scriptedtrade.cpp.

                                                  {
    std::set<std::string> baseCcyCandidates;

    // candidates are target currencies from the fx indices
    for (auto const& i : fxIndices_) {
        std::string ccy = i.fx()->targetCurrency().code();
        baseCcyCandidates.insert(ccy);
        DLOG("add base ccy candidate " << ccy << " from " << i);
    }

    // add pay currencies as base ccy canditate only if there are no candidates from the fx indices
    if (baseCcyCandidates.empty()) {
        for (auto const& p : payCcys_) {
            baseCcyCandidates.insert(p);
            DLOG("add base ccy candidate " << p << " from pay ccys");
        }
    }

    // if there is only one candidate and we do not enforce the base ccy from the model parameters we take that,
    // otherweise the base ccy from the model parameters

    if (baseCcyCandidates.size() == 1 && !enforceBaseCcy_) {
        baseCcy_ = *baseCcyCandidates.begin();
    } else {
        baseCcy_ = baseCcyParam_;
    }

    DLOG("base ccy is " << baseCcy_
                        << (amcCam_ != nullptr ? "(this choice might be overwritten below for AMC builders)" : ""));
}

Here is the caller graph for this function:

compileModelCcyList()

void compileModelCcyList ( )

protected

Definition at line 732 of file scriptedtrade.cpp.

                                                     {
    std::set<std::string> tmpCcys;
    tmpCcys.insert(baseCcy_);

    DLOG("Compile the model currencies list");

    for (auto const& c : payCcys_) {
        tmpCcys.insert(c);
    }

    for (auto const& i : fxIndices_) {
        std::string f = i.fx()->sourceCurrency().code();
        std::string d = i.fx()->targetCurrency().code();
        tmpCcys.insert(f);
        tmpCcys.insert(d);
    }

    // ir index currencies are only added for the cam model, for bs or local vol they are not needed
    // inf index currencies are not needed for the dk in the cam model, but for jy they are
    if (modelParam_ == "GaussianCam") {
        for (auto const& i : irIndices_)
            tmpCcys.insert(i.ir()->currency().code());
        if (infModelType_ == "DK") {
            for (auto const& i : infIndices_)
                tmpCcys.insert(i.inf()->currency().code());
        }
    }

    // we only add eqCurrencies / comCurrencies to the modelCcys if we
    // - build the GaussianCam model which requires all relevant currencies to be present
    // - or require a dynamic FX process for each currency
    // In case we build a GaussianCam and fullDynamicIr_ = false, there will be a zero vol process set up
    // for the IR component though, if there is no requirement for the currency from an IR index.
    // If fullDynamicFx_ = false the FX components for that currency will be zero vol, too, if there is no
    // FX index requiring the ccy. See buildGaussianCam().
    if (fullDynamicFx_ || modelParam_ == "GaussianCam") {
        for (auto const& e : eqIndices_) {
            tmpCcys.insert(getEqCcy(e));
        }
        for (auto const& c : commIndices_) {
            tmpCcys.insert(getCommCcy(c));
        }
    }

    // if we build an AMC builder, we set the base ccy to the amc model base ccy, otherwise we won't have the
    // required FX spot processes in the projected model we use for the scripted trade; the only exception is
    // if we have only one ccy in the final scripted trade model anyway (i.e. only one IR process), in which
    // case we can go with that one currency and don't need a more complicated model
    if (amcCam_ != nullptr) {
        std::string newBaseCcy_ = amcCam_->ir(0)->currency().code();
        if (newBaseCcy_ == baseCcy_) {
            DLOG("base ccy and AMC model base ccy are identical (" << baseCcy_ << ")");
        } else {
            if (tmpCcys.size() > 1) {
                DLOG("base ccy " << baseCcy_ << " is overwritten with AMC model base ccy " << newBaseCcy_
                                 << ", since more than one ccy is needed in the final model.");
                baseCcy_ = newBaseCcy_;
            } else {
                DLOG("base ccy " << baseCcy_ << " is kept although AMC model base ccy is different (" << newBaseCcy_
                                 << "), because it is a single currency model");
            }
        }
    }

    // build currency vector with the base ccy at the front
    modelCcys_ = std::vector<std::string>(1, baseCcy_);
    for (auto const& c : tmpCcys)
        if (c != baseCcy_)
            modelCcys_.push_back(c);

    // log ccys
    for (auto const& c : modelCcys_)
        DLOG("model ccy " << c << " added");
}

Here is the call graph for this function:

Here is the caller graph for this function:

compileModelIndexLists()

void compileModelIndexLists ( )

protected

Definition at line 807 of file scriptedtrade.cpp.

                                                        {
    for (auto const& i : eqIndices_) {
        modelIndices_.push_back(i.name());
        modelIndicesCurrencies_.push_back(getEqCcy(i));
        DLOG("added model index " << modelIndices_.back());
    }

    for (auto const& i : commIndices_) {
        modelIndices_.push_back(i.name());
        modelIndicesCurrencies_.push_back(getCommCcy(i));
        DLOG("added model index " << modelIndices_.back());
    }

    // cover the ccys from the actual fx indices
    std::set<std::string> coveredCcys;
    coveredCcys.insert(baseCcy_);
    for (auto const& i : fxIndices_) {
        std::string targetCcy = i.fx()->targetCurrency().code();
        std::string sourceCcy = i.fx()->sourceCurrency().code();
        if (sourceCcy != baseCcy_ &&
            std::find(coveredCcys.begin(), coveredCcys.end(), sourceCcy) == coveredCcys.end()) {
            modelIndices_.push_back("FX-GENERIC-" + sourceCcy + "-" + baseCcy_);
            modelIndicesCurrencies_.push_back(sourceCcy);
            coveredCcys.insert(sourceCcy);
            DLOG("added model index " << modelIndices_.back());
        }
        if (targetCcy != baseCcy_ &&
            std::find(coveredCcys.begin(), coveredCcys.end(), targetCcy) == coveredCcys.end()) {
            modelIndices_.push_back("FX-GENERIC-" + targetCcy + "-" + baseCcy_);
            modelIndicesCurrencies_.push_back(targetCcy);
            coveredCcys.insert(targetCcy);
            DLOG("added model index " << modelIndices_.back());
        }
    }

    // cover the remaining model currencies, if we require this via the fullDynamicFx parameter
    if (fullDynamicFx_) {
        for (Size i = 1; i < modelCcys_.size(); ++i) {
            if (std::find(coveredCcys.begin(), coveredCcys.end(), modelCcys_[i]) == coveredCcys.end()) {
                modelIndices_.push_back("FX-GENERIC-" + modelCcys_[i] + "-" + baseCcy_);
                modelIndicesCurrencies_.push_back(modelCcys_[i]);
                coveredCcys.insert(modelCcys_[i]);
                DLOG("added model index " << modelIndices_.back() << " (since fullDynamicFx = true)");
            }
        }
    }

    for (auto const& i : irIndices_) {
        if (i.irSwap())
            modelIrIndices_.push_back(
                std::make_pair(i.name(), *market_->swapIndex(i.name(), configuration(MarketContext::pricing))));
        else
            modelIrIndices_.push_back(
                std::make_pair(i.name(), *market_->iborIndex(i.name(), configuration(MarketContext::pricing))));
        DLOG("added model ir index " << i.name());
    }

    for (auto const& i : infIndices_) {
        modelInfIndices_.push_back(
            std::make_pair(i.name(), *market_->zeroInflationIndex(i.infName(), configuration(MarketContext::pricing))));
        DLOG("added model inf index " << i.name());
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

setupCorrelations()

void setupCorrelations ( )

protected

Definition at line 871 of file scriptedtrade.cpp.

                                                   {

    if (zeroVolatility_) {
        DLOG("skipping correlation setup because we are using zero volatility");
        return;
    }

    // collect pairs of model index names and correlation curve lookup names
    std::set<std::pair<std::string, std::string>> tmp;

    // EQ, FX, COMM indices
    for (auto const& m : modelIndices_) {
        IndexInfo ind(m);
        if (ind.isComm()) {
            // for COMM indices we expect the correlation on the COMM name level (not on single futures)
            // notice we might have different COMM indices on the same name (via spot, future, dynamic future
            // reference) - for those the correlationCurve() call below will return a constant 1.0 correlation
            tmp.insert(std::make_pair(m, "COMM-" + ind.commName()));
        } else {
            // for EQ, FX the lookup name is the same as the model index name
            tmp.insert(std::make_pair(m, m));
        }
    }

    // need the ir, inf indices only for GaussianCam
    if (modelParam_ == "GaussianCam") {
        for (auto const& irIdx : modelIrIndices_) {
            // for IR the lookup name is the same as the model index name
            tmp.insert(std::make_pair(irIdx.first, irIdx.first));
        }
        for (auto const& infIdx : modelInfIndices_) {
            // for INF the lookup name is without the #L, #F suffix
            IndexInfo ind(infIdx.first);
            tmp.insert(std::make_pair(infIdx.first, ind.infName()));
        }
    }

    DLOG("adding correlations for indices:");
    for (auto const& n : tmp)
        DLOG("model index '" << n.first << "' lookup name '" << n.second << "'");

    std::vector<std::pair<std::string, std::string>> corrModelIndices(tmp.begin(), tmp.end());

    for (Size i = 0; i < corrModelIndices.size(); ++i) {
        for (Size j = 0; j < i; ++j) {
            try {
                correlations_[std::make_pair(corrModelIndices[i].first, corrModelIndices[j].first)] =
                    correlationCurve(corrModelIndices[i].second, corrModelIndices[j].second);
                DLOG("added correlation for " << corrModelIndices[j].second << " ~ " << corrModelIndices[i].second);
            } catch (const std::exception& e) {
                WLOG("no correlation provided for " << corrModelIndices[j].second << " ~ " << corrModelIndices[i].second
                                                    << "(" << e.what() << ")");
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

setLastRelevantDate()

void setLastRelevantDate ( )

protected

Definition at line 928 of file scriptedtrade.cpp.

                                                     {
    lastRelevantDate_ = Date::minDate();
    for (auto const& s : staticAnalyser_->indexEvalDates())
        for (auto const& d : s.second)
            lastRelevantDate_ = std::max(lastRelevantDate_, d);
    for (auto const& d : staticAnalyser_->regressionDates())
        lastRelevantDate_ = std::max(lastRelevantDate_, d);
    for (auto const& s : staticAnalyser_->payObsDates())
        for (auto const& d : s.second)
            lastRelevantDate_ = std::max(lastRelevantDate_, d);
    for (auto const& s : staticAnalyser_->payPayDates())
        for (auto const& d : s.second)
            lastRelevantDate_ = std::max(lastRelevantDate_, d);
    for (auto const& s : staticAnalyser_->discountObsDates())
        for (auto const& d : s.second)
            lastRelevantDate_ = std::max(lastRelevantDate_, d);
    for (auto const& s : staticAnalyser_->discountPayDates())
        for (auto const& d : s.second)
            lastRelevantDate_ = std::max(lastRelevantDate_, d);
    DLOG("last relevant date: " << lastRelevantDate_);
}

Here is the caller graph for this function:

setupBlackScholesProcesses()

void setupBlackScholesProcesses ( )

protectedvirtual

Definition at line 950 of file scriptedtrade.cpp.

                                                            {
    Handle<BlackVolTermStructure> vol;
    if (zeroVolatility_) {
        vol = Handle<BlackVolTermStructure>(
            QuantLib::ext::make_shared<BlackConstantVol>(0, NullCalendar(), 0.0, ActualActual(ActualActual::ISDA)));
        DLOG("using zero volatility processes");
    }
    for (Size i = 0; i < modelIndices_.size(); ++i) {
        IndexInfo ind(modelIndices_[i]);
        if (ind.isEq()) {
            std::string name = ind.eq()->name();
            auto spot = market_->equitySpot(name, configuration(MarketContext::pricing));
            auto div = market_->equityDividendCurve(name, configuration(MarketContext::pricing));
            auto fc = market_->equityForecastCurve(name, configuration(MarketContext::pricing));
            if (!zeroVolatility_)
                vol = market_->equityVol(name, configuration(MarketContext::pricing));
            processes_.push_back(QuantLib::ext::make_shared<GeneralizedBlackScholesProcess>(spot, div, fc, vol));
            DLOG("added process for equity " << name);
        } else if (ind.isComm()) {
            std::string name = ind.commName();
            auto spot = Handle<Quote>(QuantLib::ext::make_shared<DerivedPriceQuote>(
                market_->commodityPriceCurve(name, configuration(MarketContext::pricing))));
            auto priceCurve = market_->commodityPriceCurve(name, configuration(MarketContext::pricing));
            auto fc = market_->discountCurve(modelIndicesCurrencies_[i], configuration(MarketContext::pricing));
            auto div = Handle<YieldTermStructure>(QuantLib::ext::make_shared<PriceTermStructureAdapter>(*priceCurve, *fc));
            div->enableExtrapolation();
            if (!zeroVolatility_)
                vol = market_->commodityVolatility(name, configuration(MarketContext::pricing));
            processes_.push_back(QuantLib::ext::make_shared<GeneralizedBlackScholesProcess>(spot, div, fc, vol));
            DLOG("added process for commodity " << name);
        } else if (ind.isFx()) {
            std::string targetCcy = ind.fx()->targetCurrency().code();
            std::string sourceCcy = ind.fx()->sourceCurrency().code();
            auto spot = market_->fxSpot(sourceCcy + targetCcy, configuration(MarketContext::pricing));
            auto div = market_->discountCurve(sourceCcy, configuration(MarketContext::pricing));
            auto fc = market_->discountCurve(targetCcy, configuration(MarketContext::pricing));
            if (!zeroVolatility_)
                vol = market_->fxVol(sourceCcy + targetCcy, configuration(MarketContext::pricing));
            processes_.push_back(QuantLib::ext::make_shared<GeneralizedBlackScholesProcess>(spot, div, fc, vol));
            DLOG("added process for fx " << sourceCcy << "-" << targetCcy);
        } else {
            QL_FAIL("unexpected model index " << ind);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

setupIrReversions()

void setupIrReversions ( )

protected

Definition at line 996 of file scriptedtrade.cpp.

                                                   {
    if (zeroVolatility_) {
        DLOG("skipping IR reversion setup because we are using zero volatility");
        return;
    }
    // get reversions for ir index currencies ...
    std::set<std::string> irCcys;
    for (auto const& i : irIndices_)
        irCcys.insert(i.ir()->currency().code());
    // ... or all currencies if we require dynamic processes for all
    if (fullDynamicIr_) {
        irCcys.insert(modelCcys_.begin(), modelCcys_.end());
    }
    for (auto const& ccy : irCcys) {
        string revStr = modelParameter("IrReversion_" + ccy, {resolvedProductTag_}, false, "");
        if (revStr.empty())
            revStr = modelParameter("IrReversion", {resolvedProductTag_}, false, "");
        QL_REQUIRE(!revStr.empty(), "Did not find reversion for "
                                        << ccy
                                        << ", need IrReversion_CCY or IrReversion parameter in pricing engine config.");
        irReversions_[ccy] = parseReal(revStr);
        DLOG("got Hull White reversion " << irReversions_[ccy] << " for " << ccy);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

compileSimulationAndAddDates()

void compileSimulationAndAddDates ( )

protected

Definition at line 1034 of file scriptedtrade.cpp.

                                                              {
    DLOG("compile simulation and additional dates...");

    for (auto const& s : staticAnalyser_->indexEvalDates()) {
        IndexInfo info(s.first);
        // skip generic indices, for them we do not to add the obs date to sim or add dates
        if (info.isGeneric())
            continue;
        // need ir / inf index observation dates only for GaussianCam as simulation dates, for LocalVol, BS
        // we don't need to add them at all
        if ((!info.isIr() && !info.isInf()) || modelParam_ == "GaussianCam") {
            if (info.isInf()) {
                // inf needs special considerations
                QuantLib::ext::shared_ptr<ZeroInflationIndex> marketIndex = getInfMarketIndex(info.name(), modelInfIndices_);
                Size lag = getInflationSimulationLag(marketIndex);
                for (auto const& d : s.second) {
                    auto lim = inflationPeriod(d, info.inf()->frequency());
                    simulationDates_.insert(lim.first + lag);
                    QL_DEPRECATED_DISABLE_WARNING
                    // This will be removed in a later release and all inf indices are then flat
                    if (info.inf()->interpolated())
                        simulationDates_.insert(d + lag);
                    QL_DEPRECATED_ENABLE_WARNING
                }
            } else {
                // for all other indices we just take the original dates
                simulationDates_.insert(s.second.begin(), s.second.end());
            }
            DLOG("added " << s.second.size() << " simulation dates for '" << s.first << "' (from eval op obs dates)");
        }
    }

    for (auto const& s : staticAnalyser_->indexFwdDates()) {
        IndexInfo info(s.first);
        // do not need ir / inf index fwd dates (not for LocalVol, BS, but also not for GaussianCam)
        if (!info.isIr() && !info.isInf()) {
            addDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " additional dates for '" << s.first << "' (from eval op fwd dates)");
        }
    }

    for (auto const& s : staticAnalyser_->payObsDates()) {
        // need pay obs dates as simulation dates only for GaussianCam, for Local Vol, BS
        // add them as addDaes except the pay ccy is not base and there is an fx index with
        // the pay ccy as for ccy (then the simulated fx index will be used for ccy conversion)
        std::string payCcy = s.first;
        if (modelParam_ == "GaussianCam" ||
            (baseCcy_ != payCcy &&
             std::find_if(modelIndices_.begin(), modelIndices_.end(), [&payCcy](const std::string& s) {
                 IndexInfo ind(s);
                 return ind.isFx() && ind.fx()->sourceCurrency().code() == payCcy;
             }) != modelIndices_.end())) {
            simulationDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " simulation dates for '" << payCcy << "' (from pay() obs dates)");
        } else {
            addDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " additional dates for '" << payCcy << "' (from pay() obs dates)");
        }
    }

    simulationDates_.insert(staticAnalyser_->regressionDates().begin(), staticAnalyser_->regressionDates().end());
    DLOG("added " << staticAnalyser_->regressionDates().size() << " simulation dates (from npv() regression dates)");

    for (auto const& s : staticAnalyser_->payPayDates()) {
        addDates_.insert(s.second.begin(), s.second.end());
        DLOG("added " << s.second.size() << " additional dates for '" << s.first << "' (from pay() pay dates)");
    }

    for (auto const& s : staticAnalyser_->discountObsDates()) {
        // need disocunt obs dates only for GaussianCam as simulation dates, for Local Vol, BS
        // add them as addDates
        if (modelParam_ == "GaussianCam") {
            simulationDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " simulation dates for '" << s.first
                          << "' (from discount() obs dates)");
        } else {
            addDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " additional dates for '" << s.first
                          << "' (from discount() obs dates)");
        }
        DLOG("added " << s.second.size() << " additional dates for '" << s.first << "' (from discount() obs dates)");
    }

    for (auto const& s : staticAnalyser_->discountPayDates()) {
        addDates_.insert(s.second.begin(), s.second.end());
        DLOG("added " << s.second.size() << " additional dates for '" << s.first << "' (from discount() pay dates)");
    }

    for (auto const& s : staticAnalyser_->fwdCompAvgEvalDates()) {
        // need fwd comp eval dates only for GaussianCam as simulation dates, for Local Vol, BS
        // add them as addDates
        if (modelParam_ == "GaussianCam") {
            simulationDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " simulation dates for '" << s.first
                          << "' (from fwd[Comp|Avg]() obs dates)");
        } else {
            addDates_.insert(s.second.begin(), s.second.end());
            DLOG("added " << s.second.size() << " additional dates for '" << s.first
                          << "' (from fwd[Comp|Avg]() obs dates)");
        }
    }

    for (auto const& s : staticAnalyser_->fwdCompAvgStartEndDates()) {
        addDates_.insert(s.second.begin(), s.second.end());
        DLOG("added " << s.second.size() << " additional dates for '" << s.first
                      << "' (from fwd[Comp|Avg]() start/end dates)");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildBlackScholes()

void buildBlackScholes ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig  )

protected

Definition at line 1199 of file scriptedtrade.cpp.

                                                                                                 {
    Real T = modelCurves_.front()->timeFromReference(lastRelevantDate_);
    auto filteredStrikes = filterBlackScholesCalibrationStrikes(calibrationStrikes_, modelIndices_, processes_, T);
    // ignore timeStepsPerYear if we have no correlations, i.e. we can take large timesteps without changing anything
    auto builder = QuantLib::ext::make_shared<BlackScholesModelBuilder>(
        modelCurves_, processes_, simulationDates_, addDates_, correlations_.empty() ? 0 : timeStepsPerYear_,
        calibration_, getCalibrationStrikesVector(filteredStrikes, modelIndices_));
    if (useCg_) {
        modelCG_ = QuantLib::ext::make_shared<BlackScholesCG>(
            modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_, modelInfIndices_, modelIndices_,
            modelIndicesCurrencies_, builder->model(), correlations_, simulationDates_, iborFallbackConfig,
            calibration_, filteredStrikes);
    } else {
        model_ = QuantLib::ext::make_shared<BlackScholes>(modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_,
                                                  modelInfIndices_, modelIndices_, modelIndicesCurrencies_,
                                                  builder->model(), correlations_, mcParams_, simulationDates_,
                                                  iborFallbackConfig, calibration_, filteredStrikes);
    }
    modelBuilders_.insert(std::make_pair(id, builder));
}

Here is the caller graph for this function:

buildFdBlackScholes()

void buildFdBlackScholes ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig  )

protected

Definition at line 1221 of file scriptedtrade.cpp.

                                                                                                   {
    Real T = modelCurves_.front()->timeFromReference(lastRelevantDate_);
    auto filteredStrikes = filterBlackScholesCalibrationStrikes(calibrationStrikes_, modelIndices_, processes_, T);
    auto builder = QuantLib::ext::make_shared<BlackScholesModelBuilder>(
        modelCurves_, processes_, simulationDates_, addDates_, timeStepsPerYear_, calibration_,
        getCalibrationStrikesVector(filteredStrikes, modelIndices_));
    model_ = QuantLib::ext::make_shared<FdBlackScholesBase>(
        modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_, modelInfIndices_, modelIndices_,
        modelIndicesCurrencies_, payCcys_, builder->model(), correlations_, simulationDates_, iborFallbackConfig,
        calibration_, filteredStrikes, mesherEpsilon_, mesherScaling_, mesherConcentration_,
        mesherMaxConcentratingPoints_, mesherIsStatic_);
    modelBuilders_.insert(std::make_pair(id, builder));
}

Here is the caller graph for this function:

buildLocalVol()

void buildLocalVol ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig  )

protected

Definition at line 1236 of file scriptedtrade.cpp.

                                                                                                                {
    LocalVolModelBuilder::Type lvType;
    if (modelParam_ == "LocalVolDupire")
        lvType = LocalVolModelBuilder::Type::Dupire;
    else if (modelParam_ == "LocalVolAndreasenHuge")
        lvType = LocalVolModelBuilder::Type::AndreasenHuge;
    else {
        QL_FAIL("local vol model type " << modelParam_ << " not recognised.");
    }
    auto builder = QuantLib::ext::make_shared<LocalVolModelBuilder>(modelCurves_, processes_, simulationDates_, addDates_,
                                                            timeStepsPerYear_, lvType, calibrationMoneyness_,
                                                            !calibrate_ || zeroVolatility_);
    model_ = QuantLib::ext::make_shared<LocalVol>(modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_,
                                          modelInfIndices_, modelIndices_, modelIndicesCurrencies_, builder->model(),
                                          correlations_, mcParams_, simulationDates_, iborFallbackConfig);
    modelBuilders_.insert(std::make_pair(id, builder));
}

Here is the caller graph for this function:

buildGaussianCam()

void buildGaussianCam ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig, const std::vector< std::string > &  conditionalExpectationModelStates  )

protected

Definition at line 1267 of file scriptedtrade.cpp.

                                                                                                                 {
    // compile cam correlation matrix
    // - we want to use the maximum tenor of an ir index in a correlation pair if several are given (to have
    //   a well defined rule how to derive the LGM IR correlations); to get there we store the correlations
    //   together with the index tenors (or null if not applicatble), so that we can decide if we overwrite
    //   an existing correlation with another candidate or not
    // - correlations are for index pair names and must be constant; if not given for a pair, we assume zero
    //   correlation;
    // - correlations for IR processes are taken from IR index correlations, if several indices exist
    //   for one ccy, the index with the longest tenor T is selected; we do not apply an LGM adjustment for this
    //   value due to time dependent volatility, since this is usually negligible
    // - for inf we do not apply an adjustment either => TODO is that suitable for both DK and JY approximately?
    // - for inf JY we have two driving factors (f1,f2) where f1 drives the real rate process and f2 drives the
    //   inflation index ("fx") process; we assume the correlation between f1 and any other factor (including f2)
    //   to be zero and set the correlation between f2 and any other factor to the correlation read from the
    //   market data for the inflation index, TODO is that assumption reasonable?
    std::map<std::pair<std::string, std::string>,
             std::tuple<Handle<QuantExt::CorrelationTermStructure>, Period, Period>>
        tmpCorrelations;
    for (auto const& c : correlations_) {
        std::pair<std::string, Period> firstEntry = convertIndexToCamCorrelationEntry(c.first.first);
        std::pair<std::string, Period> secondEntry = convertIndexToCamCorrelationEntry(c.first.second);
        // if we have identical CAM entries (e.g. IR:EUR, IR:EUR) we skip this pair, since we can't specify a
        // correlation in this case
        if (firstEntry.first == secondEntry.first)
            continue;
        auto e = tmpCorrelations.find(std::make_pair(firstEntry.first, secondEntry.first));
        if (e == tmpCorrelations.end() ||
            (firstEntry.second > std::get<1>(e->second) && secondEntry.second > std::get<2>(e->second))) {
            tmpCorrelations[std::make_pair(firstEntry.first, secondEntry.first)] =
                std::make_tuple(c.second, firstEntry.second, secondEntry.second);
        }
    }

    map<CorrelationKey, Handle<Quote>> camCorrelations;
    for (auto const& c : tmpCorrelations) {
        CorrelationFactor f_1 = parseCorrelationFactor(c.first.first, '#');
        CorrelationFactor f_2 = parseCorrelationFactor(c.first.second, '#');
        // update index for JY from 0 to 1 (i.e. to the factor driving the inf index ("fx") process)
        // in all other cases the index 0 is fine, since there is only one driving factor always
        if (infModelType_ == "JY") {
            if (f_1.type == CrossAssetModel::AssetType::INF)
                f_1.index = 1;
            if (f_2.type == CrossAssetModel::AssetType::INF)
                f_2.index = 1;
        }
        auto q = Handle<Quote>(QuantLib::ext::make_shared<CorrelationValue>(std::get<0>(c.second), 0.0));
        camCorrelations[std::make_pair(f_1, f_2)] = q;
        DLOG("added correlation for " << c.first.first << "/" << c.first.second << ": " << q->value());
    }

    // correlation overwrite from pricing engine parameters

    std::set<CorrelationFactor> allCorrRiskFactors;

    for (auto const& m : modelIndices_)
        allCorrRiskFactors.insert(parseCorrelationFactor(convertIndexToCamCorrelationEntry(m).first, '#'));
    for (auto const& m : modelIrIndices_)
        allCorrRiskFactors.insert(parseCorrelationFactor(convertIndexToCamCorrelationEntry(m.first).first, '#'));
    for (auto const& m : modelInfIndices_)
        allCorrRiskFactors.insert(parseCorrelationFactor(convertIndexToCamCorrelationEntry(m.first).first, '#'));
    for (auto const& ccy : modelCcys_)
        allCorrRiskFactors.insert({CrossAssetModel::AssetType::IR, ccy, 0});

    for (auto const& c1 : allCorrRiskFactors) {
        for (auto const& c2 : allCorrRiskFactors) {
            // determine the number of driving factors for f_1 and f_2
            Size nf_1 = c1.type == CrossAssetModel::AssetType::INF && infModelType_ == "JY" ? 2 : 1;
            Size nf_2 = c2.type == CrossAssetModel::AssetType::INF && infModelType_ == "JY" ? 2 : 1;
            for (Size k = 0; k < nf_1; ++k) {
                for (Size l = 0; l < nf_2; ++l) {
                    auto f_1 = c1;
                    auto f_2 = c2;
                    f_1.index = k;
                    f_2.index = l;
                    if (f_1 == f_2)
                        continue;
                    // lookup names are IR:GBP:0 and IR:GBP whenever the index is zero
                    auto s_1 = ore::data::to_string(f_1);
                    auto s_2 = ore::data::to_string(f_2);
                    std::set<std::string> lookupnames1, lookupnames2;
                    lookupnames1.insert(s_1);
                    lookupnames2.insert(s_2);
                    if (k == 0)
                        lookupnames1.insert(s_1.substr(0, s_1.size() - 2));
                    if (l == 0)
                        lookupnames2.insert(s_2.substr(0, s_2.size() - 2));
                    for (auto const& l1 : lookupnames1) {
                        for (auto const& l2 : lookupnames2) {
                            if (auto overwrite = modelParameter(
                                    "Correlation",
                                    {resolvedProductTag_ + "_" + l1 + "_" + l2, l1 + "_" + l2, resolvedProductTag_},
                                    false);
                                !overwrite.empty()) {
                                camCorrelations[std::make_pair(f_1, f_2)] =
                                    Handle<Quote>(QuantLib::ext::make_shared<SimpleQuote>(parseReal(overwrite)));
                            }
                        }
                    }
                }
            }
        }
    }

    // set up the cam and calibrate it using the cam builder
    // if for a non-base currency no fx index is given, we set up a zero vol FX process for this
    // if fullDynamicIr is false, we set up a zero vol IR process for currencies that are not irIndex currencies

    std::vector<QuantLib::ext::shared_ptr<IrModelData>> irConfigs;
    std::vector<QuantLib::ext::shared_ptr<InflationModelData>> infConfigs;
    std::vector<QuantLib::ext::shared_ptr<FxBsData>> fxConfigs;
    std::vector<QuantLib::ext::shared_ptr<EqBsData>> eqConfigs;
    std::vector<QuantLib::ext::shared_ptr<CommoditySchwartzData>> comConfigs;

    // calibration expiries and terms for IR, INF, FX, EQ parametrisations (this will only work for a fixed reference
    // date, due to the way the cam builder and nested builders work, see ticket #940)
    Date referenceDate = modelCurves_.front()->referenceDate();
    std::vector<Date> calibrationDates;
    std::vector<std::string> calibrationExpiries, calibrationTerms;

    for (auto const& d : simulationDates_) {
        if (d > referenceDate) {
            calibrationDates.push_back(d);
            calibrationExpiries.push_back(ore::data::to_string(d));
            // make sure the underlying swap has at least 1M to run, QL will throw otherwise during calibration
            calibrationTerms.push_back(ore::data::to_string(std::max(d + 1 * Months, lastRelevantDate_)));
        }
    }

    // calibration times (need one less than calibration dates)
    std::vector<Real> calibrationTimes;
    for (Size i = 0; i + 1 < calibrationDates.size(); ++i) {
        calibrationTimes.push_back(modelCurves_.front()->timeFromReference(calibrationDates[i]));
    }

    // IR configs
    for (Size i = 0; i < modelCcys_.size(); ++i) {
        auto config = QuantLib::ext::make_shared<IrLgmData>();
        config->qualifier() = getFirstIrIndexOrCcy(modelCcys_[i], irIndices_);
        config->reversionType() = LgmData::ReversionType::HullWhite;
        config->volatilityType() = LgmData::VolatilityType::Hagan;
        config->calibrateH() = false;
        config->hParamType() = ParamType::Constant;
        config->hTimes() = std::vector<Real>();
        config->shiftHorizon() =
            modelCurves_.front()->timeFromReference(lastRelevantDate_) * 0.5; // TODO hardcode 0.5 here?
        config->scaling() = 1.0;
        std::string ccy = modelCcys_[i];
        // if we don't require fullDynamicIr and there is no model index in the currency, we set up a zero
        // vol IR component for this ccy; we also do this if zero vol is specified in the model params
        if (calibrationExpiries.empty() || zeroVolatility_ ||
            (!fullDynamicIr_ &&
             std::find_if(modelIrIndices_.begin(), modelIrIndices_.end(),
                          [&ccy](const std::pair<std::string, QuantLib::ext::shared_ptr<InterestRateIndex>>& index) {
                              return index.second->currency().code() == ccy;
                          }) == modelIrIndices_.end())) {

            DLOG("set up zero vol IrLgmData for currency '" << modelCcys_[i] << "'");
            // zero vol
            config->calibrationType() = CalibrationType::None;
            config->hValues() = {0.0};
            config->calibrateA() = false;
            config->aParamType() = ParamType::Constant;
            config->aTimes() = std::vector<Real>();
            config->aValues() = {0.0};
        } else {
            DLOG("set up IrLgmData for currency '" << modelCcys_[i] << "'");
            // bootstrapped on atm swaption vols
            auto rev = irReversions_.find(modelCcys_[i]);
            QL_REQUIRE(rev != irReversions_.end(), "reversion for ccy " << modelCcys_[i] << " not found");
            config->calibrationType() = CalibrationType::Bootstrap;
            config->hValues() = {rev->second};
            config->calibrateA() = true;
            config->aParamType() = ParamType::Piecewise;
            config->aTimes() = calibrationTimes;
            config->aValues() = std::vector<Real>(calibrationTimes.size() + 1, 0.0030); // start value for optimiser
            config->optionExpiries() = calibrationExpiries;
            config->optionTerms() = calibrationTerms;
            config->optionStrikes() =
                std::vector<std::string>(calibrationExpiries.size(), "ATM"); // hardcoded ATM calibration strike
        }
        irConfigs.push_back(config);
    }

    // INF configs
    for (Size i = 0; i < modelInfIndices_.size(); ++i) {
        QuantLib::ext::shared_ptr<InflationModelData> config;
        if (zeroVolatility_) {
            // for both DK and JY we can just use a zero vol dk component
            config = QuantLib::ext::make_shared<InfDkData>(
                CalibrationType::None, std::vector<CalibrationBasket>(), modelInfIndices_[i].second->currency().code(),
                IndexInfo(modelInfIndices_[i].first).infName(),
                ReversionParameter(LgmData::ReversionType::Hagan, true, ParamType::Constant, {}, {0.60}),
                VolatilityParameter(LgmData::VolatilityType::Hagan, false, ParamType::Constant, {}, {0.00}),
                LgmReversionTransformation(), true);
        } else {
            // build calibration basket (CPI Floors at calibration strike or if that is not given, ATM strike)
            QuantLib::ext::shared_ptr<BaseStrike> calibrationStrike;
            if (auto k = calibrationStrikes_.find(modelInfIndices_[i].first);
                k != calibrationStrikes_.end() && !k->second.empty()) {
                calibrationStrike = QuantLib::ext::make_shared<AbsoluteStrike>(k->second.front());
            } else {
                calibrationStrike = QuantLib::ext::make_shared<AtmStrike>(QuantLib::DeltaVolQuote::AtmType::AtmFwd);
            }
            std::vector<QuantLib::ext::shared_ptr<CalibrationInstrument>> calInstr;
            for (auto const& d : calibrationDates)
                calInstr.push_back(
                    QuantLib::ext::make_shared<CpiCapFloor>(QuantLib::CapFloor::Type::Floor, d, calibrationStrike));
            std::vector<CalibrationBasket> calBaskets(1, CalibrationBasket(calInstr));
            if (infModelType_ == "DK") {
                // build DK config
                std::string infName = IndexInfo(modelInfIndices_[i].first).infName();
                Real vol = parseReal(modelParameter("InfDkVolatility",
                                                    {resolvedProductTag_ + "_" + infName, infName, resolvedProductTag_},
                                                    false, "0.0050"));
                config = QuantLib::ext::make_shared<InfDkData>(
                    CalibrationType::Bootstrap, calBaskets, modelInfIndices_[i].second->currency().code(),
                    IndexInfo(modelInfIndices_[i].first).infName(),
                    ReversionParameter(LgmData::ReversionType::Hagan, true, ParamType::Piecewise, {}, {0.60}),
                    VolatilityParameter(LgmData::VolatilityType::Hagan, false, ParamType::Piecewise, {}, {vol}),
                    LgmReversionTransformation(),
                    // ignore duplicate expiry times among calibration instruments
                    true);
            } else if (infModelType_ == "JY") {
                // build JY config
                // we calibrate the index ("fx") process to CPI cap/floors and set the real rate process reversion equal to
                // the nominal process reversion. The real rate vol is set to a fixed multiple of nominal rate vol, the
                // multiplier is taken from the pe config model parameter "InfJyRealToNominalVolRatio"
                std::string infName = IndexInfo(modelInfIndices_[i].first).infName();
                Size ccyIndex =
                    std::distance(modelCcys_.begin(), std::find(modelCcys_.begin(), modelCcys_.end(),
                                                                modelInfIndices_[i].second->currency().code()));
                ReversionParameter realRateRev = QuantLib::ext::static_pointer_cast<LgmData>(irConfigs[ccyIndex])->reversionParameter();
                VolatilityParameter realRateVol = QuantLib::ext::static_pointer_cast<LgmData>(irConfigs[ccyIndex])->volatilityParameter();
                realRateRev.setCalibrate(false);
                realRateVol.setCalibrate(false);
                Real realRateToNominalRateRatio = parseReal(
                    modelParameter("InfJyRealToNominalVolRatio",
                                   {resolvedProductTag_ + "_" + infName, infName, resolvedProductTag_}, false, "1.0"));
                QL_REQUIRE(ccyIndex < modelCcys_.size(),
                           "ScriptedTrade::buildGaussianCam(): internal error, inflation index currency "
                               << modelInfIndices_[i].second->currency().code() << " not found in model ccy list.");
                realRateVol.mult(realRateToNominalRateRatio);
                config = QuantLib::ext::make_shared<InfJyData>(
                    CalibrationType::Bootstrap, calBaskets, modelInfIndices_[i].second->currency().code(), infName,
                    // real rate reversion and vol
                    realRateRev, realRateVol,
                    // index ("fx") vol, start value 0.10 for calibration
                    VolatilityParameter(true, ParamType::Piecewise, {}, {0.10}),
                    // no parameter trafo, no optimisation constraints (TODO do we need boundaries?)
                    LgmReversionTransformation(), CalibrationConfiguration(),
                    // ignore duplicate expiry times among calibration instruments
                    true,
                    // link real to nominal rate params
                    true,
                    // real rate to nominal rate ratio
                    realRateToNominalRateRatio);
            } else {
                QL_FAIL("invalid infModelType '" << infModelType_ << "', expected DK or JY");
            }
        }
        infConfigs.push_back(config);
    }

    // FX configs
    for (Size i = 1; i < modelCcys_.size(); ++i) {
        auto config = QuantLib::ext::make_shared<FxBsData>();
        config->foreignCcy() = modelCcys_[i];
        config->domesticCcy() = modelCcys_[0];
        // if we do not have a FX index for the currency, we set up a zero vol process (FX indices are added above
        // for all non-base ccys if fullDynamicFx is specified)
        bool haveFxIndex = false;
        for (Size j = 0; j < modelIndices_.size(); ++j) {
            if (IndexInfo(modelIndices_[j]).isFx() && modelIndicesCurrencies_[j] == modelCcys_[i])
                haveFxIndex = true;
        }
        if (calibrationExpiries.empty() || !haveFxIndex || zeroVolatility_) {
            DLOG("set up zero vol FxBsData for currency '" << modelCcys_[i] << "'");
            // zero vols
            config->calibrationType() = CalibrationType::None;
            config->calibrateSigma() = false;
            config->sigmaParamType() = ParamType::Constant;
            config->sigmaTimes() = std::vector<Real>();
            config->sigmaValues() = {0.0};
        } else {
            DLOG("set up FxBsData for currency '" << modelCcys_[i] << "'");
            // bootstrapped on atm fx vols
            config->calibrationType() = CalibrationType::Bootstrap;
            config->calibrateSigma() = true;
            config->sigmaParamType() = ParamType::Piecewise;
            config->sigmaTimes() = calibrationTimes;
            config->sigmaValues() = std::vector<Real>(calibrationTimes.size() + 1, 0.10); // start value for optimiser
            config->optionExpiries() = calibrationExpiries;
            config->optionStrikes() =
                std::vector<std::string>(calibrationExpiries.size(), "ATMF"); // hardcoded ATMF calibration strike
        }
        fxConfigs.push_back(config);
    }

    // EQ configs
    for (auto const& eq : eqIndices_) {
        auto config = QuantLib::ext::make_shared<EqBsData>();
        config->currency() = getEqCcy(eq);
        config->eqName() = eq.eq()->name();
        if (calibrationExpiries.empty() || zeroVolatility_) {
            DLOG("set up zero vol EqBsData for underlying " << eq.eq()->name());
            // zero vols
            config->calibrationType() = CalibrationType::None;
            config->calibrateSigma() = false;
            config->sigmaParamType() = ParamType::Constant;
            config->sigmaTimes() = std::vector<Real>();
            config->sigmaValues() = {0.0};
        } else {
            DLOG("set up EqBsData for underlying '" << eq.eq()->name() << "'");
            // bootstrapped on atm eq vols
            config->calibrationType() = CalibrationType::Bootstrap;
            config->calibrateSigma() = true;
            config->sigmaParamType() = ParamType::Piecewise;
            config->sigmaTimes() = calibrationTimes;
            config->sigmaValues() = std::vector<Real>(calibrationTimes.size() + 1, 0.10); // start value for optimiser
            config->optionExpiries() = calibrationExpiries;
            config->optionStrikes() =
                std::vector<std::string>(calibrationExpiries.size(), "ATMF"); // hardcoded ATMF calibration strike
        }
        eqConfigs.push_back(config);
    }

    // TODO
    std::vector<QuantLib::ext::shared_ptr<CrLgmData>> crLgmConfigs;
    std::vector<QuantLib::ext::shared_ptr<CrCirData>> crCirConfigs;

    // COMM configs
    for (auto const& comm : commIndices_) {
        auto config = QuantLib::ext::make_shared<CommoditySchwartzData>();
        config->currency() = getCommCcy(comm);
        config->name() = comm.commName();
        if (calibrationExpiries.empty() || zeroVolatility_) {
            config->calibrationType() = CalibrationType::None;
            config->calibrateSigma() = false;
            config->sigmaParamType() = ParamType::Constant;
            config->sigmaValue() = 0.0;
        } else {
            config->calibrationType() = CalibrationType::BestFit;
            config->calibrateSigma() = true;
            config->sigmaParamType() = ParamType::Constant;
            config->sigmaValue() = 0.10; // start value for optimizer
            config->optionExpiries() = calibrationExpiries;
            config->optionStrikes() =
                std::vector<std::string>(calibrationExpiries.size(), "ATMF"); // hardcoded ATMF calibration strike
        }
        comConfigs.push_back(config);
    }

    std::string configurationInCcy = configuration(MarketContext::irCalibration);
    std::string configurationXois = configuration(MarketContext::pricing);
    auto discretization = useCg_ ? CrossAssetModel::Discretization::Euler : CrossAssetModel::Discretization::Exact;
    auto camBuilder = QuantLib::ext::make_shared<CrossAssetModelBuilder>(
        market_,
        QuantLib::ext::make_shared<CrossAssetModelData>(irConfigs, fxConfigs, eqConfigs, infConfigs, crLgmConfigs, crCirConfigs,
                                                comConfigs, 0, camCorrelations, bootstrapTolerance_, "LGM",
                                                discretization),
        configurationInCcy, configurationXois, configurationXois, configurationInCcy, configurationInCcy,
        configurationXois, !calibrate_ || zeroVolatility_, continueOnCalibrationError_, referenceCalibrationGrid_,
        SalvagingAlgorithm::Spectral, id);

    // effective time steps per year: zero for exact evolution, otherwise the pricing engine parameter
    if (useCg_) {
        modelCG_ = QuantLib::ext::make_shared<GaussianCamCG>(
            camBuilder->model(), modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_, modelInfIndices_,
            modelIndices_, modelIndicesCurrencies_, simulationDates_,
            camBuilder->model()->discretization() == CrossAssetModel::Discretization::Exact ? 0 : timeStepsPerYear_,
            iborFallbackConfig, std::vector<Size>(), conditionalExpectationModelStates);
    } else {
        model_ = QuantLib::ext::make_shared<GaussianCam>(
            camBuilder->model(), modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_, modelInfIndices_,
            modelIndices_, modelIndicesCurrencies_, simulationDates_, mcParams_,
            camBuilder->model()->discretization() == CrossAssetModel::Discretization::Exact ? 0 : timeStepsPerYear_,
            iborFallbackConfig, std::vector<Size>(), conditionalExpectationModelStates);
    }

    modelBuilders_.insert(std::make_pair(id, camBuilder));
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildFdGaussianCam()

void buildFdGaussianCam ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig  )

protected

Definition at line 1651 of file scriptedtrade.cpp.

                                                                                                  {

    Date referenceDate = modelCurves_.front()->referenceDate();
    std::vector<Date> calibrationDates;
    std::vector<std::string> calibrationExpiries, calibrationTerms;

    for (auto const& d : simulationDates_) {
        if (d > referenceDate) {
            calibrationDates.push_back(d);
            calibrationExpiries.push_back(ore::data::to_string(d));
            // make sure the underlying swap has at least 1M to run, QL will throw otherwise during calibration
            calibrationTerms.push_back(ore::data::to_string(std::max(d + 1 * Months, lastRelevantDate_)));
        }
    }

    // calibration times (need one less than calibration dates)
    std::vector<Real> calibrationTimes;
    for (Size i = 0; i + 1 < calibrationDates.size(); ++i) {
        calibrationTimes.push_back(modelCurves_.front()->timeFromReference(calibrationDates[i]));
    }

    // determine calibration strike
    std::string calibrationStrike = "ATM";
    if(calibration_ == "Deal") {
        // first model index found in calibration strike spec and first specified strike therein is used
        for (auto const& m : modelIrIndices_) {
            if (auto f = calibrationStrikes_.find(m.first); f != calibrationStrikes_.end()) {
                if(!f->second.empty()) {
                    calibrationStrike = boost::lexical_cast<std::string>(f->second.front());
                }
            }
        }
    }

    // IR config
    QL_REQUIRE(modelCcys_.size() == 1,
               "ScriptedTradeEngineBuilder::buildFdGaussianCam(): only one ccy is supported, got "
                   << modelCcys_.size());

    auto config = QuantLib::ext::make_shared<IrLgmData>();
    config->qualifier() = getFirstIrIndexOrCcy(modelCcys_.front(), irIndices_);
    config->reversionType() = LgmData::ReversionType::HullWhite;
    config->volatilityType() = LgmData::VolatilityType::Hagan;
    config->calibrateH() = false;
    config->hParamType() = ParamType::Constant;
    config->hTimes() = std::vector<Real>();
    config->shiftHorizon() =
        modelCurves_.front()->timeFromReference(lastRelevantDate_) * 0.5; // TODO hardcode 0.5 here?
    config->scaling() = 1.0;
    std::string ccy = modelCcys_.front();
    if (zeroVolatility_ ) {
        DLOG("set up zero vol IrLgmData for currency '" << modelCcys_.front() << "'");
        // zero vol
        config->calibrationType() = CalibrationType::None;
        config->hValues() = {0.0};
        config->calibrateA() = false;
        config->aParamType() = ParamType::Constant;
        config->aTimes() = std::vector<Real>();
        config->aValues() = {0.0};
    } else {
        DLOG("set up IrLgmData for currency '" << modelCcys_.front() << "'");
        auto rev = irReversions_.find(modelCcys_.front());
        QL_REQUIRE(rev != irReversions_.end(), "reversion for ccy " << modelCcys_.front() << " not found");
        config->calibrationType() = CalibrationType::Bootstrap;
        config->hValues() = {rev->second};
        config->calibrateA() = true;
        config->aParamType() = ParamType::Piecewise;
        config->aTimes() = calibrationTimes;
        config->aValues() = std::vector<Real>(calibrationTimes.size() + 1, 0.0030); // start value for optimiser
        config->optionExpiries() = calibrationExpiries;
        config->optionTerms() = calibrationTerms;
        config->optionStrikes() = std::vector<std::string>(calibrationExpiries.size(), calibrationStrike);
    }

    std::string configurationInCcy = configuration(MarketContext::irCalibration);
    std::string configurationXois = configuration(MarketContext::pricing);

    auto camBuilder = QuantLib::ext::make_shared<CrossAssetModelBuilder>(
        market_,
        QuantLib::ext::make_shared<CrossAssetModelData>(
            std::vector<QuantLib::ext::shared_ptr<IrModelData>>{config}, std::vector<QuantLib::ext::shared_ptr<FxBsData>>{},
            std::vector<QuantLib::ext::shared_ptr<EqBsData>>{}, std::vector<QuantLib::ext::shared_ptr<InflationModelData>>{},
            std::vector<QuantLib::ext::shared_ptr<CrLgmData>>{}, std::vector<QuantLib::ext::shared_ptr<CrCirData>>{},
            std::vector<QuantLib::ext::shared_ptr<CommoditySchwartzData>>{}, 0,
            std::map<CorrelationKey, QuantLib::Handle<QuantLib::Quote>>{}, bootstrapTolerance_, "LGM",
            CrossAssetModel::Discretization::Exact),
        configurationInCcy, configurationXois, configurationXois, configurationInCcy, configurationInCcy,
        configurationXois, !calibrate_ || zeroVolatility_, continueOnCalibrationError_, referenceCalibrationGrid_,
        SalvagingAlgorithm::Spectral, id);

    model_ = QuantLib::ext::make_shared<FdGaussianCam>(camBuilder->model(), modelCcys_.front(), modelCurves_.front(),
                                               modelIrIndices_, simulationDates_, modelSize_, timeStepsPerYear_,
                                               mesherEpsilon_, iborFallbackConfig);

    modelBuilders_.insert(std::make_pair(id, camBuilder));
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildGaussianCamAMC()

void buildGaussianCamAMC ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig, const std::vector< std::string > &  conditionalExpectationModelStates  )

protected

Definition at line 1756 of file scriptedtrade.cpp.

                                                                   {

    QL_REQUIRE(!useCg_, "building gaussian cam from external amc cam, useCg must be set to false in this case.");

    std::vector<std::pair<CrossAssetModel::AssetType, Size>> selectedComponents;

    // IR configs
    for (Size i = 0; i < modelCcys_.size(); ++i) {
        selectedComponents.push_back(
            std::make_pair(CrossAssetModel::AssetType::IR, amcCam_->ccyIndex(parseCurrency(modelCcys_[i]))));
    }

    // INF configs
    for (Size i = 0; i < modelInfIndices_.size(); ++i) {
        selectedComponents.push_back(std::make_pair(CrossAssetModel::AssetType::INF,
                                                    amcCam_->infIndex(IndexInfo(modelInfIndices_[i].first).infName())));
    }

    // FX configs
    for (Size i = 1; i < modelCcys_.size(); ++i) {
        selectedComponents.push_back(
            std::make_pair(CrossAssetModel::AssetType::FX, amcCam_->ccyIndex(parseCurrency(modelCcys_[i])) - 1));
    }

    // EQ configs
    for (auto const& eq : eqIndices_) {
        selectedComponents.push_back(std::make_pair(CrossAssetModel::AssetType::EQ, amcCam_->eqIndex(eq.eq()->name())));
    }

    // COMM configs, not supported at this point
    QL_REQUIRE(commIndices_.empty(), "GaussianCam model does not support commodity underlyings currently");

    std::vector<Size> projectedStateProcessIndices;
    Handle<CrossAssetModel> projectedModel(
        getProjectedCrossAssetModel(amcCam_, selectedComponents, projectedStateProcessIndices));

    // effective time steps per year: zero for exact evolution, otherwise the pricing engine parameter
    if (useCg_) {
        modelCG_ = QuantLib::ext::make_shared<GaussianCamCG>(
            projectedModel, modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_, modelInfIndices_,
            modelIndices_, modelIndicesCurrencies_, simulationDates_,
            projectedModel->discretization() == CrossAssetModel::Discretization::Exact ? 0 : timeStepsPerYear_,
            iborFallbackConfig, projectedStateProcessIndices, conditionalExpectationModelStates);
    } else {
        model_ = QuantLib::ext::make_shared<GaussianCam>(
            projectedModel, modelSize_, modelCcys_, modelCurves_, modelFxSpots_, modelIrIndices_, modelInfIndices_,
            modelIndices_, modelIndicesCurrencies_, simulationDates_, mcParams_,
            projectedModel->discretization() == CrossAssetModel::Discretization::Exact ? 0 : timeStepsPerYear_,
            iborFallbackConfig, projectedStateProcessIndices, conditionalExpectationModelStates);
    }

    DLOG("built GuassianCam model as projection of xva evolution model");
    for (auto const& p : projectedStateProcessIndices)
        DLOG("  got projected state process index: " << p);
}

Here is the call graph for this function:

Here is the caller graph for this function:

buildAMCCGModel()

void buildAMCCGModel ( const std::string &  id, const IborFallbackConfig &  iborFallbackConfig, const std::vector< std::string > &  conditionalExpectationModelStates  )

protected

Definition at line 1749 of file scriptedtrade.cpp.

                                                                                                                {
    // nothing to build really, the resulting model is exactly the input model
    QL_REQUIRE(useCg_, "building gaussian cam from external amc cg model, useCg must be set to true in this case.");
    modelCG_ = amcCgModel_;
}

Here is the caller graph for this function:

addAmcGridToContext()

void addAmcGridToContext ( QuantLib::ext::shared_ptr< Context > &  context ) const

protected

Definition at line 1814 of file scriptedtrade.cpp.

                                                                                                  {
    // the amc grid might be empty, but we add the _AMC_SimDates variable to the context anyway, since
    // a script might rely on its existence
    DLOG("adding amc date grid (" << amcGrid_.size() << ") to context as _AMC_SimDates");
    std::vector<ValueType> tmp;
    for (auto const& d : amcGrid_)
        tmp.push_back(EventVec{modelSize_, d});
    context->arrays["_AMC_SimDates"] = tmp;
}

Here is the caller graph for this function:

setupCalibrationStrikes()

void setupCalibrationStrikes ( const ScriptedTradeScriptData &  script, const QuantLib::ext::shared_ptr< Context > &  context  )

protected

Definition at line 1824 of file scriptedtrade.cpp.

                                                                                                        {
    calibrationStrikes_ = getCalibrationStrikes(script.calibrationSpec(), context);
}

Here is the call graph for this function:

Here is the caller graph for this function:

getEqCcy()

std::string getEqCcy ( const IndexInfo &  e )

protected

Definition at line 714 of file scriptedtrade.cpp.

                                                                 {
    QL_REQUIRE(e.isEq(), "ScriptedTradeEngineBuilder::getEqCcy(): expected eq index, got " << e.name());
    // the eq currency can only be retrieved from the market
    Currency tmp = market_->equityCurve(e.eq()->name(), configuration(MarketContext::pricing))->currency();
    QL_REQUIRE(!tmp.empty(), "ScriptedTradeEngineBuilder: Cannot find currency for equity '"
                                 << e.eq()->name() << "'. Check if equity is present in curveconfig.");
    return tmp.code();
}

Here is the call graph for this function:

Here is the caller graph for this function:

getCommCcy()

std::string getCommCcy ( const IndexInfo &  e )

protected

Definition at line 723 of file scriptedtrade.cpp.

                                                                   {
    QL_REQUIRE(e.isComm(), "ScriptedTradeEngineBuilder::getCommCcy(): expected comm index, got " << e.name());
    // the comm currency can only be retrieved from the market
    Currency tmp = market_->commodityPriceCurve(e.commName(), configuration(MarketContext::pricing))->currency();
    QL_REQUIRE(!tmp.empty(), "ScriptedTradeEngineBuilder: Cannot find currency for commodity '"
                                 << e.commName() << "'. Check if Commodity is present in curveconfig.");
    return tmp.code();
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

buildingAmc_

bool buildingAmc_ = false

protected

Definition at line 109 of file scriptedtrade.hpp.

amcCam_

const QuantLib::ext::shared_ptr<QuantExt::CrossAssetModel> amcCam_

protected

Definition at line 110 of file scriptedtrade.hpp.

amcCgModel_

const QuantLib::ext::shared_ptr<ore::data::ModelCG> amcCgModel_

protected

Definition at line 111 of file scriptedtrade.hpp.

amcGrid_

const std::vector<Date> amcGrid_

protected

Definition at line 112 of file scriptedtrade.hpp.

astCache_

std::map<std::string, ASTNodePtr> astCache_

protected

Definition at line 115 of file scriptedtrade.hpp.

ast_

ASTNodePtr ast_

protected

Definition at line 118 of file scriptedtrade.hpp.

npvCurrency_

std::string npvCurrency_

protected

Definition at line 119 of file scriptedtrade.hpp.

lastRelevantDate_

QuantLib::Date lastRelevantDate_

protected

Definition at line 120 of file scriptedtrade.hpp.

simmProductClass_

std::string simmProductClass_

protected

Definition at line 121 of file scriptedtrade.hpp.

scheduleProductClass_

std::string scheduleProductClass_

protected

Definition at line 122 of file scriptedtrade.hpp.

sensitivityTemplate_

std::string sensitivityTemplate_

protected

Definition at line 123 of file scriptedtrade.hpp.

fixings_

std::map<std::string, std::set<Date> > fixings_

protected

Definition at line 124 of file scriptedtrade.hpp.

staticAnalyser_

QuantLib::ext::shared_ptr<StaticAnalyser> staticAnalyser_

protected

Definition at line 127 of file scriptedtrade.hpp.

eqIndices_

std::set<IndexInfo> eqIndices_

protected

Definition at line 128 of file scriptedtrade.hpp.

commIndices_

std::set<IndexInfo> commIndices_

protected

Definition at line 128 of file scriptedtrade.hpp.

irIndices_

std::set<IndexInfo> irIndices_

protected

Definition at line 128 of file scriptedtrade.hpp.

infIndices_

std::set<IndexInfo> infIndices_

protected

Definition at line 128 of file scriptedtrade.hpp.

fxIndices_

std::set<IndexInfo> fxIndices_

protected

Definition at line 128 of file scriptedtrade.hpp.

resolvedProductTag_

std::string resolvedProductTag_

protected

Definition at line 129 of file scriptedtrade.hpp.

assetClassReplacement_

std::string assetClassReplacement_

protected

Definition at line 129 of file scriptedtrade.hpp.

payCcys_

std::set<std::string> payCcys_

protected

Definition at line 130 of file scriptedtrade.hpp.

baseCcy_

std::string baseCcy_

protected

Definition at line 131 of file scriptedtrade.hpp.

modelCcys_

std::vector<std::string> modelCcys_

protected

Definition at line 132 of file scriptedtrade.hpp.

modelCurves_

std::vector<Handle<YieldTermStructure> > modelCurves_

protected

Definition at line 133 of file scriptedtrade.hpp.

modelFxSpots_

std::vector<Handle<Quote> > modelFxSpots_

protected

Definition at line 134 of file scriptedtrade.hpp.

modelIndices_

std::vector<std::string> modelIndices_

protected

Definition at line 135 of file scriptedtrade.hpp.

modelIndicesCurrencies_

std::vector<std::string> modelIndicesCurrencies_

protected

Definition at line 135 of file scriptedtrade.hpp.

modelIrIndices_

std::vector<std::pair<std::string, QuantLib::ext::shared_ptr<InterestRateIndex> > > modelIrIndices_

protected

Definition at line 136 of file scriptedtrade.hpp.

modelInfIndices_

std::vector<std::pair<std::string, QuantLib::ext::shared_ptr<ZeroInflationIndex> > > modelInfIndices_

protected

Definition at line 137 of file scriptedtrade.hpp.

correlations_

std::map<std::pair<std::string, std::string>, Handle<QuantExt::CorrelationTermStructure> > correlations_

protected

Definition at line 138 of file scriptedtrade.hpp.

processes_

std::vector<QuantLib::ext::shared_ptr<GeneralizedBlackScholesProcess> > processes_

protected

Definition at line 139 of file scriptedtrade.hpp.

irReversions_

std::map<std::string, Real> irReversions_

protected

Definition at line 140 of file scriptedtrade.hpp.

simulationDates_

std::set<Date> simulationDates_

protected

Definition at line 141 of file scriptedtrade.hpp.

addDates_

std::set<Date> addDates_

protected

Definition at line 141 of file scriptedtrade.hpp.

model_

QuantLib::ext::shared_ptr<Model> model_

protected

Definition at line 142 of file scriptedtrade.hpp.

modelCG_

QuantLib::ext::shared_ptr<ModelCG> modelCG_

protected

Definition at line 143 of file scriptedtrade.hpp.

calibrationStrikes_

std::map<std::string, std::vector<Real> > calibrationStrikes_

protected

Definition at line 144 of file scriptedtrade.hpp.

modelParam_

std::string modelParam_

protected

Definition at line 147 of file scriptedtrade.hpp.

infModelType_

std::string infModelType_

protected

Definition at line 147 of file scriptedtrade.hpp.

engineParam_

std::string engineParam_

protected

Definition at line 147 of file scriptedtrade.hpp.

baseCcyParam_

std::string baseCcyParam_

protected

Definition at line 147 of file scriptedtrade.hpp.

gridCoarsening_

std::string gridCoarsening_

protected

Definition at line 147 of file scriptedtrade.hpp.

fullDynamicFx_

bool fullDynamicFx_

protected

Definition at line 148 of file scriptedtrade.hpp.

fullDynamicIr_

bool fullDynamicIr_

protected

Definition at line 148 of file scriptedtrade.hpp.

enforceBaseCcy_

bool enforceBaseCcy_

protected

Definition at line 148 of file scriptedtrade.hpp.

modelSize_

Size modelSize_

protected

Definition at line 149 of file scriptedtrade.hpp.

timeStepsPerYear_

Size timeStepsPerYear_

protected

Definition at line 149 of file scriptedtrade.hpp.

mcParams_

Model::McParams mcParams_

protected

Definition at line 150 of file scriptedtrade.hpp.

interactive_

bool interactive_

protected

Definition at line 151 of file scriptedtrade.hpp.

zeroVolatility_

bool zeroVolatility_

protected

Definition at line 151 of file scriptedtrade.hpp.

continueOnCalibrationError_

bool continueOnCalibrationError_

protected

Definition at line 151 of file scriptedtrade.hpp.

calibrationMoneyness_

std::vector<Real> calibrationMoneyness_

protected

Definition at line 152 of file scriptedtrade.hpp.

mesherEpsilon_

Real mesherEpsilon_

protected

Definition at line 153 of file scriptedtrade.hpp.

mesherScaling_

Real mesherScaling_

protected

Definition at line 153 of file scriptedtrade.hpp.

mesherConcentration_

Real mesherConcentration_

protected

Definition at line 153 of file scriptedtrade.hpp.

mesherMaxConcentratingPoints_

Size mesherMaxConcentratingPoints_

protected

Definition at line 154 of file scriptedtrade.hpp.

mesherIsStatic_

bool mesherIsStatic_

protected

Definition at line 155 of file scriptedtrade.hpp.

referenceCalibrationGrid_

std::string referenceCalibrationGrid_

protected

Definition at line 156 of file scriptedtrade.hpp.

bootstrapTolerance_

Real bootstrapTolerance_

protected

Definition at line 157 of file scriptedtrade.hpp.

calibrate_

bool calibrate_

protected

Definition at line 158 of file scriptedtrade.hpp.

calibration_

std::string calibration_

protected

Definition at line 159 of file scriptedtrade.hpp.

useCg_

bool useCg_

protected

Definition at line 160 of file scriptedtrade.hpp.

useAd_

bool useAd_

protected

Definition at line 161 of file scriptedtrade.hpp.

useExternalComputeDevice_

bool useExternalComputeDevice_

protected

Definition at line 162 of file scriptedtrade.hpp.

useDoublePrecisionForExternalCalculation_

bool useDoublePrecisionForExternalCalculation_

protected

Definition at line 163 of file scriptedtrade.hpp.

externalDeviceCompatibilityMode_

bool externalDeviceCompatibilityMode_

protected

Definition at line 164 of file scriptedtrade.hpp.

externalComputeDevice_

std::string externalComputeDevice_

protected

Definition at line 165 of file scriptedtrade.hpp.

includePastCashflows_

bool includePastCashflows_

protected

Definition at line 166 of file scriptedtrade.hpp.
