EngineBuilder Class Reference

Base PricingEngine Builder class for a specific model and engine. More...

#include <ored/portfolio/enginefactory.hpp>

Inheritance diagram for EngineBuilder:

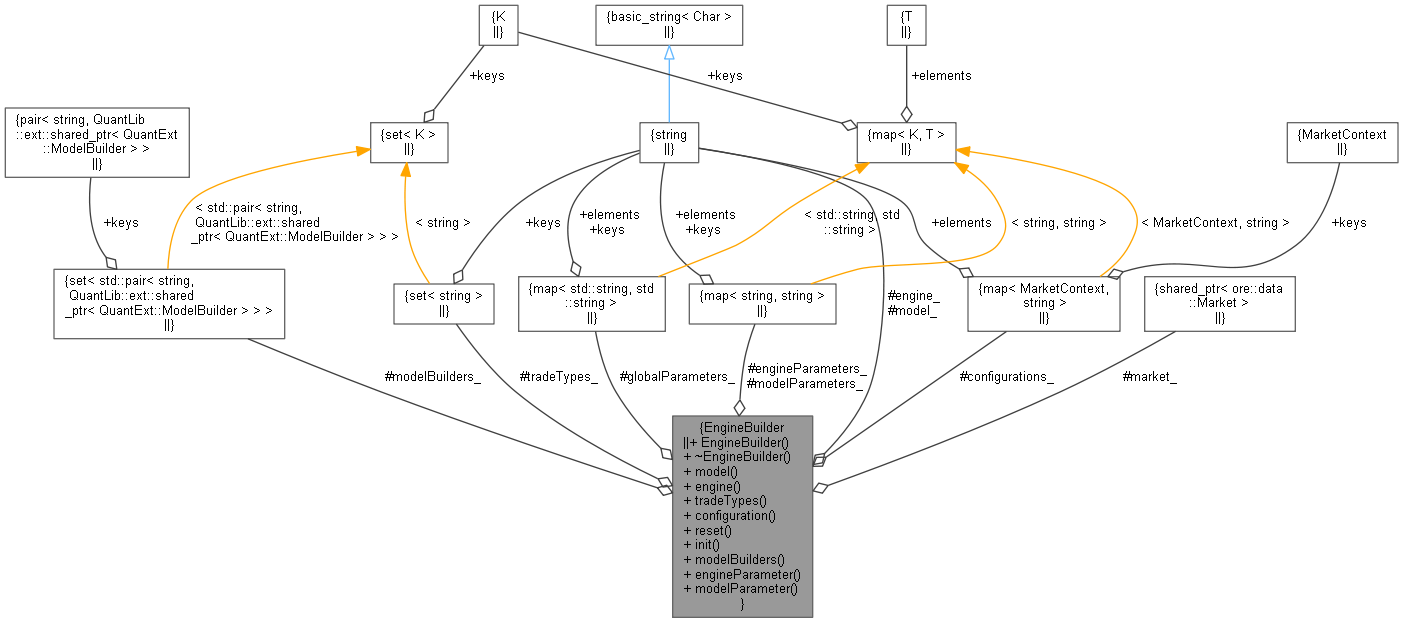

Collaboration diagram for EngineBuilder:

Public Member Functions
	EngineBuilder (const string &model, const string &engine, const set< string > &tradeTypes)
virtual	~EngineBuilder ()
	Virtual destructor. More...
const string &	model () const
	Return the model name. More...
const string &	engine () const
	Return the engine name. More...
const set< string > &	tradeTypes () const
	Return the possible trade types. More...
const string &	configuration (const MarketContext &key)
	Return a configuration (or the default one if key not found) More...
virtual void	reset ()
	reset the builder (e.g. clear cache) More...
void	init (const QuantLib::ext::shared_ptr< Market > market, const map< MarketContext, string > &configurations, const map< string, string > &modelParameters, const map< string, string > &engineParameters, const std::map< std::string, std::string > &globalParameters={})
	Initialise this Builder with the market and parameters to use. More...
const set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > > &	modelBuilders () const
	return model builders More...
std::string	engineParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const
std::string	modelParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const

Protected Attributes
string	model_
string	engine_
set< string >	tradeTypes_
QuantLib::ext::shared_ptr< Market >	market_
map< MarketContext, string >	configurations_
map< string, string >	modelParameters_
map< string, string >	engineParameters_
std::map< std::string, std::string >	globalParameters_
set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > >	modelBuilders_

Detailed Description

Base PricingEngine Builder class for a specific model and engine.

The EngineBuilder is responsible for building pricing engines for a specific Model and Engine.

Each builder should implement a method with a signature

QuantLib::ext::shared_ptr<PricingEngine> engine (...);

The exact parameters of each method can vary depending on the type of engine.

An EngineBuilder can cache engines and return the same PricingEngine multiple times, alternatively the Builder can build a unique PricingEngine each time it is called.

For example a swap engine builder can have the interface

QuantLib::ext::shared_ptr<PricingEngine> engine (const Currency&);

and so returns the same (cached) engine every time it is asked for a particular currency.

The interface of each type of engine builder can be different, then there can be further sub-classes for different models and engines.

EngineBuilders are registered in an EngineFactory, multiple engine builders for the same trade type can be registered with the EngineFactory and it will select the appropriate one based on configuration.

Each EngineBuilder must return it's Model and Engine.

Definition at line 95 of file enginefactory.hpp.

Constructor & Destructor Documentation

EngineBuilder()

EngineBuilder	(	const string &	model,
		const string &	engine,
		const set< string > &	tradeTypes
	)

Constructor that takes a model and engine name

Parameters

model	the model name
engine	the engine name
tradeTypes	a set of trade types

Definition at line 102 of file enginefactory.hpp.

        : model_(model), engine_(engine), tradeTypes_(tradeTypes) {}

~EngineBuilder()

virtual ~EngineBuilder ( )

virtual

Virtual destructor.

Definition at line 106 of file enginefactory.hpp.

{}

Member Function Documentation

model()

const string & model

(

)

const

Return the model name.

Definition at line 109 of file enginefactory.hpp.

{ return model_; }

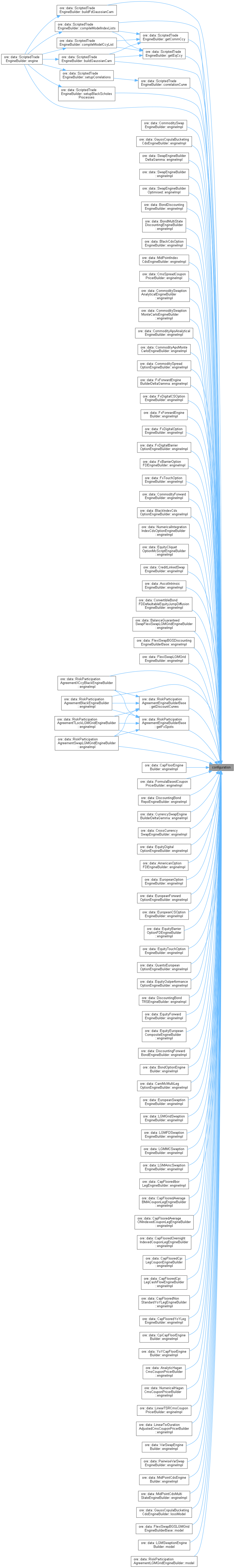

Here is the caller graph for this function:

engine()

const string & engine

(

)

const

Return the engine name.

Definition at line 111 of file enginefactory.hpp.

{ return engine_; }

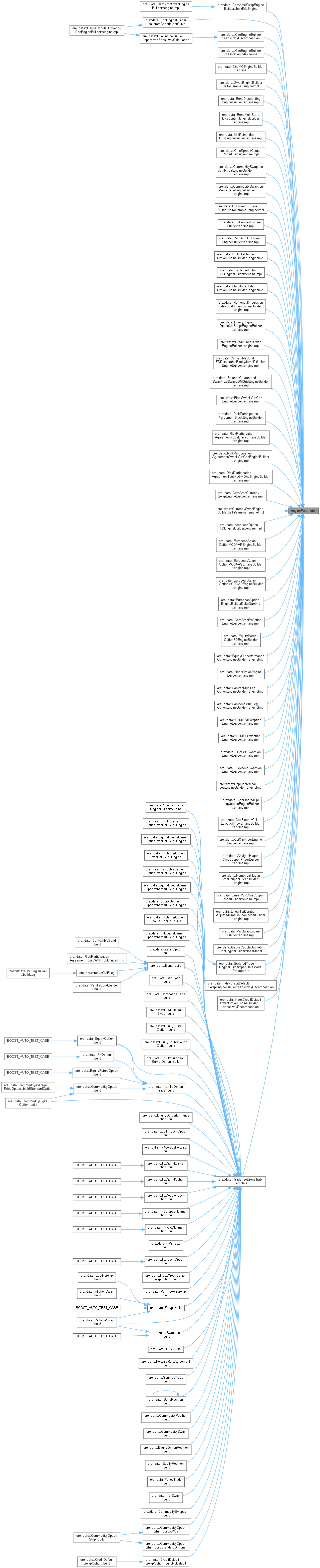

Here is the caller graph for this function:

tradeTypes()

const set< string > & tradeTypes

(

)

const

Return the possible trade types.

Definition at line 113 of file enginefactory.hpp.

{ return tradeTypes_; }

configuration()

const string & configuration

(

const MarketContext &

key

)

Return a configuration (or the default one if key not found)

Definition at line 116 of file enginefactory.hpp.

                                                          {
        if (configurations_.count(key) > 0) {
            return configurations_.at(key);
        } else {
            return Market::defaultConfiguration;
        }
    }

Here is the caller graph for this function:

reset()

virtual void reset ( )

virtual

reset the builder (e.g. clear cache)

Reimplemented in CachingEngineBuilder< T, U, Args >.

Definition at line 125 of file enginefactory.hpp.

{}

init()

void init	(	const QuantLib::ext::shared_ptr< Market >	market,
		const map< MarketContext, string > &	configurations,
		const map< string, string > &	modelParameters,
		const map< string, string > &	engineParameters,
		const std::map< std::string, std::string > &	globalParameters = {}
	)

Initialise this Builder with the market and parameters to use.

This method should not be called directly, it is called by the EngineFactory before it is returned.

Definition at line 131 of file enginefactory.hpp.

                                                                     {}) {
        market_ = market;
        configurations_ = configurations;
        modelParameters_ = modelParameters;
        engineParameters_ = engineParameters;
        globalParameters_ = globalParameters;
    }

modelBuilders()

const set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > > & modelBuilders

(

)

const

return model builders

Definition at line 142 of file enginefactory.hpp.

{ return modelBuilders_; }

engineParameter()

std::string engineParameter	(	const std::string &	p,
		const std::vector< std::string > &	qualifiers = {},
		const bool	mandatory = true,
		const std::string &	defaultValue = ""
	)		const

retrieve engine parameter p, first look for p_qualifier, if this does not exist fall back to p

Definition at line 55 of file enginefactory.cpp.

                                                                                                      {
    return getParameter(engineParameters_, p, qualifiers, mandatory, defaultValue);
}

Here is the caller graph for this function:

modelParameter()

std::string modelParameter	(	const std::string &	p,
		const std::vector< std::string > &	qualifiers = {},
		const bool	mandatory = true,
		const std::string &	defaultValue = ""
	)		const

retrieve model parameter p, first look for p_qualifier, if this does not exist fall back to p

Definition at line 60 of file enginefactory.cpp.

                                                                                                     {
    return getParameter(modelParameters_, p, qualifiers, mandatory, defaultValue);
}

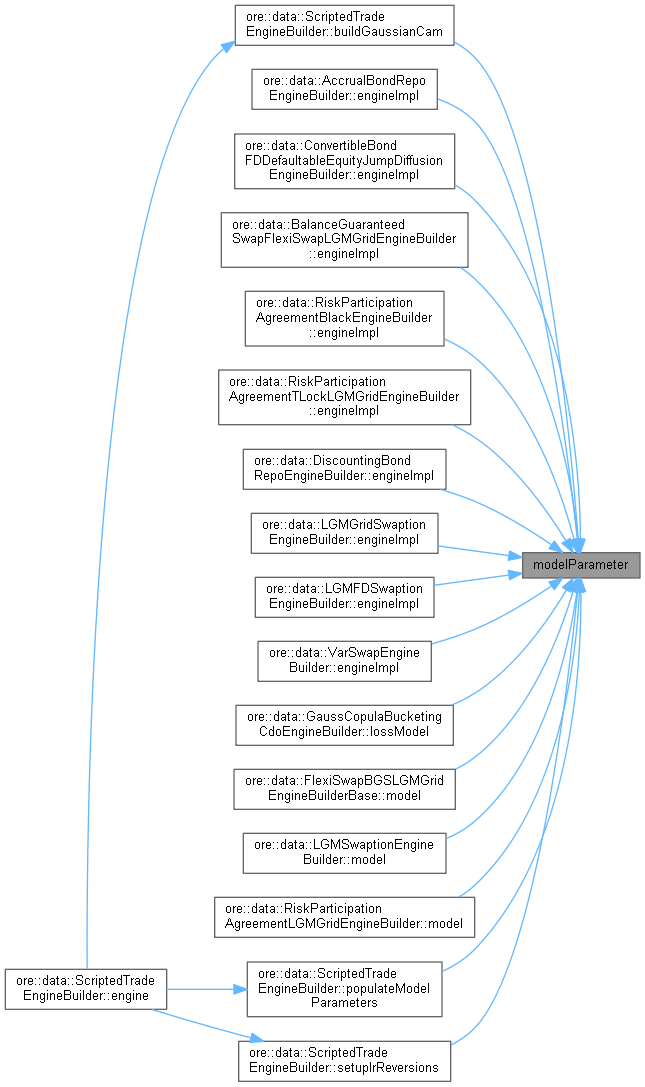

Here is the caller graph for this function:

Member Data Documentation

model_

string model_

protected

Definition at line 152 of file enginefactory.hpp.

engine_

string engine_

protected

Definition at line 153 of file enginefactory.hpp.

tradeTypes_

set<string> tradeTypes_

protected

Definition at line 154 of file enginefactory.hpp.

market_

QuantLib::ext::shared_ptr<Market> market_

protected

Definition at line 155 of file enginefactory.hpp.

configurations_

map<MarketContext, string> configurations_

protected

Definition at line 156 of file enginefactory.hpp.

modelParameters_

map<string, string> modelParameters_

protected

Definition at line 157 of file enginefactory.hpp.

engineParameters_

map<string, string> engineParameters_

protected

Definition at line 158 of file enginefactory.hpp.

globalParameters_

std::map<std::string, std::string> globalParameters_

protected

Definition at line 159 of file enginefactory.hpp.

modelBuilders_

set<std::pair<string, QuantLib::ext::shared_ptr<QuantExt::ModelBuilder> > > modelBuilders_

protected

Definition at line 160 of file enginefactory.hpp.
