NumericalIntegrationIndexCdsOptionEngine Class Reference

#include <qle/pricingengines/numericalintegrationindexcdsoptionengine.hpp>

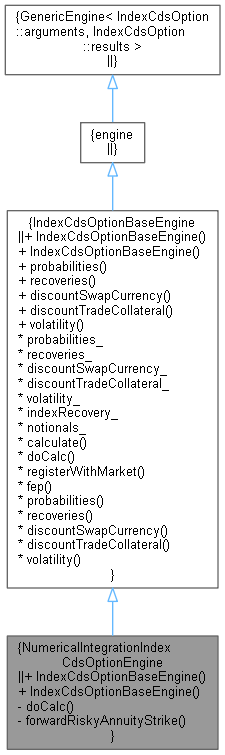

Inheritance diagram for NumericalIntegrationIndexCdsOptionEngine:

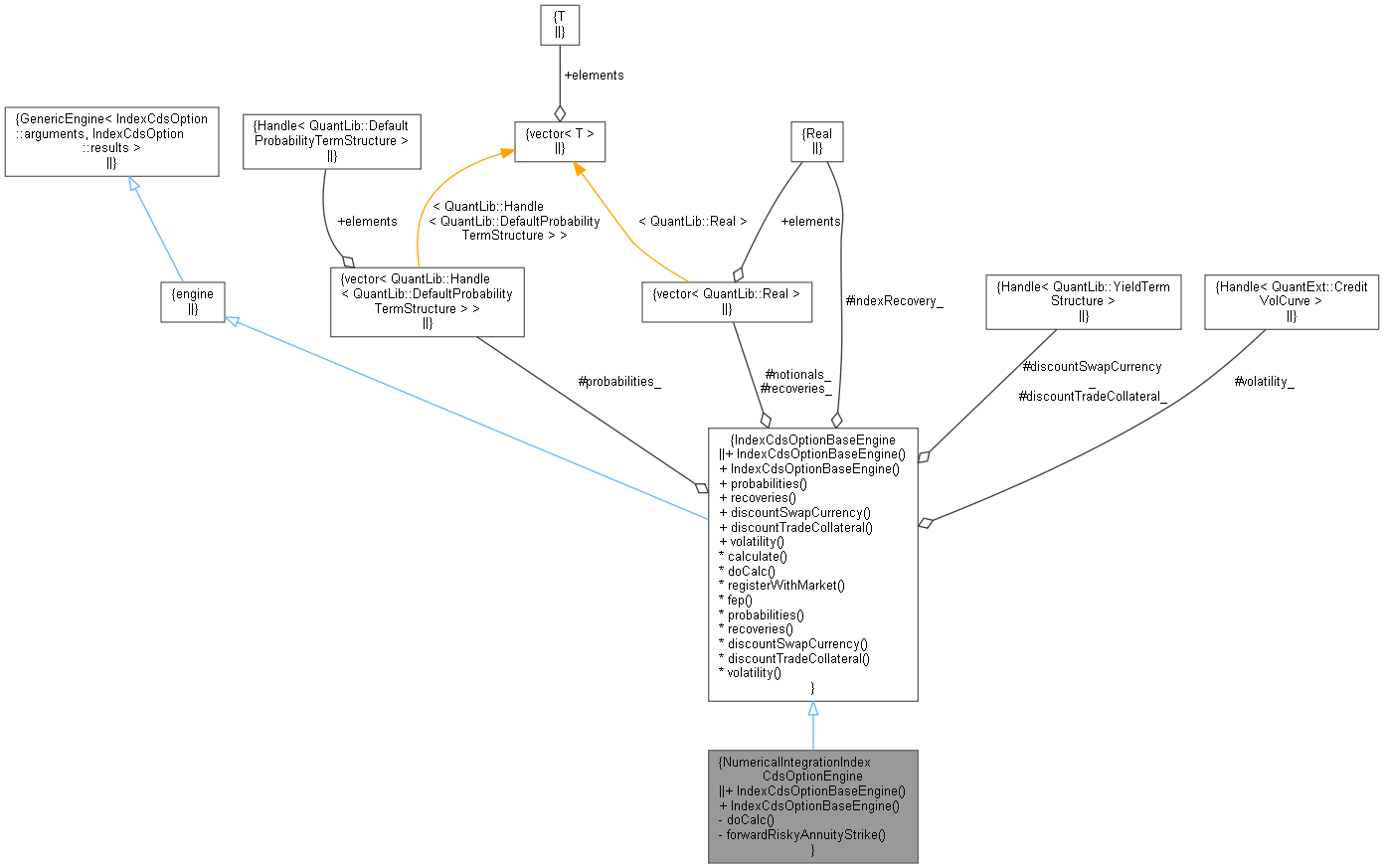

Collaboration diagram for NumericalIntegrationIndexCdsOptionEngine:

Public Member Functions
	IndexCdsOptionBaseEngine (const QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > &probability, QuantLib::Real recovery, const Handle< YieldTermStructure > &discountSwapCurrency, const Handle< YieldTermStructure > &discountTradeCollateral, const QuantLib::Handle< QuantExt::CreditVolCurve > &volatility)
	Constructor taking a default probability term structure bootstrapped from the index spreads. More...
	IndexCdsOptionBaseEngine (const std::vector< QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > > &probabilities, const std::vector< QuantLib::Real > &recoveries, const Handle< YieldTermStructure > &discountSwapCurrency, const Handle< YieldTermStructure > &discountTradeCollateral, const QuantLib::Handle< QuantExt::CreditVolCurve > &volatility, QuantLib::Real indexRecovery=QuantLib::Null< QuantLib::Real >())
Public Member Functions inherited from IndexCdsOptionBaseEngine
	IndexCdsOptionBaseEngine (const QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > &probability, QuantLib::Real recovery, const Handle< YieldTermStructure > &discountSwapCurrency, const Handle< YieldTermStructure > &discountTradeCollateral, const QuantLib::Handle< QuantExt::CreditVolCurve > &volatility)
	Constructor taking a default probability term structure bootstrapped from the index spreads. More...
	IndexCdsOptionBaseEngine (const std::vector< QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > > &probabilities, const std::vector< QuantLib::Real > &recoveries, const Handle< YieldTermStructure > &discountSwapCurrency, const Handle< YieldTermStructure > &discountTradeCollateral, const QuantLib::Handle< QuantExt::CreditVolCurve > &volatility, QuantLib::Real indexRecovery=QuantLib::Null< QuantLib::Real >())
const std::vector< QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > > &	probabilities () const
const std::vector< QuantLib::Real > &	recoveries () const
const QuantLib::Handle< QuantLib::YieldTermStructure >	discountSwapCurrency () const
const QuantLib::Handle< QuantLib::YieldTermStructure >	discountTradeCollateral () const
const QuantLib::Handle< QuantExt::CreditVolCurve >	volatility () const
void	calculate () const override

Private Member Functions
void	doCalc () const override
	Engine specific calculation. More...
Real	forwardRiskyAnnuityStrike (const Real strike) const

Additional Inherited Members
Protected Member Functions inherited from IndexCdsOptionBaseEngine
void	registerWithMarket ()
	Register with market data. More...
QuantLib::Real	fep () const
	Calculate the discounted value of the front end protection. More...
Protected Attributes inherited from IndexCdsOptionBaseEngine
std::vector< QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > >	probabilities_
	Store inputs. More...
std::vector< QuantLib::Real >	recoveries_
QuantLib::Handle< QuantLib::YieldTermStructure >	discountSwapCurrency_
QuantLib::Handle< QuantLib::YieldTermStructure >	discountTradeCollateral_
QuantLib::Handle< QuantExt::CreditVolCurve >	volatility_
QuantLib::Real	indexRecovery_
	Assumed index recovery used in the flat strike spread curve calculation if provided. More...
std::vector< QuantLib::Real >	notionals_
	Store the underlying index CDS notional(s) during calculation. More...

Detailed Description

Definition at line 29 of file numericalintegrationindexcdsoptionengine.hpp.

Member Function Documentation

doCalc()

void doCalc ( ) const

overrideprivatevirtual

Engine specific calculation.

Implements IndexCdsOptionBaseEngine.

Definition at line 40 of file numericalintegrationindexcdsoptionengine.cpp.

                                                            {

    // checks

    QL_REQUIRE(indexRecovery_ != Null<Real>(),
               "NumericalIntegrationIndexCdsOptionEngine::doCalc(): index recovery is not given.");

    // set some variables for later use

    Date exerciseDate = arguments_.exercise->dates().front();
    Real exerciseTime = volatility_->timeFromReference(exerciseDate);
    Real omega = arguments_.swap->side() == Protection::Buyer ? 1.0 : -1.0;
    Real discTradeCollToExercise = discountTradeCollateral_->discount(exerciseDate);
    Real discSwapCurrToExercise = discountSwapCurrency_->discount(exerciseDate);
    Real maturityTime = volatility_->timeFromReference(arguments_.swap->maturity());
    Real underlyingNpv =
        arguments_.swap->side() == Protection::Buyer ? arguments_.swap->NPV() : -arguments_.swap->NPV();

    results_.additionalResults["runningSpread"] = arguments_.swap->runningSpread();
    results_.additionalResults["discountToExerciseTradeCollateral"] = discTradeCollToExercise;
    results_.additionalResults["discountToExerciseSwapCurrency"] = discSwapCurrToExercise;
    results_.additionalResults["upfront"] =
        underlyingNpv *
        (arguments_.settlementType == Settlement::Cash ? discTradeCollToExercise / discSwapCurrToExercise : 1.0);
    results_.additionalResults["valuationDateNotional"] = arguments_.swap->notional();
    results_.additionalResults["tradeDateNotional"] = arguments_.tradeDateNtl;
    results_.additionalResults["callPut"] =
        arguments_.swap->side() == Protection::Buyer ? std::string("Call") : std::string("Put");

    // The model that we use is driven by the vol type of the market cds vol surface, i.e. either spread vol or price
    // vol We handle both spread or price strikes in both models.

    if (volatility_->type() == CreditVolCurve::Type::Price) {

        // 1 price vol type model

        results_.additionalResults["Model"] = std::string("LognormalPriceVolatility");

        // convert spread to strike if necessary

        Real strikePrice;
        if (arguments_.strikeType == CdsOption::StrikeType::Price) {
            // strike is expressed w.r.t. trade date notional
            strikePrice = 1.0 - arguments_.tradeDateNtl / arguments_.swap->notional() * (1.0 - arguments_.strike);
        } else {
            results_.additionalResults["strikeSpread"] = arguments_.strike;
            strikePrice = 1.0 + arguments_.tradeDateNtl / arguments_.swap->notional() *
                                    forwardRiskyAnnuityStrike(arguments_.strike) *
                                    (arguments_.swap->runningSpread() - arguments_.strike);
        }

        results_.additionalResults["strikePrice"] = strikePrice;

        // get volatility

        Real volatility = volatility_->volatility(exerciseDate, QuantExt::periodToTime(arguments_.indexTerm),
                                                  strikePrice, CreditVolCurve::Type::Price);
        Real stdDev = volatility * std::sqrt(exerciseTime);
        results_.additionalResults["volatility"] = volatility;
        results_.additionalResults["standardDeviation"] = stdDev;

        // calculate the default-adjusted forward price

        Real forwardPriceExclFep = 1.0 - underlyingNpv / arguments_.swap->notional() /
                                             (Settlement::Cash ? discSwapCurrToExercise : discTradeCollToExercise);
        Real forwardPrice = forwardPriceExclFep - fep() / arguments_.swap->notional() / discTradeCollToExercise;

        results_.additionalResults["fepAdjustedForwardPrice"] = forwardPrice;
        results_.additionalResults["forwardPrice"] = forwardPriceExclFep;

        // Check the inputs to the black formula before applying it
        QL_REQUIRE(forwardPrice > 0.0 || close_enough(forwardPrice, 0.0),
                   "NumericalIntegrationIndexCdsOptionEngine: FEP adjusted forward price ("
                       << forwardPrice << ") is not positive, can not calculate a reasonable option price");
        QL_REQUIRE(strikePrice > 0 || close_enough(strikePrice, 0.0),
                   "NumericalIntegrationIndexCdsOptionEngine: Effective Strike price ("
                       << strikePrice << ") is not positive, can not calculate a reasonable option price");

        results_.value = arguments_.swap->notional() *
                         blackFormula(arguments_.swap->side() == Protection::Buyer ? Option::Put : Option::Call,
                                      strikePrice, forwardPrice, stdDev, discTradeCollToExercise);

    } else {

        // 2 spread vol type model

        results_.additionalResults["Model"] = std::string("LognormalSpreadVolatility");

        // compute average interest rate for underlying swap time interval

        auto tmpDisc = arguments_.settlementType == Settlement::Cash ? discountSwapCurrency_ : discountTradeCollateral_;
        Real averageInterestRate =
            -std::log(tmpDisc->discount(arguments_.swap->maturity()) / tmpDisc->discount(exerciseDate)) /
            (maturityTime - exerciseTime);

        // compute the strike adjustment, notice that the strike adjustment is scaled by trade date notional

        Real strikeAdjustment;
        if (arguments_.strikeType == CdsOption::StrikeType::Spread) {
            strikeAdjustment = arguments_.tradeDateNtl / arguments_.swap->notional() *
                               forwardRiskyAnnuityStrike(arguments_.strike) *
                               (arguments_.swap->runningSpread() - arguments_.strike);
        } else if (arguments_.strikeType == CdsOption::StrikeType::Price) {
            strikeAdjustment = arguments_.tradeDateNtl / arguments_.swap->notional() * (arguments_.strike - 1.0);
        }
        results_.additionalResults["strikeAdjustment"] = strikeAdjustment;

        // back out spread strike from strike adjustment if necessary

        Real strikeSpread;
        if (arguments_.strikeType == CdsOption::StrikeType::Spread &&
            QuantLib::close_enough(arguments_.tradeDateNtl, arguments_.swap->notional())) {
            strikeSpread = arguments_.strike;
        } else {
            Brent brent;
            brent.setLowerBound(1.0E-8);
            auto strikeTarget = [this, strikeAdjustment](Real strikeSpread) {
                return forwardRiskyAnnuityStrike(strikeSpread) * (arguments_.swap->runningSpread() - strikeSpread) -
                       strikeAdjustment;
            };
            try {
                strikeSpread = brent.solve(strikeTarget, 1.0E-7, arguments_.swap->fairSpreadClean(), 0.0001);
                // eval function at solution to make sure, add results are set correctly
                forwardRiskyAnnuityStrike(strikeSpread);
            } catch (const std::exception& e) {
                QL_FAIL("NumericalIntegrationIndexCdsOptionEngine: can not compute strike spread: "
                        << e.what() << ", strikeAdjustment=" << strikeAdjustment << ", trade strike "
                        << arguments_.strike << ", trade strike type "
                        << (arguments_.strikeType == CdsOption::StrikeType::Spread ? "Spread" : "Price"));
            }
        }

        if (arguments_.strikeType == CdsOption::StrikeType::Price)
            results_.additionalResults["strikePrice"] = arguments_.strike;

        results_.additionalResults["strikeSpread"] = strikeSpread;

        // get volatility

        Real volatility = volatility_->volatility(exerciseDate, QuantExt::periodToTime(arguments_.indexTerm),
                                                  strikeSpread, CreditVolCurve::Type::Spread);
        Real stdDev = volatility * std::sqrt(exerciseTime);
        results_.additionalResults["volatility"] = volatility;
        results_.additionalResults["standardDeviation"] = stdDev;

        // calculate the default-adjusted forward price

        Real forwardPriceExclFep = 1.0 -
                            underlyingNpv / arguments_.swap->notional() /
                                (Settlement::Cash ? discSwapCurrToExercise : discTradeCollToExercise);
        Real forwardPrice = forwardPriceExclFep -
                            fep() / arguments_.swap->notional() / discTradeCollToExercise;

        results_.additionalResults["fepAdjustedForwardPrice"] = forwardPrice;
        results_.additionalResults["forwardPrice"] = forwardPriceExclFep;

        // the default-adjusted index value Vc using a continuous annuity

        auto Vc = [](Real t, Real T, Real r, Real R, Real c, Real stdDev, Real m, Real x) {
            Real s = m * std::exp(-0.5 * stdDev * stdDev + stdDev * x);
            Real w = (s / (1.0 - R) + r) * (T - t);
            Real a = (T - t);
            if (std::abs(w) < 1.0E-6)
                a *= 1.0 - 0.5 * w + 1.0 / 6.0 * w * w - 1.0 / 24.0 * w * w * w;
            else
                a *= (1.0 - std::exp(-w)) / w;
            return (s - c) * a;
        };

        // calibrate the default-adjusted forward spread m to the forward price

        SimpsonIntegral simpson = SimpsonIntegral(1.0E-7, 100);

        auto target = [this, &Vc, &simpson, exerciseTime, maturityTime, averageInterestRate, stdDev,
                       forwardPrice](Real m) {
            return simpson(
                       [this, &Vc, exerciseTime, maturityTime, averageInterestRate, stdDev, m](Real x) {
                           return Vc(exerciseTime, maturityTime, averageInterestRate, indexRecovery_,
                                     arguments_.swap->runningSpread(), stdDev, m, x) *
                                  std::exp(-0.5 * x * x) / boost::math::constants::root_two_pi<Real>();
                       },
                       -10.0, 10.0) -
                   (1.0 - forwardPrice);
        };

        Real fepAdjustedForwardSpread;
        if (target(0.0) > 0.0) {
            // the target function might not have a zero, because of the continuous annuity approximation
            // in some extreme situations (e.g. survival prob = 1 everywhere)
            fepAdjustedForwardSpread = 0.0;
        } else {
            Brent brent;
            brent.setLowerBound(0.0);
            try {
                fepAdjustedForwardSpread = brent.solve(target, 1.0E-7, arguments_.swap->fairSpreadClean(), 0.0001);
            } catch (const std::exception& e) {
                QL_FAIL("NumericalIntegrationIndexCdsOptionEngine::doCalc(): failed to calibrate forward spread: "
                        << e.what());
            }
        }
        results_.additionalResults["fepAdjustedForwardSpread"] = fepAdjustedForwardSpread;
        results_.additionalResults["forwardSpread"] = arguments_.swap->fairSpreadClean();

        // find the exercise boundary

        auto payoff = [this, &Vc, exerciseTime, maturityTime, averageInterestRate, stdDev, fepAdjustedForwardSpread,
                       strikeAdjustment](Real x) {
            return (Vc(exerciseTime, maturityTime, averageInterestRate, indexRecovery_,
                       arguments_.swap->runningSpread(), stdDev, fepAdjustedForwardSpread, x) +
                    strikeAdjustment + arguments_.realisedFep / arguments_.swap->notional()) *
                   std::exp(-0.5 * x * x) / boost::math::constants::root_two_pi<Real>();
        };

        Real exerciseBoundary;
        Brent brent2;
        try {
            exerciseBoundary = brent2.solve(payoff, 1.0E-7, 0.0, 0.0001);
        } catch (const std::exception& e) {
            QL_FAIL(
                "NumericalIntegrationIndexCdsOptionEngine::doCalc(): failed to find exercise boundary: " << e.what());
        }
        results_.additionalResults["exerciseBoundary"] =
            fepAdjustedForwardSpread * std::exp(-0.5 * stdDev * stdDev + stdDev * exerciseBoundary);

        // compute the option value

        Real lowerIntegrationBound = -10.0, upperIntegrationBound = 10.0;
        if (arguments_.swap->side() == Protection::Buyer) {
            lowerIntegrationBound = exerciseBoundary;
        } else {
            upperIntegrationBound = exerciseBoundary;
        }

        try {
            results_.value = arguments_.swap->notional() * discTradeCollToExercise *
                             simpson(
                                 [exerciseTime, maturityTime, averageInterestRate, this, stdDev,
                                  fepAdjustedForwardSpread, omega, strikeAdjustment, &Vc](Real x) {
                                     return omega *
                                            (Vc(exerciseTime, maturityTime, averageInterestRate, indexRecovery_,
                                                arguments_.swap->runningSpread(), stdDev, fepAdjustedForwardSpread, x) +
                                             strikeAdjustment + arguments_.realisedFep / arguments_.swap->notional()) *
                                            std::exp(-0.5 * x * x) / boost::math::constants::root_two_pi<Real>();
                                 },
                                 lowerIntegrationBound, upperIntegrationBound);
        } catch (const std::exception& e) {
            QL_FAIL(
                "NumericalIntegrationIndexCdsOptionEngine::doCalc(): failed to compute option payoff: " << e.what());
        }

    } // handle 2 spread vol model type

} // doCalc();

Here is the call graph for this function:

forwardRiskyAnnuityStrike()

Real forwardRiskyAnnuityStrike ( const Real  strike ) const

private

Definition at line 294 of file numericalintegrationindexcdsoptionengine.cpp.

                                                                                                {

    // Underlying index CDS.
    const auto& cds = *arguments_.swap;

    // This method returns RPV01(0; t_e, T, K) / SP(t_e; K). This is the quantity in formula 11.9 of O'Kane 2008.
    // There is a slight modification in that we divide by the survival probability to t_E using the flat curve at
    // the strike spread that we create here.

    // Standard index CDS schedule.
    Schedule schedule = MakeSchedule()
                            .from(cds.protectionStartDate())
                            .to(cds.maturity())
                            .withCalendar(WeekendsOnly())
                            .withFrequency(Quarterly)
                            .withConvention(Following)
                            .withTerminationDateConvention(Unadjusted)
                            .withRule(DateGeneration::CDS2015);

    // Derive hazard rate curve from a single forward starting CDS matching the characteristics of underlying index
    // CDS with a running spread equal to the strike.
    Real accuracy = 1e-8;

    auto strikeCds = QuantLib::ext::make_shared<CreditDefaultSwap>(
        Protection::Buyer, 1 / accuracy, strike, schedule, Following, Actual360(), cds.settlesAccrual(),
        cds.protectionPaymentTime(), cds.protectionStartDate(), QuantLib::ext::shared_ptr<Claim>(), Actual360(true), true,
        cds.tradeDate(), cds.cashSettlementDays());
    // dummy engine
    strikeCds->setPricingEngine(QuantLib::ext::make_shared<MidPointCdsEngine>(
        Handle<DefaultProbabilityTermStructure>(
            QuantLib::ext::make_shared<FlatHazardRate>(0, NullCalendar(), 0.0, Actual365Fixed())),
        0.0, Handle<YieldTermStructure>(QuantLib::ext::make_shared<FlatForward>(0, NullCalendar(), 0.0, Actual365Fixed()))));

    Real hazardRate;
    try {
        hazardRate =
            strikeCds->impliedHazardRate(0.0, discountSwapCurrency_, Actual365Fixed(), indexRecovery_, accuracy);
    } catch (const std::exception& e) {
        QL_FAIL("can not imply fair hazard rate for CDS at option strike "
                << strike << ". Is the strike correct? Exception: " << e.what());
    }

    Handle<DefaultProbabilityTermStructure> dph(
        QuantLib::ext::make_shared<FlatHazardRate>(discountSwapCurrency_->referenceDate(), hazardRate, Actual365Fixed()));

    // Calculate the forward risky strike annuity.
    strikeCds->setPricingEngine(
        QuantLib::ext::make_shared<QuantExt::MidPointCdsEngine>(dph, indexRecovery_, discountSwapCurrency_));
    Real rpv01_K = std::abs(strikeCds->couponLegNPV() + strikeCds->accrualRebateNPV()) /
                   (strikeCds->notional() * strikeCds->runningSpread());
    results_.additionalResults["riskyAnnuityStrike"] = rpv01_K;
    QL_REQUIRE(rpv01_K > 0.0, "BlackIndexCdsOptionEngine: strike based risky annuity must be positive.");

    // Survival to exercise
    const Date& exerciseDate = arguments_.exercise->dates().front();
    Probability spToExercise = dph->survivalProbability(exerciseDate);
    Real discToExercise = discountSwapCurrency_->discount(exerciseDate);
    results_.additionalResults["strikeBasedSurvivalToExercise"] = spToExercise;

    // Forward risky annuity strike
    Real rpv01_K_fwd = rpv01_K / spToExercise / discToExercise;
    results_.additionalResults["forwardRiskyAnnuityStrike"] = rpv01_K_fwd;

    return rpv01_K_fwd;
}

Here is the caller graph for this function:

IndexCdsOptionBaseEngine() [1/2]

IndexCdsOptionBaseEngine	(	const QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > &	probability,
		QuantLib::Real	recovery,
		const Handle< YieldTermStructure > &	discountSwapCurrency,
		const Handle< YieldTermStructure > &	discountTradeCollateral,
		const QuantLib::Handle< QuantExt::CreditVolCurve > &	volatility
	)

Constructor taking a default probability term structure bootstrapped from the index spreads.

IndexCdsOptionBaseEngine() [2/2]

IndexCdsOptionBaseEngine	(	const std::vector< QuantLib::Handle< QuantLib::DefaultProbabilityTermStructure > > &	probabilities,
		const std::vector< QuantLib::Real > &	recoveries,
		const Handle< YieldTermStructure > &	discountSwapCurrency,
		const Handle< YieldTermStructure > &	discountTradeCollateral,
		const QuantLib::Handle< QuantExt::CreditVolCurve > &	volatility,
		QuantLib::Real	indexRecovery = QuantLib::Null<QuantLib::Real>()
	)

Constructor taking a vector of default probability term structures bootstrapped from the index constituent spread curves and a vector of associated recovery rates.
