#include <ored/portfolio/trs.hpp>

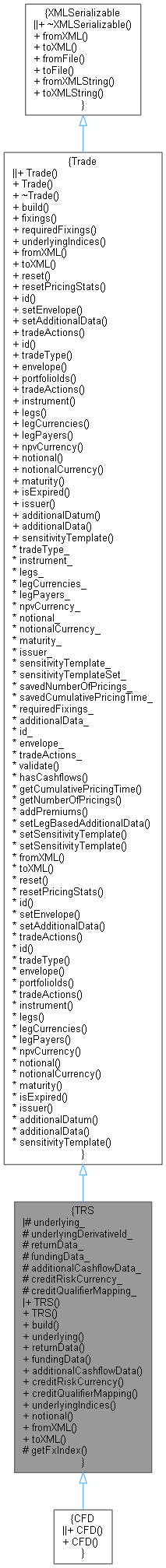

Inheritance diagram for TRS:

Collaboration diagram for TRS:

Classes
class	AdditionalCashflowData

class	FundingData

class	ReturnData

Public Member Functions
	TRS ()

	TRS (const Envelope &env, const std::vector< QuantLib::ext::shared_ptr< Trade > > &underlying, const std::vector< std::string > &underlyingDerivativeId, const ReturnData &returnData, const FundingData &fundingData, const AdditionalCashflowData &additionalCashflowData)

void	build (const QuantLib::ext::shared_ptr< EngineFactory > &) override

const std::vector< QuantLib::ext::shared_ptr< Trade > > &	underlying () const
	Inspectors. More...

const ReturnData &	returnData () const

const FundingData &	fundingData () const

const AdditionalCashflowData &	additionalCashflowData () const

const std::string &	creditRiskCurrency () const

const std::map< std::string, SimmCreditQualifierMapping > &	creditQualifierMapping () const

std::map< AssetClass, std::set< std::string > >	underlyingIndices (const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceDataManager=nullptr) const override
	Interface. More...

QuantLib::Real	notional () const override
	Return the current notional in npvCurrency. See individual sub-classes for the precise definition. More...

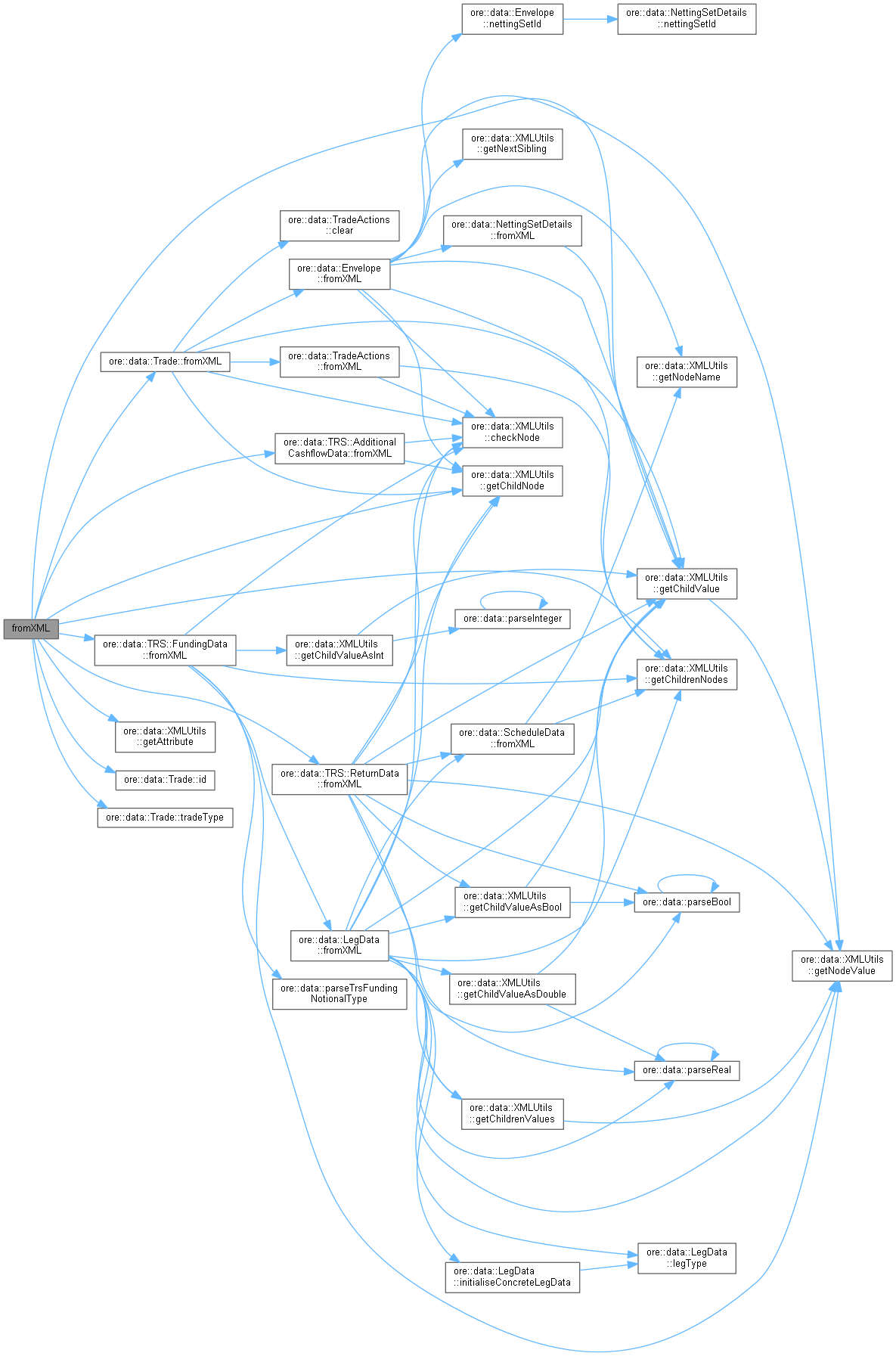

void	fromXML (XMLNode *node) override

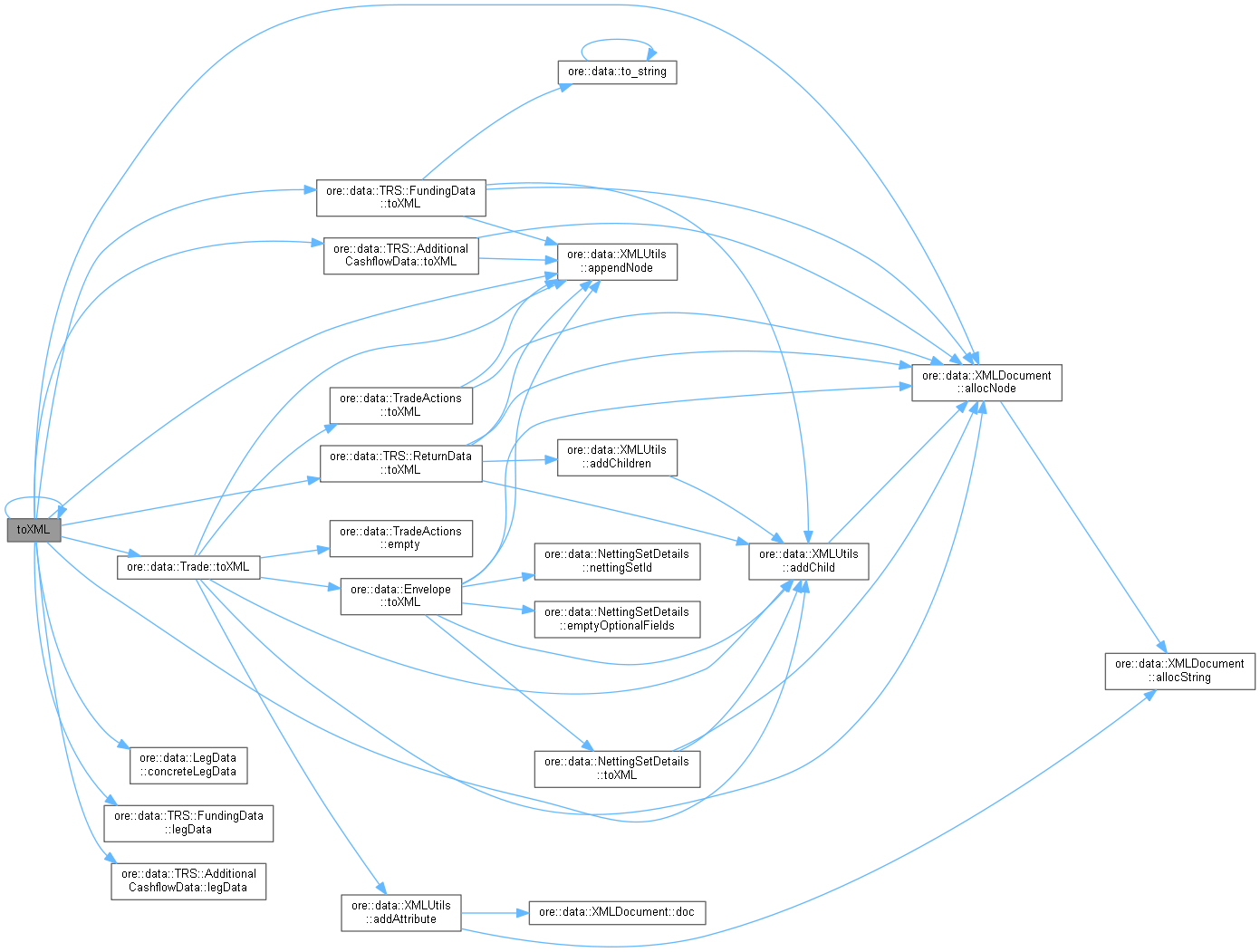

XMLNode *	toXML (XMLDocument &doc) const override

Public Member Functions inherited from Trade
	Trade ()
	Default constructor. More...

	Trade (const string &tradeType, const Envelope &env=Envelope(), const TradeActions &ta=TradeActions())
	Base class constructor. More...

virtual	~Trade ()
	Default destructor. More...

virtual void	build (const QuantLib::ext::shared_ptr< EngineFactory > &)=0

virtual std::map< std::string, RequiredFixings::FixingDates >	fixings (const QuantLib::Date &settlementDate=QuantLib::Date()) const

const RequiredFixings &	requiredFixings () const

virtual std::map< AssetClass, std::set< std::string > >	underlyingIndices (const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceDataManager=nullptr) const

void	reset ()
	Reset trade, clear all base class data. This does not reset accumulated timings for this trade. More...

void	resetPricingStats (const std::size_t numberOfPricings=0, const boost::timer::nanosecond_type cumulativePricingTime=0)
	Reset accumulated timings to given values. More...

string &	id ()
	Set the trade id. More...

void	setEnvelope (const Envelope &envelope)
	Set the envelope with counterparty and portfolio info. More...

void	setAdditionalData (const std::map< std::string, boost::any > &additionalData)

TradeActions &	tradeActions ()
	Set the trade actions. More...

const string &	id () const

const string &	tradeType () const

const Envelope &	envelope () const

const set< string > &	portfolioIds () const

const TradeActions &	tradeActions () const

const QuantLib::ext::shared_ptr< InstrumentWrapper > &	instrument () const

const std::vector< QuantLib::Leg > &	legs () const

const std::vector< string > &	legCurrencies () const

const std::vector< bool > &	legPayers () const

const string &	npvCurrency () const

virtual string	notionalCurrency () const

const Date &	maturity () const

virtual bool	isExpired (const Date &d)

const string &	issuer () const

template<typename T >
T	additionalDatum (const std::string &tag) const
	returns any additional datum. More...

virtual const std::map< std::string, boost::any > &	additionalData () const
	returns all additional data returned by the trade once built More...

const std::string &	sensitivityTemplate () const

void	validate () const
	Utility to validate that everything that needs to be set in this base class is actually set. More...

virtual bool	hasCashflows () const

boost::timer::nanosecond_type	getCumulativePricingTime () const
	Get cumulative timing spent on pricing. More...

std::size_t	getNumberOfPricings () const
	Get number of pricings. More...

Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()

virtual void	fromXML (XMLNode *node)=0

virtual XMLNode *	toXML (XMLDocument &doc) const =0

void	fromFile (const std::string &filename)

void	toFile (const std::string &filename) const

void	fromXMLString (const std::string &xml)
	Parse from XML string. More...

std::string	toXMLString () const
	Parse from XML string. More...

Protected Member Functions

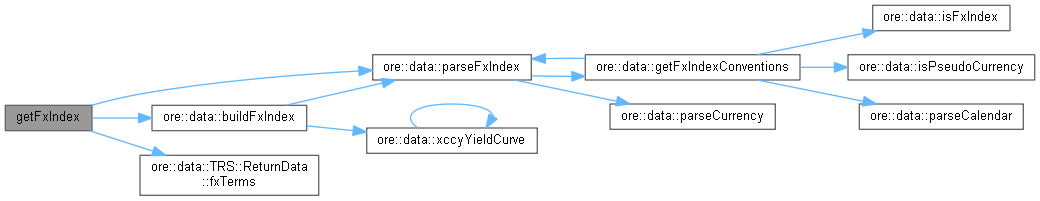

QuantLib::ext::shared_ptr< QuantExt::FxIndex >	getFxIndex (const QuantLib::ext::shared_ptr< Market > market, const std::string &configuration, const std::string &domestic, const std::string &foreign, std::map< std::string, QuantLib::ext::shared_ptr< QuantExt::FxIndex > > &fxIndices, std::set< std::string > &missingFxIndexPairs) const

Protected Member Functions inherited from Trade
Date	addPremiums (std::vector< QuantLib::ext::shared_ptr< Instrument > > &instruments, std::vector< Real > &multipliers, const Real tradeMultiplier, const PremiumData &premiumData, const Real premiumMultiplier, const Currency &tradeCurrency, const QuantLib::ext::shared_ptr< EngineFactory > &factory, const string &configuration)

void	setLegBasedAdditionalData (const Size legNo, Size resultLegId=Null< Size >()) const

void	setSensitivityTemplate (const EngineBuilder &builder)

void	setSensitivityTemplate (const std::string &id)

Protected Attributes
std::vector< QuantLib::ext::shared_ptr< Trade > >	underlying_

std::vector< std::string >	underlyingDerivativeId_

ReturnData	returnData_

FundingData	fundingData_

AdditionalCashflowData	additionalCashflowData_

std::string	creditRiskCurrency_

std::map< std::string, SimmCreditQualifierMapping >	creditQualifierMapping_

Protected Attributes inherited from Trade
string	tradeType_

QuantLib::ext::shared_ptr< InstrumentWrapper >	instrument_

std::vector< QuantLib::Leg >	legs_

std::vector< string >	legCurrencies_

std::vector< bool >	legPayers_

string	npvCurrency_

QuantLib::Real	notional_

string	notionalCurrency_

Date	maturity_

string	issuer_

string	sensitivityTemplate_

bool	sensitivityTemplateSet_ = false

std::size_t	savedNumberOfPricings_ = 0

boost::timer::nanosecond_type	savedCumulativePricingTime_ = 0

RequiredFixings	requiredFixings_

std::map< std::string, boost::any >	additionalData_

Detailed Description

TRS trade class

Definition at line 36 of file trs.hpp.

Constructor & Destructor Documentation

◆ TRS() [1/2]

TRS ( )

Definition at line 124 of file trs.hpp.

124: Trade("TotalReturnSwap") {}

ore::data::Trade::Trade

Trade()

Default constructor.

Definition: trade.hpp:59

◆ TRS() [2/2]

TRS	(	const Envelope &	env,
		const std::vector< QuantLib::ext::shared_ptr< Trade > > &	underlying,
		const std::vector< std::string > &	underlyingDerivativeId,
		const ReturnData &	returnData,
		const FundingData &	fundingData,
		const AdditionalCashflowData &	additionalCashflowData
	)

Definition at line 126 of file trs.hpp.

        : Trade("TotalReturnSwap", env), underlying_(underlying), underlyingDerivativeId_(underlyingDerivativeId),
          returnData_(returnData), fundingData_(fundingData), additionalCashflowData_(additionalCashflowData) {
        QL_REQUIRE(underlying_.size() == underlyingDerivativeId_.size(),
                   "TRS: underlying size (" << underlying_.size() << ") must match underlying derivative id size ("
                                            << underlyingDerivativeId_.size() << ")");
    }

Member Function Documentation

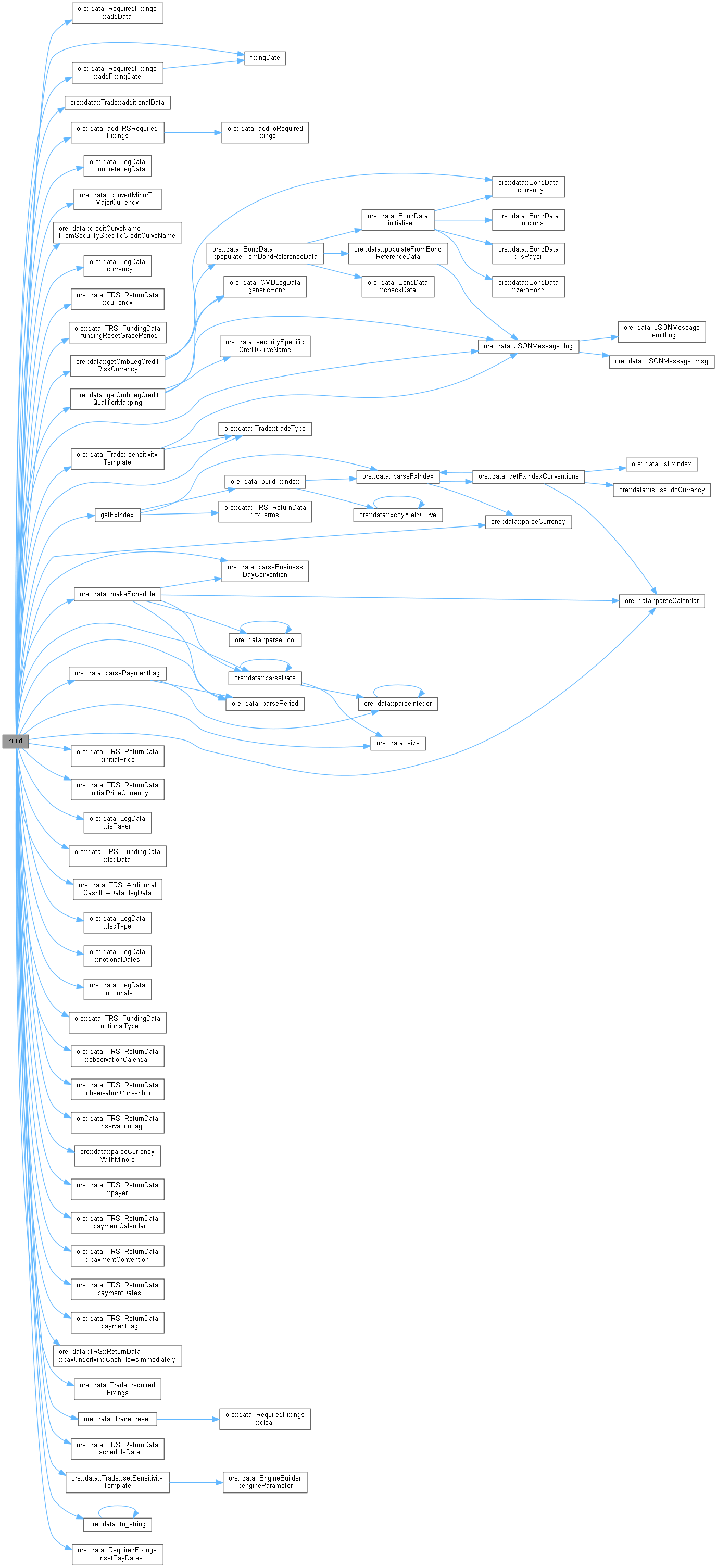

◆ build()

void build ( const QuantLib::ext::shared_ptr< EngineFactory > & )

overridevirtual

Build QuantLib/QuantExt instrument, link pricing engine. If build() is called multiple times, reset() should be called between these calls.

Implements Trade.

Definition at line 292 of file trs.cpp.

                                                                         {

    DLOG("TRS::build() called for id = " << id());

    // clear trade members

    reset();

    creditRiskCurrency_.clear();
    creditQualifierMapping_.clear();
    notionalCurrency_ = returnData_.currency();

    // checks

    std::set<bool> fundingLegPayers;
    std::set<std::string> fundingCurrencies;

    bool fundingLegPayer = !(returnData_.payer());
    std::string fundingCurrency = returnData_.currency();

    for (auto const& l : fundingData_.legData()) {
        fundingLegPayer = l.isPayer();
        fundingCurrency = l.currency();
        fundingLegPayers.insert(fundingLegPayer);
        fundingCurrencies.insert(fundingCurrency);
    }

    QL_REQUIRE(fundingLegPayers.size() <= 1, "funding leg payer flags must match");
    QL_REQUIRE(fundingCurrencies.size() <= 1, "funding leg currencies must match");

    // a builder might update the underlying (e.g. promote it from bond to convertible bond)

    for (Size i = 0; i < underlying_.size(); ++i) {
        if (underlyingDerivativeId_[i].empty()) {
            for (auto const& b : TrsUnderlyingBuilderFactory::instance().getBuilders()) {
                b.second->updateUnderlying(engineFactory->referenceData(), underlying_[i], id());
            }
        }
    }

    // build underlying trade, add required fixing from there to this trade

    for (Size i = 0; i < underlying_.size(); ++i) {
        DLOG("build underlying trade #" << (i + 1) << " of type '" << underlying_[i]->tradeType() << "'");
        underlying_[i]->reset();
        underlying_[i]->build(engineFactory);
        requiredFixings_.addData(underlying_[i]->requiredFixings());
        // populate sensi template from first underlying, we have to make _some_ assumption here!
        if (sensitivityTemplate_.empty()) {
            setSensitivityTemplate(underlying_[i]->sensitivityTemplate());
        }
    }

    // propagate additional data from underlyings to trs trade
    for (Size i = 0; i < underlying_.size(); ++i) {
        for (auto const& [key, value] : underlying_[i]->additionalData()) {
            additionalData_["und_ad_" + std::to_string(i + 1) + "_" + key] = value;
        }
    }

    // we use dirty prices, so we need accrued amounts in the past
    requiredFixings_.unsetPayDates();

    // build return leg valuation and payment date vectors

    DLOG("build valuation and payment dates vectors");

    std::vector<Date> valuationDates, paymentDates;

    QuantLib::Schedule schedule = makeSchedule(returnData_.scheduleData());
    QL_REQUIRE(schedule.dates().size() >= 2, "at least two dates required in return schedule");

    Calendar observationCalendar = parseCalendar(returnData_.observationCalendar());
    BusinessDayConvention observationConvention = returnData_.observationConvention().empty()
                                                      ? Unadjusted
                                                      : parseBusinessDayConvention(returnData_.observationConvention());
    Period observationLag = returnData_.observationLag().empty() ? 0 * Days : parsePeriod(returnData_.observationLag());

    Calendar paymentCalendar = parseCalendar(returnData_.paymentCalendar());
    BusinessDayConvention paymentConvention = returnData_.paymentConvention().empty()
                                                  ? Unadjusted
                                                  : parseBusinessDayConvention(returnData_.paymentConvention());
    PaymentLag paymentLag = parsePaymentLag(returnData_.paymentLag());
    Period plPeriod = boost::apply_visitor(PaymentLagPeriod(), paymentLag);

    for (auto const& d : schedule.dates()) {
        valuationDates.push_back(observationCalendar.advance(d, -observationLag, observationConvention));
        if (d != schedule.dates().front())
            paymentDates.push_back(paymentCalendar.advance(d, plPeriod, paymentConvention));
    }

    if (!returnData_.paymentDates().empty()) {
        paymentDates.clear();
        QL_REQUIRE(returnData_.paymentDates().size() + 1 == valuationDates.size(),
                   "paymentDates size (" << returnData_.paymentDates().size() << ") does no match valuatioDates size ("
                                         << valuationDates.size() << ") minus 1");
        for (auto const& s : returnData_.paymentDates())
            paymentDates.push_back(parseDate(s));
    }

    DLOG("valuation schedule:");
    for (auto const& d : valuationDates)
        DLOG(ore::data::to_string(d));

    DLOG("payment schedule:");
    for (auto const& d : paymentDates)
        DLOG(ore::data::to_string(d));

    // build indices corresponding to underlying trades and populate necessary data

    std::map<std::string, double> indexNamesAndQty;
    std::map<std::string, QuantLib::ext::shared_ptr<QuantExt::FxIndex>> initialFxIndices, fxIndices, fxIndicesDummy;

    // get fx indices for conversion return and add cf ccy to funding ccy

    std::set<std::string> missingFxIndexPairs;

    auto fxIndexReturn = getFxIndex(engineFactory->market(), engineFactory->configuration(MarketContext::pricing),
                                    returnData_.currency(), fundingCurrency, initialFxIndices, missingFxIndexPairs);
    auto fxIndexAdditionalCashflows =
        additionalCashflowData_.legData().currency().empty()
            ? fxIndexReturn
            : getFxIndex(engineFactory->market(), engineFactory->configuration(MarketContext::pricing),
                         additionalCashflowData_.legData().currency(), fundingCurrency, fxIndicesDummy,
                         missingFxIndexPairs);

    Real initialPrice = returnData_.initialPrice();

    std::vector<QuantLib::ext::shared_ptr<QuantLib::Index>> underlyingIndex(underlying_.size(), nullptr);
    std::vector<Real> underlyingMultiplier(underlying_.size(), Null<Real>());
    std::vector<std::string> assetCurrency(underlying_.size(), fundingCurrency);
    std::vector<QuantLib::ext::shared_ptr<QuantExt::FxIndex>> fxIndexAsset(underlying_.size(), nullptr);

    maturity_ = Date::minDate();

    for (Size i = 0; i < underlying_.size(); ++i) {

        DLOG("build underlying index for underlying #" << (i + 1));

        std::string localCreditRiskCurrency;
        Date localMaturity;
        std::map<std::string, double> localIndexNamesAndQuantities;
        std::map<std::string, QuantLib::ext::shared_ptr<QuantExt::FxIndex>> localFxIndices = initialFxIndices;
        Real dummyInitialPrice = 1.0; // initial price is only updated if we have one underlying

        std::vector<Leg> returnLegs;
        auto builder = TrsUnderlyingBuilderFactory::instance().getBuilder(
            underlyingDerivativeId_[i].empty() ? underlying_[i]->tradeType() : "Derivative");
        builder->build(id(), underlying_[i], valuationDates, paymentDates, fundingCurrency, engineFactory,
                       underlyingIndex[i], underlyingMultiplier[i], localIndexNamesAndQuantities, localFxIndices,
                       underlying_.size() == 1 ? initialPrice : dummyInitialPrice, assetCurrency[i],
                       localCreditRiskCurrency, creditQualifierMapping_, localMaturity,
                       std::bind(&TRS::getFxIndex, this, std::placeholders::_1, std::placeholders::_2,
                                 std::placeholders::_3, std::placeholders::_4, std::placeholders::_5,
                                 std::ref(missingFxIndexPairs)),
                       underlyingDerivativeId_[i], requiredFixings_, returnLegs);

        addTRSRequiredFixings(requiredFixings_, returnLegs, fxIndexReturn);

        // update global credit risk currency

        if (creditRiskCurrency_.empty()) {
            creditRiskCurrency_ = localCreditRiskCurrency;
        } else if (!localCreditRiskCurrency.empty() && creditRiskCurrency_ != localCreditRiskCurrency) {
            ore::data::StructuredTradeErrorMessage(id(), tradeType(), "Ambiguous SIMM CreditQ currencies for TRS",
                                                        "Will use '" + creditRiskCurrency_ + "', found '" +
                                                       localCreditRiskCurrency + "' in addition.")
                .log();
        }

        // update global maturity date

        maturity_ = std::max(maturity_, localMaturity);

        // get fx indices for conversion of asset to funding ccy

        DLOG("underlying #" << (i + 1) << " has asset ccy " << assetCurrency[i] << ", funding ccy is "
                            << fundingCurrency << ", return ccy is " << returnData_.currency());

        fxIndexAsset[i] = getFxIndex(engineFactory->market(), engineFactory->configuration(MarketContext::pricing),
                                     assetCurrency[i], fundingCurrency, localFxIndices, missingFxIndexPairs);
        DLOG("underlying #" << (i + 1) << " index (" << underlyingIndex[i]->name() << ") built.");
        DLOG("underlying #" << (i + 1) << " multiplier is " << underlyingMultiplier[i]);

        // update global indexNames and  fxIndices

        for (const auto& [indexName, qty] : localIndexNamesAndQuantities) {
            indexNamesAndQty[indexName] += (returnData_.payer() ? -1.0 : 1.0) * qty;
        }

        fxIndices.insert(localFxIndices.begin(), localFxIndices.end());
    }

    // ISDA taxonomy
    bool assetClassIsUnique = true;
    std::string assetClass;
    for (auto u : underlying_) {
        auto it = u->additionalData().find("isdaAssetClass");
        if (it != u->additionalData().end()) {
            std::string ac = boost::any_cast<std::string>(it->second);
            if (assetClass == "")
                assetClass = ac;
            else if (ac != assetClass)
                assetClassIsUnique = false;
        }
    }

    additionalData_["isdaAssetClass"] = string("");
    additionalData_["isdaBaseProduct"] = string("");
    additionalData_["isdaSubProduct"] = string("");
    additionalData_["isdaTransaction"] = string("");

    if (assetClass == "") {
        ALOG("ISDA asset class not found for TRS " << id() << ", ISDA taxonomy undefined");
    } else {
        additionalData_["isdaAssetClass"] = assetClass;
        if (!assetClassIsUnique) {
            WLOG("ISDA asset class not unique in TRS " << id() << " using first hit: " << assetClass);
        }
        additionalData_["isdaBaseProduct"] = string("Total Return Swap");
        if (assetClass == "Equity") {
            if (tradeType_ == "ContractForDifference")
                additionalData_["isdaBaseProduct"] = string("Contract For Difference");
            else
                additionalData_["isdaBaseProduct"] = string("Swap");
            additionalData_["isdaSubProduct"] = string("Price Return Basic Performance");
        } else if (assetClass == "Credit") {
            additionalData_["isdaBaseProduct"] = string("Total Return Swap");
            additionalData_["isdaSubProduct"] = string("");
        } else {
            WLOG("ISDA asset class " << assetClass << " not explicitly covered for TRS trade " << id()
                                     << " using default BaseProduct 'Total Retuen Swap' and leaving sub-product blank");
        }
    }

    // check that we have all fx terms that we needed to build the fx indices

    QL_REQUIRE(missingFxIndexPairs.empty(), "TRS::build(): missing FXTerms for the following pairs: "
                                                << boost::algorithm::join(missingFxIndexPairs, ", "));

    // set initial price currency

    QL_REQUIRE(!assetCurrency.empty(), "TRS::build(): no underlying given.");

    std::string initialPriceCurrency =
        returnData_.initialPriceCurrency().empty() ? assetCurrency.front() : returnData_.initialPriceCurrency();

    if (initialPrice != Null<Real>() && returnData_.initialPriceCurrency().empty()) {
        for (auto const& ccy : assetCurrency) {
            QL_REQUIRE(ccy == initialPriceCurrency, "TRS::build(): can not determine unique initial price currency "
                                                    "from asset currencies for initial price ("
                                                        << returnData_.initialPrice()
                                                        << "), please add the initial price currency to the trade xml");
        }
    }

    // log some results from the build, convert initial price to major ccy if necessary

    if (initialPrice != Null<Real>()) {
        DLOG("initial price is given as " << initialPrice << " " << initialPriceCurrency);
    initialPrice = convertMinorToMajorCurrency(initialPriceCurrency, initialPrice);
    DLOG("initial price after conversion to major ccy " << initialPrice);
    } else {
        DLOG("no initial price is given");
    }

    DLOG("fundingCurrency is " << fundingCurrency);
    DLOG("creditRiskCurrency is " << creditRiskCurrency_);
    for (Size i = 0; i < assetCurrency.size(); ++i)
        DLOG("assetCurrency #" << i << " is " << assetCurrency[i]);

    // build funding legs, so far the supported types are
    // Fixed, Floating

    QL_REQUIRE(
        fundingData_.notionalType().empty() || fundingData_.notionalType().size() == fundingData_.legData().size(),
        "TRS::build(): got " << fundingData_.notionalType().size() << " NotionalType tags in FundingData, but "
                             << fundingData_.legData().size()
                             << " LegData nodes. These two must match. The NotionalType can also be omitted entirely.");

    std::vector<Leg> fundingLegs;
    std::vector<TRS::FundingData::NotionalType> fundingNotionalTypes;
    for (Size i = 0; i < fundingData_.legData().size(); ++i) {

        auto& ld = fundingData_.legData()[i];
        QL_REQUIRE(ld.legType() == "Fixed" || ld.legType() == "Floating" || ld.legType() == "CMS" ||
                       ld.legType() == "CMB",
                   "TRS::build(): funding leg type: only fixed, floating, CMS, CMB are supported");
        TRS::FundingData::NotionalType notionalType =
            fundingData_.notionalType().empty() ? (ld.notionals().empty() ? TRS::FundingData::NotionalType::PeriodReset
                                                                          : TRS::FundingData::NotionalType::Fixed)
                                                : fundingData_.notionalType()[i];
        QL_REQUIRE(ld.notionals().empty() || notionalType == TRS::FundingData::NotionalType::Fixed,
                   "TRS::build(): if notional is given in funding leg data, the notional type must be fixed, got "
                       << notionalType << " for funding leg #" << (i + 1));

        struct TempNotionalSetter {
            TempNotionalSetter(LegData& ld) : ld_(ld) {
                if (ld.notionals().empty()) {
                    ld.notionals() = std::vector<Real>(1, 1.0);
                    ld.notionalDates().clear();
                    restoreEmptyLegDataNotionals_ = true;
                } else {
                    restoreEmptyLegDataNotionals_ = false;
                }
            }
            ~TempNotionalSetter() {
                if (restoreEmptyLegDataNotionals_)
                    ld_.notionals().clear();
            }
            LegData& ld_;
            bool restoreEmptyLegDataNotionals_;
        };

        TempNotionalSetter tmpSetter(ld);

        auto legBuilder = engineFactory->legBuilder(ld.legType());
        fundingLegs.push_back(legBuilder->buildLeg(ld, engineFactory, requiredFixings_,
                                                   engineFactory->configuration(MarketContext::pricing)));
        fundingNotionalTypes.push_back(notionalType);

        // update credit risk currency and credit qualifier mapping for CMB leg
        if (ld.legType() == "CMB") {
            auto cmbData = QuantLib::ext::dynamic_pointer_cast<ore::data::CMBLegData>(ld.concreteLegData());
            QL_REQUIRE(cmbData, "TRS::build(): internal error, could to cast to CMBLegData.");
            if(creditRiskCurrency_.empty())
                creditRiskCurrency_ = getCmbLegCreditRiskCurrency(*cmbData, engineFactory->referenceData());
            auto [source, target] =
                getCmbLegCreditQualifierMapping(*cmbData, engineFactory->referenceData(), id(), tradeType());
            creditQualifierMapping_[source] = target;
            creditQualifierMapping_[ore::data::creditCurveNameFromSecuritySpecificCreditCurveName(source)] = target;
        }
    }

    // add required fixings for funding legs with daily resets

    DLOG("add required fixings for fundings legs with daily resets (if any)");

    for (Size i = 0; i < fundingLegs.size(); ++i) {
        if (fundingNotionalTypes[i] == TRS::FundingData::NotionalType::DailyReset) {
            for (auto const& c : fundingLegs[i]) {
                if (auto cpn = QuantLib::ext::dynamic_pointer_cast<QuantLib::Coupon>(c)) {
                    QL_REQUIRE(QuantLib::ext::dynamic_pointer_cast<QuantLib::FixedRateCoupon>(c) ||
                                   QuantLib::ext::dynamic_pointer_cast<QuantLib::IborCoupon>(c) ||
                                   QuantLib::ext::dynamic_pointer_cast<QuantExt::OvernightIndexedCoupon>(c) ||
                                   QuantLib::ext::dynamic_pointer_cast<QuantExt::AverageONIndexedCoupon>(c),
                               "daily reset funding legs support fixed rate, ibor and overnight indexed coupons only");
                    for (QuantLib::Date d = cpn->accrualStartDate(); d < cpn->accrualEndDate(); ++d) {
                        for (Size j = 0; j < underlying_.size(); ++j) {
                            Date fixingDate = underlyingIndex[j]->fixingCalendar().adjust(d, Preceding);
                            for (auto const& [n, _] : indexNamesAndQty)
                                requiredFixings_.addFixingDate(fixingDate, n, cpn->date(), false, false);
                            for (auto const& n : fxIndices) {
                                requiredFixings_.addFixingDate(n.second->fixingCalendar().adjust(fixingDate, Preceding),
                                                               n.first, cpn->date(), false, false);
                            }
                        }
                    }
                }
            }
        }  else if (fundingNotionalTypes[i] == TRS::FundingData::NotionalType::PeriodReset) {
            for (auto const& c : fundingLegs[i]) {
                if (auto cpn = QuantLib::ext::dynamic_pointer_cast<QuantLib::Coupon>(c)) {
                    for (Size j = 0; j < underlying_.size(); ++j) {
                        Date fundingStartDate = cpn->accrualStartDate();
                        Size currentIdx = std::distance(valuationDates.begin(),
                                            std::upper_bound(valuationDates.begin(),
                                                             valuationDates.end(),
                                                             fundingStartDate + fundingData_.fundingResetGracePeriod()));
                        if (currentIdx > 0)
                            --currentIdx;
                        Date fixingDate = valuationDates[currentIdx];
                        for (auto const& [n, _] : indexNamesAndQty)
                            requiredFixings_.addFixingDate(fixingDate, n, cpn->date(), false, false);
                        for (auto const& n : fxIndices) {
                            requiredFixings_.addFixingDate(n.second->fixingCalendar().adjust(fixingDate, Preceding),
                                                           n.first, cpn->date(), false, false);
                        }
                    }
                }
            }
        }
    }

    // set start date

    Date startDate = Date::maxDate();
    for (auto const& l : fundingLegs) {
        for (auto const& cf : l) {
            QuantLib::ext::shared_ptr<Coupon> coupon = QuantLib::ext::dynamic_pointer_cast<Coupon>(cf);
            if (coupon)
                startDate = std::min(startDate, coupon->accrualStartDate());
        }
    }

    additionalData_["startDate"] = to_string(startDate);
    for (const auto& [name, qty] : indexNamesAndQty) {
        additionalData_["underlying_quantity_" + name] = qty;
    }

    // build additional cashflow leg (if given)

    DLOG("build additional cashflow leg");

    Leg additionalCashflowLeg;
    bool additionalCashflowLegPayer = false;
    std::string additionalCashflowLegCurrency = fundingCurrency;
    if (additionalCashflowData_.legData().concreteLegData()) {
        QL_REQUIRE(additionalCashflowData_.legData().legType() == "Cashflow",
                   "TRS::build(): additional cashflow data leg must have type 'Cashflow'");
        additionalCashflowLeg = engineFactory->legBuilder(additionalCashflowData_.legData().legType())
                                    ->buildLeg(additionalCashflowData_.legData(), engineFactory, requiredFixings_,
                                               engineFactory->configuration(MarketContext::pricing));
        additionalCashflowLegPayer = additionalCashflowData_.legData().isPayer();
        additionalCashflowLegCurrency = additionalCashflowData_.legData().currency();
    }

    // parse asset currencies

    std::vector<QuantLib::Currency> parsedAssetCurrencies;
    for (auto const& c : assetCurrency) {
        parsedAssetCurrencies.push_back(parseCurrency(c));
    }

    // build instrument

    DLOG("build instrument and set trade member");

    bool includeUnderlyingCashflowsInReturn;
    if (returnData_.payUnderlyingCashFlowsImmediately()) {
        includeUnderlyingCashflowsInReturn = !(*returnData_.payUnderlyingCashFlowsImmediately());
    } else {
        includeUnderlyingCashflowsInReturn = tradeType_ != "ContractForDifference";
    }

    auto wrapper = QuantLib::ext::make_shared<TRSWrapper>(
        underlying_, underlyingIndex, underlyingMultiplier, includeUnderlyingCashflowsInReturn, initialPrice,
        parseCurrencyWithMinors(initialPriceCurrency), parsedAssetCurrencies, parseCurrency(returnData_.currency()),
        valuationDates, paymentDates, fundingLegs, fundingNotionalTypes, parseCurrency(fundingCurrency),
        fundingData_.fundingResetGracePeriod(), returnData_.payer(), fundingLegPayer, additionalCashflowLeg,
        additionalCashflowLegPayer, parseCurrency(additionalCashflowLegCurrency), fxIndexAsset, fxIndexReturn,
        fxIndexAdditionalCashflows, fxIndices);
    wrapper->setPricingEngine(QuantLib::ext::make_shared<TRSWrapperAccrualEngine>());
    instrument_ = QuantLib::ext::make_shared<VanillaInstrument>(wrapper);

    // if the first valuation date is > today, we potentially need fixings for fx conversion as of "today"

    if (Date today = Settings::instance().evaluationDate(); !valuationDates.empty() && valuationDates.front() > today) {
        std::set<QuantLib::ext::shared_ptr<QuantExt::FxIndex>> tmp;
        auto fxIndicesVal = fxIndices | boost::adaptors::map_values;
        tmp.insert(fxIndicesVal.begin(), fxIndicesVal.end());
        tmp.insert(fxIndexAsset.begin(), fxIndexAsset.end());
        tmp.insert(fxIndexReturn);
        tmp.insert(fxIndexAdditionalCashflows);
        for (auto const& fx : tmp) {
            if (fx != nullptr) {
                requiredFixings_.addFixingDate(fx->fixingCalendar().adjust(today, Preceding),
                                               IndexNameTranslator::instance().oreName(fx->name()));
            }
        }
    }

    // set trade member variables (leave legs empty for the time being, we just have the funding leg really)

    npvCurrency_ = fundingCurrency;

    notional_ = 0.0; // we have overridden notional() to return this

    // if the maturity date was not set by the trs underlying builder, set it here
    if (maturity_ == Date::minDate()) {
        maturity_ = std::max(valuationDates.back(), paymentDates.back());
        for (auto const& l : fundingLegs) {
            maturity_ = std::max(maturity_, CashFlows::maturityDate(l));
        }
    }
}

Here is the call graph for this function:

◆ underlying()

const std::vector< QuantLib::ext::shared_ptr< Trade > > & underlying ( ) const

Inspectors.

Definition at line 140 of file trs.hpp.

140{ return underlying_; }

◆ returnData()

const ReturnData & returnData ( ) const

Definition at line 141 of file trs.hpp.

141{ return returnData_; }

◆ fundingData()

const FundingData & fundingData ( ) const

Definition at line 142 of file trs.hpp.

142{ return fundingData_; }

◆ additionalCashflowData()

const AdditionalCashflowData & additionalCashflowData ( ) const

Definition at line 143 of file trs.hpp.

143{ return additionalCashflowData_; }

◆ creditRiskCurrency()

const std::string & creditRiskCurrency ( ) const

Definition at line 144 of file trs.hpp.

144{ return creditRiskCurrency_; }

◆ creditQualifierMapping()

const std::map< std::string, SimmCreditQualifierMapping > & creditQualifierMapping ( ) const

Definition at line 145 of file trs.hpp.

                                                                                        {
        return creditQualifierMapping_;
    }

◆ underlyingIndices()

std::map< AssetClass, std::set< std::string > > underlyingIndices ( const QuantLib::ext::shared_ptr< ReferenceDataManager > & referenceDataManager = nullptr ) const

overridevirtual

Interface.

Reimplemented from Trade.

Definition at line 151 of file trs.cpp.

                                                                                                    {
    std::map<AssetClass, std::set<std::string>> result;
    for (Size i = 0; i < underlying_.size(); ++i) {
        QL_REQUIRE(underlying_[i], "TRS::underlyingIndices(): underlying trade is null");
        // a builder might update the underlying (e.g. promote it from bond to convertible bond)
        if (underlyingDerivativeId_[i].empty()) {
            for (auto const& b : TrsUnderlyingBuilderFactory::instance().getBuilders()) {
                b.second->updateUnderlying(referenceDataManager, underlying_[i], id());
            }
        }
        for (auto const& tmp : underlying_[i]->underlyingIndices(referenceDataManager))
            result[tmp.first].insert(tmp.second.begin(), tmp.second.end());
    }
    return result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ notional()

QuantLib::Real notional ( ) const

overridevirtual

Return the current notional in npvCurrency. See individual sub-classes for the precise definition.

Reimplemented from Trade.

Definition at line 769 of file trs.cpp.

                                 {
    // try to get the notional from the additional results of the instrument
    try {
        return instrument_->qlInstrument()->result<Real>("currentNotional");
    } catch (const std::exception& e) {
        if (strcmp(e.what(), "currentNotional not provided"))
            ALOG("error when retrieving notional: " << e.what());
    }
    // if not provided, return null
    return Null<Real>();
}

◆ fromXML()

void fromXML ( XMLNode * node )

overridevirtual

Reimplemented from Trade.

Definition at line 167 of file trs.cpp.

                               {
    Trade::fromXML(node);

    // set id early since we use it below to set the underlying trade's id
    this->id() = XMLUtils::getAttribute(node, "id");

    // trs data node
    XMLNode* dataNode = XMLUtils::getChildNode(node, tradeType_ + "Data");
    QL_REQUIRE(dataNode, tradeType_ + "Data node required");

    // read underlying data
    XMLNode* underlyingDataNode = XMLUtils::getChildNode(dataNode, "UnderlyingData");
    QL_REQUIRE(underlyingDataNode, "UnderlyingData node required");
    std::vector<XMLNode*> underlyingTradeNodes = XMLUtils::getChildrenNodes(underlyingDataNode, "Trade");
    std::vector<XMLNode*> underlyingTradeNodes2 = XMLUtils::getChildrenNodes(underlyingDataNode, "Derivative");
    QL_REQUIRE(!underlyingTradeNodes.empty() || !underlyingTradeNodes2.empty(),
               "at least one 'Trade' or 'Derivative' node required");
    Size underlyingCounter = 0;
    underlying_.clear();
    underlyingDerivativeId_.clear();
    for (auto const n : underlyingTradeNodes) {
        std::string tradeType = XMLUtils::getChildValue(n, "TradeType", true);
        QuantLib::ext::shared_ptr<Trade> u;
        try {
            u = TradeFactory::instance().build(tradeType);
        } catch (const std::exception& e) {
            QL_FAIL("Failed for build TRS underlying trade # " << underlyingCounter + 1 << ": " << e.what());
        }
        u->id() = this->id() + "_underlying" +
                  (underlyingTradeNodes.size() > 1 ? "_" + std::to_string(underlyingCounter++) : "");
        u->fromXML(n);
        underlyingDerivativeId_.push_back(std::string());
        underlying_.push_back(u);
    }
    for (auto const n : underlyingTradeNodes2) {
        underlyingDerivativeId_.push_back(XMLUtils::getChildValue(n, "Id", true));
        auto t = XMLUtils::getChildNode(n, "Trade");
        QL_REQUIRE(t != nullptr, "expected 'Trade' node under 'Derivative' node");
        std::string tradeType = XMLUtils::getChildValue(t, "TradeType", true);
        auto u = TradeFactory::instance().build(tradeType);
        QL_REQUIRE(u, "No trade builder found for TRS derivative trade type '"
                          << tradeType << "' when processing underlying trade #" << (underlyingCounter + 1));
        u->id() = this->id() + "_underlying" +
                  (underlyingTradeNodes.size() > 1 ? "_" + std::to_string(underlyingCounter++) : "");
        u->fromXML(t);
        underlying_.push_back(u);
    }

    // read return data
    XMLNode* returnDataNode = XMLUtils::getChildNode(dataNode, "ReturnData");
    returnData_.fromXML(returnDataNode);

    // read funding data
    XMLNode* fundingDataNode = XMLUtils::getChildNode(dataNode, "FundingData");
    if (fundingDataNode)
        fundingData_.fromXML(fundingDataNode);
    else
        fundingData_ = FundingData();

    // read additional cashflow data
    XMLNode* additionalCashflowDataNode = XMLUtils::getChildNode(dataNode, "AdditionalCashflowData");
    if (additionalCashflowDataNode)
        additionalCashflowData_.fromXML(additionalCashflowDataNode);
    else
        additionalCashflowData_ = AdditionalCashflowData();
}

Here is the call graph for this function:

◆ toXML()

XMLNode * toXML ( XMLDocument & doc ) const

overridevirtual

Reimplemented from Trade.

Definition at line 234 of file trs.cpp.

                                          {
    XMLNode* node = Trade::toXML(doc);
    XMLNode* dataNode = doc.allocNode(tradeType_ + "Data");
    XMLUtils::appendNode(node, dataNode);

    XMLNode* underlyingDataNode = doc.allocNode("UnderlyingData");
    XMLUtils::appendNode(dataNode, underlyingDataNode);

    for (Size i = 0; i < underlying_.size(); ++i) {
        if (underlyingDerivativeId_[i].empty()) {
            XMLUtils::appendNode(underlyingDataNode, underlying_[i]->toXML(doc));
        } else {
            auto d = XMLUtils::addChild(doc, underlyingDataNode, "Derivative");
            XMLUtils::addChild(doc, d, "Id", underlyingDerivativeId_[i]);
            XMLUtils::appendNode(d, underlying_[i]->toXML(doc));
        }
    }

    XMLUtils::appendNode(dataNode, returnData_.toXML(doc));
    if (!fundingData_.legData().empty())
        XMLUtils::appendNode(dataNode, fundingData_.toXML(doc));
    if (additionalCashflowData_.legData().concreteLegData())
        XMLUtils::appendNode(dataNode, additionalCashflowData_.toXML(doc));

    return node;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFxIndex()

QuantLib::ext::shared_ptr< QuantExt::FxIndex > getFxIndex	(	const QuantLib::ext::shared_ptr< Market >	market,
		const std::string &	configuration,
		const std::string &	domestic,
		const std::string &	foreign,
		std::map< std::string, QuantLib::ext::shared_ptr< QuantExt::FxIndex > > &	fxIndices,
		std::set< std::string > &	missingFxIndexPairs
	)		const

protected

Definition at line 262 of file trs.cpp.

                                                              {
    if (domestic == foreign)
        return nullptr;
    std::set<std::string> requiredCcys = {domestic, foreign};
    for (auto const& f : returnData_.fxTerms()) {
        auto fx = parseFxIndex(f);
        std::set<std::string> indexCcys = {fx->sourceCurrency().code(), fx->targetCurrency().code()};
        if (requiredCcys == indexCcys) {
            auto h = fxIndices.find(f);
            if (h != fxIndices.end())
                return h->second;
            DLOG("setting up fx index for domestic=" << domestic << " foreign=" << foreign);
            auto fx = buildFxIndex(f, domestic, foreign, market, configuration, false);
            fxIndices[f] = fx;
            return fx;
        }
    }

    // build a fx index, so that the processing can continue, but add to the error messages,
    // which - if not empty - will fail the trade build eventually

    std::string f("FX-GENERIC-" + domestic + "-" + foreign);
    auto fx = buildFxIndex(f, domestic, foreign, market, configuration, false);
    fxIndices[f] = fx;
    missingFxIndexPairs.insert(domestic + foreign);
    return fx;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ underlying_

std::vector<QuantLib::ext::shared_ptr<Trade> > underlying_

mutableprotected

Definition at line 165 of file trs.hpp.

◆ underlyingDerivativeId_

std::vector<std::string> underlyingDerivativeId_

mutableprotected

Definition at line 167 of file trs.hpp.

◆ returnData_

ReturnData returnData_

protected

Definition at line 168 of file trs.hpp.

◆ fundingData_

FundingData fundingData_

protected

Definition at line 169 of file trs.hpp.

◆ additionalCashflowData_

AdditionalCashflowData additionalCashflowData_

protected

Definition at line 170 of file trs.hpp.

◆ creditRiskCurrency_

std::string creditRiskCurrency_

protected

Definition at line 172 of file trs.hpp.

◆ creditQualifierMapping_

std::map<std::string, SimmCreditQualifierMapping> creditQualifierMapping_

protected

Definition at line 173 of file trs.hpp.

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TRS() [1/2]

◆ TRS() [2/2]

Member Function Documentation

◆ build()

◆ underlying()

◆ returnData()

◆ fundingData()

◆ additionalCashflowData()

◆ creditRiskCurrency()

◆ creditQualifierMapping()

◆ underlyingIndices()

◆ notional()

◆ fromXML()

◆ toXML()

◆ getFxIndex()

Member Data Documentation

◆ underlying_

◆ underlyingDerivativeId_

◆ returnData_

◆ fundingData_

◆ additionalCashflowData_

◆ creditRiskCurrency_

◆ creditQualifierMapping_
