CommodityCurve Class Reference

#include <ored/marketdata/commoditycurve.hpp>

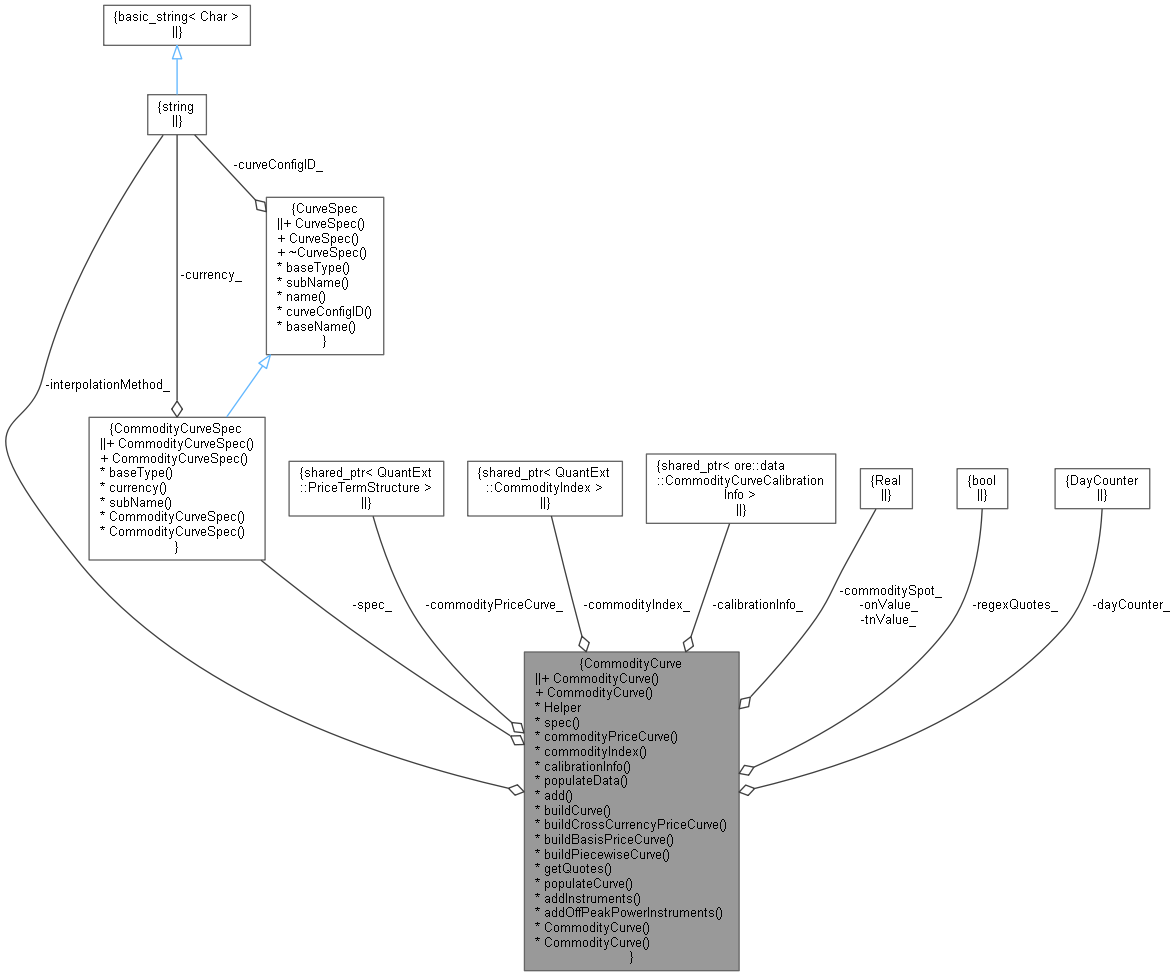

Collaboration diagram for CommodityCurve:

Public Member Functions
Constructors
	CommodityCurve ()
	Default constructor. More...
	CommodityCurve (const QuantLib::Date &asof, const CommodityCurveSpec &spec, const Loader &loader, const CurveConfigurations &curveConfigs, const FXTriangulation &fxSpots=FXTriangulation(), const std::map< std::string, QuantLib::ext::shared_ptr< YieldCurve > > &yieldCurves={}, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &commodityCurves={}, bool const buildCalibrationInfo=false)
	Detailed constructor. More...

Inspectors
using	Helper = QuantLib::BootstrapHelper< QuantExt::PriceTermStructure >
	Add the instruments relating to a priceSegment to instruments. More...
CommodityCurveSpec	spec_
QuantLib::ext::shared_ptr< QuantExt::PriceTermStructure >	commodityPriceCurve_
QuantLib::ext::shared_ptr< QuantExt::CommodityIndex >	commodityIndex_
QuantLib::ext::shared_ptr< CommodityCurveCalibrationInfo >	calibrationInfo_
QuantLib::Real	commoditySpot_
	Store the commodity spot value with Null<Real>() indicating that none has been provided. More...
QuantLib::Real	onValue_
	Store the overnight value if any. More...
QuantLib::Real	tnValue_
	Store the tomorrow next value if any. More...
bool	regexQuotes_
	Populated with true if the quotes are configured via a wildcard. More...
std::string	interpolationMethod_
	Store the interpolation method. More...
QuantLib::DayCounter	dayCounter_
	Store the curve's day counter. More...
const CommodityCurveSpec &	spec () const
QuantLib::ext::shared_ptr< QuantExt::PriceTermStructure >	commodityPriceCurve () const
QuantLib::ext::shared_ptr< QuantExt::CommodityIndex >	commodityIndex () const
QuantLib::ext::shared_ptr< CommodityCurveCalibrationInfo >	calibrationInfo () const
void	populateData (std::map< QuantLib::Date, QuantLib::Handle< QuantLib::Quote > > &data, const QuantLib::Date &asof, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &config, const Loader &loader)
	Populate data with dates and prices from the loader. More...
void	add (const QuantLib::Date &asof, const QuantLib::Date &expiry, QuantLib::Real value, std::map< QuantLib::Date, QuantLib::Handle< QuantLib::Quote > > &data, bool outright, QuantLib::Real pointsFactor=1.0)
	Add node to price curve data with check for duplicate expiry dates. More...
void	buildCurve (const QuantLib::Date &asof, const std::map< QuantLib::Date, QuantLib::Handle< QuantLib::Quote > > &data, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &config)
	Build price curve using the curve data. More...
void	buildCrossCurrencyPriceCurve (const QuantLib::Date &asof, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &config, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &baseConfig, const FXTriangulation &fxSpots, const std::map< std::string, QuantLib::ext::shared_ptr< YieldCurve > > &yieldCurves, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &commodityCurves)
	Build cross currency commodity price curve. More...
void	buildBasisPriceCurve (const QuantLib::Date &asof, const CommodityCurveConfig &config, const QuantLib::Handle< QuantExt::PriceTermStructure > &basePts, const Loader &loader)
	Build commodity basis price curve. More...
void	buildPiecewiseCurve (const QuantLib::Date &asof, const CommodityCurveConfig &config, const Loader &loader, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &commodityCurves)
	Build commodity piecewise price curve. More...
std::vector< QuantLib::ext::shared_ptr< CommodityForwardQuote > >	getQuotes (const QuantLib::Date &asof, const std::string &, const std::vector< std::string > &quotes, const Loader &loader, bool filter=false)
	Get the configured quotes. If filter is true, remove tenor based quotes and quotes with expiry before asof. More...
template<template< class > class CurveType, typename... Args>
void	populateCurve (Args... args)
	Method for populating the price curve. More...
void	addInstruments (const QuantLib::Date &asof, const Loader &loader, const std::string &configId, const std::string &currency, const PriceSegment &priceSegment, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &commodityCurves, std::map< QuantLib::Date, QuantLib::ext::shared_ptr< Helper > > &instruments)
void	addOffPeakPowerInstruments (const QuantLib::Date &asof, const Loader &loader, const std::string &configId, const PriceSegment &priceSegment, std::map< QuantLib::Date, QuantLib::ext::shared_ptr< Helper > > &instruments)
	Special method to add instruments when the priceSegment is OffPeakPowerDaily. More...

Detailed Description

Definition at line 43 of file commoditycurve.hpp.

Member Typedef Documentation

Helper

using Helper = QuantLib::BootstrapHelper<QuantExt::PriceTermStructure>

private

Add the instruments relating to a priceSegment to instruments.

Definition at line 128 of file commoditycurve.hpp.

Constructor & Destructor Documentation

CommodityCurve() [1/2]

CommodityCurve

(

)

Default constructor.

Definition at line 108 of file commoditycurve.cpp.

    : commoditySpot_(Null<Real>()), onValue_(Null<Real>()), tnValue_(Null<Real>()), regexQuotes_(false) {}

CommodityCurve() [2/2]

CommodityCurve	(	const QuantLib::Date &	asof,
		const CommodityCurveSpec &	spec,
		const Loader &	loader,
		const CurveConfigurations &	curveConfigs,
		const FXTriangulation &	fxSpots = FXTriangulation(),
		const std::map< std::string, QuantLib::ext::shared_ptr< YieldCurve > > &	yieldCurves = {},
		const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &	commodityCurves = {},
		bool const	buildCalibrationInfo = false
	)

Detailed constructor.

Member Function Documentation

spec()

const CommodityCurveSpec & spec

(

)

const

Definition at line 61 of file commoditycurve.hpp.

{ return spec_; }

commodityPriceCurve()

QuantLib::ext::shared_ptr< QuantExt::PriceTermStructure > commodityPriceCurve

(

)

const

Definition at line 62 of file commoditycurve.hpp.

{ return commodityPriceCurve_; }

commodityIndex()

QuantLib::ext::shared_ptr< QuantExt::CommodityIndex > commodityIndex

(

)

const

Definition at line 63 of file commoditycurve.hpp.

{ return commodityIndex_; }

calibrationInfo()

QuantLib::ext::shared_ptr< CommodityCurveCalibrationInfo > calibrationInfo

(

)

const

Definition at line 64 of file commoditycurve.hpp.

{ return calibrationInfo_; }

populateData()

void populateData ( std::map< QuantLib::Date, QuantLib::Handle< QuantLib::Quote > > &  data, const QuantLib::Date &  asof, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &  config, const Loader &  loader  )

private

Populate data with dates and prices from the loader.

Definition at line 194 of file commoditycurve.cpp.

                                                                                                                   {

    // Some default conventions for building the commodity curve
    Period spotTenor = 2 * Days;
    Real pointsFactor = 1.0;

    Calendar cal = parseCalendar(config->currency());
    bool spotRelative = true;
    BusinessDayConvention bdc = Following;
    bool outright = true;

    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();

    // Overwrite the default conventions if the commodity curve config provides explicit conventions
    if (!config->conventionsId().empty()) {
        QL_REQUIRE(conventions->has(config->conventionsId()),
                   "Commodity conventions " << config->conventionsId() << " requested by commodity config "
                                            << config->curveID() << " not found");
        auto convention =
            QuantLib::ext::dynamic_pointer_cast<CommodityForwardConvention>(conventions->get(config->conventionsId()));
        QL_REQUIRE(convention, "Convention " << config->conventionsId() << " not of expected type CommodityConvention");

        spotTenor = convention->spotDays() * Days;
        pointsFactor = convention->pointsFactor();
        if (!convention->strAdvanceCalendar().empty())
            cal = convention->advanceCalendar();
        spotRelative = convention->spotRelative();
        bdc = convention->bdc();
        outright = convention->outright();
    }

    // Commodity spot quote if provided by the configuration
    Date spotDate = cal.advance(asof, spotTenor);
    if (config->commoditySpotQuoteId().empty()) {
        QL_REQUIRE(outright, "If the commodity forward quotes are not outright,"
                                 << " a commodity spot quote needs to be configured");
    } else {
        auto spot = loader.get(config->commoditySpotQuoteId(), asof)->quote();
        commoditySpot_ = spot->value();
        data[spotDate] = spot;
    }

    // Add the forward quotes to the curve data
    for (auto& q : getQuotes(asof, config->curveID(), config->fwdQuotes(), loader)) {

        // We add ON and TN quotes after this loop if they are given and not outright quotes
        TLOG("Commodity Forward Price found for quote: " << q->name());
        Date expiry;
        Real value = q->quote()->value();
        if (!q->tenorBased()) {
            expiry = q->expiryDate();
            add(asof, expiry, value, data, outright, pointsFactor);
        } else {
            if (q->startTenor() == boost::none) {
                expiry = cal.advance(spotRelative ? spotDate : asof, q->tenor(), bdc);
                add(asof, expiry, value, data, outright, pointsFactor);
            } else {
                if (*q->startTenor() == 0 * Days && q->tenor() == 1 * Days) {
                    onValue_ = q->quote()->value();
                    if (outright)
                        add(asof, asof, value, data, outright);
                } else if (*q->startTenor() == 1 * Days && q->tenor() == 1 * Days) {
                    tnValue_ = q->quote()->value();
                    if (outright) {
                        expiry = cal.advance(asof, 1 * Days, bdc);
                        add(asof, expiry, value, data, outright);
                    }
                } else {
                    expiry = cal.advance(cal.advance(asof, *q->startTenor(), bdc), q->tenor(), bdc);
                    add(asof, expiry, value, data, outright, pointsFactor);
                }
            }
        }
    }

    // Deal with ON and TN if quotes are not outright quotes
    if (spotTenor == 2 * Days && tnValue_ != Null<Real>() && !outright) {
        add(asof, cal.advance(asof, 1 * Days, bdc), -tnValue_, data, outright, pointsFactor);
        if (onValue_ != Null<Real>()) {
            add(asof, asof, -onValue_ - tnValue_, data, outright, pointsFactor);
        }
    }

    // Some logging and checks
    LOG("Read " << data.size() << " quotes for commodity curve " << config->curveID());
    if (!regexQuotes_) {
        QL_REQUIRE(data.size() == config->quotes().size(), "Found " << data.size() << " quotes, but "
                                                                    << config->quotes().size()
                                                                    << " quotes given in config " << config->curveID());
    } else {
        QL_REQUIRE(data.size() > 0,
                   "Regular expression specified in commodity config " << config->curveID() << " but no quotes read");
    }
}

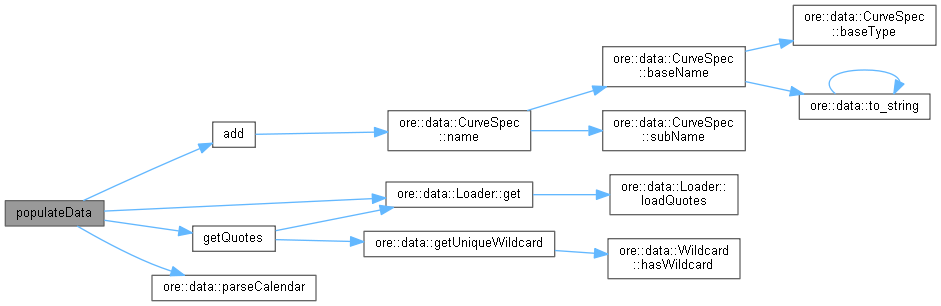

Here is the call graph for this function:

add()

void add ( const QuantLib::Date &  asof, const QuantLib::Date &  expiry, QuantLib::Real  value, std::map< QuantLib::Date, QuantLib::Handle< QuantLib::Quote > > &  data, bool  outright, QuantLib::Real  pointsFactor = 1.0  )

private

Add node to price curve data with check for duplicate expiry dates.

Definition at line 290 of file commoditycurve.cpp.

                                            {

    if (expiry < asof)
        return;

    if (data.find(expiry) != data.end()) {
        WLOG("building " << spec_.name() << ": skipping duplicate expiry " << io::iso_date(expiry));
        return;
    }

    if (!outright) {
        QL_REQUIRE(commoditySpot_ != Null<Real>(), "Can't use forward points without a commodity spot value");
        value = commoditySpot_ + value / pointsFactor;
    }

    data[expiry] = Handle<Quote>(QuantLib::ext::make_shared<SimpleQuote>(value));
}

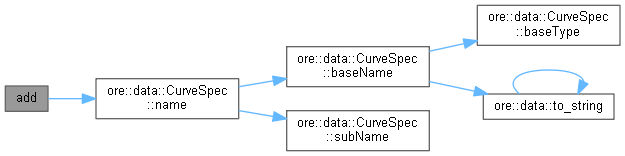

Here is the call graph for this function:

Here is the caller graph for this function:

buildCurve()

void buildCurve ( const QuantLib::Date &  asof, const std::map< QuantLib::Date, QuantLib::Handle< QuantLib::Quote > > &  data, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &  config  )

private

Build price curve using the curve data.

Definition at line 309 of file commoditycurve.cpp.

                                                                                           {

    vector<Date> curveDates;
    curveDates.reserve(data.size());
    vector<Handle<Quote>> curvePrices;
    curvePrices.reserve(data.size());
    for (auto const& datum : data) {
        curveDates.push_back(datum.first);
        curvePrices.push_back(datum.second);
    }

    // Build the curve using the data
    populateCurve<InterpolatedPriceCurve>(asof, curveDates, curvePrices, dayCounter_,
                                          parseCurrency(config->currency()));
}

Here is the call graph for this function:

buildCrossCurrencyPriceCurve()

void buildCrossCurrencyPriceCurve ( const QuantLib::Date &  asof, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &  config, const QuantLib::ext::shared_ptr< CommodityCurveConfig > &  baseConfig, const FXTriangulation &  fxSpots, const std::map< std::string, QuantLib::ext::shared_ptr< YieldCurve > > &  yieldCurves, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &  commodityCurves  )

private

Build cross currency commodity price curve.

Definition at line 326 of file commoditycurve.cpp.

                                                                               {

    // Look up the required base price curve in the commodityCurves map
    // We pass in the commodity curve ID only in the member basePriceCurveId of config e.g. PM:XAUUSD.
    // But, the map commodityCurves is keyed on the spec name e.g. Commodity/USD/PM:XAUUSD
    auto commIt = commodityCurves.find(CommodityCurveSpec(baseConfig->currency(), baseConfig->curveID()).name());
    QL_REQUIRE(commIt != commodityCurves.end(), "Could not find base commodity curve with id "
                                                    << baseConfig->curveID()
                                                    << " required in the building of commodity curve with id "
                                                    << config->curveID());

    // Look up the two yield curves in the yieldCurves map
    auto baseYtsIt = yieldCurves.find(YieldCurveSpec(baseConfig->currency(), config->baseYieldCurveId()).name());
    QL_REQUIRE(baseYtsIt != yieldCurves.end(),
               "Could not find base yield curve with id "
                   << config->baseYieldCurveId() << " and currency " << baseConfig->currency()
                   << " required in the building of commodity curve with id " << config->curveID());

    auto ytsIt = yieldCurves.find(YieldCurveSpec(config->currency(), config->yieldCurveId()).name());
    QL_REQUIRE(ytsIt != yieldCurves.end(), "Could not find yield curve with id "
                                               << config->yieldCurveId() << " and currency " << config->currency()
                                               << " required in the building of commodity curve with id "
                                               << config->curveID());

    // Get the FX spot rate, number of units of this currency per unit of base currency
    Handle<Quote> fxSpot = fxSpots.getQuote(baseConfig->currency() + config->currency());

    // Populate the commodityPriceCurve_ member
    commodityPriceCurve_ = QuantLib::ext::make_shared<CrossCurrencyPriceTermStructure>(
        asof, QuantLib::Handle<PriceTermStructure>(commIt->second->commodityPriceCurve()), fxSpot,
        baseYtsIt->second->handle(), ytsIt->second->handle(), parseCurrency(config->currency()));
}

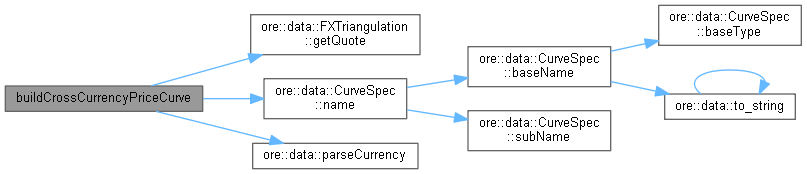

Here is the call graph for this function:

buildBasisPriceCurve()

void buildBasisPriceCurve ( const QuantLib::Date &  asof, const CommodityCurveConfig &  config, const QuantLib::Handle< QuantExt::PriceTermStructure > &  basePts, const Loader &  loader  )

private

Build commodity basis price curve.

Definition at line 363 of file commoditycurve.cpp.

                                                                                                           {

    LOG("CommodityCurve: start building commodity basis curve.");

    QL_REQUIRE(!basePts.empty() && basePts.currentLink() != nullptr,
               "Internal error: Can not build commodityBasisCurve '" << config.curveID() << "'without empty baseCurve");

    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();

    // We need to have commodity future conventions for both the base curve and the basis curve
    QL_REQUIRE(conventions->has(config.conventionsId()), "Commodity conventions " << config.conventionsId()
                                                                                  << " requested by commodity config "
                                                                                  << config.curveID() << " not found");
    auto basisConvention =
        QuantLib::ext::dynamic_pointer_cast<CommodityFutureConvention>(conventions->get(config.conventionsId()));
    QL_REQUIRE(basisConvention,
               "Convention " << config.conventionsId() << " not of expected type CommodityFutureConvention");
    auto basisFec = QuantLib::ext::make_shared<ConventionsBasedFutureExpiry>(*basisConvention);

    QL_REQUIRE(conventions->has(config.baseConventionsId()),
               "Commodity conventions " << config.baseConventionsId() << " requested by commodity config "
                                        << config.curveID() << " not found");
    auto baseConvention =
        QuantLib::ext::dynamic_pointer_cast<CommodityFutureConvention>(conventions->get(config.baseConventionsId()));
    QL_REQUIRE(baseConvention,
               "Convention " << config.baseConventionsId() << " not of expected type CommodityFutureConvention");
    auto baseFec = QuantLib::ext::make_shared<ConventionsBasedFutureExpiry>(*baseConvention);

    // Construct the commodity index.
    auto baseIndex = parseCommodityIndex(baseConvention->id(), false, basePts);


    // Sort the configured quotes on expiry dates
    // Ignore tenor based quotes i.e. we expect an explicit expiry date and log a warning if the expiry date does not
    // match our own calculated expiry date based on the basis conventions.
    map<Date, Handle<Quote>> basisData;
    for (auto& q : getQuotes(asof, config.curveID(), config.fwdQuotes(), loader, true)) {

        QL_REQUIRE(basisData.find(q->expiryDate()) == basisData.end(), "Found duplicate quote, "
                                                                           << q->name() << ", for expiry date "
                                                                           << io::iso_date(q->expiryDate()) << ".");

        basisData[q->expiryDate()] = q->quote();
        TLOG("Using quote " << q->name() << " in commodity basis curve.");

        // We expect the expiry date in the quotes to match our calculated expiry date. The code will work if it does
        // not but we log a warning in this case.
        Date calcExpiry = basisFec->nextExpiry(true, q->expiryDate());
        if (calcExpiry != q->expiryDate()) {
            WLOG("Calculated expiry date, " << io::iso_date(calcExpiry) << ", does not equal quote's expiry date "
                                            << io::iso_date(q->expiryDate()) << ".");
        }
    }

    if (basisConvention->isAveraging()) {
        // We are building a curve that will be used to return an average price.
        if (!baseConvention->isAveraging() && config.averageBase()) {
            DLOG("Creating a CommodityAverageBasisPriceCurve.");
            populateCurve<CommodityAverageBasisPriceCurve>(asof, basisData, basisFec, baseIndex, baseFec,
                                                           config.addBasis(), config.priceAsHistFixing());
        } else {
            // Either 1) base convention is not averaging and config.averageBase() is false or 2) the base convention
            // is averaging. Either way, we build a CommodityBasisPriceCurve.
            DLOG("Creating a CommodityBasisPriceCurve for an average price curve.");
            populateCurve<CommodityBasisPriceCurve>(asof, basisData, basisFec, baseIndex, baseFec,
                                                    config.addBasis(), config.monthOffset(), config.priceAsHistFixing());
        }
    } else {
        // We are building a curve that will be used to return a price on a single date.
        QL_REQUIRE(!baseConvention->isAveraging(), "A commodity basis curve with non-averaging"
                                                       << " basis and averaging base is not valid.");

        populateCurve<CommodityBasisPriceCurve>(asof, basisData, basisFec, baseIndex, baseFec, config.addBasis(),
                                                config.monthOffset(), config.priceAsHistFixing());
    }

    LOG("CommodityCurve: finished building commodity basis curve.");
}

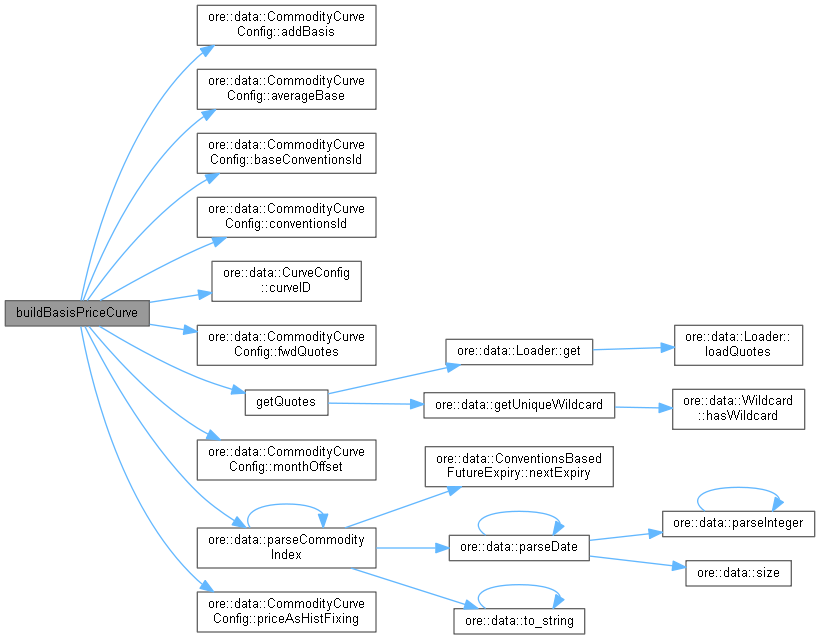

Here is the call graph for this function:

buildPiecewiseCurve()

void buildPiecewiseCurve ( const QuantLib::Date &  asof, const CommodityCurveConfig &  config, const Loader &  loader, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &  commodityCurves  )

private

Build commodity piecewise price curve.

Definition at line 447 of file commoditycurve.cpp.

                                                                                                     {

    LOG("CommodityCurve: start building commodity piecewise curve.");

    // We store the instruments in a map. The key is the instrument's pillar date. The segments are ordered in
    // priority so if we encounter the same pillar date later, we ignore it with a debug log.
    map<Date, QuantLib::ext::shared_ptr<Helper>> mpInstruments;
    const auto& priceSegments = config.priceSegments();
    QL_REQUIRE(!priceSegments.empty(), "CommodityCurve: need at least one price segment to build piecewise curve.");
    for (const auto& kv : priceSegments) {
        if (kv.second.type() != PriceSegment::Type::OffPeakPowerDaily) {
            addInstruments(asof, loader, config.curveID(), config.currency(), kv.second,
                commodityCurves, mpInstruments);
        } else {
            addOffPeakPowerInstruments(asof, loader, config.curveID(), kv.second, mpInstruments);
        }
    }

    // Populate the vector of helpers.
    vector<QuantLib::ext::shared_ptr<Helper>> instruments;
    instruments.reserve(mpInstruments.size());
    for (const auto& kv : mpInstruments) {
        instruments.push_back(kv.second);
    }

    // Use bootstrap configuration if provided.
    BootstrapConfig bc;
    if (config.bootstrapConfig()) {
        bc = *config.bootstrapConfig();
    }
    Real acc = bc.accuracy();
    Real globalAcc = bc.globalAccuracy();
    bool noThrow = bc.dontThrow();
    Size maxAttempts = bc.maxAttempts();
    Real maxF = bc.maxFactor();
    Real minF = bc.minFactor();
    Size noThrowSteps = bc.dontThrowSteps();

    // Create curve based on interpolation method provided.
    Currency ccy = parseCurrency(config.currency());
    if (interpolationMethod_ == "Linear") {
        BS<Crv<Linear>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<Linear>>(asof, instruments, dayCounter_, ccy, Linear(), bs);
    } else if (interpolationMethod_ == "LogLinear") {
        BS<Crv<QuantLib::LogLinear>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<QuantLib::LogLinear>>(asof, instruments,
            dayCounter_, ccy, QuantLib::LogLinear(), bs);
    } else if (interpolationMethod_ == "Cubic") {
        BS<Crv<QuantLib::Cubic>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<QuantLib::Cubic>>(asof, instruments,
            dayCounter_, ccy, QuantLib::Cubic(), bs);
    } else if (interpolationMethod_ == "LinearFlat") {
        BS<Crv<QuantExt::LinearFlat>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<QuantExt::LinearFlat>>(asof, instruments,
            dayCounter_, ccy, QuantExt::LinearFlat(), bs);
    } else if (interpolationMethod_ == "LogLinearFlat") {
        BS<Crv<QuantExt::LogLinearFlat>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<QuantExt::LogLinearFlat>>(asof, instruments,
            dayCounter_, ccy, QuantExt::LogLinearFlat(), bs);
    } else if (interpolationMethod_ == "CubicFlat") {
        BS<Crv<QuantExt::CubicFlat>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<QuantExt::CubicFlat>>(asof, instruments,
            dayCounter_, ccy, QuantExt::CubicFlat(), bs);
    } else if (interpolationMethod_ == "BackwardFlat") {
        BS<Crv<BackwardFlat>> bs(acc, globalAcc, noThrow, maxAttempts, maxF, minF, noThrowSteps);
        commodityPriceCurve_ = QuantLib::ext::make_shared<Crv<BackwardFlat>>(asof, instruments,
            dayCounter_, ccy, BackwardFlat(), bs);
    } else {
        QL_FAIL("The interpolation method, " << interpolationMethod_ << ", is not supported.");
    }

    LOG("CommodityCurve: finished building commodity piecewise curve.");
}

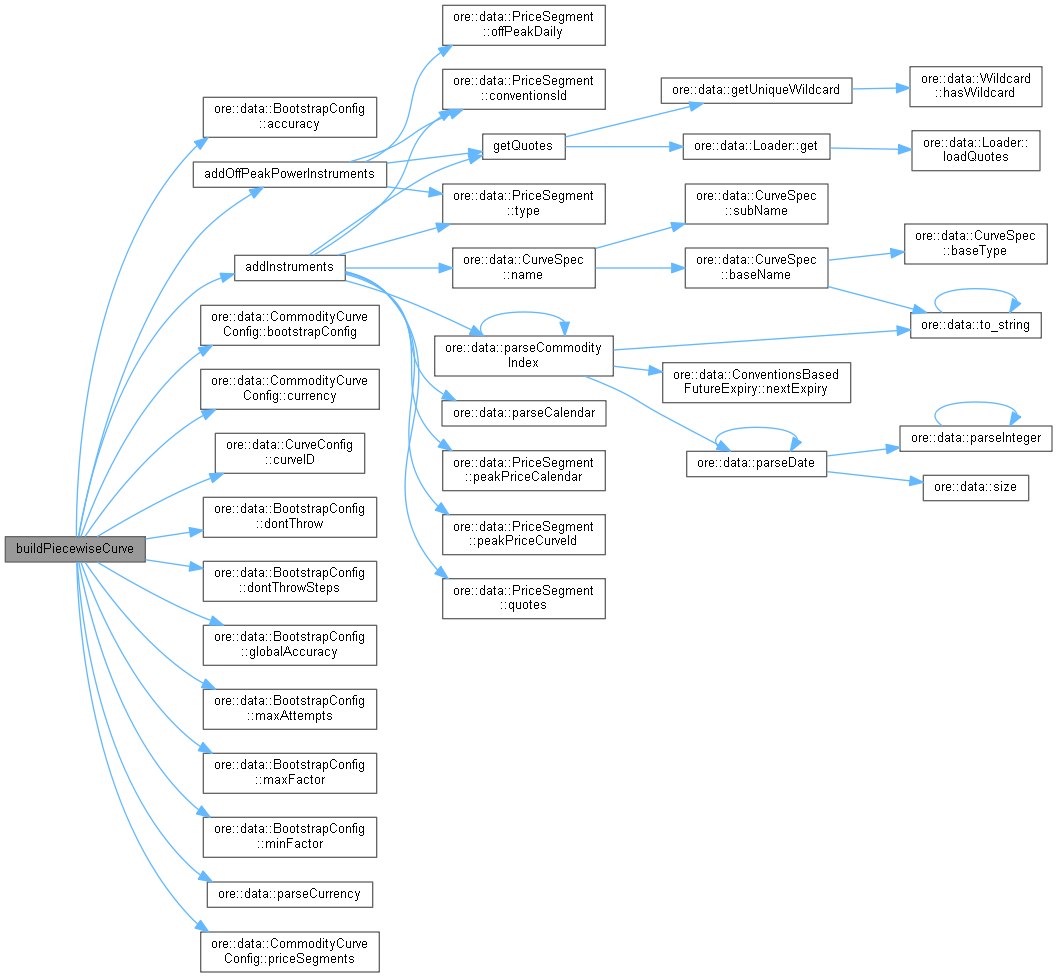

Here is the call graph for this function:

getQuotes()

vector< QuantLib::ext::shared_ptr< CommodityForwardQuote > > getQuotes ( const QuantLib::Date &  asof, const std::string &  , const std::vector< std::string > &  quotes, const Loader &  loader, bool  filter = false  )

private

Get the configured quotes. If filter is true, remove tenor based quotes and quotes with expiry before asof.

Definition at line 523 of file commoditycurve.cpp.

                                       {

    LOG("CommodityCurve: start getting configured commodity quotes.");

    // Check if we are using a regular expression to select the quotes for the curve. If we are, the quotes should
    // contain exactly one element.
    auto wildcard = getUniqueWildcard(quotes);
    regexQuotes_ = wildcard != boost::none;

    std::set<QuantLib::ext::shared_ptr<MarketDatum>> data;
    if (wildcard) {
        data = loader.get(*wildcard, asof);
    } else {
        std::ostringstream ss;
        ss << MarketDatum::InstrumentType::COMMODITY_FWD << "/" << MarketDatum::QuoteType::PRICE << "/*";
        Wildcard w(ss.str());
        data = loader.get(w, asof);
    }

    // Add the relevant forward quotes to the result vector
    vector<QuantLib::ext::shared_ptr<CommodityForwardQuote>> result;
    for (const auto& md : data) {
        QL_REQUIRE(md->asofDate() == asof, "MarketDatum asofDate '" << md->asofDate() << "' <> asof '" << asof << "'");

        // Only looking for quotes on asof date, with quote type PRICE and instrument type commodity forward

        QuantLib::ext::shared_ptr<CommodityForwardQuote> q = QuantLib::ext::dynamic_pointer_cast<CommodityForwardQuote>(md);
        QL_REQUIRE(q, "Internal error: could not downcast MarketDatum '" << md->name() << "' to CommodityForwardQuote");

        if (!wildcard) {
            vector<string>::const_iterator it =
                find(quotes.begin(), quotes.end(), q->name());
            if (it == quotes.end())
                continue;
        }

        // If filter is true, remove tenor based quotes and quotes with expiry before asof.
        if (filter) {
            if (q->tenorBased()) {
                TLOG("Skipping tenor based quote, " << q->name() << ".");
                continue;
            }
            if (q->expiryDate() < asof) {
                TLOG("Skipping quote because its expiry date, " << io::iso_date(q->expiryDate())
                    << ", is before the market date " << io::iso_date(asof));
                continue;
            }
        }

        // If we make it here, the quote is relevant.
        result.push_back(q);
        TLOG("Added quote " << q->name() << ".");
    }

    LOG("CommodityCurve: finished getting configured commodity quotes.");

    return result;
}

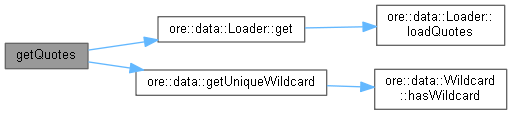

Here is the call graph for this function:

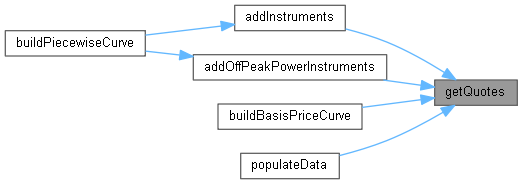

Here is the caller graph for this function:

populateCurve()

void populateCurve ( Args...  args )

private

Method for populating the price curve.

Definition at line 140 of file commoditycurve.hpp.

                                                                                                             {

    if (interpolationMethod_ == "Linear") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantLib::Linear>>(args...);
    } else if (interpolationMethod_ == "LogLinear") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantLib::LogLinear>>(args...);
    } else if (interpolationMethod_ == "Cubic") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantLib::Cubic>>(args...);
    } else if (interpolationMethod_ == "Hermite") {
         commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantLib::Cubic>>(
             args..., QuantLib::Cubic(QuantLib::CubicInterpolation::Parabolic));
    } else if (interpolationMethod_ == "LinearFlat") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantExt::LinearFlat>>(args...);
    } else if (interpolationMethod_ == "LogLinearFlat") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantExt::LogLinearFlat>>(args...);
    } else if (interpolationMethod_ == "CubicFlat") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantExt::CubicFlat>>(args...);
    } else if (interpolationMethod_ == "HermiteFlat") {
         commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantExt::HermiteFlat>>(args...);
    } else if (interpolationMethod_ == "BackwardFlat") {
        commodityPriceCurve_ = QuantLib::ext::make_shared<CurveType<QuantLib::BackwardFlat>>(args...);
    } else {
        QL_FAIL("The interpolation method, " << interpolationMethod_ << ", is not supported.");
    }
}

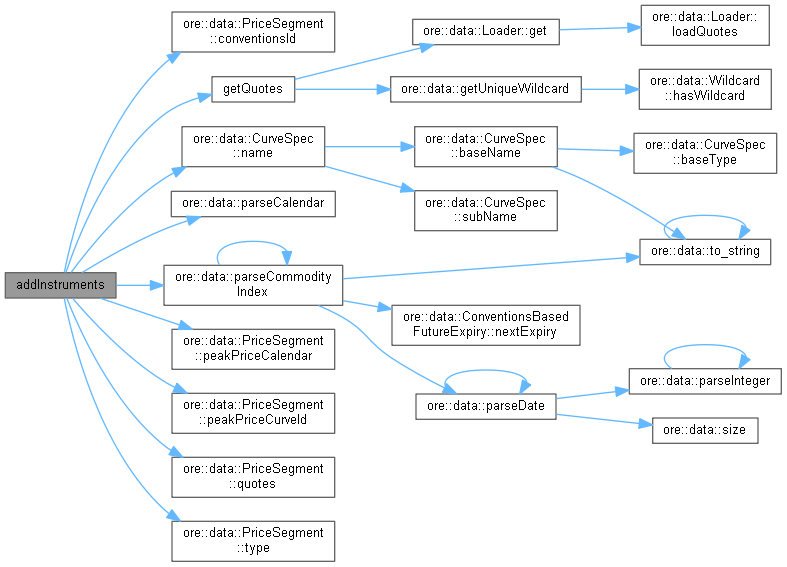

addInstruments()

void addInstruments ( const QuantLib::Date &  asof, const Loader &  loader, const std::string &  configId, const std::string &  currency, const PriceSegment &  priceSegment, const std::map< std::string, QuantLib::ext::shared_ptr< CommodityCurve > > &  commodityCurves, std::map< QuantLib::Date, QuantLib::ext::shared_ptr< Helper > > &  instruments  )

private

Definition at line 583 of file commoditycurve.cpp.

                                                           {

    using PST = PriceSegment::Type;
    using AD = CommodityFutureConvention::AveragingData;
    PST type = priceSegment.type();

    // Pre-populate some variables if averaging segment.
    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();
    QuantLib::ext::shared_ptr<CommodityFutureConvention> convention;
    AD ad;
    QuantLib::ext::shared_ptr<CommodityIndex> index;
    QuantLib::ext::shared_ptr<FutureExpiryCalculator> uFec;
    if (type == PST::AveragingFuture || type == PST::AveragingSpot || type == PST::AveragingOffPeakPower) {

        // Get the associated averaging commodity future convention.
        convention = QuantLib::ext::dynamic_pointer_cast<CommodityFutureConvention>(
            conventions->get(priceSegment.conventionsId()));
        QL_REQUIRE(convention, "Convention " << priceSegment.conventionsId() <<
            " not of expected type CommodityFutureConvention.");

        ad = convention->averagingData();
        QL_REQUIRE(!ad.empty(), "CommodityCurve: convention " << convention->id() <<
            " should have non-empty averaging data for piecewise price curve construction.");

        // The commodity index for which we are building a price curve.
        index = parseCommodityIndex(ad.commodityName(), false);

        // If referencing a future, we need conventions for the underlying future that is being averaged.
        if (type == PST::AveragingFuture || type == PST::AveragingOffPeakPower) {

            auto uConvention = QuantLib::ext::dynamic_pointer_cast<CommodityFutureConvention>(
                conventions->get(ad.conventionsId()));
            QL_REQUIRE(uConvention, "Convention " << priceSegment.conventionsId() <<
                " not of expected type CommodityFutureConvention.");
            uFec = QuantLib::ext::make_shared<ConventionsBasedFutureExpiry>(*uConvention);

            if (ad.dailyExpiryOffset() != Null<Natural>() && ad.dailyExpiryOffset() > 0) {
                QL_REQUIRE(uConvention->contractFrequency() == Daily, "CommodityCurve: the averaging data has" <<
                    " a positive DailyExpiryOffset (" << ad.dailyExpiryOffset() << ") but the underlying future" <<
                    " contract frequency is not daily (" << uConvention->contractFrequency() << ").");
            }
        }

    }

    // Pre-populate some variables if the price segment is AveragingOffPeakPower.
    QuantLib::ext::shared_ptr<CommodityIndex> peakIndex;
    Natural peakHoursPerDay = 16;
    Calendar peakCalendar;
    if (type == PST::AveragingOffPeakPower) {

        // Look up the peak price curve in the commodityCurves map
        const string& ppId = priceSegment.peakPriceCurveId();
        QL_REQUIRE(!ppId.empty(), "CommodityCurve: AveragingOffPeakPower segment in " <<
            " curve configuration " << configId << " does not provide a peak price curve ID.");
        CommodityCurveSpec ccSpec(currency, ppId);
        DLOG("Looking for peak price curve with id, " << ppId << ", and spec, " << ccSpec << ".");
        auto itCc = commodityCurves.find(ccSpec.name());
        QL_REQUIRE(itCc != commodityCurves.end(), "Can't find peak price curve with id " << ppId);
        auto peakPts = Handle<PriceTermStructure>(itCc->second->commodityPriceCurve());

        // Create the daily peak price index linked to the peak price term structure.
        peakIndex = parseCommodityIndex(ppId, false, peakPts);

        // Calendar defining the peak business days.
        peakCalendar = parseCalendar(priceSegment.peakPriceCalendar());

        // Look up the conventions for the peak price commodity to determine peak hours per day.
        if (conventions->has(ppId)) {
            auto peakConvention = QuantLib::ext::dynamic_pointer_cast<CommodityFutureConvention>(conventions->get(ppId));
            if (peakConvention && peakConvention->hoursPerDay() != Null<Natural>()) {
                peakHoursPerDay = peakConvention->hoursPerDay();
            }
        }
    }

    // Get the relevant quotes
    auto quotes = getQuotes(asof, configId, priceSegment.quotes(), loader, true);

    // Add an instrument for each relevant quote.
    for (const auto& quote : quotes) {

        const Date& expiry = quote->expiryDate();
        switch (type) {
        case PST::Future:
            if (expiry == asof) {
                TLOG("Quote " << quote->name() << " has expiry date " << io::iso_date(expiry) << " equal to asof" <<
                    " so not adding to instruments. Attempt to add as fixing instead.");
                addMarketFixing(priceSegment.conventionsId(), expiry, quote->quote()->value());
            } else if (instruments.count(expiry) == 0) {
                instruments[expiry] = QuantLib::ext::make_shared<FuturePriceHelper>(quote->quote(), expiry);
            } else {
                TLOG("Skipping quote, " << quote->name() << ", because its expiry date, " <<
                    io::iso_date(expiry) << ", is already in the instrument set.");
            }
            break;

        // An averaging future referencing an underlying future or spot. Setup is similar.
        case PST::AveragingFuture:
        case PST::AveragingSpot:
        case PST::AveragingOffPeakPower: {

            // Determine the calculation period.
            using ADCP = AD::CalculationPeriod;
            Date start;
            Date end;
            if (ad.period() == ADCP::ExpiryToExpiry) {

                auto fec = QuantLib::ext::make_shared<ConventionsBasedFutureExpiry>(*convention);
                end = fec->nextExpiry(true, expiry);
                if (end != expiry) {
                    WLOG("Calculated expiry date, " << io::iso_date(end) << ", does not equal quote's expiry date "
                        << io::iso_date(expiry) << ". Proceed with quote's expiry.");
                }
                start = fec->priorExpiry(false, end) + 1;

            } else if (ad.period() == ADCP::PreviousMonth) {

                end = Date::endOfMonth(expiry - 1 * Months);
                start = Date(1, end.month(), end.year());
            }

            QuantLib::ext::shared_ptr<Helper> helper;
            if (type == PST::AveragingOffPeakPower) {
                TLOG("Building average off-peak power helper from quote, " << quote->name() << ".");
                helper = QuantLib::ext::make_shared<AverageOffPeakPowerHelper>(quote->quote(), index, start,
                    end, uFec, peakIndex, peakCalendar, peakHoursPerDay);
            } else {
                TLOG("Building average future price helper from quote, " << quote->name() << ".");
                helper = QuantLib::ext::make_shared<AverageFuturePriceHelper>(quote->quote(), index, start, end, uFec,
                    ad.pricingCalendar(), ad.deliveryRollDays(), ad.futureMonthOffset(), ad.useBusinessDays(),
                    ad.dailyExpiryOffset());
            }

            // Only add to instruments if an instrument with the same pillar date is not there already.
            Date pillar = helper->pillarDate();
            if (instruments.count(pillar) == 0) {
                instruments[pillar] = helper;
            } else {
                TLOG("Skipping quote, " << quote->name() << ", because an instrument with its pillar date, " <<
                    io::iso_date(pillar) << ", is already in the instrument set.");
            }
            break;
        }

        default:
            QL_FAIL("CommodityCurve: unrecognised price segment type.");
            break;
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

addOffPeakPowerInstruments()

void addOffPeakPowerInstruments ( const QuantLib::Date &  asof, const Loader &  loader, const std::string &  configId, const PriceSegment &  priceSegment, std::map< QuantLib::Date, QuantLib::ext::shared_ptr< Helper > > &  instruments  )

private

Special method to add instruments when the priceSegment is OffPeakPowerDaily.

Definition at line 738 of file commoditycurve.cpp.

                                                                                             {

    // Check that we have been called with the expected segment type.
    using PST = PriceSegment::Type;
    QL_REQUIRE(priceSegment.type() == PST::OffPeakPowerDaily, "Expecting a price segment type of OffPeakPowerDaily.");

    QuantLib::ext::shared_ptr<Conventions> conventions = InstrumentConventions::instance().conventions();

    // Check we have a commodity future convention for the price segment.
    const string& convId = priceSegment.conventionsId();
    auto p = conventions->get(convId, Convention::Type::CommodityFuture);
    QL_REQUIRE(p.first, "Could not get conventions with id " << convId << " for OffPeakPowerDaily price segment" <<
        " in curve configuration " << configId << ".");
    auto convention = QuantLib::ext::dynamic_pointer_cast<CommodityFutureConvention>(p.second);

    // Check that the commodity future convention has off-peak information for the name.
    const auto& oppIdxData = convention->offPeakPowerIndexData();
    QL_REQUIRE(oppIdxData, "Conventions with id " << convId << " for OffPeakPowerDaily price segment" <<
        " should have an OffPeakPowerIndexData section.");
    Real offPeakHours = oppIdxData->offPeakHours();
    TLOG("Off-peak hours is " << offPeakHours);
    const Calendar& peakCalendar = oppIdxData->peakCalendar();

    // Check that the price segment has off-peak daily section.
    const auto& opd = priceSegment.offPeakDaily();
    QL_REQUIRE(opd, "The OffPeakPowerDaily price segment for curve configuration " << configId <<
        " should have an OffPeakDaily section.");

    // Get all the peak and off-peak quotes that we have and store them in a map. The map key is the expiry date and
    // the map value is a pair of values the first being the off-peak value for that expiry and the second being the
    // peak value for that expiry. We only need the peak portion to form the quote on peakCalendar holidays. We need
    // the off-peak portion always.
    map<Date, pair<Real, Real>> quotes;

    auto opqs = getQuotes(asof, configId, opd->offPeakQuotes(), loader, true);
    for (const auto& q : opqs) {
        Real value = q->quote()->value();
        Date expiry = q->expiryDate();
        if (quotes.count(expiry) != 0) {
            TLOG("Already have off-peak quote with expiry " << io::iso_date(expiry) << " so skipping " << q->name());
        } else {
            TLOG("Adding off-peak quote " << q->name() << ": " << io::iso_date(expiry) << "," << value);
            quotes[expiry] = make_pair(value, Null<Real>());
        }
    }

    auto pqs = getQuotes(asof, configId, opd->peakQuotes(), loader, true);
    for (const auto& q : pqs) {
        Real value = q->quote()->value();
        Date expiry = q->expiryDate();
        auto it = quotes.find(expiry);
        if (it == quotes.end()) {
            TLOG("Have no off-peak quote with expiry " << io::iso_date(expiry) << " so skipping " << q->name());
        } else if (it->second.second != Null<Real>()) {
            TLOG("Already have a peak quote with expiry " << io::iso_date(expiry) << " so skipping " << q->name());
        } else {
            TLOG("Adding peak quote " << q->name() << ": " << io::iso_date(expiry) << "," << value);
            it->second.second = value;
        }
    }

    // Now, use the quotes to create the future instruments in the curve.
    for (const auto& kv : quotes) {

        // If the expiry is already in the instrument set, we skip it.
        const Date& expiry = kv.first;
        if (instruments.count(expiry) != 0) {
            TLOG("Skipping expiry " << io::iso_date(expiry) << " because it is already in the instrument set.");
            continue;
        }

        // If the expiry is equal to the asof, we add fixings.
        if (expiry == asof) {
            TLOG("The off-peak power expiry date " << io::iso_date(expiry) << " is equal to asof" <<
                " so not adding to instruments. Attempt to add fixing(s) instead.");
            if (peakCalendar.isHoliday(expiry) && kv.second.second == Null<Real>()) {
                DLOG("The peak portion of the quote on holiday " << io::iso_date(expiry) <<
                    " is missing so can't add fixings.");
            } else {
                // Add the off-peak and if necessary peak fixing
                addMarketFixing(oppIdxData->offPeakIndex(), expiry, kv.second.first);
                if (peakCalendar.isHoliday(expiry))
                    addMarketFixing(oppIdxData->peakIndex(), expiry, kv.second.second);
            }
            continue;
        }

        // Determine the quote that we will use in the future instrument for this expiry.
        Real quote = 0.0;
        if (peakCalendar.isHoliday(expiry)) {
            Real peakValue = kv.second.second;
            if (peakValue == Null<Real>()) {
                DLOG("The peak portion of the quote on holiday " << io::iso_date(expiry) << " is missing so skip.");
                continue;
            } else {
                Real offPeakValue = kv.second.first;
                quote = (offPeakHours * offPeakValue + (24.0 - offPeakHours) * peakValue) / 24.0;
                TLOG("The quote on holiday " << io::iso_date(expiry) << " is " << quote << ". (off-peak,peak) is" <<
                    " (" << offPeakValue << "," << peakValue << ").");
            }
        } else {
            quote = kv.second.first;
            TLOG("The quote on business day " << io::iso_date(expiry) << " is the off-peak value " << quote << ".");
        }

        // Add the future helper for this expiry.
        instruments[expiry] = QuantLib::ext::make_shared<FuturePriceHelper>(quote, expiry);

    }
}

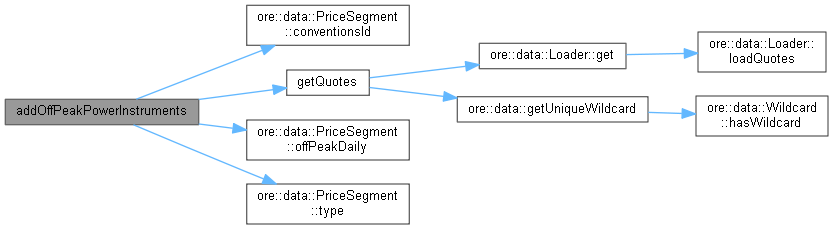

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

spec_

CommodityCurveSpec spec_

private

Definition at line 68 of file commoditycurve.hpp.

commodityPriceCurve_

QuantLib::ext::shared_ptr<QuantExt::PriceTermStructure> commodityPriceCurve_

private

Definition at line 69 of file commoditycurve.hpp.

commodityIndex_

QuantLib::ext::shared_ptr<QuantExt::CommodityIndex> commodityIndex_

private

Definition at line 70 of file commoditycurve.hpp.

calibrationInfo_

QuantLib::ext::shared_ptr<CommodityCurveCalibrationInfo> calibrationInfo_

private

Definition at line 71 of file commoditycurve.hpp.

commoditySpot_

QuantLib::Real commoditySpot_

private

Store the commodity spot value with Null<Real>() indicating that none has been provided.

Definition at line 74 of file commoditycurve.hpp.

onValue_

QuantLib::Real onValue_

private

Store the overnight value if any.

Definition at line 77 of file commoditycurve.hpp.

tnValue_

QuantLib::Real tnValue_

private

Store the tomorrow next value if any.

Definition at line 80 of file commoditycurve.hpp.

regexQuotes_

bool regexQuotes_

private

Populated with true if the quotes are configured via a wildcard.

Definition at line 83 of file commoditycurve.hpp.

interpolationMethod_

std::string interpolationMethod_

private

Store the interpolation method.

Definition at line 86 of file commoditycurve.hpp.

dayCounter_

QuantLib::DayCounter dayCounter_

private

Store the curve's day counter.

Definition at line 89 of file commoditycurve.hpp.
