MonteCarloCBOEngine Class Reference

CBO engine, Monte Carlo for the sample payoff. More...

#include <qle/pricingengines/cbomcengine.hpp>

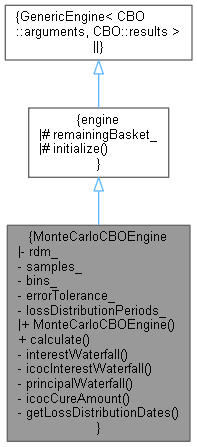

Inheritance diagram for MonteCarloCBOEngine:

Collaboration diagram for MonteCarloCBOEngine:

Public Member Functions
	MonteCarloCBOEngine (QuantLib::ext::shared_ptr< RandomDefaultModel > rdm, Size samples=1000, Size bins=20, double errorTolerance=1.0e-6, std::vector< QuantLib::Period > lossDistributionPeriods=std::vector< QuantLib::Period >())
void	calculate () const override

Private Member Functions
void	interestWaterfall (Size sampleIndex, Size dateIndex, const vector< Date > &dates, map< Currency, vector< Cash > > &basketFlow, map< Currency, Cash > &trancheFlow, map< Currency, vector< vector< Real > > > &balance, map< Currency, Real > &interest, map< Currency, Real > &interestAcc, Real cureAmount) const
	interest waterfall More...
void	icocInterestWaterfall (Size i, Size j, Size k, const vector< Date > &dates, map< Currency, vector< Cash > > &iFlows, vector< map< Currency, Cash > > &tranches, vector< map< Currency, vector< vector< Real > > > > &balances, Real cureAmount) const
	icoc interest waterfall More...
void	principalWaterfall (Size sampleIndex, Size dateIndex, const vector< Date > &dates, map< Currency, vector< Cash > > &basketFlow, map< Currency, Cash > &trancheFlow, map< Currency, vector< vector< Real > > > &balance, map< Currency, Real > &interest) const
	pricipal waterfall More...
Real	icocCureAmount (Size sampleIndex, Size dateIndex, Size trancheNo, Real basketNotional, Real basketInterest, vector< map< Currency, vector< vector< Real > > > > &trancheBalances, vector< Real > trancheInterestRates, Real icRatios, Real ocRatios) const
	icoc cure amount More...
std::map< QuantLib::Date, std::string >	getLossDistributionDates (const QuantLib::Date &valuationDate) const
	Return dates on the CBO schedule that are closest to the requested lossDistributionPeriods. More...

Private Attributes
QuantLib::ext::shared_ptr< RandomDefaultModel >	rdm_
Size	samples_
Size	bins_
double	errorTolerance_
std::vector< QuantLib::Period >	lossDistributionPeriods_
	Periods from valuation date for which to return loss distributions. More...

Additional Inherited Members
Protected Member Functions inherited from CBO::engine
virtual void	initialize () const
Protected Attributes inherited from CBO::engine
QuantLib::ext::shared_ptr< BondBasket >	remainingBasket_

Detailed Description

CBO engine, Monte Carlo for the sample payoff.

This class implements the waterfall structures and Monte Carlo pricing of the cash flow CBO.

For more information refer to the detailed QuantExt documentation.

Definition at line 48 of file cbomcengine.hpp.

Constructor & Destructor Documentation

MonteCarloCBOEngine()

MonteCarloCBOEngine	(	QuantLib::ext::shared_ptr< RandomDefaultModel >	rdm,
		Size	samples = 1000,
		Size	bins = 20,
		double	errorTolerance = 1.0e-6,
		std::vector< QuantLib::Period >	lossDistributionPeriods = std::vector<QuantLib::Period>()
	)

Parameters

rdm	Random default model for generating samples of default times for the portfolio of names
samples	Number of Monte Carlo samples
bins	Discretization for resulting distributions
errorTolerance	npvError tolerance
lossDistributionPeriods	Periods from valuation date for which to return loss distributions

Definition at line 50 of file cbomcengine.hpp.

        : rdm_(rdm), samples_(samples), bins_(bins), errorTolerance_(errorTolerance),
        lossDistributionPeriods_(lossDistributionPeriods) {}

Member Function Documentation

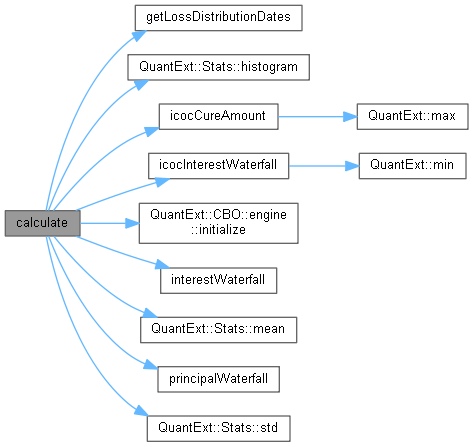

calculate()

void calculate ( ) const

override

Definition at line 225 of file cbomcengine.cpp.

                                              {

        Date today = Settings::instance().evaluationDate();
        initialize(); //set the underlying Basket
        rdm_->reset();

        // Prepare additional results for loss distributions if they have been requested
        map<Date, string> lossDistributionDates = getLossDistributionDates(today);
        vector<Date> lossDistributionDatesVector;
        map<string, QuantLib::ext::shared_ptr<BucketedDistribution> > lossDistributionMap;
        if (!lossDistributionDates.empty()) {

            // calculate max loss from the pool
            Real maxLoss = 0.0;
            for (auto& bonds :  arguments_.basket->bonds()) {
                string name = bonds.first;
                maxLoss += bonds.second->notional(today) * arguments_.basket->multiplier(name) * (1.0 - arguments_.basket->recoveryRate(name));
            }

            // initialise the Loss BucketedDistribtions with the above maxLoss
            Size numBuckets = 100;
            for (map<Date, string>::iterator it = lossDistributionDates.begin(); it != lossDistributionDates.end(); it++) {
                QuantLib::ext::shared_ptr<BucketedDistribution> bucketedDistribution =
                    QuantLib::ext::make_shared<BucketedDistribution> (0, maxLoss, numBuckets);
                // Set all probabilities = 0.0;
                for (Size i = 0; i < numBuckets; i++)
                    bucketedDistribution->probabilities()[i] = 0.0;
                lossDistributionMap[it->second] = bucketedDistribution;

                lossDistributionDatesVector.push_back(it->first);
            }
        }

        //get date grid, dependending on tranche (to be valued)
        vector<Date> dates = arguments_.schedule.dates();

        //adjust the date grid, such that it starts with today
        std::vector<Date>::iterator it;
        for (it=dates.begin(); it<dates.end(); ++it)
            if(*it > today) break;

        dates.erase(dates.begin(), it);
        dates.insert(dates.begin(), today);

        Real tmax = 1.0 + ActualActual(ActualActual::ISDA).yearFraction(today, dates.back());

        arguments_.basket->fillFlowMaps();

        arguments_.basket->setGrid(dates);

        //other requirements
        DayCounter feeDayCount = arguments_.feeDayCounter;
        Currency ccy = arguments_.ccy;

        //asset flows
        map<Currency, vector<Cash> > cf;
        map<Currency, vector<Cash> > iFlows;
        map<Currency, vector<Cash> > pFlows;
        map<Currency, vector<Real> > basketNotional;

        //liability flows
        vector<Real> basketValue(samples_, 0.0);
        vector<vector<Real> > trancheValue;
        vector<Tranche> tranches = arguments_.tranches;
        for (Size i = 0 ; i < tranches.size() ; i ++){
            vector<Real> tempTrancheValue(samples_, 0.0);
            trancheValue.push_back(tempTrancheValue);
        }

        vector <map<Currency, vector<vector<Real> > > > trancheBalance;
        trancheBalance.resize(tranches.size());
        for (Size i = 0 ; i < tranches.size() ; i ++){
            trancheBalance[i][ccy].resize(
                                dates.size(), vector<Real>(samples_, 0.0));
        }

        vector<Real> feeValue(samples_, 0.0);
        vector<Real> subfeeValue(samples_, 0.0);

        /*
        //prepare for convergence analysis
        bool convergenceFlag = false;
        std::vector<double> runningMean(tranches.size(),0.0);
        std::vector<double> runningStdev(tranches.size(),0.0);
        if(ore::data::Log::instance().filter(ORE_DATA)){
            TLOG("convergence analysis - check first two moments");
            std::ostringstream labels;
            labels << "sample";
            for(Size k = 0 ; k < tranches.size(); k++)
                labels << "," << tranches[k].name << "-mean,"<< tranches[k].name << "-stdev";
            TLOG(labels.str());
            convergenceFlag = true;
        }
        */

        for (Size i = 0; i < samples_; i++) {
            rdm_->nextSequence(tmax);

            for( Size k = 0 ; k < tranches.size() ; k++){
                trancheBalance[k][ccy][0][i] = arguments_.tranches[k].faceAmount;
            }

            vector< map<Currency, Real> >trancheInterest;
            trancheInterest.resize(tranches.size());
            for( Size k = 0 ; k < tranches.size() ; k++){
                trancheInterest[k][ccy] = 0.0;
            }

            //Get Collection from bondbasket and exchange into base currency...
            cf.clear();
            iFlows.clear();
            pFlows.clear();
            basketNotional.clear();

            map<Currency, vector<Cash> > cf_full = arguments_.basket->scenarioCashflow(dates);
            map<Currency, vector<Cash> > iFlows_full = arguments_.basket->scenarioInterestflow(dates);
            map<Currency, vector<Cash> > pFlows_full = arguments_.basket->scenarioPrincipalflow(dates);
            map<Currency, vector<Real> > basketNotional_full = arguments_.basket->scenarioRemainingNotional(dates);

            set<Currency> basketCurrency = arguments_.basket->unique_currencies();

            if(basketCurrency.size() > 1){

                vector<Cash> cf_single;
                vector<Cash> iFlows_single;
                vector<Cash> pFlows_single;
                vector<Real> basketNotional_single;

                for(size_t d = 0; d < dates.size(); d++){

                    double cf1 = 0.0;
                    double cf2 = 0.0;
                    double if1 = 0.0;
                    double if2 = 0.0;
                    double pf1 = 0.0;
                    double pf2 = 0.0;
                    //Cash pf(0.0, 0.0);
                    double bn = 0.0;

                    for(auto& basketCcy : basketCurrency){
                        cf1 += arguments_.basket->convert(cf_full[basketCcy][d].flow_, basketCcy, dates[d]);
                        cf2 += arguments_.basket->convert(cf_full[basketCcy][d].discountedFlow_, basketCcy, dates[d]);

                        if1 += arguments_.basket->convert(iFlows_full[basketCcy][d].flow_, basketCcy, dates[d]);
                        if2 += arguments_.basket->convert(iFlows_full[basketCcy][d].discountedFlow_, basketCcy, dates[d]);

                        pf1 += arguments_.basket->convert(pFlows_full[basketCcy][d].flow_, basketCcy, dates[d]);
                        pf2 += arguments_.basket->convert(pFlows_full[basketCcy][d].discountedFlow_, basketCcy, dates[d]);

                        bn += arguments_.basket->convert(basketNotional_full[basketCcy][d], basketCcy, dates[d]);
                    }
                    cf_single.push_back(Cash(cf1, cf2));
                    iFlows_single.push_back(Cash(if1,if2));
                    pFlows_single.push_back(Cash(pf1,pf2));
                    basketNotional_single.push_back(bn);
                }
                cf[ccy] = cf_single;
                iFlows[ccy] = iFlows_single;
                pFlows[ccy] = pFlows_single;
                basketNotional[ccy] = basketNotional_single;

            }
            else{
                cf = cf_full;
                iFlows = iFlows_full;
                pFlows = pFlows_full;
                basketNotional = basketNotional_full;
            }

            for (Size j = 1; j < dates.size(); j++) {

                //Back out discountfactors

                Real intCcyDis = (iFlows[ccy][j].flow_ > 0 ?
                               iFlows[ccy][j].discountedFlow_ / iFlows[ccy][j].flow_ :
                               0.0);

                /**************************************************************
                 * check flows add up
                 */
                Real tiny = 1.0e-6;
                Real flowsCheck = fabs(cf[ccy][j].flow_
                                       -iFlows[ccy][j].flow_
                                       -pFlows[ccy][j].flow_);
                QL_REQUIRE( flowsCheck < tiny,
                           "Interest and Principal Flows don't sum to Total: "
                           << flowsCheck);

                Real dfFlowsCheck = fabs(cf[ccy][j].discountedFlow_
                                       -iFlows[ccy][j].discountedFlow_
                                       -pFlows[ccy][j].discountedFlow_);

                QL_REQUIRE( dfFlowsCheck < tiny,
                           "discounted Interest and Principal Flows don't sum to Total: "
                           << dfFlowsCheck);

                /**************************************************************
                 * tranche interest claim
                 */
                vector<map<Currency, Real> >trancheIntAcc;
                trancheIntAcc.resize(tranches.size());
                vector<Real> trancheInterestRates;
                // ccy
                for (Size k = 0 ; k< tranches.size(); k++){
                    Real trancheInterestRate =
                        tranches[k].leg[j-1]->amount()/
                        tranches[k].faceAmount;
                    trancheInterestRates.push_back(trancheInterestRate);
                    //ccy
                    trancheIntAcc[k][ccy] = trancheBalance[k][ccy][j-1][i]
                        * (trancheInterestRate);
                    trancheInterest[k][ccy] += trancheIntAcc[k][ccy];
                    trancheBalance[k][ccy][j][i]
                        = trancheBalance[k][ccy][j-1][i];
                }
                /**************************************************************
                 * Collections
                 */
                Real ccyDFlow = cf[ccy][j].discountedFlow_;
                Real basketInterest = iFlows[ccy][j].flow_; //for cure amount calc

                /**************************************************************
                 * Senior fees
                 */
                Real ccyFeeClaim = basketNotional[ccy][j] * arguments_.seniorFee
                    * feeDayCount.yearFraction(dates[j-1], dates[j]);

                Real ccyFeeFlow = std::min(ccyFeeClaim, iFlows[ccy][j].flow_);

                iFlows[ccy][j].flow_ -= ccyFeeFlow;
                iFlows[ccy][j].discountedFlow_ -= ccyFeeFlow * intCcyDis;

                cf[ccy][j].flow_ -= ccyFeeFlow;
                cf[ccy][j].discountedFlow_ -= ccyFeeFlow * intCcyDis;

                feeValue[i] += ccyFeeFlow * intCcyDis;

                QL_REQUIRE(cf[ccy][j].flow_ >= 0.0, "ccy flows < 0");


                /**************************************************************
                 * tranche waterfall
                 */
                vector<map<Currency, Real> > trancheAmortization;
                vector<map<Currency, Cash> > tranche;
                trancheAmortization.resize(tranches.size());
                tranche.resize(tranches.size());

                //Interest Waterfall incl. ICOC
                for (Size k = 0 ; k < tranches.size() ; k++){

                    tranche[k][ccy].flow_ = 0.;
                    tranche[k][ccy].discountedFlow_ = 0.;

                    Real icRatio = arguments_.tranches[k].icRatio;
                    Real ocRatio = arguments_.tranches[k].ocRatio;

                    //IC and OC Target Balances
                    Real cureAmount = icocCureAmount(i,j,k,
                                           basketNotional[ccy][j],
                                           basketInterest,
                                           trancheBalance,
                                           trancheInterestRates,
                                           icRatio,
                                           ocRatio);

                    interestWaterfall(i, j, dates, iFlows,
                          tranche[k], trancheBalance[k],
                          trancheInterest[k],
                          trancheIntAcc[k], cureAmount);

                    icocInterestWaterfall(i, j, k, dates, iFlows,
                                      tranche, trancheBalance,
                                        cureAmount);

                }

                //Principal Waterfall
                for (Size k = 0 ; k < tranches.size() ; k++){

                    principalWaterfall(i, j, dates, pFlows,
                                       tranche[k], trancheBalance[k],
                                       trancheInterest[k]);

                    cf[ccy][j].flow_ -= tranche[k][ccy].flow_;
                    cf[ccy][j].discountedFlow_ -= tranche[k][ccy].discountedFlow_;

                }

                /**************************************************************
                 * Subordinated Fee
                 */

                Real ccysubFeeClaim = basketNotional[ccy][j] * arguments_.subordinatedFee
                                    * feeDayCount.yearFraction(dates[j-1], dates[j]);

                Real ccysubFeeFlow = std::min(ccysubFeeClaim, iFlows[ccy][j].flow_);

                iFlows[ccy][j].flow_ -= ccysubFeeFlow;
                iFlows[ccy][j].discountedFlow_ -= ccysubFeeFlow * intCcyDis;

                cf[ccy][j].flow_ -= ccysubFeeFlow;
                cf[ccy][j].discountedFlow_ -= ccysubFeeFlow * intCcyDis;

                subfeeValue[i] += ccysubFeeFlow * intCcyDis;
                QL_REQUIRE(cf[ccy][j].flow_ >= -1.0E-5, "ccy flows < 0");

                /**************************************************************
                 * Kicker:
                 * Split excess flows between equity tranche (1-x) and senior fee (x)
                 */
                Real x = arguments_.equityKicker;

                Cash residual(0.0, 0.0);
                residual.discountedFlow_ = pFlows[ccy][j].discountedFlow_ + iFlows[ccy][j].discountedFlow_;
                residual.flow_ = pFlows[ccy][j].flow_ + iFlows[ccy][j].flow_;

                tranche.back()[ccy].flow_ += residual.flow_ * (1 - x);
                tranche.back()[ccy].discountedFlow_ +=  residual.discountedFlow_ * (1 - x);

                feeValue[i] += residual.discountedFlow_ * x;

                cf[ccy][j].flow_ -= residual.flow_;
                cf[ccy][j].discountedFlow_ -= residual.discountedFlow_;


                /**************************************************************
                 * Consistency checks
                 */
                QL_REQUIRE(cf[ccy][j].flow_ >= -1.e-5, "residual ccy flow < 0: "<<
                           cf[ccy][j].flow_);

                QL_REQUIRE(ccyFeeFlow  >= -1.e-5, "ccy fee flow < 0");

                for(Size k = 0; k < tranches.size() ; k++){
                    QL_REQUIRE(tranche[k][ccy].flow_ >= -1.e-5, "ccy "<<
                           tranches[k].name <<" flow < 0: "
                               <<tranche[k][ccy].flow_);
                }


                basketValue[i] += ccyDFlow;
                for(Size k = 0 ; k < tranches.size() ; k ++){
                    trancheValue[k][i] += tranche[k][ccy].discountedFlow_;
                }
                Real tranchenpvError(0.);
                for(Size k = 0 ; k < tranches.size() ; k ++){
                   tranchenpvError +=trancheValue[k][i];
                }
                Real  npvError(0.);
                if(basketValue[i] > 0.){
                   npvError = (feeValue[i] + subfeeValue[i] + tranchenpvError) / basketValue[i] - 1.0;
                   if(fabs(npvError) > errorTolerance_)
                        //ALOG("NPVs do not add up, rel. error " << npvError);
                        QL_FAIL("NPVs do not add up, rel. error " << npvError);
                }

                QL_REQUIRE(basketValue[i] >= 0.0,
                               "negative basket value " << basketValue[i]);

            } // end dates

            /**************************************************************
             * Loss Distribution
             */
            if (!lossDistributionDates.empty()) {
                // get the losses on this sample for each date
                map<Currency, vector<Cash> >
                    lossDist = arguments_.basket->scenarioLossflow(lossDistributionDatesVector);

                // foreach date, we see what bucket our loss falls into and we increase the probability for
                // that bucket by 1/samples
                for (Size k = 0; k < lossDistributionDatesVector.size(); k++) {
                    Real loss = lossDist[ccy][k].flow_;
                    Date d = lossDistributionDatesVector[k];
                    string dateString = lossDistributionDates[d];

                    QuantLib::ext::shared_ptr<BucketedDistribution> bd = lossDistributionMap[dateString];
                    Size index = bd->bucket(loss); // find the bucket we need to update
                    bd->probabilities()[index] += 1.0 / samples_;
                }
            }

            /*
            //convergence
            if(convergenceFlag){
                std::ostringstream meanStev;
                meanStev << i << fixed << setprecision(2);
                for(Size k = 0 ; k < tranches.size(); k++){
                    runningMean[k] += trancheValue[k][i];
                    double mean = runningMean[k] / (i + 1);
                    meanStev << "," << mean;
                    runningStdev[k] += trancheValue[k][i]*trancheValue[k][i];
                    double stdev = sqrt(runningStdev[k] / (i + 1)  - mean * mean);
                    meanStev << "," << stdev;
                }
                TLOG(meanStev.str());
            }
            */
        } // end samples

        //handle results...
        Stats basketStats(basketValue);
        vector<Stats> trancheStats;

        for(Size i = 0 ; i < tranches.size(); i++){
            Stats trancheStat(trancheValue[i]);
            trancheStats.push_back(trancheStat);
        }
        Stats feeStats(feeValue);
        Stats subfeeStats(subfeeValue);

        results_.basketValue = basketStats.mean();
        for(Size i = 0 ;i < tranches.size(); i ++){
            results_.trancheValue.push_back(trancheStats[i].mean());
        }
        results_.feeValue = feeStats.mean();
        results_.subfeeValue = subfeeStats.mean();

        results_.basketValueStd = basketStats.std();
        for(Size i = 0 ;i < tranches.size(); i ++){
            results_.trancheValueStd.push_back( trancheStats[i].std());
        }
        results_.feeValueStd = feeStats.std();
        results_.subfeeValueStd = subfeeStats.std();

        //distribution output
        Distribution basketDist = basketStats.histogram(bins_);
        results_.additionalResults["BasketDistribution"] = basketDist;
        Distribution feeDist = feeStats.histogram(bins_);
        results_.additionalResults["SeniorFeeDistribution"] = feeDist;
        Distribution subfeeDist = subfeeStats.histogram(bins_);
        results_.additionalResults["SubFeeDistribution"] = subfeeDist;
        std::vector<Distribution> trancheDistResults;
        for(Size i = 0 ;i < tranches.size(); i ++){
            Distribution trancheDist = trancheStats[i].histogram(bins_);
            trancheDistResults.push_back(trancheDist);
        }
        results_.additionalResults["TrancheValueDistribution"] = trancheDistResults;

        if (!lossDistributionDates.empty())
            results_.additionalResults["LossDistribution"] = lossDistributionMap;

        //define which tranche is in the npv-file and scale by investment amount
        for (Size i = 0; i < tranches.size(); i++) {
            if(tranches[i].name == arguments_.investedTrancheName){
                results_.value = trancheStats[i].mean();
                results_.errorEstimate = trancheStats[i].std();
            }
        }
        QL_REQUIRE(results_.value != Null<Real>(), "CBO Investment " << arguments_.investedTrancheName << " could not be assigned : no NPV");

        /*
        //results of all components in logFile
        LOG ("-----------------------------------");
        LOG ("CBO valuation results:");
        double liab = 0.0;
        for(Size i = 0 ; i < tranches.size(); i++){
            LOG( tranches[i].name << " - value " << fixed << setprecision(2) << trancheStats[i].mean() << " - stdev: " << trancheStats[i].std() << " - face amount " << tranches[i].faceAmount );
            liab += trancheStats[i].mean();
        }
        LOG ( "senior fee - value  " << fixed << setprecision(2) << feeStats.mean() << " - stdev " << feeStats.std());
        LOG ( "sub fee    - value  " << fixed << setprecision(2) << subfeeStats.mean() << " - stdev " << subfeeStats.std());
        LOG ( "portfolio  - value  " << fixed << setprecision(2) << basketStats.mean() << " - stdev " << basketStats.std());
        liab += feeStats.mean() + subfeeStats.mean();
        LOG ( "total: assets " << fixed << setprecision(2) << basketStats.mean() << " vs. liabilities " << liab );
        LOG ( "check total :" << fixed << setprecision(10) << basketStats.mean() - liab);
        LOG ("-----------------------------------");
        */

    }// calculate

Here is the call graph for this function:

interestWaterfall()

void interestWaterfall ( Size  sampleIndex, Size  dateIndex, const vector< Date > &  dates, map< Currency, vector< Cash > > &  basketFlow, map< Currency, Cash > &  trancheFlow, map< Currency, vector< vector< Real > > > &  balance, map< Currency, Real > &  interest, map< Currency, Real > &  interestAcc, Real  cureAmount  ) const

private

interest waterfall

Definition at line 30 of file cbomcengine.cpp.

                                                           {
        Currency ccy = arguments_.ccy;

        Real tiny = 1e-9;
        if (balance[ccy][j][i] < tiny) {
            tranche[ccy].flow_ = 0.0;
            tranche[ccy].discountedFlow_ = 0.0;
            return;
        }

        Real ccyDis = (iFlows[ccy][j].flow_ > 0 ?
                       iFlows[ccy][j].discountedFlow_ / iFlows[ccy][j].flow_:
                       0.0);

        // Accrued Interest

        Real amount = std::min(iFlows[ccy][j].flow_, interestAcc[ccy]);

        tranche[ccy].flow_ += amount;
        tranche[ccy].discountedFlow_ += amount * ccyDis;

        iFlows[ccy][j].flow_  -= amount;
        iFlows[ccy][j].discountedFlow_ -= amount * ccyDis;

        interest[ccy] -= amount;

        // Truncate rounding errors
        balance[ccy][j][i] = std::max(balance[ccy][j][i], 0.0);
        iFlows[ccy][j].flow_ = std::max(iFlows[ccy][j].flow_, 0.0);
        iFlows[ccy][j].discountedFlow_ = std::max(iFlows[ccy][j].discountedFlow_, 0.0);
        tranche[ccy].discountedFlow_ = std::max(tranche[ccy].discountedFlow_, 0.0);
    }

Here is the caller graph for this function:

icocInterestWaterfall()

void icocInterestWaterfall ( Size  i, Size  j, Size  k, const vector< Date > &  dates, map< Currency, vector< Cash > > &  iFlows, vector< map< Currency, Cash > > &  tranches, vector< map< Currency, vector< vector< Real > > > > &  balances, Real  cureAmount  ) const

private

icoc interest waterfall

Definition at line 72 of file cbomcengine.cpp.

                                                                           {
        Currency ccy = arguments_.ccy;

        Real ccyDis = (iFlows[ccy][j].flow_ > 0 ?
                       iFlows[ccy][j].discountedFlow_ / iFlows[ccy][j].flow_:
                       0.0);

        //IC and OC

        Real cureAvailable = min(iFlows[ccy][j].flow_, cureAmount);

        for(Size k = 0; k <= l; k++){

            Real amount = std::min(balances[k][ccy][j][i], cureAvailable);

            tranches[k][ccy].flow_ += amount;
            tranches[k][ccy].discountedFlow_ += amount * ccyDis;

            iFlows[ccy][j].flow_           -= amount;
            iFlows[ccy][j].discountedFlow_ -= amount * ccyDis;

            balances[k][ccy][j][i] -= amount;

            cureAvailable -= amount;

            // truncate rounding errors
            balances[k][ccy][j][i] = std::max(balances[k][ccy][j][i], 0.0);
            iFlows[ccy][j].flow_ = std::max(iFlows[ccy][j].flow_, 0.0);
            iFlows[ccy][j].discountedFlow_ = std::max(iFlows[ccy][j].discountedFlow_, 0.0);
            tranches[k][ccy].discountedFlow_ = std::max(tranches[k][ccy].discountedFlow_, 0.0);
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

principalWaterfall()

void principalWaterfall ( Size  sampleIndex, Size  dateIndex, const vector< Date > &  dates, map< Currency, vector< Cash > > &  basketFlow, map< Currency, Cash > &  trancheFlow, map< Currency, vector< vector< Real > > > &  balance, map< Currency, Real > &  interest  ) const

private

pricipal waterfall

Definition at line 113 of file cbomcengine.cpp.

                                                                                    {
        Currency ccy = arguments_.ccy;

        Real ccyDis = (pFlows[ccy][j].flow_ > 0 ?
                       pFlows[ccy][j].discountedFlow_ / pFlows[ccy][j].flow_:
                       0.0);

        //Principal Waterfall

        Real amount = std::min(pFlows[ccy][j].flow_, balance[ccy][j][i]);

        tranche[ccy].flow_ += amount;
        tranche[ccy].discountedFlow_ += amount * ccyDis;

        pFlows[ccy][j].flow_           -= amount;
        pFlows[ccy][j].discountedFlow_ -= amount * ccyDis;

        balance[ccy][j][i] -= amount;

        // truncate rounding errors
        balance[ccy][j][i] = std::max(balance[ccy][j][i], 0.0);
        pFlows[ccy][j].flow_ = std::max(pFlows[ccy][j].flow_, 0.0);
        pFlows[ccy][j].discountedFlow_ = std::max(pFlows[ccy][j].discountedFlow_, 0.0);
        tranche[ccy].discountedFlow_ = std::max(tranche[ccy].discountedFlow_, 0.0);

        interest[ccy] -= std::min(interest[ccy], amount);
    }

Here is the caller graph for this function:

icocCureAmount()

Real icocCureAmount ( Size  sampleIndex, Size  dateIndex, Size  trancheNo, Real  basketNotional, Real  basketInterest, vector< map< Currency, vector< vector< Real > > > > &  trancheBalances, vector< Real >  trancheInterestRates, Real  icRatios, Real  ocRatios  ) const

private

icoc cure amount

Definition at line 148 of file cbomcengine.cpp.

                                            {
        Currency ccy = arguments_.ccy;

        Real cureAmount;

        if((icRatio < 0.) && (ocRatio < 0.)){
            cureAmount = 0.;
        }
        else{
            Real poC = 0.;
            Real piC = 0.;

            for(Size l = 0; l < k; l++){
                poC-= trancheBalances[l][ccy][j][i];
                piC-= trancheBalances[l][ccy][j][i]*trancheInterestRates[l];
            }

            poC+= basketNotional/ocRatio;
            if(trancheInterestRates[k] <= 0.){
                piC=poC;
            }
            else {
                piC+= basketInterest/icRatio;
                piC/= trancheInterestRates[k];
            }
            piC = std::max(piC, 0.);
            poC = std::max(poC, 0.);
            Real pTarget = std::min(poC, piC);

            cureAmount = max(trancheBalances[k][ccy][j][i] - pTarget, 0.) ;
        }
        return cureAmount;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

getLossDistributionDates()

map< Date, string > getLossDistributionDates ( const QuantLib::Date &  valuationDate ) const

private

Return dates on the CBO schedule that are closest to the requested lossDistributionPeriods.

Definition at line 192 of file cbomcengine.cpp.

                                                                                                   {
        if (lossDistributionPeriods_.size() == 0)
            return map<Date, string>();

        // For each period, return first date in CBO schedule greater than or equal to it
        map<Date, string> lossDistributionDates;
        const vector<Date>& cboDates = arguments_.schedule.dates();
        Date date;
        vector<Date>::const_iterator it;
        ostringstream oss;
        for (Size i = 0; i < lossDistributionPeriods_.size(); i++) {
            date = valuationDate + lossDistributionPeriods_[i];
            oss << io::short_period(lossDistributionPeriods_[i]);
            it = lower_bound(cboDates.begin(), cboDates.end(), date);
            if (it == cboDates.begin()) {
                continue;
            } else if (it == cboDates.end()) {
                lossDistributionDates[cboDates.back()] = oss.str();
                break;
            } else {
                lossDistributionDates[*it] = oss.str();
            }
            oss.str("");
        }

        // Add the maturity date of the note also with a special string
        // This overwrites any entry for the last date above
        lossDistributionDates[cboDates.back()] = "Maturity";

        return lossDistributionDates;
    }

Here is the caller graph for this function:

Member Data Documentation

rdm_

QuantLib::ext::shared_ptr<RandomDefaultModel> rdm_

private

Definition at line 94 of file cbomcengine.hpp.

samples_

Size samples_

private

Definition at line 95 of file cbomcengine.hpp.

bins_

Size bins_

private

Definition at line 96 of file cbomcengine.hpp.

errorTolerance_

double errorTolerance_

private

Definition at line 97 of file cbomcengine.hpp.

lossDistributionPeriods_

std::vector<QuantLib::Period> lossDistributionPeriods_

private

Periods from valuation date for which to return loss distributions.

Definition at line 100 of file cbomcengine.hpp.
