#include <ored/scripting/models/fdblackscholesbase.hpp>

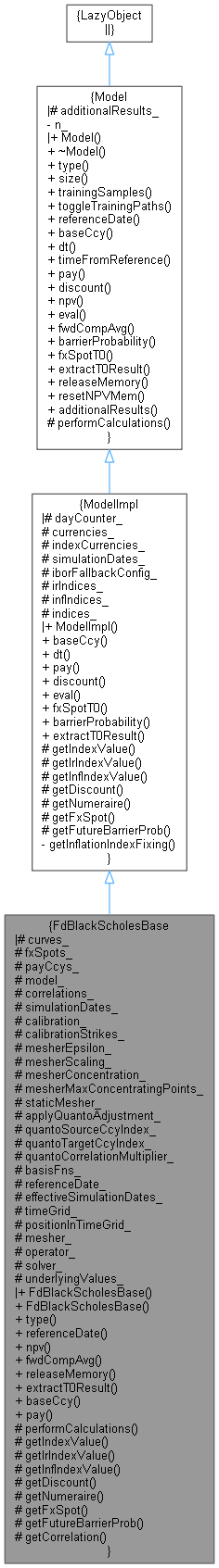

Inheritance diagram for FdBlackScholesBase:

Collaboration diagram for FdBlackScholesBase:

Public Member Functions
	FdBlackScholesBase (const Size stateGridPoints, const std::vector< std::string > &currencies, const std::vector< Handle< YieldTermStructure > > &curves, const std::vector< Handle< Quote > > &fxSpots, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &irIndices, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &infIndices, const std::vector< std::string > &indices, const std::vector< std::string > &indexCurrencies, const std::set< std::string > &payCcys_, const Handle< BlackScholesModelWrapper > &model, const std::map< std::pair< std::string, std::string >, Handle< QuantExt::CorrelationTermStructure > > &correlations, const std::set< Date > &simulationDates, const IborFallbackConfig &iborFallbackConfig, const std::string &calibration, const std::map< std::string, std::vector< Real > > &calibrationStrikes={}, const Real mesherEpsilon=1E-4, const Real mesherScaling=1.5, const Real mesherConcentration=0.1, const Size mesherMaxConcentratingPoints=9999, const bool staticMesher=false)

	FdBlackScholesBase (const Size stateGridPoints, const std::string &currency, const Handle< YieldTermStructure > &curve, const std::string &index, const std::string &indexCurrency, const Handle< BlackScholesModelWrapper > &model, const std::set< Date > &simulationDates, const IborFallbackConfig &iborFallbackConfig, const std::string &calibration, const std::vector< Real > &calibrationStrikes={}, const Real mesherEpsilon=1E-4, const Real mesherScaling=1.5, const Real mesherConcentration=0.1, const Size mesherMaxConcentratingPoints=9999, const bool staticMesher=false)

Type	type () const override

const Date &	referenceDate () const override

RandomVariable	npv (const RandomVariable &amount, const Date &obsdate, const Filter &filter, const boost::optional< long > &memSlot, const RandomVariable &addRegressor1, const RandomVariable &addRegressor2) const override

RandomVariable	fwdCompAvg (const bool isAvg, const std::string &index, const Date &obsdate, const Date &start, const Date &end, const Real spread, const Real gearing, const Integer lookback, const Natural rateCutoff, const Natural fixingDays, const bool includeSpread, const Real cap, const Real floor, const bool nakedOption, const bool localCapFloor) const override

void	releaseMemory () override

Real	extractT0Result (const RandomVariable &result) const override

const std::string &	baseCcy () const override

RandomVariable	pay (const RandomVariable &amount, const Date &obsdate, const Date &paydate, const std::string &currency) const override

Public Member Functions inherited from ModelImpl
	ModelImpl (const DayCounter &dayCounter, const Size size, const std::vector< std::string > &currencies, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &irIndices, const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &infIndices, const std::vector< std::string > &indices, const std::vector< std::string > &indexCurrencies, const std::set< Date > &simulationDates, const IborFallbackConfig &iborFallbackConfig)

const std::string &	baseCcy () const override

Real	dt (const Date &d1, const Date &d2) const override

RandomVariable	pay (const RandomVariable &amount, const Date &obsdate, const Date &paydate, const std::string &currency) const override

RandomVariable	discount (const Date &obsdate, const Date &paydate, const std::string &currency) const override

RandomVariable	eval (const std::string &index, const Date &obsdate, const Date &fwddate, const bool returnMissingMissingAsNull=false, const bool ignoreTodaysFixing=false) const override

Real	fxSpotT0 (const std::string &forCcy, const std::string &domCcy) const override

RandomVariable	barrierProbability (const std::string &index, const Date &obsdate1, const Date &obsdate2, const RandomVariable &barrier, const bool above) const override

Real	extractT0Result (const RandomVariable &value) const override

Public Member Functions inherited from Model
	Model (const Size n)

virtual	~Model ()

virtual Type	type () const =0

virtual Size	size () const

virtual Size	trainingSamples () const

virtual void	toggleTrainingPaths () const

virtual const Date &	referenceDate () const =0

virtual const std::string &	baseCcy () const =0

virtual Real	dt (const Date &d1, const Date &d2) const

Real	timeFromReference (const Date &d) const

virtual RandomVariable	pay (const RandomVariable &amount, const Date &obsdate, const Date &paydate, const std::string &currency) const =0

virtual RandomVariable	discount (const Date &obsdate, const Date &paydate, const std::string &currency) const =0

virtual RandomVariable	npv (const RandomVariable &amount, const Date &obsdate, const Filter &filter, const boost::optional< long > &memSlot, const RandomVariable &addRegressor1, const RandomVariable &addRegressor2) const =0

virtual RandomVariable	eval (const std::string &index, const Date &obsdate, const Date &fwddate, const bool returnMissingFixingAsNull=false, const bool ignoreTodaysFixing=false) const =0

virtual RandomVariable	fwdCompAvg (const bool isAvg, const std::string &index, const Date &obsdate, const Date &start, const Date &end, const Real spread, const Real gearing, const Integer lookback, const Natural rateCutoff, const Natural fixingDays, const bool includeSpread, const Real cap, const Real floor, const bool nakedOption, const bool localCapFloor) const =0

virtual RandomVariable	barrierProbability (const std::string &index, const Date &obsdate1, const Date &obsdate2, const RandomVariable &barrier, const bool above) const =0

virtual Real	fxSpotT0 (const std::string &forCcy, const std::string &domCcy) const =0

virtual Real	extractT0Result (const RandomVariable &value) const =0

virtual void	releaseMemory ()

virtual void	resetNPVMem ()

const std::map< std::string, boost::any > &	additionalResults () const

Protected Member Functions
void	performCalculations () const override

RandomVariable	getIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const override

RandomVariable	getIrIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const override

RandomVariable	getInfIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const override

RandomVariable	getDiscount (const Size idx, const Date &s, const Date &t) const override

RandomVariable	getNumeraire (const Date &s) const override

Real	getFxSpot (const Size idx) const override

RandomVariable	getFutureBarrierProb (const std::string &index, const Date &obsdate1, const Date &obsdate2, const RandomVariable &barrier, const bool above) const override

Matrix	getCorrelation () const

virtual RandomVariable	getIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const =0

virtual RandomVariable	getIrIndexValue (const Size indexNo, const Date &d, const Date &fwd=Null< Date >()) const =0

virtual RandomVariable	getInfIndexValue (const Size indexNo, const Date &d, const Date &fwd) const =0

virtual RandomVariable	getDiscount (const Size idx, const Date &s, const Date &t) const =0

virtual RandomVariable	getNumeraire (const Date &s) const =0

virtual Real	getFxSpot (const Size idx) const =0

virtual RandomVariable	getFutureBarrierProb (const std::string &index, const Date &obsdate1, const Date &obsdate2, const RandomVariable &barrier, const bool above) const =0

Protected Member Functions inherited from Model
void	performCalculations () const override

Protected Attributes
const std::vector< Handle< YieldTermStructure > >	curves_

const std::vector< Handle< Quote > >	fxSpots_

const std::set< std::string >	payCcys_

const Handle< BlackScholesModelWrapper >	model_

const std::map< std::pair< std::string, std::string >, Handle< QuantExt::CorrelationTermStructure > >	correlations_

const std::vector< Date >	simulationDates_

const std::string	calibration_

const std::map< std::string, std::vector< Real > >	calibrationStrikes_

const Real	mesherEpsilon_

const Real	mesherScaling_

const Real	mesherConcentration_

const Size	mesherMaxConcentratingPoints_

const bool	staticMesher_

bool	applyQuantoAdjustment_ = false

Size	quantoSourceCcyIndex_

Size	quantoTargetCcyIndex_

Real	quantoCorrelationMultiplier_

std::vector< std::function< RandomVariable(const std::vector< const RandomVariable * > &)> >	basisFns_

Date	referenceDate_

std::set< Date >	effectiveSimulationDates_

TimeGrid	timeGrid_

std::vector< Size >	positionInTimeGrid_

QuantLib::ext::shared_ptr< FdmMesher >	mesher_

QuantLib::ext::shared_ptr< FdmLinearOpComposite >	operator_

QuantLib::ext::shared_ptr< FdmBackwardSolver >	solver_

RandomVariable	underlyingValues_

Protected Attributes inherited from ModelImpl
const DayCounter	dayCounter_

const std::vector< std::string >	currencies_

const std::vector< std::string >	indexCurrencies_

const std::set< Date >	simulationDates_

const IborFallbackConfig	iborFallbackConfig_

std::vector< std::pair< IndexInfo, QuantLib::ext::shared_ptr< InterestRateIndex > > >	irIndices_

std::vector< std::pair< IndexInfo, QuantLib::ext::shared_ptr< ZeroInflationIndex > > >	infIndices_

std::vector< IndexInfo >	indices_

Protected Attributes inherited from Model
std::map< std::string, boost::any >	additionalResults_

Additional Inherited Members
Public Types inherited from Model
enum class	Type { MC , FD }

Detailed Description

Definition at line 44 of file fdblackscholesbase.hpp.

Constructor & Destructor Documentation

◆ FdBlackScholesBase() [1/2]

FdBlackScholesBase	(	const Size	stateGridPoints,
		const std::vector< std::string > &	currencies,
		const std::vector< Handle< YieldTermStructure > > &	curves,
		const std::vector< Handle< Quote > > &	fxSpots,
		const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< InterestRateIndex > > > &	irIndices,
		const std::vector< std::pair< std::string, QuantLib::ext::shared_ptr< ZeroInflationIndex > > > &	infIndices,
		const std::vector< std::string > &	indices,
		const std::vector< std::string > &	indexCurrencies,
		const std::set< std::string > &	payCcys_,
		const Handle< BlackScholesModelWrapper > &	model,
		const std::map< std::pair< std::string, std::string >, Handle< QuantExt::CorrelationTermStructure > > &	correlations,
		const std::set< Date > &	simulationDates,
		const IborFallbackConfig &	iborFallbackConfig,
		const std::string &	calibration,
		const std::map< std::string, std::vector< Real > > &	calibrationStrikes = `{}`,
		const Real	mesherEpsilon = `1E-4`,
		const Real	mesherScaling = `1.5`,
		const Real	mesherConcentration = `0.1`,
		const Size	mesherMaxConcentratingPoints = `9999`,
		const bool	staticMesher = `false`
	)

Definition at line 57 of file fdblackscholesbase.cpp.

    : ModelImpl(curves.at(0)->dayCounter(), stateGridPoints, currencies, irIndices, infIndices, indices,
                indexCurrencies, simulationDates, iborFallbackConfig),
      curves_(curves), fxSpots_(fxSpots), payCcys_(payCcys), model_(model), correlations_(correlations),
      calibration_(calibration), calibrationStrikes_(calibrationStrikes), mesherEpsilon_(mesherEpsilon),
      mesherScaling_(mesherScaling), mesherConcentration_(mesherConcentration),
      mesherMaxConcentratingPoints_(mesherMaxConcentratingPoints), staticMesher_(staticMesher) {

    // check inputs

    QL_REQUIRE(!model_.empty(), "model is empty");
    QL_REQUIRE(!curves_.empty(), "no curves given");
    QL_REQUIRE(currencies_.size() == curves_.size(), "number of currencies (" << currencies_.size()
                                                                              << ") does not match number of curves ("
                                                                              << curves_.size() << ")");
    QL_REQUIRE(currencies_.size() == fxSpots_.size() + 1,
               "number of currencies (" << currencies_.size() << ") does not match number of fx spots ("
                                        << fxSpots_.size() << ") + 1");

    QL_REQUIRE(indices_.size() == model_->processes().size(),
               "mismatch of processes size (" << model_->processes().size() << ") and number of indices ("
                                              << indices_.size() << ")");

    for (auto const& c : payCcys) {
        QL_REQUIRE(std::find(currencies_.begin(), currencies_.end(), c) != currencies_.end(),
                   "pay ccy '" << c << "' not found in currencies list.");
    }

    // register with observables

    for (auto const& o : fxSpots_)
        registerWith(o);
    for (auto const& o : correlations_)
        registerWith(o.second);

    registerWith(model_);

    // if we have one (or no) underlying, everything works as usual

    if (model_->processes().size() <= 1)
        return;

    // if we have one underlying + one FX index, we do a 1D PDE with a quanto adjustment under certain circumstances

    if (model_->processes().size() == 2) {
        // check whether we have exactly one pay ccy ...
        if (payCcys.size() == 1) {
            std::string payCcy = *payCcys.begin();
            // ... and the second index is an FX index suitable to do a quanto adjustment
            // from the first index's currency to the pay ccy ...
            std::string mainIndexCcy = indexCurrencies_[0];
            if (indices_[0].isFx()) {
                mainIndexCcy = indices_[0].fx()->targetCurrency().code();
            }
            if (indices_[1].isFx()) {
                std::string ccy1 = indices_[1].fx()->sourceCurrency().code();
                std::string ccy2 = indices_[1].fx()->targetCurrency().code();
                if ((ccy1 == mainIndexCcy && ccy2 == payCcy) || (ccy1 == payCcy && ccy2 == mainIndexCcy)) {
                    applyQuantoAdjustment_ = true;
                    quantoSourceCcyIndex_ = std::distance(
                        currencies.begin(), std::find(currencies.begin(), currencies.end(), mainIndexCcy));
                    quantoTargetCcyIndex_ =
                        std::distance(currencies.begin(), std::find(currencies.begin(), currencies.end(), payCcy));
                    quantoCorrelationMultiplier_ = ccy2 == payCcy ? 1.0 : -1.0;
                }
                DLOG("FdBlackScholesBase model will be run for index '"
                     << indices_[0].name() << "' with a quanto-adjustment " << currencies_[quantoSourceCcyIndex_]
                     << " => " << currencies_[quantoTargetCcyIndex_] << " derived from index '" << indices_[1].name()
                     << "'");
                return;
            }
        }
    }

    // otherwise we need more than one dimension, which we currently not support

    QL_FAIL("FdBlackScholesBase: model does not support multi-dim fd schemes currently.");

} // FdBlackScholesBase ctor

◆ FdBlackScholesBase() [2/2]

FdBlackScholesBase	(	const Size	stateGridPoints,
		const std::string &	currency,
		const Handle< YieldTermStructure > &	curve,
		const std::string &	index,
		const std::string &	indexCurrency,
		const Handle< BlackScholesModelWrapper > &	model,
		const std::set< Date > &	simulationDates,
		const IborFallbackConfig &	iborFallbackConfig,
		const std::string &	calibration,
		const std::vector< Real > &	calibrationStrikes = `{}`,
		const Real	mesherEpsilon = `1E-4`,
		const Real	mesherScaling = `1.5`,
		const Real	mesherConcentration = `0.1`,
		const Size	mesherMaxConcentratingPoints = `9999`,
		const bool	staticMesher = `false`
	)

Definition at line 44 of file fdblackscholesbase.cpp.

    : FdBlackScholesBase(stateGridPoints, {currency}, {curve}, {}, {}, {}, {index}, {indexCurrency}, {currency}, model,
                         {}, simulationDates, iborFallbackConfig, calibration, {{index, calibrationStrikes}},
                         mesherEpsilon, mesherScaling, mesherConcentration, mesherMaxConcentratingPoints,
                         staticMesher) {}

Member Function Documentation

◆ type()

Type type ( ) const

overridevirtual

Implements Model.

Definition at line 75 of file fdblackscholesbase.hpp.

75{ return Type::FD; }

ore::data::Model::Type::FD

@ FD

◆ referenceDate()

const Date & referenceDate ( ) const

overridevirtual

Implements Model.

Definition at line 168 of file fdblackscholesbase.cpp.

                                                    {
    calculate();
    return referenceDate_;
}

Here is the caller graph for this function:

◆ npv()

RandomVariable npv	(	const RandomVariable &	amount,
		const Date &	obsdate,
		const Filter &	filter,
		const boost::optional< long > &	memSlot,
		const RandomVariable &	addRegressor1,
		const RandomVariable &	addRegressor2
	)		const

overridevirtual

Implements Model.

Definition at line 398 of file fdblackscholesbase.cpp.

                                                                                  {

    QL_REQUIRE(!memSlot, "FdBlackScholesBase::npv(): mem slot not allowed");
    QL_REQUIRE(!filter.initialised(), "FdBlackScholesBase::npv(). filter not allowed");
    QL_REQUIRE(!addRegressor1.initialised(), "FdBlackScholesBase::npv(). addRegressor1 not allowed");
    QL_REQUIRE(!addRegressor2.initialised(), "FdBlackScholesBase::npv(). addRegressor2 not allowed");

    calculate();

    Real t1 = amount.time();
    Real t0 = timeFromReference(obsdate);

    // handle case when amount is deterministic

    if (amount.deterministic()) {
        RandomVariable result(amount);
        result.setTime(t0);
        return result;
    }

    // handle stochastic amount

    QL_REQUIRE(t1 != Null<Real>(),
               "FdBlackScholesBase::npv(): can not roll back amount wiithout time attached (to t0=" << t0 << ")");

    // might throw if t0, t1 are not found in timeGrid_

    Size ind1 = timeGrid_.index(t1);
    Size ind0 = timeGrid_.index(t0);

    // check t0 <= t1, i.e. ind0 <= ind1

    QL_REQUIRE(ind0 <= ind1, "FdBlackScholesBase::npv(): can not roll back from t1= "
                                 << t1 << " (index " << ind1 << ") to t0= " << t0 << " (" << ind0 << ")");

    // if t0 = t1, no rollback is necessary and we can return the input random variable

    if (ind0 == ind1)
        return amount;

    // if t0 < t1, we roll back on the time grid

    Array workingArray(amount.size());
    amount.copyToArray(workingArray);

    for (int j = static_cast<int>(ind1) - 1; j >= static_cast<int>(ind0); --j) {
        solver_->rollback(workingArray, timeGrid_[j + 1], timeGrid_[j], 1, 0);
    }

    // return the rolled back value

    return RandomVariable(workingArray, t0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fwdCompAvg()

RandomVariable fwdCompAvg	(	const bool	isAvg,
		const std::string &	index,
		const Date &	obsdate,
		const Date &	start,
		const Date &	end,
		const Real	spread,
		const Real	gearing,
		const Integer	lookback,
		const Natural	rateCutoff,
		const Natural	fixingDays,
		const bool	includeSpread,
		const Real	cap,
		const Real	floor,
		const bool	nakedOption,
		const bool	localCapFloor
	)		const

overridevirtual

Implements Model.

Definition at line 356 of file fdblackscholesbase.cpp.

                                                                              {
    calculate();
    IndexInfo indexInfo(indexInput);
    auto index = QuantLib::ext::dynamic_pointer_cast<OvernightIndex>(indexInfo.irIbor());
    QL_REQUIRE(index, "BlackScholesBase::fwdCompAvg(): expected on index for " << indexInput);
    // if we want to support cap / floors we need the OIS CF surface
    QL_REQUIRE(cap > 999998.0 && floor < -999998.0,
               "BlackScholesCGBase:fwdCompAvg(): cap (" << cap << ") / floor (" << floor << ") not supported");
    QuantLib::ext::shared_ptr<QuantLib::FloatingRateCoupon> coupon;
    QuantLib::ext::shared_ptr<QuantLib::FloatingRateCouponPricer> pricer;
    if (isAvg) {
        coupon = QuantLib::ext::make_shared<QuantExt::AverageONIndexedCoupon>(
            end, 1.0, start, end, index, gearing, spread, rateCutoff, DayCounter(), lookback * Days, fixingDays);
        pricer = QuantLib::ext::make_shared<AverageONIndexedCouponPricer>();
    } else {
        coupon = QuantLib::ext::make_shared<QuantExt::OvernightIndexedCoupon>(
            end, 1.0, start, end, index, gearing, spread, Date(), Date(), DayCounter(), false, includeSpread,
            lookback * Days, rateCutoff, fixingDays);
        pricer = QuantLib::ext::make_shared<OvernightIndexedCouponPricer>();
    }
    coupon->setPricer(pricer);
    return RandomVariable(size(), coupon->rate());
}

Here is the call graph for this function:

◆ releaseMemory()

void releaseMemory ( )

overridevirtual

Reimplemented from Model.

Definition at line 454 of file fdblackscholesbase.cpp.

454{}

◆ extractT0Result()

Real extractT0Result ( const RandomVariable & result ) const

overridevirtual

Implements Model.

Definition at line 462 of file fdblackscholesbase.cpp.

                                                                          {

    calculate();

    // roll back to today (if necessary)

    RandomVariable r = npv(value, referenceDate(), Filter(), boost::none, RandomVariable(), RandomVariable());

    // if result is deterministic, return the value

    if (r.deterministic())
        return r.at(0);

    // otherwise interpolate the result at the spot of the underlying process

    Array x(underlyingValues_.size());
    Array y(underlyingValues_.size());
    underlyingValues_.copyToArray(x);
    r.copyToArray(y);
    MonotonicCubicNaturalSpline interpolation(x.begin(), x.end(), y.begin());
    interpolation.enableExtrapolation();
    return interpolation(model_->processes()[0]->x0());
}

Here is the call graph for this function:

◆ baseCcy()

const std::string & baseCcy ( ) const

overridevirtual

Implements Model.

Definition at line 508 of file fdblackscholesbase.cpp.

                                                   {
    if (!applyQuantoAdjustment_)
        return ModelImpl::baseCcy();

    return currencies_[quantoTargetCcyIndex_];
}

Here is the call graph for this function:

◆ pay()

RandomVariable pay	(	const RandomVariable &	amount,
		const Date &	obsdate,
		const Date &	paydate,
		const std::string &	currency
	)		const

overridevirtual

Implements Model.

Definition at line 486 of file fdblackscholesbase.cpp.

                                                                        {

    calculate();

    if (!applyQuantoAdjustment_) {
        auto res = ModelImpl::pay(amount, obsdate, paydate, currency);
        res.setTime(timeFromReference(obsdate));
        return res;
    }

    QL_REQUIRE(currency == currencies_[quantoTargetCcyIndex_],
               "pay ccy is '" << currency << "', expected '" << currencies_[quantoTargetCcyIndex_]
                              << "' in quanto-adjusted FDBlackScholesBase model");

    Date effectiveDate = std::max(obsdate, referenceDate());

    auto res = amount * getDiscount(quantoTargetCcyIndex_, effectiveDate, paydate) / getNumeraire(effectiveDate);
    res.setTime(timeFromReference(obsdate));
    return res;
}

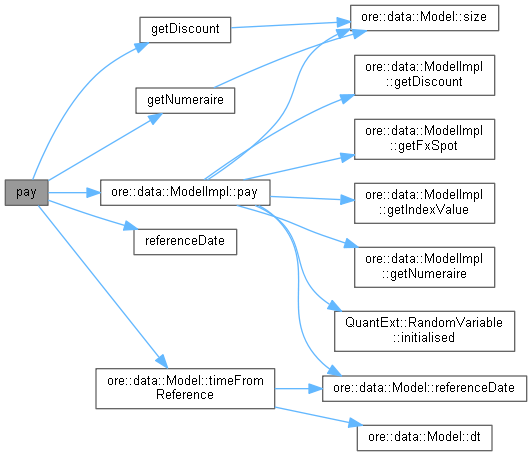

Here is the call graph for this function:

◆ performCalculations()

void performCalculations ( ) const

overrideprotected

Definition at line 173 of file fdblackscholesbase.cpp.

                                                   {

    referenceDate_ = curves_.front()->referenceDate();

    // 0a set up time grid

    effectiveSimulationDates_ = model_->effectiveSimulationDates();

    std::vector<Real> times;
    for (auto const& d : effectiveSimulationDates_) {
        times.push_back(timeFromReference(d));
    }

    timeGrid_ = model_->discretisationTimeGrid();
    positionInTimeGrid_.resize(times.size());
    for (Size i = 0; i < positionInTimeGrid_.size(); ++i)
        positionInTimeGrid_[i] = timeGrid_.index(times[i]);

    // 0b nothing to do if we do not have any indices

    if (indices_.empty())
        return;

    // 0c if we only have one effective sim date (today), we set the underlying values = spot

    if (effectiveSimulationDates_.size() == 1) {
        underlyingValues_ = RandomVariable(size(), model_->processes()[0]->x0());
        return;
    }

    // 1 set the calibration strikes

    std::vector<Real> calibrationStrikes;
    if (calibration_ == "ATM") {
        calibrationStrikes.resize(indices_.size(), Null<Real>());
    } else if (calibration_ == "Deal") {
        for (Size i = 0; i < indices_.size(); ++i) {
            auto f = calibrationStrikes_.find(indices_[i].name());
            if (f != calibrationStrikes_.end() && !f->second.empty()) {
                calibrationStrikes.push_back(f->second[0]);
                TLOG("calibration strike for index '" << indices_[i] << "' is " << f->second[0]);
            } else {
                calibrationStrikes.push_back(Null<Real>());
                TLOG("calibration strike for index '" << indices_[i] << "' is ATMF");
            }
        }
    } else {
        QL_FAIL("FdBlackScholes: calibration '" << calibration_ << "' not supported, expected ATM, Deal");
    }

    // 1b set up the critical points for the mesher

    std::vector<std::vector<QuantLib::ext::tuple<Real, Real, bool>>> cPoints;
    for (Size i = 0; i < indices_.size(); ++i) {
        cPoints.push_back(std::vector<QuantLib::ext::tuple<Real, Real, bool>>());
        auto f = calibrationStrikes_.find(indices_[i].name());
        if (f != calibrationStrikes_.end()) {
            for (Size j = 0; j < std::min(f->second.size(), mesherMaxConcentratingPoints_); ++j) {
                cPoints.back().push_back(QuantLib::ext::make_tuple(std::log(f->second[j]), mesherConcentration_, false));
                TLOG("added critical point at strike " << f->second[j] << " with concentration "
                                                       << mesherConcentration_);
            }
        }
    }

    // 2 set up mesher if we do not have one already or if we want to rebuild it every time

    if (mesher_ == nullptr || !staticMesher_) {
        mesher_ = QuantLib::ext::make_shared<FdmMesherComposite>(QuantLib::ext::make_shared<QuantExt::FdmBlackScholesMesher>(
            size(), model_->processes()[0], timeGrid_.back(),
            calibrationStrikes[0] == Null<Real>()
                ? atmForward(model_->processes()[0]->x0(), model_->processes()[0]->riskFreeRate(),
                             model_->processes()[0]->dividendYield(), timeGrid_.back())
                : calibrationStrikes[0],
            Null<Real>(), Null<Real>(), mesherEpsilon_, mesherScaling_, cPoints[0]));
    }

    // 3 set up operator using atmf vol and without discounting, floor forward variances at zero

    QuantLib::ext::shared_ptr<QuantExt::FdmQuantoHelper> quantoHelper;

    if (applyQuantoAdjustment_) {
        Real quantoCorr = quantoCorrelationMultiplier_ * getCorrelation()[0][1];
        quantoHelper = QuantLib::ext::make_shared<QuantExt::FdmQuantoHelper>(
            *curves_[quantoTargetCcyIndex_], *curves_[quantoSourceCcyIndex_],
            *model_->processes()[1]->blackVolatility(), quantoCorr, Null<Real>(), model_->processes()[1]->x0(), false,
            true);
    }

    operator_ =
        QuantLib::ext::make_shared<QuantExt::FdmBlackScholesOp>(mesher_, model_->processes()[0], calibrationStrikes[0], false,
                                                        -static_cast<Real>(Null<Real>()), 0, quantoHelper, false, true);

    // 4 set up bwd solver, hardcoded Douglas scheme (= CrankNicholson)

    solver_ = QuantLib::ext::make_shared<FdmBackwardSolver>(
        operator_, std::vector<QuantLib::ext::shared_ptr<BoundaryCondition<FdmLinearOp>>>(), nullptr, FdmSchemeDesc::Douglas());

    // 5 fill random variable with underlying values, these are valid for all times

    auto locations = mesher_->locations(0);
    underlyingValues_ = exp(RandomVariable(locations));

    // set additional results provided by this model

    for (Size i = 0; i < calibrationStrikes.size(); ++i) {
        additionalResults_["FdBlackScholes.CalibrationStrike_" + indices_[i].name()] =
            (calibrationStrikes[i] == Null<Real>() ? "ATMF" : std::to_string(calibrationStrikes[i]));
    }

    for (Size i = 0; i < indices_.size(); ++i) {
        Size timeStep = 0;
        for (auto const& d : effectiveSimulationDates_) {
            Real t = timeGrid_[positionInTimeGrid_[timeStep]];
            Real forward = atmForward(model_->processes()[i]->x0(), model_->processes()[i]->riskFreeRate(),
                                      model_->processes()[i]->dividendYield(), t);
            if (timeStep > 0) {
                Real volatility = model_->processes()[i]->blackVolatility()->blackVol(
                    t, calibrationStrikes[i] == Null<Real>() ? forward : calibrationStrikes[i]);
                additionalResults_["FdBlackScholes.Volatility_" + indices_[i].name() + "_" + ore::data::to_string(d)] =
                    volatility;
            }
            additionalResults_["FdBlackScholes.Forward_" + indices_[i].name() + "_" + ore::data::to_string(d)] =
                forward;
            ++timeStep;
        }
    }
}

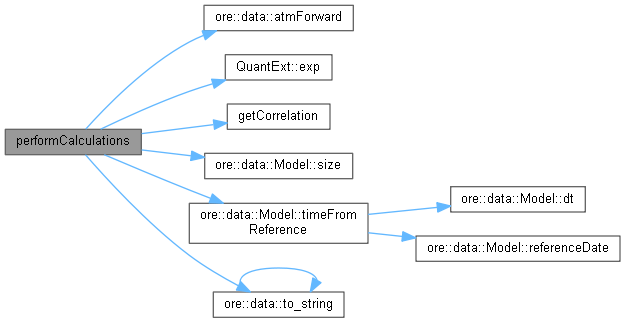

Here is the call graph for this function:

◆ getIndexValue()

RandomVariable getIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null<Date>()`
	)		const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 302 of file fdblackscholesbase.cpp.

                                                                                                         {

    QL_REQUIRE(indexNo == 0, "FdBlackScholesBase::getIndexValue(): indexNo (" << indexNo << ") must be 0");

    // determine the effective forward date (if applicable)

    Date effFwd = fwd;
    if (indices_[indexNo].isComm()) {
        const Date& expiry = indices_[indexNo].comm(d)->expiryDate();
        // if a future is referenced we set the forward date effectively used below to the future's expiry date
        if (expiry != Date())
            effFwd = expiry;
        // if the future expiry is past the obsdate, we return the spot as of the obsdate, i.e. we
        // freeze the future value after its expiry, but keep it available for observation
        // TOOD should we throw an exception instead?
        effFwd = std::max(effFwd, d);
    }

    // init the result with the underlying values themselves

    RandomVariable res(underlyingValues_);

    // compute forwarding factor and multiply the result by this factor

    if (effFwd != Null<Date>()) {
        auto p = model_->processes().at(indexNo);
        res *= RandomVariable(size(), p->dividendYield()->discount(effFwd) / p->dividendYield()->discount(d) /
                                          (p->riskFreeRate()->discount(effFwd) / p->riskFreeRate()->discount(d)));
    }

    // set the observation time in the result random variable
    res.setTime(timeFromReference(d));

    // return the result

    return res;
}

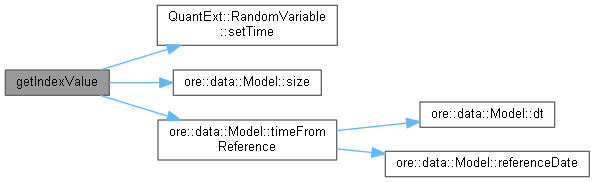

Here is the call graph for this function:

◆ getIrIndexValue()

RandomVariable getIrIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null<Date>()`
	)		const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 340 of file fdblackscholesbase.cpp.

                                                                                                           {
    Date effFixingDate = d;
    if (fwd != Null<Date>())
        effFixingDate = fwd;
    // ensure a valid fixing date
    effFixingDate = irIndices_.at(indexNo).second->fixingCalendar().adjust(effFixingDate);
    return RandomVariable(size(), irIndices_.at(indexNo).second->fixing(effFixingDate));
}

Here is the call graph for this function:

◆ getInfIndexValue()

RandomVariable getInfIndexValue	(	const Size	indexNo,
		const Date &	d,
		const Date &	fwd = `Null<Date>()`
	)		const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 349 of file fdblackscholesbase.cpp.

                                                                                                            {
    Date effFixingDate = d;
    if (fwd != Null<Date>())
        effFixingDate = fwd;
    return RandomVariable(size(), infIndices_.at(indexNo).second->fixing(effFixingDate));
}

Here is the call graph for this function:

◆ getDiscount()

RandomVariable getDiscount	(	const Size	idx,
		const Date &	s,
		const Date &	t
	)		const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 385 of file fdblackscholesbase.cpp.

                                                                                                 {
    return RandomVariable(size(), curves_.at(idx)->discount(t) / curves_.at(idx)->discount(s));
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getNumeraire()

RandomVariable getNumeraire ( const Date & s ) const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 389 of file fdblackscholesbase.cpp.

                                                                   {
    if (!applyQuantoAdjustment_)
        return RandomVariable(size(), 1.0 / curves_.at(0)->discount(s));
    else
        return RandomVariable(size(), 1.0 / curves_.at(quantoTargetCcyIndex_)->discount(s));
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFxSpot()

Real getFxSpot ( const Size idx ) const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 396 of file fdblackscholesbase.cpp.

396{ return fxSpots_.at(idx)->value(); }

◆ getFutureBarrierProb()

RandomVariable getFutureBarrierProb	(	const std::string &	index,
		const Date &	obsdate1,
		const Date &	obsdate2,
		const RandomVariable &	barrier,
		const bool	above
	)		const

overrideprotectedvirtual

Implements ModelImpl.

Definition at line 456 of file fdblackscholesbase.cpp.

                                                                                {
    QL_FAIL("FdBlackScholesBase::getFutureBarrierProb(): not supported");
}

◆ getCorrelation()

Matrix getCorrelation ( ) const

protected

Definition at line 148 of file fdblackscholesbase.cpp.

                                                {
    Matrix correlation(indices_.size(), indices_.size(), 0.0);
    for (Size i = 0; i < indices_.size(); ++i)
        correlation[i][i] = 1.0;
    for (auto const& c : correlations_) {
        IndexInfo inf1(c.first.first), inf2(c.first.second);
        auto ind1 = std::find(indices_.begin(), indices_.end(), inf1);
        auto ind2 = std::find(indices_.begin(), indices_.end(), inf2);
        if (ind1 != indices_.end() && ind2 != indices_.end()) {
            // EQ, FX, COMM index
            Size i1 = std::distance(indices_.begin(), ind1);
            Size i2 = std::distance(indices_.begin(), ind2);
            correlation[i1][i2] = correlation[i2][i1] = c.second->correlation(0.0); // we assume a constant correlation!
        }
    }
    TLOG("FdBlackScholesBase correlation matrix:");
    TLOGGERSTREAM(correlation);
    return correlation;
}

Here is the caller graph for this function:

Member Data Documentation

◆ curves_

const std::vector<Handle<YieldTermStructure> > curves_

protected

Definition at line 109 of file fdblackscholesbase.hpp.

◆ fxSpots_

const std::vector<Handle<Quote> > fxSpots_

protected

Definition at line 110 of file fdblackscholesbase.hpp.

◆ payCcys_

const std::set<std::string> payCcys_

protected

Definition at line 111 of file fdblackscholesbase.hpp.

◆ model_

const Handle<BlackScholesModelWrapper> model_

protected

Definition at line 112 of file fdblackscholesbase.hpp.

◆ correlations_

const std::map<std::pair<std::string, std::string>, Handle<QuantExt::CorrelationTermStructure> > correlations_

protected

Definition at line 113 of file fdblackscholesbase.hpp.

◆ simulationDates_

const std::vector<Date> simulationDates_

protected

Definition at line 114 of file fdblackscholesbase.hpp.

◆ calibration_

const std::string calibration_

protected

Definition at line 115 of file fdblackscholesbase.hpp.

◆ calibrationStrikes_

const std::map<std::string, std::vector<Real> > calibrationStrikes_

protected

Definition at line 116 of file fdblackscholesbase.hpp.

◆ mesherEpsilon_

const Real mesherEpsilon_

protected

Definition at line 117 of file fdblackscholesbase.hpp.

◆ mesherScaling_

const Real mesherScaling_

protected

Definition at line 117 of file fdblackscholesbase.hpp.

◆ mesherConcentration_

const Real mesherConcentration_

protected

Definition at line 117 of file fdblackscholesbase.hpp.

◆ mesherMaxConcentratingPoints_

const Size mesherMaxConcentratingPoints_

protected

Definition at line 118 of file fdblackscholesbase.hpp.

◆ staticMesher_

const bool staticMesher_

protected

Definition at line 119 of file fdblackscholesbase.hpp.

◆ applyQuantoAdjustment_

bool applyQuantoAdjustment_ = false

protected

Definition at line 122 of file fdblackscholesbase.hpp.

◆ quantoSourceCcyIndex_

Size quantoSourceCcyIndex_

protected

Definition at line 123 of file fdblackscholesbase.hpp.

◆ quantoTargetCcyIndex_

Size quantoTargetCcyIndex_

protected

Definition at line 123 of file fdblackscholesbase.hpp.

◆ quantoCorrelationMultiplier_

Real quantoCorrelationMultiplier_

protected

Definition at line 124 of file fdblackscholesbase.hpp.

◆ basisFns_

std::vector<std::function<RandomVariable(const std::vector<const RandomVariable*>&)> > basisFns_

mutableprotected

Definition at line 127 of file fdblackscholesbase.hpp.

◆ referenceDate_

Date referenceDate_

mutableprotected

Definition at line 128 of file fdblackscholesbase.hpp.

◆ effectiveSimulationDates_

std::set<Date> effectiveSimulationDates_

mutableprotected

Definition at line 129 of file fdblackscholesbase.hpp.

◆ timeGrid_

TimeGrid timeGrid_

mutableprotected

Definition at line 130 of file fdblackscholesbase.hpp.

◆ positionInTimeGrid_

std::vector<Size> positionInTimeGrid_

mutableprotected

Definition at line 131 of file fdblackscholesbase.hpp.

◆ mesher_

QuantLib::ext::shared_ptr<FdmMesher> mesher_

mutableprotected

Definition at line 132 of file fdblackscholesbase.hpp.

◆ operator_

QuantLib::ext::shared_ptr<FdmLinearOpComposite> operator_

mutableprotected

Definition at line 133 of file fdblackscholesbase.hpp.

◆ solver_

QuantLib::ext::shared_ptr<FdmBackwardSolver> solver_

mutableprotected

Definition at line 134 of file fdblackscholesbase.hpp.

◆ underlyingValues_

RandomVariable underlyingValues_

mutableprotected

Definition at line 135 of file fdblackscholesbase.hpp.

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FdBlackScholesBase() [1/2]

◆ FdBlackScholesBase() [2/2]

Member Function Documentation

◆ type()

◆ referenceDate()

◆ npv()

◆ fwdCompAvg()

◆ releaseMemory()

◆ extractT0Result()

◆ baseCcy()

◆ pay()

◆ performCalculations()

◆ getIndexValue()

◆ getIrIndexValue()

◆ getInfIndexValue()

◆ getDiscount()

◆ getNumeraire()

◆ getFxSpot()

◆ getFutureBarrierProb()

◆ getCorrelation()

Member Data Documentation

◆ curves_

◆ fxSpots_

◆ payCcys_

◆ model_

◆ correlations_

◆ simulationDates_

◆ calibration_

◆ calibrationStrikes_

◆ mesherEpsilon_

◆ mesherScaling_

◆ mesherConcentration_

◆ mesherMaxConcentratingPoints_

◆ staticMesher_

◆ applyQuantoAdjustment_

◆ quantoSourceCcyIndex_

◆ quantoTargetCcyIndex_

◆ quantoCorrelationMultiplier_

◆ basisFns_

◆ referenceDate_

◆ effectiveSimulationDates_

◆ timeGrid_

◆ positionInTimeGrid_

◆ mesher_

◆ operator_

◆ solver_

◆ underlyingValues_
