Engine Builder for Composite European Equity Options. More...

#include <ored/portfolio/builders/equitycompositeoption.hpp>

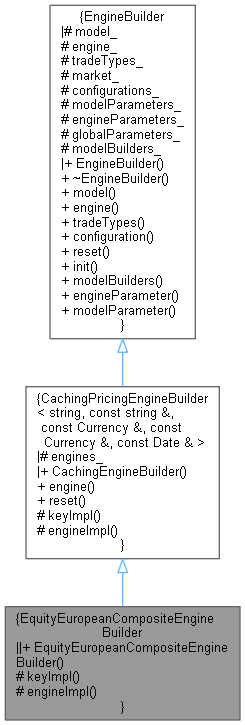

Inheritance diagram for EquityEuropeanCompositeEngineBuilder:

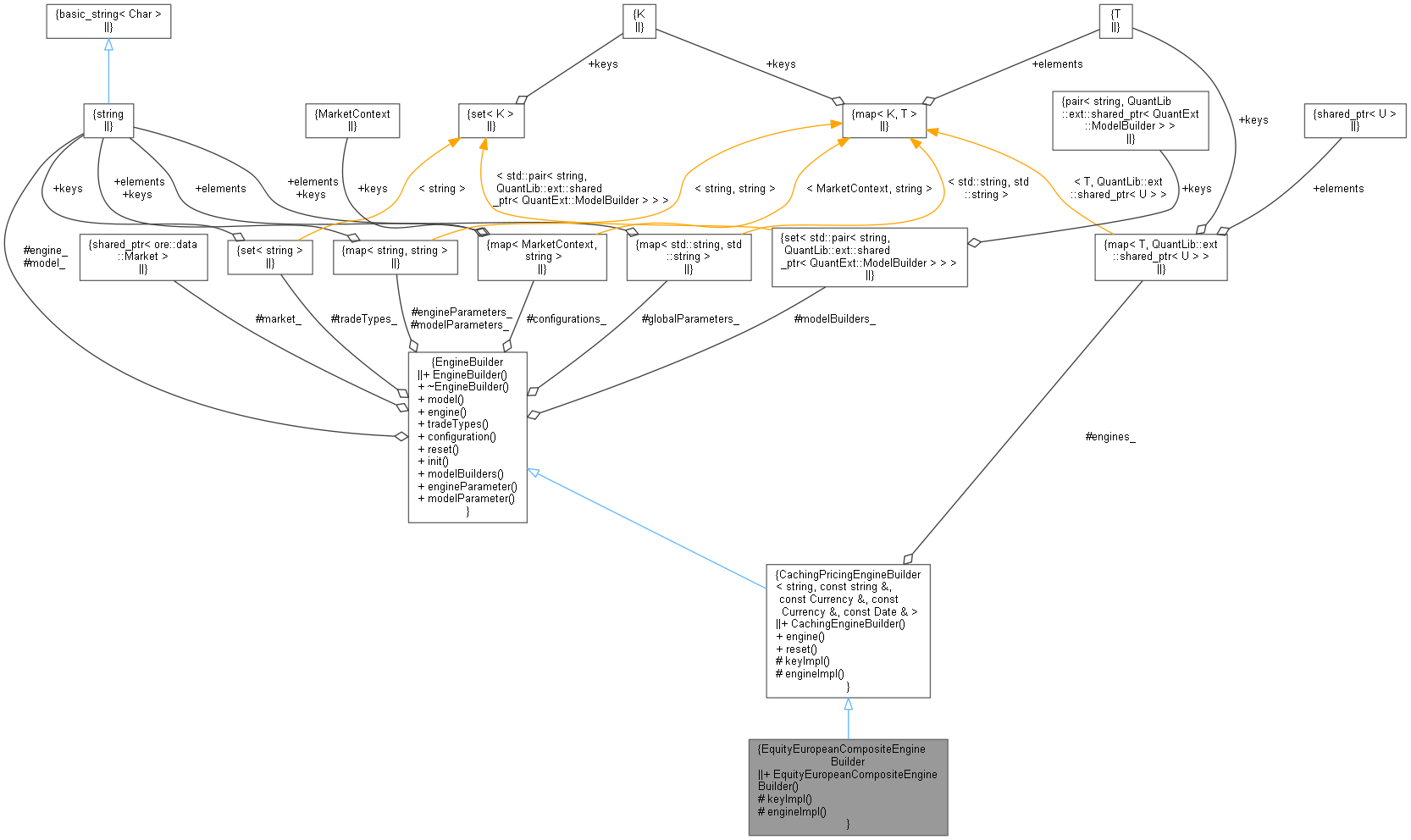

Collaboration diagram for EquityEuropeanCompositeEngineBuilder:

Public Member Functions
	EquityEuropeanCompositeEngineBuilder ()

Public Member Functions inherited from CachingEngineBuilder< T, U, Args >
	CachingEngineBuilder (const string &model, const string &engine, const set< string > &tradeTypes)

QuantLib::ext::shared_ptr< U >	engine (Args... params)
	Return a PricingEngine or a FloatingRateCouponPricer. More...

void	reset () override
	reset the builder (e.g. clear cache) More...

Public Member Functions inherited from EngineBuilder
	EngineBuilder (const string &model, const string &engine, const set< string > &tradeTypes)

virtual	~EngineBuilder ()
	Virtual destructor. More...

const string &	model () const
	Return the model name. More...

const string &	engine () const
	Return the engine name. More...

const set< string > &	tradeTypes () const
	Return the possible trade types. More...

const string &	configuration (const MarketContext &key)
	Return a configuration (or the default one if key not found) More...

virtual void	reset ()
	reset the builder (e.g. clear cache) More...

void	init (const QuantLib::ext::shared_ptr< Market > market, const map< MarketContext, string > &configurations, const map< string, string > &modelParameters, const map< string, string > &engineParameters, const std::map< std::string, std::string > &globalParameters={})
	Initialise this Builder with the market and parameters to use. More...

const set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > > &	modelBuilders () const
	return model builders More...

std::string	engineParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const

std::string	modelParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const

Protected Member Functions
virtual string	keyImpl (const string &equityName, const Currency &equityCcy, const Currency &strikeCcy, const Date &expiry) override

virtual QuantLib::ext::shared_ptr< PricingEngine >	engineImpl (const string &equityName, const Currency &equityCcy, const Currency &strikeCcy, const Date &expiry) override

Protected Member Functions inherited from CachingEngineBuilder< T, U, Args >
virtual T	keyImpl (Args...)=0

virtual QuantLib::ext::shared_ptr< U >	engineImpl (Args...)=0

Additional Inherited Members
Protected Attributes inherited from CachingEngineBuilder< T, U, Args >
map< T, QuantLib::ext::shared_ptr< U > >	engines_

Protected Attributes inherited from EngineBuilder
string	model_

string	engine_

set< string >	tradeTypes_

QuantLib::ext::shared_ptr< Market >	market_

map< MarketContext, string >	configurations_

map< string, string >	modelParameters_

map< string, string >	engineParameters_

std::map< std::string, std::string >	globalParameters_

set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > >	modelBuilders_

Detailed Description

Engine Builder for Composite European Equity Options.

Pricing engines are cached by asset/asset currency/strike currency

Definition at line 45 of file equitycompositeoption.hpp.

Constructor & Destructor Documentation

◆ EquityEuropeanCompositeEngineBuilder()

EquityEuropeanCompositeEngineBuilder ( )

Definition at line 48 of file equitycompositeoption.hpp.

49 : CachingEngineBuilder("BlackScholes", "AnalyticEuropeanEngine", {"EquityEuropeanCompositeOption"}) {}

ore::data::CachingEngineBuilder::CachingEngineBuilder

CachingEngineBuilder(const string &model, const string &engine, const set< string > &tradeTypes)

Definition: cachingenginebuilder.hpp:58

Member Function Documentation

◆ keyImpl()

virtual string keyImpl	(	const string &	equityName,
		const Currency &	equityCcy,
		const Currency &	strikeCcy,
		const Date &	expiry
	)

overrideprotectedvirtual

Definition at line 52 of file equitycompositeoption.hpp.

                                                        {
        return equityName + "/" + equityCcy.code() + "/" + strikeCcy.code() + "/" + to_string(expiry);
    }

Here is the call graph for this function:

◆ engineImpl()

virtual QuantLib::ext::shared_ptr< PricingEngine > engineImpl	(	const string &	equityName,
		const Currency &	equityCcy,
		const Currency &	strikeCcy,
		const Date &	expiry
	)

overrideprotectedvirtual

Definition at line 57 of file equitycompositeoption.hpp.

                                                                                                                {

        string config = this->configuration(ore::data::MarketContext::pricing);

        // FOR = Underlyign CCY and DOM = Strike Currency
        // -> converting underlying ccy into strike ccy by multiply eq spot by fx spot
        string ccyPairCode = equityCcy.code() + strikeCcy.code();

        Handle<Quote> equitySpot = this->market_->equitySpot(equityName, config);
        Handle<Quote> fxSpot = this->market_->fxRate(ccyPairCode, config);

        std::function<Real(const Real&, const Real&)> multiply = [](const Real& a, const Real& b) { return a * b; };

        using scaledQuoted = CompositeQuote<std::function<Real(const Real&, const Real&)>>;

        Handle<Quote> spot(QuantLib::ext::make_shared<scaledQuoted>(equitySpot, fxSpot, multiply));

        auto dividendCurve = this->market_->equityDividendCurve(equityName, config);

        auto equtiyForcastCurve = this->market_->equityForecastCurve(equityName, config);

        auto equityIndex = this->market_->equityCurve(equityName, config);

        Handle<BlackVolTermStructure> eqVol = this->market_->equityVol(equityName, config);
        Handle<BlackVolTermStructure> fxVol = this->market_->fxVol(ccyPairCode, config);

        auto strikeCcyDiscountCurve = this->market_->discountCurve(strikeCcy.code(), config);

        auto fxIndex = market_->fxIndex(equityCcy.code() + strikeCcy.code()).currentLink();

        // Try Catch and 0 correlation fallback
        Handle<QuantExt::CorrelationTermStructure> correlation;
        try {
            correlation = this->market_->correlationCurve(
                "FX-GENERIC-" + equityCcy.code() + "-" + strikeCcy.code(), "EQ-" + equityName, config);
        } catch (...) {
            WLOG("Couldnt find correlation curve "
                 << " FX - GENERIC - " << equityCcy.code() << " -" << strikeCcy.code() << "&EQ - " << equityName << ". will fallback to zero correlation");
            correlation = Handle<QuantExt::CorrelationTermStructure>(QuantLib::ext::make_shared<QuantExt::FlatCorrelation>(0, WeekendsOnly(), 0, Actual365Fixed()));
        }

        Handle<BlackVolTermStructure> vol(
            QuantLib::ext::make_shared<QuantExt::BlackVolatilitySurfaceProxy>(*eqVol, *equityIndex, *equityIndex, *fxVol, fxIndex, *correlation));

        auto blackScholesProcess = QuantLib::ext::make_shared<QuantLib::GeneralizedBlackScholesProcess>(
            spot, dividendCurve, strikeCcyDiscountCurve, vol);

        Handle<YieldTermStructure> discountCurve =
            market_->discountCurve(strikeCcy.code(), configuration(MarketContext::pricing));

        return QuantLib::ext::make_shared<QuantLib::AnalyticEuropeanEngine>(blackScholesProcess, discountCurve);
    }
