Engine Builder for European EQ Digital Options. More...

#include <ored/portfolio/builders/equitydigitaloption.hpp>

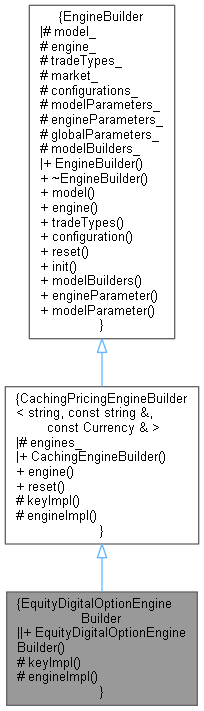

Inheritance diagram for EquityDigitalOptionEngineBuilder:

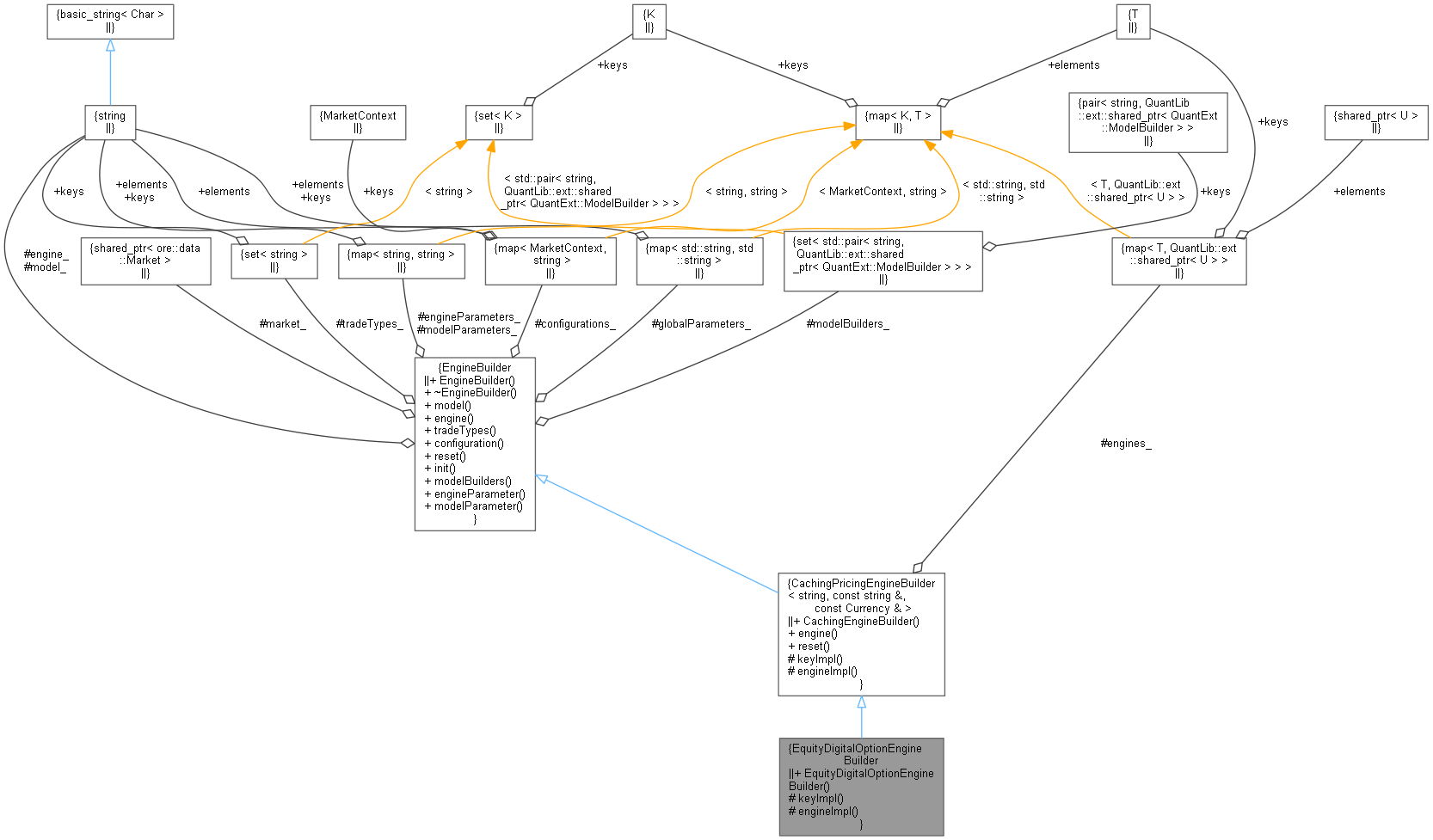

Collaboration diagram for EquityDigitalOptionEngineBuilder:

Public Member Functions
	EquityDigitalOptionEngineBuilder ()

Public Member Functions inherited from CachingEngineBuilder< T, U, Args >
	CachingEngineBuilder (const string &model, const string &engine, const set< string > &tradeTypes)

QuantLib::ext::shared_ptr< U >	engine (Args... params)
	Return a PricingEngine or a FloatingRateCouponPricer. More...

void	reset () override
	reset the builder (e.g. clear cache) More...

Public Member Functions inherited from EngineBuilder
	EngineBuilder (const string &model, const string &engine, const set< string > &tradeTypes)

virtual	~EngineBuilder ()
	Virtual destructor. More...

const string &	model () const
	Return the model name. More...

const string &	engine () const
	Return the engine name. More...

const set< string > &	tradeTypes () const
	Return the possible trade types. More...

const string &	configuration (const MarketContext &key)
	Return a configuration (or the default one if key not found) More...

virtual void	reset ()
	reset the builder (e.g. clear cache) More...

void	init (const QuantLib::ext::shared_ptr< Market > market, const map< MarketContext, string > &configurations, const map< string, string > &modelParameters, const map< string, string > &engineParameters, const std::map< std::string, std::string > &globalParameters={})
	Initialise this Builder with the market and parameters to use. More...

const set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > > &	modelBuilders () const
	return model builders More...

std::string	engineParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const

std::string	modelParameter (const std::string &p, const std::vector< std::string > &qualifiers={}, const bool mandatory=true, const std::string &defaultValue="") const

Protected Member Functions
virtual string	keyImpl (const string &assetName, const Currency &ccy) override

virtual QuantLib::ext::shared_ptr< PricingEngine >	engineImpl (const string &assetName, const Currency &ccy) override

Protected Member Functions inherited from CachingEngineBuilder< T, U, Args >
virtual T	keyImpl (Args...)=0

virtual QuantLib::ext::shared_ptr< U >	engineImpl (Args...)=0

Additional Inherited Members
Protected Attributes inherited from CachingEngineBuilder< T, U, Args >
map< T, QuantLib::ext::shared_ptr< U > >	engines_

Protected Attributes inherited from EngineBuilder
string	model_

string	engine_

set< string >	tradeTypes_

QuantLib::ext::shared_ptr< Market >	market_

map< MarketContext, string >	configurations_

map< string, string >	modelParameters_

map< string, string >	engineParameters_

std::map< std::string, std::string >	globalParameters_

set< std::pair< string, QuantLib::ext::shared_ptr< QuantExt::ModelBuilder > > >	modelBuilders_

Detailed Description

Engine Builder for European EQ Digital Options.

Pricing engines are cached by currency pair

Definition at line 42 of file equitydigitaloption.hpp.

Constructor & Destructor Documentation

◆ EquityDigitalOptionEngineBuilder()

EquityDigitalOptionEngineBuilder ( )

Definition at line 45 of file equitydigitaloption.hpp.

46 : CachingEngineBuilder("BlackScholesMerton", "AnalyticEuropeanEngine", {"EquityDigitalOption"}) {}

ore::data::CachingEngineBuilder::CachingEngineBuilder

CachingEngineBuilder(const string &model, const string &engine, const set< string > &tradeTypes)

Definition: cachingenginebuilder.hpp:58

Member Function Documentation

◆ keyImpl()

virtual string keyImpl	(	const string &	assetName,
		const Currency &	ccy
	)

overrideprotectedvirtual

Definition at line 49 of file equitydigitaloption.hpp.

                                                                                  {
        return assetName + "/" + ccy.code();
    }

◆ engineImpl()

virtual QuantLib::ext::shared_ptr< PricingEngine > engineImpl	(	const string &	assetName,
		const Currency &	ccy
	)

overrideprotectedvirtual

Definition at line 53 of file equitydigitaloption.hpp.

                                                                                                                   {

        QuantLib::ext::shared_ptr<GeneralizedBlackScholesProcess> gbsp = QuantLib::ext::make_shared<GeneralizedBlackScholesProcess>(
            market_->equitySpot(assetName, configuration(ore::data::MarketContext::pricing)),
            market_->equityDividendCurve(assetName, configuration(ore::data::MarketContext::pricing)),
            market_->equityForecastCurve(assetName, configuration(ore::data::MarketContext::pricing)),
            market_->equityVol(assetName, configuration(ore::data::MarketContext::pricing)));

        return QuantLib::ext::make_shared<QuantExt::AnalyticEuropeanEngine>(gbsp);
    }

Here is the call graph for this function:
