Serializable cap, floor, collar. More...

#include <ored/portfolio/capfloor.hpp>

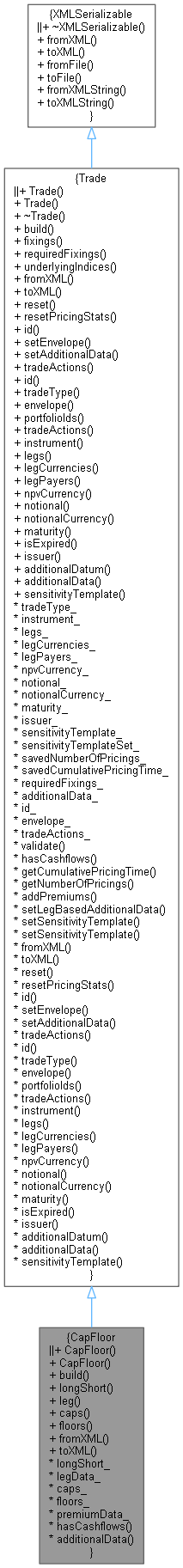

Inheritance diagram for CapFloor:

Collaboration diagram for CapFloor:

Public Member Functions
	CapFloor ()

	CapFloor (const Envelope &env, const string &longShort, const LegData &leg, const vector< double > &caps, const vector< double > &floors, const PremiumData &premiumData={})

virtual void	build (const QuantLib::ext::shared_ptr< EngineFactory > &) override

const string &	longShort () const
	Inspectors. More...

const LegData &	leg () const

const vector< double > &	caps () const

const vector< double > &	floors () const

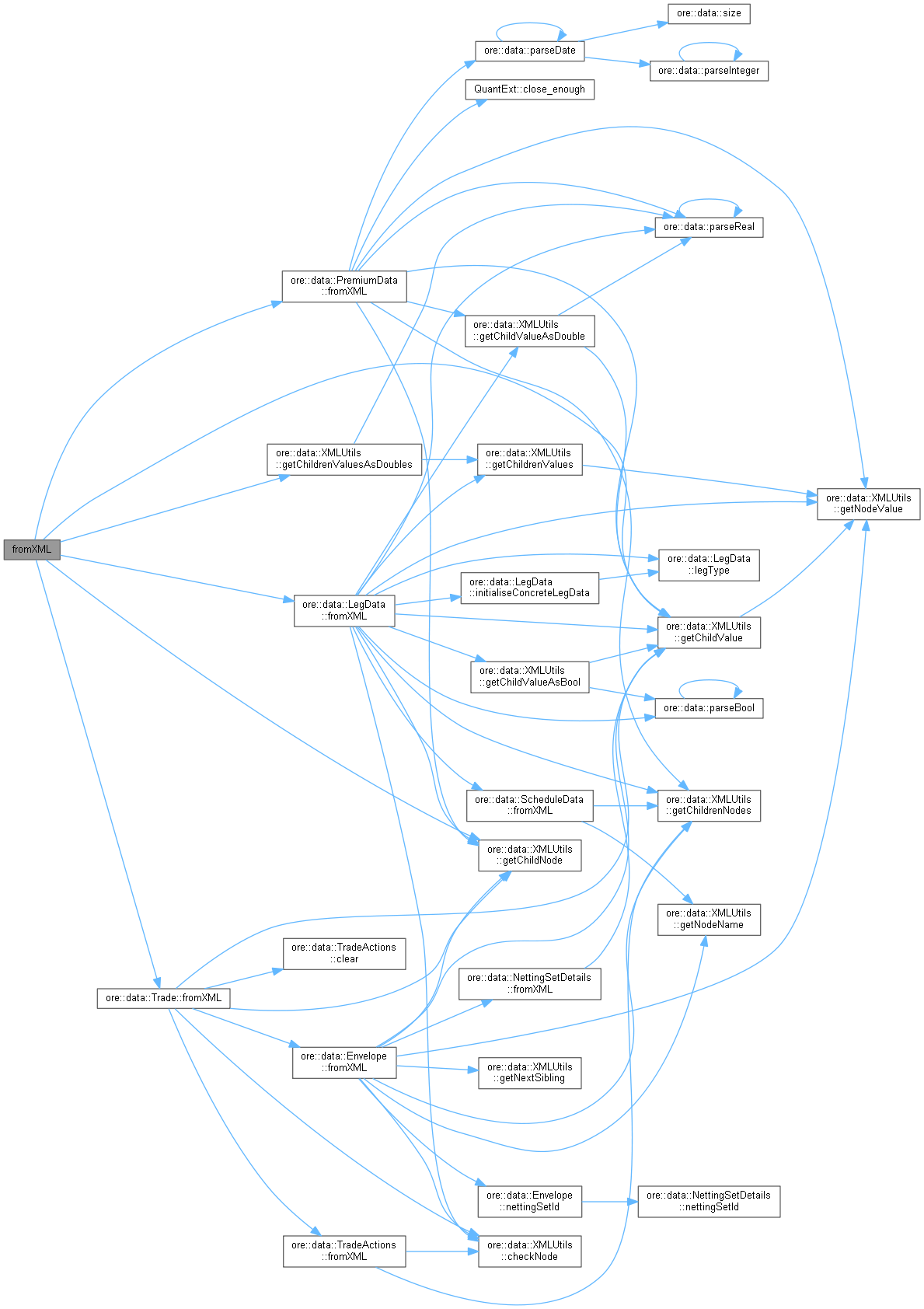

virtual void	fromXML (XMLNode *node) override

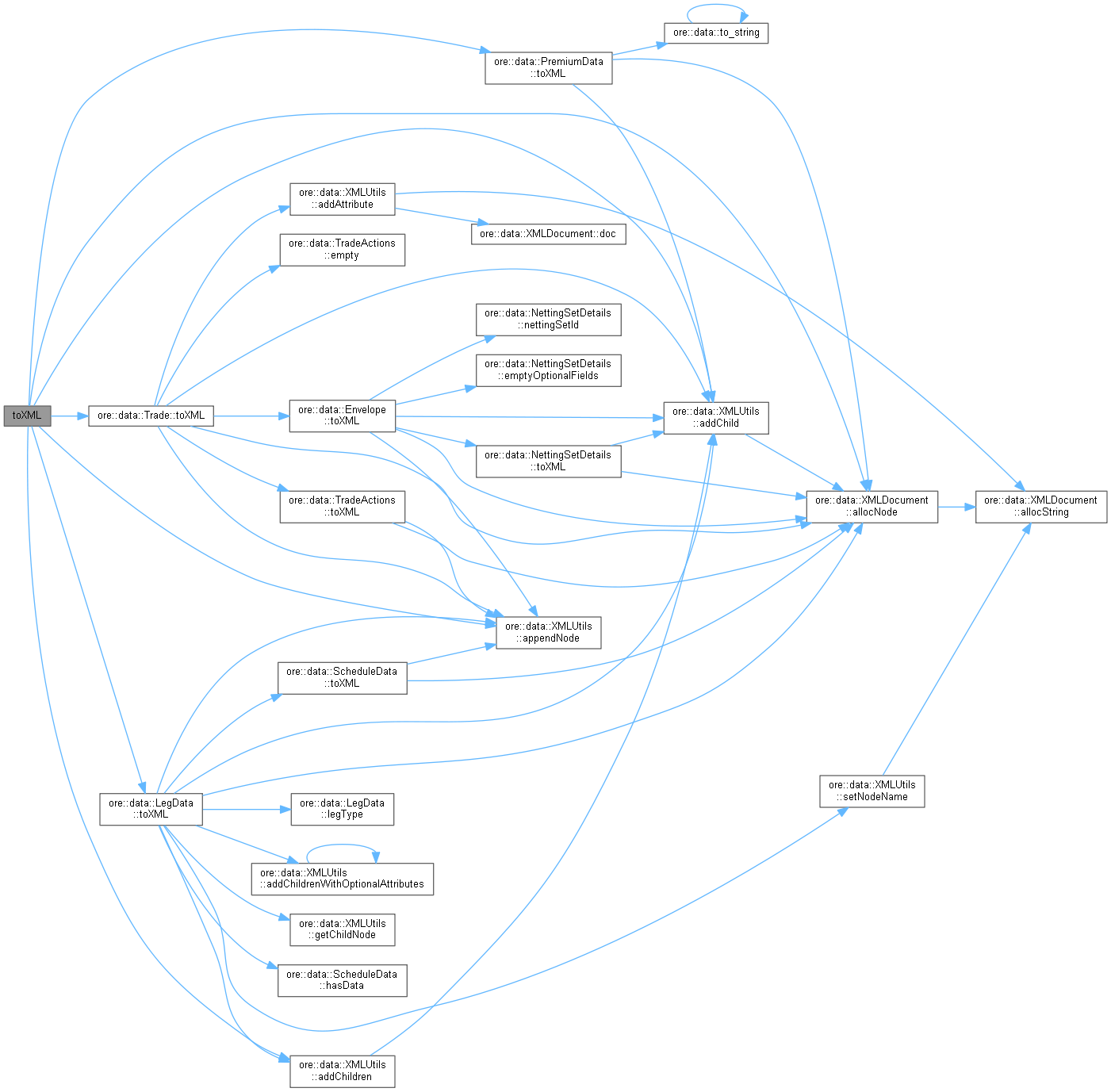

virtual XMLNode *	toXML (XMLDocument &doc) const override

Public Member Functions inherited from Trade
	Trade ()
	Default constructor. More...

	Trade (const string &tradeType, const Envelope &env=Envelope(), const TradeActions &ta=TradeActions())
	Base class constructor. More...

virtual	~Trade ()
	Default destructor. More...

virtual void	build (const QuantLib::ext::shared_ptr< EngineFactory > &)=0

virtual std::map< std::string, RequiredFixings::FixingDates >	fixings (const QuantLib::Date &settlementDate=QuantLib::Date()) const

const RequiredFixings &	requiredFixings () const

virtual std::map< AssetClass, std::set< std::string > >	underlyingIndices (const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceDataManager=nullptr) const

void	reset ()
	Reset trade, clear all base class data. This does not reset accumulated timings for this trade. More...

void	resetPricingStats (const std::size_t numberOfPricings=0, const boost::timer::nanosecond_type cumulativePricingTime=0)
	Reset accumulated timings to given values. More...

string &	id ()
	Set the trade id. More...

void	setEnvelope (const Envelope &envelope)
	Set the envelope with counterparty and portfolio info. More...

void	setAdditionalData (const std::map< std::string, boost::any > &additionalData)

TradeActions &	tradeActions ()
	Set the trade actions. More...

const string &	id () const

const string &	tradeType () const

const Envelope &	envelope () const

const set< string > &	portfolioIds () const

const TradeActions &	tradeActions () const

const QuantLib::ext::shared_ptr< InstrumentWrapper > &	instrument () const

const std::vector< QuantLib::Leg > &	legs () const

const std::vector< string > &	legCurrencies () const

const std::vector< bool > &	legPayers () const

const string &	npvCurrency () const

virtual QuantLib::Real	notional () const
	Return the current notional in npvCurrency. See individual sub-classes for the precise definition. More...

virtual string	notionalCurrency () const

const Date &	maturity () const

virtual bool	isExpired (const Date &d)

const string &	issuer () const

template<typename T >
T	additionalDatum (const std::string &tag) const
	returns any additional datum. More...

const std::string &	sensitivityTemplate () const

void	validate () const
	Utility to validate that everything that needs to be set in this base class is actually set. More...

boost::timer::nanosecond_type	getCumulativePricingTime () const
	Get cumulative timing spent on pricing. More...

std::size_t	getNumberOfPricings () const
	Get number of pricings. More...

Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()

virtual void	fromXML (XMLNode *node)=0

virtual XMLNode *	toXML (XMLDocument &doc) const =0

void	fromFile (const std::string &filename)

void	toFile (const std::string &filename) const

void	fromXMLString (const std::string &xml)
	Parse from XML string. More...

std::string	toXMLString () const
	Parse from XML string. More...

Trade
string	longShort_

LegData	legData_

vector< double >	caps_

vector< double >	floors_

PremiumData	premiumData_

bool	hasCashflows () const override

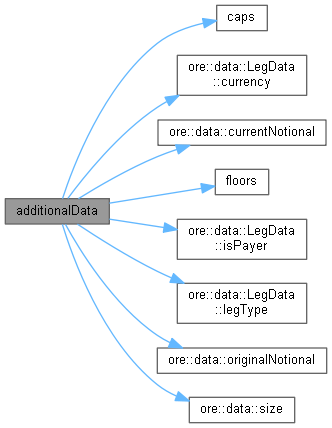

const std::map< std::string, boost::any > &	additionalData () const override
	returns all additional data returned by the trade once built More...

Additional Inherited Members
Protected Member Functions inherited from Trade
Date	addPremiums (std::vector< QuantLib::ext::shared_ptr< Instrument > > &instruments, std::vector< Real > &multipliers, const Real tradeMultiplier, const PremiumData &premiumData, const Real premiumMultiplier, const Currency &tradeCurrency, const QuantLib::ext::shared_ptr< EngineFactory > &factory, const string &configuration)

void	setLegBasedAdditionalData (const Size legNo, Size resultLegId=Null< Size >()) const

void	setSensitivityTemplate (const EngineBuilder &builder)

void	setSensitivityTemplate (const std::string &id)

Protected Attributes inherited from Trade
string	tradeType_

QuantLib::ext::shared_ptr< InstrumentWrapper >	instrument_

std::vector< QuantLib::Leg >	legs_

std::vector< string >	legCurrencies_

std::vector< bool >	legPayers_

string	npvCurrency_

QuantLib::Real	notional_

string	notionalCurrency_

Date	maturity_

string	issuer_

string	sensitivityTemplate_

bool	sensitivityTemplateSet_ = false

std::size_t	savedNumberOfPricings_ = 0

boost::timer::nanosecond_type	savedCumulativePricingTime_ = 0

RequiredFixings	requiredFixings_

std::map< std::string, boost::any >	additionalData_

Detailed Description

Serializable cap, floor, collar.

Definition at line 37 of file capfloor.hpp.

Constructor & Destructor Documentation

◆ CapFloor() [1/2]

CapFloor ( )

Definition at line 39 of file capfloor.hpp.

39: Trade("CapFloor") {}

ore::data::Trade::Trade

Trade()

Default constructor.

Definition: trade.hpp:59

◆ CapFloor() [2/2]

CapFloor	(	const Envelope &	env,
		const string &	longShort,
		const LegData &	leg,
		const vector< double > &	caps,
		const vector< double > &	floors,
		const PremiumData &	premiumData = `{}`
	)

Definition at line 40 of file capfloor.hpp.

                                                                            {})
        : Trade("CapFloor", env), longShort_(longShort), legData_(leg), caps_(caps), floors_(floors),
          premiumData_(premiumData) {}

Member Function Documentation

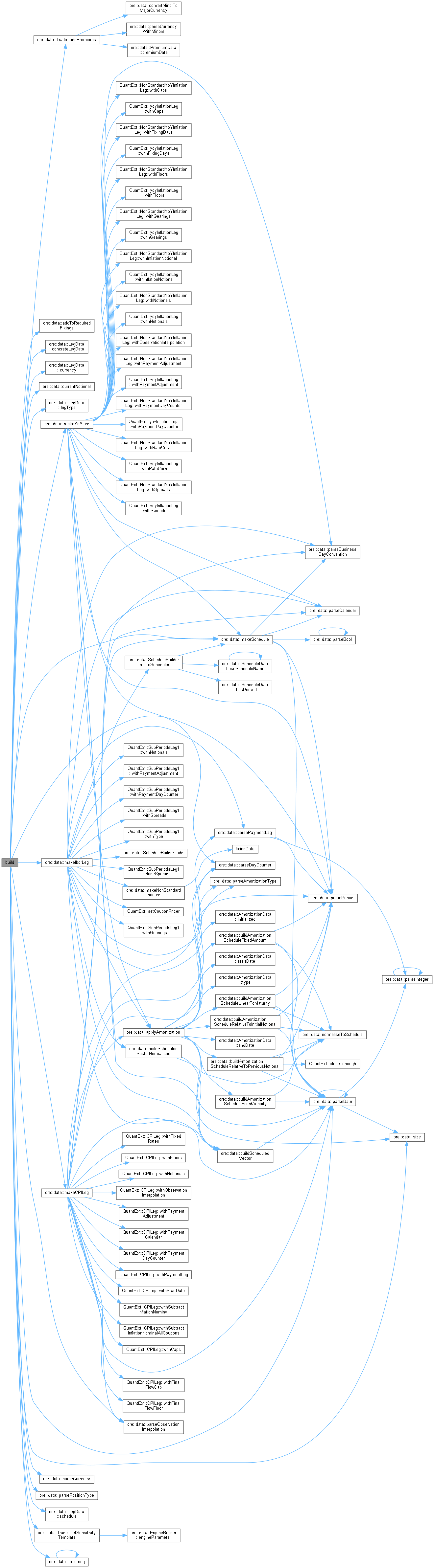

◆ build()

void build ( const QuantLib::ext::shared_ptr< EngineFactory > & )

overridevirtual

Build QuantLib/QuantExt instrument, link pricing engine. If build() is called multiple times, reset() should be called between these calls.

Implements Trade.

Definition at line 49 of file capfloor.cpp.

                                                                              {

    DLOG("CapFloor::build() called for trade " << id() << ", leg type is " << legData_.legType());

    // ISDA taxonomy
    additionalData_["isdaAssetClass"] = string("Interest Rate");
    additionalData_["isdaBaseProduct"] = string("CapFloor");
    additionalData_["isdaSubProduct"] = string("");
    additionalData_["isdaTransaction"] = string("");

    QL_REQUIRE((legData_.legType() == "Floating") || (legData_.legType() == "CMS") ||
                   (legData_.legType() == "DurationAdjustedCMS") || (legData_.legType() == "CMSSpread") ||
                   (legData_.legType() == "CPI") || (legData_.legType() == "YY"),
               "CapFloor build error, LegType must be Floating, CMS, DurationAdjustedCMS, CMSSpread, CPI or YY");

    QL_REQUIRE(caps_.size() > 0 || floors_.size() > 0, "CapFloor build error, no cap rates or floor rates provided");
    QuantLib::CapFloor::Type capFloorType;
    if (floors_.size() == 0) {
        capFloorType = QuantLib::CapFloor::Cap;
    } else if (caps_.size() == 0) {
        capFloorType = QuantLib::CapFloor::Floor;
    } else {
        capFloorType = QuantLib::CapFloor::Collar;
    }

    legs_.clear();
    QuantLib::ext::shared_ptr<EngineBuilder> builder;
    std::string underlyingIndex;
    QuantLib::ext::shared_ptr<QuantLib::Instrument> qlInstrument;

    // Account for long / short multiplier. In the following we expect the qlInstrument to be set up
    // as a long cap resp. a long floor resp. as a collar which by definition is a long cap + short floor
    // (this is opposite to the definition of a leg with naked option = true!)
    // The isPayer flag in the leg data is ignored.
    Real multiplier = (parsePositionType(longShort_) == Position::Long ? 1.0 : -1.0);

    if (legData_.legType() == "Floating") {

        QuantLib::ext::shared_ptr<FloatingLegData> floatData =
            QuantLib::ext::dynamic_pointer_cast<FloatingLegData>(legData_.concreteLegData());
        QL_REQUIRE(floatData, "Wrong LegType, expected Floating, got " << legData_.legType());
        underlyingIndex = floatData->index();
        Handle<IborIndex> hIndex =
            engineFactory->market()->iborIndex(underlyingIndex, engineFactory->configuration(MarketContext::pricing));
        QL_REQUIRE(!hIndex.empty(), "Could not find ibor index " << underlyingIndex << " in market.");
        QuantLib::ext::shared_ptr<IborIndex> index = hIndex.currentLink();
        bool isBma = QuantLib::ext::dynamic_pointer_cast<QuantExt::BMAIndexWrapper>(index) != nullptr;
        bool isOis = QuantLib::ext::dynamic_pointer_cast<QuantExt::OvernightIndex>(index) != nullptr;

        QL_REQUIRE(floatData->caps().empty() && floatData->floors().empty(),
                   "CapFloor build error, Floating leg section must not have caps and floors");

        if (!floatData->hasSubPeriods() || isOis || isBma) {
            // For the cases where we support caps and floors in the regular way, we build a floating leg with
            // the nakedOption flag set to true, this avoids maintaining all features in legs with associated
            // coupon pricers and at the same time in the QuaantLib::CapFloor instrument and pricing engine.
            // The only remaining unsupported case are ibor coupons with sub periods
            LegData tmpLegData = legData_;
            QuantLib::ext::shared_ptr<FloatingLegData> tmpFloatData = QuantLib::ext::make_shared<FloatingLegData>(*floatData);
            tmpFloatData->floors() = floors_;
            tmpFloatData->caps() = caps_;
            tmpFloatData->nakedOption() = true;
            tmpLegData.concreteLegData() = tmpFloatData;
            legs_.push_back(engineFactory->legBuilder(tmpLegData.legType())
                                ->buildLeg(tmpLegData, engineFactory, requiredFixings_,
                                           engineFactory->configuration(MarketContext::pricing)));
            // if both caps and floors are given, we have to use a payer leg, since in this case
            // the StrippedCappedFlooredCoupon used to extract the naked options assumes a long floor
            // and a short cap while we have documented a collar to be a short floor and long cap
            qlInstrument =
                QuantLib::ext::make_shared<QuantLib::Swap>(legs_, std::vector<bool>{!floors_.empty() && !caps_.empty()});
            if (engineFactory->engineData()->hasProduct("Swap")) {
                builder = engineFactory->builder("Swap");
                QuantLib::ext::shared_ptr<SwapEngineBuilderBase> swapBuilder =
                    QuantLib::ext::dynamic_pointer_cast<SwapEngineBuilderBase>(builder);
                QL_REQUIRE(swapBuilder, "No Builder found for Swap " << id());
                qlInstrument->setPricingEngine(swapBuilder->engine(parseCurrency(legData_.currency()), std::string(), std::string()));
                setSensitivityTemplate(*swapBuilder);
            } else {
                qlInstrument->setPricingEngine(
                    QuantLib::ext::make_shared<DiscountingSwapEngine>(engineFactory->market()->discountCurve(legData_.currency())));
            }
            maturity_ = CashFlows::maturityDate(legs_.front());
        } else {
            // For the cases where we don't have regular cap / floor support we treat the index approximately as an Ibor
            // index and build an QuantLib::CapFloor with associated pricing engine. The only remaining case where this
            // is done are Ibor subperiod coupons

            ALOG("CapFloor trade " << id() << " on sub periods Ibor (index = '" << underlyingIndex
                                   << "') built, will ignore sub periods feature");
            builder = engineFactory->builder(tradeType_);
            legs_.push_back(makeIborLeg(legData_, index, engineFactory));

            // If a vector of cap/floor rates are provided, ensure they align with the number of schedule periods
            if (floors_.size() > 1) {
                QL_REQUIRE(floors_.size() == legs_[0].size(),
                           "The number of floor rates provided does not match the number of schedule periods");
            }

            if (caps_.size() > 1) {
                QL_REQUIRE(caps_.size() == legs_[0].size(),
                           "The number of cap rates provided does not match the number of schedule periods");
            }

            // If one cap/floor rate is given, extend the vector to align with the number of schedule periods
            if (floors_.size() == 1)
                floors_.resize(legs_[0].size(), floors_[0]);

            if (caps_.size() == 1)
                caps_.resize(legs_[0].size(), caps_[0]);

            // Create QL CapFloor instrument
            qlInstrument = QuantLib::ext::make_shared<QuantLib::CapFloor>(capFloorType, legs_[0], caps_, floors_);

            QuantLib::ext::shared_ptr<CapFloorEngineBuilder> capFloorBuilder =
                QuantLib::ext::dynamic_pointer_cast<CapFloorEngineBuilder>(builder);
            qlInstrument->setPricingEngine(capFloorBuilder->engine(underlyingIndex));
            setSensitivityTemplate(*capFloorBuilder);

            maturity_ = QuantLib::ext::dynamic_pointer_cast<QuantLib::CapFloor>(qlInstrument)->maturityDate();
        }

    } else if (legData_.legType() == "CMS") {
        builder = engineFactory->builder("Swap");

        QuantLib::ext::shared_ptr<CMSLegData> cmsData = QuantLib::ext::dynamic_pointer_cast<CMSLegData>(legData_.concreteLegData());
        QL_REQUIRE(cmsData, "Wrong LegType, expected CMS");

        underlyingIndex = cmsData->swapIndex();
        Handle<SwapIndex> hIndex =
            engineFactory->market()->swapIndex(underlyingIndex, builder->configuration(MarketContext::pricing));
        QL_REQUIRE(!hIndex.empty(), "Could not find swap index " << underlyingIndex << " in market.");

        QuantLib::ext::shared_ptr<SwapIndex> index = hIndex.currentLink();

        LegData tmpLegData = legData_;
        QuantLib::ext::shared_ptr<CMSLegData> tmpFloatData = QuantLib::ext::make_shared<CMSLegData>(*cmsData);
        tmpFloatData->floors() = floors_;
        tmpFloatData->caps() = caps_;
        tmpFloatData->nakedOption() = true;
        tmpLegData.concreteLegData() = tmpFloatData;
        legs_.push_back(engineFactory->legBuilder(tmpLegData.legType())
                            ->buildLeg(tmpLegData, engineFactory, requiredFixings_,
                                       engineFactory->configuration(MarketContext::pricing)));
        // if both caps and floors are given, we have to use a payer leg, since in this case
        // the StrippedCappedFlooredCoupon used to extract the naked options assumes a long floor
        // and a short cap while we have documented a collar to be a short floor and long cap
        qlInstrument = QuantLib::ext::make_shared<QuantLib::Swap>(legs_, std::vector<bool>{!floors_.empty() && !caps_.empty()});
        if (engineFactory->engineData()->hasProduct("Swap")) {
            builder = engineFactory->builder("Swap");
            QuantLib::ext::shared_ptr<SwapEngineBuilderBase> swapBuilder =
                QuantLib::ext::dynamic_pointer_cast<SwapEngineBuilderBase>(builder);
            QL_REQUIRE(swapBuilder, "No Builder found for Swap " << id());
            qlInstrument->setPricingEngine(swapBuilder->engine(parseCurrency(legData_.currency()), std::string(), std::string()));
            setSensitivityTemplate(*swapBuilder);
        } else {
            qlInstrument->setPricingEngine(
                QuantLib::ext::make_shared<DiscountingSwapEngine>(engineFactory->market()->discountCurve(legData_.currency())));
        }
        maturity_ = CashFlows::maturityDate(legs_.front());

    } else if (legData_.legType() == "DurationAdjustedCMS") {
        auto cmsData = QuantLib::ext::dynamic_pointer_cast<DurationAdjustedCmsLegData>(legData_.concreteLegData());
        QL_REQUIRE(cmsData, "Wrong LegType, expected DurationAdjustedCmsLegData");
        LegData tmpLegData = legData_;
        auto tmpCmsData = QuantLib::ext::make_shared<DurationAdjustedCmsLegData>(*cmsData);
        tmpCmsData->floors() = floors_;
        tmpCmsData->caps() = caps_;
        tmpCmsData->nakedOption() = true;
        tmpLegData.concreteLegData() = tmpCmsData;
        legs_.push_back(engineFactory->legBuilder(tmpLegData.legType())
                            ->buildLeg(tmpLegData, engineFactory, requiredFixings_,
                                       engineFactory->configuration(MarketContext::pricing)));
        // if both caps and floors are given, we have to use a payer leg, since in this case
        // the StrippedCappedFlooredCoupon used to extract the naked options assumes a long floor
        // and a short cap while we have documented a collar to be a short floor and long cap
        qlInstrument = QuantLib::ext::make_shared<QuantLib::Swap>(legs_, std::vector<bool>{!floors_.empty() && !caps_.empty()});
        if (engineFactory->engineData()->hasProduct("Swap")) {
            builder = engineFactory->builder("Swap");
            QuantLib::ext::shared_ptr<SwapEngineBuilderBase> swapBuilder =
                QuantLib::ext::dynamic_pointer_cast<SwapEngineBuilderBase>(builder);
            QL_REQUIRE(swapBuilder, "No Builder found for Swap " << id());
            qlInstrument->setPricingEngine(swapBuilder->engine(parseCurrency(legData_.currency()), std::string(), std::string()));
            setSensitivityTemplate(*swapBuilder);
        } else {
            qlInstrument->setPricingEngine(
                QuantLib::ext::make_shared<DiscountingSwapEngine>(engineFactory->market()->discountCurve(legData_.currency())));
        }
        maturity_ = CashFlows::maturityDate(legs_.front());
    } else if (legData_.legType() == "CMSSpread") {
        builder = engineFactory->builder("Swap");
        QuantLib::ext::shared_ptr<CMSSpreadLegData> cmsSpreadData =
            QuantLib::ext::dynamic_pointer_cast<CMSSpreadLegData>(legData_.concreteLegData());
        QL_REQUIRE(cmsSpreadData, "Wrong LegType, expected CMSSpread");
        LegData tmpLegData = legData_;
        QuantLib::ext::shared_ptr<CMSSpreadLegData> tmpFloatData = QuantLib::ext::make_shared<CMSSpreadLegData>(*cmsSpreadData);
        tmpFloatData->floors() = floors_;
        tmpFloatData->caps() = caps_;
        tmpFloatData->nakedOption() = true;
        tmpLegData.concreteLegData() = tmpFloatData;
        legs_.push_back(engineFactory->legBuilder(tmpLegData.legType())
                            ->buildLeg(tmpLegData, engineFactory, requiredFixings_,
                                       engineFactory->configuration(MarketContext::pricing)));
        // if both caps and floors are given, we have to use a payer leg, since in this case
        // the StrippedCappedFlooredCoupon used to extract the naked options assumes a long floor
        // and a short cap while we have documented a collar to be a short floor and long cap
        qlInstrument = QuantLib::ext::make_shared<QuantLib::Swap>(legs_, std::vector<bool>{!floors_.empty() && !caps_.empty()});
        if (engineFactory->engineData()->hasProduct("Swap")) {
            builder = engineFactory->builder("Swap");
            QuantLib::ext::shared_ptr<SwapEngineBuilderBase> swapBuilder =
                QuantLib::ext::dynamic_pointer_cast<SwapEngineBuilderBase>(builder);
            QL_REQUIRE(swapBuilder, "No Builder found for Swap " << id());
            qlInstrument->setPricingEngine(swapBuilder->engine(parseCurrency(legData_.currency()), std::string(), std::string()));
            setSensitivityTemplate(*swapBuilder);
        } else {
            qlInstrument->setPricingEngine(
                QuantLib::ext::make_shared<DiscountingSwapEngine>(engineFactory->market()->discountCurve(legData_.currency())));
        }
        maturity_ = CashFlows::maturityDate(legs_.front());
    } else if (legData_.legType() == "CPI") {
        DLOG("CPI CapFloor Type " << capFloorType << " ID " << id());

        builder = engineFactory->builder("CpiCapFloor");

        QuantLib::ext::shared_ptr<CPILegData> cpiData = QuantLib::ext::dynamic_pointer_cast<CPILegData>(legData_.concreteLegData());
        QL_REQUIRE(cpiData, "Wrong LegType, expected CPI");

        underlyingIndex = cpiData->index();
        Handle<ZeroInflationIndex> zeroIndex = engineFactory->market()->zeroInflationIndex(
            underlyingIndex, builder->configuration(MarketContext::pricing));

        // the cpi leg uses the first schedule date as the start date, which only makes sense if there are at least
        // two dates in the schedule, otherwise the only date in the schedule is the pay date of the cf and a a separate
        // start date is expected; if both the separate start date and a schedule with more than one date is given
        Date startDate;
        Schedule schedule = makeSchedule(legData_.schedule());

        const string& start = cpiData->startDate();
        if (schedule.size() < 2) {
            QL_REQUIRE(!start.empty(), "Only one schedule date, a 'StartDate' must be given.");
            startDate = parseDate(start);
        } else if (!start.empty()) {
            DLOG("Schedule with more than 2 dates was provided. The first schedule date "
                 << io::iso_date(schedule.dates().front()) << " is used as the start date. The 'StartDate' of " << start
                 << " is not used.");
            startDate = schedule.dates().front();
        }

        Real baseCPI = cpiData->baseCPI();

        QuantLib::ext::shared_ptr<InflationSwapConvention> cpiSwapConvention = nullptr;

        auto inflationConventions = InstrumentConventions::instance().conventions()->get(
            underlyingIndex + "_INFLATIONSWAP", Convention::Type::InflationSwap);

        if (inflationConventions.first)
            cpiSwapConvention = QuantLib::ext::dynamic_pointer_cast<InflationSwapConvention>(inflationConventions.second);

        Period observationLag;
        if (cpiData->observationLag().empty()) {
            QL_REQUIRE(cpiSwapConvention, "observationLag is not specified in legData and couldn't find convention for "
                                              << underlyingIndex
                                              << ". Please add field to trade xml or add convention");
            DLOG("Build CPI Leg and use observation lag from standard inflationswap convention");
            observationLag = cpiSwapConvention->observationLag();
        } else {
            observationLag = parsePeriod(cpiData->observationLag());
        }

        CPI::InterpolationType interpolationMethod;
        if (cpiData->interpolation().empty()) {
            QL_REQUIRE(cpiSwapConvention, "observationLag is not specified in legData and couldn't find convention for "
                                              << underlyingIndex
                                              << ". Please add field to trade xml or add convention");
            DLOG("Build CPI Leg and use observation lag from standard inflationswap convention");
            interpolationMethod = cpiSwapConvention->interpolated() ? CPI::Linear : CPI::Flat;
        } else {
            interpolationMethod = parseObservationInterpolation(cpiData->interpolation());
        }

        Calendar cal = zeroIndex->fixingCalendar();
        BusinessDayConvention conv = Unadjusted; // not used in the CPI CapFloor engine

        QL_REQUIRE(!zeroIndex.empty(), "Zero Inflation Index is empty");

        legs_.push_back(makeCPILeg(legData_, zeroIndex.currentLink(), engineFactory));

        // If a vector of cap/floor rates are provided, ensure they align with the number of schedule periods
        if (floors_.size() > 1) {
            QL_REQUIRE(floors_.size() == legs_[0].size(),
                       "The number of floor rates provided does not match the number of schedule periods");
        }

        if (caps_.size() > 1) {
            QL_REQUIRE(caps_.size() == legs_[0].size(),
                       "The number of cap rates provided does not match the number of schedule periods");
        }

        // If one cap/floor rate is given, extend the vector to align with the number of schedule periods
        if (floors_.size() == 1)
            floors_.resize(legs_[0].size(), floors_[0]);

        if (caps_.size() == 1)
            caps_.resize(legs_[0].size(), caps_[0]);

        QuantLib::ext::shared_ptr<CpiCapFloorEngineBuilder> capFloorBuilder =
            QuantLib::ext::dynamic_pointer_cast<CpiCapFloorEngineBuilder>(builder);

        // Create QL CPI CapFloor instruments and add to a composite
        qlInstrument = QuantLib::ext::make_shared<CompositeInstrument>();
        maturity_ = Date::minDate();
        for (Size i = 0; i < legs_[0].size(); ++i) {
            DLOG("Create composite " << i);
            Real nominal, gearing;
            Date paymentDate;
            QuantLib::ext::shared_ptr<CPICoupon> coupon = QuantLib::ext::dynamic_pointer_cast<CPICoupon>(legs_[0][i]);
            QuantLib::ext::shared_ptr<CPICashFlow> cashflow = QuantLib::ext::dynamic_pointer_cast<CPICashFlow>(legs_[0][i]);
            if (coupon) {
                nominal = coupon->nominal();
                gearing = coupon->fixedRate() * coupon->accrualPeriod();
                paymentDate = coupon->date();
            } else if (cashflow) {
                nominal = cashflow->notional();
                gearing = 1.0; // no gearing here
                paymentDate = cashflow->date();
            } else {
                QL_FAIL("Failed to interpret CPI flow");
            }

            if (capFloorType == QuantLib::CapFloor::Cap || capFloorType == QuantLib::CapFloor::Collar) {
                QuantLib::ext::shared_ptr<CPICapFloor> capfloor = QuantLib::ext::make_shared<CPICapFloor>(
                    Option::Call, nominal, startDate, baseCPI, paymentDate, cal, conv, cal, conv, caps_[i], zeroIndex,
                    observationLag, interpolationMethod);
                capfloor->setPricingEngine(capFloorBuilder->engine(underlyingIndex));
                setSensitivityTemplate(*capFloorBuilder);
                QuantLib::ext::dynamic_pointer_cast<QuantLib::CompositeInstrument>(qlInstrument)->add(capfloor, gearing);
                maturity_ = std::max(maturity_, capfloor->payDate());
            }

            if (capFloorType == QuantLib::CapFloor::Floor || capFloorType == QuantLib::CapFloor::Collar) {
                // for collars we want a long cap, short floor
                Real sign = capFloorType == QuantLib::CapFloor::Floor ? 1.0 : -1.0;
                QuantLib::ext::shared_ptr<CPICapFloor> capfloor = QuantLib::ext::make_shared<CPICapFloor>(
                    Option::Put, nominal, startDate, baseCPI, paymentDate, cal, conv, cal, conv, floors_[i], zeroIndex,
                    observationLag, interpolationMethod);
                capfloor->setPricingEngine(capFloorBuilder->engine(underlyingIndex));
                setSensitivityTemplate(*capFloorBuilder);
                QuantLib::ext::dynamic_pointer_cast<QuantLib::CompositeInstrument>(qlInstrument)->add(capfloor, sign * gearing);
                maturity_ = std::max(maturity_, capfloor->payDate());
            }
        }

    } else if (legData_.legType() == "YY") {
        builder = engineFactory->builder("YYCapFloor");

        QuantLib::ext::shared_ptr<YoYLegData> yyData = QuantLib::ext::dynamic_pointer_cast<YoYLegData>(legData_.concreteLegData());
        QL_REQUIRE(yyData, "Wrong LegType, expected YY");

        underlyingIndex = yyData->index();
        Handle<YoYInflationIndex> yoyIndex;
        // look for yoy inflation index
        yoyIndex =
            engineFactory->market()->yoyInflationIndex(underlyingIndex, builder->configuration(MarketContext::pricing));

        // we must have either an yoy or a zero inflation index in the market, if no yoy curve, get the zero
        // and create a yoy index from it
        if (yoyIndex.empty()) {
            Handle<ZeroInflationIndex> zeroIndex = engineFactory->market()->zeroInflationIndex(
                underlyingIndex, builder->configuration(MarketContext::pricing));
            QL_REQUIRE(!zeroIndex.empty(), "Could not find inflation index (of type either zero or yoy) "
                                               << underlyingIndex << " in market.");
            yoyIndex = Handle<YoYInflationIndex>(QuantLib::ext::make_shared<QuantExt::YoYInflationIndexWrapper>(
                zeroIndex.currentLink(), false));
        }

        legs_.push_back(makeYoYLeg(legData_, yoyIndex.currentLink(), engineFactory));

        // If a vector of cap/floor rates are provided, ensure they align with the number of schedule periods
        if (floors_.size() > 1) {
            QL_REQUIRE(floors_.size() == legs_[0].size(),
                       "The number of floor rates provided does not match the number of schedule periods");
        }

        if (caps_.size() > 1) {
            QL_REQUIRE(caps_.size() == legs_[0].size(),
                       "The number of cap rates provided does not match the number of schedule periods");
        }

        // If one cap/floor rate is given, extend the vector to align with the number of schedule periods
        if (floors_.size() == 1)
            floors_.resize(legs_[0].size(), floors_[0]);

        if (caps_.size() == 1)
            caps_.resize(legs_[0].size(), caps_[0]);

        // Create QL YoY Inflation CapFloor instrument
        if (capFloorType == QuantLib::CapFloor::Cap) {
            qlInstrument = QuantLib::ext::shared_ptr<YoYInflationCapFloor>(new YoYInflationCap(legs_[0], caps_));
        } else if (capFloorType == QuantLib::CapFloor::Floor) {
            qlInstrument = QuantLib::ext::shared_ptr<YoYInflationCapFloor>(new YoYInflationFloor(legs_[0], floors_));
        } else if (capFloorType == QuantLib::CapFloor::Collar) {
            qlInstrument = QuantLib::ext::shared_ptr<YoYInflationCapFloor>(
                new YoYInflationCapFloor(QuantLib::YoYInflationCapFloor::Collar, legs_[0], caps_, floors_));
        } else {
            QL_FAIL("unknown YoYInflation cap/floor type");
        }

        QuantLib::ext::shared_ptr<YoYCapFloorEngineBuilder> capFloorBuilder =
            QuantLib::ext::dynamic_pointer_cast<YoYCapFloorEngineBuilder>(builder);
        qlInstrument->setPricingEngine(capFloorBuilder->engine(underlyingIndex));
        setSensitivityTemplate(*capFloorBuilder);

        // Wrap the QL instrument in a vanilla instrument

        maturity_ = QuantLib::ext::dynamic_pointer_cast<QuantLib::YoYInflationCapFloor>(qlInstrument)->maturityDate();
    } else {
        QL_FAIL("Invalid legType " << legData_.legType() << " for CapFloor");
    }

    // Fill in remaining Trade member data

    QL_REQUIRE(legs_.size() == 1, "internal error, expected one leg in cap floor builder, got " << legs_.size());

    legCurrencies_.push_back(legData_.currency());
    legPayers_.push_back(false); // already accounted for via the instrument multiplier
    npvCurrency_ = legData_.currency();
    notionalCurrency_ = legData_.currency();
    notional_ = currentNotional(legs_[0]);

    // add premiums

    std::vector<QuantLib::ext::shared_ptr<Instrument>> additionalInstruments;
    std::vector<Real> additionalMultipliers;
    maturity_ = std::max(maturity_, addPremiums(additionalInstruments, additionalMultipliers, multiplier, premiumData_,
                                                -multiplier, parseCurrency(legData_.currency()), engineFactory,
                                                engineFactory->configuration(MarketContext::pricing)));

    // set instrument
    instrument_ =
        QuantLib::ext::make_shared<VanillaInstrument>(qlInstrument, multiplier, additionalInstruments, additionalMultipliers);

    // axdd required fixings
    auto fdg = QuantLib::ext::make_shared<FixingDateGetter>(requiredFixings_);
    for (auto const& l : legs_)
        addToRequiredFixings(l, fdg);

    Date startDate = Date::maxDate();
    for (auto const& l : legs_) {
        if (!l.empty()) {
            startDate = std::min(startDate, l.front()->date());
            QuantLib::ext::shared_ptr<Coupon> coupon = QuantLib::ext::dynamic_pointer_cast<Coupon>(l.front());
            if (coupon)
                startDate = std::min(startDate, coupon->accrualStartDate());
        }
    }

    additionalData_["startDate"] = to_string(startDate);
}

Here is the call graph for this function:

◆ longShort()

const string & longShort ( ) const

Inspectors.

Definition at line 49 of file capfloor.hpp.

49{ return longShort_; }

◆ leg()

const LegData & leg ( ) const

Definition at line 50 of file capfloor.hpp.

50{ return legData_; }

◆ caps()

const vector< double > & caps ( ) const

Definition at line 51 of file capfloor.hpp.

51{ return caps_; }

Here is the caller graph for this function:

◆ floors()

const vector< double > & floors ( ) const

Definition at line 52 of file capfloor.hpp.

52{ return floors_; }

Here is the caller graph for this function:

◆ fromXML()

void fromXML ( XMLNode * node )

overridevirtual

Reimplemented from Trade.

Definition at line 778 of file capfloor.cpp.

                                    {
    Trade::fromXML(node);
    XMLNode* capFloorNode = XMLUtils::getChildNode(node, "CapFloorData");
    longShort_ = XMLUtils::getChildValue(capFloorNode, "LongShort", true);
    legData_.fromXML(XMLUtils::getChildNode(capFloorNode, "LegData"));
    caps_ = XMLUtils::getChildrenValuesAsDoubles(capFloorNode, "Caps", "Cap");
    floors_ = XMLUtils::getChildrenValuesAsDoubles(capFloorNode, "Floors", "Floor");
    premiumData_.fromXML(capFloorNode);
}

Here is the call graph for this function:

◆ toXML()

XMLNode * toXML ( XMLDocument & doc ) const

overridevirtual

Reimplemented from Trade.

Definition at line 788 of file capfloor.cpp.

                                               {
    XMLNode* node = Trade::toXML(doc);
    XMLNode* capFloorNode = doc.allocNode("CapFloorData");
    XMLUtils::appendNode(node, capFloorNode);
    XMLUtils::addChild(doc, capFloorNode, "LongShort", longShort_);
    XMLUtils::appendNode(capFloorNode, legData_.toXML(doc));
    XMLUtils::addChildren(doc, capFloorNode, "Caps", "Cap", caps_);
    XMLUtils::addChildren(doc, capFloorNode, "Floors", "Floor", floors_);
    XMLUtils::appendNode(capFloorNode, premiumData_.toXML(doc));
    return node;
}

Here is the call graph for this function:

◆ hasCashflows()

bool hasCashflows ( ) const

overridevirtual

Utility method indicating if the trade has cashflows for the cashflow report. The default implementation returns true so that a trade is automatically considered when cashflows are being written. To prevent a trade from being asked for its cashflows, the method can be overridden to return false.

Reimplemented from Trade.

Definition at line 60 of file capfloor.hpp.

60{ return true; }

◆ additionalData()

const std::map< std::string, boost::any > & additionalData ( ) const

overridevirtual

returns all additional data returned by the trade once built

Reimplemented from Trade.

Definition at line 508 of file capfloor.cpp.

                                                                  {
    // use the build time as of date to determine current notionals
    Date asof = Settings::instance().evaluationDate();

    additionalData_["legType"] = legData_.legType();
    additionalData_["isPayer"] = legData_.isPayer();
    additionalData_["notionalCurrency"] = legData_.currency();
    for (Size j = 0; !legs_.empty() && j < legs_[0].size(); ++j) {
        QuantLib::ext::shared_ptr<CashFlow> flow = legs_[0][j];
        // pick flow with earliest future payment date on this leg
        if (flow->date() > asof) {
            QuantLib::ext::shared_ptr<Coupon> coupon = QuantLib::ext::dynamic_pointer_cast<Coupon>(flow);
            if (coupon) {
                Real currentNotional = 0;
                try {
                    currentNotional = coupon->nominal();
                } catch (std::exception& e) {
                    ALOG("current notional could not be determined for trade " << id()
                                                                               << ", set to zero: " << e.what());
                }
                additionalData_["currentNotional"] = currentNotional;

                QuantLib::ext::shared_ptr<FloatingRateCoupon> frc = QuantLib::ext::dynamic_pointer_cast<FloatingRateCoupon>(flow);
                if (frc) {
                    additionalData_["index"] = frc->index()->name();
                }
            }
            break;
        }
    }
    if (!legs_.empty() && legs_[0].size() > 0) {
        QuantLib::ext::shared_ptr<Coupon> coupon = QuantLib::ext::dynamic_pointer_cast<Coupon>(legs_[0][0]);
        if (coupon) {
            Real originalNotional = 0.0;
            try {
                originalNotional = coupon->nominal();
            } catch (std::exception& e) {
                ALOG("original nominal could not be determined for trade " << id() << ", set to zero: " << e.what());
            }
            additionalData_["originalNotional"] = originalNotional;
        }
    }

    vector<Real> amounts;
    vector<Date> paymentDates;
    vector<Real> currentNotionals;
    vector<Rate> rates;
    vector<Date> fixingDates;
    vector<Rate> indexFixings;
    vector<Spread> spreads;
    vector<Rate> caps;
    vector<Rate> effectiveCaps;
    vector<Volatility> capletVols;
    vector<Volatility> effectiveCapletVols;
    vector<Real> capletAmounts;
    vector<Rate> floors;
    vector<Rate> effectiveFloors;
    vector<Volatility> floorletVols;
    vector<Volatility> effectiveFloorletVols;
    vector<Real> floorletAmounts;

    try {
        if (!legs_.empty()) {
            for (const auto& flow : legs_[0]) {
                // pick flow with earliest future payment date on this leg
                if (flow->date() > asof) {
                    amounts.push_back(flow->amount());
                    paymentDates.push_back(flow->date());
                    QuantLib::ext::shared_ptr<Coupon> coupon = QuantLib::ext::dynamic_pointer_cast<Coupon>(flow);
                    if (coupon) {
                        currentNotionals.push_back(coupon->nominal());
                        rates.push_back(coupon->rate());
                        QuantLib::ext::shared_ptr<FloatingRateCoupon> frc =
                            QuantLib::ext::dynamic_pointer_cast<FloatingRateCoupon>(flow);
                        if (frc) {
                            fixingDates.push_back(frc->fixingDate());

                            // indexFixing for overnight indices
                            if (auto on = QuantLib::ext::dynamic_pointer_cast<QuantExt::AverageONIndexedCoupon>(frc)) {
                                indexFixings.push_back((on->rate() - on->spread()) / on->gearing());
                            } else if (auto on = QuantLib::ext::dynamic_pointer_cast<QuantExt::OvernightIndexedCoupon>(frc)) {
                                indexFixings.push_back((on->rate() - on->effectiveSpread()) / on->gearing());
                            } else if (auto c =
                                           QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredOvernightIndexedCoupon>(
                                               frc)) {
                                indexFixings.push_back((c->underlying()->rate() - c->underlying()->effectiveSpread()) /
                                                       c->underlying()->gearing());
                            } else if (auto c =
                                           QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredAverageONIndexedCoupon>(
                                               frc)) {
                                indexFixings.push_back((c->underlying()->rate() - c->underlying()->spread()) /
                                                       c->underlying()->gearing());
                            }
                            // indexFixing for BMA and subPeriod Coupons
                            else if (auto c = QuantLib::ext::dynamic_pointer_cast<QuantLib::AverageBMACoupon>(frc)) {
                                indexFixings.push_back((c->rate() - c->spread()) / c->gearing());
                            } else if (auto c =
                                           QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredAverageBMACoupon>(frc)) {
                                indexFixings.push_back((c->underlying()->rate() - c->underlying()->spread()) /
                                                       c->underlying()->gearing());
                            } else if (auto sp = QuantLib::ext::dynamic_pointer_cast<QuantExt::SubPeriodsCoupon1>(frc))
                                indexFixings.push_back((sp->rate() - sp->spread()) / sp->gearing());
                            else {
                                // this sets indexFixing to the last single overnight fixing
                                indexFixings.push_back(frc->indexFixing());
                            }

                            spreads.push_back(frc->spread());

                            // The below code adds cap/floor levels, vols, and amounts
                            // for capped/floored Ibor coupons and overnight coupons
                            QuantLib::ext::shared_ptr<CashFlow> c = flow;
                            if (auto strippedCfc = QuantLib::ext::dynamic_pointer_cast<StrippedCappedFlooredCoupon>(flow)) {
                                c = strippedCfc->underlying();
                            }

                            if (auto cfc = QuantLib::ext::dynamic_pointer_cast<CappedFlooredCoupon>(c)) {
                                // enfore coupon pricer to hold the results of the current coupon
                                cfc->deepUpdate();
                                cfc->amount();
                                QuantLib::ext::shared_ptr<IborCouponPricer> pricer =
                                    QuantLib::ext::dynamic_pointer_cast<IborCouponPricer>(cfc->pricer());
                                if (pricer && (cfc->fixingDate() > asof)) {
                                    // We write the vols if an Ibor coupon pricer is found and the fixing date is in the
                                    // future
                                    if (cfc->isCapped()) {
                                        caps.push_back(cfc->cap());
                                        const Rate effectiveCap = cfc->effectiveCap();
                                        effectiveCaps.push_back(effectiveCap);
                                        capletVols.push_back(
                                            pricer->capletVolatility()->volatility(cfc->fixingDate(), effectiveCap));
                                        capletAmounts.push_back(pricer->capletRate(effectiveCap) *
                                                                coupon->accrualPeriod() * coupon->nominal());
                                    }
                                    if (cfc->isFloored()) {
                                        floors.push_back(cfc->floor());
                                        const Rate effectiveFloor = cfc->effectiveFloor();
                                        effectiveFloors.push_back(effectiveFloor);
                                        floorletVols.push_back(
                                            pricer->capletVolatility()->volatility(cfc->fixingDate(), effectiveFloor));
                                        floorletAmounts.push_back(pricer->floorletRate(effectiveFloor) *
                                                                  coupon->accrualPeriod() * coupon->nominal());
                                    }
                                }
                            } else if (auto tmp =
                                           QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredOvernightIndexedCoupon>(
                                               c)) {
                                tmp->deepUpdate();
                                tmp->amount();
                                QuantLib::ext::shared_ptr<QuantExt::CappedFlooredOvernightIndexedCouponPricer> pricer =
                                    QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredOvernightIndexedCouponPricer>(
                                        tmp->pricer());
                                if (pricer && (tmp->fixingDate() > asof)) {
                                    if (tmp->isCapped()) {
                                        caps.push_back(tmp->cap());
                                        const Rate effectiveCap = tmp->effectiveCap();
                                        effectiveCaps.push_back(effectiveCap);
                                        capletVols.push_back(
                                            pricer->capletVolatility()->volatility(tmp->fixingDate(), effectiveCap));
                                        capletAmounts.push_back(pricer->capletRate(effectiveCap) *
                                                                coupon->accrualPeriod() * coupon->nominal());
                                        effectiveCapletVols.push_back(tmp->effectiveCapletVolatility());
                                    }
                                    if (tmp->isFloored()) {
                                        floors.push_back(tmp->floor());
                                        const Rate effectiveFloor = tmp->effectiveFloor();
                                        effectiveFloors.push_back(effectiveFloor);
                                        floorletVols.push_back(
                                            pricer->capletVolatility()->volatility(tmp->fixingDate(), effectiveFloor));
                                        floorletAmounts.push_back(pricer->floorletRate(effectiveFloor) *
                                                                  coupon->accrualPeriod() * coupon->nominal());
                                        effectiveFloorletVols.push_back(tmp->effectiveFloorletVolatility());
                                    }
                                }
                            } else if (auto tmp =
                                           QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredAverageONIndexedCoupon>(
                                               c)) {
                                tmp->deepUpdate();
                                tmp->amount();
                                QuantLib::ext::shared_ptr<QuantExt::CapFlooredAverageONIndexedCouponPricer> pricer =
                                    QuantLib::ext::dynamic_pointer_cast<QuantExt::CapFlooredAverageONIndexedCouponPricer>(
                                        tmp->pricer());
                                if (pricer && (tmp->fixingDate() > asof)) {
                                    if (tmp->isCapped()) {
                                        caps.push_back(tmp->cap());
                                        const Rate effectiveCap = tmp->effectiveCap();
                                        effectiveCaps.push_back(effectiveCap);
                                        capletVols.push_back(
                                            pricer->capletVolatility()->volatility(tmp->fixingDate(), effectiveCap));
                                        capletAmounts.push_back(pricer->capletRate(effectiveCap) *
                                                                coupon->accrualPeriod() * coupon->nominal());
                                        effectiveCapletVols.push_back(tmp->effectiveCapletVolatility());
                                    }
                                    if (tmp->isFloored()) {
                                        floors.push_back(tmp->floor());
                                        const Rate effectiveFloor = tmp->effectiveFloor();
                                        effectiveFloors.push_back(effectiveFloor);
                                        floorletVols.push_back(
                                            pricer->capletVolatility()->volatility(tmp->fixingDate(), effectiveFloor));
                                        floorletAmounts.push_back(pricer->floorletRate(effectiveFloor) *
                                                                  coupon->accrualPeriod() * coupon->nominal());
                                        effectiveFloorletVols.push_back(tmp->effectiveFloorletVolatility());
                                    }
                                }

                            } else if (auto tmp =
                                           QuantLib::ext::dynamic_pointer_cast<QuantExt::CappedFlooredAverageBMACoupon>(c)) {
                                tmp->deepUpdate();
                                tmp->amount();
                                QuantLib::ext::shared_ptr<QuantExt::CapFlooredAverageBMACouponPricer> pricer =
                                    QuantLib::ext::dynamic_pointer_cast<QuantExt::CapFlooredAverageBMACouponPricer>(
                                        tmp->pricer());
                                if (pricer && (tmp->fixingDate() > asof)) {
                                    if (tmp->isCapped()) {
                                        caps.push_back(tmp->cap());
                                        const Rate effectiveCap = tmp->effectiveCap();
                                        effectiveCaps.push_back(effectiveCap);
                                        capletVols.push_back(
                                            pricer->capletVolatility()->volatility(tmp->fixingDate(), effectiveCap));
                                        capletAmounts.push_back(pricer->capletRate(effectiveCap) *
                                                                coupon->accrualPeriod() * coupon->nominal());
                                        effectiveCapletVols.push_back(tmp->effectiveCapletVolatility());
                                    }
                                    if (tmp->isFloored()) {
                                        floors.push_back(tmp->floor());
                                        const Rate effectiveFloor = tmp->effectiveFloor();
                                        effectiveFloors.push_back(effectiveFloor);
                                        floorletVols.push_back(
                                            pricer->capletVolatility()->volatility(tmp->fixingDate(), effectiveFloor));
                                        floorletAmounts.push_back(pricer->floorletRate(effectiveFloor) *
                                                                  coupon->accrualPeriod() * coupon->nominal());
                                        effectiveFloorletVols.push_back(tmp->effectiveFloorletVolatility());
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }

        additionalData_["amounts"] = amounts;
        additionalData_["paymentDates"] = paymentDates;
        additionalData_["currentNotionals"] = currentNotionals;
        additionalData_["rates"] = rates;
        additionalData_["fixingDates"] = fixingDates;
        additionalData_["indexFixings"] = indexFixings;
        additionalData_["spreads"] = spreads;
        if (caps.size() > 0) {
            additionalData_["caps"] = caps;
            additionalData_["effectiveCaps"] = effectiveCaps;
            additionalData_["capletVols"] = capletVols;
            additionalData_["capletAmounts"] = capletAmounts;
            additionalData_["effectiveCapletVols"] = effectiveCapletVols;
        }
        if (floors.size() > 0) {
            additionalData_["floors"] = floors;
            additionalData_["effectiveFloors"] = effectiveFloors;
            additionalData_["floorletVols"] = floorletVols;
            additionalData_["floorletAmounts"] = floorletAmounts;
            additionalData_["effectiveFloorletVols"] = effectiveFloorletVols;
        }

    } catch (std::exception& e) {
        ALOG("error getting additional data for capfloor trade " << id() << ". " << e.what());
    }

    return additionalData_;
}

Here is the call graph for this function:

Member Data Documentation

◆ longShort_

string longShort_

private

Definition at line 66 of file capfloor.hpp.

◆ legData_

LegData legData_

private

Definition at line 67 of file capfloor.hpp.

◆ caps_

vector<double> caps_

private

Definition at line 68 of file capfloor.hpp.

◆ floors_

vector<double> floors_

private

Definition at line 69 of file capfloor.hpp.

◆ premiumData_

PremiumData premiumData_

private

Definition at line 70 of file capfloor.hpp.

Public Member Functions

Trade

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CapFloor() [1/2]

◆ CapFloor() [2/2]

Member Function Documentation

◆ build()

◆ longShort()

◆ leg()

◆ caps()

◆ floors()

◆ fromXML()

◆ toXML()

◆ hasCashflows()

◆ additionalData()

Member Data Documentation

◆ longShort_

◆ legData_

◆ caps_

◆ floors_

◆ premiumData_
