ScriptGrammar Struct Reference

#include <ored/scripting/grammar.hpp>

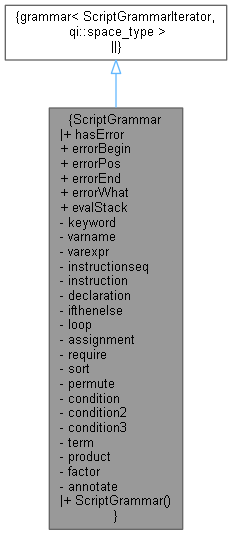

+ Inheritance diagram for ScriptGrammar:

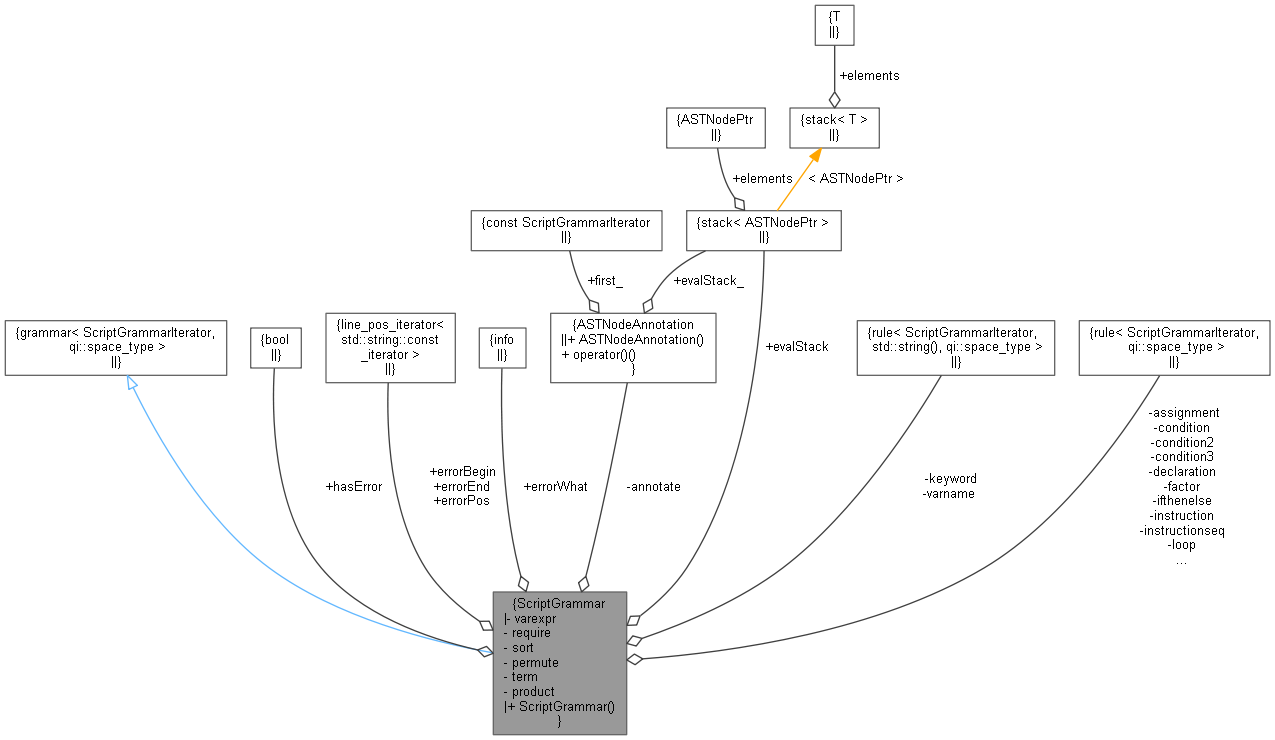

+ Collaboration diagram for ScriptGrammar:

Public Member Functions

 ScriptGrammar (ScriptGrammarIterator first)


Public Attributes

bool hasError

ScriptGrammarIterator errorBegin

ScriptGrammarIterator errorPos

ScriptGrammarIterator errorEnd

boost::spirit::info errorWhat

std::stack< ASTNodePtr > evalStack


Private Attributes

qi::rule< ScriptGrammarIterator, std::string(), qi::space_type > keyword

qi::rule< ScriptGrammarIterator, std::string(), qi::space_type > varname

qi::rule< ScriptGrammarIterator, qi::space_type > varexpr

qi::rule< ScriptGrammarIterator, qi::space_type > instructionseq

qi::rule< ScriptGrammarIterator, qi::space_type > instruction

qi::rule< ScriptGrammarIterator, qi::space_type > declaration

qi::rule< ScriptGrammarIterator, qi::space_type > ifthenelse

qi::rule< ScriptGrammarIterator, qi::space_type > loop

qi::rule< ScriptGrammarIterator, qi::space_type > assignment

qi::rule< ScriptGrammarIterator, qi::space_type > require

qi::rule< ScriptGrammarIterator, qi::space_type > sort

qi::rule< ScriptGrammarIterator, qi::space_type > permute

qi::rule< ScriptGrammarIterator, qi::space_type > condition

qi::rule< ScriptGrammarIterator, qi::space_type > condition2

qi::rule< ScriptGrammarIterator, qi::space_type > condition3

qi::rule< ScriptGrammarIterator, qi::space_type > term

qi::rule< ScriptGrammarIterator, qi::space_type > product

qi::rule< ScriptGrammarIterator, qi::space_type > factor

ASTNodeAnnotation annotate


Detailed Description

Definition at line 60 of file grammar.hpp.

Constructor & Destructor Documentation

◆ ScriptGrammar()

ScriptGrammar ( ScriptGrammarIterator  first)

Definition at line 77 of file grammar.cpp.

78 : ScriptGrammar::base_type(instructionseq, "OREPayoffScript"), hasError(false), errorWhat(""),
79 annotate(evalStack, first) {
80
81 // clang-format off
82
83 keyword %= qi::lexeme[ ( qi::lit("IF") | qi::lit("THEN") | qi::lit("ELSE") | qi::lit("END") | qi::lit("FOR") | qi::lit("IN") | qi::lit("DO")
84 | qi::lit("NUMBER") | qi::lit("REQUIRE") | qi::lit("OR") | qi::lit("AND") | qi::lit("abs") | qi::lit("exp") | qi::lit("ln")
85 | qi::lit("sqrt") | qi::lit("normalCdf") | qi::lit("normalPdf") | qi::lit("max") | qi::lit("min") | qi::lit("pow") | qi::lit("black")
86 | qi::lit("dcf") | qi::lit("days") | qi::lit("PAY") | qi::lit("NPVMEM") | qi::lit("DISCOUNT") | qi::lit("SIZE") | qi::lit("SORT")
87 | qi::lit("PERMUTE") | qi::lit("LOGPAY") | qi::lit("HISTFIXING") | qi::lit("FWDCOMP") | qi::lit("FWDAVG") | qi::lit("ABOVEPROB")
88 | qi::lit("BELOWPROB") | qi::lit("NPV") | qi::lit("DATEINDEX")
89 ) >> !(qi::alnum | qi::char_('_')) ];
90
91 varname %= qi::lexeme[ (qi::alpha | qi::char_('_')) >> *(qi::alnum | qi::char_('_')) ] - keyword;
92
93 varexpr = ((varname >> '[') > term > ']') [ createASTNode<VariableNode, std::string>(evalStack, 1) ]
94 | varname [ createASTNode<VariableNode, std::string>(evalStack, 0) ];
95
96 instructionseq = instruction [ createASTNode<SequenceNode>(evalStack, 1) ]
97 > *(instruction [ collapseASTNode<SequenceNode>(evalStack, 1) ]);
98
99 instruction = (assignment | require | declaration | ifthenelse | loop | sort | permute) > ";";
100
101 declaration = "NUMBER" > varexpr [ createASTNode<DeclarationNumberNode>(evalStack, 1) ]
102 > *(',' > varexpr [ collapseASTNode<DeclarationNumberNode>(evalStack, 1) ]);
103
104 ifthenelse = "IF" > condition > "THEN" > instructionseq >
105 ( qi::lit("END") [ createASTNode<IfThenElseNode>(evalStack, 2)]
106 | ("ELSE" > instructionseq > "END") [ createASTNode<IfThenElseNode>(evalStack, 3)]);
107
108 loop =
109 ("FOR" > varname > "IN" > '(' > term > ',' > term > ',' > term > ')'
110 > "DO" > instructionseq > "END") [ createASTNode<LoopNode, std::string>(evalStack, 4) ];
111
112 assignment = varexpr > '=' > term [ createASTNode<AssignmentNode>(evalStack, 2) ];
113
114 require = "REQUIRE" > condition [ createASTNode<RequireNode>(evalStack, 1) ];
115
116 sort = "SORT" > qi::lit('(') > (varexpr >
117 ( qi::lit(')') [ createASTNode<SortNode>(evalStack, 1) ]
118 | (qi::lit(',') > varexpr >
119 ( qi::lit(')') [ createASTNode<SortNode>(evalStack, 2) ]
120 | (qi::lit(',') > varexpr > qi::lit(')')) [ createASTNode<SortNode>(evalStack, 3) ]))));
121
122 permute = "PERMUTE" > qi::lit('(') > (varexpr >
123 ( qi::lit(',') > varexpr >
124 ( qi::lit(')') [ createASTNode<PermuteNode>(evalStack, 2) ]
125 | (qi::lit(',') > varexpr > qi::lit(')')) [ createASTNode<PermuteNode>(evalStack, 3) ])));
126
127 condition = condition2 > *(("OR" > condition2) [ createASTNode<ConditionOrNode>(evalStack, 2, true) ] );
128 condition2 = condition3 > *(("AND" > condition3) [ createASTNode<ConditionAndNode>(evalStack, 2, true) ] );
129 condition3 = ('{' > condition > '}')
130 | (term > ( ("==" > term) [ createASTNode<ConditionEqNode>(evalStack, 2) ]
131 | ("!=" > term) [ createASTNode<ConditionNeqNode>(evalStack, 2) ]
132 | (">=" > term) [ createASTNode<ConditionGeqNode>(evalStack, 2) ]
133 | (">" > term) [ createASTNode<ConditionGtNode>(evalStack, 2) ]
134 | ("<=" > term) [ createASTNode<ConditionLeqNode>(evalStack, 2) ]
135 | ("<" > term) [ createASTNode<ConditionLtNode>(evalStack, 2) ] ));
136
137 term = product > *( ('+' > product) [ createASTNode<OperatorPlusNode>(evalStack, 2,true) ]
138 | ('-' > product) [ createASTNode<OperatorMinusNode>(evalStack, 2, true) ] );
139 product = factor > *( ('*' > factor) [ createASTNode<OperatorMultiplyNode>(evalStack, 2, true) ]
140 | ('/' > factor) [ createASTNode<OperatorDivideNode>(evalStack, 2, true) ] );
141 factor = ('(' > term > ')')
142 | (varexpr > -( '(' > varexpr >
143 ( (qi::lit(')') [ createASTNode<VarEvaluationNode>(evalStack, 2) ]
144 | (',' > varexpr > ')') [ createASTNode<VarEvaluationNode>(evalStack, 3) ] ))))
145 | qi::double_ [ createASTNode<ConstantNumberNode, double>(evalStack, 0) ]
146 | ('-' > factor) [ createASTNode<NegateNode>(evalStack, 1) ]
147 | (qi::lit("abs") > "(" > term > ')') [ createASTNode<FunctionAbsNode>(evalStack, 1) ]
148 | (qi::lit("exp") > "(" > term > ')') [ createASTNode<FunctionExpNode>(evalStack, 1) ]
149 | (qi::lit("ln") > "(" > term > ')') [ createASTNode<FunctionLogNode>(evalStack, 1) ]
150 | (qi::lit("sqrt") > "(" > term > ')') [ createASTNode<FunctionSqrtNode>(evalStack, 1) ]
151 | (qi::lit("normalCdf") > "(" > term > ')') [ createASTNode<FunctionNormalCdfNode>(evalStack, 1) ]
152 | (qi::lit("normalPdf") > "(" > term > ')') [ createASTNode<FunctionNormalPdfNode>(evalStack, 1) ]
153 | (qi::lit("max") > "(" > term > ',' > term > ')') [ createASTNode<FunctionMaxNode>(evalStack, 2) ]
154 | (qi::lit("min") > "(" > term > ',' > term > ')') [ createASTNode<FunctionMinNode>(evalStack, 2) ]
155 | (qi::lit("pow") > "(" > term > ',' > term > ')') [ createASTNode<FunctionPowNode>(evalStack, 2) ]
156 | (qi::lit("black") > "(" > term > ',' > term > ',' > term > ',' > term > ',' > term > ',' > term > ')')
157 [ createASTNode<FunctionBlackNode>(evalStack, 6) ]
158 | (qi::lit("dcf") > "(" > varexpr > ',' > varexpr > ',' > varexpr > ')')
159 [ createASTNode<FunctionDcfNode>(evalStack, 3) ]
160 | (qi::lit("days") > "(" > varexpr > ',' > varexpr > ',' > varexpr > ')')
161 [ createASTNode<FunctionDaysNode>(evalStack, 3) ]
162 | (qi::lit("PAY") > "(" > term > ',' > term > ',' > term > ',' > term > ')')
163 [ createASTNode<FunctionPayNode>(evalStack, 4) ]
164 | (qi::lit("LOGPAY") > "(" > term > ',' > term > ',' > term > ',' > term >
165 ( qi::lit(')') [ createASTNode<FunctionLogPayNode>(evalStack, 4) ]
166 | (qi::lit(',') > term > ',' > varexpr >
167 ( qi::lit(')') [ createASTNode<FunctionLogPayNode>(evalStack, 6) ]
168 | (qi::lit(',') > term > ")") [ createASTNode<FunctionLogPayNode>(evalStack, 7) ]))))
169 | (qi::lit("NPVMEM") > "(" > term > ',' > term > ',' > term >
170 ( qi::lit(')') [ createASTNode<FunctionNpvMemNode>(evalStack, 3) ]
171 | (qi::lit(',') > condition >
172 ( qi::lit(')') [ createASTNode<FunctionNpvMemNode>(evalStack, 4) ]
173 | (qi::lit(',') > term >
174 ( qi::lit(')') [ createASTNode<FunctionNpvMemNode>(evalStack, 5) ]
175 | (qi::lit(',') > term > ')') [ createASTNode<FunctionNpvMemNode>(evalStack, 6) ]))))))
176 | (qi::lit("NPV") > "(" > term > ',' > term >
177 ( qi::lit(')') [ createASTNode<FunctionNpvNode>(evalStack, 2) ]
178 | (qi::lit(',') > condition >
179 ( qi::lit(')') [ createASTNode<FunctionNpvNode>(evalStack, 3) ]
180 | (qi::lit(',') > term >
181 ( qi::lit(')') [ createASTNode<FunctionNpvNode>(evalStack, 4) ]
182 | (qi::lit(',') > term > ')') [ createASTNode<FunctionNpvNode>(evalStack, 5) ]))))))
183 | (qi::lit("DISCOUNT") > "(" > term > ',' > term > ',' > term > ')')
184 [ createASTNode<FunctionDiscountNode>(evalStack, 3) ]
185 | (qi::lit("SIZE") > "(" > varname > ')') [ createASTNode<SizeOpNode, std::string>(evalStack, 0) ]
186 | (qi::lit("HISTFIXING") > "(" > varexpr > ',' > varexpr > ')')
187 [ createASTNode<HistFixingNode>(evalStack, 2) ]
188 | (qi::lit("FWDCOMP") > "(" > varexpr > ',' > varexpr > ',' > varexpr > ',' > varexpr >
189 ( qi::lit(')') [ createASTNode<FunctionFwdCompNode>(evalStack, 4) ]
190 | (qi::lit(',') > term > ',' > term >
191 ( qi::lit(')') [ createASTNode<FunctionFwdCompNode>(evalStack, 6) ]
192 | (qi::lit(',') > term > ',' > term > ',' > term > ',' > term >
193 ( qi::lit(')') [ createASTNode<FunctionFwdCompNode>(evalStack, 10) ]
194 | (qi::lit(',') > term > ',' > term > ',' > term > ',' > term > ')') [ createASTNode<FunctionFwdCompNode>(evalStack, 14) ]))))))
195 | (qi::lit("FWDAVG") > "(" > varexpr > ',' > varexpr > ',' > varexpr > ',' > varexpr >
196 ( qi::lit(')') [ createASTNode<FunctionFwdAvgNode>(evalStack, 4) ]
197 | (qi::lit(',') > term > ',' > term >
198 ( qi::lit(')') [ createASTNode<FunctionFwdAvgNode>(evalStack, 6) ]
199 | (qi::lit(',') > term > ',' > term > ',' > term > ',' > term >
200 ( qi::lit(')') [ createASTNode<FunctionFwdAvgNode>(evalStack, 10) ]
201 | (qi::lit(',') > term > ',' > term > ',' > term > ',' > term > ')') [ createASTNode<FunctionFwdAvgNode>(evalStack, 14) ]))))))
202 | (qi::lit("ABOVEPROB") > "(" > varexpr > ',' > varexpr > ',' > varexpr > ',' > term > ")")
203 [ createASTNode<FunctionAboveProbNode>(evalStack, 4) ]
204 | (qi::lit("BELOWPROB") > "(" > varexpr > ',' > varexpr > ',' > varexpr > ',' > term > ")")
205 [ createASTNode<FunctionBelowProbNode>(evalStack, 4) ]
206 | (qi::lit("DATEINDEX") > "(" > varexpr > ',' > varname > ',' > varname > ")")
207 [ createASTNode<FunctionDateIndexNode, boost::fusion::vector<std::string, std::string>>(evalStack, 1) ];
208
209 // clang-format on
210
211 // name rules
212 varname.name("VarName");
213 varexpr.name("VarExpr");
214 instructionseq.name("InstructionSequence");
215 instruction.name("Instruction");
216 declaration.name("Declaration");
217 ifthenelse.name("IfThenElse");
218 loop.name("Loop");
219 assignment.name("Assignment");
220 require.name("Require");
221 sort.name("Sort");
222 sort.name("Permute");
223 condition.name("Condition");
224 condition2.name("Condition2");
225 condition3.name("Condition3");
226 term.name("Term");
227 product.name("Product");
228 factor.name("Factor");
229
230 // ast node annotation
231 auto set_location_info = phoenix::bind(&ASTNodeAnnotation::operator(), &annotate, qi::_1, qi::_3);
232 qi::on_success(varexpr, set_location_info);
233 qi::on_success(instructionseq, set_location_info);
234 qi::on_success(instruction, set_location_info);
235 qi::on_success(declaration, set_location_info);
236 qi::on_success(ifthenelse, set_location_info);
237 qi::on_success(loop, set_location_info);
238 qi::on_success(assignment, set_location_info);
239 qi::on_success(require, set_location_info);
240 qi::on_success(sort, set_location_info);
241 qi::on_success(permute, set_location_info);
242 qi::on_success(condition, set_location_info);
243 qi::on_success(condition2, set_location_info);
244 qi::on_success(condition3, set_location_info);
245 qi::on_success(term, set_location_info);
246 qi::on_success(product, set_location_info);
247 qi::on_success(factor, set_location_info);
248
249 // error handling
250 auto errorHandler =
251 (phoenix::ref(hasError) = true, phoenix::ref(errorBegin) = qi::_1, phoenix::ref(errorEnd) = qi::_2,
252 phoenix::ref(errorPos) = qi::_3, phoenix::ref(errorWhat) = qi::_4);
253 qi::on_error<qi::fail>(instructionseq, errorHandler);
254}
ore::data::ScriptGrammar::loop
qi::rule< ScriptGrammarIterator, qi::space_type > loop
Definition: grammar.hpp:69
ore::data::ScriptGrammar::condition2
qi::rule< ScriptGrammarIterator, qi::space_type > condition2
Definition: grammar.hpp:70
ore::data::ScriptGrammar::errorBegin
ScriptGrammarIterator errorBegin
Definition: grammar.hpp:63
ore::data::ScriptGrammar::instructionseq
qi::rule< ScriptGrammarIterator, qi::space_type > instructionseq
Definition: grammar.hpp:69
ore::data::ScriptGrammar::require
qi::rule< ScriptGrammarIterator, qi::space_type > require
Definition: grammar.hpp:70
ore::data::ScriptGrammar::evalStack
std::stack< ASTNodePtr > evalStack
Definition: grammar.hpp:65
ore::data::ScriptGrammar::ifthenelse
qi::rule< ScriptGrammarIterator, qi::space_type > ifthenelse
Definition: grammar.hpp:69
ore::data::ScriptGrammar::annotate
ASTNodeAnnotation annotate
Definition: grammar.hpp:71
ore::data::ScriptGrammar::instruction
qi::rule< ScriptGrammarIterator, qi::space_type > instruction
Definition: grammar.hpp:69
ore::data::ScriptGrammar::errorEnd
ScriptGrammarIterator errorEnd
Definition: grammar.hpp:63
ore::data::ScriptGrammar::permute
qi::rule< ScriptGrammarIterator, qi::space_type > permute
Definition: grammar.hpp:70
ore::data::ScriptGrammar::declaration
qi::rule< ScriptGrammarIterator, qi::space_type > declaration
Definition: grammar.hpp:69
ore::data::ScriptGrammar::assignment
qi::rule< ScriptGrammarIterator, qi::space_type > assignment
Definition: grammar.hpp:70
ore::data::ScriptGrammar::keyword
qi::rule< ScriptGrammarIterator, std::string(), qi::space_type > keyword
Definition: grammar.hpp:68
ore::data::ScriptGrammar::varexpr
qi::rule< ScriptGrammarIterator, qi::space_type > varexpr
Definition: grammar.hpp:69
ore::data::ScriptGrammar::factor
qi::rule< ScriptGrammarIterator, qi::space_type > factor
Definition: grammar.hpp:70
ore::data::ScriptGrammar::sort
qi::rule< ScriptGrammarIterator, qi::space_type > sort
Definition: grammar.hpp:70
ore::data::ScriptGrammar::product
qi::rule< ScriptGrammarIterator, qi::space_type > product
Definition: grammar.hpp:70
ore::data::ScriptGrammar::term
qi::rule< ScriptGrammarIterator, qi::space_type > term
Definition: grammar.hpp:70
ore::data::ScriptGrammar::condition
qi::rule< ScriptGrammarIterator, qi::space_type > condition
Definition: grammar.hpp:70
ore::data::ScriptGrammar::condition3
qi::rule< ScriptGrammarIterator, qi::space_type > condition3
Definition: grammar.hpp:70
ore::data::ScriptGrammar::errorPos
ScriptGrammarIterator errorPos
Definition: grammar.hpp:63
ore::data::ScriptGrammar::errorWhat
boost::spirit::info errorWhat
Definition: grammar.hpp:64
ore::data::ScriptGrammar::varname
qi::rule< ScriptGrammarIterator, std::string(), qi::space_type > varname
Definition: grammar.hpp:68

Member Data Documentation

◆ hasError

bool hasError

Definition at line 62 of file grammar.hpp.

◆ errorBegin

ScriptGrammarIterator errorBegin

Definition at line 63 of file grammar.hpp.

◆ errorPos

ScriptGrammarIterator errorPos

Definition at line 63 of file grammar.hpp.

◆ errorEnd

ScriptGrammarIterator errorEnd

Definition at line 63 of file grammar.hpp.

◆ errorWhat

boost::spirit::info errorWhat

Definition at line 64 of file grammar.hpp.

◆ evalStack

std::stack<ASTNodePtr> evalStack

Definition at line 65 of file grammar.hpp.

◆ keyword

qi::rule<ScriptGrammarIterator, std::string(), qi::space_type> keyword
private

Definition at line 68 of file grammar.hpp.

◆ varname

qi::rule<ScriptGrammarIterator, std::string(), qi::space_type> varname
private

Definition at line 68 of file grammar.hpp.

◆ varexpr

qi::rule<ScriptGrammarIterator, qi::space_type> varexpr
private

Definition at line 69 of file grammar.hpp.

◆ instructionseq

qi::rule<ScriptGrammarIterator, qi::space_type> instructionseq
private

Definition at line 69 of file grammar.hpp.

◆ instruction

qi::rule<ScriptGrammarIterator, qi::space_type> instruction
private

Definition at line 69 of file grammar.hpp.

◆ declaration

qi::rule<ScriptGrammarIterator, qi::space_type> declaration
private

Definition at line 69 of file grammar.hpp.

◆ ifthenelse

qi::rule<ScriptGrammarIterator, qi::space_type> ifthenelse
private

Definition at line 69 of file grammar.hpp.

◆ loop

qi::rule<ScriptGrammarIterator, qi::space_type> loop
private

Definition at line 69 of file grammar.hpp.

◆ assignment

qi::rule<ScriptGrammarIterator, qi::space_type> assignment
private

Definition at line 70 of file grammar.hpp.

◆ require

qi::rule<ScriptGrammarIterator, qi::space_type> require
private

Definition at line 70 of file grammar.hpp.

◆ sort

qi::rule<ScriptGrammarIterator, qi::space_type> sort
private

Definition at line 70 of file grammar.hpp.

◆ permute

qi::rule<ScriptGrammarIterator, qi::space_type> permute
private

Definition at line 70 of file grammar.hpp.

◆ condition

qi::rule<ScriptGrammarIterator, qi::space_type> condition
private

Definition at line 70 of file grammar.hpp.

◆ condition2

qi::rule<ScriptGrammarIterator, qi::space_type> condition2
private

Definition at line 70 of file grammar.hpp.

◆ condition3

qi::rule<ScriptGrammarIterator, qi::space_type> condition3
private

Definition at line 70 of file grammar.hpp.

◆ term

qi::rule<ScriptGrammarIterator, qi::space_type> term
private

Definition at line 70 of file grammar.hpp.

◆ product

qi::rule<ScriptGrammarIterator, qi::space_type> product
private

Definition at line 70 of file grammar.hpp.

◆ factor

qi::rule<ScriptGrammarIterator, qi::space_type> factor
private

Definition at line 70 of file grammar.hpp.

◆ annotate

ASTNodeAnnotation annotate
private

Definition at line 71 of file grammar.hpp.

Generated by Doxygen 1.9.5
