#include <ored/portfolio/performanceoption_01.hpp>

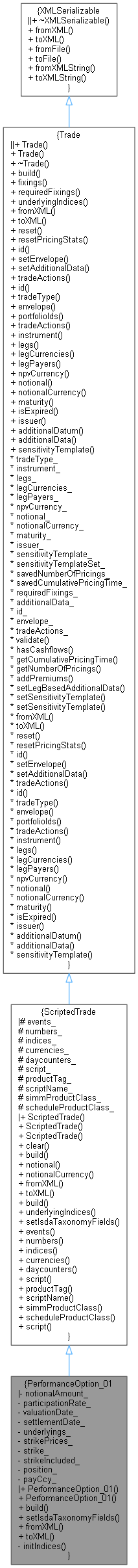

Inheritance diagram for PerformanceOption_01:

Collaboration diagram for PerformanceOption_01:

Public Member Functions
	PerformanceOption_01 (const QuantLib::ext::shared_ptr< Conventions > &conventions=nullptr)

	PerformanceOption_01 (const Envelope &env, const string &notionalAmount, const string &participationRate, const string &valuationDate, const string &settlementDate, const vector< QuantLib::ext::shared_ptr< Underlying > > &underlyings, const vector< string > &strikePrices, const string &strike, const bool strikeIncluded, const string &position, const string &payCcy, const QuantLib::ext::shared_ptr< Conventions > &conventions=nullptr)

void	build (const QuantLib::ext::shared_ptr< EngineFactory > &) override

void	setIsdaTaxonomyFields () override

void	fromXML (XMLNode *node) override

XMLNode *	toXML (XMLDocument &doc) const override

Public Member Functions inherited from ScriptedTrade
	ScriptedTrade (const std::string &tradeType="ScriptedTrade", const Envelope &env=Envelope())

	ScriptedTrade (const Envelope &env, const std::vector< ScriptedTradeEventData > &events, const std::vector< ScriptedTradeValueTypeData > &numbers, const std::vector< ScriptedTradeValueTypeData > &indices, const std::vector< ScriptedTradeValueTypeData > &currencies, const std::vector< ScriptedTradeValueTypeData > &daycounters, const std::map< std::string, ScriptedTradeScriptData > &script, const std::string &productTag, const std::string &tradeType="ScriptedTrade")

	ScriptedTrade (const Envelope &env, const std::vector< ScriptedTradeEventData > &events, const std::vector< ScriptedTradeValueTypeData > &numbers, const std::vector< ScriptedTradeValueTypeData > &indices, const std::vector< ScriptedTradeValueTypeData > &currencies, const std::vector< ScriptedTradeValueTypeData > &daycounters, const std::string &scriptName, const std::string &tradeType="ScriptedTrade")

void	clear ()

void	build (const QuantLib::ext::shared_ptr< EngineFactory > &) override

QuantLib::Real	notional () const override
	Return the current notional in npvCurrency. See individual sub-classes for the precise definition. More...

std::string	notionalCurrency () const override

void	fromXML (XMLNode *node) override

XMLNode *	toXML (ore::data::XMLDocument &doc) const override

void	build (const QuantLib::ext::shared_ptr< EngineFactory > &engineFactory, const PremiumData &premiumData, const Real premiumMultiplier)

std::map< ore::data::AssetClass, std::set< std::string > >	underlyingIndices (const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceDataManager=nullptr) const override

virtual void	setIsdaTaxonomyFields ()

const std::vector< ScriptedTradeEventData > &	events () const

const std::vector< ScriptedTradeValueTypeData > &	numbers () const

const std::vector< ScriptedTradeValueTypeData > &	indices () const

const std::vector< ScriptedTradeValueTypeData > &	currencies () const

const std::vector< ScriptedTradeValueTypeData > &	daycounters () const

const std::map< std::string, ScriptedTradeScriptData > &	script () const

const std::string &	productTag () const

const std::string &	scriptName () const

const std::string &	simmProductClass () const

const std::string &	scheduleProductClass () const

const ScriptedTradeScriptData &	script (const std::string &purpose, const bool fallBackOnEmptyPurpose=true) const

Public Member Functions inherited from Trade
	Trade ()
	Default constructor. More...

	Trade (const string &tradeType, const Envelope &env=Envelope(), const TradeActions &ta=TradeActions())
	Base class constructor. More...

virtual	~Trade ()
	Default destructor. More...

virtual void	build (const QuantLib::ext::shared_ptr< EngineFactory > &)=0

virtual std::map< std::string, RequiredFixings::FixingDates >	fixings (const QuantLib::Date &settlementDate=QuantLib::Date()) const

const RequiredFixings &	requiredFixings () const

virtual std::map< AssetClass, std::set< std::string > >	underlyingIndices (const QuantLib::ext::shared_ptr< ReferenceDataManager > &referenceDataManager=nullptr) const

void	reset ()
	Reset trade, clear all base class data. This does not reset accumulated timings for this trade. More...

void	resetPricingStats (const std::size_t numberOfPricings=0, const boost::timer::nanosecond_type cumulativePricingTime=0)
	Reset accumulated timings to given values. More...

string &	id ()
	Set the trade id. More...

void	setEnvelope (const Envelope &envelope)
	Set the envelope with counterparty and portfolio info. More...

void	setAdditionalData (const std::map< std::string, boost::any > &additionalData)

TradeActions &	tradeActions ()
	Set the trade actions. More...

const string &	id () const

const string &	tradeType () const

const Envelope &	envelope () const

const set< string > &	portfolioIds () const

const TradeActions &	tradeActions () const

const QuantLib::ext::shared_ptr< InstrumentWrapper > &	instrument () const

const std::vector< QuantLib::Leg > &	legs () const

const std::vector< string > &	legCurrencies () const

const std::vector< bool > &	legPayers () const

const string &	npvCurrency () const

const Date &	maturity () const

virtual bool	isExpired (const Date &d)

const string &	issuer () const

template<typename T >
T	additionalDatum (const std::string &tag) const
	returns any additional datum. More...

virtual const std::map< std::string, boost::any > &	additionalData () const
	returns all additional data returned by the trade once built More...

const std::string &	sensitivityTemplate () const

void	validate () const
	Utility to validate that everything that needs to be set in this base class is actually set. More...

virtual bool	hasCashflows () const

boost::timer::nanosecond_type	getCumulativePricingTime () const
	Get cumulative timing spent on pricing. More...

std::size_t	getNumberOfPricings () const
	Get number of pricings. More...

Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()

virtual void	fromXML (XMLNode *node)=0

virtual XMLNode *	toXML (XMLDocument &doc) const =0

void	fromFile (const std::string &filename)

void	toFile (const std::string &filename) const

void	fromXMLString (const std::string &xml)
	Parse from XML string. More...

std::string	toXMLString () const
	Parse from XML string. More...

Private Member Functions
void	initIndices ()

Private Attributes
string	notionalAmount_

string	participationRate_

string	valuationDate_

string	settlementDate_

vector< QuantLib::ext::shared_ptr< Underlying > >	underlyings_

vector< string >	strikePrices_

string	strike_

bool	strikeIncluded_ = true

string	position_

string	payCcy_

Additional Inherited Members
Protected Member Functions inherited from Trade
Date	addPremiums (std::vector< QuantLib::ext::shared_ptr< Instrument > > &instruments, std::vector< Real > &multipliers, const Real tradeMultiplier, const PremiumData &premiumData, const Real premiumMultiplier, const Currency &tradeCurrency, const QuantLib::ext::shared_ptr< EngineFactory > &factory, const string &configuration)

void	setLegBasedAdditionalData (const Size legNo, Size resultLegId=Null< Size >()) const

void	setSensitivityTemplate (const EngineBuilder &builder)

void	setSensitivityTemplate (const std::string &id)

Protected Attributes inherited from ScriptedTrade
std::vector< ScriptedTradeEventData >	events_

std::vector< ScriptedTradeValueTypeData >	numbers_

std::vector< ScriptedTradeValueTypeData >	indices_

std::vector< ScriptedTradeValueTypeData >	currencies_

std::vector< ScriptedTradeValueTypeData >	daycounters_

std::map< std::string, ScriptedTradeScriptData >	script_

std::string	productTag_

std::string	scriptName_

std::string	simmProductClass_

std::string	scheduleProductClass_

Protected Attributes inherited from Trade
string	tradeType_

QuantLib::ext::shared_ptr< InstrumentWrapper >	instrument_

std::vector< QuantLib::Leg >	legs_

std::vector< string >	legCurrencies_

std::vector< bool >	legPayers_

string	npvCurrency_

QuantLib::Real	notional_

string	notionalCurrency_

Date	maturity_

string	issuer_

string	sensitivityTemplate_

bool	sensitivityTemplateSet_ = false

std::size_t	savedNumberOfPricings_ = 0

boost::timer::nanosecond_type	savedCumulativePricingTime_ = 0

RequiredFixings	requiredFixings_

std::map< std::string, boost::any >	additionalData_

Detailed Description

Definition at line 35 of file performanceoption_01.hpp.

Constructor & Destructor Documentation

◆ PerformanceOption_01() [1/2]

PerformanceOption_01 ( const QuantLib::ext::shared_ptr< Conventions > & conventions = nullptr )

explicit

Definition at line 37 of file performanceoption_01.hpp.

38 : ScriptedTrade("PerformanceOption_01") {}

ore::data::ScriptedTrade::ScriptedTrade

ScriptedTrade(const std::string &tradeType="ScriptedTrade", const Envelope &env=Envelope())

Definition: scriptedtrade.hpp:205

◆ PerformanceOption_01() [2/2]

PerformanceOption_01	(	const Envelope &	env,
		const string &	notionalAmount,
		const string &	participationRate,
		const string &	valuationDate,
		const string &	settlementDate,
		const vector< QuantLib::ext::shared_ptr< Underlying > > &	underlyings,
		const vector< string > &	strikePrices,
		const string &	strike,
		const bool	strikeIncluded,
		const string &	position,
		const string &	payCcy,
		const QuantLib::ext::shared_ptr< Conventions > &	conventions = `nullptr`
	)

Definition at line 39 of file performanceoption_01.hpp.

        : ScriptedTrade("PerformanceOption_01", env), notionalAmount_(notionalAmount),
          participationRate_(participationRate), valuationDate_(valuationDate), settlementDate_(settlementDate),
          underlyings_(underlyings), strikePrices_(strikePrices), strike_(strike), strikeIncluded_(strikeIncluded),
          position_(position), payCcy_(payCcy) {
        initIndices();
    }

Here is the call graph for this function:

Member Function Documentation

◆ build()

void build ( const QuantLib::ext::shared_ptr< EngineFactory > & )

overridevirtual

Build QuantLib/QuantExt instrument, link pricing engine. If build() is called multiple times, reset() should be called between these calls.

Implements Trade.

Definition at line 27 of file performanceoption_01.cpp.

                                                                                    {

    // set script parameters

    clear();
    initIndices();

    numbers_.emplace_back("Number", "NotionalAmount", notionalAmount_);
    numbers_.emplace_back("Number", "ParticipationRate", participationRate_);

    events_.emplace_back("ValuationDate", valuationDate_);
    events_.emplace_back("SettlementDate", settlementDate_);

    numbers_.emplace_back("Number", "StrikePrices", strikePrices_);

    numbers_.emplace_back("Number", "Strike", strike_);

    Position::Type position = parsePositionType(position_);
    numbers_.emplace_back("Number", "LongShort", position == Position::Long ? "1" : "-1");

    currencies_.emplace_back("Currency", "PayCcy", payCcy_);

    // set product tag

    productTag_ = "MultiAssetOption({AssetClass})";

    // set script

    // clang-format off
    script_ = {{"", ScriptedTradeScriptData(std::string("NUMBER i, p, currentNotional;\n") +
                        "FOR i IN (1, SIZE(Underlyings), 1) DO\n" +
                        (strikeIncluded_ ? "  p = p + Weights[i] * ( Underlyings[i](ValuationDate) / StrikePrices[i] - Strike );\n" :
             "  p = p + Weights[i] * Underlyings[i](ValuationDate) / StrikePrices[i];\n") +
                        "END;\n"
                        "Option = LOGPAY( LongShort * NotionalAmount * ParticipationRate *\n" +
                        (strikeIncluded_ ? "                 max( p, 0 ), ValuationDate, SettlementDate, PayCcy );\n" :
             "                 max( p - Strike, 0 ), ValuationDate, SettlementDate, PayCcy );\n") +
             "currentNotional = NotionalAmount * ParticipationRate;\n",
                        "Option", {{"currentNotional", "currentNotional"}, {"notionalCurrency", "PayCcy"}}, {})}};
    // clang-format on

    // build trade

    ScriptedTrade::build(factory);
}

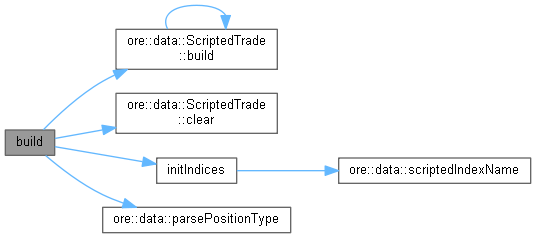

Here is the call graph for this function:

◆ setIsdaTaxonomyFields()

void setIsdaTaxonomyFields ( )

overridevirtual

Reimplemented from ScriptedTrade.

Definition at line 73 of file performanceoption_01.cpp.

                                                 {
    ScriptedTrade::setIsdaTaxonomyFields();

    // ISDA taxonomy
    // asset class set in the base class already
    std::string assetClass = boost::any_cast<std::string>(additionalData_["isdaAssetClass"]);
    if (assetClass == "Equity") {
        additionalData_["isdaBaseProduct"] = string("Other");
        additionalData_["isdaSubProduct"] = string("Price Return Basic Performance");
    } else if (assetClass == "Commodity") {
        // isda taxonomy missing for this class, using the same as equity
        additionalData_["isdaBaseProduct"] = string("Other");
        additionalData_["isdaSubProduct"] = string("Price Return Basic Performance");
    } else if (assetClass == "Foreign Exchange") {
        additionalData_["isdaBaseProduct"] = string("Complex Exotic");
        additionalData_["isdaSubProduct"] = string("Generic");
    } else {
        WLOG("ISDA taxonomy incomplete for trade " << id());
    }
    additionalData_["isdaTransaction"] = string("Basket");
}

Here is the call graph for this function:

◆ fromXML()

void fromXML ( XMLNode * node )

overridevirtual

Reimplemented from Trade.

Definition at line 106 of file performanceoption_01.cpp.

                                                {
    Trade::fromXML(node);
    XMLNode* tradeDataNode = XMLUtils::getChildNode(node, "PerformanceOption01Data");
    QL_REQUIRE(tradeDataNode, "PerformanceOption01Data node not found");
    notionalAmount_ = XMLUtils::getChildValue(tradeDataNode, "NotionalAmount", true);
    participationRate_ = XMLUtils::getChildValue(tradeDataNode, "ParticipationRate", true);
    valuationDate_ = XMLUtils::getChildValue(tradeDataNode, "ValuationDate", true);
    settlementDate_ = XMLUtils::getChildValue(tradeDataNode, "SettlementDate", true);
    auto underlyingsNode = XMLUtils::getChildNode(tradeDataNode, "Underlyings");
    QL_REQUIRE(underlyingsNode, "No Underlyings node");
    auto underlyings = XMLUtils::getChildrenNodes(underlyingsNode, "Underlying");
    for (auto const& n : underlyings) {
        UnderlyingBuilder underlyingBuilder;
        underlyingBuilder.fromXML(n);
        underlyings_.push_back(underlyingBuilder.underlying());
    }
    strikePrices_ = XMLUtils::getChildrenValues(tradeDataNode, "StrikePrices", "StrikePrice", true);
    strike_ = XMLUtils::getChildValue(tradeDataNode, "Strike", true);
    strikeIncluded_ = XMLUtils::getChildValueAsBool(tradeDataNode, "StrikeIncluded", false, true);
    position_ = XMLUtils::getChildValue(tradeDataNode, "Position", true);
    payCcy_ = XMLUtils::getChildValue(tradeDataNode, "PayCcy", true);
    initIndices();
}

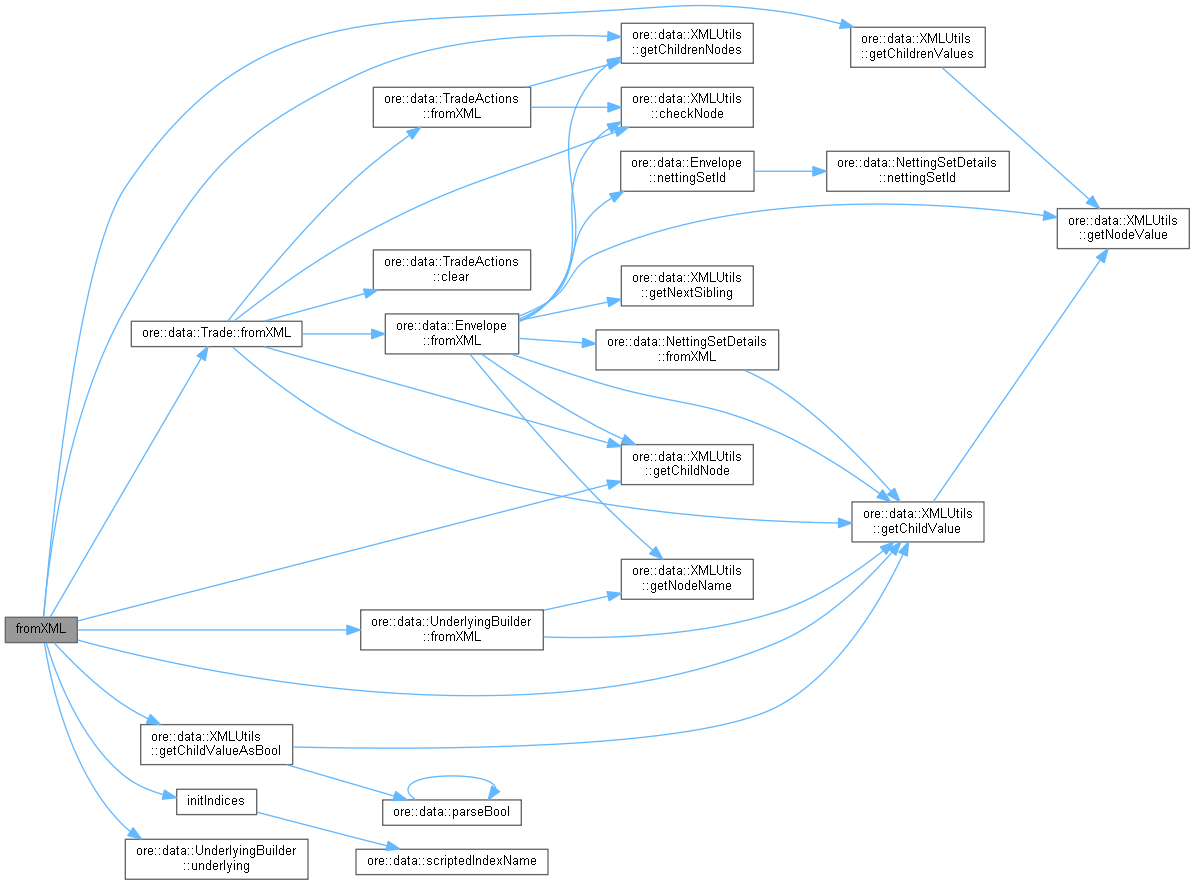

Here is the call graph for this function:

◆ toXML()

XMLNode * toXML ( XMLDocument & doc ) const

overridevirtual

Reimplemented from Trade.

Definition at line 130 of file performanceoption_01.cpp.

                                                           {
    XMLNode* node = Trade::toXML(doc);
    XMLNode* tradeNode = doc.allocNode("PerformanceOption01Data");
    XMLUtils::appendNode(node, tradeNode);
    XMLUtils::addChild(doc, tradeNode, "NotionalAmount", notionalAmount_);
    XMLUtils::addChild(doc, tradeNode, "ParticipationRate", participationRate_);
    XMLUtils::addChild(doc, tradeNode, "ValuationDate", valuationDate_);
    XMLUtils::addChild(doc, tradeNode, "SettlementDate", settlementDate_);
    XMLNode* underlyingsNode = doc.allocNode("Underlyings");
    XMLUtils::appendNode(tradeNode, underlyingsNode);
    for (auto& n : underlyings_) {
        XMLUtils::appendNode(underlyingsNode, n->toXML(doc));
    }
    XMLUtils::addChildren(doc, tradeNode, "StrikePrices", "StrikePrice", strikePrices_);
    XMLUtils::addChild(doc, tradeNode, "Strike", strike_);
    XMLUtils::addChild(doc, tradeNode, "StrikeIncluded", strikeIncluded_);
    XMLUtils::addChild(doc, tradeNode, "Position", position_);
    XMLUtils::addChild(doc, tradeNode, "PayCcy", payCcy_);
    return node;
}

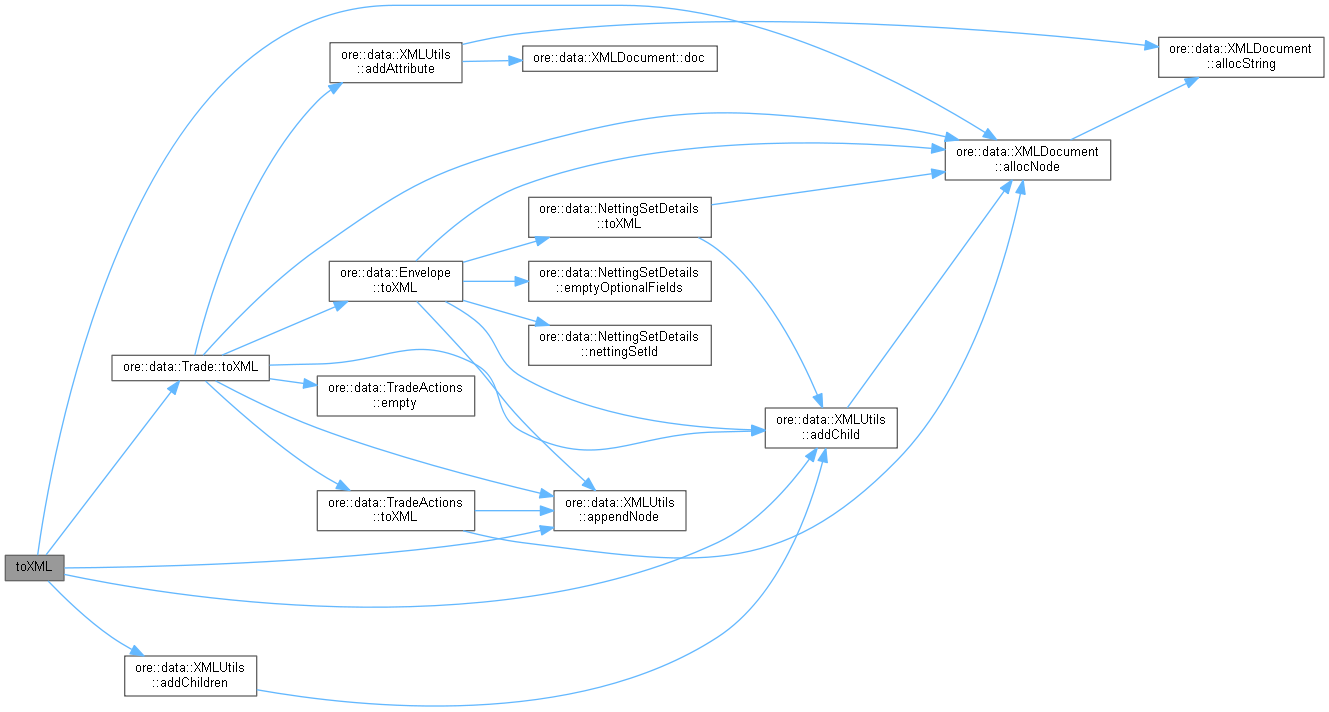

Here is the call graph for this function:

◆ initIndices()

void initIndices ( )

private

Definition at line 95 of file performanceoption_01.cpp.

                                       {
    std::vector<std::string> underlyingNames, weights;
    for (auto const& u : underlyings_) {
        underlyingNames.push_back(scriptedIndexName(u));
        QL_REQUIRE(u->weight() != Null<Real>(), "underlying '" << u->name() << "' has no weight");
        weights.push_back(boost::lexical_cast<std::string>(u->weight()));
    }
    indices_.emplace_back("Index", "Underlyings", underlyingNames);
    numbers_.emplace_back("Number", "Weights", weights);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ notionalAmount_

string notionalAmount_

private

Definition at line 57 of file performanceoption_01.hpp.

◆ participationRate_

string participationRate_

private

Definition at line 57 of file performanceoption_01.hpp.

◆ valuationDate_

string valuationDate_

private

Definition at line 57 of file performanceoption_01.hpp.

◆ settlementDate_

string settlementDate_

private

Definition at line 57 of file performanceoption_01.hpp.

◆ underlyings_

vector<QuantLib::ext::shared_ptr<Underlying> > underlyings_

private

Definition at line 58 of file performanceoption_01.hpp.

◆ strikePrices_

vector<string> strikePrices_

private

Definition at line 59 of file performanceoption_01.hpp.

◆ strike_

string strike_

private

Definition at line 60 of file performanceoption_01.hpp.

◆ strikeIncluded_

bool strikeIncluded_ = true

private

Definition at line 61 of file performanceoption_01.hpp.

◆ position_

string position_

private

Definition at line 62 of file performanceoption_01.hpp.

◆ payCcy_

string payCcy_

private

Definition at line 62 of file performanceoption_01.hpp.

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PerformanceOption_01() [1/2]

◆ PerformanceOption_01() [2/2]

Member Function Documentation

◆ build()

◆ setIsdaTaxonomyFields()

◆ fromXML()

◆ toXML()

◆ initIndices()

Member Data Documentation

◆ notionalAmount_

◆ participationRate_

◆ valuationDate_

◆ settlementDate_

◆ underlyings_

◆ strikePrices_

◆ strike_

◆ strikeIncluded_

◆ position_

◆ payCcy_
