NettingSetDetails Class Reference

Serializable object holding netting set identification data. More...

#include <ored/portfolio/nettingsetdetails.hpp>

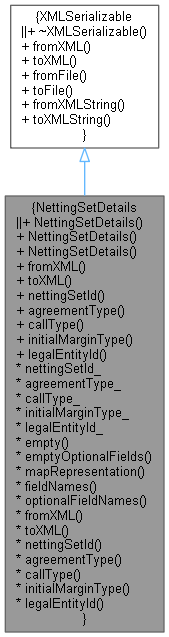

Inheritance diagram for NettingSetDetails:

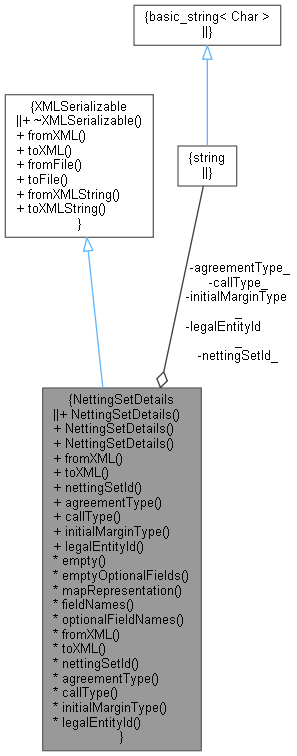

Collaboration diagram for NettingSetDetails:

Public Member Functions
	NettingSetDetails ()
	Default constructor. More...
	NettingSetDetails (const string &nettingSetId, const string &agreementType="", const string &callType="", const string &initialMarginType="", const string &legalEntityId="")
	Constructor with all fields. More...
	NettingSetDetails (const map< string, string > &nettingSetMap)
	Constructor to reconstruct NettingSetDetails from map (field name to field value) More...
Serialisation
virtual void	fromXML (XMLNode *node) override
virtual XMLNode *	toXML (XMLDocument &doc) const override
Inspectors
const string &	nettingSetId () const
const string &	agreementType () const
const string &	callType () const
const string &	initialMarginType () const
const string &	legalEntityId () const
Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()
virtual void	fromXML (XMLNode *node)=0
virtual XMLNode *	toXML (XMLDocument &doc) const =0
void	fromFile (const std::string &filename)
void	toFile (const std::string &filename) const
void	fromXMLString (const std::string &xml)
	Parse from XML string. More...
std::string	toXMLString () const
	Parse from XML string. More...

Utility
string	nettingSetId_
string	agreementType_
string	callType_
string	initialMarginType_
string	legalEntityId_
bool	empty () const
	Check if the netting set details have been populated. More...
bool	emptyOptionalFields () const
const map< string, string >	mapRepresentation () const
	Returns a map representation of the object. More...
static const vector< string >	fieldNames (bool includeOptionalFields=true)
	Returns the XML field names of all the private members. More...
static const vector< string >	optionalFieldNames ()

Detailed Description

Serializable object holding netting set identification data.

Definition at line 40 of file nettingsetdetails.hpp.

Constructor & Destructor Documentation

NettingSetDetails() [1/3]

NettingSetDetails

(

)

Default constructor.

Definition at line 43 of file nettingsetdetails.hpp.

        : nettingSetId_(string()), agreementType_(string()), callType_(string()), initialMarginType_(string()),
          legalEntityId_(string()){};

NettingSetDetails() [2/3]

NettingSetDetails	(	const string &	nettingSetId,
		const string &	agreementType = "",
		const string &	callType = "",
		const string &	initialMarginType = "",
		const string &	legalEntityId = ""
	)

Constructor with all fields.

Definition at line 48 of file nettingsetdetails.hpp.

        : nettingSetId_(nettingSetId), agreementType_(agreementType), callType_(callType),
          initialMarginType_(initialMarginType), legalEntityId_(legalEntityId) {}

NettingSetDetails() [3/3]

NettingSetDetails

(

const map< string, string > &

nettingSetMap

)

Constructor to reconstruct NettingSetDetails from map (field name to field value)

Definition at line 27 of file nettingsetdetails.cpp.

                                                                             {
    for (const auto& m : nettingSetMap) {
        if (m.first == "NettingSetId") {
            nettingSetId_ = nettingSetMap.at(m.first);
        } else if (m.first == "AgreementType") {
            agreementType_ = nettingSetMap.at(m.first);
        } else if (m.first == "CallType") {
            callType_ = nettingSetMap.at(m.first);
        } else if (m.first == "InitialMarginType") {
            initialMarginType_ = nettingSetMap.at(m.first);
        } else if (m.first == "LegalEntityId") {
            legalEntityId_ = nettingSetMap.at(m.first);
        } else {
            WLOG("NettingSetDetails:: Unsupported field \'" << m.second << "\'");
        }
    }
}

Member Function Documentation

fromXML()

void fromXML ( XMLNode *  node )

overridevirtual

Implements XMLSerializable.

Definition at line 45 of file nettingsetdetails.cpp.

                                             {
    nettingSetId_ = XMLUtils::getChildValue(node, "NettingSetId", true);
    agreementType_ = XMLUtils::getChildValue(node, "AgreementType", false);
    callType_ = XMLUtils::getChildValue(node, "CallType", false);
    initialMarginType_ = XMLUtils::getChildValue(node, "InitialMarginType", false);
    legalEntityId_ = XMLUtils::getChildValue(node, "LegalEntityId", false);
}

Here is the call graph for this function:

Here is the caller graph for this function:

toXML()

XMLNode * toXML ( XMLDocument &  doc ) const

overridevirtual

Implements XMLSerializable.

Definition at line 53 of file nettingsetdetails.cpp.

                                                        {
    XMLNode* nettingSetDetailsNode = doc.allocNode("NettingSetDetails");
    XMLUtils::addChild(doc, nettingSetDetailsNode, "NettingSetId", nettingSetId_);
    if (!agreementType_.empty())
        XMLUtils::addChild(doc, nettingSetDetailsNode, "AgreementType", agreementType_);
    if (!callType_.empty())
        XMLUtils::addChild(doc, nettingSetDetailsNode, "CallType", callType_);
    if (!initialMarginType_.empty())
        XMLUtils::addChild(doc, nettingSetDetailsNode, "InitialMarginType", initialMarginType_);
    if (!legalEntityId_.empty())
        XMLUtils::addChild(doc, nettingSetDetailsNode, "LegalEntityId", legalEntityId_);

    return nettingSetDetailsNode;
}

Here is the call graph for this function:

Here is the caller graph for this function:

nettingSetId()

const string & nettingSetId

(

)

const

Definition at line 64 of file nettingsetdetails.hpp.

{ return nettingSetId_; }

Here is the caller graph for this function:

agreementType()

const string & agreementType

(

)

const

Definition at line 65 of file nettingsetdetails.hpp.

{ return agreementType_; }

Here is the caller graph for this function:

callType()

const string & callType

(

)

const

Definition at line 66 of file nettingsetdetails.hpp.

{ return callType_; }

Here is the caller graph for this function:

initialMarginType()

const string & initialMarginType

(

)

const

Definition at line 67 of file nettingsetdetails.hpp.

{ return initialMarginType_; }

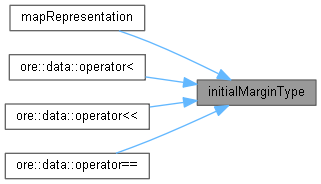

Here is the caller graph for this function:

legalEntityId()

const string & legalEntityId

(

)

const

Definition at line 68 of file nettingsetdetails.hpp.

{ return legalEntityId_; }

Here is the caller graph for this function:

empty()

bool empty

(

)

const

Check if the netting set details have been populated.

Definition at line 74 of file nettingsetdetails.hpp.

{ return nettingSetId_.empty(); }

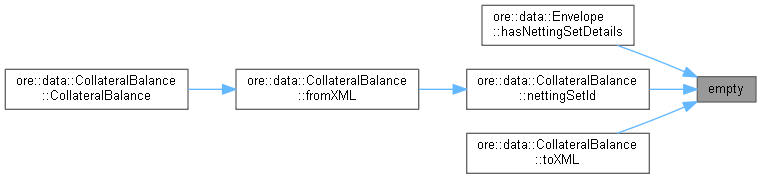

Here is the caller graph for this function:

emptyOptionalFields()

bool emptyOptionalFields

(

)

const

Definition at line 75 of file nettingsetdetails.hpp.

                                     {
        return agreementType_.empty() && callType_.empty() && initialMarginType_.empty() && legalEntityId_.empty();
    }

Here is the caller graph for this function:

mapRepresentation()

const map< string, string > mapRepresentation

(

)

const

Returns a map representation of the object.

Definition at line 82 of file nettingsetdetails.cpp.

                                                                     {
    map<string, string> rep;
    rep.insert({"NettingSetId", nettingSetId()});
    rep.insert({"AgreementType", agreementType()});
    rep.insert({"CallType", callType()});
    rep.insert({"InitialMarginType", initialMarginType()});
    rep.insert({"LegalEntityId", legalEntityId()});

    return rep;
}

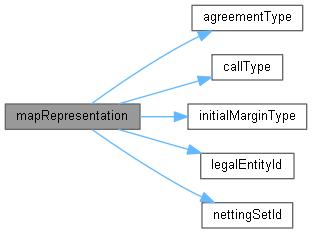

Here is the call graph for this function:

fieldNames()

const vector< string > fieldNames ( bool  includeOptionalFields = true )

static

Returns the XML field names of all the private members.

Definition at line 68 of file nettingsetdetails.cpp.

                                                                             {
    vector<string> fieldNames;
    if (includeOptionalFields)
        fieldNames = {"NettingSetId", "AgreementType", "CallType", "InitialMarginType", "LegalEntityId"};
    else
        fieldNames = {"NettingSetId"};

    return fieldNames;
}

Here is the call graph for this function:

Here is the caller graph for this function:

optionalFieldNames()

const vector< string > optionalFieldNames ( )

static

Definition at line 78 of file nettingsetdetails.cpp.

                                                           {
    return vector<string>({"AgreementType", "CallType", "InitialMarginType", "LegalEntityId"});
}

Member Data Documentation

nettingSetId_

string nettingSetId_

private

Definition at line 88 of file nettingsetdetails.hpp.

agreementType_

string agreementType_

private

Definition at line 89 of file nettingsetdetails.hpp.

callType_

string callType_

private

Definition at line 90 of file nettingsetdetails.hpp.

initialMarginType_

string initialMarginType_

private

Definition at line 91 of file nettingsetdetails.hpp.

legalEntityId_

string legalEntityId_

private

Definition at line 92 of file nettingsetdetails.hpp.
