ScheduleData Class Reference

Serializable schedule data. More...

#include <ored/portfolio/schedule.hpp>

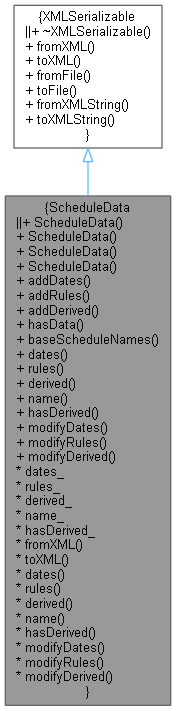

Inheritance diagram for ScheduleData:

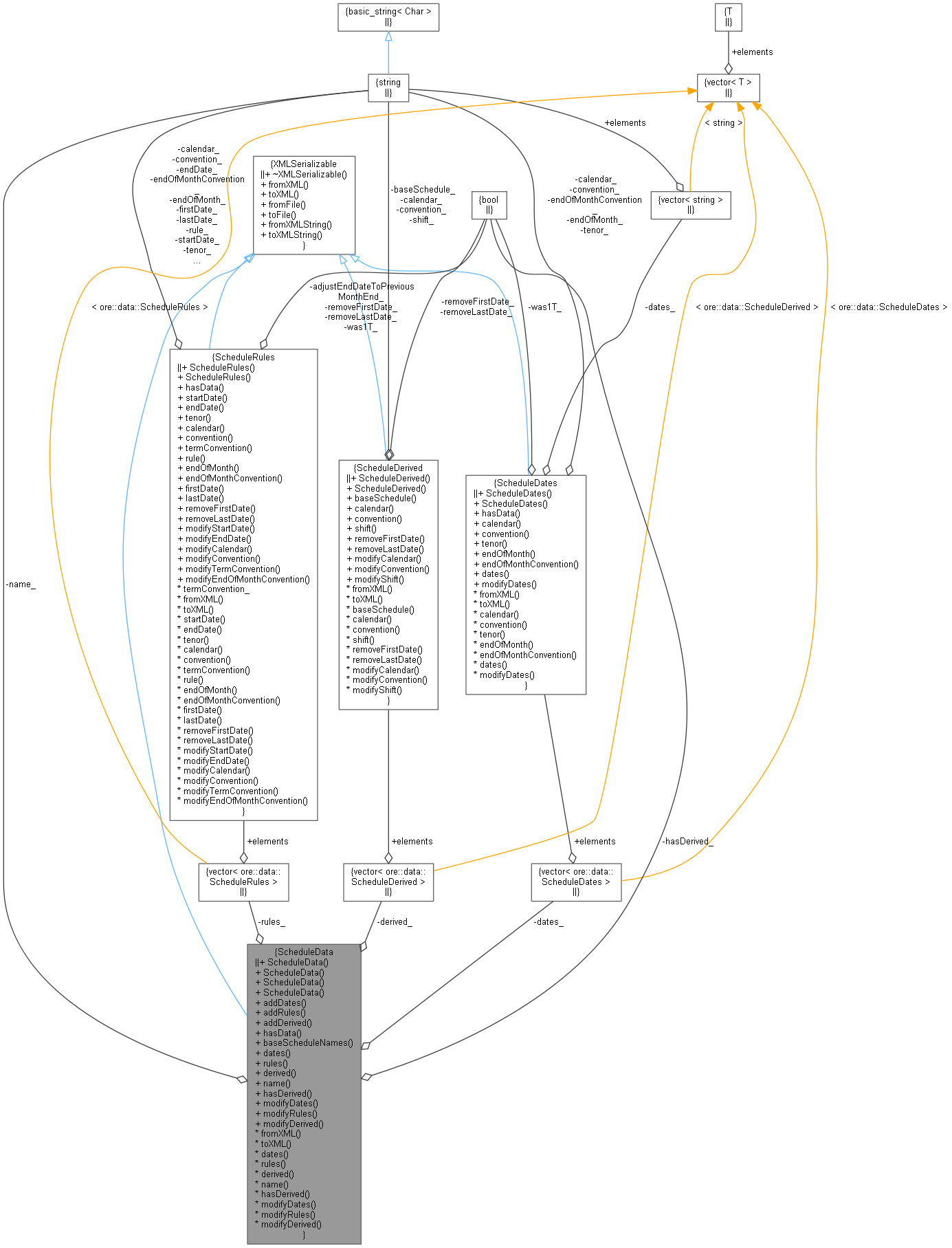

Collaboration diagram for ScheduleData:

Public Member Functions
	ScheduleData ()
	Default constructor. More...
	ScheduleData (const ScheduleDates &dates, const string &name="")
	Constructor with ScheduleDates. More...
	ScheduleData (const ScheduleRules &rules, const string &name="")
	Constructor with ScheduleRules. More...
	ScheduleData (const ScheduleDerived &derived, const string &name="")
	Constructor with ScheduleDerived. More...
void	addDates (const ScheduleDates &dates)
	Add dates. More...
void	addRules (const ScheduleRules &rules)
	Add rules. More...
void	addDerived (const ScheduleDerived &derived)
	Add derived schedules. More...
bool	hasData () const
	Check if has any dates/rules/derived schedules. More...
vector< string >	baseScheduleNames ()
Inspectors
const vector< ScheduleDates > &	dates () const
const vector< ScheduleRules > &	rules () const
const vector< ScheduleDerived > &	derived () const
const string &	name () const
const bool &	hasDerived () const
Modifiers
vector< ScheduleDates > &	modifyDates ()
vector< ScheduleRules > &	modifyRules ()
vector< ScheduleDerived > &	modifyDerived ()
Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()
virtual void	fromXML (XMLNode *node)=0
virtual XMLNode *	toXML (XMLDocument &doc) const =0
void	fromFile (const std::string &filename)
void	toFile (const std::string &filename) const
void	fromXMLString (const std::string &xml)
	Parse from XML string. More...
std::string	toXMLString () const
	Parse from XML string. More...

Serialisation
vector< ScheduleDates >	dates_
vector< ScheduleRules >	rules_
vector< ScheduleDerived >	derived_
string	name_ = ""
bool	hasDerived_ = false
virtual void	fromXML (XMLNode *node) override
virtual XMLNode *	toXML (XMLDocument &doc) const override

Detailed Description

Serializable schedule data.

Definition at line 202 of file schedule.hpp.

Constructor & Destructor Documentation

ScheduleData() [1/4]

ScheduleData

(

)

Default constructor.

Definition at line 205 of file schedule.hpp.

{}

ScheduleData() [2/4]

ScheduleData	(	const ScheduleDates &	dates,
		const string &	name = ""
	)

Constructor with ScheduleDates.

Definition at line 207 of file schedule.hpp.

: name_(name) { addDates(dates); }

Here is the call graph for this function:

ScheduleData() [3/4]

ScheduleData	(	const ScheduleRules &	rules,
		const string &	name = ""
	)

Constructor with ScheduleRules.

Definition at line 209 of file schedule.hpp.

: name_(name) { addRules(rules); }

Here is the call graph for this function:

ScheduleData() [4/4]

ScheduleData	(	const ScheduleDerived &	derived,
		const string &	name = ""
	)

Constructor with ScheduleDerived.

Definition at line 211 of file schedule.hpp.

: name_(name) { addDerived(derived); }

Here is the call graph for this function:

Member Function Documentation

addDates()

void addDates

(

const ScheduleDates &

dates

)

Add dates.

Definition at line 214 of file schedule.hpp.

{ dates_.emplace_back(dates); }

Here is the call graph for this function:

Here is the caller graph for this function:

addRules()

void addRules

(

const ScheduleRules &

rules

)

Add rules.

Definition at line 216 of file schedule.hpp.

{ rules_.emplace_back(rules); }

Here is the call graph for this function:

Here is the caller graph for this function:

addDerived()

void addDerived

(

const ScheduleDerived &

derived

)

Add derived schedules.

Definition at line 218 of file schedule.hpp.

                                                    {
        derived_.emplace_back(derived);
        hasDerived_ = true;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

hasData()

bool hasData

(

)

const

Check if has any dates/rules/derived schedules.

Definition at line 223 of file schedule.hpp.

{ return dates_.size() > 0 || rules_.size() > 0 || derived_.size() > 0; }

Here is the caller graph for this function:

baseScheduleNames()

vector< string > baseScheduleNames

(

)

Definition at line 172 of file schedule.cpp.

                                               {
    vector<string> baseScheduleNames;
    for (auto& dv : derived_)
        baseScheduleNames.push_back(dv.baseSchedule());
    return baseScheduleNames;
}

Here is the call graph for this function:

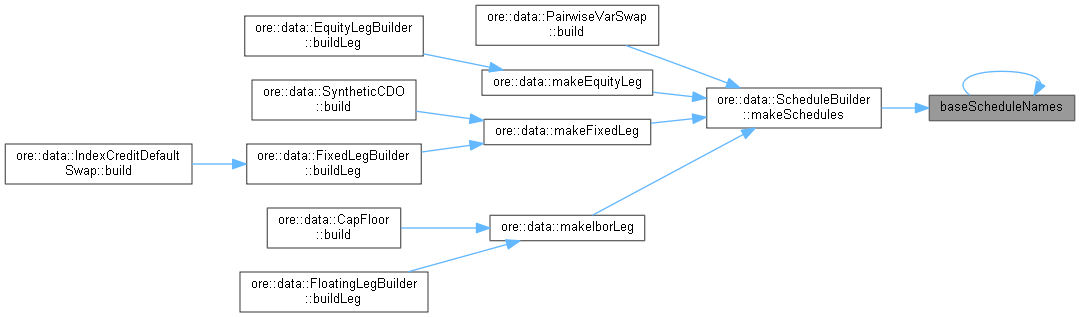

Here is the caller graph for this function:

dates()

const vector< ScheduleDates > & dates

(

)

const

Definition at line 228 of file schedule.hpp.

{ return dates_; }

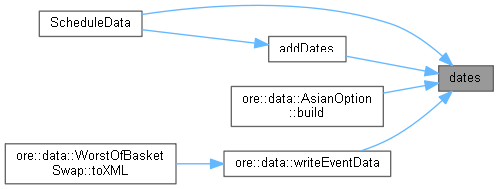

Here is the caller graph for this function:

rules()

const vector< ScheduleRules > & rules

(

)

const

Definition at line 229 of file schedule.hpp.

{ return rules_; }

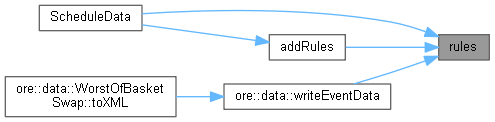

Here is the caller graph for this function:

derived()

const vector< ScheduleDerived > & derived

(

)

const

Definition at line 230 of file schedule.hpp.

{ return derived_; }

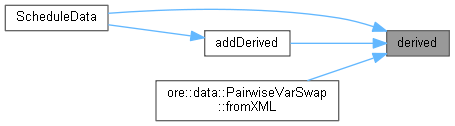

Here is the caller graph for this function:

name()

const string & name

(

)

const

Definition at line 231 of file schedule.hpp.

{ return name_; }

Here is the caller graph for this function:

hasDerived()

const bool & hasDerived

(

)

const

Definition at line 232 of file schedule.hpp.

{ return hasDerived_; }

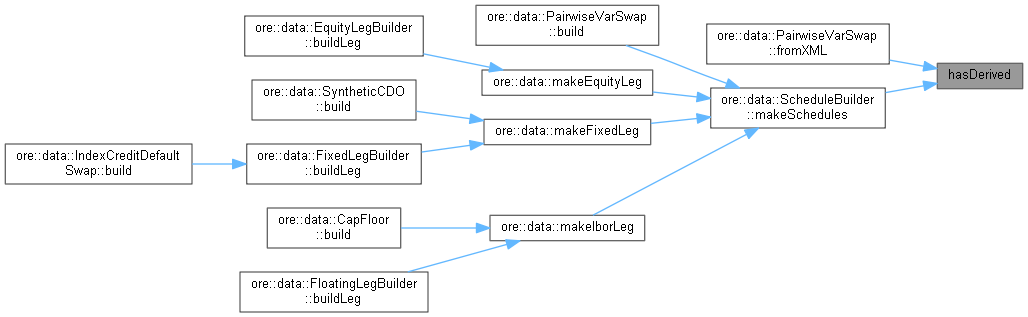

Here is the caller graph for this function:

modifyDates()

vector< ScheduleDates > & modifyDates

(

)

Definition at line 237 of file schedule.hpp.

{ return dates_; }

modifyRules()

vector< ScheduleRules > & modifyRules

(

)

Definition at line 238 of file schedule.hpp.

{ return rules_; }

modifyDerived()

vector< ScheduleDerived > & modifyDerived

(

)

Definition at line 239 of file schedule.hpp.

{ return derived_; }

fromXML()

void fromXML ( XMLNode *  node )

overridevirtual

Implements XMLSerializable.

Definition at line 179 of file schedule.cpp.

                                        {
    QL_REQUIRE(node, "ScheduleData::fromXML(): no node given");
    name_ = XMLUtils::getNodeName(node);
    for (auto& r : XMLUtils::getChildrenNodes(node, "Rules")) {
        rules_.emplace_back();
        rules_.back().fromXML(r);
    }
    for (auto& d : XMLUtils::getChildrenNodes(node, "Dates")) {
        dates_.emplace_back();
        dates_.back().fromXML(d);
    }
    for (auto& dv : XMLUtils::getChildrenNodes(node, "Derived")) {
        derived_.emplace_back();
        derived_.back().fromXML(dv);
        if (!hasDerived_)
            hasDerived_ = true;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

toXML()

XMLNode * toXML ( XMLDocument &  doc ) const

overridevirtual

Implements XMLSerializable.

Definition at line 198 of file schedule.cpp.

                                                   {
    XMLNode* node = doc.allocNode("ScheduleData");
    for (auto& r : rules_)
        XMLUtils::appendNode(node, r.toXML(doc));
    for (auto& d : dates_)
        XMLUtils::appendNode(node, d.toXML(doc));
    for (auto& dv : derived_)
        XMLUtils::appendNode(node, dv.toXML(doc));
    return node;
}

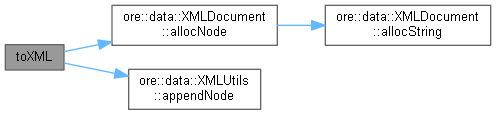

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

dates_

vector<ScheduleDates> dates_

private

Definition at line 248 of file schedule.hpp.

rules_

vector<ScheduleRules> rules_

private

Definition at line 249 of file schedule.hpp.

derived_

vector<ScheduleDerived> derived_

private

Definition at line 250 of file schedule.hpp.

name_

string name_ = ""

private

Definition at line 251 of file schedule.hpp.

hasDerived_

bool hasDerived_ = false

private

Definition at line 252 of file schedule.hpp.
