CboReferenceDatum Class Reference

#include <ored/portfolio/cbo.hpp>

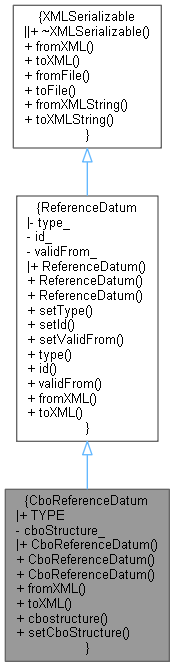

Inheritance diagram for CboReferenceDatum:

Collaboration diagram for CboReferenceDatum:

Classes
struct	CboStructure

Public Member Functions
	CboReferenceDatum ()
	CboReferenceDatum (const string &id)
	CboReferenceDatum (const string &id, const CboStructure &cboStructure)
void	fromXML (XMLNode *node) override
XMLNode *	toXML (ore::data::XMLDocument &doc) const override
const CboStructure &	cbostructure () const
void	setCboStructure (const CboStructure &cboStructure)
Public Member Functions inherited from ReferenceDatum
	ReferenceDatum ()
	Default Constructor. More...
	ReferenceDatum (const std::string &type, const std::string &id)
	Base class constructor. More...
	ReferenceDatum (const std::string &type, const std::string &id, const QuantLib::Date &validFrom)
	Base class constructor. More...
void	setType (const string &type)
	setters More...
void	setId (const string &id)
void	setValidFrom (const QuantLib::Date &validFrom)
const std::string &	type () const
	getters More...
const std::string &	id () const
const QuantLib::Date &	validFrom () const
void	fromXML (XMLNode *node) override
XMLNode *	toXML (ore::data::XMLDocument &doc) const override
Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()
virtual void	fromXML (XMLNode *node)=0
virtual XMLNode *	toXML (XMLDocument &doc) const =0
void	fromFile (const std::string &filename)
void	toFile (const std::string &filename) const
void	fromXMLString (const std::string &xml)
	Parse from XML string. More...
std::string	toXMLString () const
	Parse from XML string. More...

Static Public Attributes
static constexpr const char *	TYPE = "CBO"

Private Attributes
CboStructure	cboStructure_

Detailed Description

Definition at line 36 of file cbo.hpp.

Constructor & Destructor Documentation

CboReferenceDatum() [1/3]

CboReferenceDatum

(

)

Definition at line 57 of file cbo.hpp.

{ setType(TYPE); }

Here is the call graph for this function:

CboReferenceDatum() [2/3]

CboReferenceDatum

(

const string &

id

)

Definition at line 58 of file cbo.hpp.

: ReferenceDatum(TYPE, id) {}

CboReferenceDatum() [3/3]

CboReferenceDatum	(	const string &	id,
		const CboStructure &	cboStructure
	)

Definition at line 59 of file cbo.hpp.

: ReferenceDatum(TYPE, id), cboStructure_(cboStructure) {}

Member Function Documentation

fromXML()

void fromXML ( XMLNode *  node )

overridevirtual

Implements XMLSerializable.

Definition at line 347 of file cbo.cpp.

                                             {

    ReferenceDatum::fromXML(node);
    cboStructure_.fromXML(XMLUtils::getChildNode(node, "CboReferenceData"));

}

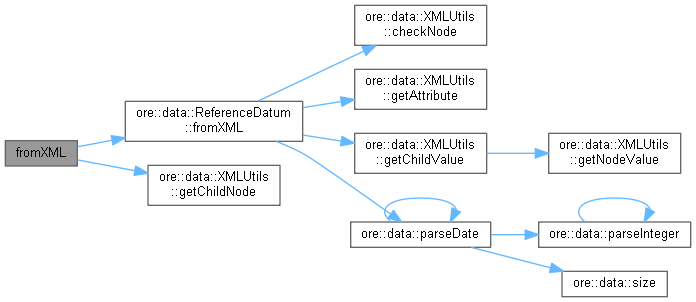

Here is the call graph for this function:

toXML()

XMLNode * toXML ( ore::data::XMLDocument &  doc ) const

overridevirtual

Implements XMLSerializable.

Definition at line 354 of file cbo.cpp.

                                                        {

    XMLNode* node = ReferenceDatum::toXML(doc);
    XMLNode* dataNode = cboStructure_.toXML(doc);
    XMLUtils::setNodeName(doc, dataNode, "CboReferenceData");
    XMLUtils::appendNode(node, dataNode);

    return node;
}

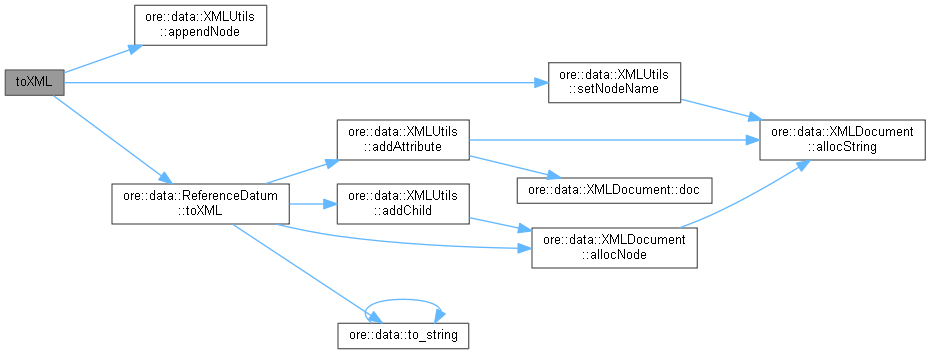

Here is the call graph for this function:

cbostructure()

const CboStructure & cbostructure

(

)

const

Definition at line 64 of file cbo.hpp.

{ return cboStructure_; }

setCboStructure()

void setCboStructure

(

const CboStructure &

cboStructure

)

Definition at line 65 of file cbo.hpp.

{ cboStructure_ = cboStructure; }

Member Data Documentation

TYPE

constexpr const char* TYPE = "CBO"

staticconstexpr

Definition at line 38 of file cbo.hpp.

cboStructure_

CboStructure cboStructure_

private

Definition at line 68 of file cbo.hpp.
