BasicUnderlying Class Reference

#include <ored/portfolio/underlying.hpp>

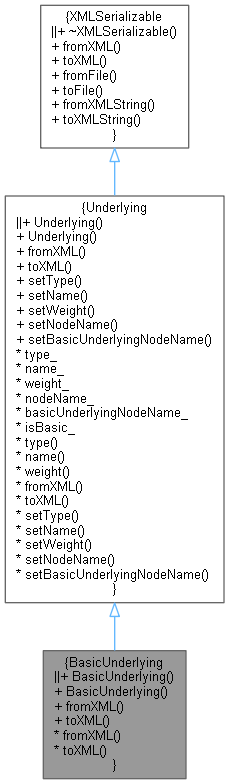

Inheritance diagram for BasicUnderlying:

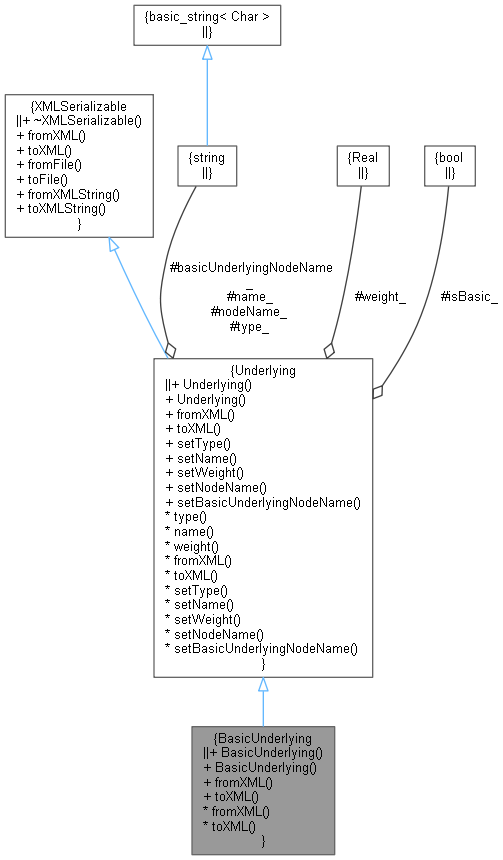

Collaboration diagram for BasicUnderlying:

Public Member Functions
	BasicUnderlying ()
	Default Constructor. More...
	BasicUnderlying (const std::string &name)
	Constructor with identifier. More...
Serialisation
void	fromXML (XMLNode *node) override
XMLNode *	toXML (XMLDocument &doc) const override
Public Member Functions inherited from Underlying
	Underlying ()
	Default Constructor. More...
	Underlying (const std::string &type, const std::string &name, const QuantLib::Real weight=QuantLib::Null< QuantLib::Real >())
	Constructor with type, name, weight. More...
void	setType (const string &type)
void	setName (const string &name)
void	setWeight (const QuantLib::Real weight)
void	setNodeName (const string &nodeName)
void	setBasicUnderlyingNodeName (const string &basicUnderlyingNodeName)
const std::string &	type () const
virtual const std::string &	name () const
Real	weight () const
Public Member Functions inherited from XMLSerializable
virtual	~XMLSerializable ()
virtual void	fromXML (XMLNode *node)=0
virtual XMLNode *	toXML (XMLDocument &doc) const =0
void	fromFile (const std::string &filename)
void	toFile (const std::string &filename) const
void	fromXMLString (const std::string &xml)
	Parse from XML string. More...
std::string	toXMLString () const
	Parse from XML string. More...

Additional Inherited Members
Protected Attributes inherited from Underlying
std::string	type_
std::string	name_
Real	weight_ = QuantLib::Null<QuantLib::Real>()
std::string	nodeName_
std::string	basicUnderlyingNodeName_
bool	isBasic_ = false

Detailed Description

Definition at line 75 of file underlying.hpp.

Constructor & Destructor Documentation

BasicUnderlying() [1/2]

BasicUnderlying

(

)

Default Constructor.

Definition at line 78 of file underlying.hpp.

                      : Underlying() {
        setType("Basic");
        isBasic_ = true;
    };

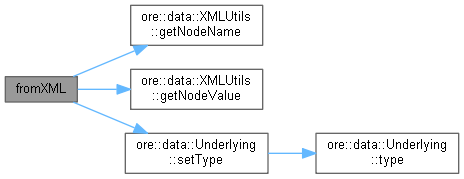

Here is the call graph for this function:

BasicUnderlying() [2/2]

BasicUnderlying ( const std::string &  name )

explicit

Constructor with identifier.

Definition at line 84 of file underlying.hpp.

: Underlying("Basic", name) { isBasic_ = true; }

Member Function Documentation

fromXML()

void fromXML ( XMLNode *  node )

overridevirtual

Reimplemented from Underlying.

Definition at line 50 of file underlying.cpp.

                                           {
    if (XMLUtils::getNodeName(node) == basicUnderlyingNodeName_) {
        name_ = XMLUtils::getNodeValue(node);
        isBasic_ = true;
    } else {
        QL_FAIL("Need a " << basicUnderlyingNodeName_ << " node for BasicUnderlying.");
    }
    setType("Basic");
}

Here is the call graph for this function:

toXML()

XMLNode * toXML ( XMLDocument &  doc ) const

overridevirtual

Reimplemented from Underlying.

Definition at line 60 of file underlying.cpp.

                                                      {
    XMLNode* node = doc.allocNode(basicUnderlyingNodeName_, name_);
    return node;
}

Here is the call graph for this function:
